binary trees

Binary Trees

Computer Science and Engineering

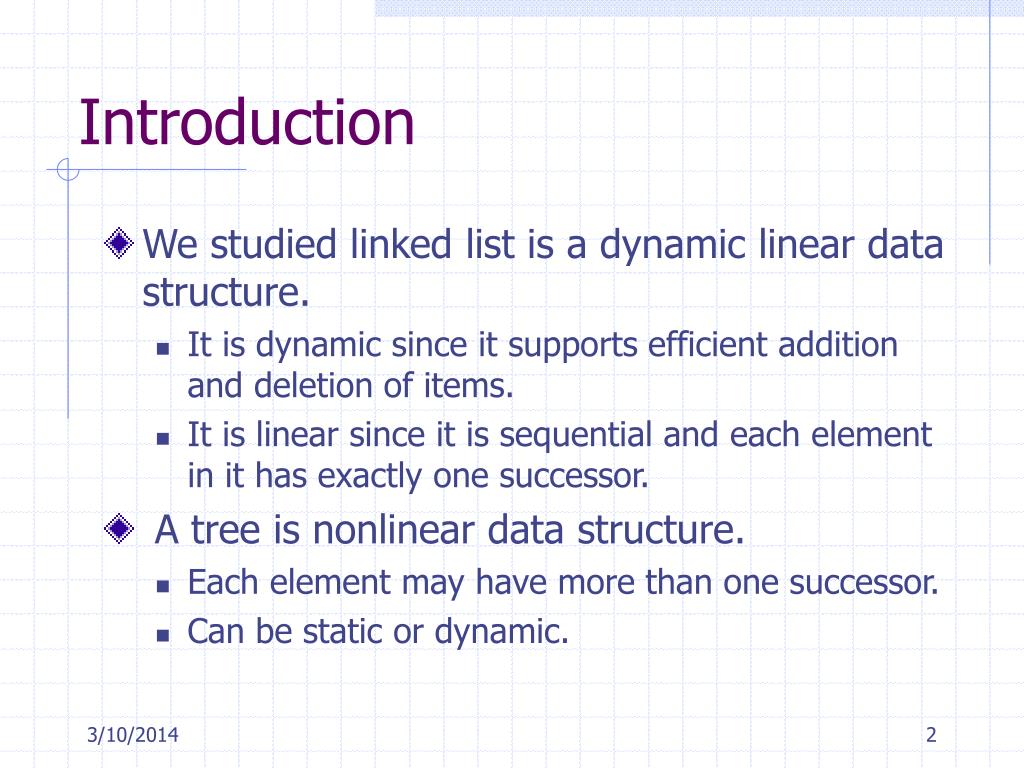

introduction
Introduction
  • We studied linked list is a dynamic linear data structure.
    • It is dynamic since it supports efficient addition and deletion of items.
    • It is linear since it is sequential and each element in it has exactly one successor.
  • A tree is nonlinear data structure.
    • Each element may have more than one successor.
    • Can be static or dynamic.

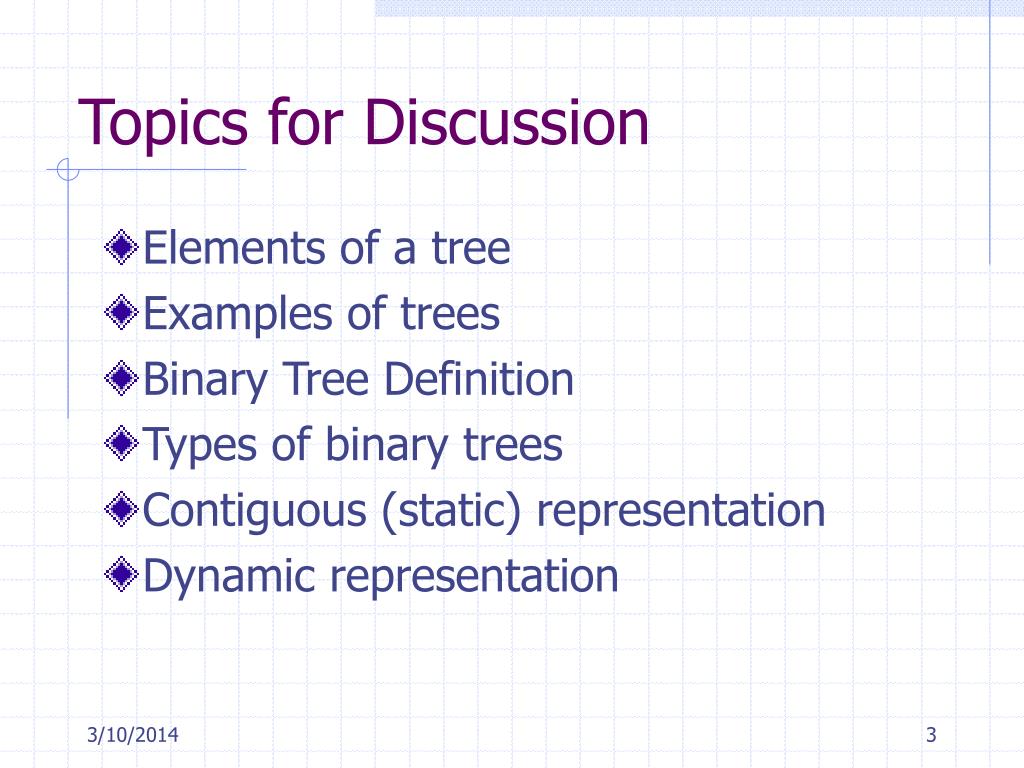

topics for discussion
Topics for Discussion
  • Elements of a tree
  • Examples of trees
  • Binary Tree Definition
  • Types of binary trees
  • Contiguous (static) representation
  • Dynamic representation
terminology
Terminology
  • Trees are used to represent relationships: items in a tree are referred to as nodes and the lines connecting the nodes that express the hierarchical relationship are referred to as edges.
  • The edges in a tree are directed.
  • Trees are hierarchical which means that a parent-child relationship exist between the nodes in the tree.
  • Each node has at most one parent. The node with no parents is the root node.
  • The nodes that have no successors (no children nodes) are known as leaf nodes.
  • Lets look at some examples and identify the various elements.
examples
Examples
  • Family ancestor tree
  • Directory of files organization in your computer system
  • Parse tree
    • Languages are defined using grammar
    • Grammars are specified using rules or syntax
    • Syntax is expressed using a notation called Backaus-Naur Form (BNF) (John Backus and Peter Naur)
  • Expression trees
  • Game trees

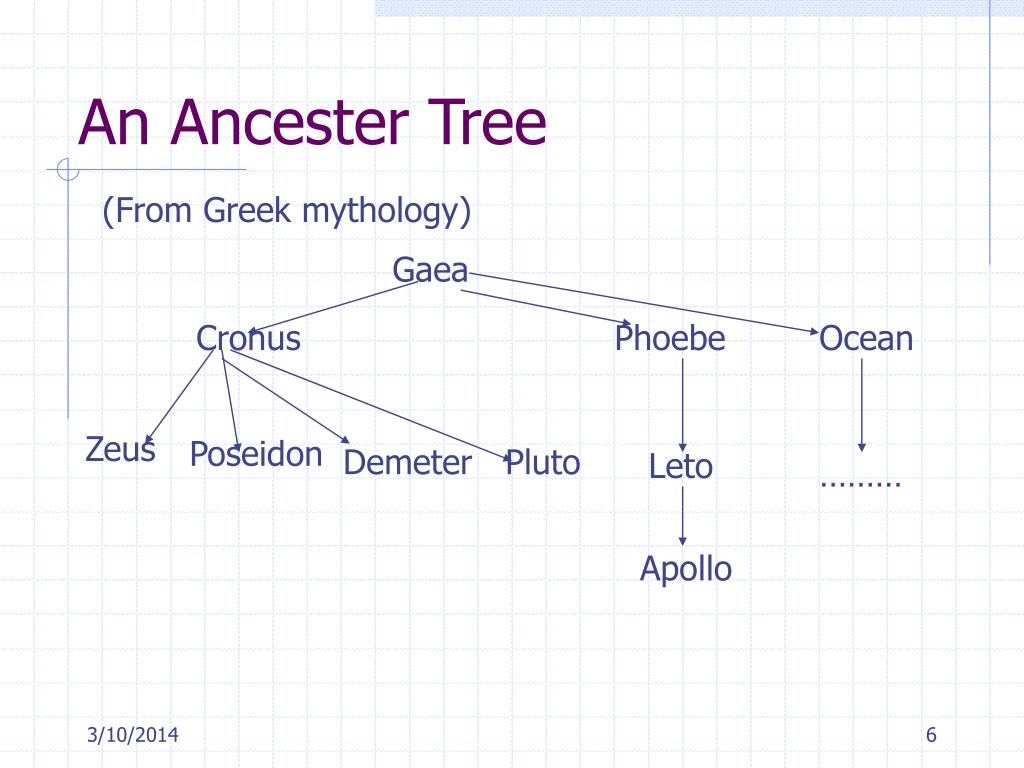

an ancester tree
An Ancester Tree

(From Greek mythology)

Gaea

Cronus

Phoebe

Ocean

Zeus

Poseidon

Demeter

Pluto

Leto

………

Apollo

bnf for a language
BNF for a Language
  • BNF notation includes nonterminals and terminals.
    • Terminals are literals or particular symbols.
    • Nonterminals are general expressions that can be substituted with terminals and nonterminals. Grammar rules specify the definition of a nonterminal. Nonterminals are enclosed with angle brackets <nonterminal>
    • Symbols used in construction include ::= (defines), | (or) and other common operators.
bnf for a java statement
BNF for a Java Statement

<statement> ::= <selection-stmt> | <other-stmt>

<selection-stmt> ::= if (<expr>) <statement>

else <statement>

<expr>::= <relational-expr>|<assign-expr>|<identifier>

<relational-expr> ::= <expr> <rel-op> <expr>

<assign-expr> ::= <expr> = <expr>

parse tree
Parse tree

<statement>

<selection-stmt>

if

(

<expr>

)

<statement>

else

<statement>

<expr>

<relational-expr>

<expr>

<expr>

<rel-op>

….

A major task of the

compiler is to construct

a parse tree from the

input program and verify

it is correct.

<identifier>

<identifier>

<

b

a

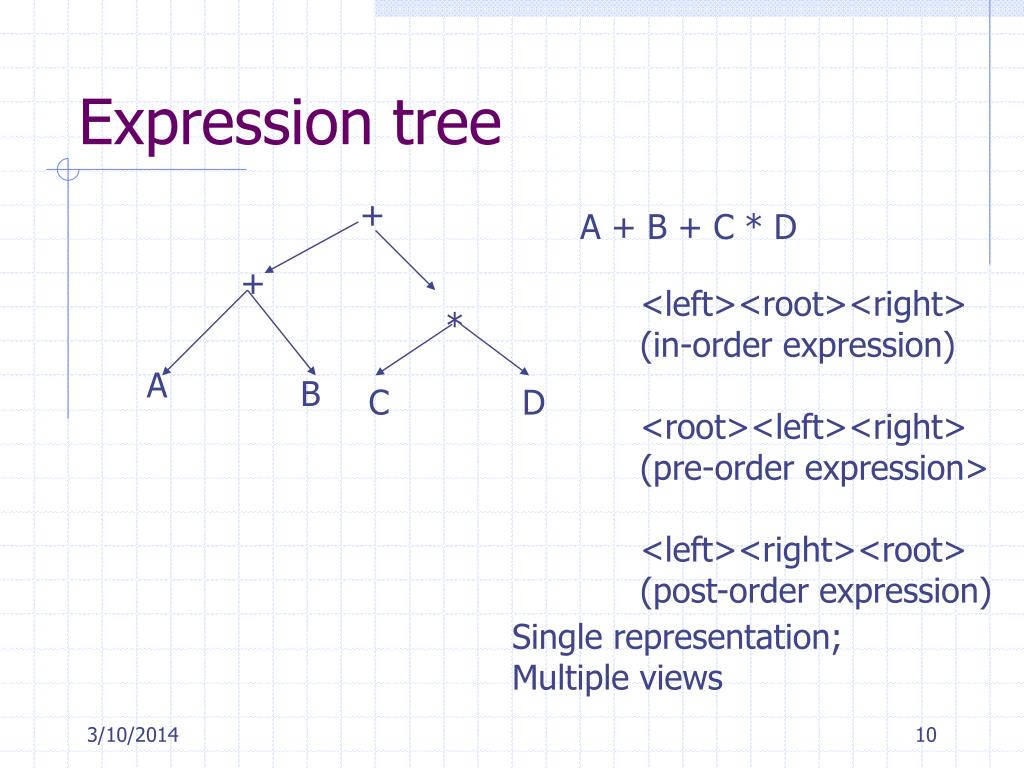

expression tree
Expression tree

+

A + B + C * D

+

<left><root><right>

(in-order expression)

<root><left><right>

(pre-order expression>

<left><right><root>

(post-order expression)

*

A

B

C

D

Single representation;

Multiple views

game tree

X

X

X

X

X

X

X

X

X

X

X

X

Game Tree

……

X

X

X

….

X

X

X

X

X

X

binary tree
Binary Tree
  • A binary tree can be defined recursively as follows. It is either
    • empty, or
    • consists of a root node together with left and right trees, both of which are binary trees.

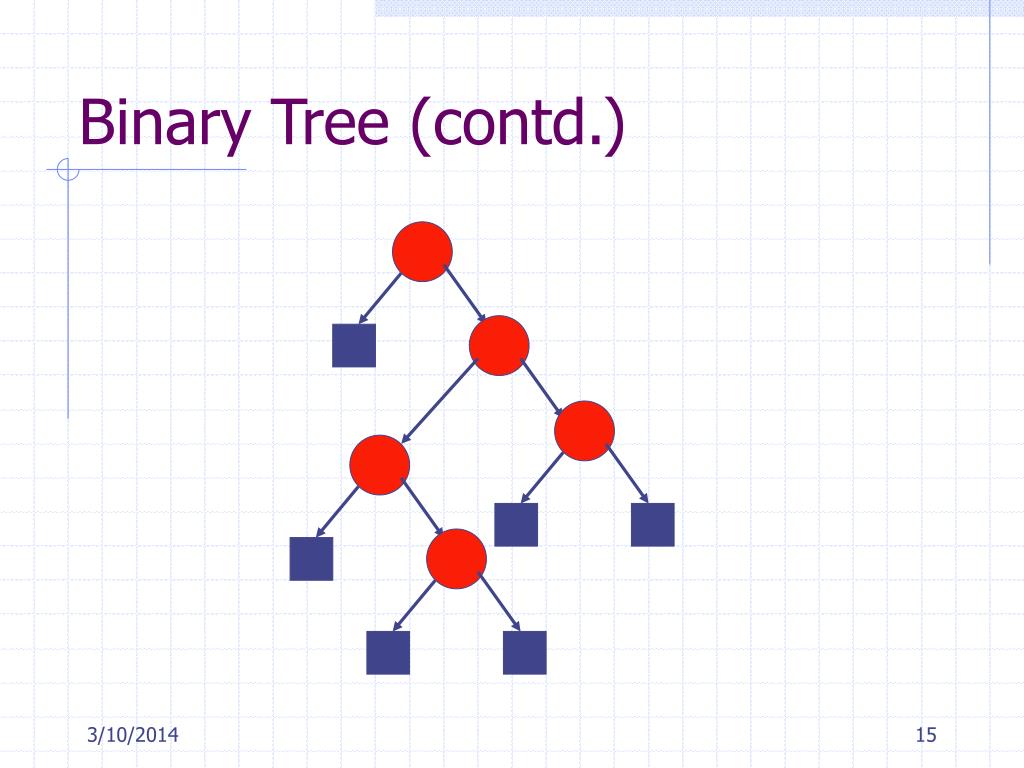

binary tree13
Binary Tree

NonEmpty

Empty

NullObject (pattern)

Singleton (pattern)

characteristics of trees
Characteristics of trees
  • A path is a sequence of nodes n1, n2, ..., nk such that node ni is the parent of node ni+1 for all 1 <= i <= k.
  • The length of a path is the number of edges on the path.
  • The height of a node is the length of the longest path from the node to a leaf.
  • The height of tree is the height of its root.
  • The level of a node is the length of the path from the root to the node.

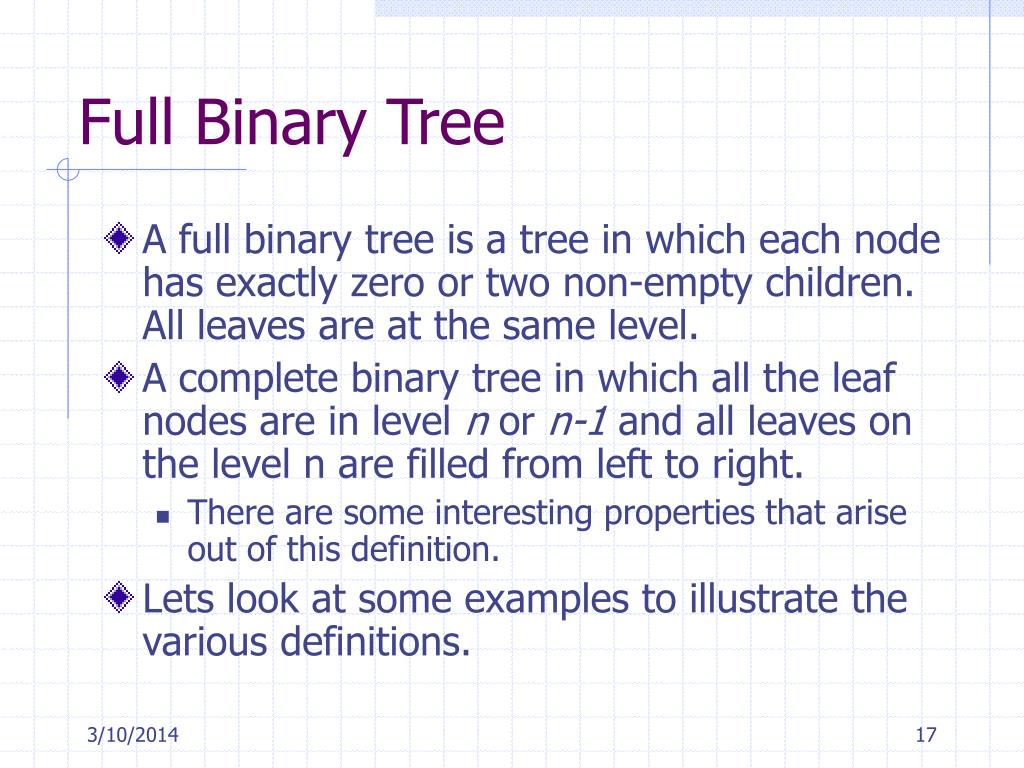

full binary tree
Full Binary Tree
  • A full binary tree is a tree in which each node has exactly zero or two non-empty children. All leaves are at the same level.
  • A complete binary tree in which all the leaf nodes are in level n or n-1 and all leaves on the level n are filled from left to right.
    • There are some interesting properties that arise out of this definition.
  • Lets look at some examples to illustrate the various definitions.
example
Example

root

Level 0

Level 1

internal node

Height of

the tree:3

leaf

complete binary tree contd
Complete binary tree (contd.)
  • Number the N nodes sequentially, from 1.. N, starting with the root , level by level from left to right.
  • Parent(n) = floor(n/2) for n>1
  • Left child(n) = 2n (if 2n <= N, else no left child)
  • Right child(n) = 2n+1 (if 2n+1 <= N, else no right child)
  • The node number of children and parent can be calculated for a given node n.

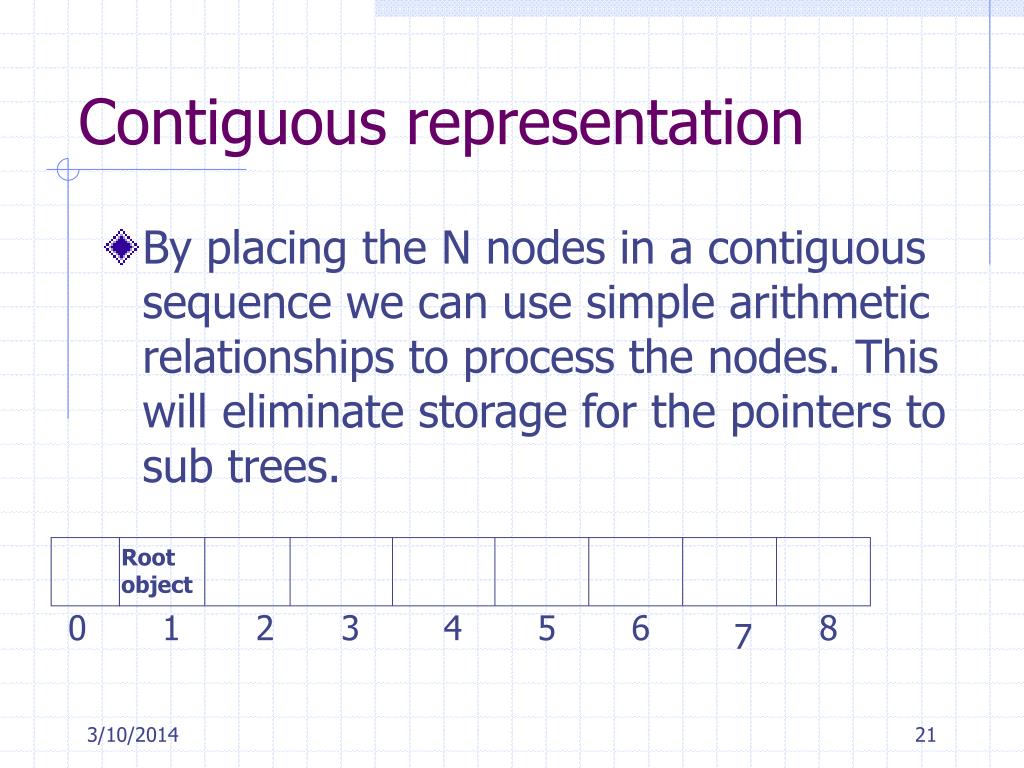

contiguous representation
Contiguous representation
  • By placing the N nodes in a contiguous sequence we can use simple arithmetic relationships to process the nodes. This will eliminate storage for the pointers to sub trees.

Root

object

0

1

2

3

4

5

6

8

7

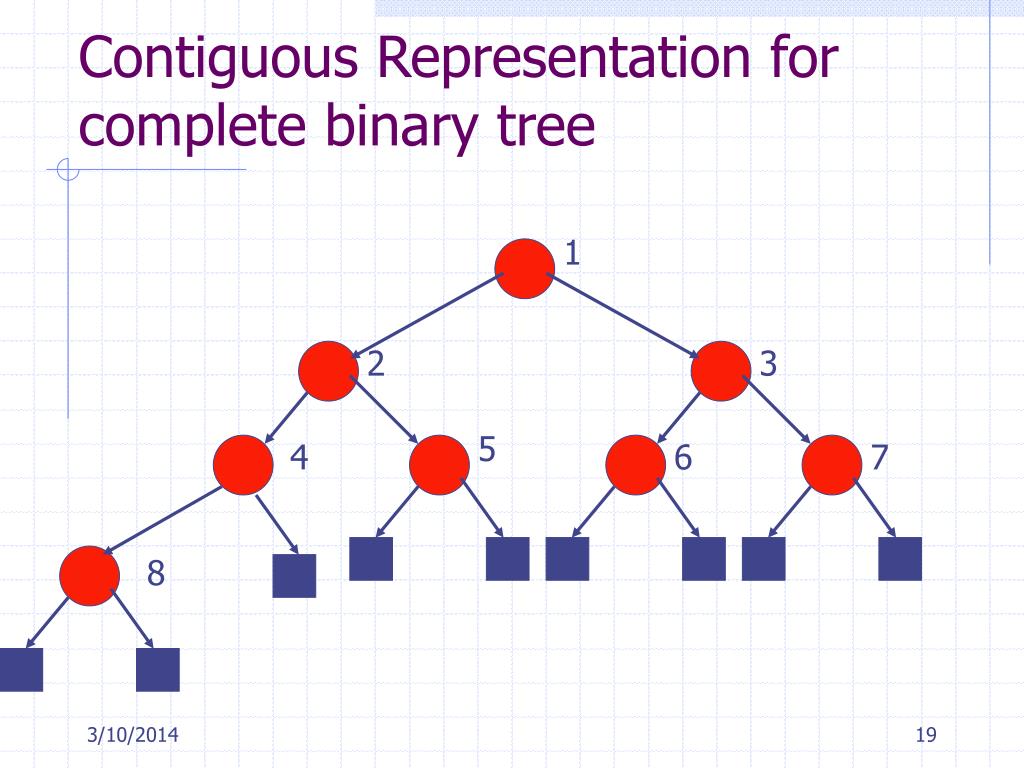

array representation
Array Representation
  • Refer to the array in slide 21 which represents the complete binary tree in slide 19;
  • Array index 1 has the root object, 2 and 3 the left and right sub tree of root object respectively and so on.
  • The storage needed for the pointers to the left and right sub tree for each node is eliminated;
  • But the location need to be calculated every time a node is accessed. Trade off is between the storage need for the pointers and extra execution time incurred for computing the location.
linked representation
Linked Representation
  • In its simplest form

class BTree{

Object obj;

BTree left;

BTree right;

//constructor get, set methods

//public Object acceptVisitor(…) //for all other //operations

}

linked representation24

BTreeInterface

Object getData( )

Object getLeft( )

Object getRight( )

void setData( )

void setLeft( )

void setRight( )

BTree

Linked Representation
  • Simple interface/implementation

/application

  • Addition of a visitor (Visitor Pattern)
  • State-based implementation
methods for tree class
Methods for Tree class
  • Trees are very widely used in many applications.
  • It is simply impossible and impractical to think of all the applications to decide the operations to implement in a tree class. Many may not be known apriori.
  • Even if you implement all possible operations you can think of, only a small subset may be used by a given application. For example, preorder traversal may not be needed for game tree application.
  • Solution: add operations to the tree class depending on the application.
    • This requires recompilation.
  • Another solution is to use a Visitor pattern.

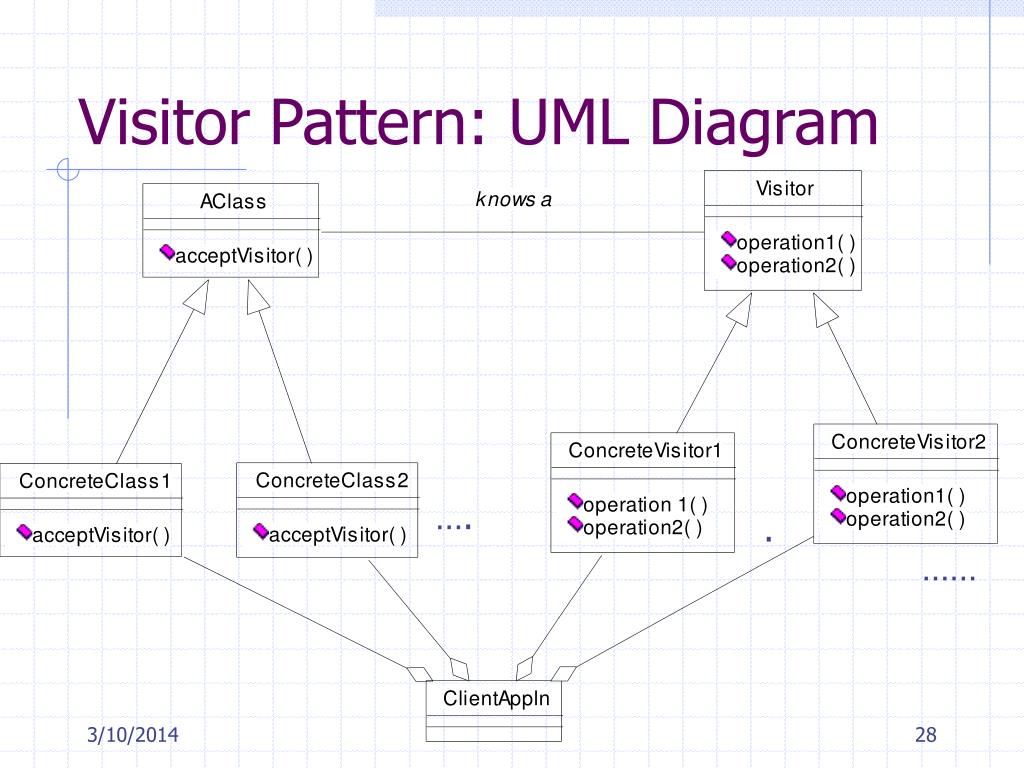

visitor pattern
Visitor Pattern
  • Visitor Pattern: elegant solution that allows for future addition of an operation to a class. The operation need not be known to a class at the time of its implementation.
  • Requirements:
    • Class (say, AClass) should have a method to accept visitors (say, acceptVisitor). That is, AClass and its subclasses receive visitors thru’ this method.
    • Visitor super class (say, interface Visitor) that specifies the signatures for the methods (operations) to be implemented by concrete visitors, one operation per concrete subclass of AClass.
    • acceptVisitor method should be passed an object reference to the visitor and place holders for input and output data (objects). This method is independent of implementation/name of the concrete visitors.
    • Concrete visitor has implementations of the operations specified in the interface Visitor.
using a visitor
Using a Visitor
  • In an application:
    • Instantiate an object, say host, of concrete class of AClass.
      • Btree host = new Btree();
    • Instantiate an object, aVisitor, of concrete visitor class.
      • Visitor aVisitor = new WeightVisitor();
    • To carry out the operation defined in the visitor, make the “host” class “accept” the “visitor” through the acceptVisitor method.
      • Object result = host.acceptVisitor(aVisitor, inputObj);
state based btree
State-based BTree
  • Two states: EmptyTree and NonEmptyTree
  • Abstract class unifying the states: ATreeState
  • BTreeInterface specifying signatures for the binary tree including acceptVisitor()
  • BTree concrete class that has a acceptVisitor
  • Implementation of basic operations (set, get, etc.)
  • Implementation of concrete visitors for various operations.
