minerals

MINERALS

http://sciencespot.net/Media/mghtmincl.gif

mineral composition
Mineral Composition

•     Minerals are made of elements

  • Elements are made up of atoms
  • Atoms are the basic building blocks of all matter. They are invisible
  • Atoms are organized on the Periodic Table of Elements
atoms
Atoms
  • They contain 3 parts…
  • Protons
    • Found in the nucleus
    • Positive charge
  • Neutrons
    • Found in the nucleus
    • Charge of 0
  • Electrons
    • Orbits the nucleus
    • Negative charge
element
Element
  • A substance in which all of the atoms are the same.
  • The major elements in Earth’s crust are
    • O - Oxygen
    • Si -Silicon
    • Al -Aluminum
    • Fe -Iron
  • Acompound is a substance in which there are 2 or more types of atoms.
periodic table where elements are arranged

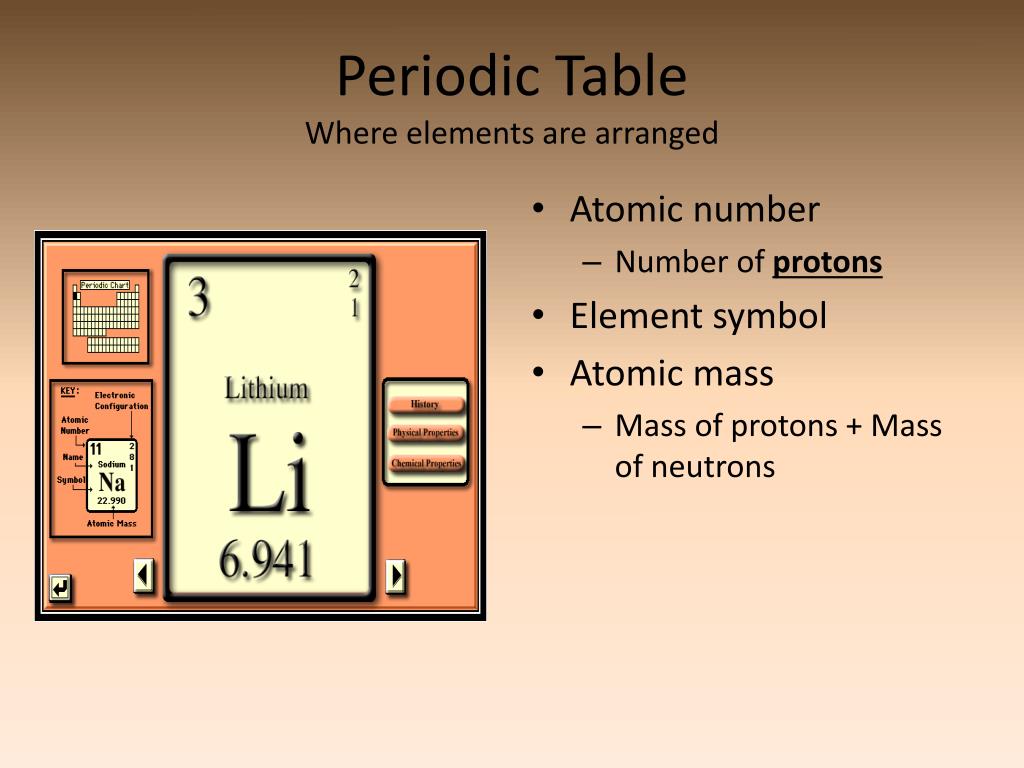

Periodic TableWhere elements are arranged
  • Atomic number
    • Number of protons
  • Element symbol
  • Atomic mass
    • Mass of protons + Mass of neutrons
symbols to know
Symbols to know
  •       Aluminum – Al
  •       Calcium – Ca
  •       Carbon – C
  •       Chlorine – Cl
  •       Copper – Cu
  •       Helium – He
  •       Hydrogen – H
  •       Iron – Fe
  •       Lead – Pb
  •       Gold- Au
  •       Argon- Ar
  •       Magnesium – Mg
  •       Mercury - Hg
  •       Nitrogen – N
  •       Oxygen – O
  •       Potassium – K
  •       Silicon – Si
  •      Sodium – Na
  •       Sulfur – S
  •       Uranium – U
  • Silver- Ag
    • Phosphorus-P
periodic table information
Periodic Table Information
  • Each element is made of all the same kind of atom
  • Elements can combine together to form compounds which have a definite chemical formula
  • Which elements combine depend on the electron configuration.
  • Substances can combine to form mixtures.
connection to minerals
Connection to Minerals
  • Minerals are made up of a single element or a compound.
  • Since compounds are combinations of elements, it is important to know how and why elements combine.
  • The properties of minerals are due to the internal structure of the atoms.
    • Otherwise known as their crystal arrangement.
  • 6 crystal structures
slide9
Is it possible for two different minerals to have the same chemical composition?
    • YES! Both diamond and graphite are made of carbon. The difference between these two minerals is the way in which the carbon atoms are arranged.
silicon oxygen tetrahedron sio 4

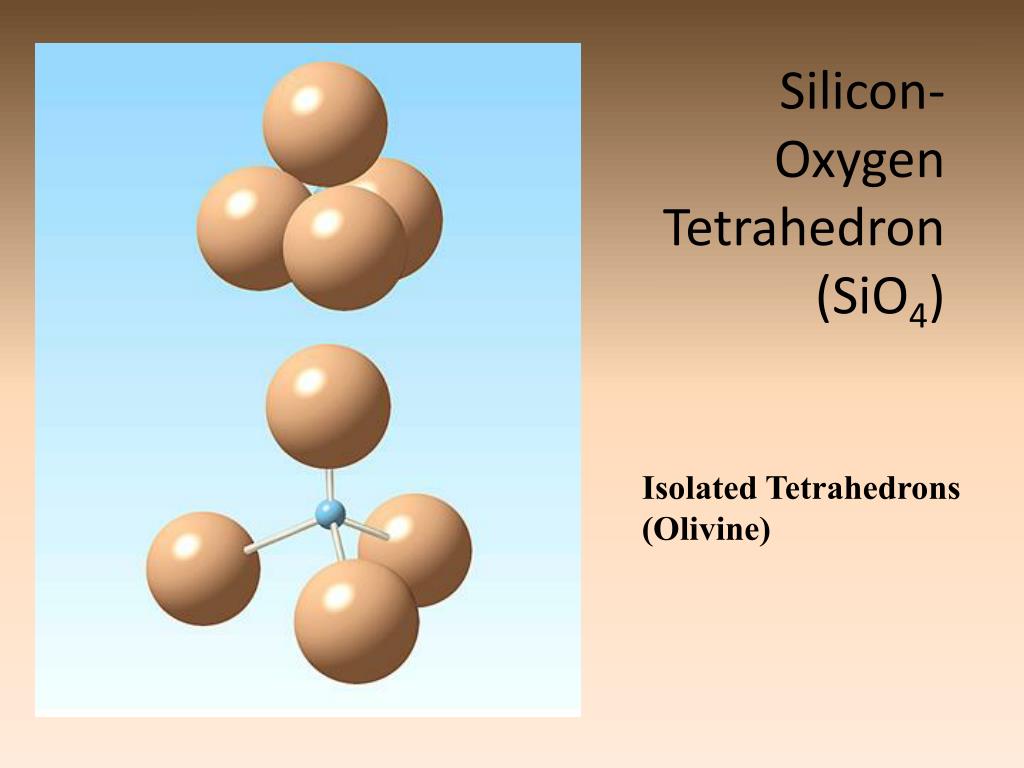

Silicon-OxygenTetrahedron(SiO4)

Isolated Tetrahedrons

(Olivine)

tetrahedron arrangement
Tetrahedron Arrangement

Single-Chain

Double-Chain

Sheet

Pyroxene

Amphibole

Mica

characteristics of a mineral
Characteristics of a Mineral
  • Naturally occurring
  • Inorganic (generally)
  • Solid substance
  • Definite chemical composition
  • Orderly crystalline structure

pyrite

http://www.windows2universe.org/earth/geology/images/pyrite_sm.jpg

what are minerals
What are minerals?
  • Minerals are aggregates of rocks.
  • This means many different minerals make up rocks.
  • Some major rock forming minerals
    • Quartz
    • Feldspar
    • Calcite
    • Mica
mineral formation
Mineral Formation
  • Cooling of magma- The slower the rate of cooling the larger the crystal.
  • Precipitation

- evaporation of water leaves the mineral behind- precipitate

3. Pressure and Temperature

- causes atoms to rearrange and form new minerals

4. Hydrothermal solutions

-mineral formation from hot mixtures.

mineral groups
Mineral Groups
  • 4000 minerals make up the Earth’s crust, but 98% of the crust is made up of only 8 elements.
  • Most rock forming minerals are silicates.
  • Silicates are minerals that contain silicon and oxygenand usually one or two more elements.
  • Other minerals are classified by their composition. Examples include carbonates, oxides, and halides.
silicates
Silicates

contain silicon and oxygen, the two most common elements in Earth’s crust

- make up 90% of all minerals

-common silicates: feldspar, quartz

http://volcano.oregonstate.edu/vwdocs/vwlessons/lessons/Slideshow/Show1/k-spar11.jpg

http://mineralminers.com/images/rock-crystal/quartz-crystals/quartz-crystal-clusters.jpg

non silicates
Non silicates
  • Non-silicates –

-do not contain a combination of silicon & oxygen

http://ms.yccd.edu/earth_science/PhysicalGeology/nonsilicates.jpg

carbonates
Carbonates
  • Composed of carbonate compound: CO3
  • Examples: calcite and dolomite

http://richardkruse.com/Misc_Photos/Minerals/Mineral_Calcite_RK2008.jpg

http://portableplant.net/oreimages/dolomite.jpg

oxide group
Oxide Group
  • Composed of oxygen and a metal
  • Examples: hematite and magnetite

http://www.mii.org/Minerals/minpics/Magnetite.jpg

http://www.redorbit.com/media/uploads/2004/10/28_30e4ecba792d2b734beb4d32901c1f58.jpg

sulfates and sulfides
Sulfates and Sulfides
  • Minerals that contain element sulfur
    • Sulfates:
      • Anhydrite
      • Gypsum
    • Sulfides
      • Galena
      • pyrite

gypsum

http://geology.com/minerals/photos/gypsum-159.jpg

pyrite

http://www.mineralminers.com/images/pyrite/mins/pytm174.jpg

halides
Halides
  • Contain a halogen
  • From Group 17
  • Example: halite (NaCl)- tastes like salt!
native elements

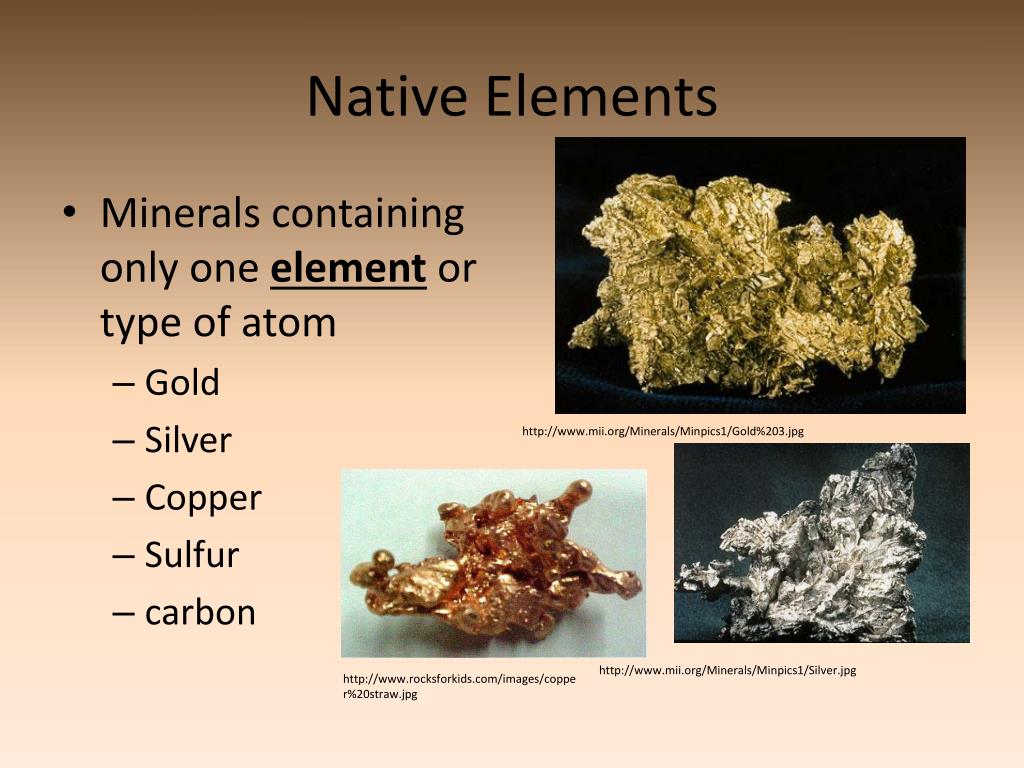

Native Elements
  • Minerals containing only one element or type of atom
    • Gold
    • Silver
    • Copper
    • Sulfur
    • carbon

http://www.mii.org/Minerals/Minpics1/Gold%203.jpg

http://www.mii.org/Minerals/Minpics1/Silver.jpg

http://www.rocksforkids.com/images/copper%20straw.jpg

two major mineral groups
Two Major Mineral Groups

Silicates

Non-silicates

Carbonates

Oxides

Sulfates

sulfides

Halides

Native Elements

Contain silicon and oxygen; olivine, mica, feldspar, quartz

Contain Sulfur; gypsum, galena, pyrite

Contain a halogen – From Group 17; halite (NaCl)

Contain only one type of atom or element; gold, silver, copper

Contain O and one or more other elements, Usually a metal; hematite

Contain C, O and one or more other metallic elements; calcite, dolomite

mineral physical and chemical properties
MineralPhysical and Chemical Properties

http://www.kgs.ku.edu/Extension/KGSrocks/jpegs/Displaycase2.jpg

properties of minerals mineral identification

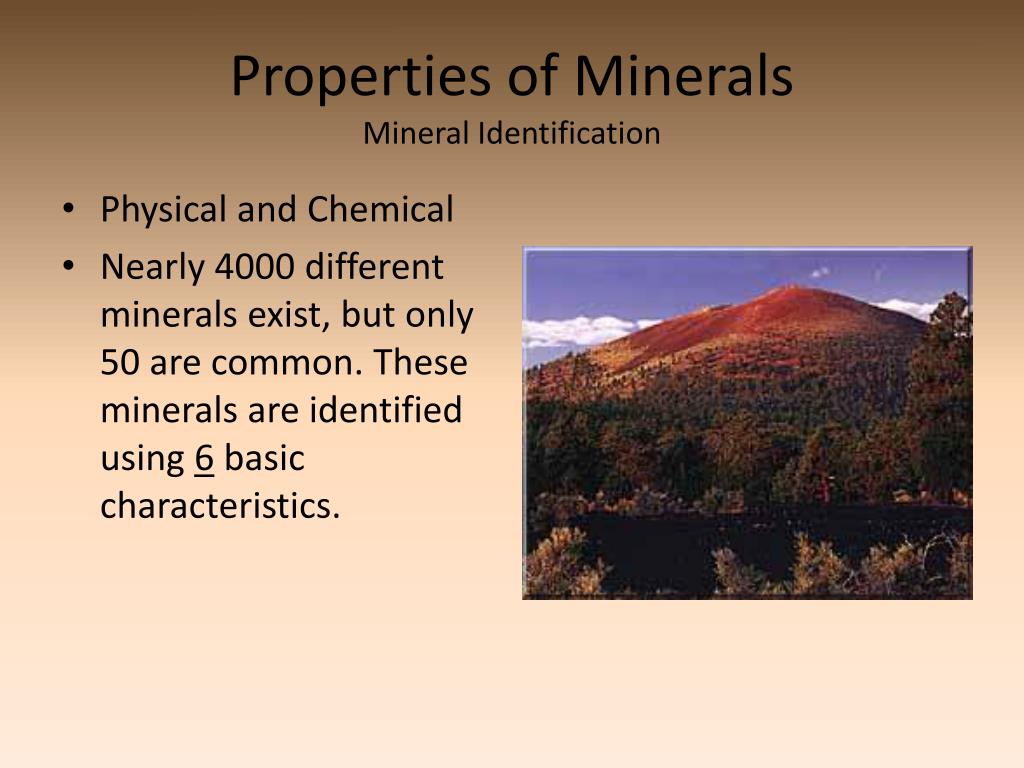

Properties of MineralsMineral Identification
  • Physical and Chemical
  • Nearly 4000 different minerals exist, but only 50 are common. These minerals are identified using 6 basic characteristics.
color
Color

The same mineral may exhibit many different colors

Ex: Quartz rose/purple/smoky/clear

NOT a good mineral identifier

COLOR

hardness
Hardness
  • The measure of resistance to abrasion.
  • Hardness is measured on a scale called Mohs Hardness scale.
  • Talc is the softest mineral.
  • Quartz is the hardest common mineral.
  • Diamond is the hardest mineral

http://upload.wikimedia.org/wikipedia/commons/a/a5/QuartzUSGOV.jpg

Quartz

Diamond

Talc

slide28
Four common objects that are used to test hardness:

your fingernail (hardness is approx. 2.5)

a copper penny (hardness is approx. 3.0)

a steel knife blade (hardness is approx. 5.5)

glass (hardness is approx. 6.0)

HARDNESS

streak
Streak
  • The color of the mineral in powder form.
  • This can be determined by using a streak plate.
  • Metallic minerals leave a dark streak.
  • The color of a powdered sample of a mineral – always the same!
luster
Luster
  • The appearance or quality of light reflected from a minerals surface.
  • The luster can be metallic or nonmetallic.
  • If a mineral is nonmetallic it can have vitreous, pearly, resinous or earthy luster.
density specific gravity
Density (Specific Gravity)
  • All minerals have density (mass / volume), but some are very dense
  • Specific Gravity is the density of the mineral compared with density of water

http://www.minerals.net/mineral/elements/gold/gold1.htm

cleavage
Cleavage

Cleavage of BiotiteMica: one-directional

  • Tendency of mineral to cleave, or break, along flat, even surfaces, where bonding is weak.
  • Mica has excellent cleavage.
    • It breaks into thin sheets

Rhombic Cleavage of Calcite: (3-directions)

Cubic Cleavage of Halite: 3-directions

fracture
Fracture
  • The mineral exhibits no cleavage.
  • Fracture is a type of break where uneven jagged surfaces are produced.
  • If a mineral breaks in smooth curved surfaces it has conchoidal fracture.
  • Examples = sulfur & pyrite fracture
unique properties of minerals
Unique properties of minerals
  • Effervescence
    • When dilute HCL acid is dropped on a mineral it begins to bubble. This identifies the presence of Calcium Carbonate.
  • Florescence
    • The mineral glows when you put it under UV light (blacklight)
  • Magnetism
    • The mineral exhibits magnetic properties.
  • Double Refraction
    • Mineral refracts light and gives “double refraction”
magnetic properties example magnetite
Magnetic PropertiesExample = Magnetite

Acid TestCalcite reacts with dilute hydrochloric acid

Halite tastes like salt.

Double Refractionexample = Calcite

Graphite has a greasy feel.

Sulfur – strong smell

slide39

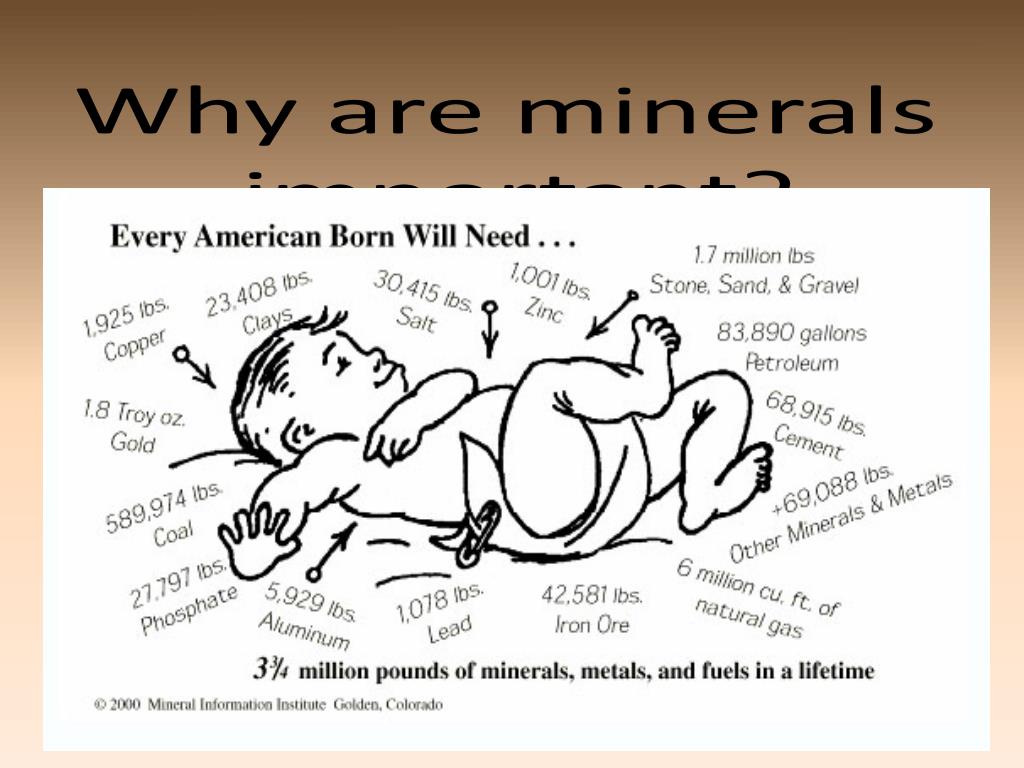

Why are minerals

important?

  • Minerals make up rocks
  • Provide valuable resources

- Economic and manufacturing resources

  • Key evidence that the Earth and dynamic and changing
slide40
Ore
  • Ores are minerals that contain useful substances that can be mined for profit.
  • A common example is bauxite which is turned into aluminum.
    • Major ore minerals:
      • Pyrite
      • Magnetite
      • Hematite
      • Galena
      • Graphite
      • sulfur

Iron Ore

uses of minerals
Uses of minerals
  • Aluminum--packaging, transport, building
  • Beryllium--gemstones, fluorescent lights
  • Copper--electric cables, wires, switches
  • Feldspar--glass and ceramics
  • Iron--buildings, automobiles, magnets
  • Calcite--toothpaste, construction
  • Gold is used for jewelry
  • Talc is used for baby powder
  • Quartz is used for glass
  • Limestone can be processed to make concrete
  • Gems are brighter and more colorful than common minerals. This makes them rare and highly prized.

http://buygoldinternational.com/img/upload/gold-jewelry.jpg
