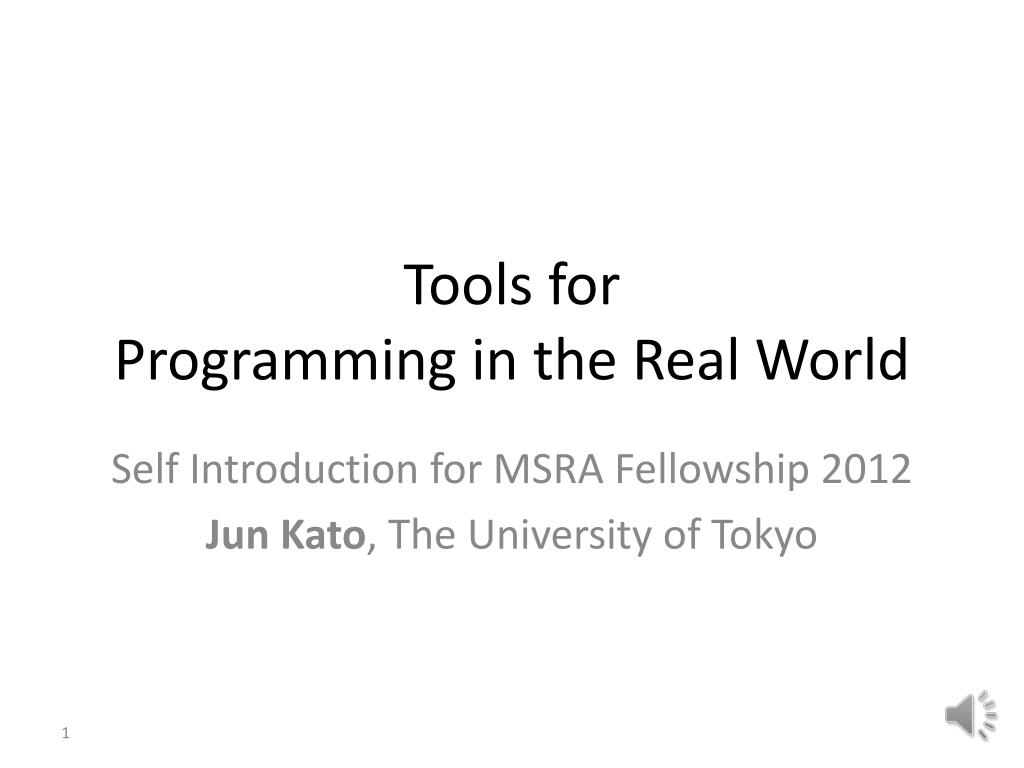

  1. Tools forProgramming in the Real World Self Introduction for MSRA Fellowship 2012 Jun Kato, The University of Tokyo

  2. Jun Kato • 2nd- year PhD candidate • Igarashi Laboratory, The University of Tokyo • Concentration: Human-Computer Interaction • Especially, Tools for Programming in the Real World

  3. Agenda • My motivation for the research • Introduction of the projects • Ideas for new projects

  4. Tools for Programming in the Real World My motivationfor the research

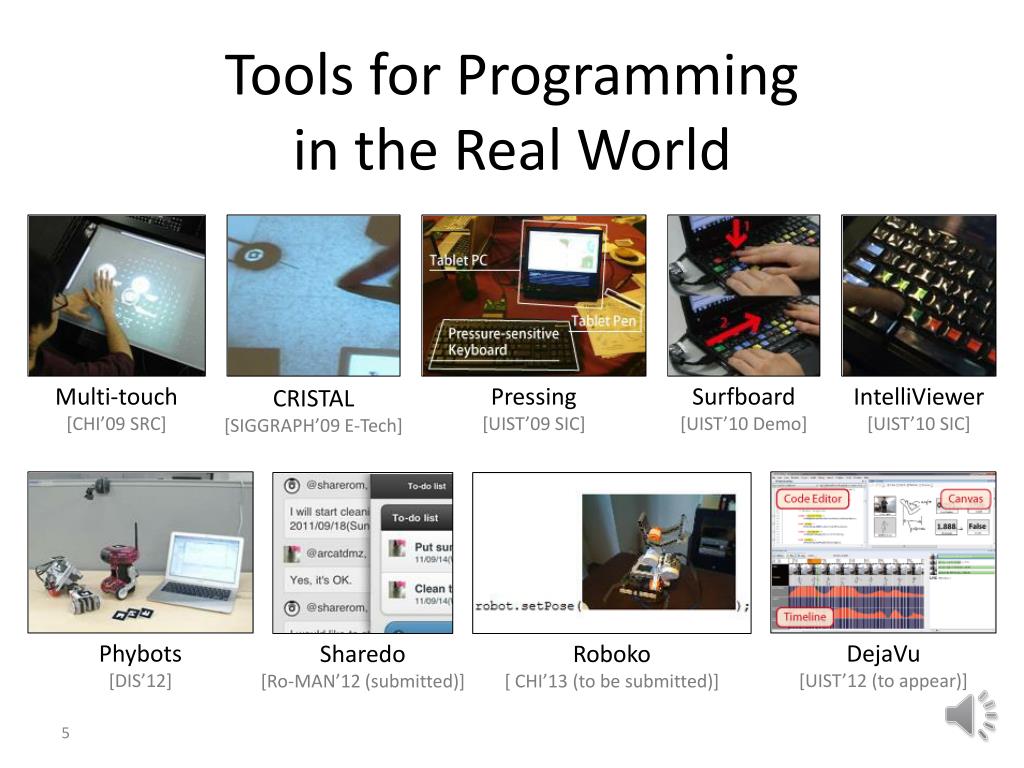

  5. Tools for Programmingin the Real World Pressing [UIST’09 SIC] IntelliViewer [UIST’10 SIC] Multi-touch [CHI’09 SRC] Surfboard [UIST’10 Demo] CRISTAL [SIGGRAPH’09 E-Tech] DejaVu [UIST’12 (to appear)] Phybots [DIS’12] Sharedo [Ro-MAN’12 (submitted)] Roboko [ CHI’13 (to be submitted)]

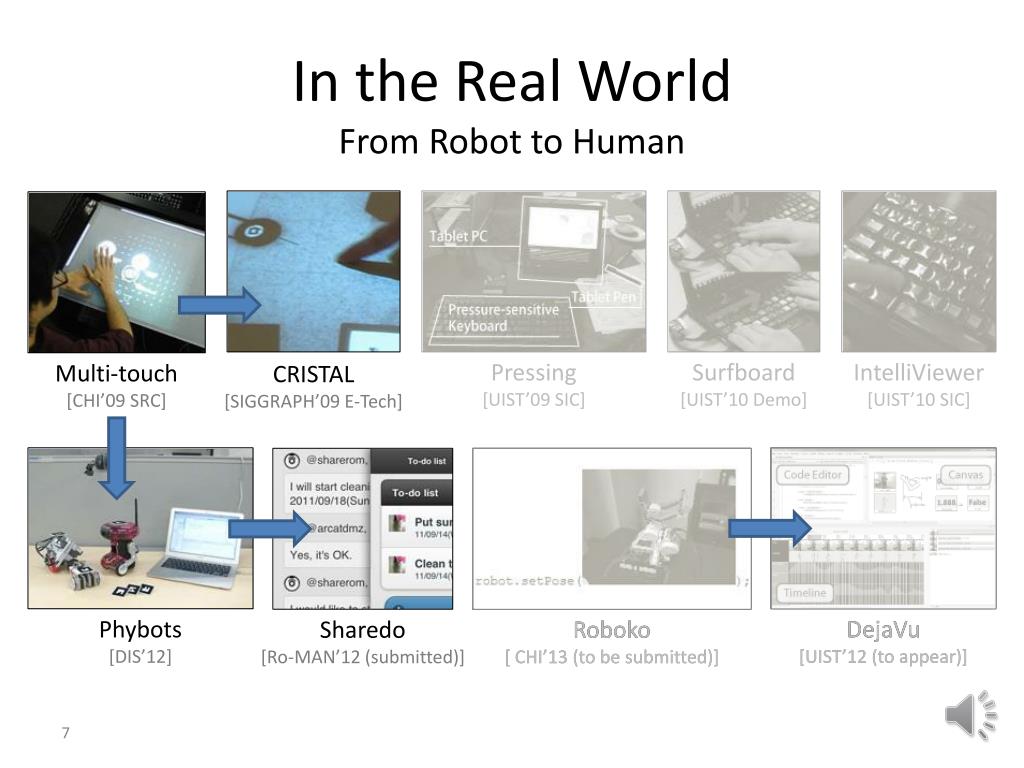

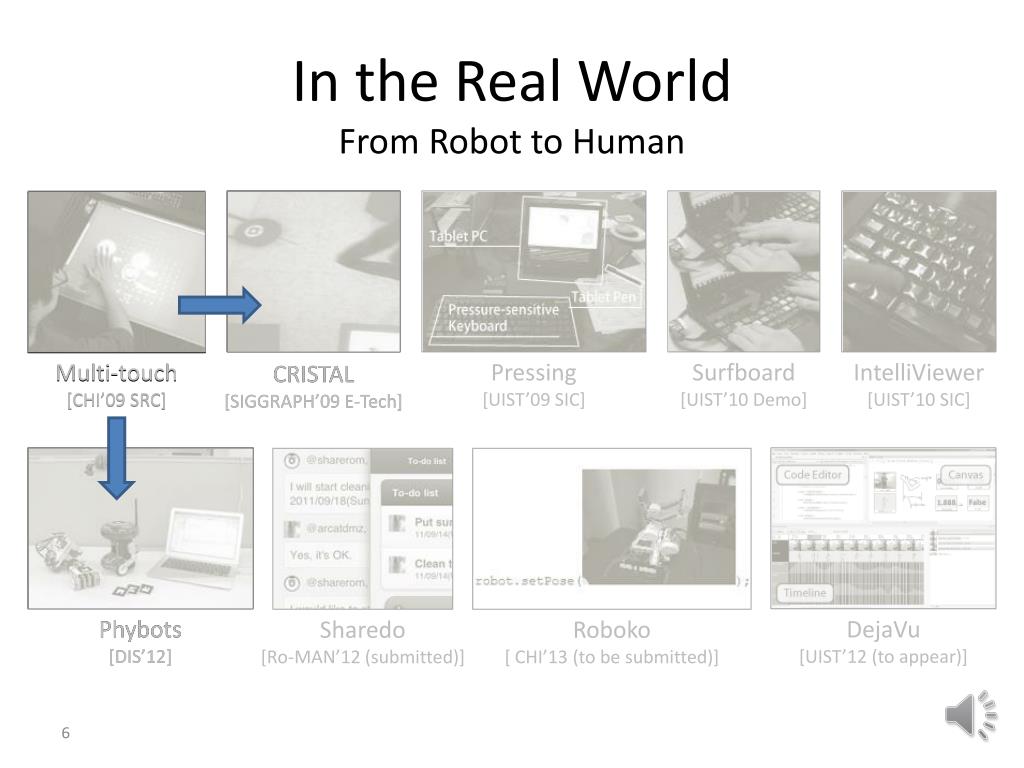

  6. In the Real WorldFrom Robot to Human Pressing [UIST’09 SIC] IntelliViewer [UIST’10 SIC] Multi-touch [CHI’09 SRC] Multi-touch [CHI’09 SRC] Surfboard [UIST’10 Demo] CRISTAL [SIGGRAPH’09 E-Tech] CRISTAL [SIGGRAPH’09 E-Tech] DejaVu [UIST’12 (to appear)] Phybots [DIS’12] Phybots [DIS’12] Sharedo [Ro-MAN’12 (submitted)] Roboko [ CHI’13 (to be submitted)]

  7. In the Real WorldFrom Robot to Human Pressing [UIST’09 SIC] IntelliViewer [UIST’10 SIC] Multi-touch [CHI’09 SRC] Surfboard [UIST’10 Demo] CRISTAL [SIGGRAPH’09 E-Tech] DejaVu [UIST’12 (to appear)] DejaVu [UIST’12 (to appear)] Phybots [DIS’12] Sharedo [Ro-MAN’12 (submitted)] Roboko [ CHI’13 (to be submitted)] Roboko [ CHI’13 (to be submitted)]

  8. Tools for ProgrammingFrom Keyboard to IDE Pressing [UIST’09 SIC] IntelliViewer [UIST’10 SIC] Multi-touch [CHI’09 SRC] Multi-touch [CHI’09 SRC] Surfboard [UIST’10 Demo] CRISTAL [SIGGRAPH’09 E-Tech] DejaVu [UIST’12 (to appear)] DejaVu [UIST’12 (to appear)] Phybots [DIS’12] Phybots [DIS’12] Sharedo [Ro-MAN’12 (submitted)] Roboko [ CHI’13 (to be submitted)] Roboko [ CHI’13 (to be submitted)]

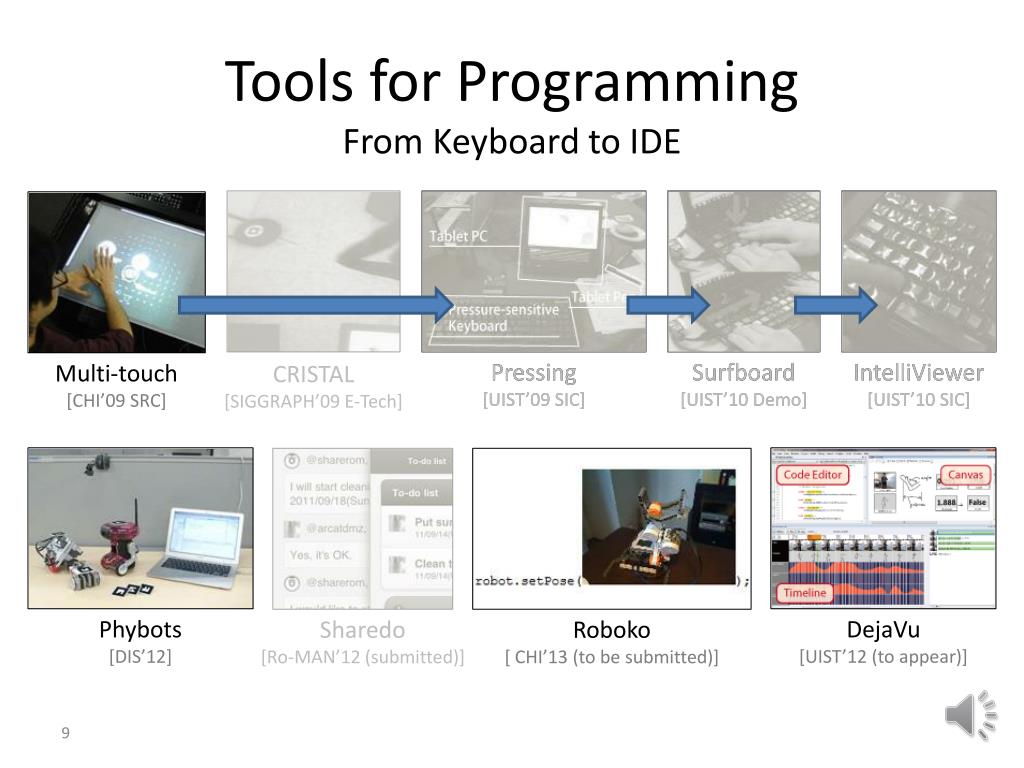

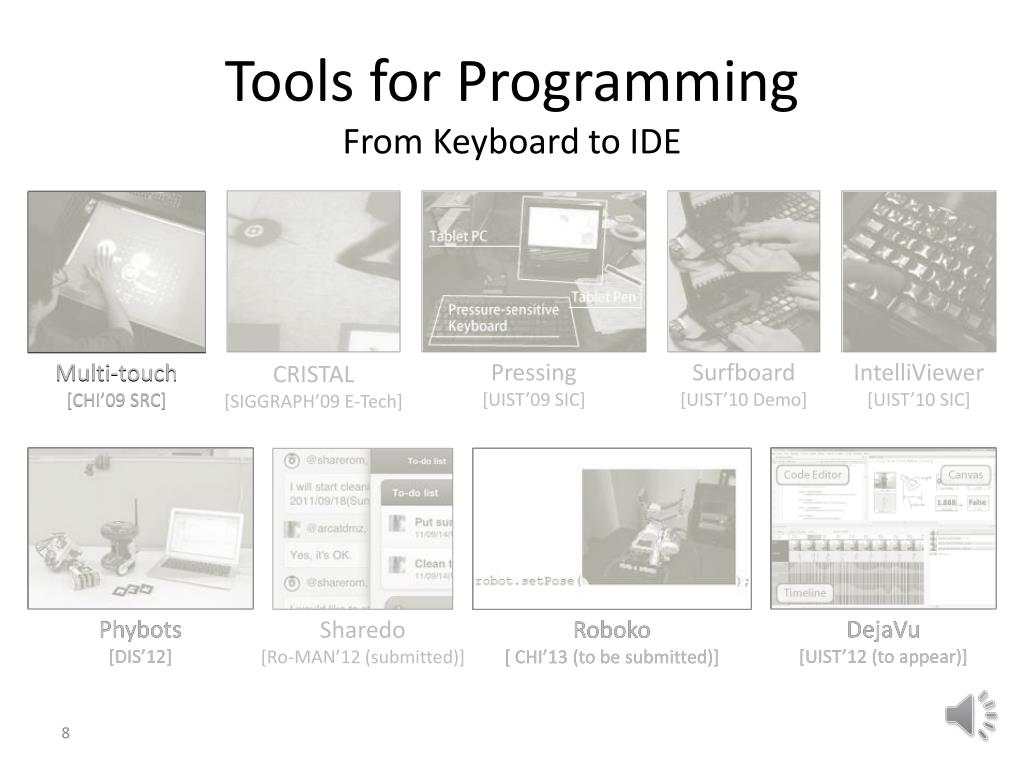

  9. Tools for ProgrammingFrom Keyboard to IDE Pressing [UIST’09 SIC] Pressing [UIST’09 SIC] IntelliViewer [UIST’10 SIC] IntelliViewer [UIST’10 SIC] Multi-touch [CHI’09 SRC] Surfboard [UIST’10 Demo] Surfboard [UIST’10 Demo] CRISTAL [SIGGRAPH’09 E-Tech] DejaVu [UIST’12 (to appear)] Phybots [DIS’12] Sharedo [Ro-MAN’12 (submitted)] Roboko [ CHI’13 (to be submitted)]

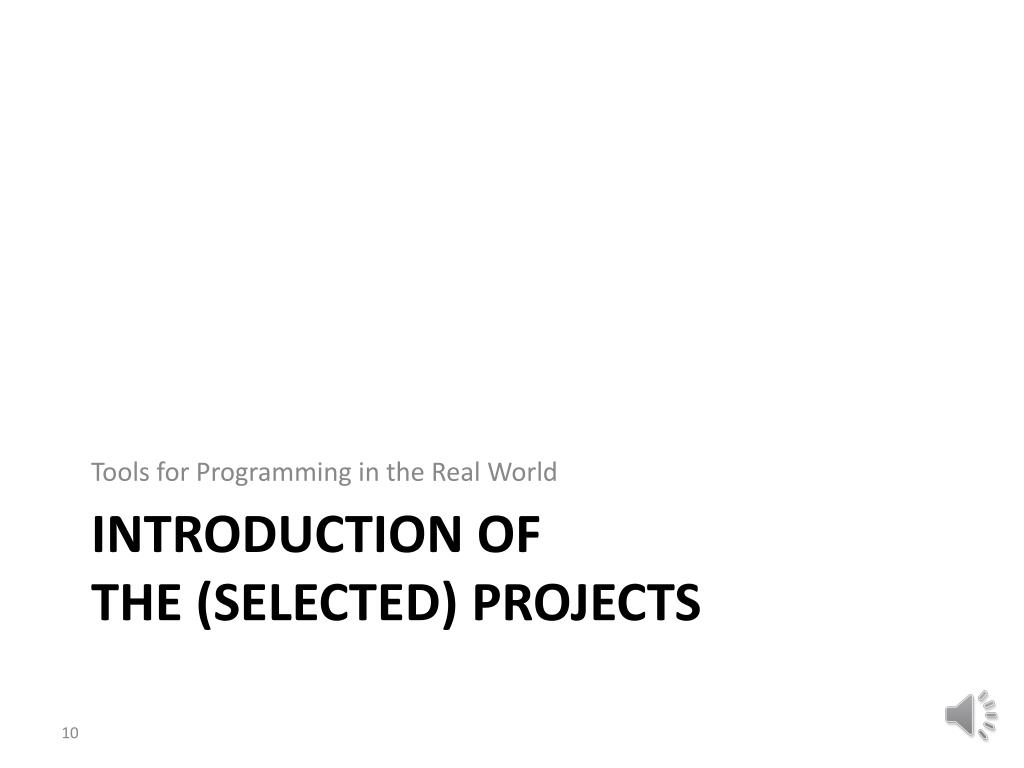

  10. Tools for Programming in the Real World Introduction ofthe (Selected) Projects

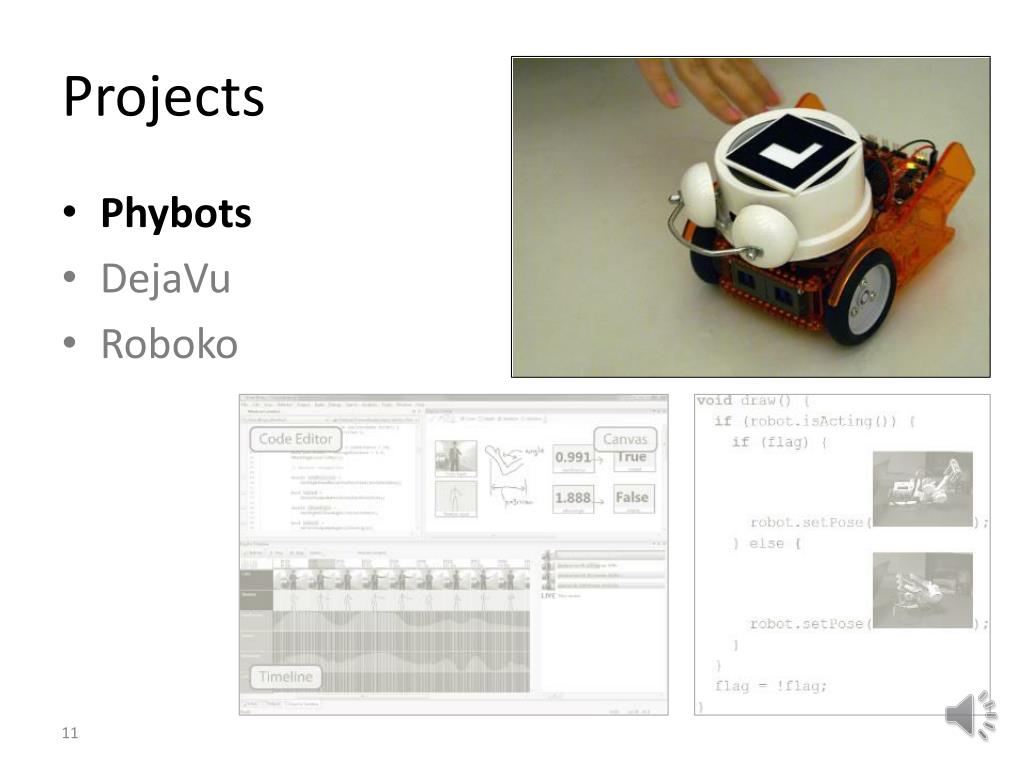

  11. Projects • Phybots • DejaVu • Roboko

  12. Motivation • Add mobility to our daily objects

  13. Gulf of HCI and Robotics Robots Physical UIs Toolkit for: HCI researchers & Interaction designers Robotics people Target users: Prototyping Reliability Focus: Low-level&Static High-level&Extensible Software API: Small&Cheap Medium-Large&Expensive Hardware: K-Junior, $938 Phidget Kit, $200

  14. Goal of Phybots • Add mobility to physical objects • In a cheap and easy way • Through high-level and extendible API • With support for the whole prototyping process

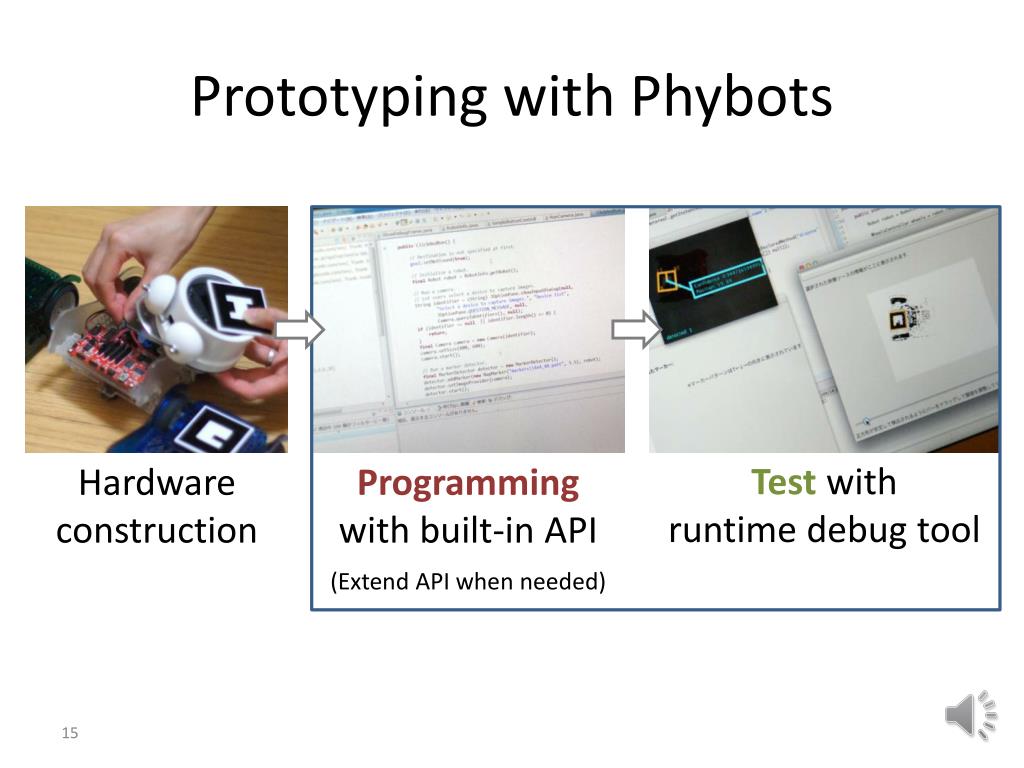

  15. Prototyping with Phybots Test with runtime debug tool Hardware construction Programming with built-in API (Extend APIwhen needed)

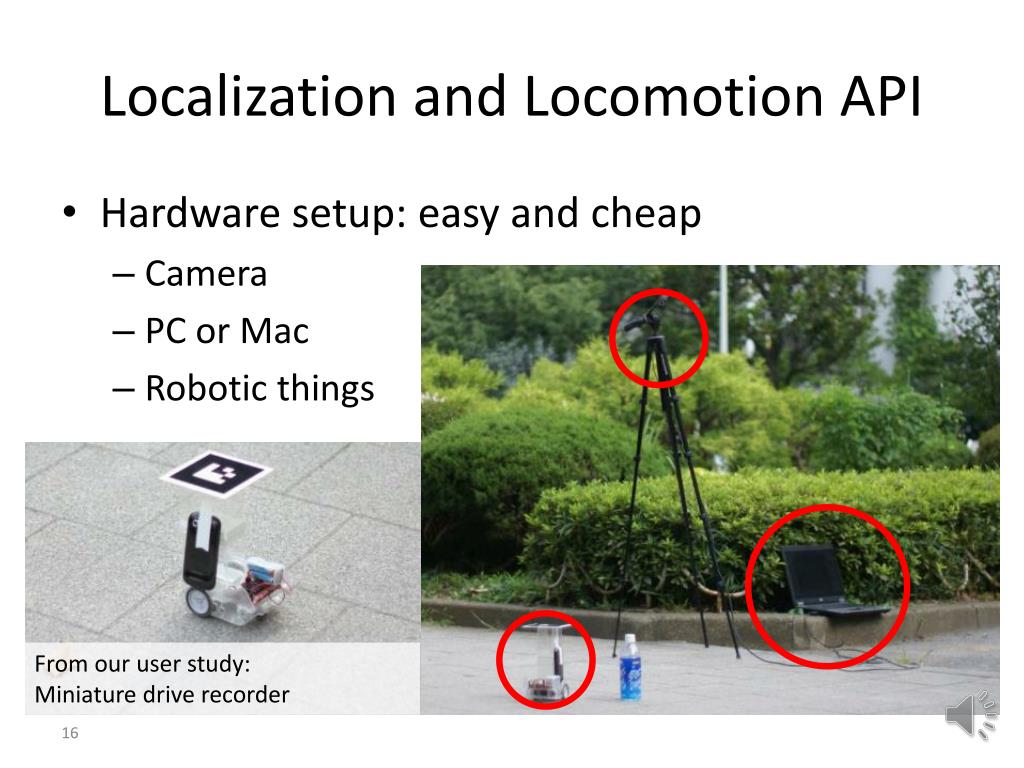

  16. Localization and Locomotion API • Hardware setup: easy and cheap • Camera • PC or Mac • Robotic things From our user study: Miniature drive recorder

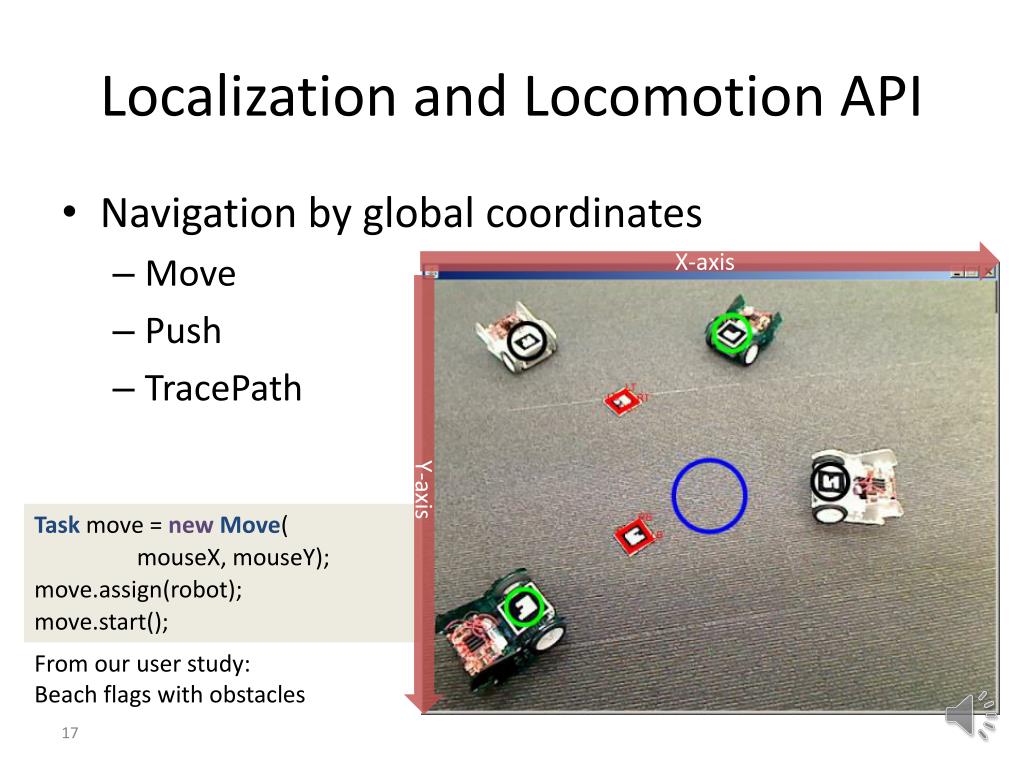

  17. Localization and Locomotion API • Navigation by global coordinates • Move • Push • TracePath X-axis Y-axis Taskmove = newMove( mouseX, mouseY); move.assign(robot); move.start(); From our user study: Beach flags with obstacles

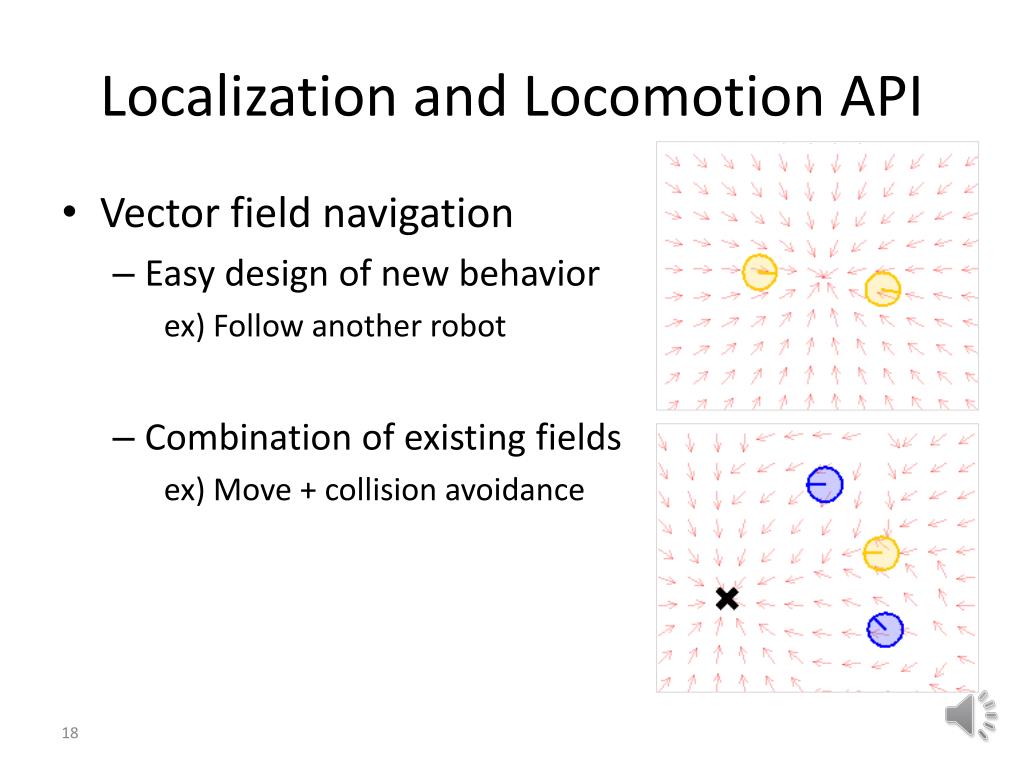

  18. Localization and Locomotion API • Vector field navigation • Easy design of new behavior ex) Follow another robot • Combination of existing fields ex) Move + collision avoidance

  19. Runtime Debug Tool Workflow Monitor Service Monitor Entity Monitor

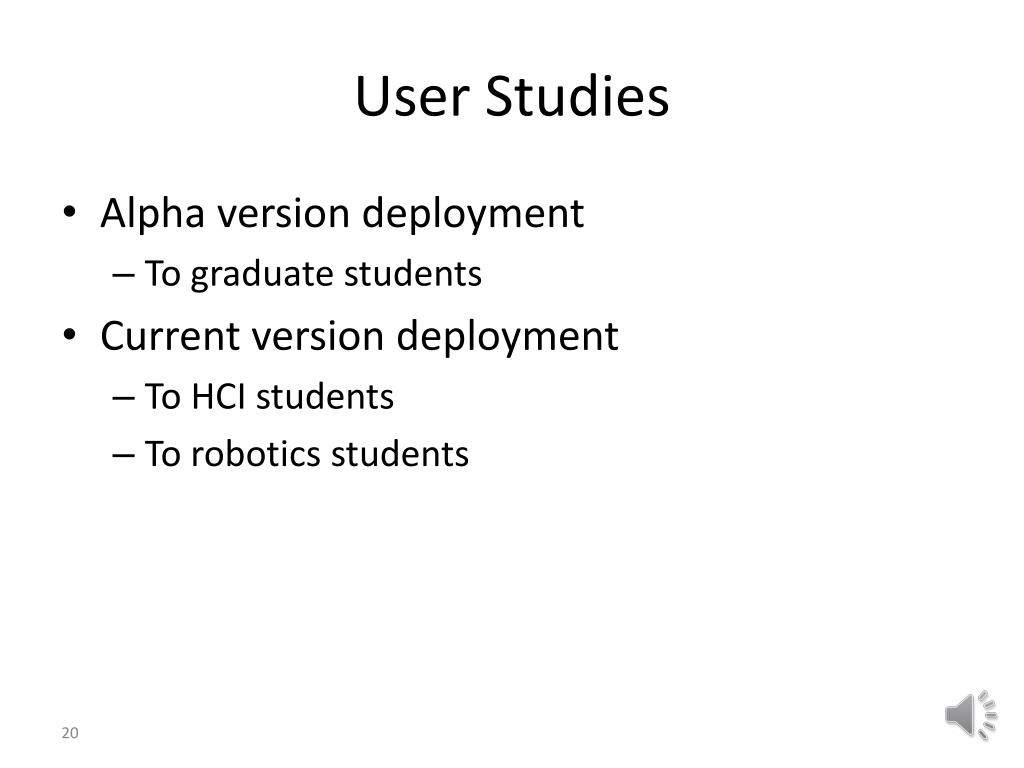

  20. User Studies • Alpha version deployment • To graduate students • Current version deployment • To HCI students • To robotics students

  21. Alpha version deployment • Lessons learned: • Mere mobility was not enough. • Most apps only used a single API call. • Parameter configuration was painful. • Lessons learned: • Extendibility is important. • Higher-level task management is desired. • Support for testing phase is needed.

  22. Current version deployment

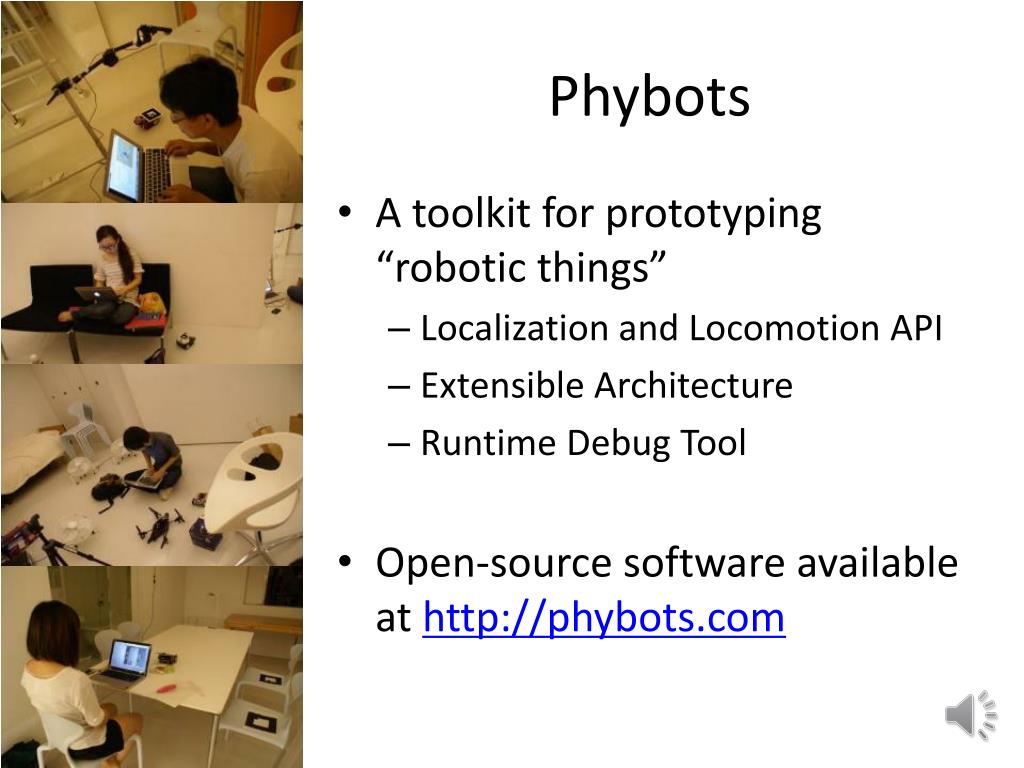

  23. Phybots • A toolkit for prototyping “robotic things” • Localization and Locomotion API • Extensible Architecture • Runtime Debug Tool • Open-source software available at http://phybots.com

  24. Projects • Phybots • DejaVu • Roboko

  25. Motivation • Input by the user’s hands, body, or physical objects • Captured by cameras • Processed in real-time • Support for computer-vision-based programming is needed Wilson, 2005 Wang, 2006 Cao, 2003

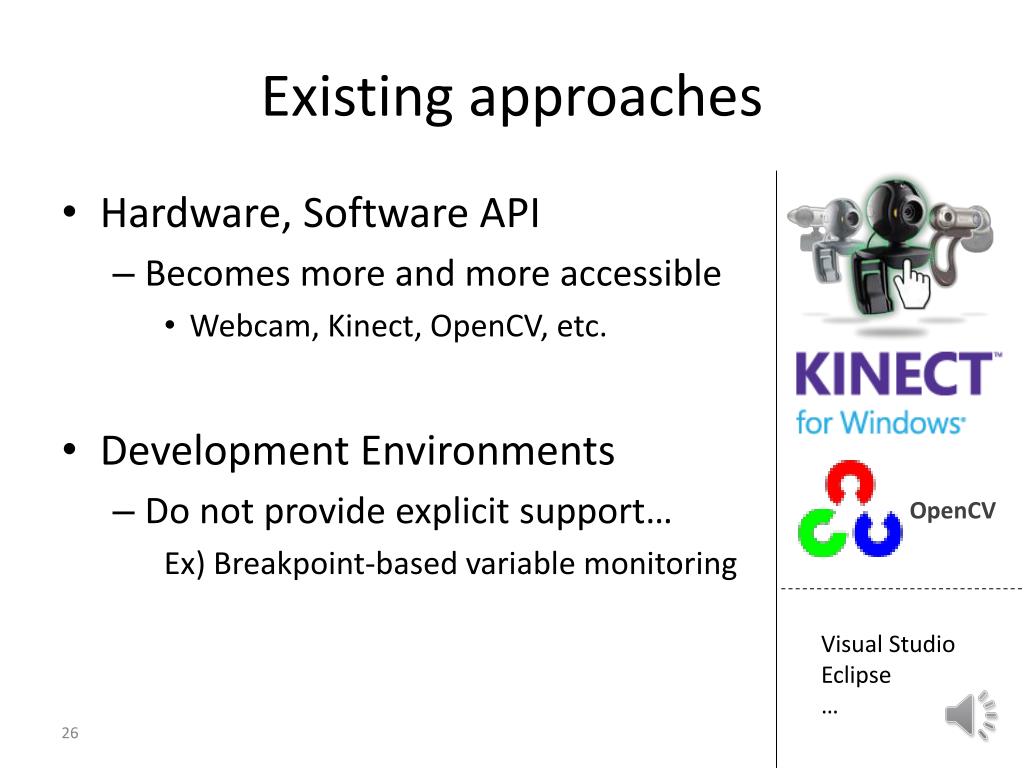

  26. Existing approaches • Hardware, Software API • Becomes more and more accessible • Webcam, Kinect, OpenCV, etc. • Development Environments • Do not provide explicit support… Ex) Breakpoint-based variable monitoring OpenCV Visual Studio Eclipse …

  27. DejaVu

  28. DejaVu Canvas Frame data visualization Freehand sketch

  29. DejaVu Canvas • Capable of showing variable values at the different positions in the code

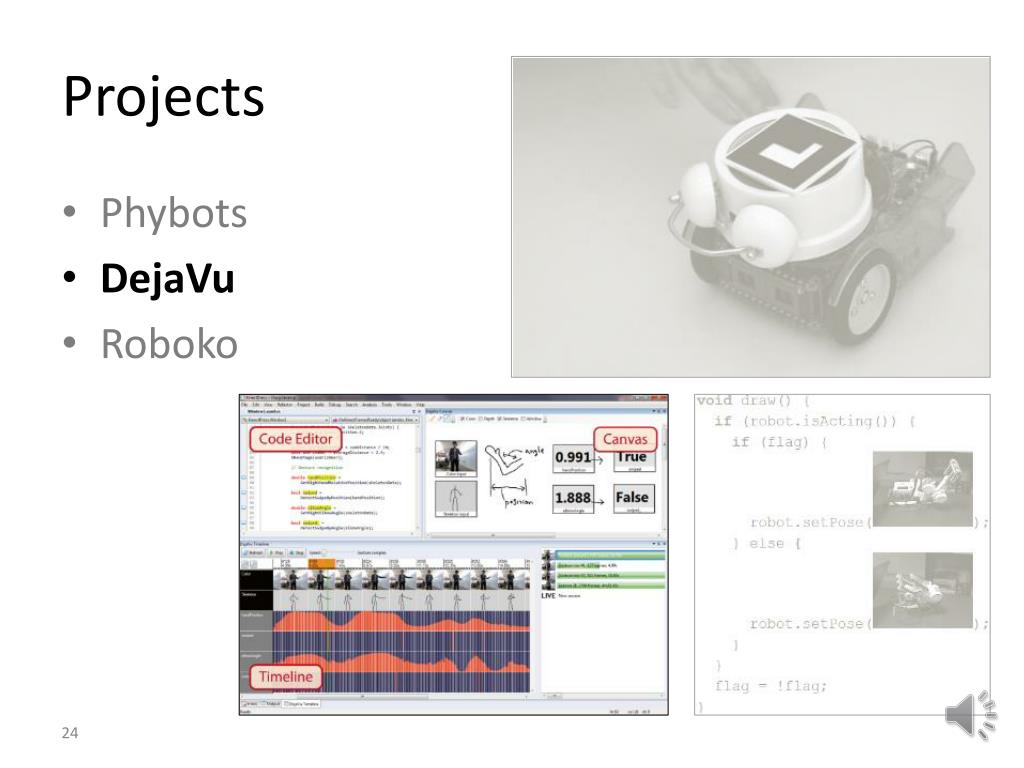

  30. DejaVu Timeline

  31. Conclusion • DejaVu provides integrated support for the development of interactive camera-based programs that tightly matches • their nature: Visual/Continuous/Non-reproducible • the workflow:Record input/Change code/Replay Canvas Workflow

  32. Projects • Phybots • DejaVu • Roboko

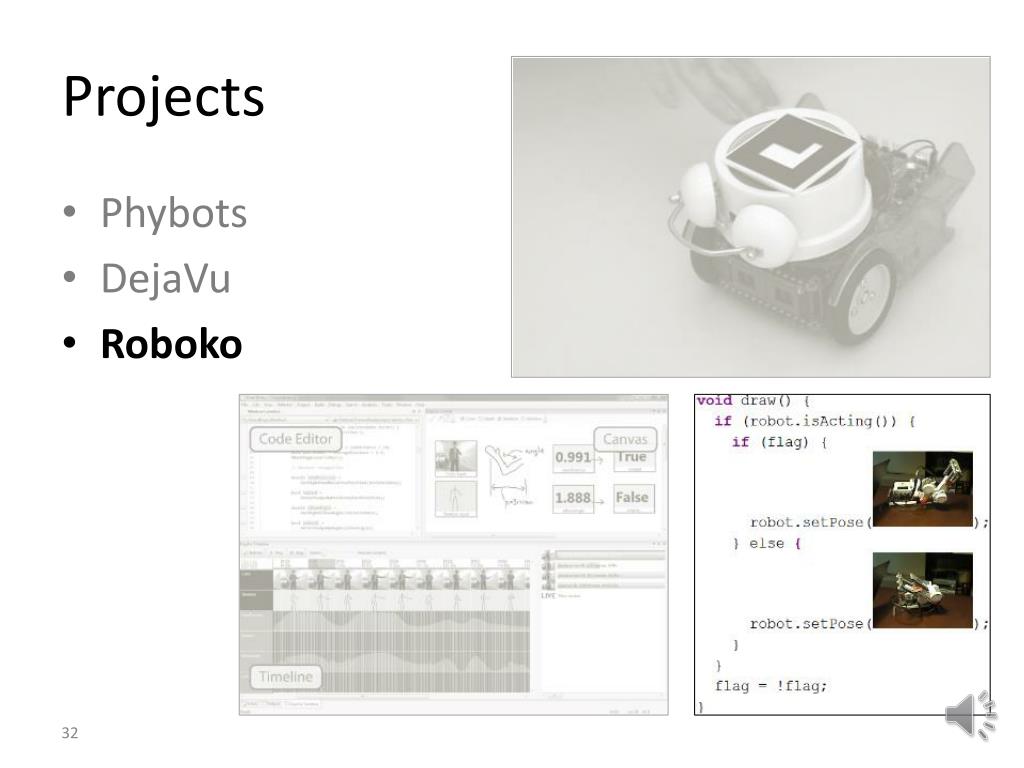

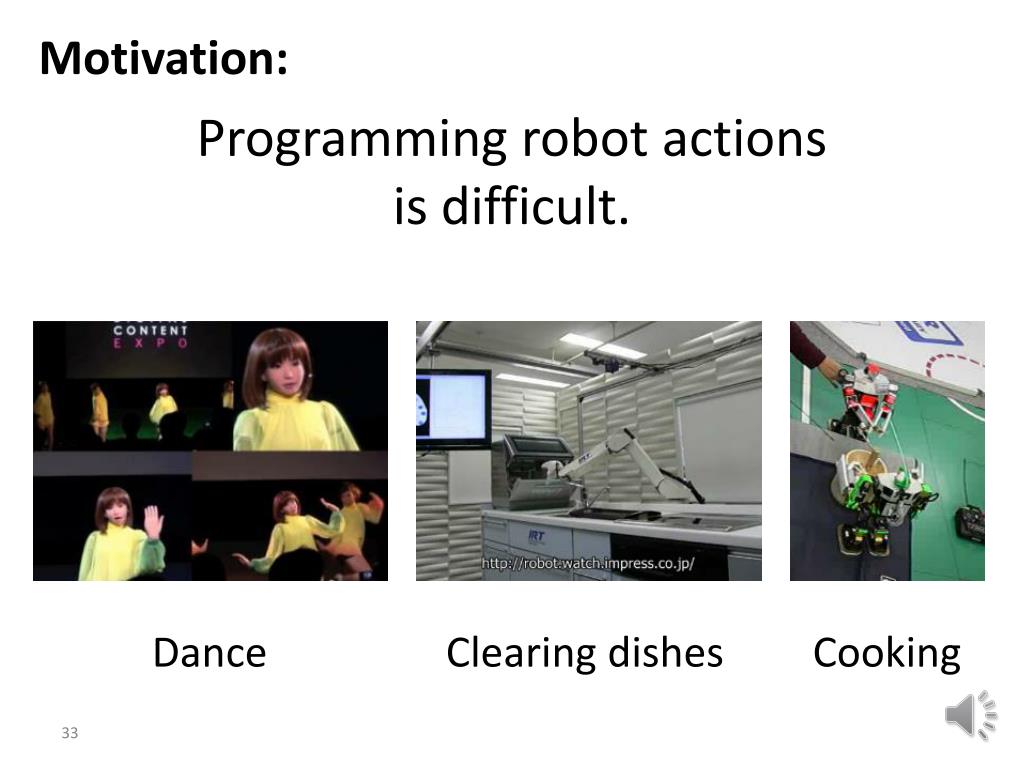

  33. Motivation: Programming robot actionsis difficult. Dance Clearing dishes Cooking

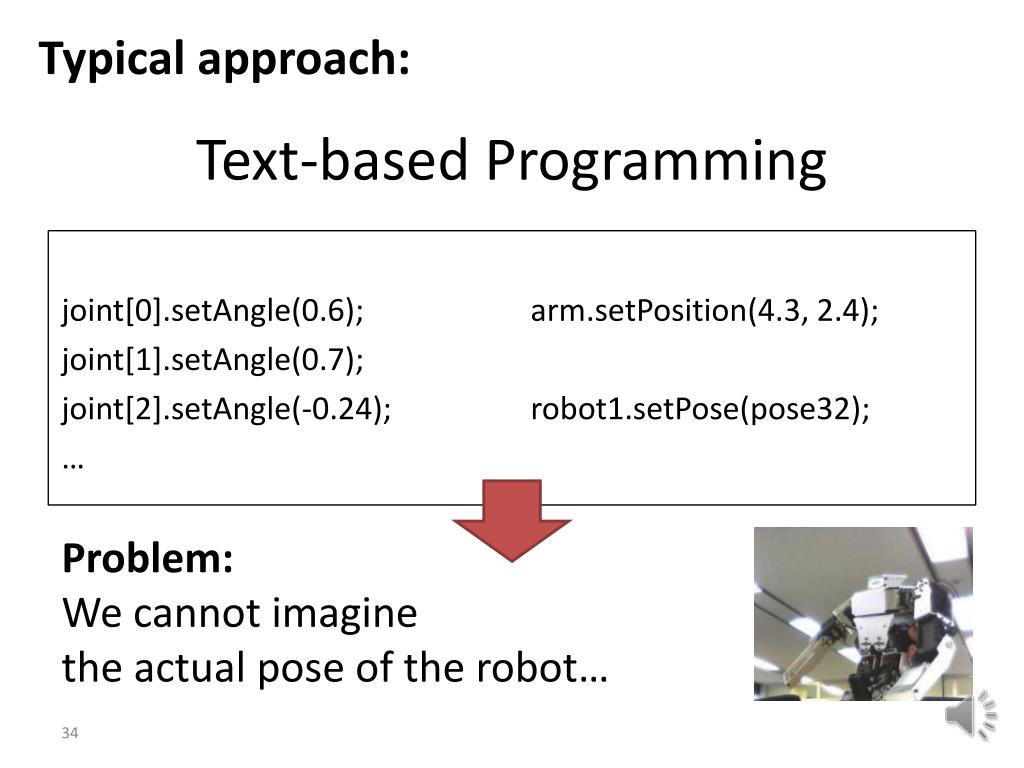

  34. Typical approach: Text-based Programming arm.setPosition(4.3, 2.4); robot1.setPose(pose32); joint[0].setAngle(0.6); joint[1].setAngle(0.7); joint[2].setAngle(-0.24); … Problem:We cannot imagine the actual pose of the robot…

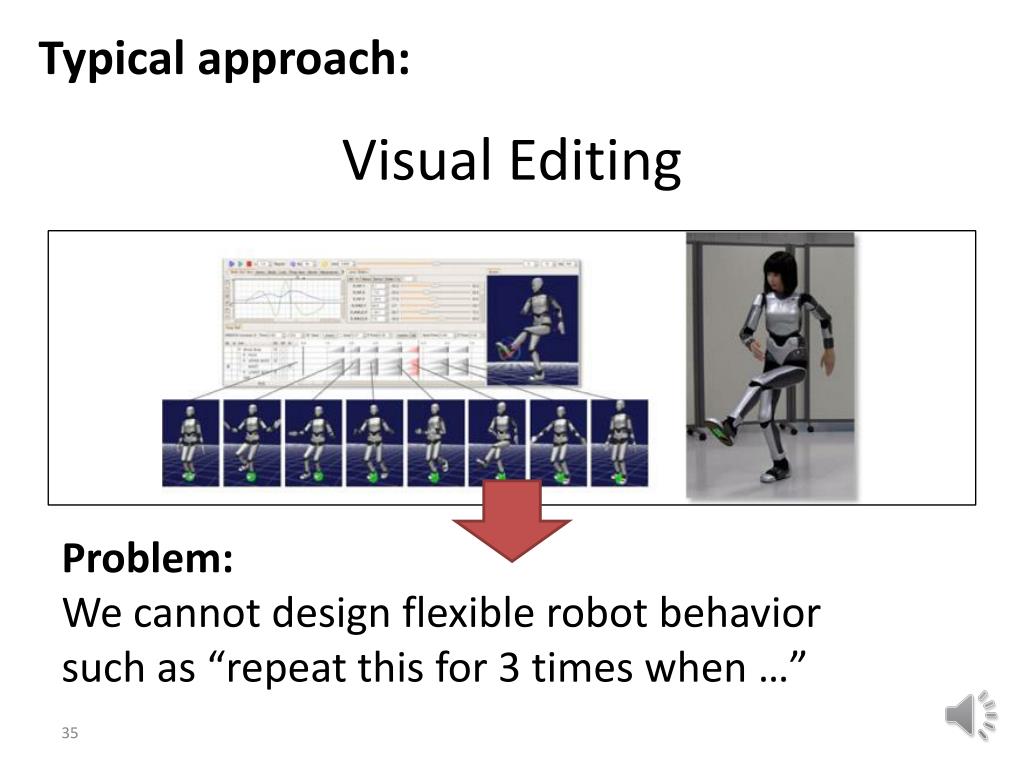

  35. Typical approach: Visual Editing Problem:We cannot design flexible robot behavior such as “repeat this for 3 times when …”

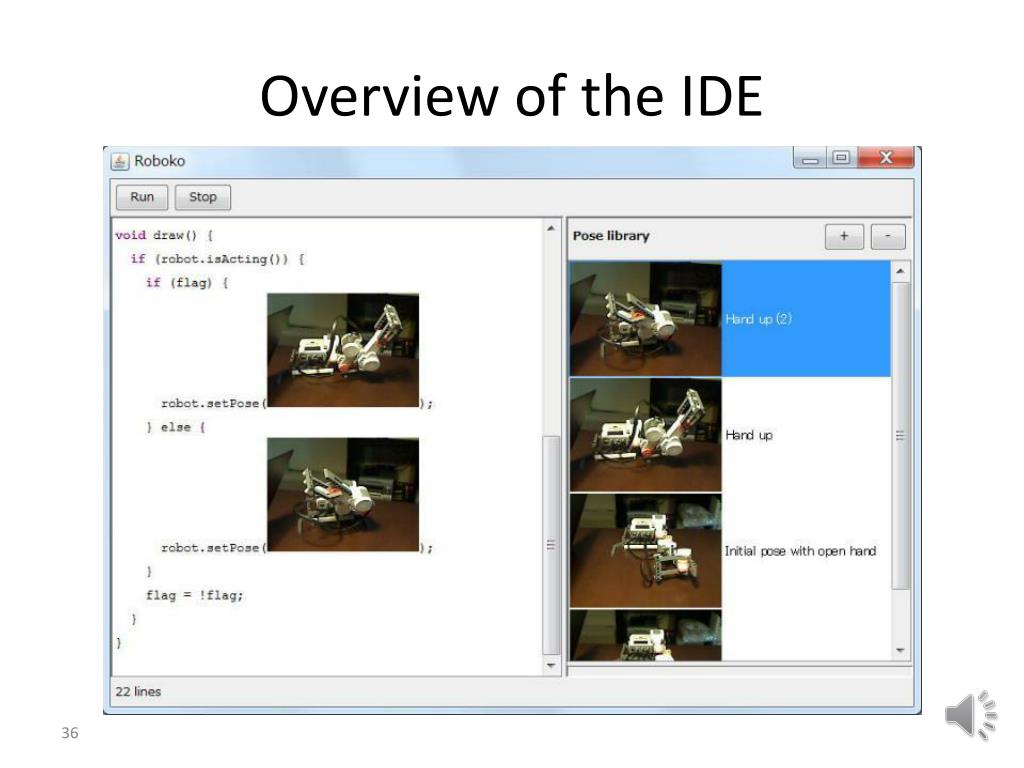

  36. Overview of the IDE

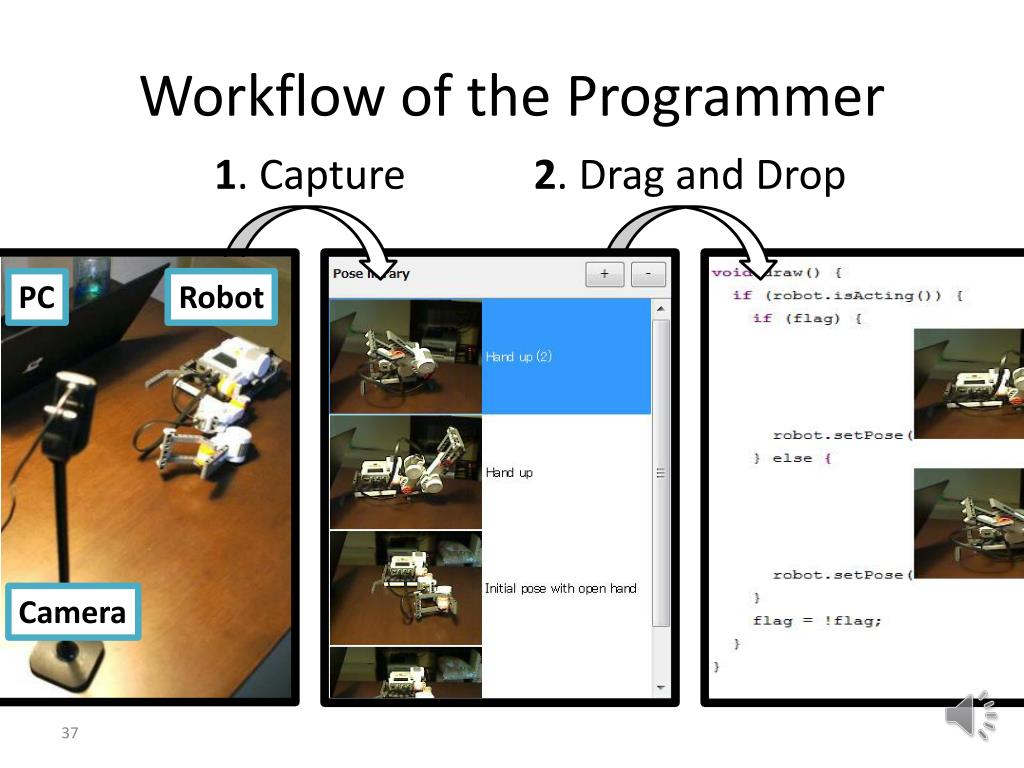

  37. Workflow of the Programmer 2. Drag and Drop 1. Capture PC Robot Camera

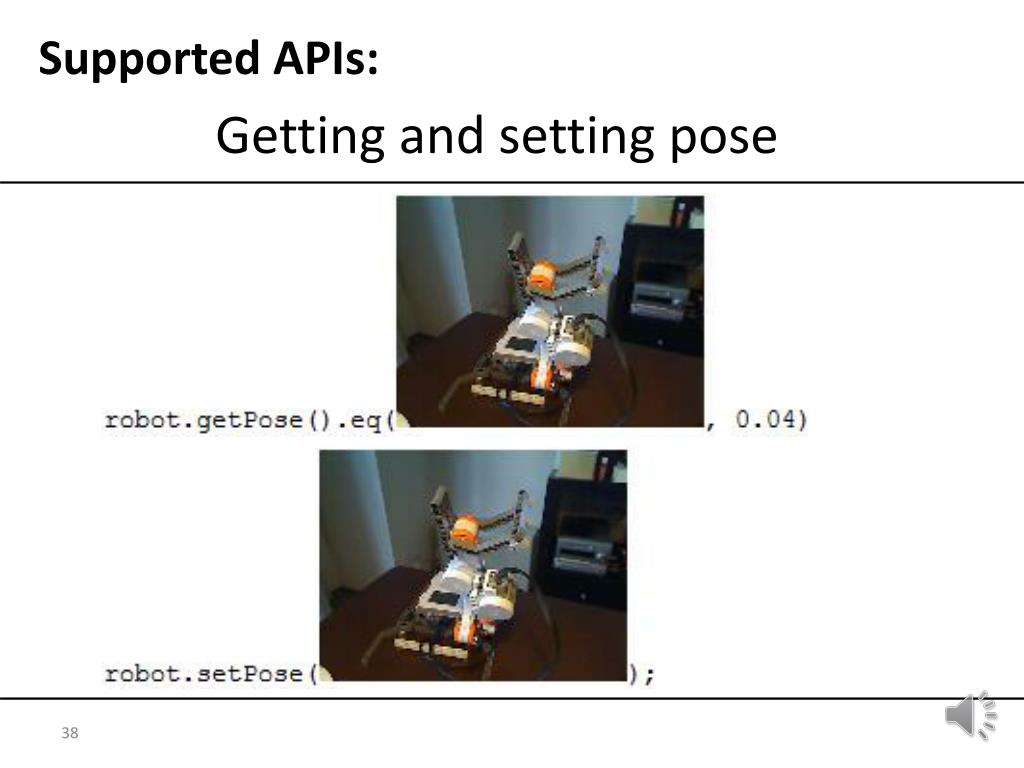

  38. Supported APIs: Getting and setting pose

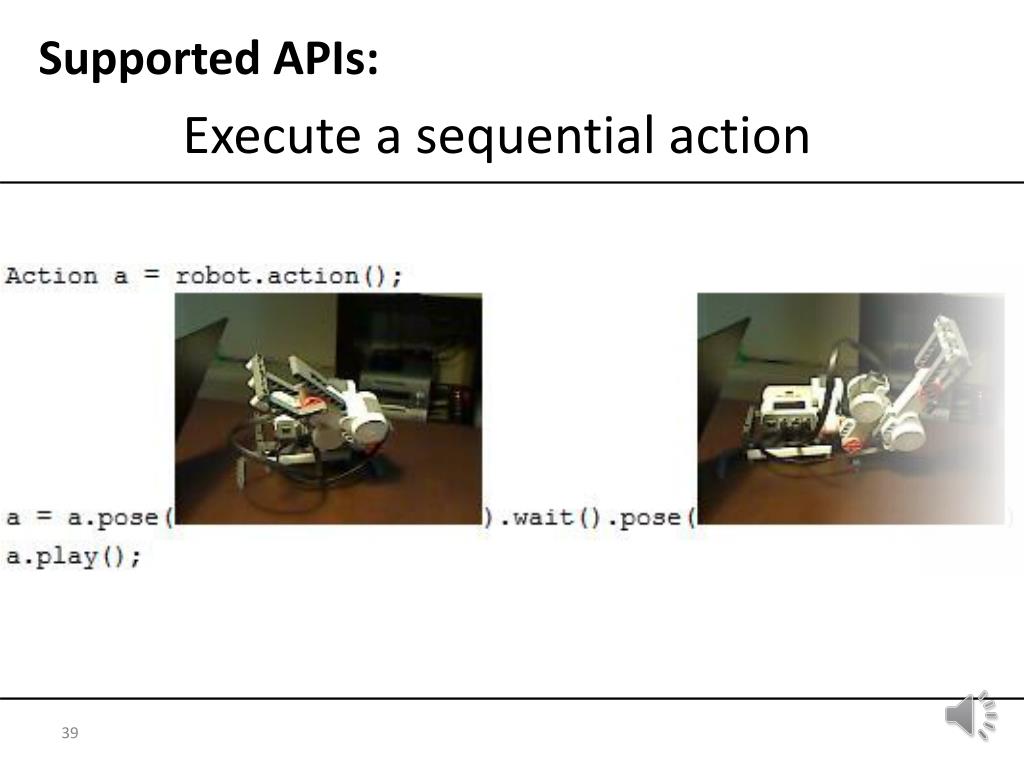

  39. Supported APIs: Execute a sequential action

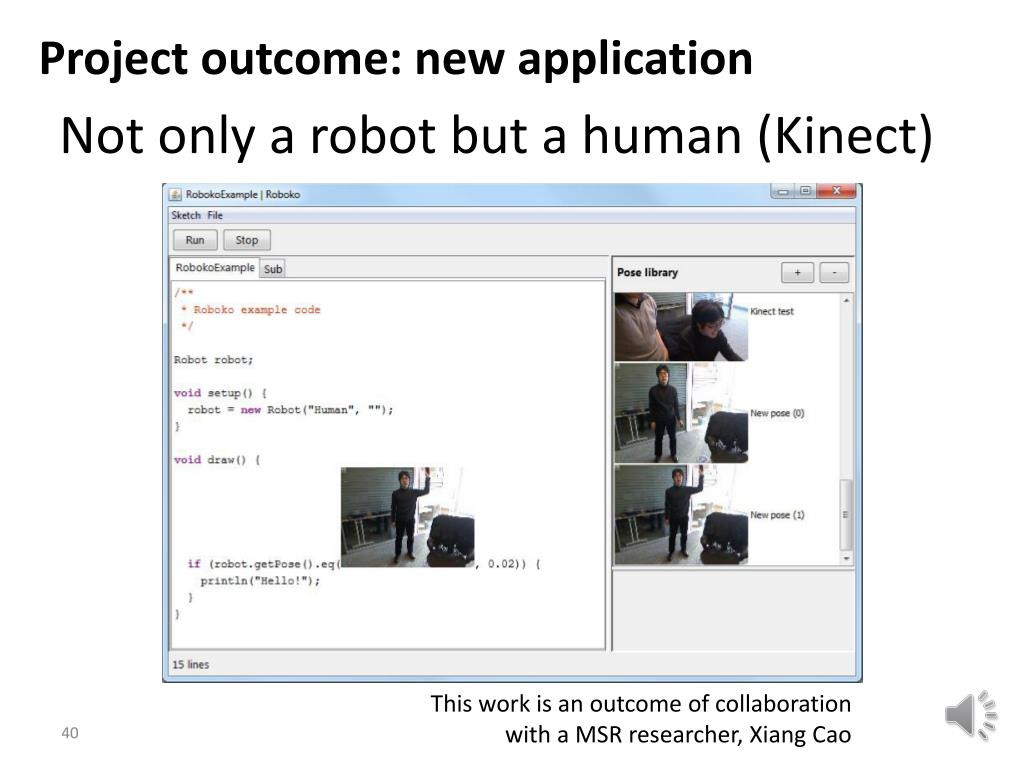

  40. Project outcome: new application Not only a robot but a human (Kinect) This work is an outcome of collaboration with a MSR researcher, Xiang Cao

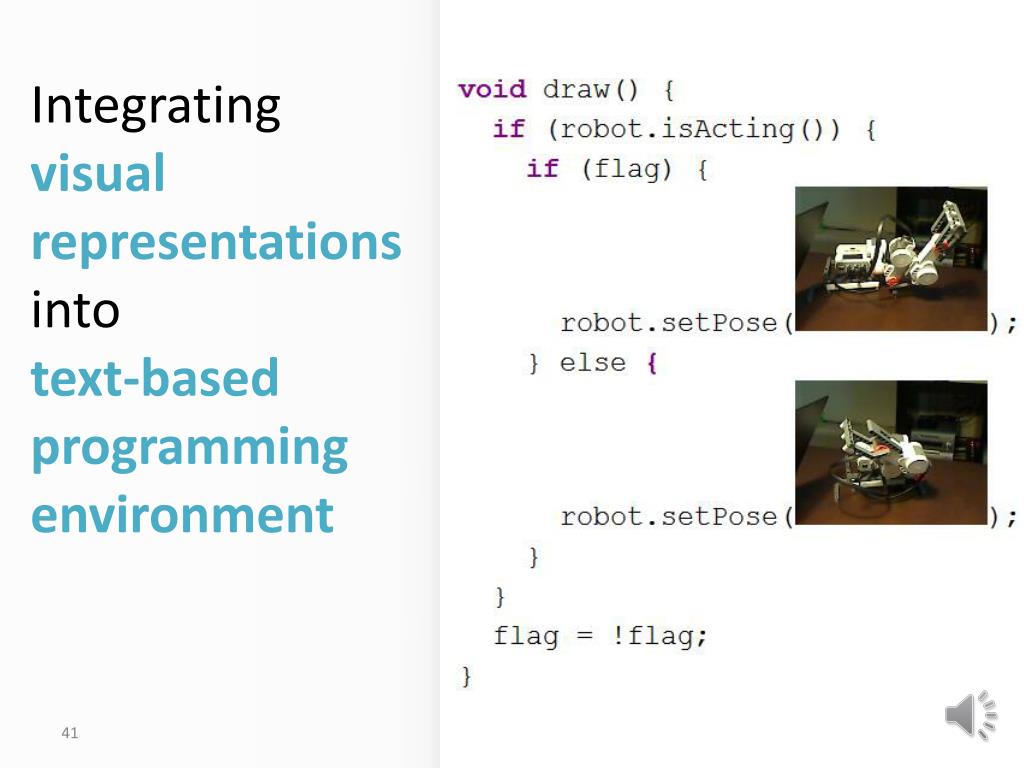

  41. Integrating visual representations into text-based programming environment

  42. Tools for Programming in the Real World Ideas for new projects

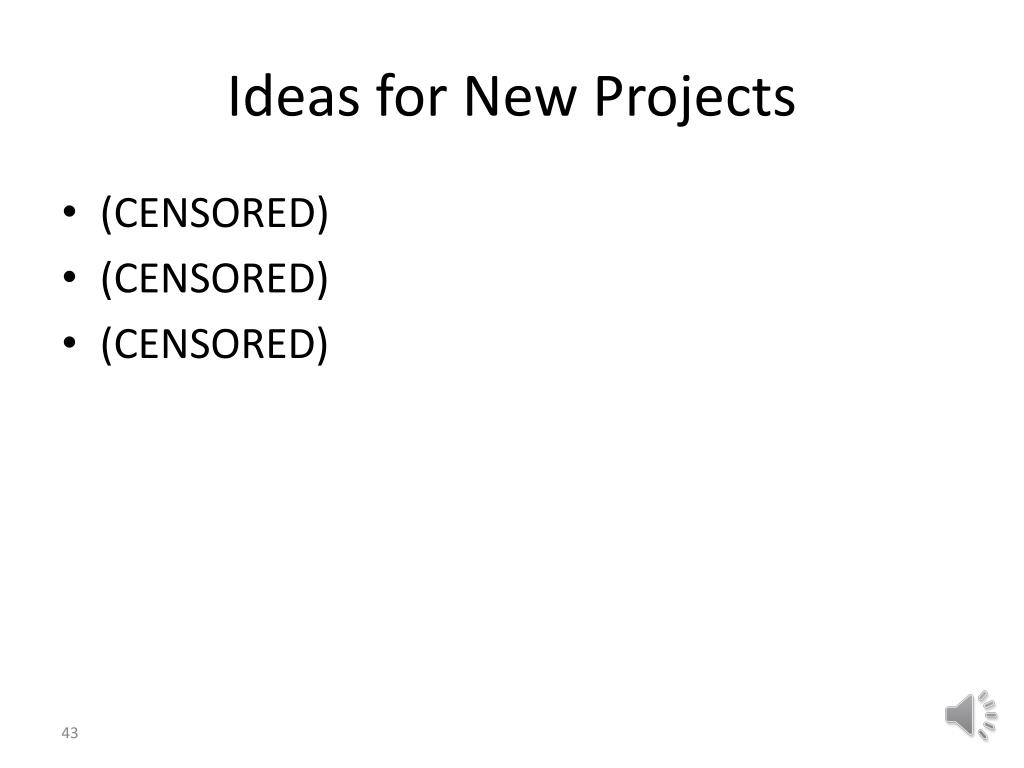

  43. Ideas for New Projects • (CENSORED) • (CENSORED) • (CENSORED)

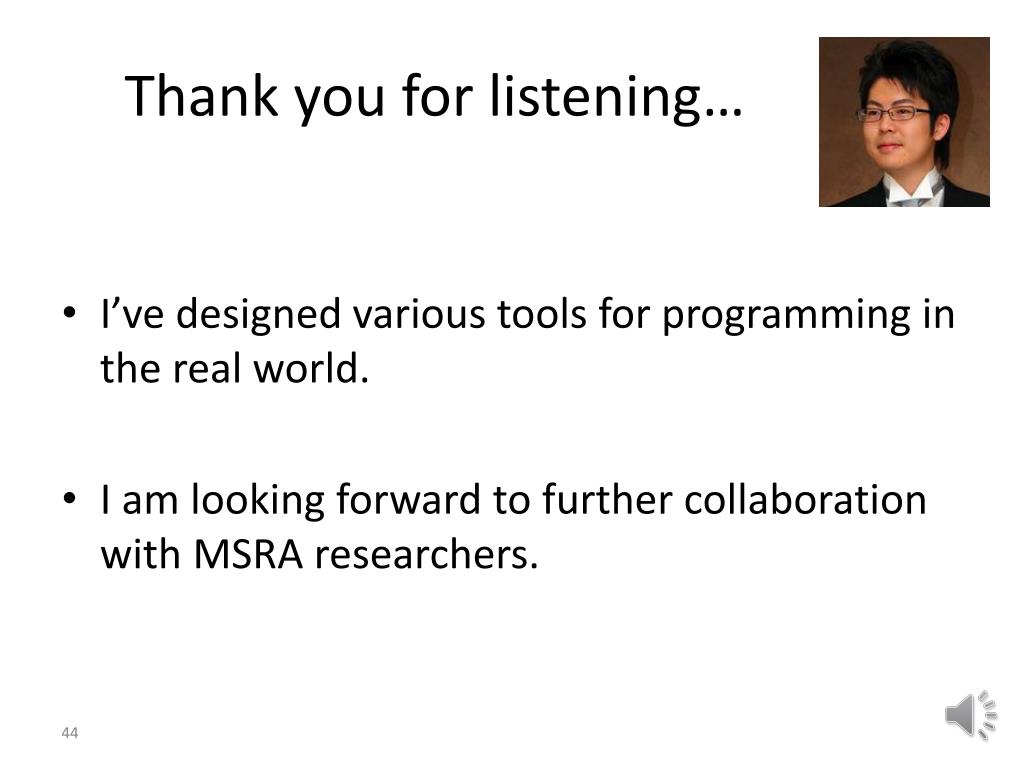

  44. Thank you for listening… • I’ve designed various tools for programming in the real world. • I am looking forward to further collaboration with MSRA researchers.
