CSCE 815 Network Security Lecture 21

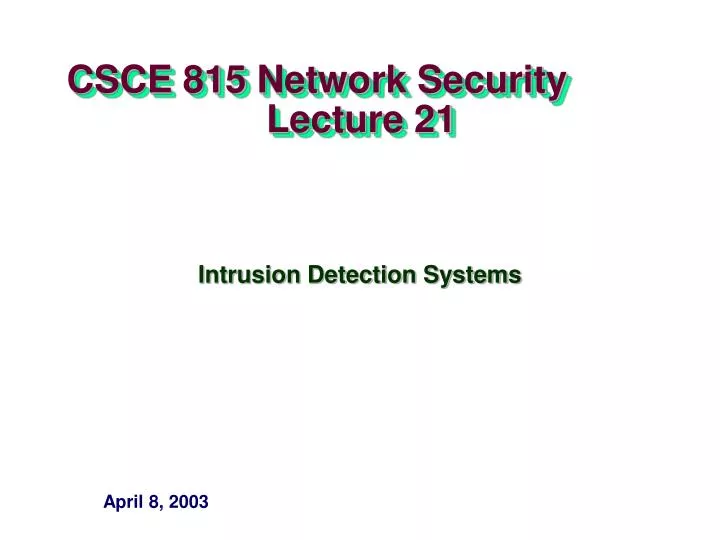

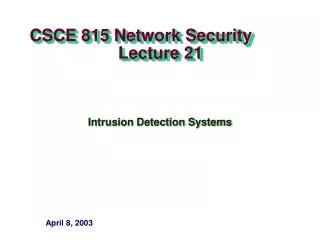

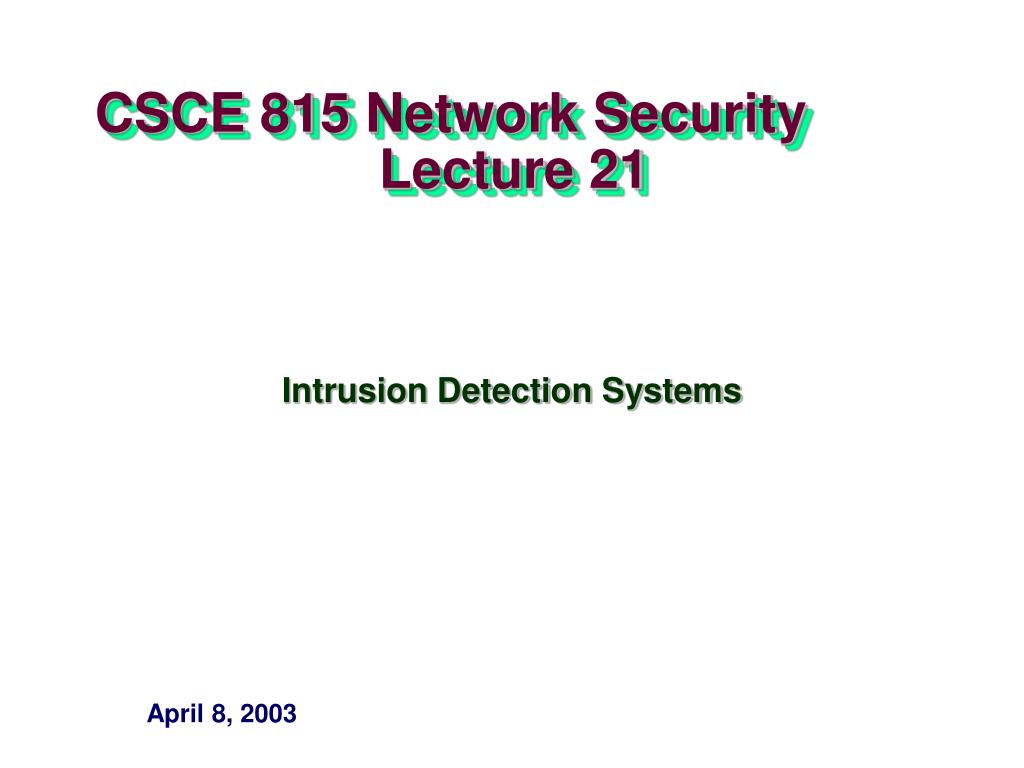

1. CSCE 815 Network Security Lecture 21 Intrusion Detection Systems April 8, 2003

2. Hackers and Crackers • The Difference • A hacker is a person intensely interested in the workings of the Operating System • A cracker is someone who breaks into or violates system integrity • Tools of the Trade • Reconnaissance of targets systems and users • Port Scanners • Passive Operating System Identification • Exploits and the SANS top 20 • Exploits – known ways to break into a system • SANS Top 20 Most Critical Internet Security Threats

3. Tools of the Trade • Tools of the Trade • Reconnaissance of targets systems and users • Port Scanners • Passive Operating System Identification • Exploits and the SANS top 20 • Exploits – known ways to break into a system • SANS Top 20 Most Critical Internet Security Threats

4. Reconnaissance • Reconnaissance of targets systems and users • Social Engineering [Corporate Espionage, Ira Winkler] • E.g. • Call main number “I’m new employee, what the help desk number?” • Call help desk explain again and ask for username, a password, and how to access the system remotely. • Help desk worker never questions. • Dumpster diving • Impersonations – “This is Dean White and I’ve forgotten my password and I’ve got to get this email to the President before 5:00. Give me my password!”

5. Scanners • Port Scanners • Programs that check the computer’s TCP/IP stack for ports in the listen state • Port ranges: www.iana.org/assignments/port-numbers • 1-1023 – well known e.g. on port 80 the web server is listening • 1024-49151 – registered ports • 49152-65535 – dynamic ports • TCP three way handshake RFC 793 • TCP packets: SYN, ACK, FIN, RST, sent and response noted • Scanners – do not use these!!! People will infer things! • Nmap (www.insecure.org) • hping2

6. Passive Operating System Identification • aka Operating System Fingerprinting – identify the type of Operating System from it TCP/IP stack • TCP/IP parameters • ip_default TTL (time to live) (Linux=64, Windows=128) • ip_forward - • tcp_sack Selective Acknowledgement Std. (Linux = 1) • tcp_timestamps (Linux = 1) • tcp_window_scaling (Linux = 1) • Send various packets and observe fields in headers.

7. Exploits • Exploiting weaknesses in the system • http://www.online.securityfocus.com/archive/1

8. SANS Top 20 • SANS Institute http://www.sans.org/top20 • Top 20 Most Critical Internet Security Threats • Common Vulnerabilities and Exposures • www.cve.mitre.org

9. Computer Security • Not a state, it’s a constant process • Configure system as securely as possible • Discover vulnerability • Exploit becomes public knowledge • Vendor responds with upgrade or patch • Stay on top of alerts/patches • Learn of exploit • Assess potential impact • Download patch, test, install

10. Information Overload • Web Sites • Mailing Lists • Out of 100 messages • 12-15 worthwhile • Rest: me-too’s and spam • Tips for System Administrators • Set-up special “security” email account • Or partition it further • Perl scripts analyze email and save into directories by OS

11. Computer Emergency Response Team • Computer Emergency Response Team (CERT) Software Engineering Institute, Carnegie Mellon www.cert.org Created in response to 1988 Morris Worm incident • Issued hundreds of advisories • Responded to more than 140,000 reports of internet break-ins • Responded to more than 7000 vulnerabilities • [www.cert.org/stats/cert_stats] • On call 24 hours a day for those suffering break-in • Others: • Dept of Energy Computer Incident Advisory Cap: www.cisc.org/ciac • National Inst. of Standards and Tech.(NIST) csrc.nist.gov • Mailing Lists

12. Usenet Security Newsgroups • alt.2600.crackz • alt.2600.hackerz • alt.computer.security • alt.hackers.malicious • alt.security • alt.security.pgp • comp.security.firewalls • comp.lang.java.security • comp.os.linux.security

13. Physical Security • Mentality “firewalls fix everything” • More than 50% of security breaches come from inside • Types of Harm • Server compromise • Network infrastructure compromise • Workstation compromise (Trojans) • Loss or theft of proprietary data • Transmission of inaccurate data • Denial of Service

14. The Human Dimension • Dimension: least risk to most • Members of public • Temporary employees • Departmental users • Infrastructure • Server • Administrators • Scofflaw employees – that want to bypass security rules for their convenience, e.g., installing own modem • IT employees: logic bomb

15. Physical Security: “Do”s • Do: lock wiring closets • Do: use switches rather than hubs (esp. for admins) • Do: change locks immediately when employee leaves • Do: erase hard drives when you take them out of service • Do: use a paper shredder • Do: lock the server cabinets • Do: restrict or forbid the use of modems on desktops • Do: make sure road laptops and PDAs are secure • Do: consider use of smart-cards rather than passwords for administrators

16. Recommended Reading • Comer, D. Internetworking with TCP/IP, Volume I: Principles, Protocols and Architecture. Prentic Hall, 1995 • Stevens, W. TCP/IP Illustrated, Volume 1: The Protocols. Addison-Wesley, 1994

17. Physical Security: “Don’t”s • Don’t: send off-site backups to unsecured sites • Don’t: give keys to vendors • Don’t: allow adhoc access to data center • Don’t: share wire closets with printers etc. • Don’t: put servers in unsecured areas • Don’t: leave server keys on back on server • Don’t: let cleaning people in without escort • Don’t: store sensitive data on user drives (or encrypt) • Don’t: discuss passwords over non-secure channels • Don’t: put consoles near windows

18. Protocol Review • IP internet protocol – routing packets through network • TCP – connection oriented transport • UDP – • ARP – address resolution protocol • ICMP – internet control message protocol • Application layer – FTP, HTTP, SMTP, SNMP, SSH

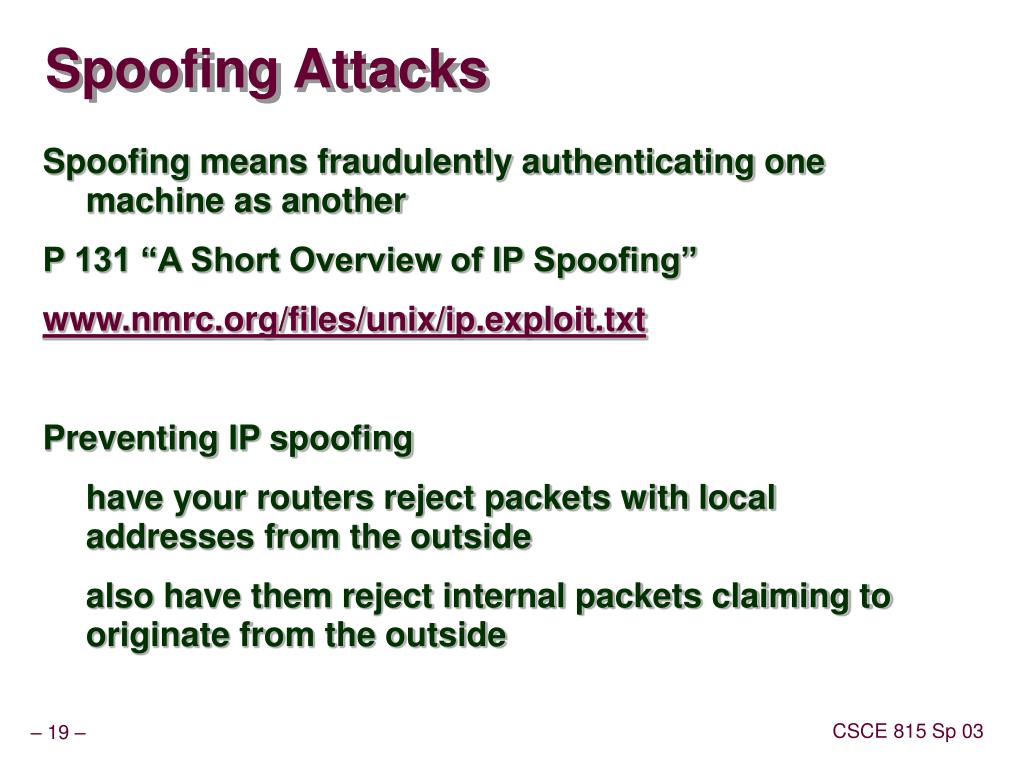

19. Spoofing Attacks • Spoofing means fraudulently authenticating one machine as another • P 131 “A Short Overview of IP Spoofing” • www.nmrc.org/files/unix/ip.exploit.txt • Preventing IP spoofing • have your routers reject packets with local addresses from the outside • also have them reject internal packets claiming to originate from the outside

20. ARP Spoofing • Address resolution Protocol (ARP) • IP address  hardware(ethernet) address mapping • send ARP packet “who has IP address and what is your hardware address?” • ARP cache – table of recent responses • ARP Spoofing • Assume IP address “a” of trusted host • Respond to ARP packets for address “a” • Sending false hardware address (I.e. the fraud’s address) • Solution: make ARP cache static (manual updates!?!)

21. DNS Spoofing • Domain Name System (DNS) • hierarchical name servers map FQDN  IP address • UDP packet sent with name to name server

22. Web Spoofing

23. Security Myth • “The only secure computer is the one that is turned off and unplugged” • Once connected to internet it becomes a target • So shutdown all unnecessary services. • Myth 2 “My firewall will stop the pesky crackers!”

24. The Players, Platforms and Attacks • The Players: • The Black Hats • Script kiddies • The White Hats • Platforms of attackers • Windows • Linux/NetBSD/FreeBSD • OpenBSD billed as “the most secure OS freely available” • Attacks • Denial of Service • Viruses, Trojans, malicious scripts • Web defacement
