HSS4303B – Intro to Epidemiology Feb 8, 2010 - Agreement

1. HSS4303B – Intro to Epidemiology Feb 8, 2010 - Agreement

2. Answers from Thursday’s Homework • Compute: • Prevalence of cancer 44% • Sensitivity & specificity 93.3% and 96.1% • % of false positives 532/ (56+532) • % of false negatives 4/(4+13194) • PV+ and PV- 9.5% and 100%

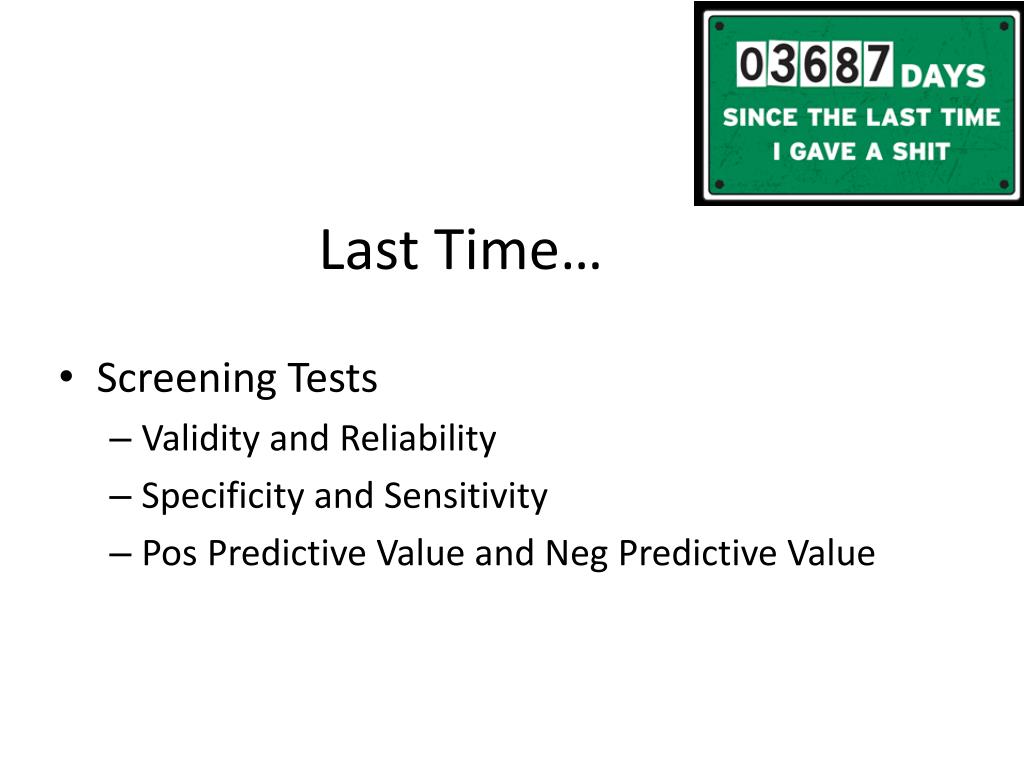

3. Last Time… • Screening Tests • Validity and Reliability • Specificity and Sensitivity • Pos Predictive Value and Neg Predictive Value

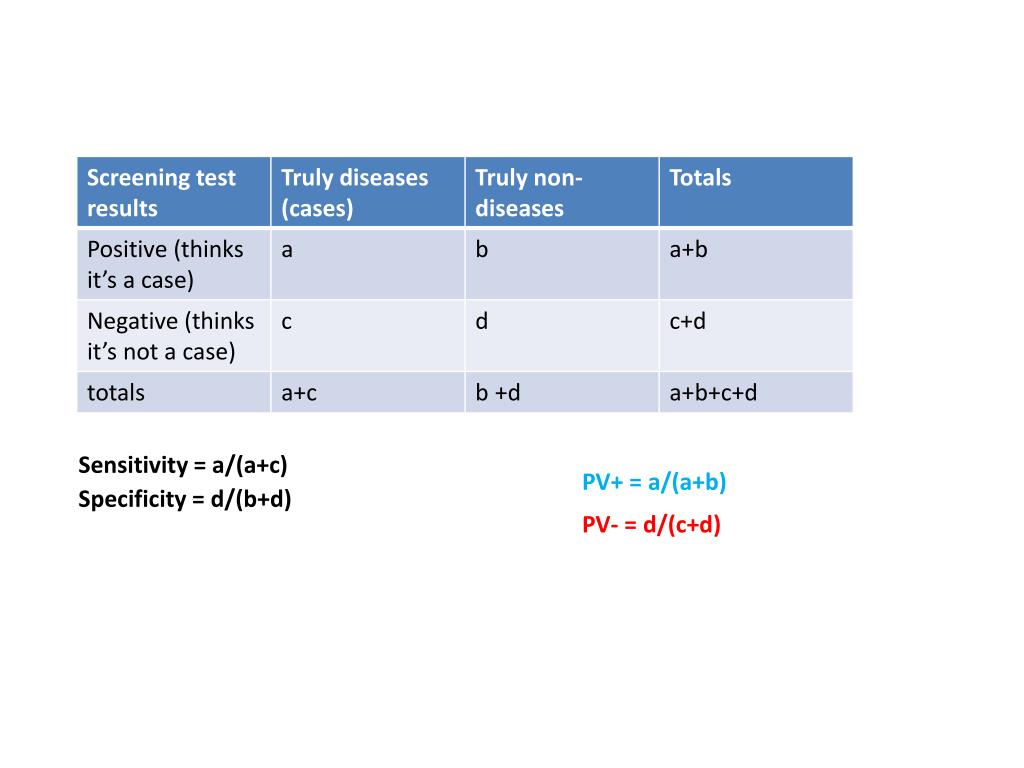

4. Sensitivity = a/(a+c) PV+ = a/(a+b) Specificity = d/(b+d) PV- = d/(c+d)

5. Ultimately, What Do All These Indicators Want To Tell Us? “What is the likelihood is it that you have the disease?”

6. Likelihood Ratio • A way of using the sensitivity and specificity of a test to see if a positive or negative result usefully changes the probability of having the disease • Assesses the value of performing the screening test at all • Who is this useful for?

7. Likelihood Ratio • LR+ (positive likelihood ratio) • The probability of a positive test result for a person who really has the disease divided by the probability of a positive test result for someone who doesn’t really have the disease • i.e. “P(true positives)” / “P(false positives)” = sensitivity / (1 − specificity)

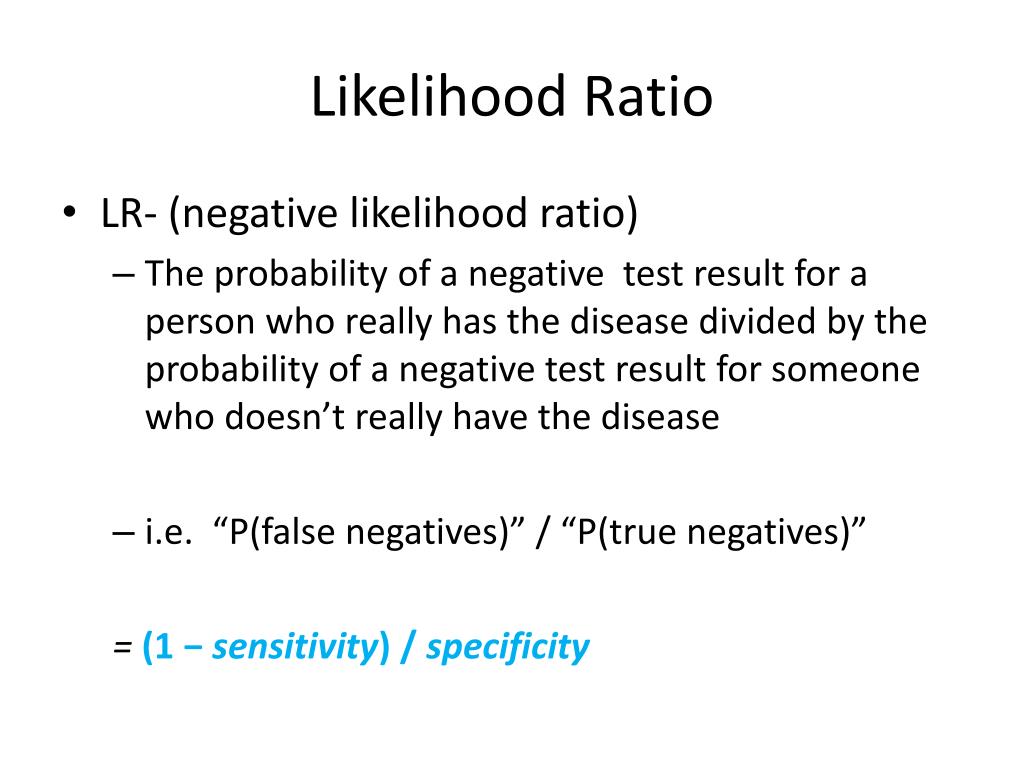

8. Likelihood Ratio • LR- (negative likelihood ratio) • The probability of a negative test result for a person who really has the disease divided by the probability of a negative test result for someone who doesn’t really have the disease • i.e. “P(false negatives)” / “P(true negatives)” = (1 − sensitivity) / specificity

9. Sensitivity = a/(a+c) PV+ = a/(a+b) Specificity = d/(b+d) PV- = d/(c+d) True positives True negatives False positives False negatives a d b c LR+ = P (true +ve)/ P(false +ve) =(a/(a+c)) / (b/(b+d)) =(a/(a+c))/(1-(d/(b+d)) =sensitivity / (1-specificity)

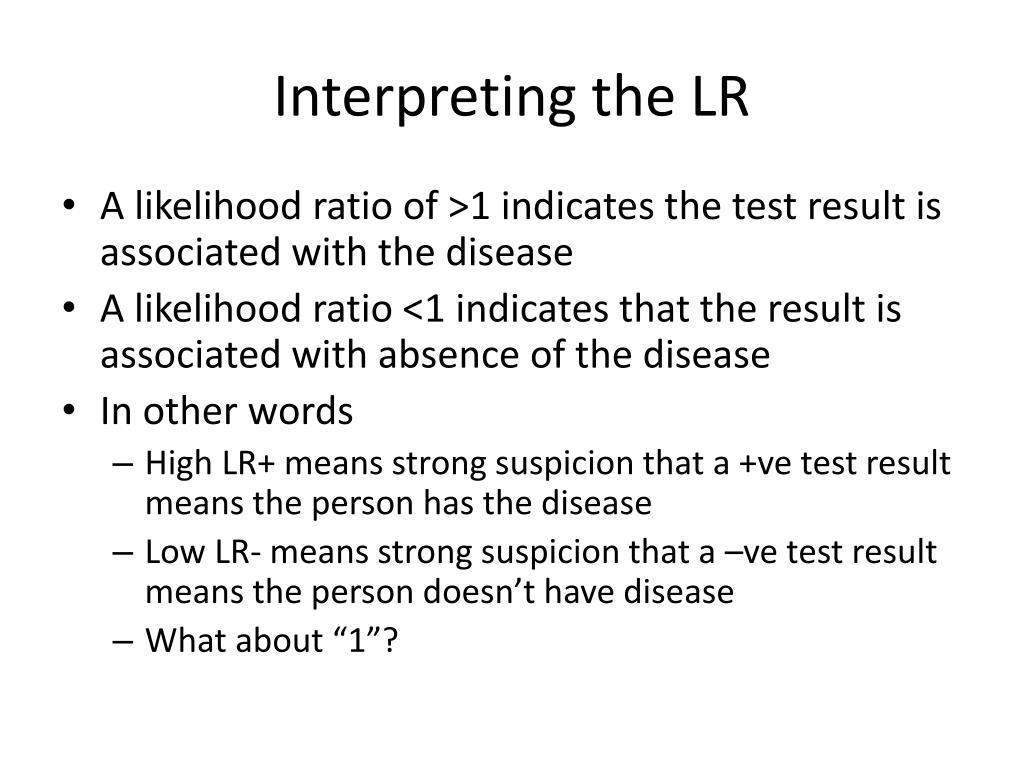

10. Interpreting the LR • A likelihood ratio of >1 indicates the test result is associated with the disease • A likelihood ratio <1 indicates that the result is associated with absence of the disease • In other words • High LR+ means strong suspicion that a +ve test result means the person has the disease • Low LR- means strong suspicion that a –ve test result means the person doesn’t have disease • What about “1”?

11. Interpreting the LR • Arbitrary cutoffs: • LR+ >10 means strong diagnostic value • LR- <0.1 means strong diagnostic value • (Some literature suggests 5 and 0.2 are more appropriate cutoffs) The likelihood ratio, which combines information from sensitivity and specificity, gives an indication of how much the odds of disease change based on a positive or a negative result

12. LR+ • The smallest possible value of the LR+ is zero, when sensitivity is zero. • The maximum possible value of the LR+ is infinity when the denominator is minimized (specificity = 1, so 1 - specificity = 0). • LR+ = 1: indicates a test with no value in sorting out persons with and without the disease of interest, since the probability of a positive test result is equally likely for affected and unaffected persons.

13. LR- • The smallest value of the LR– occurs when the numerator is minimized (sensitivity = 1, so 1 - sensitivity = 0), resulting in an LR– of zero. • The largest value of the LR– occurs when the denominator is minimized (specificity = 0), resulting in an LR– of positive infinity. • LR– = 1: indicates a test with no value in sorting out persons with and without the disease of interest, as the probability of a negative test result is equally likely among persons affected and unaffected with the disease of interest.

14. FNA test (fine needle aspiration)

15. FNA test (fine needle aspiration) LR+ = sensitivity / (1-specificity) = 0.93 / (1-0.92) = 11.63 <- FNA test has high diagnostic value

16. Probability of presence of disease • Pretest probability of disease - the likelihood that a person has the disease of interest before the test is performed. • Pretest odds of disease are defined as the estimate before diagnostic testing of the probability that a patient has the disease of interest divided by the probability that the patient does not have the disease of interest. • Posttest odds of disease are defined as the estimate after diagnostic testing of the probability that a patient has the disease of interest divided by the probability that the patient does not have the disease of interest. • Posttest probability of disease – the likelihood that a person has the disease of interest post the test is performed.

17. Pretest probability and pretest odds Pretest probability = Pretest odds = pretest probability / (1-pretest probability) = = 0.15

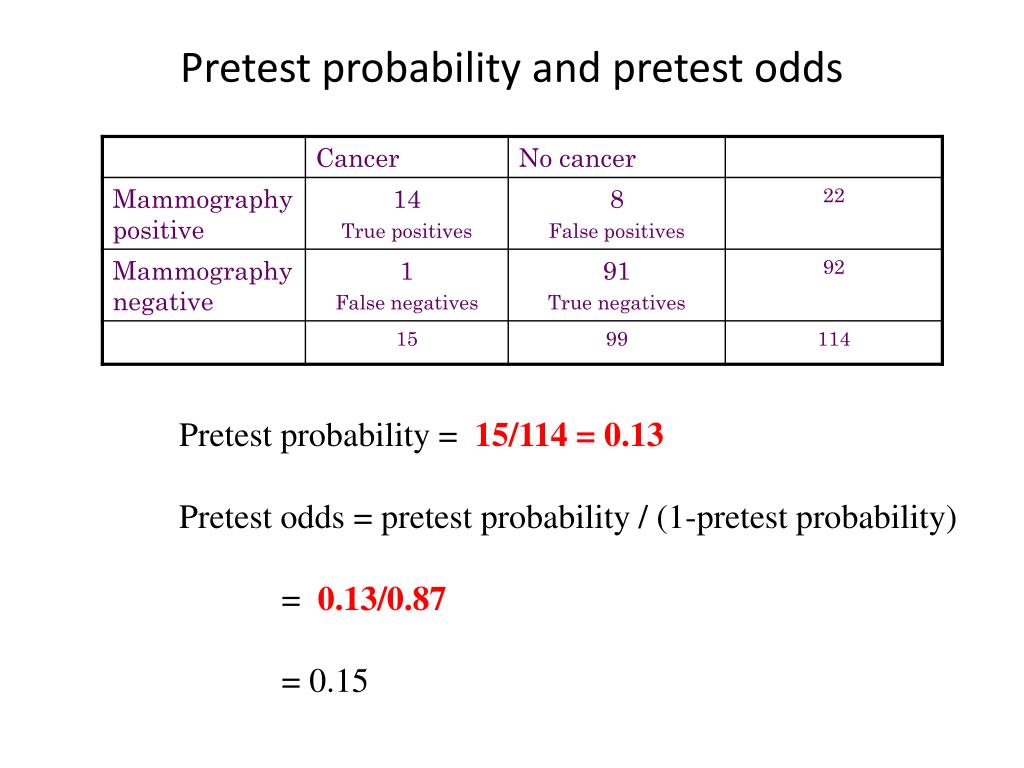

18. Pretest probability and pretest odds Pretest probability = 15/114 = 0.13 Pretest odds = pretest probability / (1-pretest probability) = 0.13/0.87 = 0.15

19. What does this have to do with LR? • LR = post test odds / pre test odds • So now we can compute the odds of having the disease after applying the test and computing LR

20. Pretest probability and pretest odds Pretest odds = 0.15 Sensitivity = 93% Specificity = 92% Compute LR+ and LR-: LR+ = 0.93/0.08 = 11.63 LR- = 0.07/0.92 = 0.08

21. So… • Knowing pretest odds and LR+, what are the posttest odds ? (i.e., odds of having the disease after positive test result)? Post test odds = LR x pre=test odds = 11.63 x 0.15 = 1.74 NB, textbook (p.99) multiplies 11.63 by 0.15 and gets 1.76, which is wrong

22. And then…. • Can you now compute post-test probability? • (do you remember the difference between probability and odds?) Post test prob = post test odds / (1 -+ post test odds) = 1.74 / 2.74 = 0.64

23. LR vs PV • Positive predictive value is the proportion of patients withpositive test results who are correctly diagnosed. • The likelihood ratio indicates the value of the test for increasingcertainty about a positive diagnosis • Relates to a comparison between pre-test odds of having the disease vs post-test odds of having the disease LR+ = post-test odds / pre-test odds

24. LR vs PV • Remember that PV varies with prevalence of the disease • LR is independent of prevalence

25. Pretest odds = 0.15 Sensitivity = 93% Specificity = 92% LR+ = 11.63 LR- = 0.08 Post test odds = 1.74 Post test prob = 64% Similar thing can be done with LR-, but in general we don’t bother

26. Performance Yield True Disease Status - + Results of Screening Test 400 995 + - 98905 100 Sensitivity: a / (a + c) = 400 / (400 + 100) = 80% Specificity: d / (b + d) = 98905 / (995 + 98905) = 99% PV+: a / (a + b) = 400 / (400 + 995) = 29% PV-: d / (c + d) = 98905 / (100 + 98905) = 99% Prevalence: (a+c)/(a+b+c+d) = 500/100400 = 0.5% LR+ = sens / (1-spec) = 0.8/(1-0.99) = 80

27. Comparing LR and PV True Disease Status - + Results of Screening Test 400 995 + - 98905 100 PV+=29% Among persons who screen positive, 29% are found to have the disease. LR+ = 80 A positive test result increases your odds of having the disease by 80 fold

28. Homework #1 • Geenberg p. 105, question 1-13: • 13786 Japanese patients underwent CT scans to detect first signs of cancer, then had pathology tests 2 years later to confirm whether or not they actually had cancer • Compute: • LR+ • LR- • Pre-test probability of cancer • Pre-test odds of cancer • Post-test odds of cancer • Post-test probability of cancer (Answers are in the notes section of this slide)

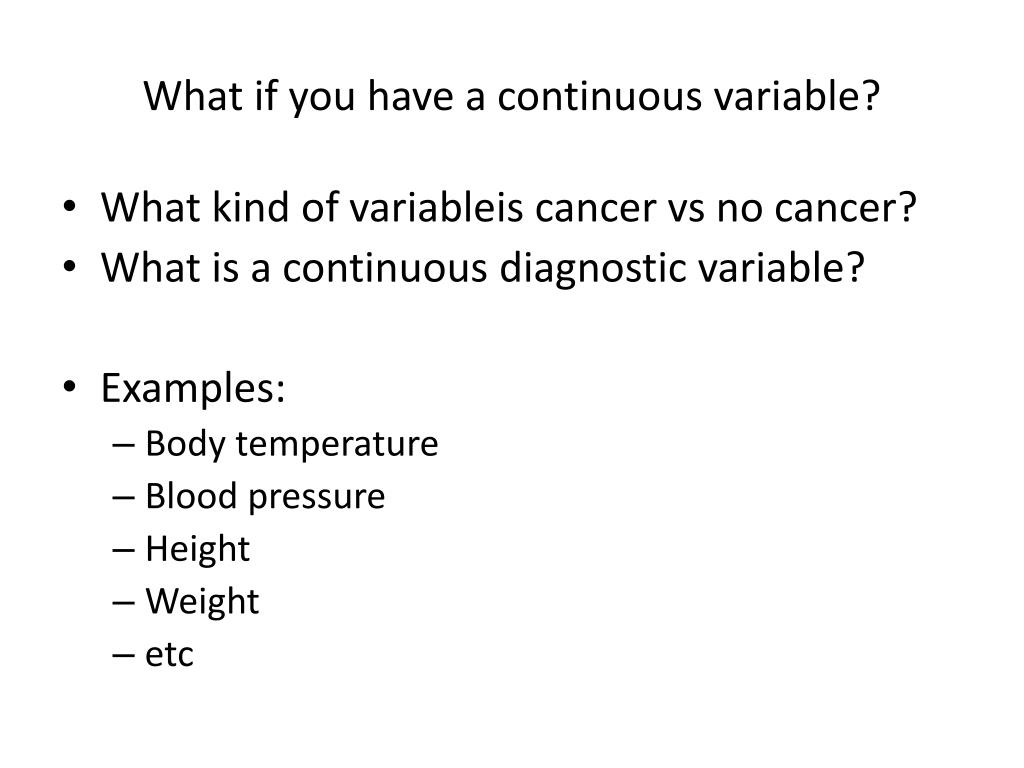

29. What if you have a continuous variable? • What kind of variableis cancer vs no cancer? • What is a continuous diagnostic variable? • Examples: • Body temperature • Blood pressure • Height • Weight • etc

30. signal noise Receiver Operator Curve (ROC)

31. Useful for comparing 2 diagnostic tests. The greater the area under the curve, the better signal-to-noise ratio and the better the test

32. See article on website called “Kappa.pdf” Agreement

33. Remember Reliability? • The extent to which the screening test will produce the same or very similar results each time it is administered. • Inter-rater reliability is “the variation in measurements when taken by a different persons but with the same method or instruments” Also called CONCORDANCE

34. Inter-rater Reliability • Is a measurement of Agreement • A score of how much consensus there is among judges, observers, technicians or any number of people who are using the same instrument(s) to measure the same data. Eg: • Judges scoring a beauty pageant contestant from 1-10 • Several psychologists using a PTSD scale to assess a patient • Different devices measuring body temperature simultaneously on same patient

35. How Do We Measure Agreement? • Lots of stats available to us: • Inter-rater correlation coefficient • Intra-class correlation coefficient • Concordance correlation coefficient • Fleiss’s kappa • Cohen’s kappa

36. Kappa (κ) • Cohen • Two raters • Fleiss • Adaptation of Cohen, applicable to multiple raters • Kappa is generally thought to be a more robust measure than simple percent agreement calculation since κ takes into account the agreement occurring by chance

37. Cohen’s Kappa Cohen the Barbarian

38. Cohen’s Kappa • Κ = {Pr(a) – Pr(e)} / {1-Pr(e)} Pr(a) = relative observed agreement Pr(e) = prob that agreement is due to chance Results in a ratio from 0 to 1

39. Two Judges Decide Whether Or Not 75 Beauty Pageant Contestants Are Hot Judge #1 = Hasselhoff Judge #2 = Shatner

40. The Data

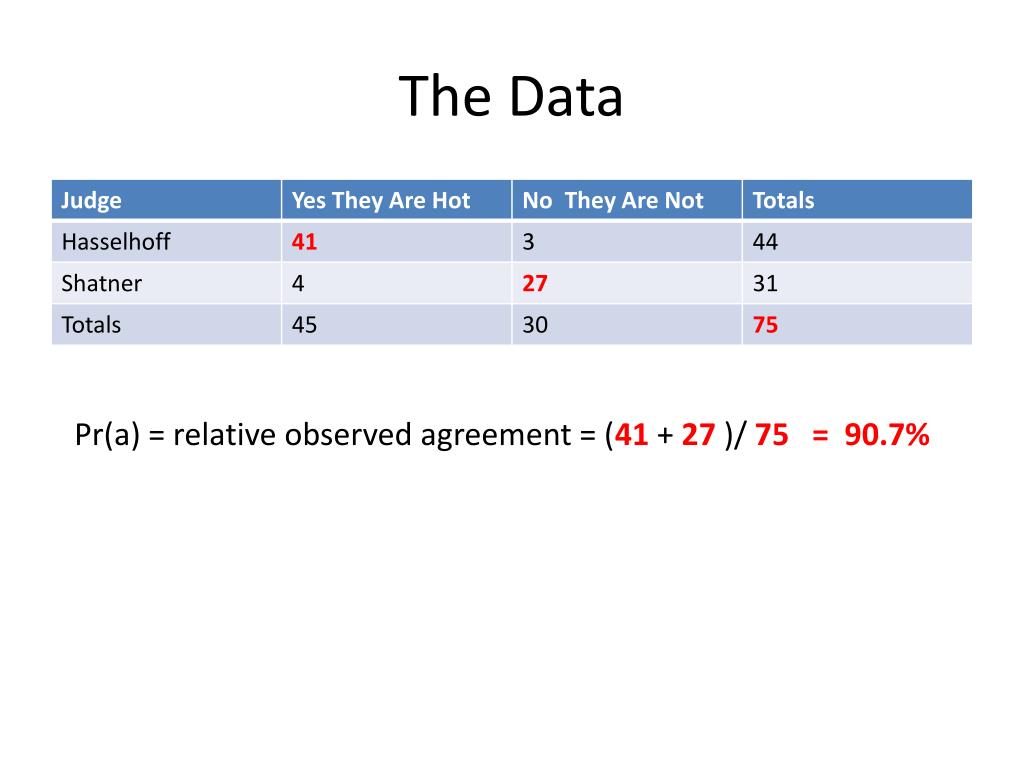

41. The Data Pr(a) = relative observed agreement = (41 + 27 )/ 75 = 90.7%

42. The Data Pr(a) = relative observed agreement = (41 + 27 )/ 75 = 90.7% Pr(e) = prob that agreement is due to chance = (44x45/752 + (31x30)/752 = 0.352 + 0.165 = 51.7% (multiply marginals and divide by total squared)

43. Compute Kappa • K = [ Pr(a) – Pr(e) ] / 1 – Pr(e) • = (0.907 – 0.517) / (1-0.517) • = 0.81 How do we interpret this?

44. Interpreting Kappa Hasselhoff and Shatner are in almost perfect agreement over who is hot and who is not.

45. What if….? • There are >2 raters? • There are >2 categories? • Eg, “ugly, meh, hmm, pretty hot, very hot, smokin’” • Eg, “don’t like, somewhat like, like” • Then it is possible to apply kappa, but only to determine complete agreement. So? • Dichotomize variables • Weighted kappa

46. Homework #2 Compute Cohen’s Kappa in both cases and interpret. (The answers are in the notes section of this slide)

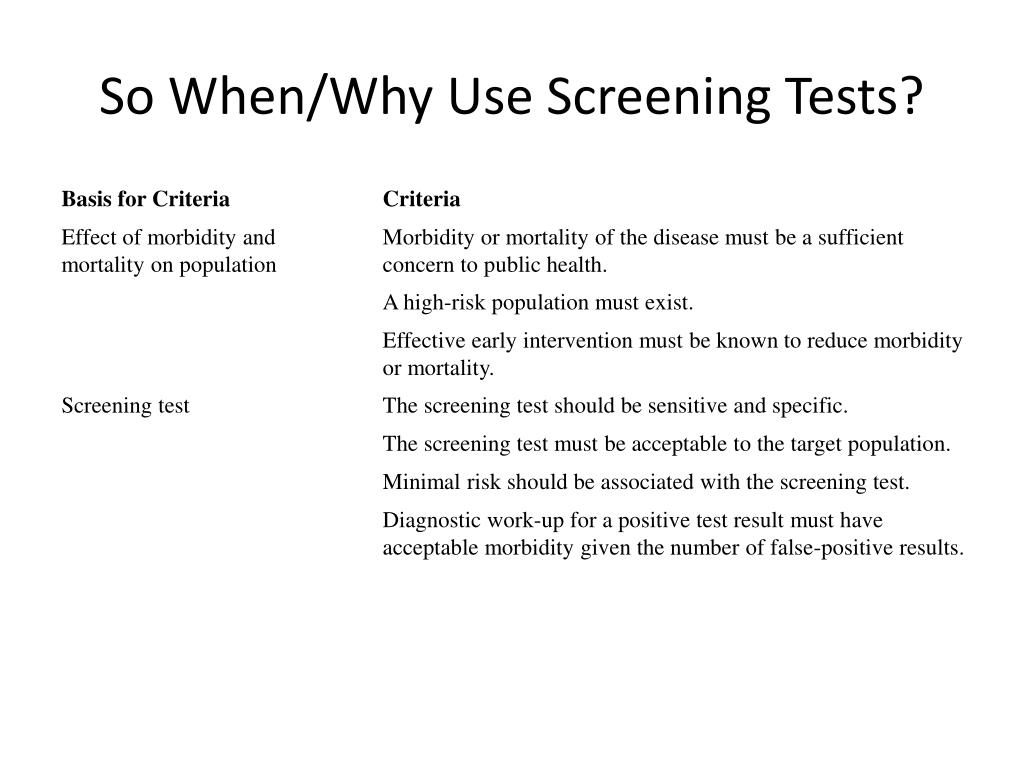

47. So When/Why Use Screening Tests?
