  1. MachineILab投票系统 ——数据融合小组

  2. ZigBee是一种近距离、低复杂度、低功耗、低数据速率、低成本的ZigBee是一种近距离、低复杂度、低功耗、低数据速率、低成本的 双向无线通信新技术，主要适用于自动控制和远程控制领域，可以 满足对小型廉价设备的无线联网和控制。 ZigBee设备按网络功能分3种：网络协调器(Network Coordinator)、路由节点(Network Node)及终端节点(IEEE Node)。前两种都是FFD，可以与任何节点通信；终端节点是RFD

  3. LM2455-EM 功能按键 RESET 中断

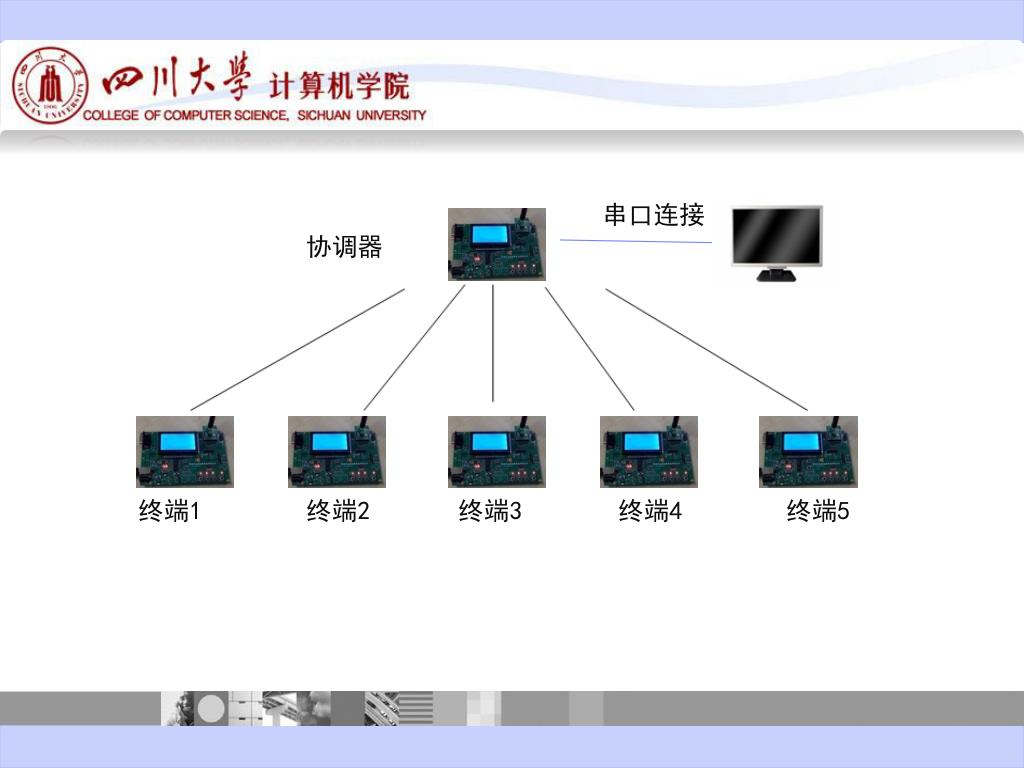

  4. 串口连接 协调器 终端1 终端2 终端3 终端4 终端5

  5. THANKS!
