may triangle openstack meetup

May Triangle OpenStack Meetup

Organizers: Mark T. Voelker, ArvindSomya, Amy Lewis

2013-05-30

what s happening tonight
What’s Happening Tonight?
  • 4:30pm: Welcome & Introductions
  • 4:45pm: “What’s New In Grizzly”
  • 5:00pm: “OpenStack Automation with Puppet”
  • 5:30pm: Open Forum – Q&A
  • 5:45(ish)pm: Pizza!

* All times “-ish”

who are these people
Who Are These People?
  • A few introductions are in order….
mark t voelker

IRC: markvoelker

Twitter: @marktvoelker

GitHub: markvoelker

Bio

Mark T. Voelker
  • Technical Leader/Developer/Manager/”That Guy”
    • Systems Development Unit at Cisco Systems
    • Lead one of the Cisco dev teams working on Quantum in the initial release
    • Currently working on: OpenStack solutions, Big Data, Massively Scalable Data Centers
arvind somya

IRC: asomya

Twitter: @ArvindSomya

GitHub: asomya

ArvindSomya
  • Software Engineer
    • Data Center Group/Office of the Cloud CTO at Cisco
    • Developed the initial representation of Quantum in Horizon
    • Currently working on: Quantum
amy lewis

Twitter: @CommsNinja

LinkedIn: amyhlewis

YouTube: engineersunplugged

Bio

Amy Lewis
  • Community Evangelist for Data Center Virtualization
    • Social Media Strategist at Cisco
    • Creator of Engineers Unplugged
    • Currently working on: Listening to and developing the technologist community across various platforms and in real life (gasp!).
everyone else
Everyone Else
  • You people:
    • Are OpenStack developers, OpenStack deployers, and OpenStack newbies
    • …..are hopefully here for the Triangle OpenStack Meetup. Otherwise, you’re in the wrong place.
    • Introductions?
a few notes before we start
A Few Notes Before We Start…
  • We have WebEx!
    • Tonight’s talks will be broadcast/recorded via WebEx. Feel free to tune in! We’ll also post content after we wrap up tonight.
  • We want content!
    • Interested in giving a talk next time? Contact Mark, Arvind, or Amy!
  • We want feedback!
    • Help us shape future Triangle OpenStack Meetups by answering a few questions when we’re done.
  • Mark your calendars!
    • Proposed date for next meetup: Monday, July 1
grizzly what s new

Grizzly: What’s New?

Mark T. Voelker

Technical Leader, Cisco Systems

May Triangle OpenStack Meetup

2013-05-30

grizzly some figures
Grizzly: Some Figures
  • Release date: April 4, 2013
  • Contributors: 517 (up ~56%)
  • New features: ~230
  • Growth by lines of code: 35%
  • Patches merged: ~7,620
  • New networking drivers: 5
  • New block storage drivers: 10
  • New docs contributors: 27
  • Release notes: https://wiki.openstack.org/wiki/ReleaseNotes/Grizzly
  • Next release name and date: Havana, Oct. 17
  • Next design summit: Nov. 5-8 in Hong Kong

Stats referenced from: http://www.slideshare.net/laurensell/openstack-grizzly-release

grizzly what s new1
Grizzly: What’s New?

With numbers like those…..

Tonight’s list of new features won’t

be comprehensive…

(or anywhere close)

But it should be enough to

whet your appetite.

what s new nova cells
What’s New: Nova Cells
  • “Cells” are a way to manage distributed clusters within an OpenStack cloud, allowing for greater scalability and some resource isolation
  • Originated at Rackspace (in production since 8/1/2012)
  • Cells provide a way to create isolated resource pools within an OpenStack cloud—similar in some respects to AWS Availability Zones
    • OpenStack had a “zone” concept dating back to Bexar.
    • Through Diablo, zones shared nothing and communicated via the OpenStack public API
    • Zones were broken by the introduction of Keystone and were removed in Essex
    • Cells replace the old zone functionality
  • More information on cells:
    • The blueprint
    • The Grizzly OpenStack Compute Admin Guide
    • Chris Behrens’s cells presentation from the Grizzly Design Summit
nova cells how they work
Nova Cells: How They Work
  • Compute resources are partitioned into hierarchical pools called “cells”:
    • Each top-level “API cell” has a nova-api service, AMQP broker, DB, and nova-cells service
    • Each “child” cell has all the normal nova services except for nova-api
    • Each child cell has it’s own database server, AMQP broker, etc.
    • Glance/keystone are global
  • The nova-cells service provides communication between cells.
    • Also selects cells for new instances…cell scheduling != host scheduling
    • Host scheduling decisions are made within a cell
  • The future of cells
    • Other options besides AMQP for inter-cell communication (pluggable today, but only one option available)
    • More cell scheduler options (currently random)
more about cells
More About Cells
  • Today, cells primarily address scalability and geographic distribution concerns rather than providing complete resource isolation
  • Cells can be nested (e.g. “grandchild cells”)
  • Cells are optional…small deployments aren’t forced to use them
  • Each child cell database has only the data for that cell
    • API cells have a subset of all child data (instances, quotas, migrations)
  • Quotas must be disabled in child cells…quota management happens on the API cell
nova no db architecture

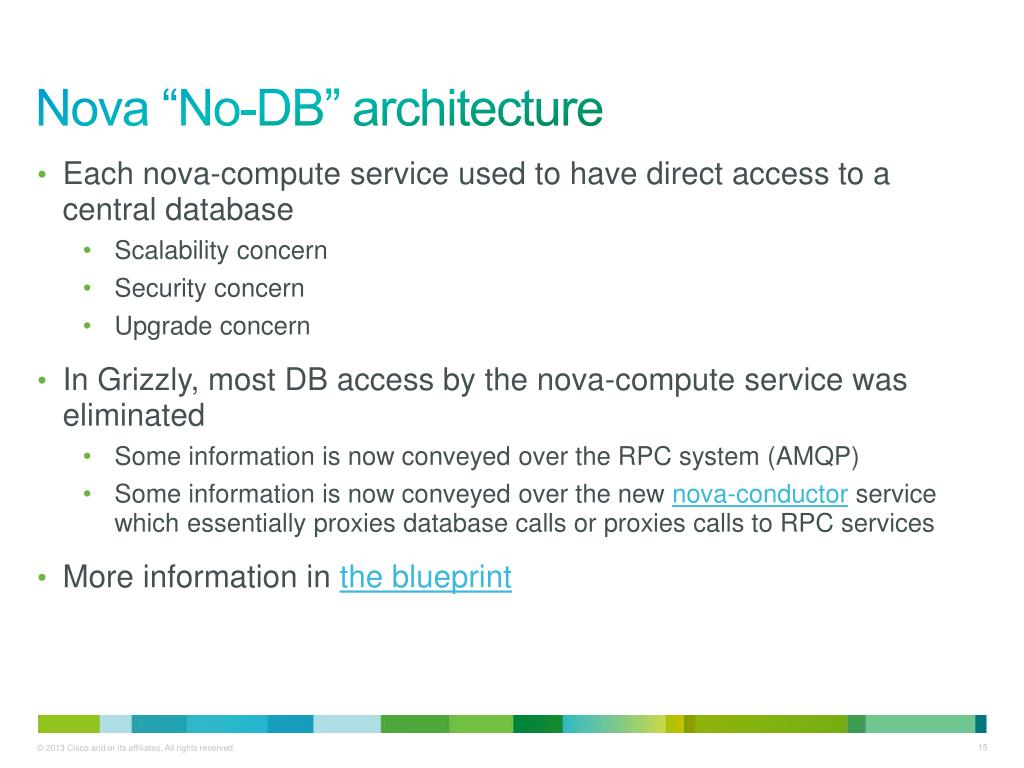

Nova “No-DB” architecture
  • Each nova-compute service used to have direct access to a central database
    • Scalability concern
    • Security concern
    • Upgrade concern
  • In Grizzly, most DB access by the nova-compute service was eliminated
    • Some information is now conveyed over the RPC system (AMQP)
    • Some information is now conveyed over the new nova-conductor service which essentially proxies database calls or proxies calls to RPC services
  • More information in the blueprint
quantum new plugins
Quantum: New Plugins
  • Upgrades to existing plugins:
  • New plugins introduced:
quantum
Quantum
  • Multihost distribution of L#/L4 and DHCP services
  • Improved handling of security groups and overlapping IP’s
  • Simplified configuration requirements for metadata service
  • v2 API support for XML and pagination
  • Introduction of Load Balancing as a Service (LBaaS)
    • API model and pluggable framework established
      • Tenant and cloud admin API’s
    • Basic reference implementation with HAProxy
    • Vendor plugins to come in Havana
horizon
Horizon

Slick new network topology visualization

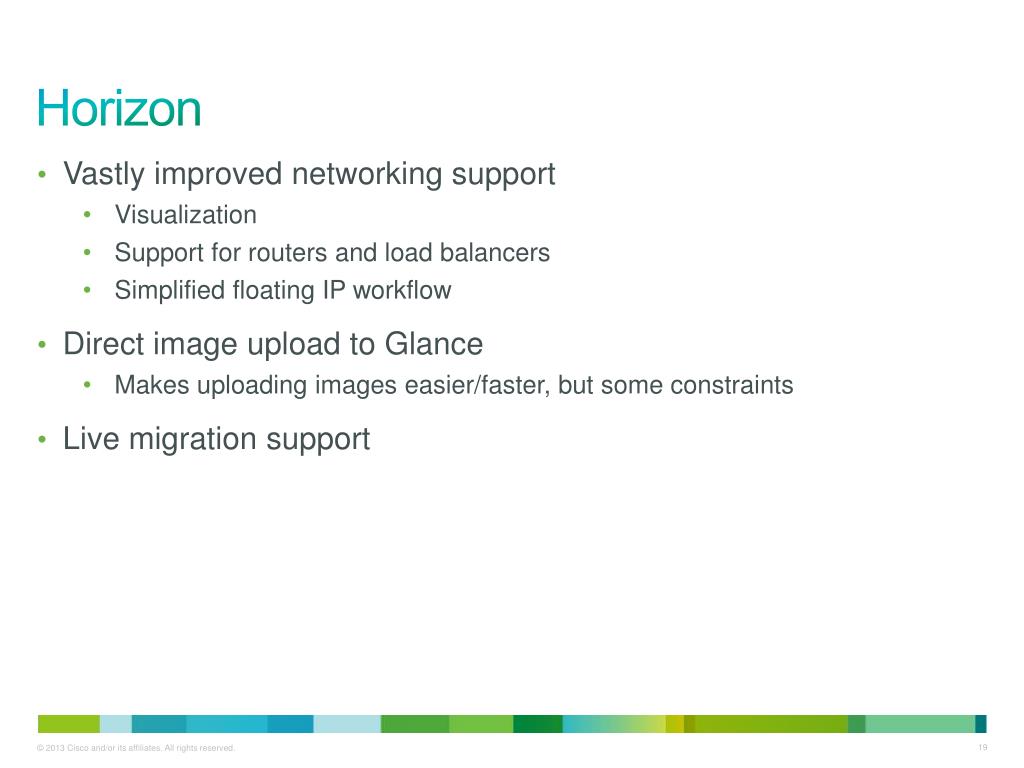

horizon1
Horizon
  • Vastly improved networking support
    • Visualization
    • Support for routers and load balancers
    • Simplified floating IP workflow
  • Direct image upload to Glance
    • Makes uploading images easier/faster, but some constraints
  • Live migration support
keystone
Keystone
  • PKI tokens replace UUID tokens as the default format
    • Allows offline validation and improved performance
  • API v3
  • Domains provide namespace isolation and role management
  • RBAC improvements
  • Trusts provided via CGI-style REMOTE_USER params to make external authentication simpler
cinder
Cinder
  • Fibre channel attach support
  • Multiple backends with the same manager & scheduler improvements
  • New drivers:
swift
Swift
  • User container quotas
  • CORS (cross-origin resource sharing) support for easier integration with web/HTML5 apps
  • Bulk operations support
  • StatsD updates
much much much more
Much, much, much more
  • Nova: https://launchpad.net/nova/+milestone/2013.1
  • Quantum: https://launchpad.net/quantum/+milestone/2013.1
  • Keystone: https://launchpad.net/keystone/+milestone/2013.1
  • Horizon: https://launchpad.net/horizon/+milestone/2013.1
  • Swift: https://launchpad.net/swift/grizzly/1.8.0
  • Glance: https://launchpad.net/glance/+milestone/2013.1
  • Cinder: https://launchpad.net/cinder/+milestone/2013.1
  • Grizzly release notes:

https://wiki.openstack.org/wiki/ReleaseNotes/Grizzly

  • Grizzly Overview:

http://www.openstack.org/software/grizzly/

openstack automation with puppet

OpenStack Automation with Puppet

Mark T. Voelker

Technical Leader, Cisco Systems

May Triangle OpenStack Meetup

2013-05-30

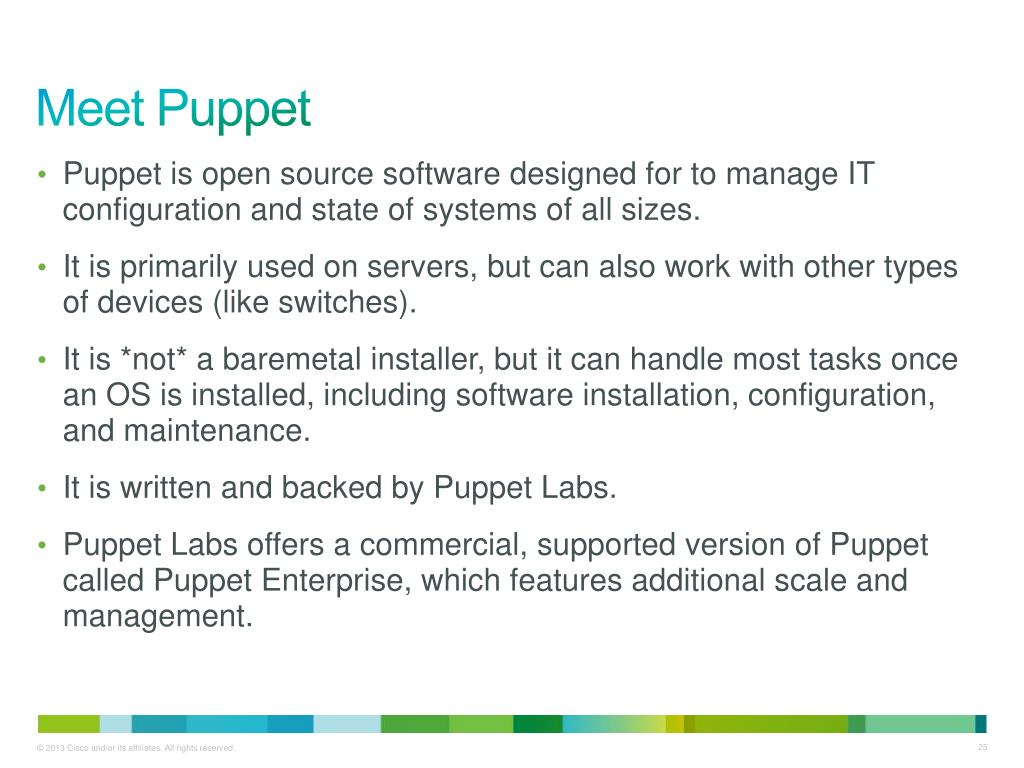

meet puppet
Meet Puppet
  • Puppet is open source software designed for to manage IT configuration and state of systems of all sizes.
  • It is primarily used on servers, but can also work with other types of devices (like switches).
  • It is *not* a baremetal installer, but it can handle most tasks once an OS is installed, including software installation, configuration, and maintenance.
  • It is written and backed by Puppet Labs.
  • Puppet Labs offers a commercial, supported version of Puppet called Puppet Enterprise, which features additional scale and management.
why puppet

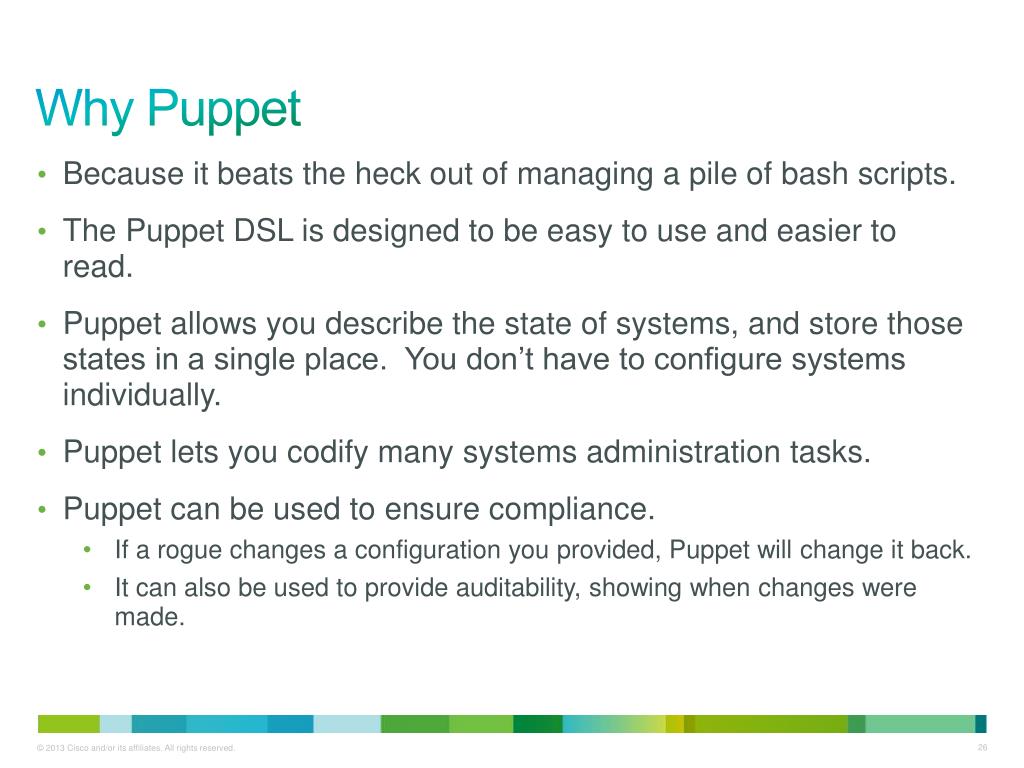

Why Puppet
  • Because it beats the heck out of managing a pile of bash scripts.
  • The Puppet DSL is designed to be easy to use and easier to read.
  • Puppet allows you describe the state of systems, and store those states in a single place. You don’t have to configure systems individually.
  • Puppet lets you codify many systems administration tasks.
  • Puppet can be used to ensure compliance.
    • If a rogue changes a configuration you provided, Puppet will change it back.
    • It can also be used to provide auditability, showing when changes were made.
puppet alternatives
Puppet Alternatives

Pile of

Bash

Scripts

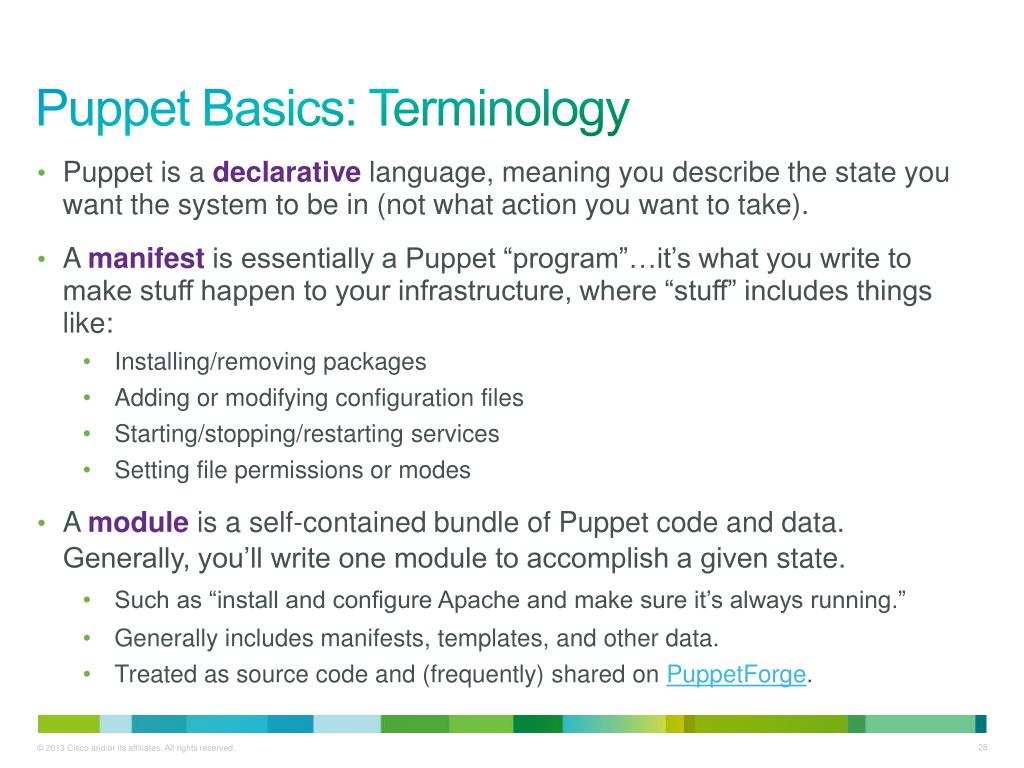

puppet basics terminology
Puppet Basics: Terminology
  • Puppet is a declarativelanguage, meaning you describe the state you want the system to be in (not what action you want to take).
  • A manifest is essentially a Puppet “program”…it’s what you write to make stuff happen to your infrastructure, where “stuff” includes things like:
    • Installing/removing packages
    • Adding or modifying configuration files
    • Starting/stopping/restarting services
    • Setting file permissions or modes
  • A module is a self-contained bundle of Puppet code and data. Generally, you’ll write one module to accomplish a given state.
    • Such as “install and configure Apache and make sure it’s always running.”
    • Generally includes manifests, templates, and other data.
    • Treated as source code and (frequently) shared on PuppetForge.

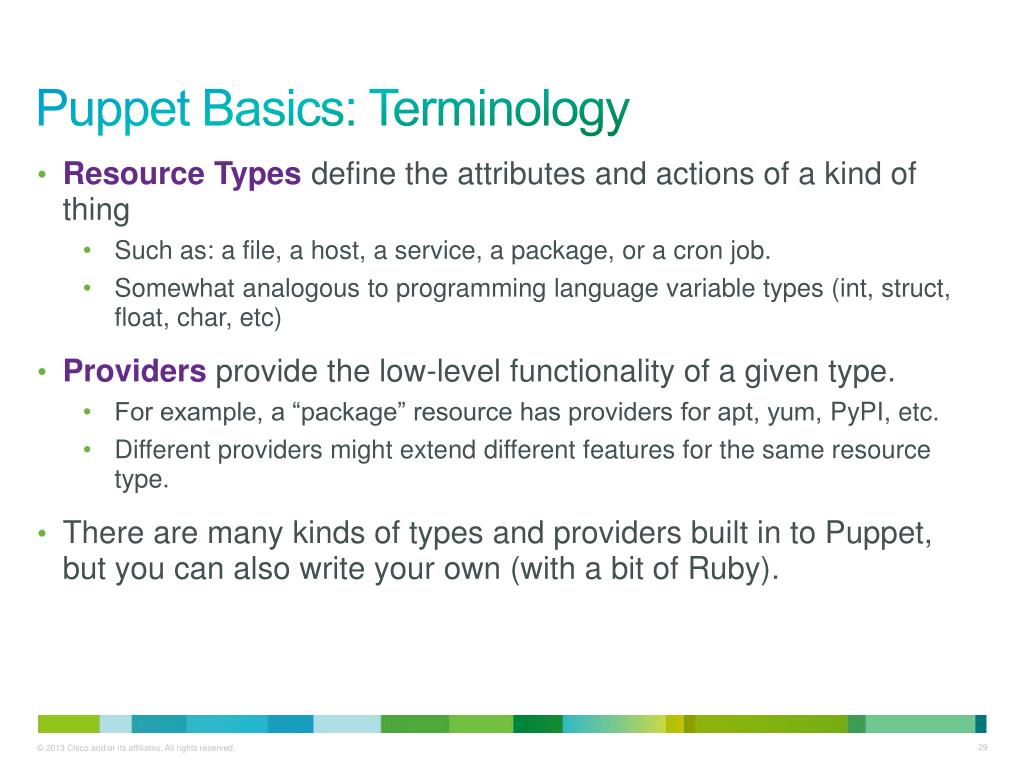

puppet basics terminology1
Puppet Basics: Terminology
  • Resource Types define the attributes and actions of a kind of thing
    • Such as: a file, a host, a service, a package, or a cron job.
    • Somewhat analogous to programming language variable types (int, struct, float, char, etc)
  • Providers provide the low-level functionality of a given type.
    • For example, a “package” resource has providers for apt, yum, PyPI, etc.
    • Different providers might extend different features for the same resource type.
  • There are many kinds of types and providers built in to Puppet, but you can also write your own (with a bit of Ruby).
puppet basics modes of operation

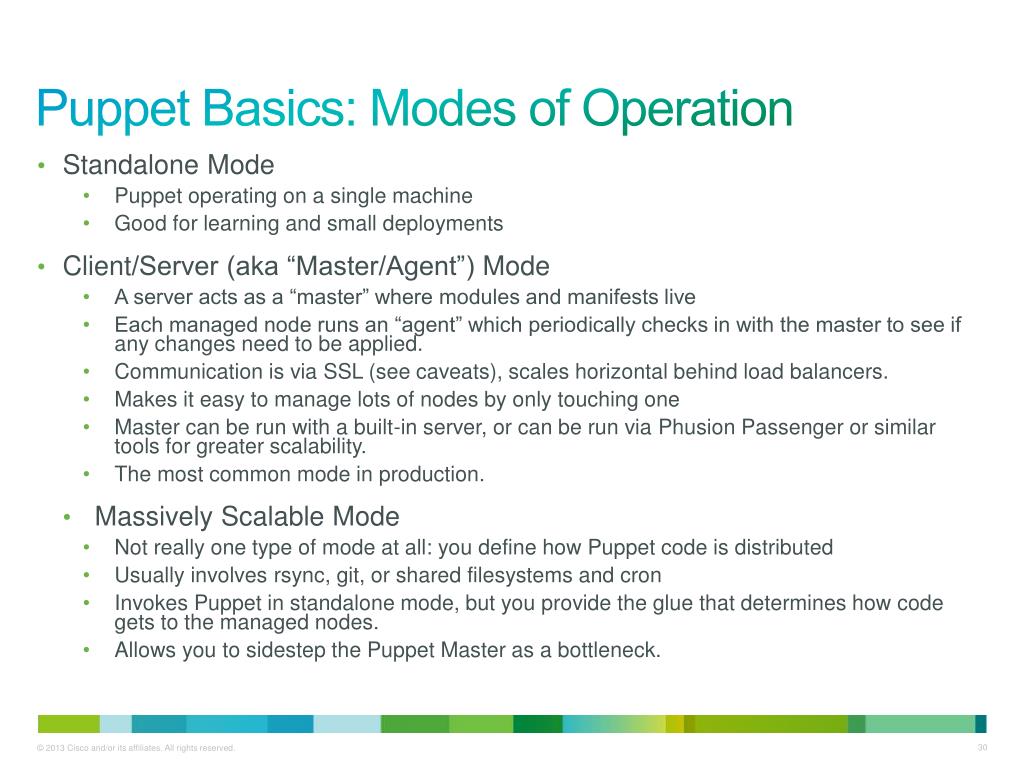

Puppet Basics: Modes of Operation
  • Standalone Mode
    • Puppet operating on a single machine
    • Good for learning and small deployments
  • Client/Server (aka “Master/Agent”) Mode
    • A server acts as a “master” where modules and manifests live
    • Each managed node runs an “agent” which periodically checks in with the master to see if any changes need to be applied.
    • Communication is via SSL (see caveats), scales horizontal behind load balancers.
    • Makes it easy to manage lots of nodes by only touching one
    • Master can be run with a built-in server, or can be run via Phusion Passenger or similar tools for greater scalability.
    • The most common mode in production.
  • Massively Scalable Mode
    • Not really one type of mode at all: you define how Puppet code is distributed
    • Usually involves rsync, git, or shared filesystems and cron
    • Invokes Puppet in standalone mode, but you provide the glue that determines how code gets to the managed nodes.
    • Allows you to sidestep the Puppet Master as a bottleneck.
a simple manifest
A Simple Manifest

<- Installs the openssh-server package (before we place a config file)

<- Creates an SSHdconfig file by copying one we had in /root and sets the mode

<- Makes sure the sshd service is always running, and restarts it if we make any changes to sshd_config

more puppet basics facts

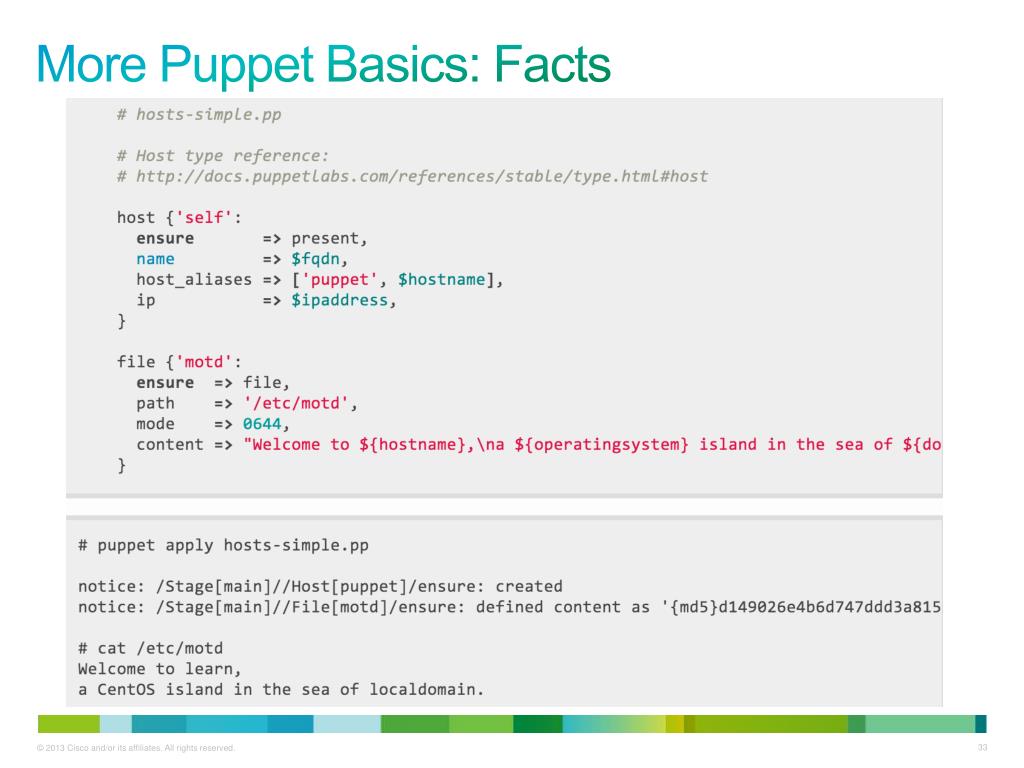

More Puppet Basics: Facts
  • Facts are information about the specific system a given Puppet agent is running on.
  • They are collected by a program called Facter that ships with Puppet itself.
  • Facts can be inserted in manifests as variables.
  • Puppet supports a variety of facts already, but you can add more with a bit of Ruby.
get your hands dirty
Get Your Hands Dirty

Puppet has very good “getting started” training online!

http://docs.puppetlabs.com/learning/

Some other resources to check out:

  • Look for “Pro Puppet” and “Puppet 2.7 Cookbook”, at your favorite tech book library.
  • Puppet has IRC channels where you can ask questions.
  • Puppet has documentation.
puppet and openstack
Puppet and OpenStack
  • Puppet Labs has been active participant in the OpenStack community, as have Puppet users
    • Stop by the #puppet-openstack channel on IRC
    • Check out the Google Group
    • Say “hi” to Dan Bode
  • Many OpenStack clouds are deployed with Puppet
    • Such as Rackspace’s public cloud, eNovance, Morph Labs, Cisco WebEx, and clouds built with PackStack
    • Puppet is also used to manage portions of the OpenStack community’s project infrastructure
  • Puppet modules for OpenStack are maintained on StackForge
    • StackForge is a way for projects related to OpenStack to make use of OpenStack project infrastructure
    • Puppet modules are mirrored to GitHubat:https://github.com/stackforge/puppet-openstack
dan bode

IRC: bodepd

Twitter: @bodepd

GitHub: bodepd

O’Reilly Bio

Dan Bode
  • Puppet Labs integration specialist
  • Frequent OpenStack Design Summit speaker and community guy
  • Co-author of “Puppet Types and Providers”
  • Did a workshop on installing OpenStack with Puppet at the Havana Design Summit recently
how it works the abridged version

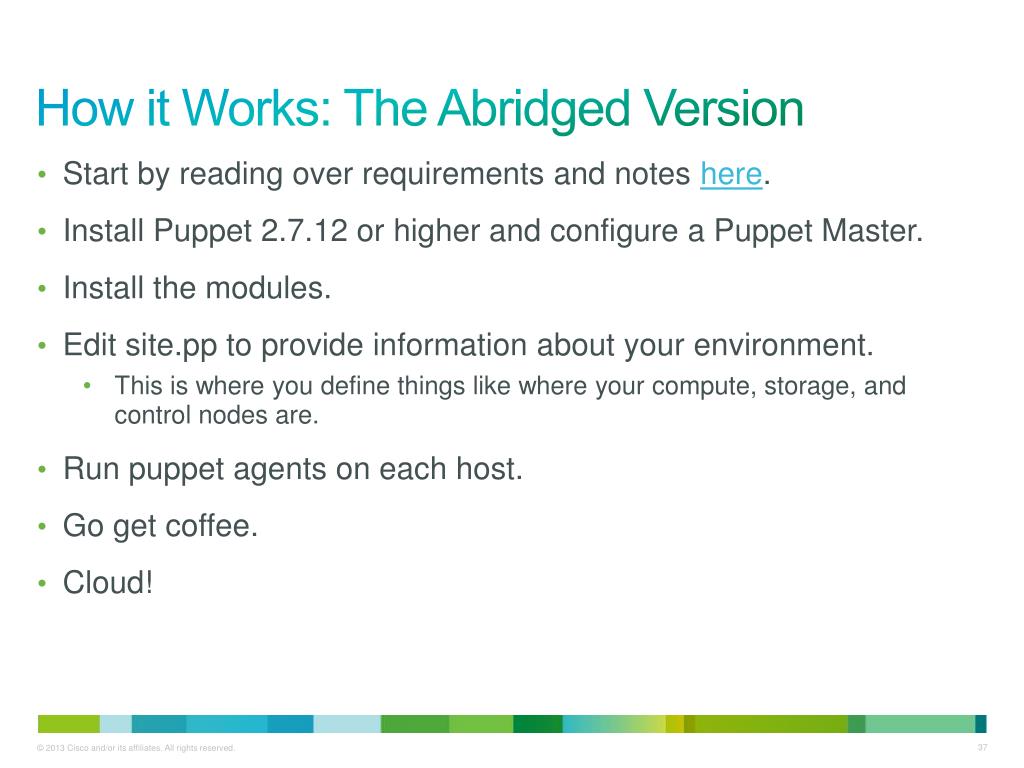

How it Works: The Abridged Version
  • Start by reading over requirements and notes here.
  • Install Puppet 2.7.12 or higher and configure a Puppet Master.
  • Install the modules.
  • Edit site.pp to provide information about your environment.
    • This is where you define things like where your compute, storage, and control nodes are.
  • Run puppet agents on each host.
  • Go get coffee.
  • Cloud!
anatomy
Anatomy
  • puppet-openstack is the “root” module
    • Probably the only one you need to really touch
    • Intended to make bootstrapping an OpenStack environment fast and easy
    • It provides the site.pp file where you define your infrastructure (IP addresses, etc)
  • Individual OpenStack components handled by their own modules (you may or may not use all of them)
    • puppet-nova
    • puppet-swift
    • puppet-quantum
    • puppet-glance
    • puppet-cinder
    • puppet-horizon
    • puppet-keystone
but what about initial baremetal provisioning

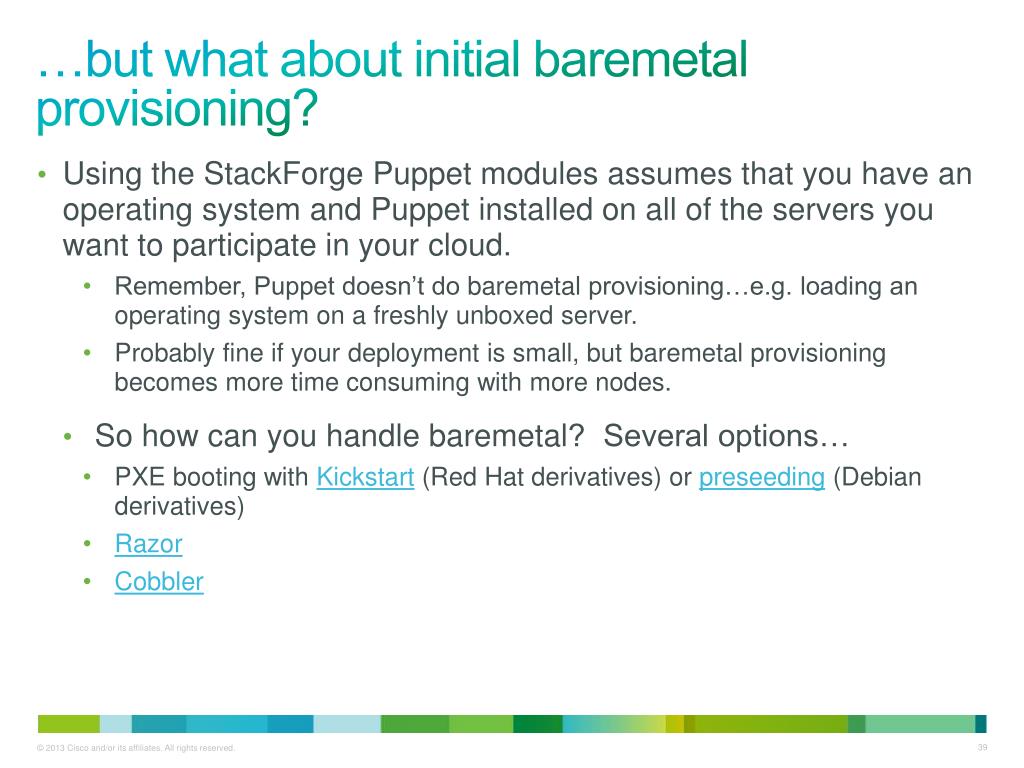

…but what about initial baremetal provisioning?
  • Using the StackForge Puppet modules assumes that you have an operating system and Puppet installed on all of the servers you want to participate in your cloud.
    • Remember, Puppet doesn’t do baremetal provisioning…e.g. loading an operating system on a freshly unboxed server.
    • Probably fine if your deployment is small, but baremetal provisioning becomes more time consuming with more nodes.
  • So how can you handle baremetal? Several options…
    • PXE booting with Kickstart(Red Hat derivatives) or preseeding (Debian derivatives)
    • Razor
    • Cobbler
meet cobbler
Meet Cobbler
  • A simple (~15k lines of Python code) tool for managing baremetal deployments
  • Flexible usage (API, CLI, GUI)
  • Allows you to define systems (actual machines) and profiles (what you want to do with them)
  • Provides hooks for Puppet so you can then do further automation once the OS is up and running
  • Provides control for power (via IPMI or other means), DHCP/PXE (for netbooting machines), preseed/kickstart setup, and more.
cisco openstack installer
Cisco OpenStack Installer

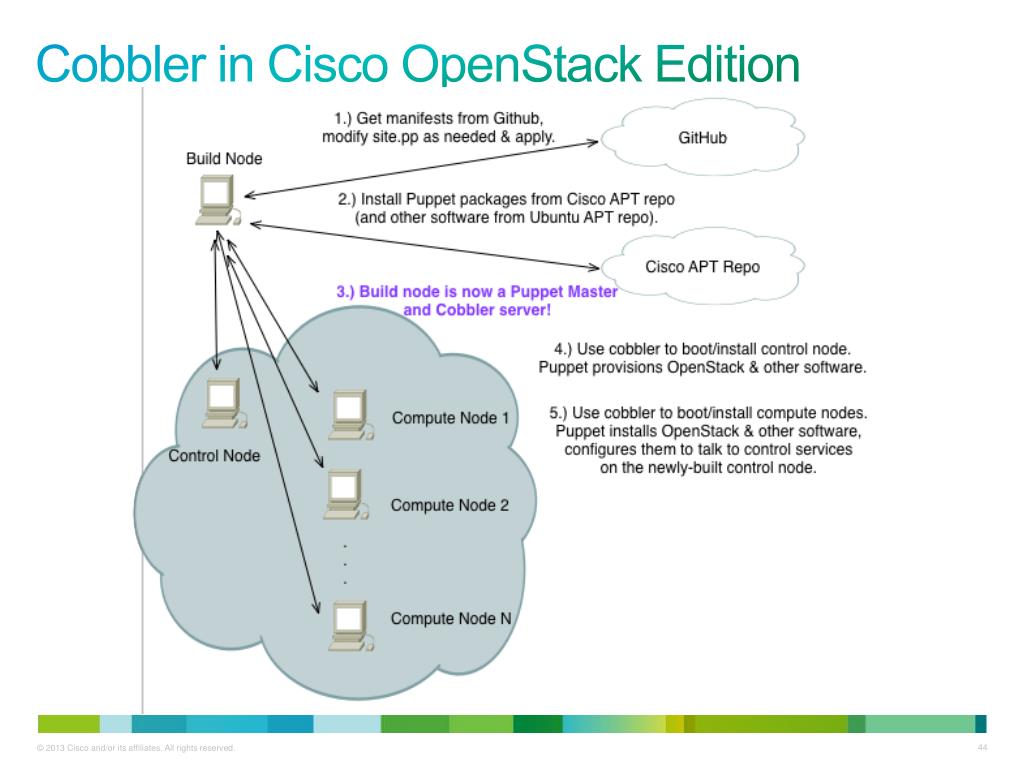

  • In our labs (and at some of our customer sites), we deploy OpenStack using Cobbler and Puppet with the Cisco OpenStack Installer.
    • Installs OpenStack with Quantum networking using the Open vSwitch driver (so it works on almost any hardware).
    • Also installs some basic monitoring utilities (Nagios, collectd, graphite)
    • Open source, freely available
  • Documentation/install instructions here: http://docwiki.cisco.com/wiki/OpenStack
  • Video walk-through here:
    • Part 1: Build Server Deployment
    • http://www.youtube.com/watch?v=sCtL6g1DPfY
    • Part 2: Controller and Compute Node Deployment
    • http://www.youtube.com/watch?v=RPUmxdI4M-w
    • Part 3: Quantum Network Setup and VM Creation
    • http://www.youtube.com/watch?v=Y0qjOsgyT90
the basics

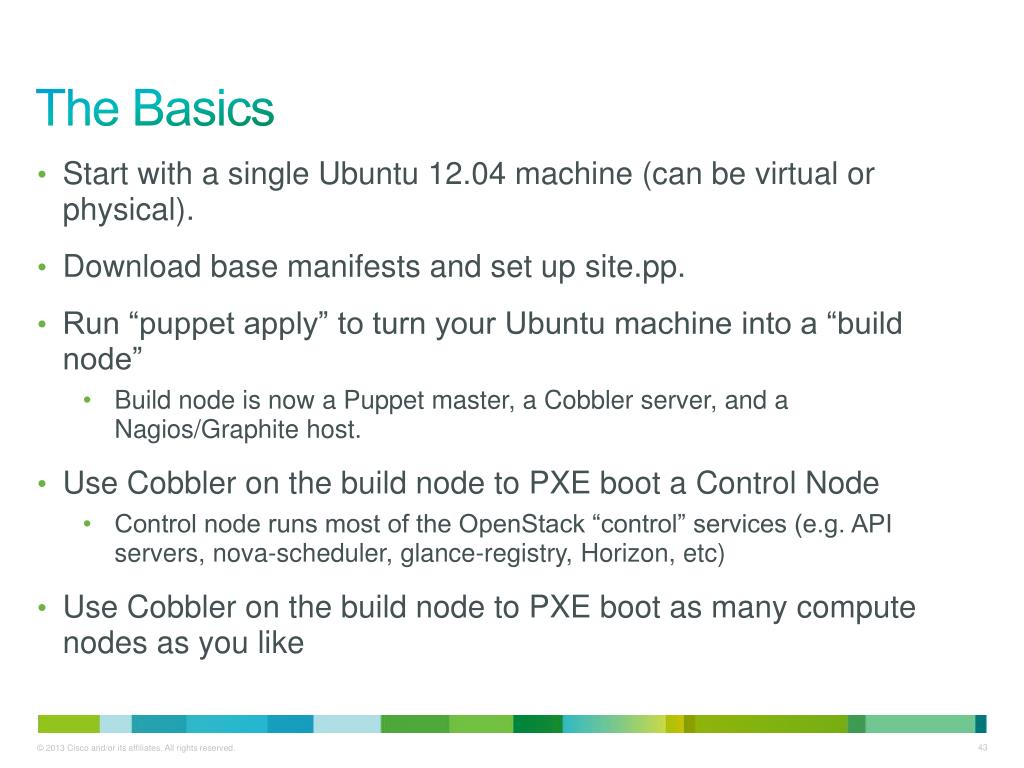

The Basics
  • Start with a single Ubuntu 12.04 machine (can be virtual or physical).
  • Download base manifests and set up site.pp.
  • Run “puppet apply” to turn your Ubuntu machine into a “build node”
    • Build node is now a Puppet master, a Cobbler server, and a Nagios/Graphite host.
  • Use Cobbler on the build node to PXE boot a Control Node
    • Control node runs most of the OpenStack “control” services (e.g. API servers, nova-scheduler, glance-registry, Horizon, etc)
  • Use Cobbler on the build node to PXE boot as many compute nodes as you like
so what s in site pp

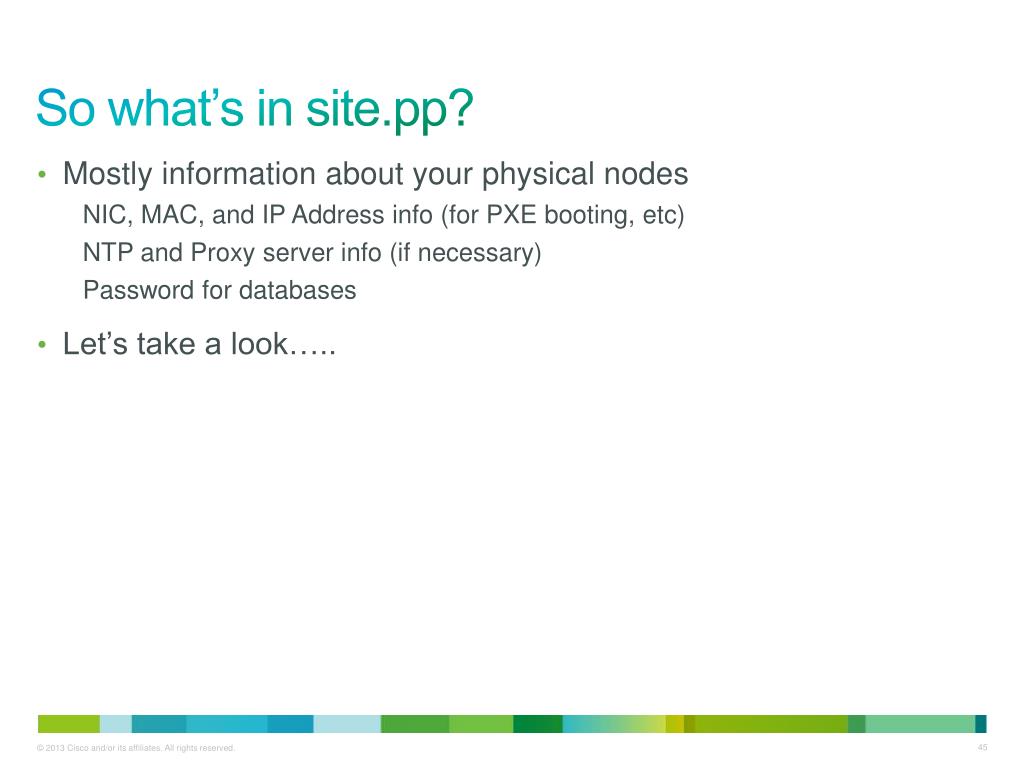

So what’s in site.pp?
  • Mostly information about your physical nodes
    • NIC, MAC, and IP Address info (for PXE booting, etc)
    • NTP and Proxy server info (if necessary)
    • Password for databases
  • Let’s take a look…..
abbreviated demo building a compute node

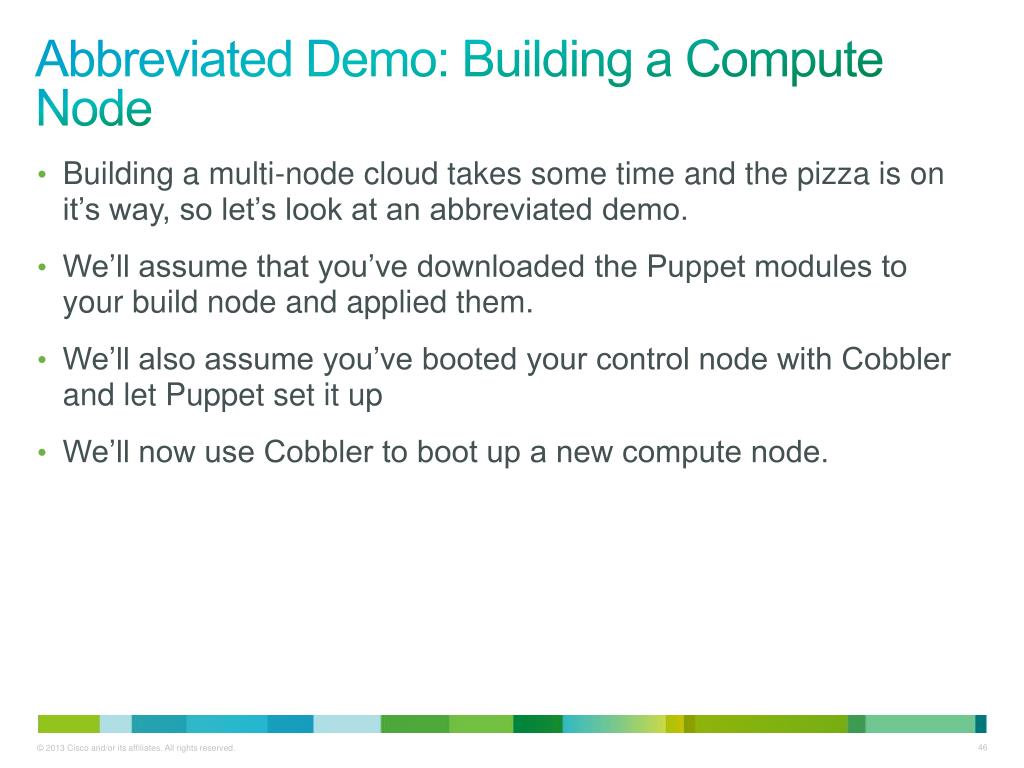

Abbreviated Demo: Building a Compute Node
  • Building a multi-node cloud takes some time and the pizza is on it’s way, so let’s look at an abbreviated demo.
  • We’ll assume that you’ve downloaded the Puppet modules to your build node and applied them.
  • We’ll also assume you’ve booted your control node with Cobbler and let Puppet set it up
  • We’ll now use Cobbler to boot up a new compute node.
slide47
Questions?

http://www.cisco.com/go/openstack
