Ballistic Evidence. Ballistics. Ballistics the study of bullets and firearms Firearm a weapon, such as a gun, capable of firing a projectile using a confined explosive. Firearms History. Matchlock weapons Relied on wicks to carry a flame to the gunpowder Flintlock weapons
E N D
Ballistics • Ballistics the study of bullets and firearms • Firearm a weapon, such as a gun, capable of firing a projectile using a confined explosive
Firearms History • Matchlock weapons Relied on wicks to carry a flame to the gunpowder • Flintlock weapons Relied on sparks from a piece of flint to ignite the gunpowder • Could be used in damp weather • Percussion weapons Introduction of cartridges (a casing that holds a bullet)
Gun Parts – The Barrel Barrel of a gun is produced from a single rod of steel that has been drilled through the center • Drill markings are different for each type of gun produced • IE. Shotgun barrels are different than a rifle barrel • Have different purposes • Can vary in length • No two rifled barrels, even those manufactured in succession, will have identical striation markings
Barrel • Manufacturers also impress the barrel with spiral grooves Known as rifling • The surfaces of the original bore remaining between the grooves are called lands
Barrel Each gun manufacturer uses its own technique and own signature amount of lands and grooves • Ex. Smith and Wesson uses five lands and grooves twisted to the right
Caliber Caliber of a rifle or handgun is the diameter of the gun barrel • Usually recorded in hundredths of an inch or in millimeters • Shotguns are measured by gauges
Hammer Part of the gun that is responsible for beginning the reaction of a bullet firing is the hammer
Breechblock / Ejector • Breechblock • The rear part of the firearm barrel Stops the bullet casing from flying through the back of the gun • Ejector Spits out the empty shell casings to make room for the next bullet
Bullet / Ammunition Bullet is a combination of a gunpowder and a projectile • Can be a single bullet or can be hundreds of buckshot Back of the bullet contains a firing pin that once struck, ignites the gun powder
How A Firearm WorksA Review • Pull the trigger and the firing pin of the firearm hits the base of the cartridge, igniting the gunpowder mixture • Gases expand and bullet is propelled forward and case is forced backward • Bullet is expelled through the barrel – spinning according to the land and groove pattern. The spent casing is ejected from the rear of the gun.
Bullet projection • As soon as the explosion occurs, the bullet is expelled out through the barrel of the gun • Bullet is spinning • This is due to the lands and groves in the barrel • This creates markings on the bullet
Opposite Reaction • Bullet casing is forced backwards against the breechblock • Casing is the removed via the ejector

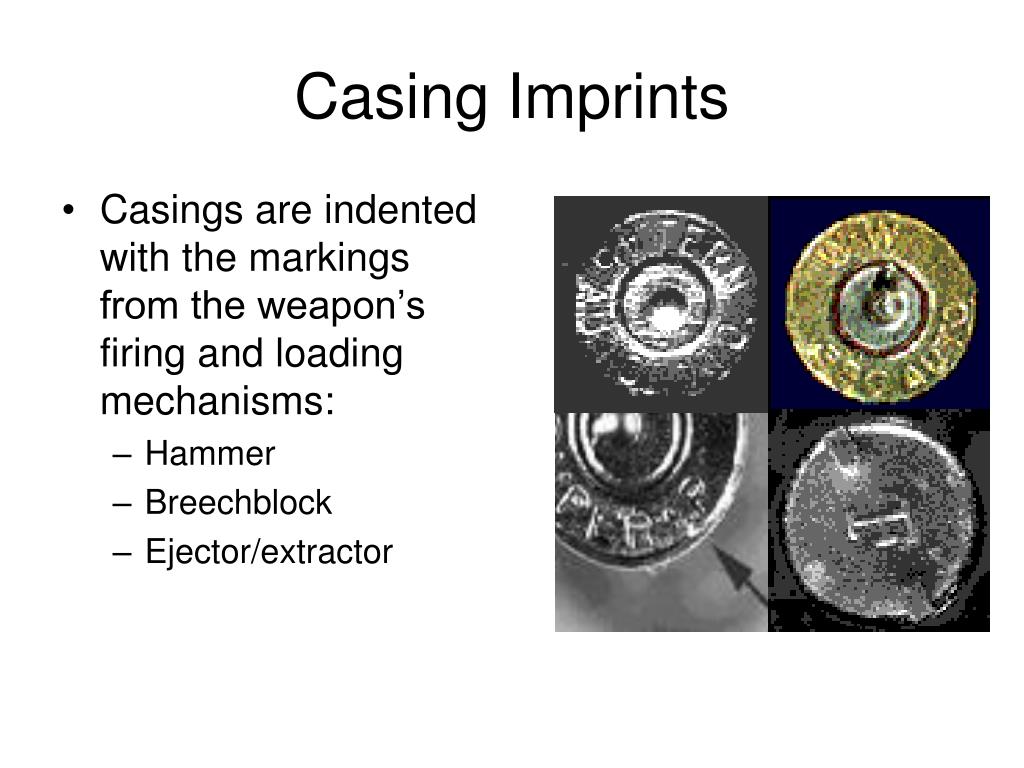

Casing Imprints • Casings are indented with the markings from the weapon’s firing and loading mechanisms: • Hammer • Breechblock • Ejector/extractor

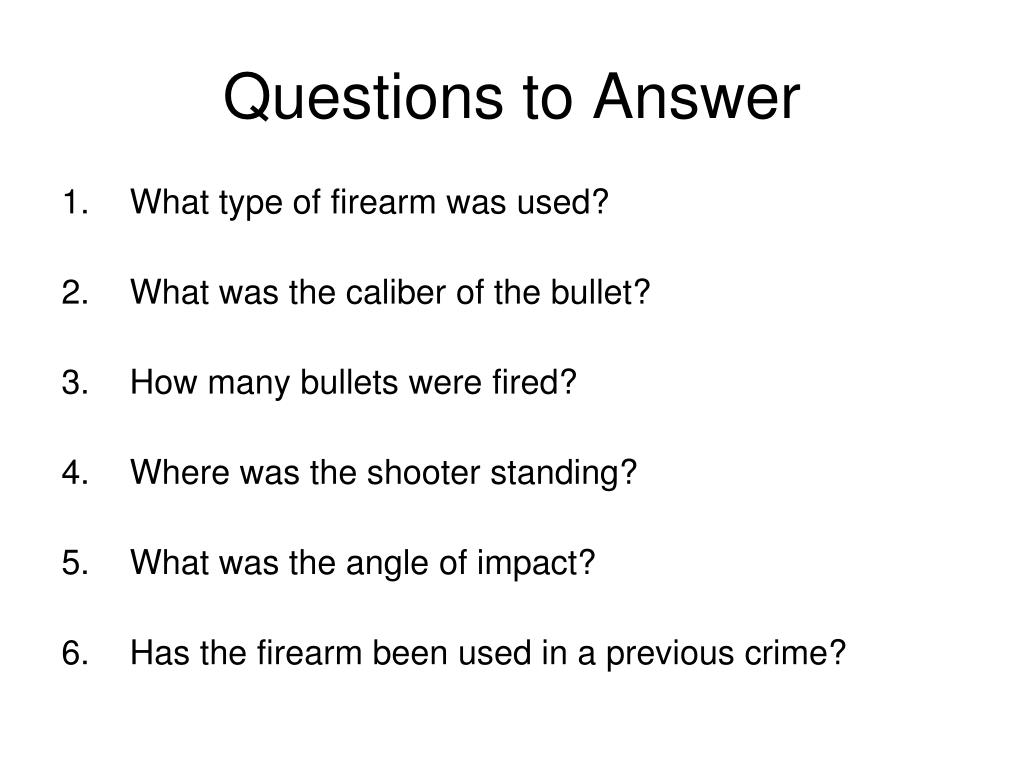

Questions to Answer • What type of firearm was used? • What was the caliber of the bullet? • How many bullets were fired? • Where was the shooter standing? • What was the angle of impact? • Has the firearm been used in a previous crime?
Critical Firearms Evidence • All of the items below are essential in firearms investigation • The bullet • The weapon • The serial numbers on the weapon • The gunpowder on garments, around wounds, and on hands
The Weapon • Safety is of the utmost importance when collecting the weapon • When collecting a found weapon, it is best to pick it up by the edges of the trigger guard or by the checkered portion of the grip
Weapon Comparison • Once a gun is collected, a test firing is completed in water to provide a point of comparison for evidence collected with the crime • Remember each weapon will leave its own unique markings on the ammunition that it is using (both bullet and casing)

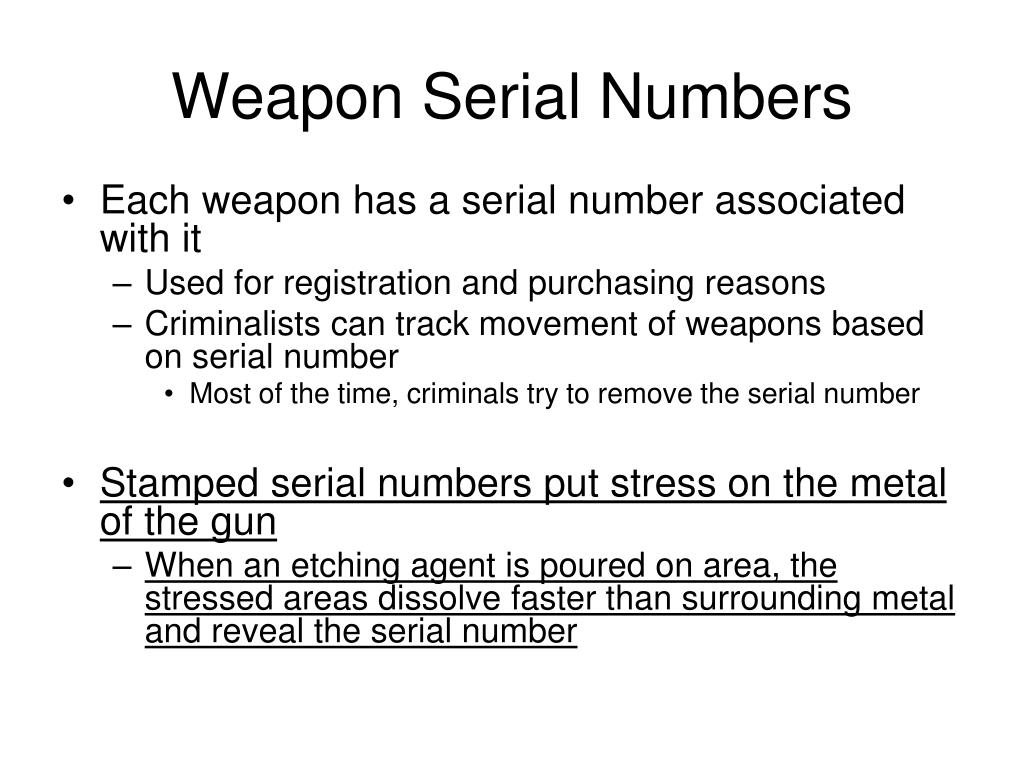

Weapon Serial Numbers • Each weapon has a serial number associated with it • Used for registration and purchasing reasons • Criminalists can track movement of weapons based on serial number • Most of the time, criminals try to remove the serial number • Stamped serial numbers put stress on the metal of the gun • When an etching agent is poured on area, the stressed areas dissolve faster than surrounding metal and reveal the serial number
Collecting A Bullet • If a bullet is found lodged in something, it is best to remove the surrounding material as to not disturb any of the striations made • Investigator puts initials on nose or back of bullet • Wraps it in tissue paper to avoid scratching during transfer

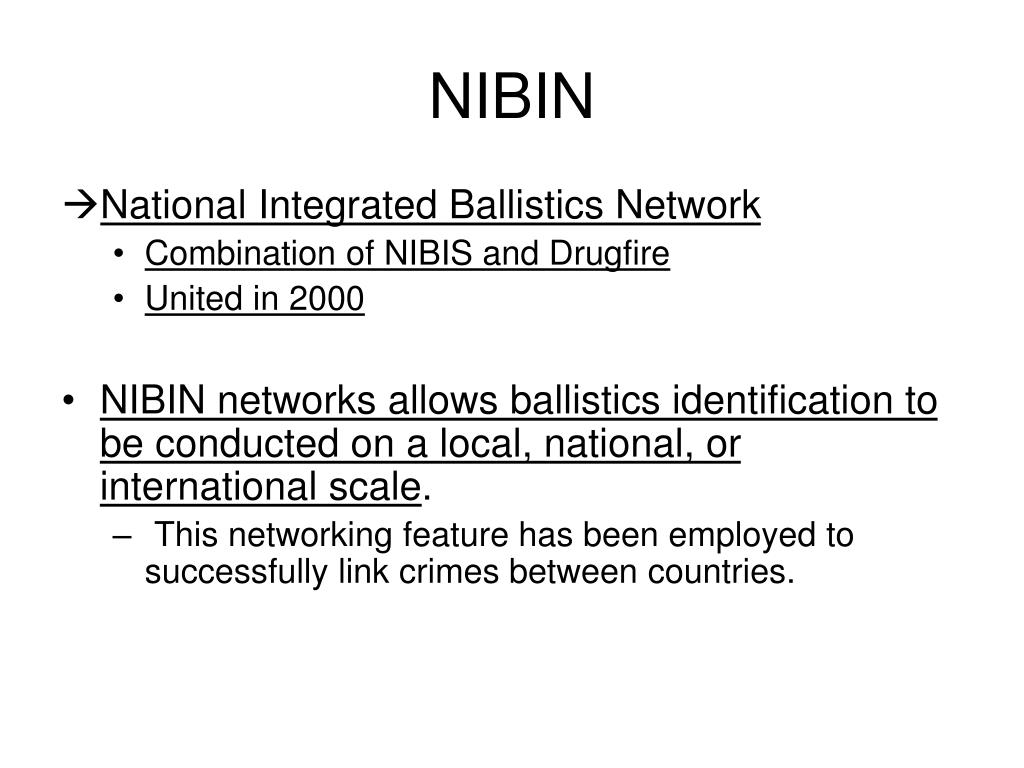

NIBIN • National Integrated Ballistics Network • Combination of NIBIS and Drugfire • United in 2000 • NIBIN networks allows ballistics identification to be conducted on a local, national, or international scale. • This networking feature has been employed to successfully link crimes between countries.
Measuring Distance • In cases where a victim has suffered a gunshot wound, it is important to determine the distance from weapon to victim / identify the location of the shooter Distance is determined primarily by the presence and distribution of certain powder patterns or by the spread of a shot (for a shotgun)
Gunshot Residue (GSR) Primers in the bullet contain a blend of different chemicals Look for the elements Antimony and Barium
Firearm Discharge • When a firearm is discharged, unburned and partially burned particles of gunpowder (in addition to smoke) are propelled out of the barrel, along with the bullet, towards the target It is the distribution of gunpowder particles and other discharge residues around the bullet hole that permits an assessment of the distance from weapon to target
Gunpowder Distribution Factors • Factors that influence gunpowder residue on the target: • Barrel length • Caliber • Type of ammunition • Type and condition of weapon fired • Distance from weapon to target • No GSR will be on target if further than 3 feet
Gunshot Residue Distribution • Handling of a used firearm, the passage of time, and the resumption of normal activities following a shooting, gun shot residue is usually redistributed to other areas • Becomes harder to trace back to original weapon
Bullet Wipe Dark ring around the perimeter of the entrance hole in a target • Consists of a mixture of carbon, dirt, lubricant, primer residue, and lead being wiped off of the bullet

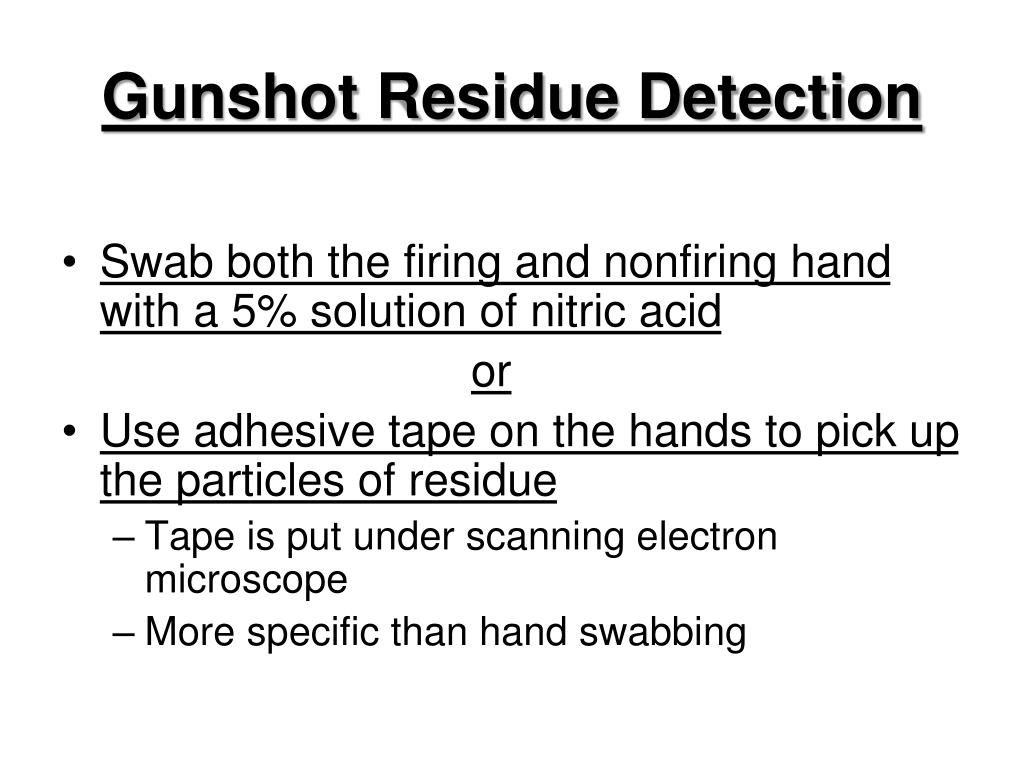

Gunshot Residue Detection • Swab both the firing and nonfiring hand with a 5% solution of nitric acid or • Use adhesive tape on the hands to pick up the particles of residue • Tape is put under scanning electron microscope • More specific than hand swabbing
GSR Detection • Infrared photography – used to help find GSR in difficult situations (dark clothing or bloody clothing) • Greiss test chemical test to develop patterns of GSR around bullet holes • Photopaper is ironed over entrance area • Paper is sprayed with chemical • Turns GSR pink then blue-violet
