Presentation Transcript
the icrp system of protection applied to medical exposures

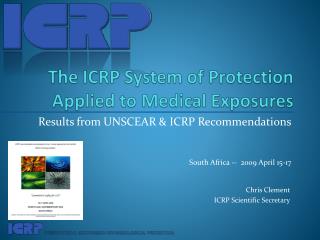

The ICRP System of ProtectionApplied to Medical Exposures

Results from UNSCEAR & ICRP Recommendations

South Africa -- 2009 April 15-17

Chris Clement

ICRP Scientific Secretary

overview
Overview
  • Why is radiological protection important in medical exposures?
  • The ICRP system of radiological protection in medicine
medical exposures
Medical Exposures
  • The highest source of artificial exposure, by far
  • Average and collective doses increasing rapidly, particularly due to increasing use of CT

From UNSCEAR

medical overexposures
Medical Overexposures

Whole body of baby exposed instead of chest only

Brain damage from

radiotherapy overexposure

Overheated X-ray tube stopped cardiac procedure

18 months after cardiac catheteri-sation and stent placement

system of protection in medicine
System of Protection in Medicine
  • P 103: the complete system of protection
  • P 105: Radiological Protection in Medicine(replaces P 73)
  • P 80: Radiation Dose to Patients from Radiopharmaceuticals
  • P 84: Pregnancy and Medical Radiation
  • P 85: Avoidance of Radiation Injuries from Medical Interventional Procedures
  • P 86: Prevention of accidental exposures to patients undergoing radiation therapy
system of protection in medicine1
System of Protection in Medicine
  • P 87: Managing Patient Dose in Computed Tomography
  • SG 2: Radiation and your patient: A guide for medical practitioners
  • P 93: Managing patient dose in digital radiology
  • P 97: Prevention of high-dose-rate brachytherapy accidents
  • P 98: Radiation safety aspects of brachytherapy for prostate cancer using permanently implanted sources
  • P 102: Managing Patient Dose in Multi-Detector Computed Tomography (MDCT)
system of protection in medicine2
System of Protection in Medicine
  • P 106: Radiation Dose to Patients from Radiopharmaceuticals

and in the works:

  • Minimising unintended exposure in radiation therapy from new technologies
  • Evaluation and management of secondary cancer risk in radiation therapy
  • Protecting Children in Paediatric Radiology
system of protection in medicine3
System of Protection in Medicine

Justification

  • Benefit and most of the risk apply to the patient

Optimization

  • ALARA in medicine is management of the radiation dose to the patient commensurate with the medical purpose
  • Diagnostic reference levels (not constraints)

Dose Limitation

  • Does not apply to medical exposures (of patients)
three levels of justification
Three Levels of Justification
  • Is the proper use of radiation in medicine doing more good than harm to society?
  • A specified procedure with a specified objective
    • e.g. chest x-ray for diagnostic purposes for patients showing relevant symptoms
  • Application to a specific patient
    • i.e. Do more good than harm to the patient
buy our ct earn 2 163 000 in 5 years
‘Buy Our CT, Earn $ 2,163,000 in 5 Years’

INTERNATIONAL COMMISSION ON RADIOLOGICAL PROTECTION ——————————————————————————————————————

gift certificates for radiation exposure
Gift Certificates for Radiation Exposure ????

INTERNATIONAL COMMISSION ON RADIOLOGICAL PROTECTION ——————————————————————————————————————

even in south africa
Even in South Africa!

Maybe not all that bad...

  • “responsible ... low-dose screening”
  • “targeted scans of vital organs”
  • “does not perform unproven Full Body Scans”
  • “If you have risk factors...”
optimization
Optimization
  • Two levels of optimization:
    • The design, selection and construction of equipment and installations
    • The day-to-day methods of working
  • Keeping doses ALARA, economic and societal factors being taken into account
  • In medicine this is management of the radiation dose to the patient commensurate with the medical purpose
optimization1
Optimization

Doses can be too high

  • Non-optimised diagnostic equipment or methods (e.g. QA problems, limited access to, short-lived radiopharmaceuticals)
  • Non-optimised therapeutic equipment or methods (e.g. limited access to conformal therapy, inverse dose-planning)
  • Inadequate or insufficient training (e.g. over-utilisation of ‘boost’ options in digital radiology)

Doses can be too low

  • The UK Computerised Treatment Planning accident, 1982-1991
  • 1 045 patients affected, 5-30% under-dosage
  • 492 patients had a recurrence, believed to be caused by the under-dosage
diagnostic reference levels
Diagnostic Reference Levels
  • Detriments and benefits are received by the same individual, the patient
  • Dose is determined principally by medical needs
  • Dose constraints are therefore inappropriate
  • Diagnostic Reference Levels help evaluate whether a patient dose is unusually high or low for a particular procedure
diagnostic reference levels sg 2
Diagnostic Reference Levels (SG-2)
  • The concept: are my doses in line with those of my peers?
    • If not: Do I have a good reason?
  • DRLs should be set by regional / national / local bodies
    • One size does not fit all!
  • DRL numerical values are advisory
    • Implementation of the concept may be a legal requirement
  • DRLs should be easily measured
    • ESD, DAP, DLP, administered activity…
  • DRLs apply to groups, not to single patients
image gently
Image Gently
  • Alliance for Radiation Safety in Pediatric Imaging (Society for Pediatric Radiology)
  • www.imagegently.org
slide24

Christopher Clement CHP

Scientific Secretary

International Commission on Radiological Protection

PO Box 1046, Station B

280 Slater Street

Ottawa, Ontario K1P 5S9

CANADA

sci.sec@icrp.org

www.icrp.org
