slide1

ICS 415Computer Graphics Rendering Geometric Primitives

Dr. Muhammed Al-Mulhem

March 1, 2009

Dr. Muhammed Al-Mulhem

rendering geometric primitives
Rendering geometric primitives
  • Describe objects with points, lines, and surfaces
    • Compact mathematical notation
    • Operators to apply to those representations
  • Render the objects
    • The rendering pipeline
  • Reading:
    • Appendix A1-A5

Dr. Muhammed Al-Mulhem

rendering
Rendering
  • Generate an image from geometric primitives

Rendering

Geometric

Primitives

Raster


Dr. Muhammed Al-Mulhem

3d rendering example
3D Rendering Example

What issues must be addressed by a 3D rendering system?

Dr. Muhammed Al-Mulhem

overview
Overview
  • 3D scene representation
  • 3D viewer representation
  • Visible surface determination
  • Lighting simulation

Dr. Muhammed Al-Mulhem

overview1
Overview
  • 3D scene representation
  • 3D viewer representation
  • Visible surface determination
  • Lighting simulation

How is the 3D scene

described in a computer?

Dr. Muhammed Al-Mulhem

3d scene representation
3D Scene Representation
  • Scene is usually approximated by 3D primitives
    • Point
    • Line segment
    • Polygon
    • Polyhedron
    • Curved surface
    • Solid object
    • etc.

Dr. Muhammed Al-Mulhem

3d point
3D Point
  • Specifies a location

Dr. Muhammed Al-Mulhem

3d point1
3D Point
  • Specifies a location
    • Represented by three coordinates

(x,y,z)

Dr. Muhammed Al-Mulhem

3d vector
3D Vector
  • Specifies a direction and a magnitude

Dr. Muhammed Al-Mulhem

3d vector1
3D Vector
  • Specifies a direction and a magnitude
    • Represented as the difference between two point positions by three coordinates (Vx, Vy, Vz).
    • Magnitude |V| = sqrt( Vx2 + Vy2 + Vz2)
    • Has no location

(Vx, Vy, Vz).

Dr. Muhammed Al-Mulhem

vector addition subtraction

u+v

Vector Addition/Subtraction
  • Operation u + v, with:
    • Identity 0 : v + 0 = v
    • Inverse - : v + (-v) = 0
  • Addition uses the “parallelogram rule”:

v

u

-v

v

-v

u-v

u

Dr. Muhammed Al-Mulhem

vector space
Vector Space
  • Vectors define a vector space
    • They support vector addition
      • Commutative and associative
      • Possess identity and inverse
    • They support scalar multiplication
      • Associative, distributive
      • Possess identity

Dr. Muhammed Al-Mulhem

affine spaces
Affine Spaces
  • Vector spaces lack position and distance
    • They have magnitude and direction but no location
  • Combine the point and vector primitives
    • Permits describing vectors relative to a common location
  • A point and three vectors define a 3-D coordinate system
  • Point-point subtraction yields a vector

Dr. Muhammed Al-Mulhem

coordinate systems

Y

Y

Z

X

Right-handed

coordinate

Left-handed

system

coordinate

system

Z

X

Coordinate Systems

Grasp z-axis with hand

Thumb points in direction of z-axis

Roll fingers from positive x-axis towards positive y-axis

Dr. Muhammed Al-Mulhem

points vectors

Q

v

P

Points + Vectors
  • Points support these operations
    • Point-point subtraction: Q - P = v
      • Result is a vector pointing fromPtoQ
    • Vector-point addition: P + v = Q
      • Result is a new point
    • Note that the addition of two points is not defined

Dr. Muhammed Al-Mulhem

3d line segment
3D Line Segment
  • Linear path between two points

Dr. Muhammed Al-Mulhem

3d line segment1
3D Line Segment
  • Use a linear combination of two points
    • Parametric representation:
      • P = P1 + t (P2 - P1), (0  t 1)

P2

P1

Dr. Muhammed Al-Mulhem

3d ray
3D Ray
  • Line segment with one endpoint at infinity
    • Parametric representation:
      • P = P1 + t V, (0<= t < )

V

P1

Dr. Muhammed Al-Mulhem

3d line
3D Line
  • Line segment with both endpoints at infinity
    • Parametric representation:
      • P = P1 + t V, (- < t < )

V

P1

Dr. Muhammed Al-Mulhem

3d line slope intercept

P = (x, y)

y

P2 = (x2, y2)

P1 = (x1, y1)

x

3D Line – Slope Intercept
  • Slope =m
  • = rise / run
  • Slope = (y - y1) / (x - x1) = (y2 - y1) / (x2 - x1)
  • Solve for y:
  • y = [(y2 - y1)/(x2 - x1)]x + [-(y2-y1)/(x2 - x1)]x1 + y1
  • or: y = mx + b

Dr. Muhammed Al-Mulhem

euclidean spaces

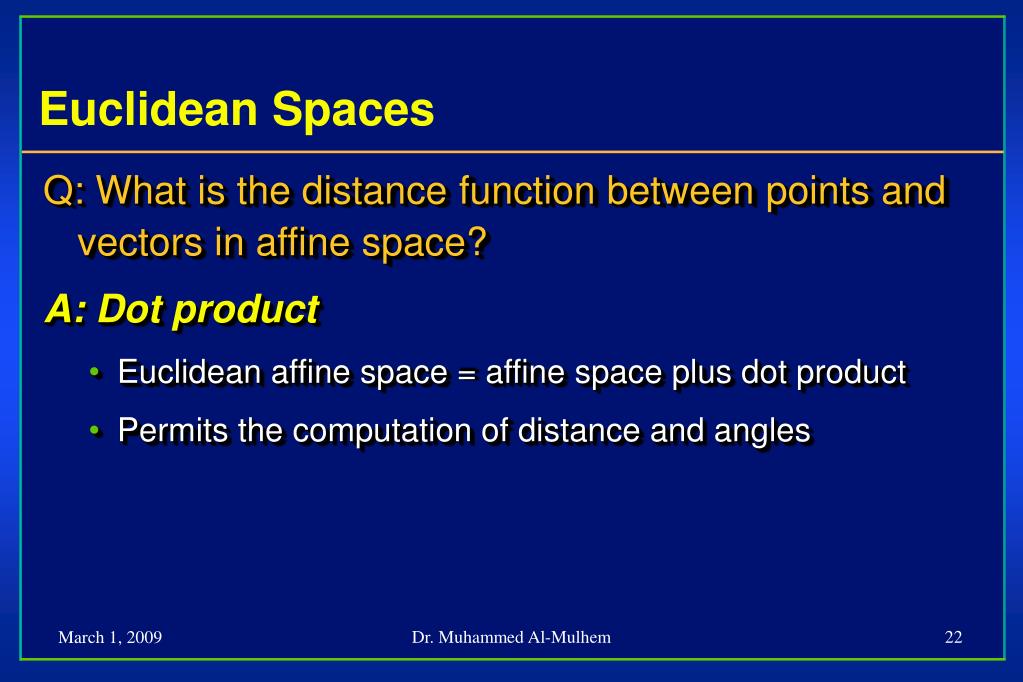

Euclidean Spaces
  • Q: What is the distance function between points and vectors in affine space?
  • A: Dot product
    • Euclidean affine space = affine space plus dot product
    • Permits the computation of distance and angles

Dr. Muhammed Al-Mulhem

dot product

v

θ

u

Dot Product
  • Thedot productor, more generally, inner productof two vectors is a scalar:

v1 • v2 = x1x2 + y1y2 + z1z2 (in 3D)

Dr. Muhammed Al-Mulhem

dot product1

v

θ

u

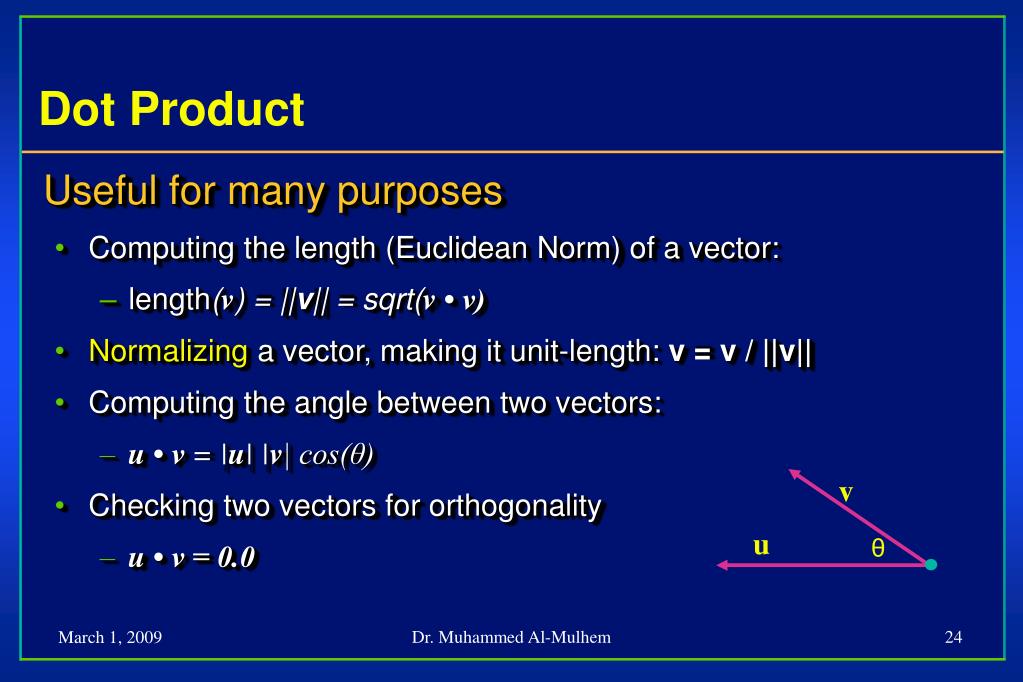

Dot Product
  • Useful for many purposes
    • Computing the length (Euclidean Norm) of a vector:
      • length(v) = ||v|| = sqrt(v • v)
    • Normalizing a vector, making it unit-length: v = v / ||v||
    • Computing the angle between two vectors:
      • u • v = |u| |v| cos(θ)
    • Checking two vectors for orthogonality
      • u • v = 0.0

Dr. Muhammed Al-Mulhem

dot product2

w

v

u

Dot Product
  • Projecting one vector onto another
    • If v is a unit vector and we have another vector, w
    • We can project w perpendicularly onto v
    • And the result, u, has length w • v

Dr. Muhammed Al-Mulhem

dot product3
Dot Product
  • Is commutative
    • u • v = v • u
  • Is distributive with respect to addition
    • u • (v + w) = u • v + u • w

Dr. Muhammed Al-Mulhem

cross product
Cross Product
  • The cross product or vector product of two vectors is a vector:
  • The cross product of two vectors is orthogonal to both
  • Right-hand rule dictates direction of cross product

Dr. Muhammed Al-Mulhem

cross product right hand rule
Cross Product Right Hand Rule
  • See: http://www.phy.syr.edu/courses/video/RightHandRule/index2.html
  • Orient your right hand such that your palm is at the beginning of A and your fingers point in the direction of A
  • Twist your hand about the A-axis such that B extends perpendicularly from your palm
  • As you curl your fingers to make a fist, your thumb will point in the direction of the cross product

Dr. Muhammed Al-Mulhem

cross product right hand rule1
Cross Product Right Hand Rule
  • See: http://www.phy.syr.edu/courses/video/RightHandRule/index2.html
  • Orient your right hand such that your palm is at the beginning of A and your fingers point in the direction of A
  • Twist your hand about the A-axis such that B extends perpendicularly from your palm
  • As you curl your fingers to make a fist, your thumb will point in the direction of the cross product

Dr. Muhammed Al-Mulhem

slide30

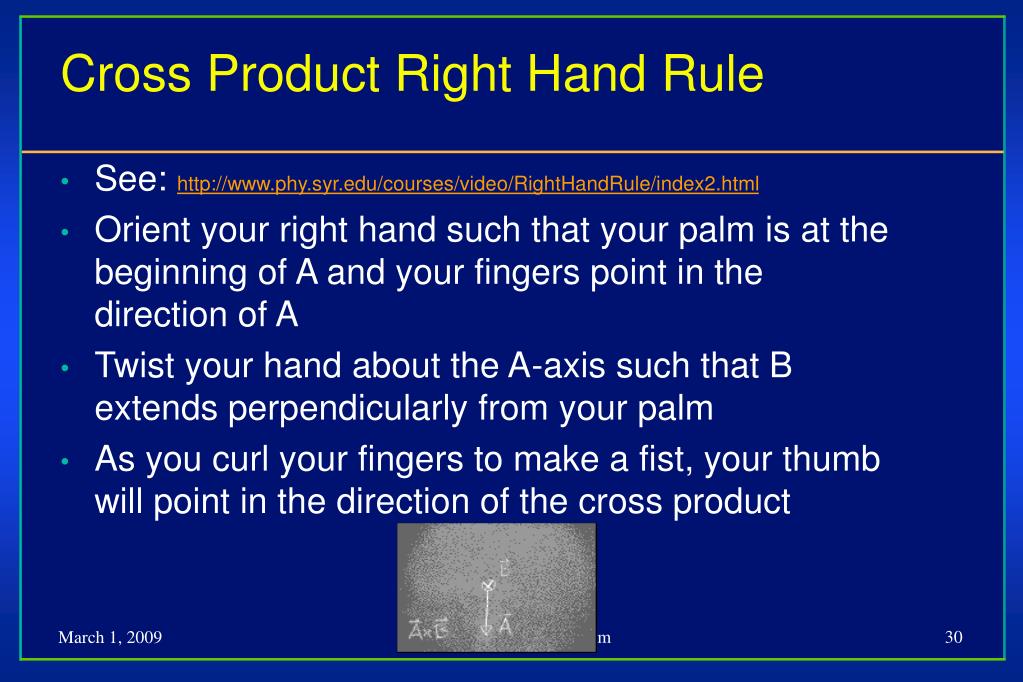

Cross Product Right Hand Rule

  • See: http://www.phy.syr.edu/courses/video/RightHandRule/index2.html
  • Orient your right hand such that your palm is at the beginning of A and your fingers point in the direction of A
  • Twist your hand about the A-axis such that B extends perpendicularly from your palm
  • As you curl your fingers to make a fist, your thumb will point in the direction of the cross product

Dr. Muhammed Al-Mulhem

slide31

Cross Product Right Hand Rule

  • See: http://www.phy.syr.edu/courses/video/RightHandRule/index2.html
  • Orient your right hand such that your palm is at the beginning of A and your fingers point in the direction of A
  • Twist your hand about the A-axis such that B extends perpendicularly from your palm
  • As you curl your fingers to make a fist, your thumb will point in the direction of the cross product

Dr. Muhammed Al-Mulhem

slide32

Cross Product Right Hand Rule

  • See: http://www.phy.syr.edu/courses/video/RightHandRule/index2.html
  • Orient your right hand such that your palm is at the beginning of A and your fingers point in the direction of A
  • Twist your hand about the A-axis such that B extends perpendicularly from your palm
  • As you curl your fingers to make a fist, your thumb will point in the direction of the cross product

Dr. Muhammed Al-Mulhem

other helpful formulas
Other helpful formulas
  • Length = sqrt (x2 - x1)2 + (y2 - y1)2
  • Midpoint, p2, between p1 and p3
    • p2 = ((x1 + x3) / 2, (y1 + y3) / 2))
  • Two lines are perpendicular if:
    • M1 = -1/M2
    • cosine of the angle between them is 0
    • Dot product = 0

Dr. Muhammed Al-Mulhem

3d plane
3D Plane
  • A linear combination of three points

P2

P3

P1

Dr. Muhammed Al-Mulhem

3d plane1

Origin

3D Plane
  • A linear combination of three points
    • Implicit representation:
      • ax + by + cz + d = 0, or
      • P·N + d = 0
    • N is the plane “normal”
      • Unit-length vector
      • Perpendicular to plane

N = (a,b,c)

P2

P3

P1

d

Dr. Muhammed Al-Mulhem

3d sphere

r

3D Sphere
  • All points at distance “r” from point “(cx, cy, cz)”
    • Implicit representation:
      • (x - cx)2 + (y - cy)2 + (z - cz)2 = r 2
    • Parametric representation:
      • x = r cos() cos() + cx
      • y = r cos() sin() + cy
      • z = r sin() + cz

Dr. Muhammed Al-Mulhem

3d geometric primitives
3D Geometric Primitives
  • More detail on 3D modeling later in course
    • Point
    • Line segment
    • Polygon
    • Polyhedron
    • Curved surface
    • Solid object
    • etc.

Dr. Muhammed Al-Mulhem

H&B Figure 10.46

take a breath
Take a breath
  • We’re done with the primitives
  • Now we’re moving on to study how graphics uses these primitives to make pretty pictures

Dr. Muhammed Al-Mulhem

rendering 3d scenes

Transform

Illuminate

Transform

Clip

Project

Rasterize

Model & CameraParameters

Rendering Pipeline

Framebuffer

Display

Rendering 3D Scenes

Dr. Muhammed Al-Mulhem

camera models
Camera Models
  • The most common model is pin-hole camera
    • All captured light rays arrive along paths toward focal point without lens distortion (everything is in focus)
    • Sensor response proportional to radiance
  • Other models consider ...Depth of field, Motion blur, Lens distortion

View plane

Eye position

(focal point)

Dr. Muhammed Al-Mulhem

camera parameters
Camera Parameters
  • What are the parameters of a camera?

Dr. Muhammed Al-Mulhem

camera parameters1
Camera Parameters
  • Position
    • Eye position (px, py, pz)
  • Orientation
    • View direction (dx, dy, dz)
    • Up direction (ux, uy, uz)
  • Aperture
    • Field of view (xfov, yfov)
  • Film plane
    • “Look at” point
    • View plane normal

View

Plane

Up direction

“Look at”

Point

back

Viewdirection

Eye

Position

right

Dr. Muhammed Al-Mulhem

moving the camera

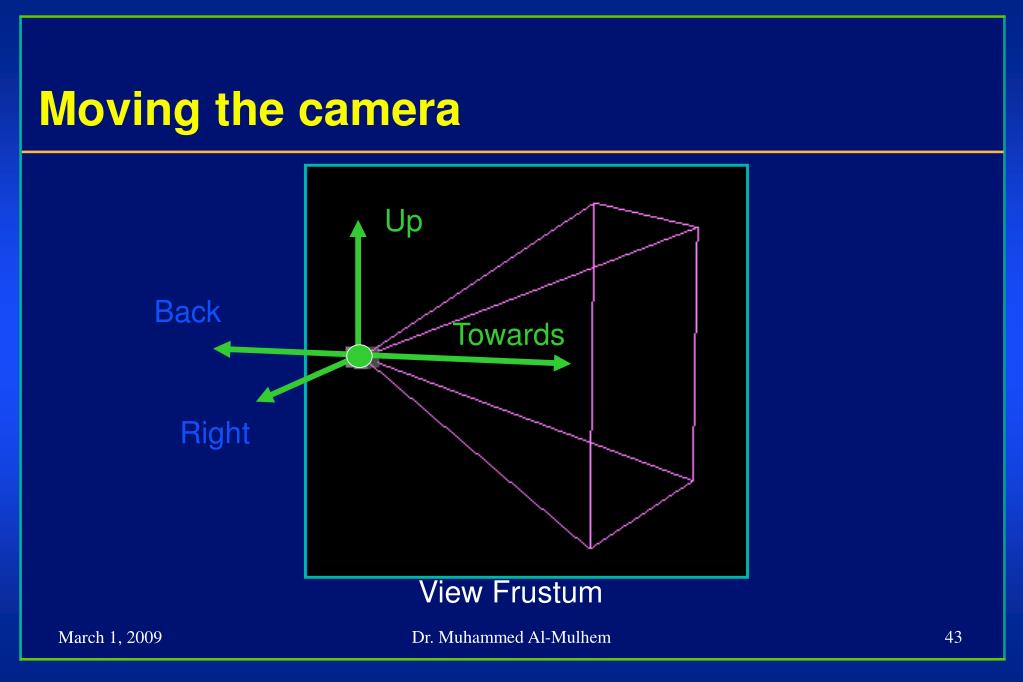

Moving the camera

Up

Back

Towards

Right

View Frustum

Dr. Muhammed Al-Mulhem

the rendering pipeline

Transform

Illuminate

Transform

Clip

Project

Rasterize

Model & CameraParameters

Rendering Pipeline

Framebuffer

Display

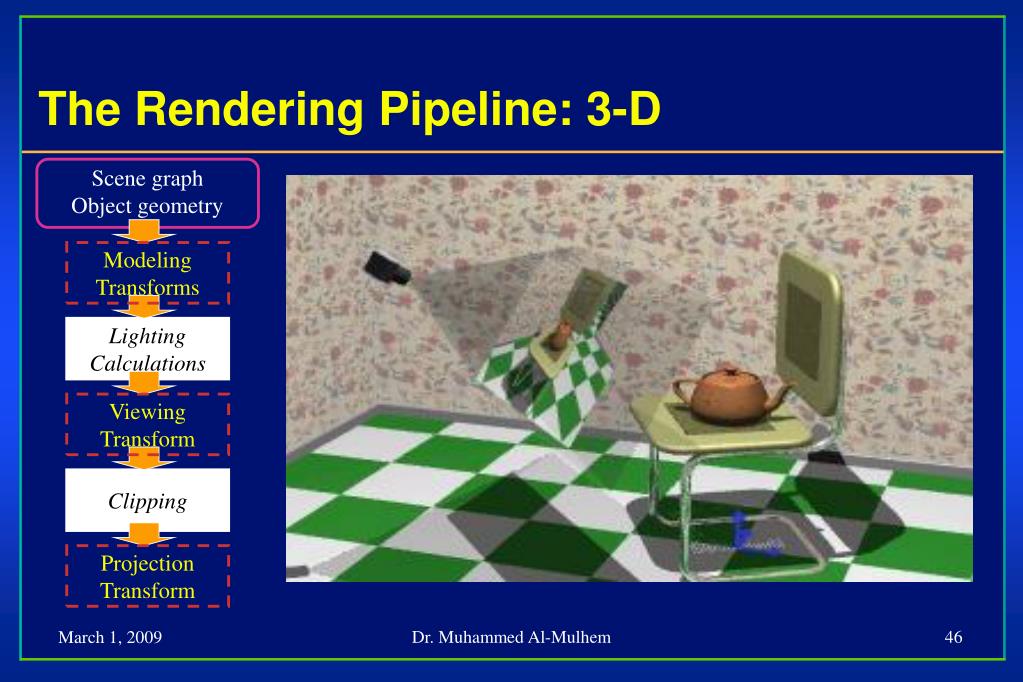

The Rendering Pipeline

Dr. Muhammed Al-Mulhem

rendering transformations
Rendering: Transformations
  • We’ve learned about transformations
  • But they are used in three ways:
    • Modeling transforms
    • Viewing transforms (Move the camera)
    • Projection transforms (Change the type of camera)

Dr. Muhammed Al-Mulhem

the rendering pipeline 3 d
The Rendering Pipeline: 3-D

Scene graphObject geometry

  • Result:
  • All vertices of scene in shared 3-D “world” coordinate system
  • Vertices shaded according to lighting model
  • Scene vertices in 3-D “view” or “camera” coordinate system
  • Exactly those vertices & portions of polygons in view frustum
  • 2-D screen coordinates of clipped vertices

ModelingTransforms

LightingCalculations

ViewingTransform

Clipping

ProjectionTransform

Dr. Muhammed Al-Mulhem

slide47

Scene graphObject geometry

  • Result:
  • All vertices of scene in shared 3-D “world” coordinate system

ModelingTransforms

LightingCalculations

ViewingTransform

Clipping

ProjectionTransform

The Rendering Pipeline: 3-D

Dr. Muhammed Al-Mulhem

rendering transformations1

Y

X

Z

Rendering: Transformations
  • Modeling transforms
    • Size, place, scale, and rotate objects and parts of the model w.r.t. each other
    • Object coordinates -> world coordinates

Y

Z

X

Dr. Muhammed Al-Mulhem

slide49

Scene graphObject geometry

  • Result:
  • All geometric primitives are illuminated

ModelingTransforms

LightingCalculations

ViewingTransform

Clipping

ProjectionTransform

The Rendering Pipeline: 3-D

Dr. Muhammed Al-Mulhem

lighting simulation

N

N

Lighting Simulation

Light

Source

  • Lighting parameters
    • Light source emission
    • Surface reflectance
    • Atmospheric attenuation
    • Camera response

Surface

Camera

Dr. Muhammed Al-Mulhem

lighting simulation1

N

N

Lighting Simulation

Light

Source

  • Direct illumination
    • Ray casting
    • Polygon shading
  • Global illumination
    • Ray tracing
    • Monte Carlo methods
    • Radiosity methods

Surface

N

Camera

Dr. Muhammed Al-Mulhem

slide52

The Rendering Pipeline: 3-D

Scene graphObject geometry

  • Result:
  • Scene vertices in 3-D “view” or “camera” coordinate system

ModelingTransforms

LightingCalculations

ViewingTransform

Clipping

ProjectionTransform

Dr. Muhammed Al-Mulhem

rendering transformations2

Y

X

Right-handed

coordinate

system

Z

Rendering: Transformations
  • Viewing transform
    • Rotate & translate the world to lie directly in front of the camera
      • Typically place camera at origin
      • Typically looking down -Z axis
    • World coordinatesaView coordinates

Dr. Muhammed Al-Mulhem

slide54

The Rendering Pipeline: 3-D

Scene graphObject geometry

  • Result:
  • Remove geometry that is out of view

ModelingTransforms

LightingCalculations

ViewingTransform

Clipping

ProjectionTransform

Dr. Muhammed Al-Mulhem

slide55

The Rendering Pipeline: 3-D

Scene graphObject geometry

  • Result:
  • 2-D screen coordinates of clipped vertices

ModelingTransforms

LightingCalculations

ViewingTransform

Clipping

ProjectionTransform

Dr. Muhammed Al-Mulhem

rendering transformations3
Rendering: Transformations
  • Projection transform
    • Apply perspective foreshortening
      • Distant = small: the pinhole camera model
    • View coordinates a Screen coordinates

Dr. Muhammed Al-Mulhem

rendering transformations4
Rendering: Transformations
  • Perspective Camera
  • Orthographic Camera

Dr. Muhammed Al-Mulhem

rendering 3d scenes1

Transform

Illuminate

Transform

Clip

Project

Rasterize

Model & CameraParameters

Rendering Pipeline

Framebuffer

Display

Rendering 3D Scenes

Dr. Muhammed Al-Mulhem

rasterize
Rasterize
  • Convert screen coordinates to pixel colors

Dr. Muhammed Al-Mulhem

summary
Summary
  • Geometric primitives
    • Points, vectors
  • Operators on these primitives
    • Dot product, cross product, norm
  • The rendering pipeline
    • Move models, illuminate, move camera, clip, project to display, rasterize

Dr. Muhammed Al-Mulhem
