Holtek 32-bit MCU Promotion. HT32F1765 Starter Kit. HT32F1765 SK Introduction. Designed for Cortex-M3 new users by providing a low-cost platform. Together with the convenience of its software development platform, it provides a complete solution from evaluation to production

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

HT32F1765 Starter Kit


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
slide1

Holtek 32-bit MCU Promotion

HT32F1765 Starter Kit

slide2

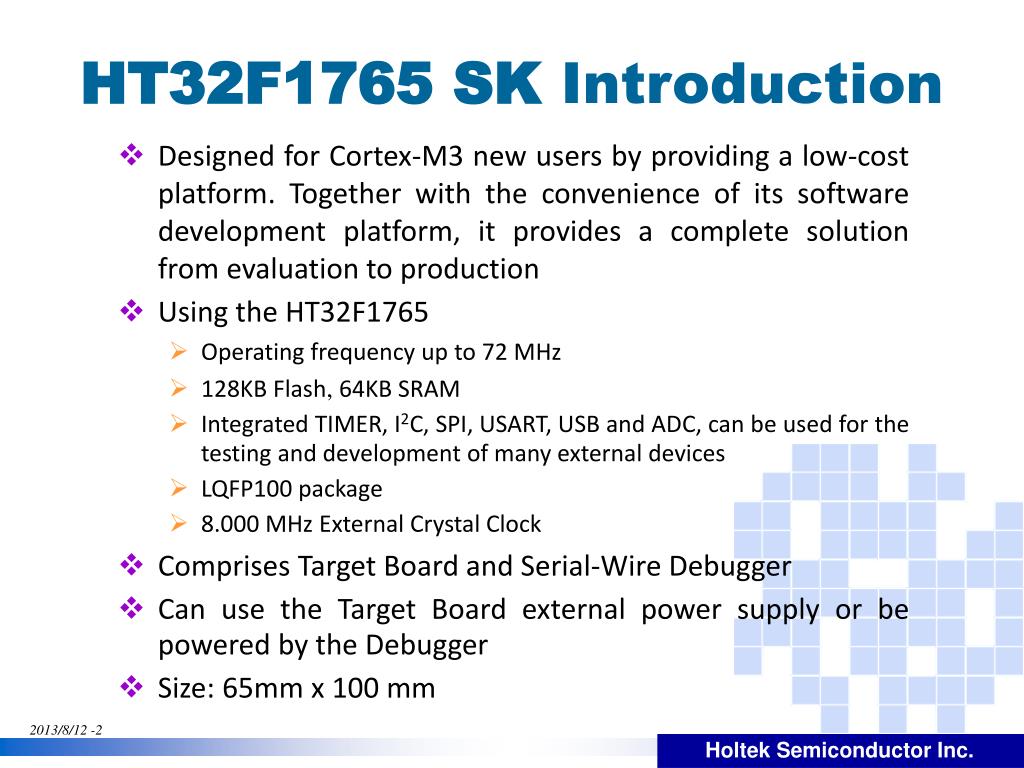

HT32F1765SK Introduction

  • Designed for Cortex-M3new users by providing a low-cost platform. Together with the convenience of its software development platform, it provides a complete solution from evaluation to production
  • Using the HT32F1765
    • Operating frequency up to 72 MHz
    • 128KB Flash, 64KB SRAM
    • Integrated TIMER, I2C, SPI, USART, USB and ADC, can be used for the testing and development of many external devices
    • LQFP100package
    • 8.000 MHz External Crystal Clock
  • Comprises Target Boardand Serial-Wire Debugger
  • Can use the Target Boardexternal power supply or be powered by the Debugger
  • Size: 65mm x 100 mm
slide3

HT32F1765 SK

Development Environment

  • Provides a standard C language program development environment
  • Provides a complete function library avoiding the complicated lower level function development
  • Integrated hardware debug interface, SWD,uses a USBcable to connect to the IDE. The system will download the programs and debug immediately
  • Provides a standard development environment including Keil uVision, IAR EWARM and CooCox CoIDE
  • Compiler
  • Debugger
  • Flash Loader

USB

HT32F1765 SK

IDE

slide4

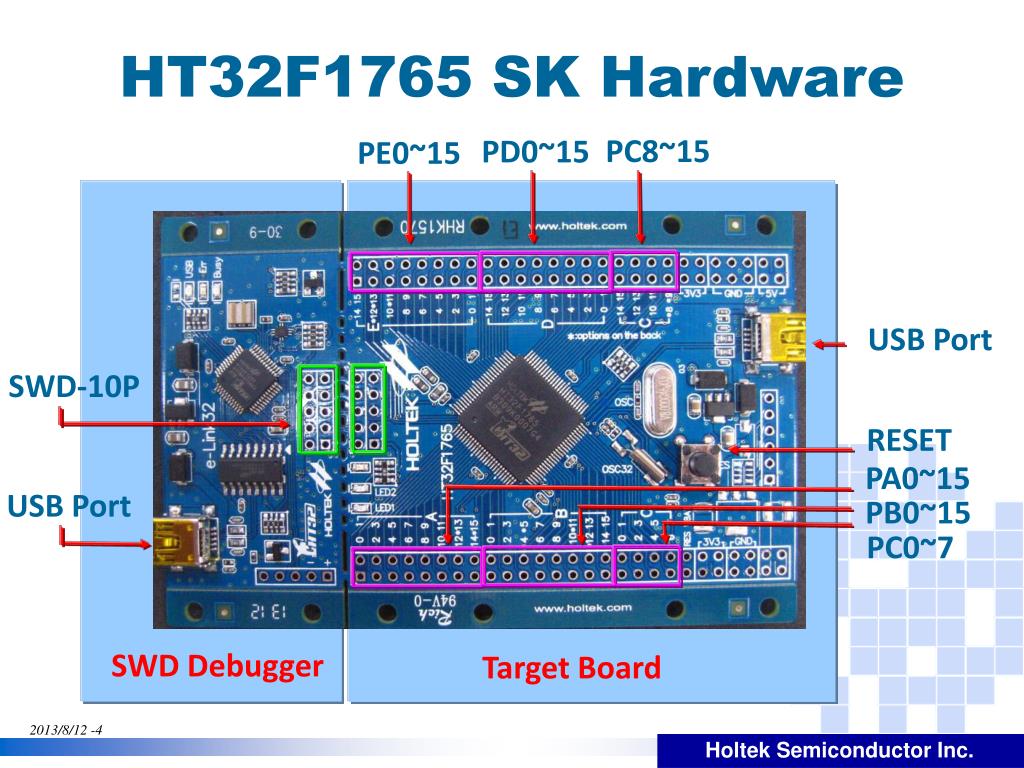

HT32F1765 SKHardware

PC8~15

PD0~15

PE0~15

USB Port

SWD-10P

RESET

PA0~15

USB Port

PB0~15

PC0~7

SWD Debugger

Target Board

slide5

HT32F1765 SKUsage

Target Board

Evaluate

Develop

SWD

Debugger

Any Board with a SWD-10P Connector

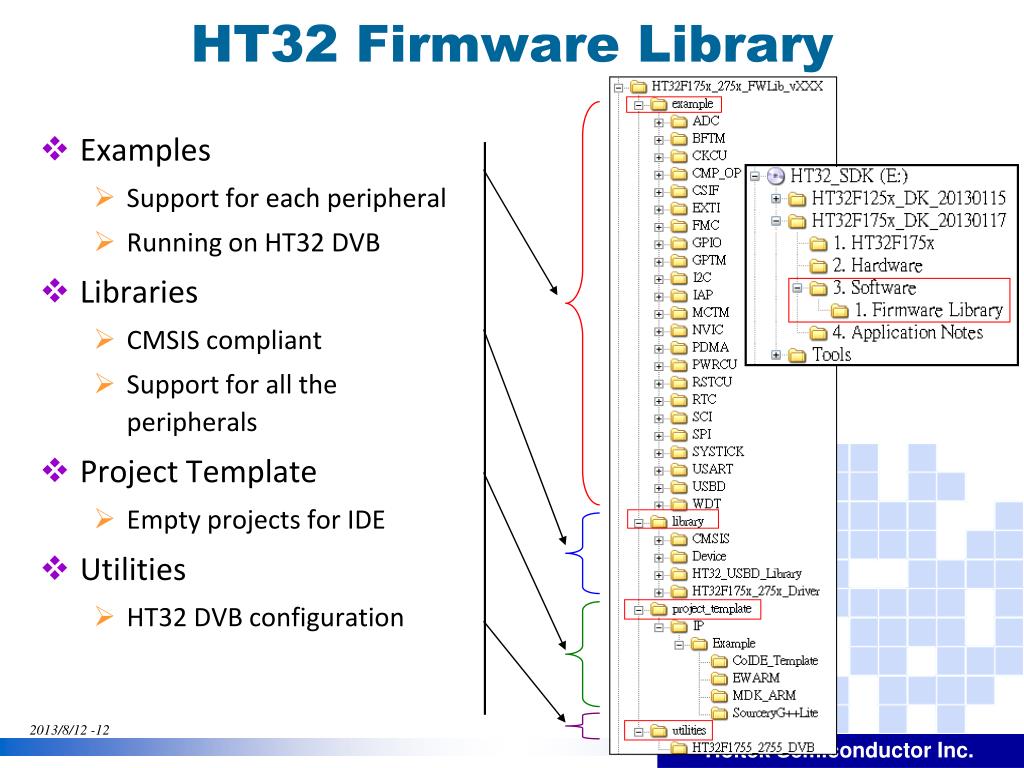

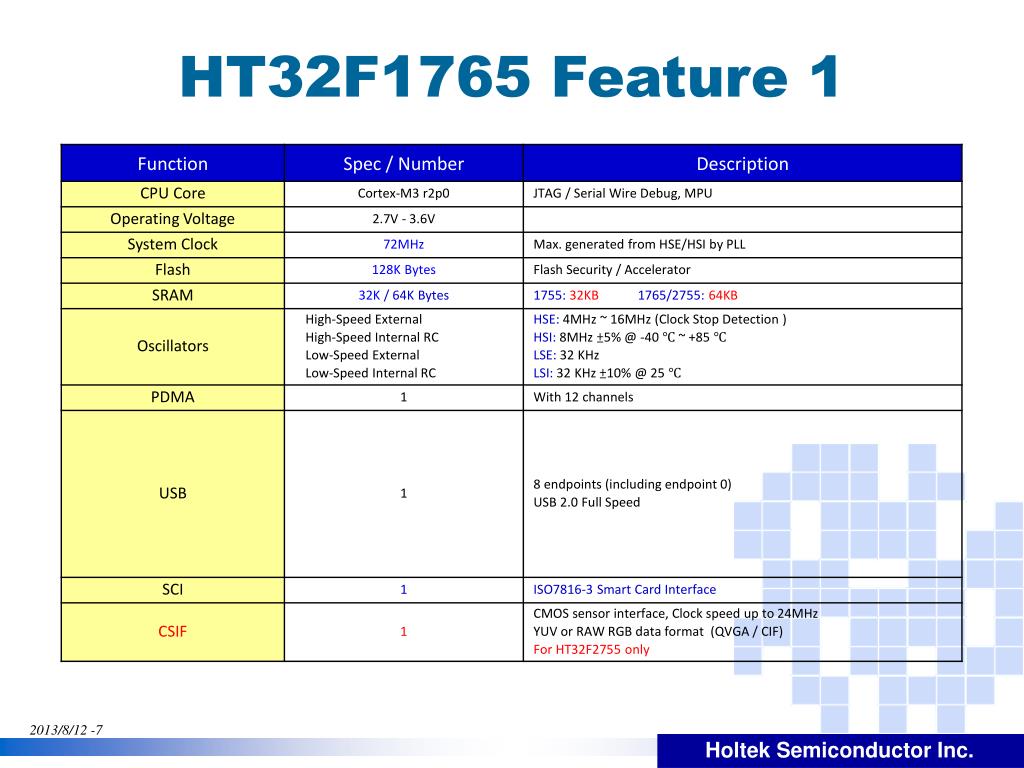

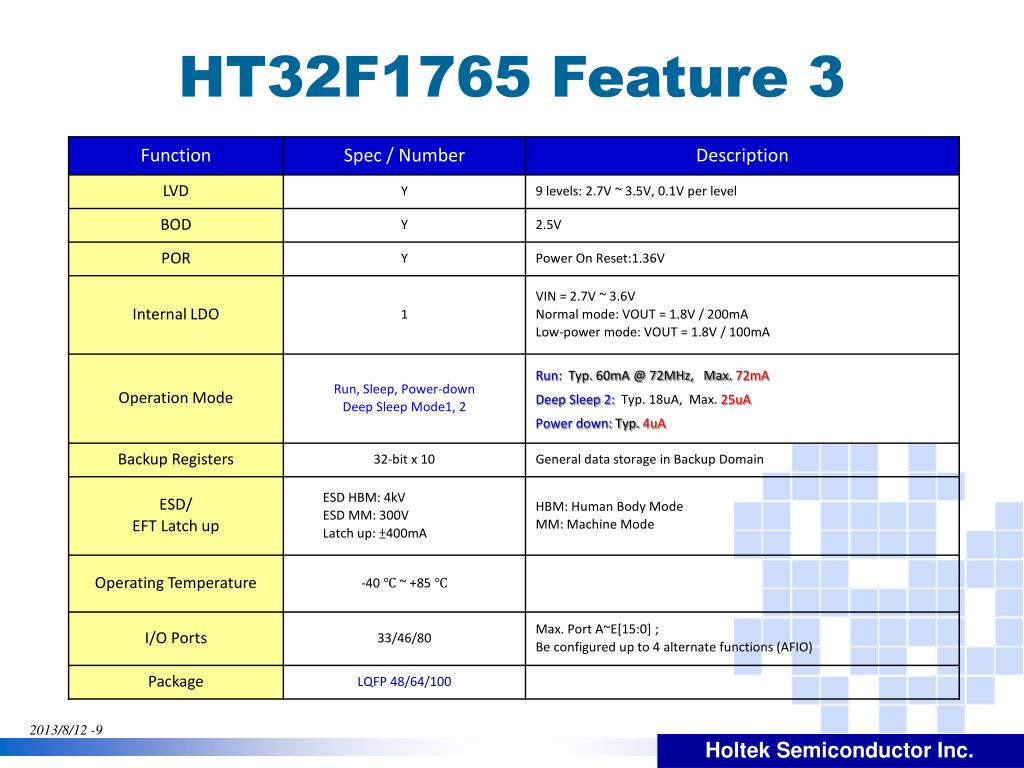

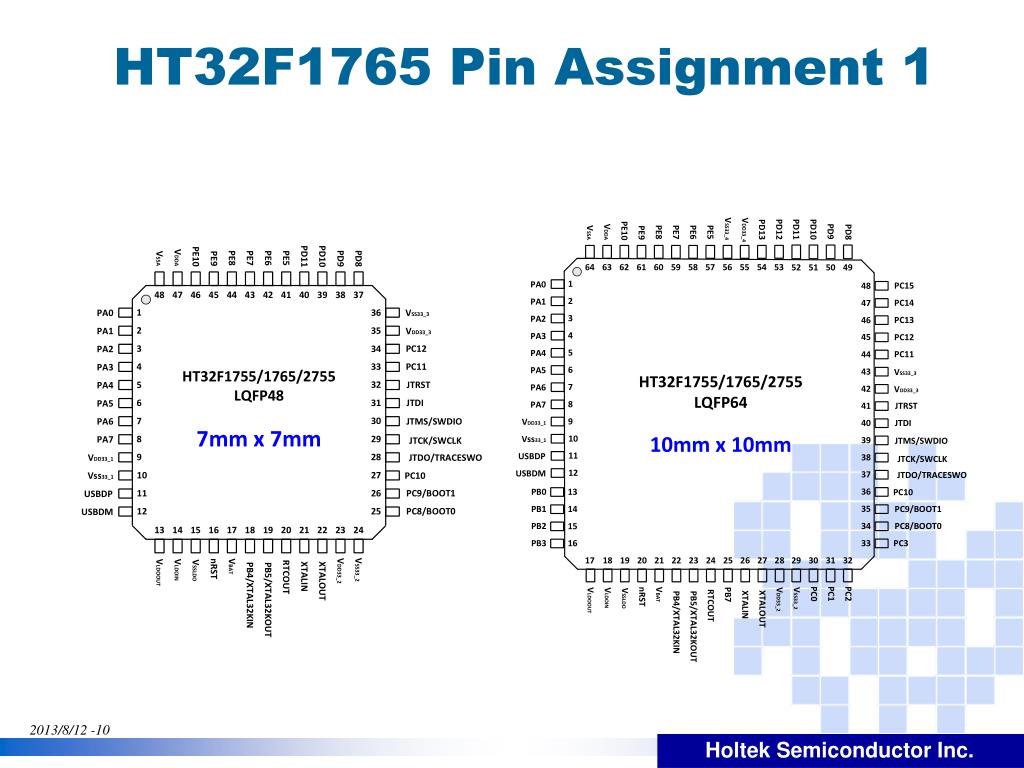

ht32 firmware library
HT32 Firmware Library
  • Examples
    • Support for each peripheral
    • Running on HT32 DVB
  • Libraries
    • CMSIS compliant
    • Support for all the peripherals
  • Project Template
    • Empty projects for IDE
  • Utilities
    • HT32 DVB configuration
slide13

RTOS

  • Small Footprint, several K bytes
  • Multi-tasking process

Supported OS

Demo

Create 4 Tasks

LED

USART

Buttons

Buzzer

  • ARM-ARTX
  • IAR PowerPac
  • FreeRTOS
  • CoOS
  • uC/OS2

Example

Source Code

slide14

HT32F1765 SK

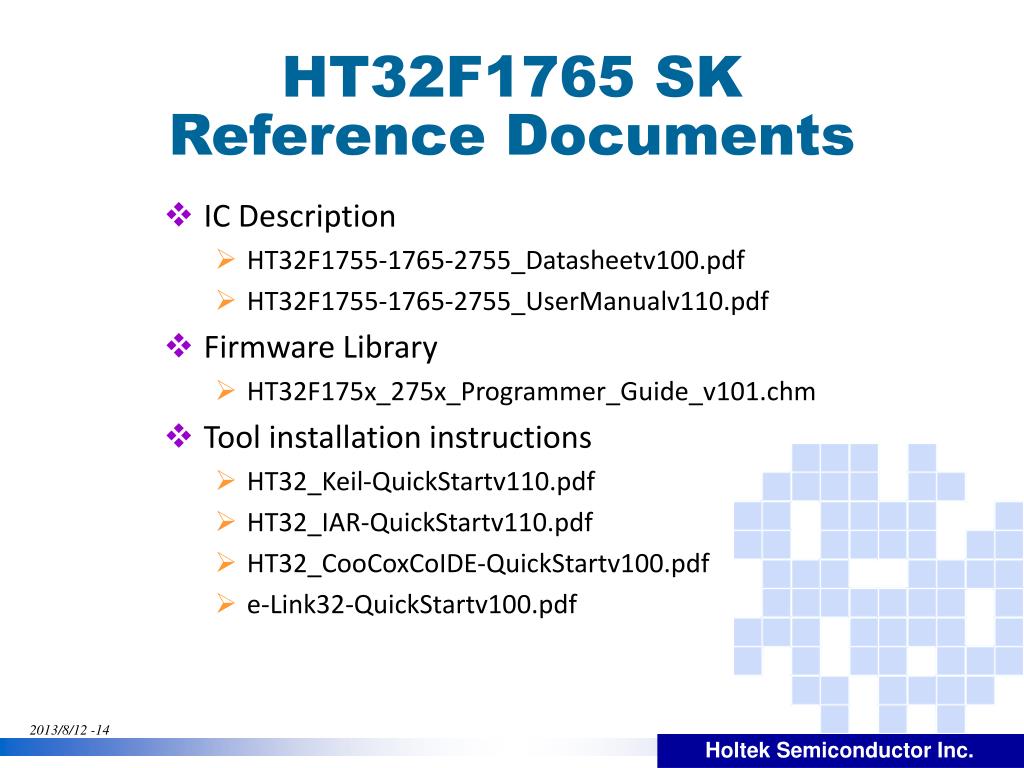

Reference Documents

  • ICDescription
    • HT32F1755-1765-2755_Datasheetv100.pdf
    • HT32F1755-1765-2755_UserManualv110.pdf
  • Firmware Library
    • HT32F175x_275x_Programmer_Guide_v101.chm
  • Tool installation instructions
    • HT32_Keil-QuickStartv110.pdf
    • HT32_IAR-QuickStartv110.pdf
    • HT32_CooCoxCoIDE-QuickStartv100.pdf
    • e-Link32-QuickStartv100.pdf
