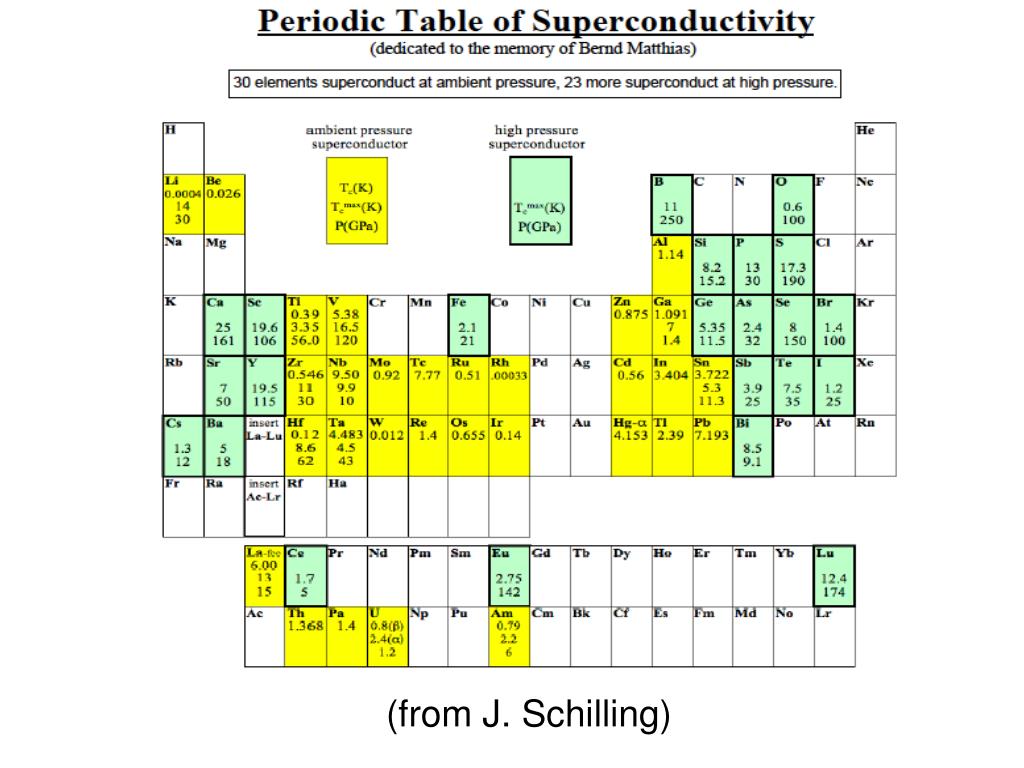

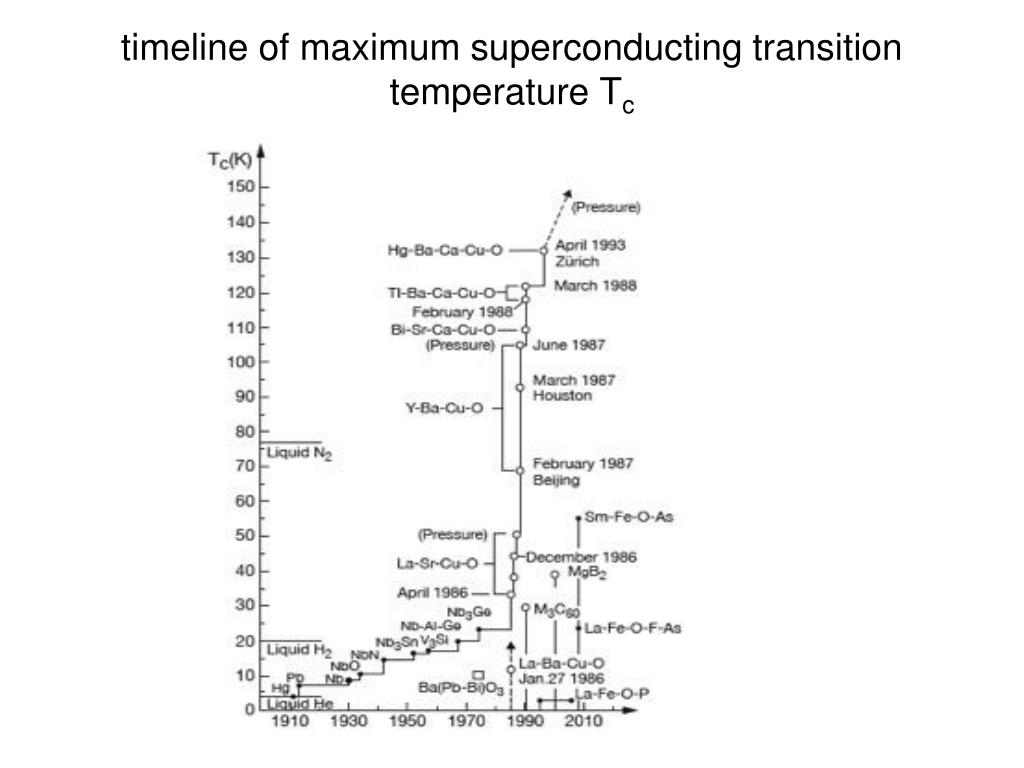

Where are the superconductors?. Z. Fisk, UC Irvine Digital Synthesis Workshop Boston University September 27, 2013 Supported by AFOSR MURI. (from J. Schilling). timeline of maximum superconducting transition temperature T c. 1986: the new superconductors.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Where are the superconductors?' - irma


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
where are the superconductors

Where are the superconductors?

Z. Fisk, UC Irvine

Digital Synthesis Workshop

Boston University

September 27, 2013

Supported by AFOSR MURI

1986 the new superconductors
1986: the new superconductors

La1.84Sr0.16CuO4 Tc = 40K

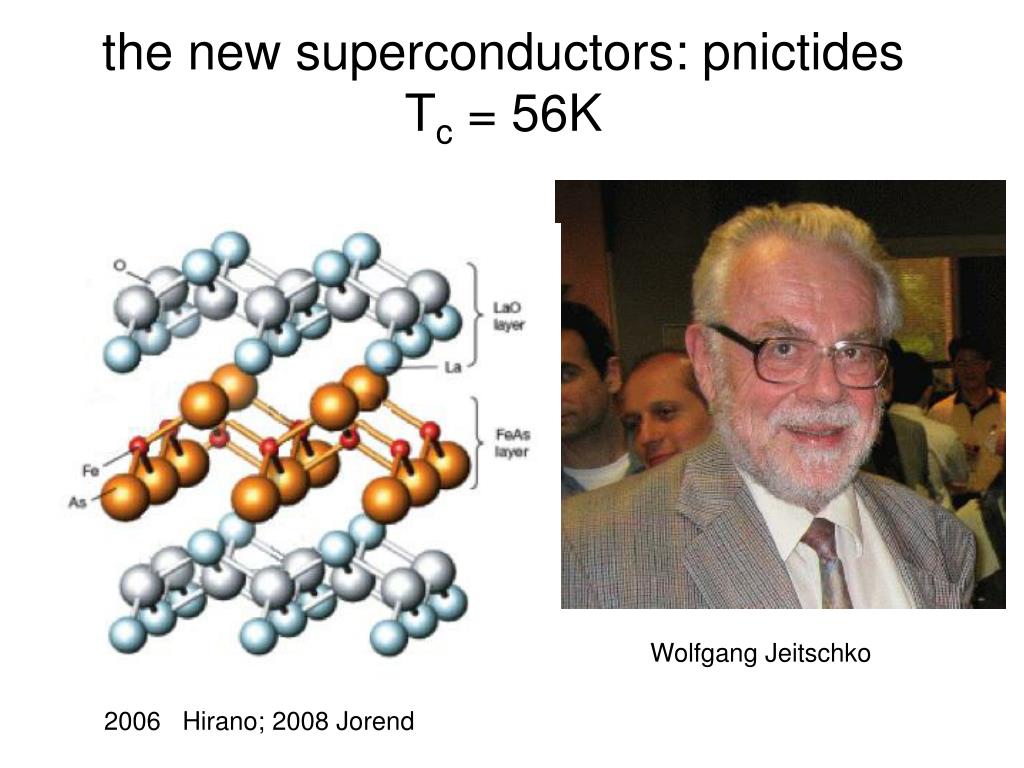

the new superconductors pnictides t c 56k
the new superconductors: pnictides Tc = 56K

Wolfgang Jeitschko

2006 Hirano; 2008 Jorend

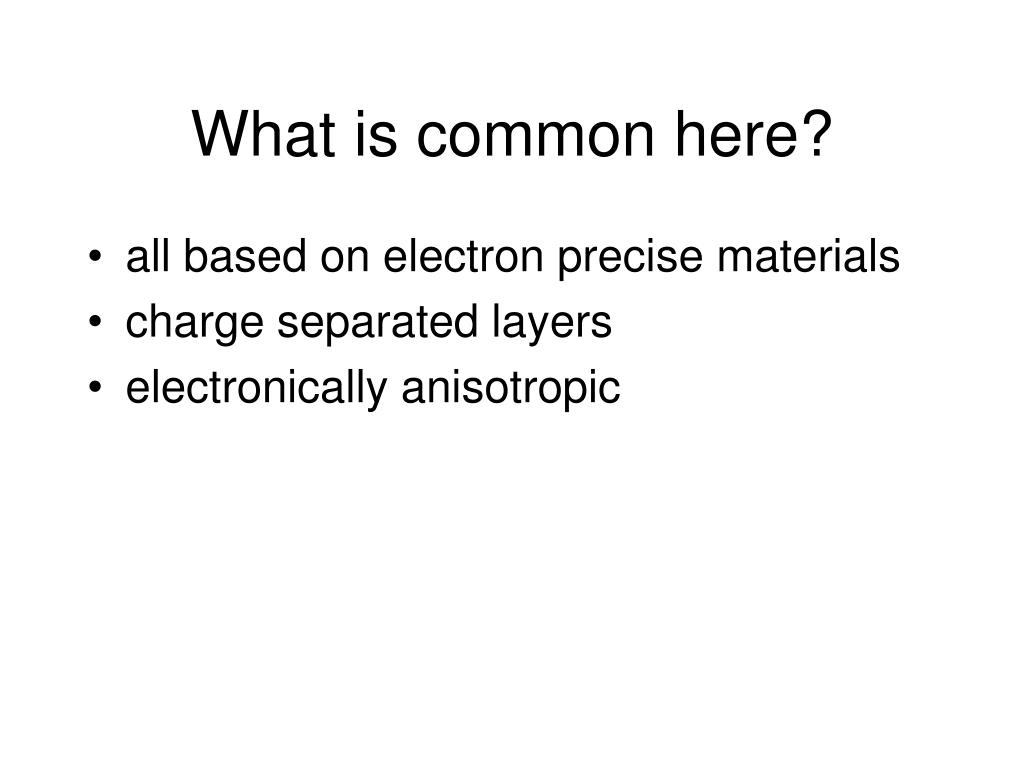

what is common here
What is common here?
  • all based on electron precise materials
  • charge separated layers
  • electronically anisotropic

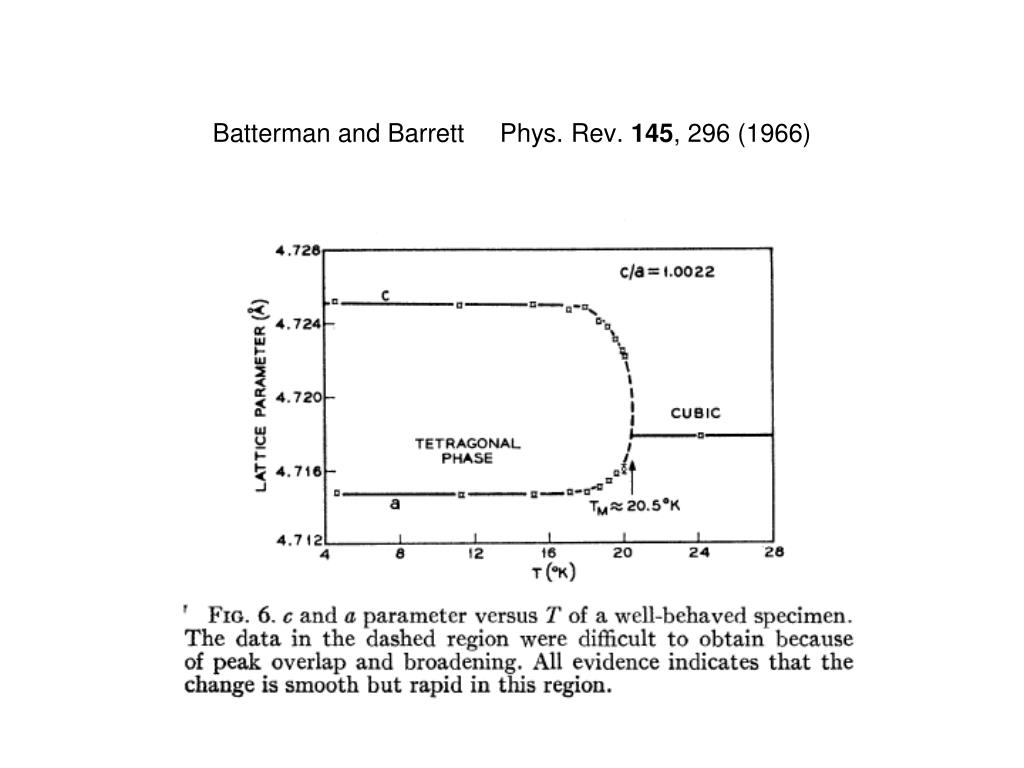

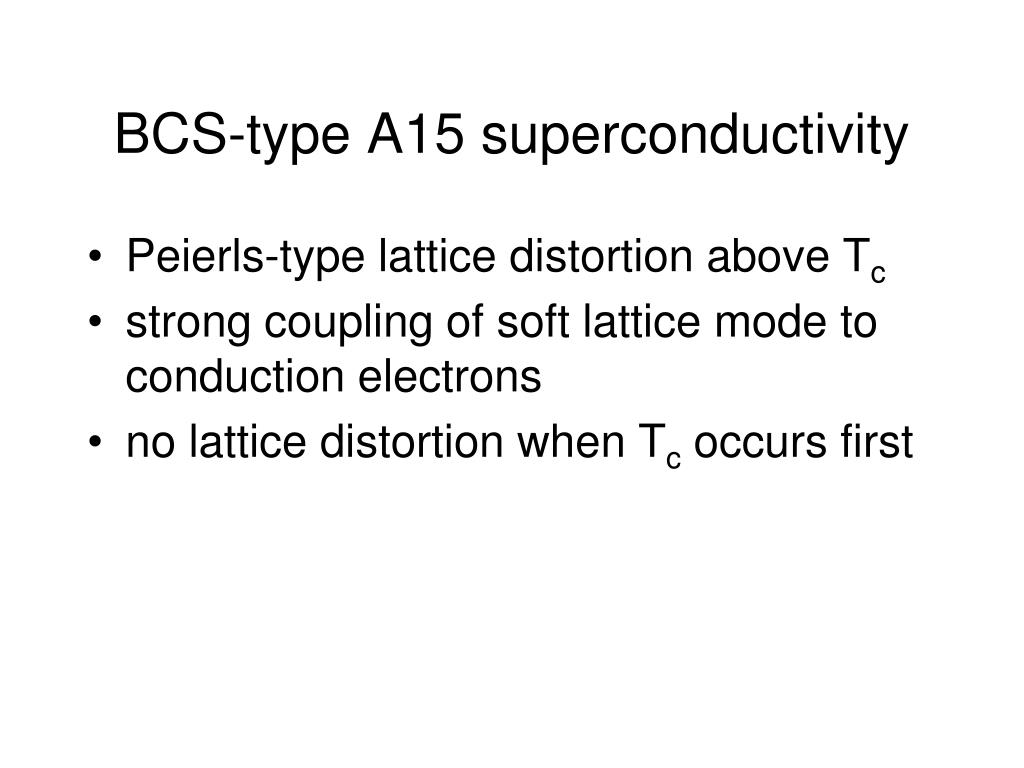

bcs type a15 superconductivity
BCS-type A15 superconductivity
  • Peierls-type lattice distortion above Tc
  • strong coupling of soft lattice mode to conduction electrons
  • no lattice distortion when Tc occurs first

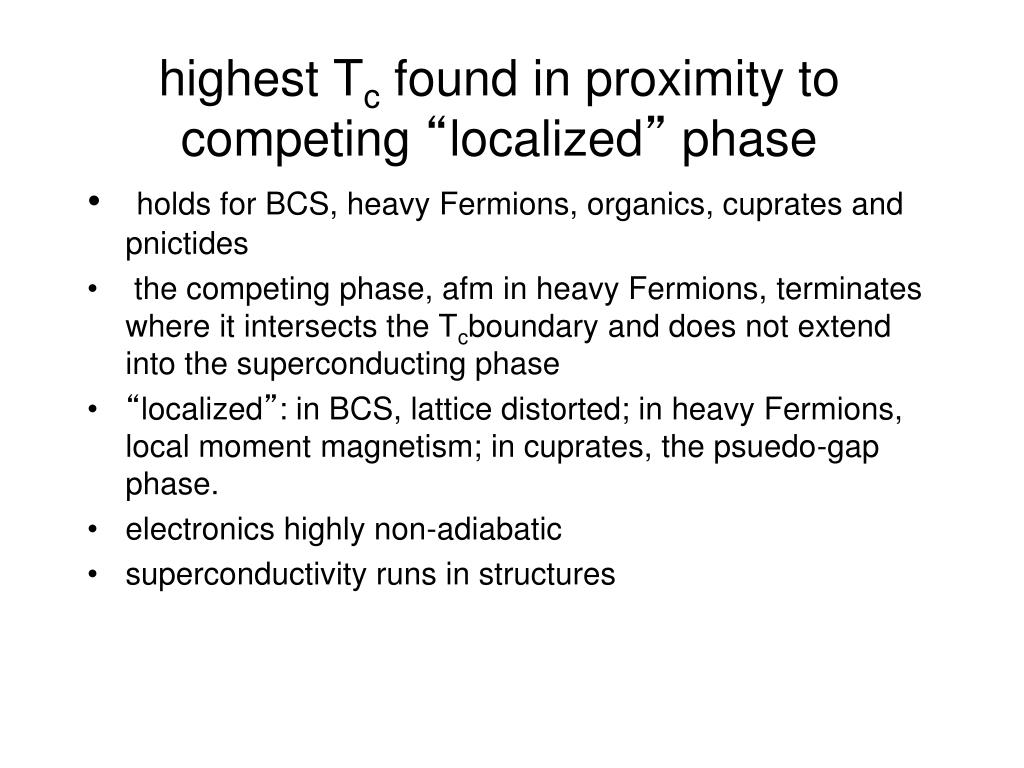

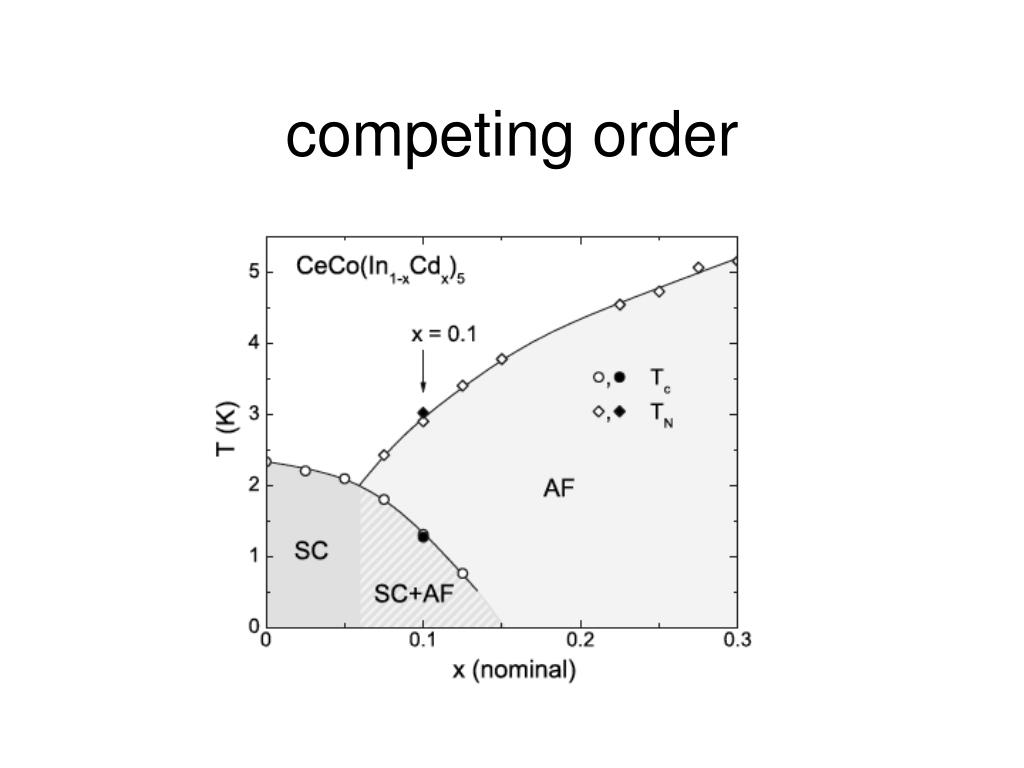

highest t c found in proximity to competing localized phase
highest Tc found in proximity to competing “localized” phase
  • holds for BCS, heavy Fermions, organics, cuprates and pnictides
  • the competing phase, afm in heavy Fermions, terminates where it intersects the Tcboundary and does not extend into the superconducting phase

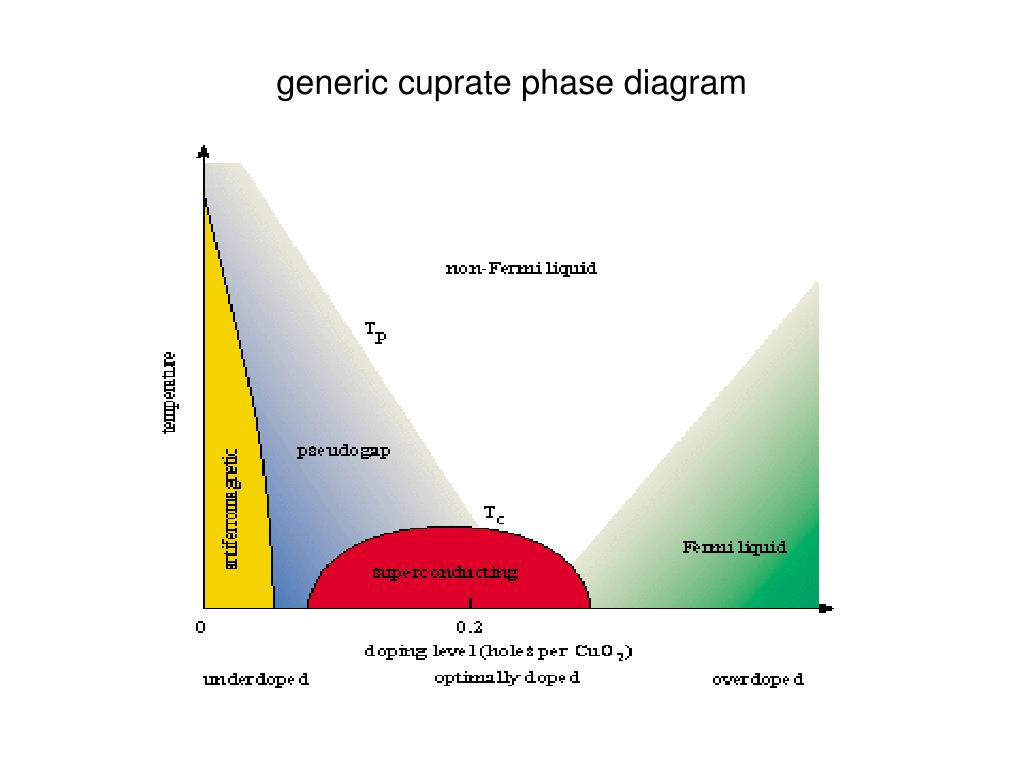

  • “localized”: in BCS, lattice distorted; in heavy Fermions, local moment magnetism; in cuprates, the psuedo-gap phase.
  • electronics highly non-adiabatic
  • superconductivity runs in structures

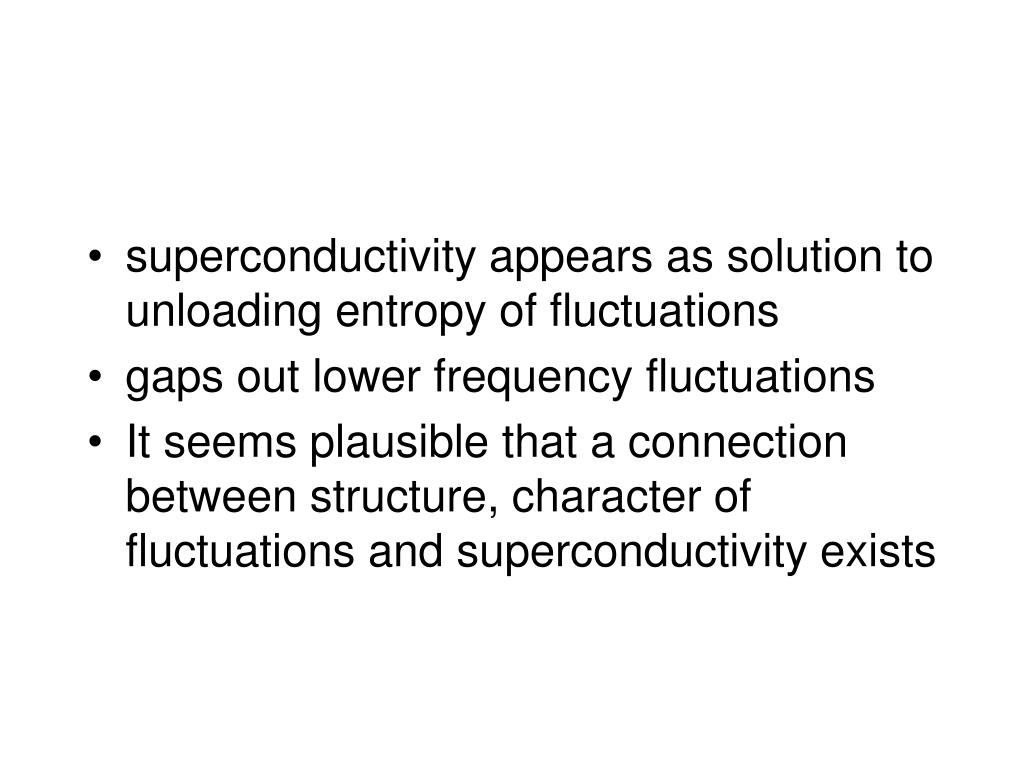

slide20

superconductivity appears as solution to unloading entropy of fluctuations

  • gaps out lower frequency fluctuations
  • It seems plausible that a connection between structure, character of fluctuations and superconductivity exists
