Presentation Transcript
variables

Variables

Sherine Shawky, MD, Dr.PH

Assistant Professor

Department of Community Medicine & Primary Health Care

College of Medicine

King Abdulaziz University

learning objectives
Learning Objectives
  • Understand the concept of variable
  • Distinguish the types of variables
  • Recognize data processing methods
performance objectives
Performance Objectives
  • Select the variables relevant to study
  • Perform appropriate data transformation
  • Present data appropriately
definition of variable
Definition Of Variable

“A variable is any quantity that varies. Any attribute, phenomenon or event that can have different values”

information supplied by variables
Information Supplied By Variables

Indices of Person

Indices of Place

Indices of Time

specification of variable
Specification of Variable

Clear precise standard definition

Method of measurement

Scale of measurement

role of variable
Role Of Variable

Correlation

Interdependent

Interdependent

role of variable8
Role Of Variable

Association

Independent

Dependent

Independent

Independent

Effect

modifier

Confounding

Dependent

Dependent

types of variables
Types of Variables

Quantitative

(continuous)

Qualitative

(Discrete)

i quantitative variables
I- Quantitative Variables
  • Data in numerical quantities that can assume all possible values
  • Data on which mathematical operations are possible
  • Example: age, weight, temperature, haemoglobin level, RBCs count
ii qualitative variables
II- Qualitative Variables

Qualitative variables are those having exact values that can fall into number of separate categories with no possible intermediate levels

Nominal

Ordinal

1 nominal variable
1- Nominal Variable

Unordered qualitative categories

Dichotomous

(2 categories)

Multichotomous

(> 2 categories)

2 ordinal variable
2- Ordinal Variable

Ordered qualitative categories

Score

birth order

Categorical

social class

Numerical discrete

parity

continuous variable

Continuous & Numerical

Discrete Variables

Continuous Variable

-3

-2

-1

0

1

2

3

Numerical Discrete

0

1

2

3

types of variables15
Types of Variables

- Quantitative

How much?

- Dichotomous

- Multichotomous

- Score

- Categorical

Who, How, where, when, What,…etc.?

- Numerical

discrete

How many?

slide16

Data Collection Tool

Age in years:

Gender:

1) male, 2) female

Social class:

1) low, 2) middle,

3) high

Height in cm:

.

data transformation
Data Transformation

Data

Reduction

Creation of

composite variable

data reduction example
Data Reduction Example
  • Data: Age from 47 individuals
  • Arrange in ascending order: 20, 21, 22, 23, 23, 24, 25, 29,29, 30, 30, 34, 34, 34, 34, 34, 34, 35, 35, 36, 37, 39, 39, 40, 43, 43, 43, 46, 46, 47, 47, 48, 48, 48, 50, 52, 56, 56, 58, 59, 59, 60, 62, 64, 64, 67, 69
data reduction example cont
Data Reduction Example (cont.)
  • Calculate the range: 69-20= 49
  • No. of intervals= 5
  • Width of class= 49/5 = 9.8  10
  • Class intervals= 20-29, 30-39, 40-49, 50-59, 60-69
data reduction
Data Reduction

Continuous: 20, 21, 22…….69

Interval: 20-29, 30-39, 40-49,

50-59, 60-69

Ordinal: Twenties, Thirties,

Forties, Fifties, Sixties

Nominal: Young or Old

creation of composite variable
Creation Of Composite Variable

Single

variables

Composite variable

Quantitative

Quantitative

Qualitative

Qualitative

data presentation
Data Presentation

Tabular

Diagrammatic

slide23

Data Presentation

Variable

Table

Chart

Frequency

Pie

Nominal

-

-

Percentage

Column or Bar

-

-

Frequency

Pie

Ordinal

-

-

Percentage

Column or Bar

-

-

Cumulative

Linear

-

-

Ogive

frequency

-

Cumulative

-

percentage

Frequency

Histogram

Interval

-

-

Percentage

Frequency

-

-

Cumulative

-

polygon

Ogive

frequency

-

Cumulative

-

percentage

Mean, SD

Scatter

Continuous

-

-

Mean,

Box plot

-

-

95

%CI

column chart
Column Chart

All categories

Single Category

%

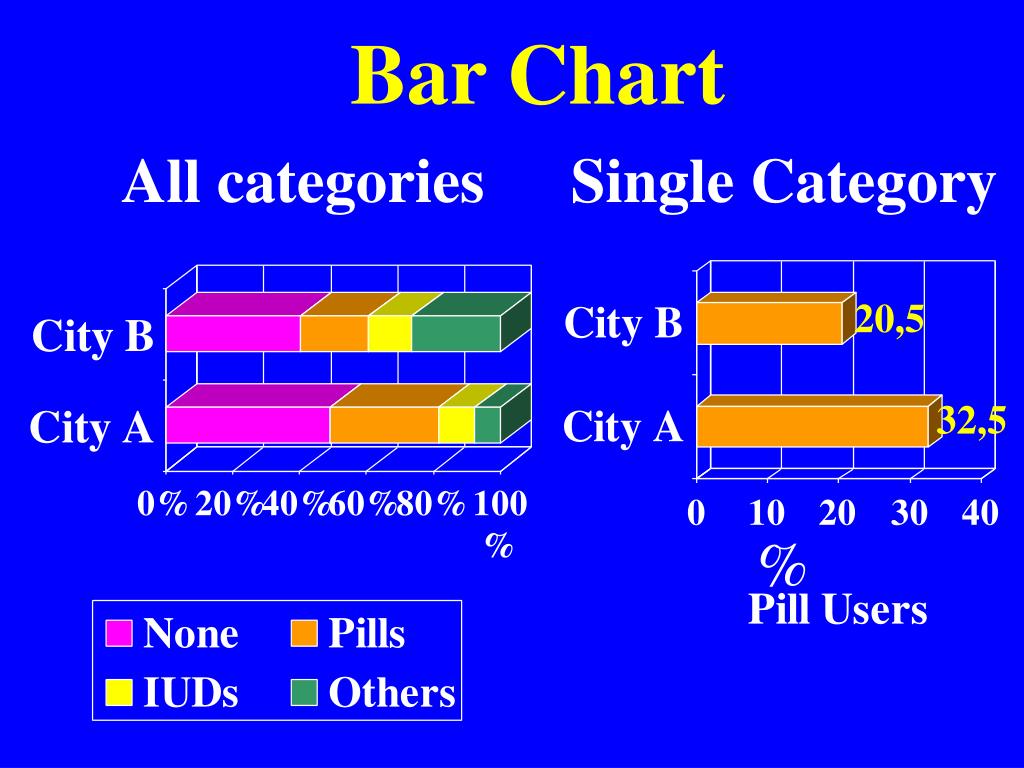

bar chart
Bar Chart

All categories

Single Category

%

linear chart
Linear Chart

Ogive

(Cumulative Percentage)

Percentage

Stages of Breast Cancer

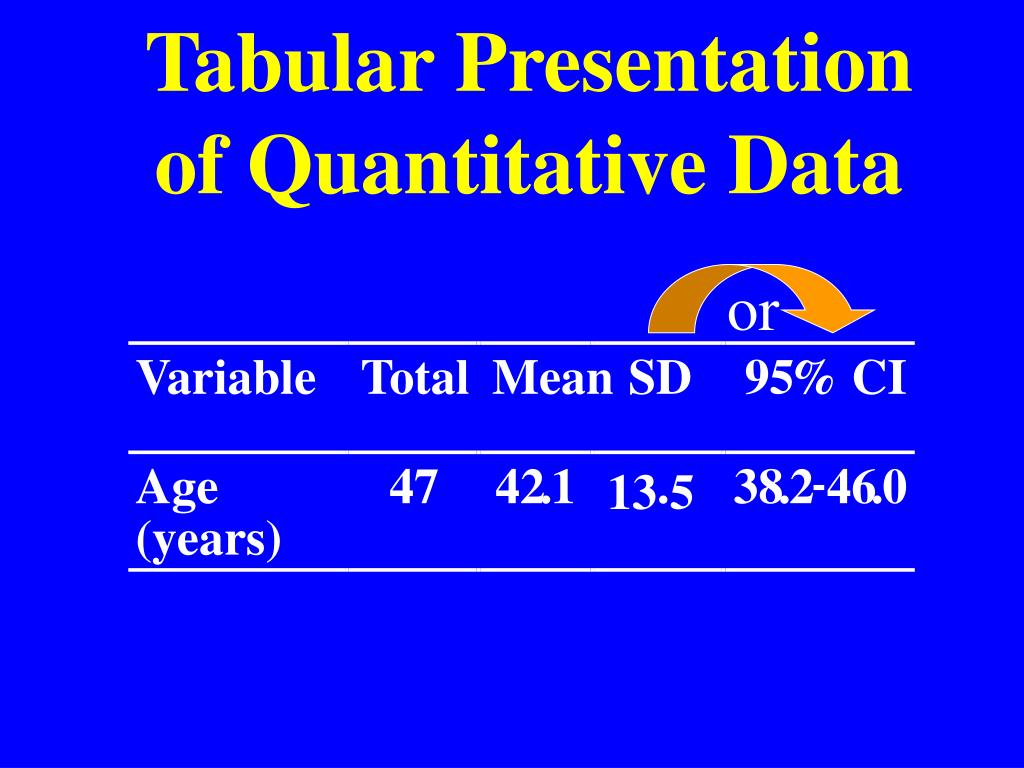

tabular presentation of quantitative data
Tabular Presentation of Quantitative Data

or

Variable

Total

Mean

SD

95

% CI

Age

47

42

.

1

.

38

.

2

-

46

.

0

13 5

(years)

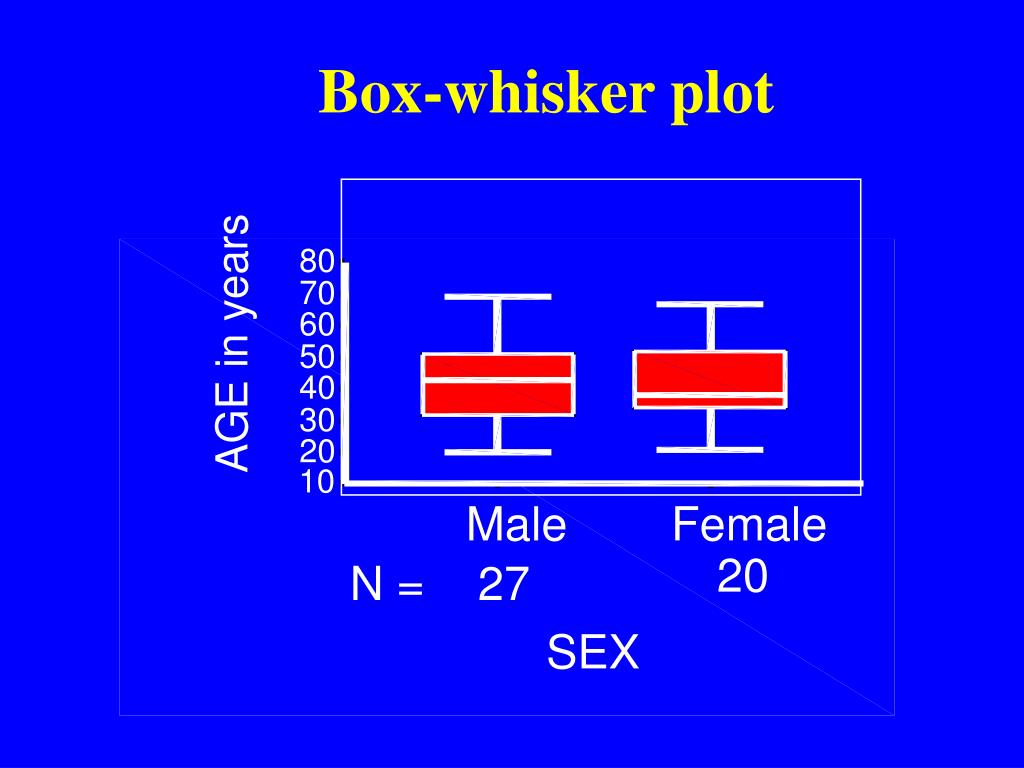

box whisker plot
Box-whisker plot

80

70

60

AGE in years

50

40

30

20

10

Male

Female

20

N =

27

SEX

conclusion

Conclusion

The variable is the basic unit required to perform a research. The researcher has to select the list of variables relevant to the study objectives, specify every piece of information and assign its role. The type of variable should be set in order to allow for proper data collection, transformation and presentation.
