NOTES #2: Binary Ionic Chemical Names and Formulas

WARM-UP : Ionic bonds form between a __________and a____________ . Draw the Lewis Dot Structure for each of the following : a. Sodium c . Magnesium b. Chlorine d. Oxygen. NONMETAL. METAL. NOTES #2: Binary Ionic Chemical Names and Formulas. Na. Mg. Cl. O.

irina
Download Presentation

NOTES #2: Binary Ionic Chemical Names and Formulas

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. WARM-UP: • Ionic bonds form between a __________and a____________. • Draw the Lewis Dot Structure for each of the following: • a. Sodiumc. Magnesium • b. Chlorine d. Oxygen NONMETAL METAL NOTES #2: Binary Ionic Chemical Names and Formulas Na Mg Cl O

  2. NOTES #2: Binary Ionic Chemical Names and Formulas

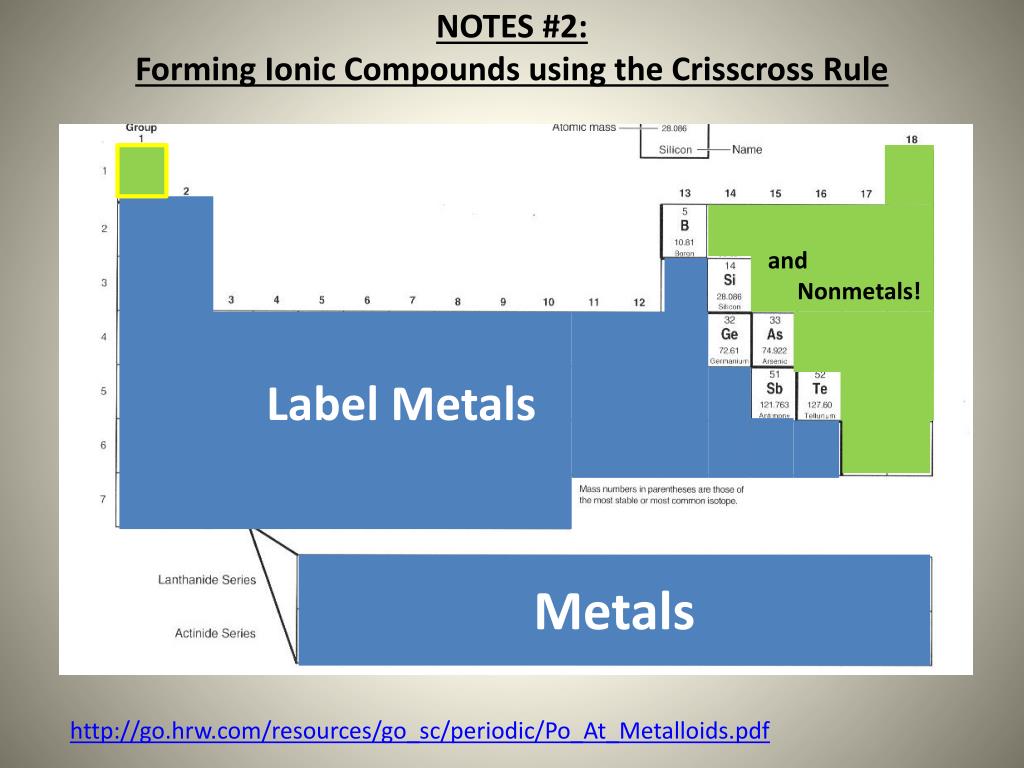

  3. NOTES #2: Forming Ionic Compounds using the Crisscross Rule and Nonmetals! Label Metals Metals http://go.hrw.com/resources/go_sc/periodic/Po_At_Metalloids.pdf

  4. 4- 3- 2- 1- NOTES #2 – Reviewing the Charges on Cations and Anions Transition Metals Vary – Will discuss later 3+ 4+ 1+ 2+

  5. Important Facts about Ionic Compounds • The sum of the charges must add up to zero, so nocharges are written in the final formula of a compound. • MgF2 • We use subscripts to represent the number of each ion. • Al2O3 • 2 Aluminum Ions and 3 Oxide Ions • They are written as the lowest possible ratio. • Ca4F8 CaF2

  6. Important Facts about Ionic Compounds • The overall charge on the compound must equal zero, that is, the number of electrons lost by one atom must equal the number of electrons gained by the other atom. • The Lewis Structure (electron dot diagram) of each ion is used to construct the Lewis Structure (electron dot diagram) for the ionic compound.

  7. Important Facts about Ionic Compounds • Examples: Lithium fluoride, LiF • Lithium atom loses one electron to form the cation Li+ • Fluorine atom gains one electron to form the anion F- • Lithium fluoride compound can be represented as

  8. Important Facts about Ionic Compounds • Examples: Lithium oxide • Lithium atom loses one electron to form the cation Li+ • Oxygen atom gains two electrons to form the anion O2-

  9. Magnesium chloride

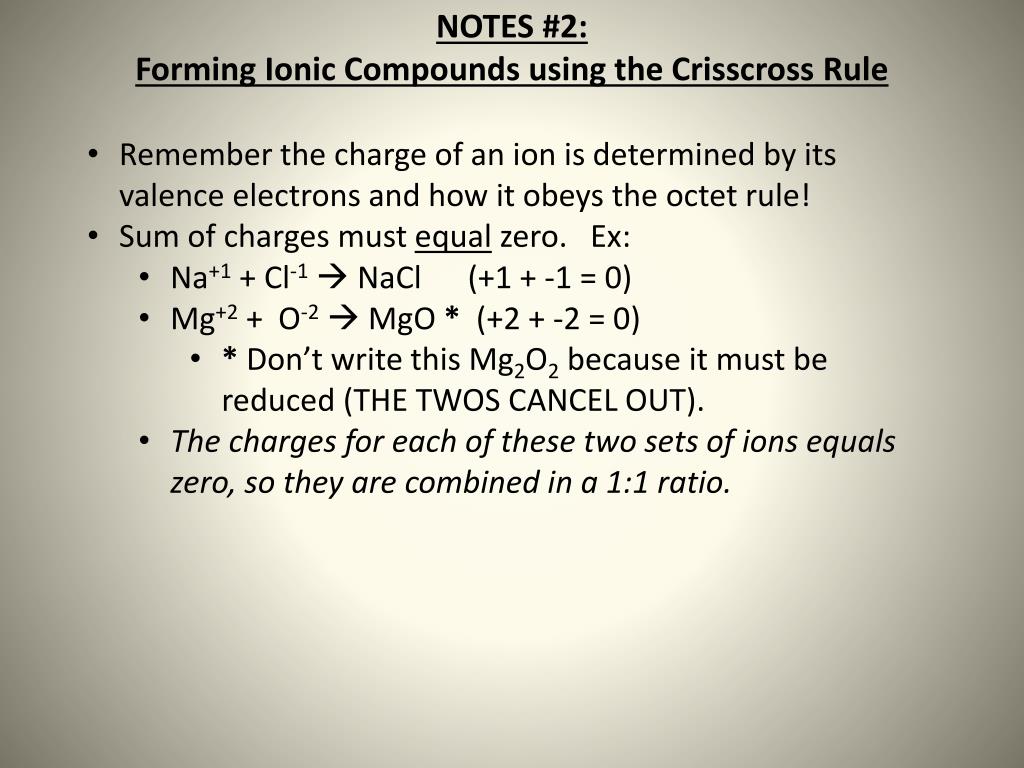

  10. Remember the charge of an ion is determined by its valence electrons and how it obeys the octet rule! • Sum of charges must equal zero. Ex: • Na+1+ Cl-1 NaCl (+1 + -1 = 0) • Mg+2+ O-2 MgO * (+2 + -2 = 0) • *Don’t write this Mg2O2 because it must be reduced (THE TWOS CANCEL OUT). • The charges for each of these two sets of ions equals zero, so they are combined in a 1:1 ratio. NOTES #2: Forming Ionic Compounds using the Crisscross Rule

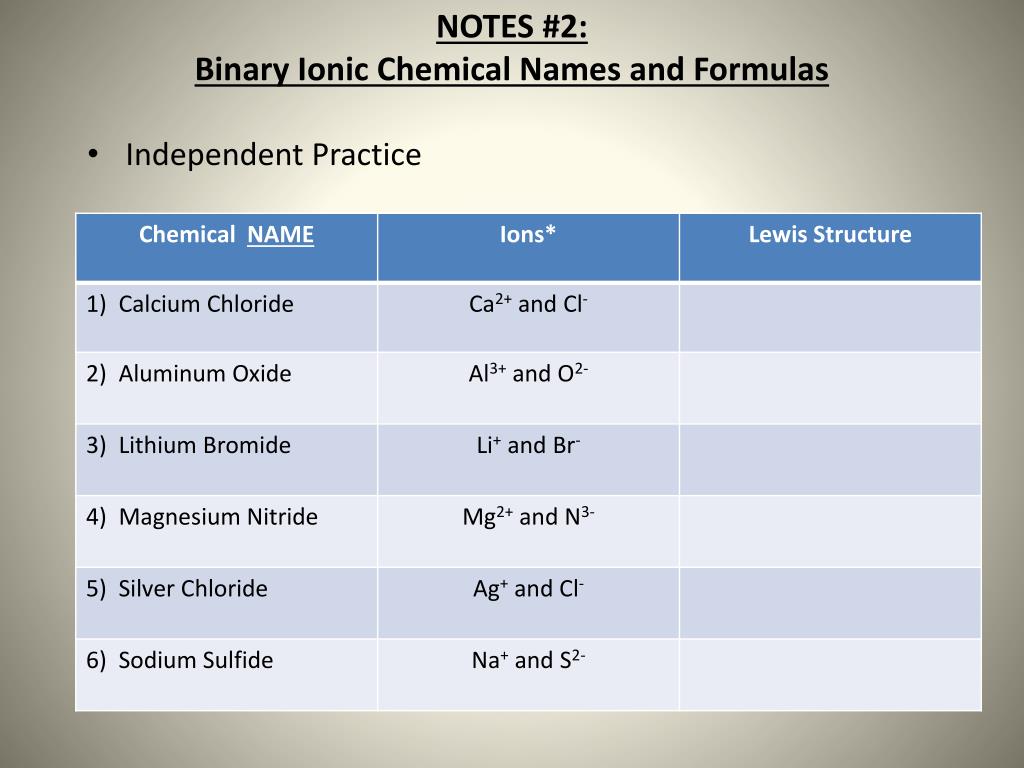

  11. Independent Practice NOTES #2: Binary Ionic Chemical Names and Formulas

  12. The Assessment on page 9 #1-3, Lewis Structure only on #3-11. • Study Polyatomic ions Pg. 12 and prefixes Pg. 17 for quiz Friday. NOTES #2: Assessment

  13. Criss-Cross Rule! • If charges do not equal zero, use the crisscross rule (shown on the next slide). • The charge number (absolute value) becomes subscript of the other element. This subscript tells how many of each element is present.

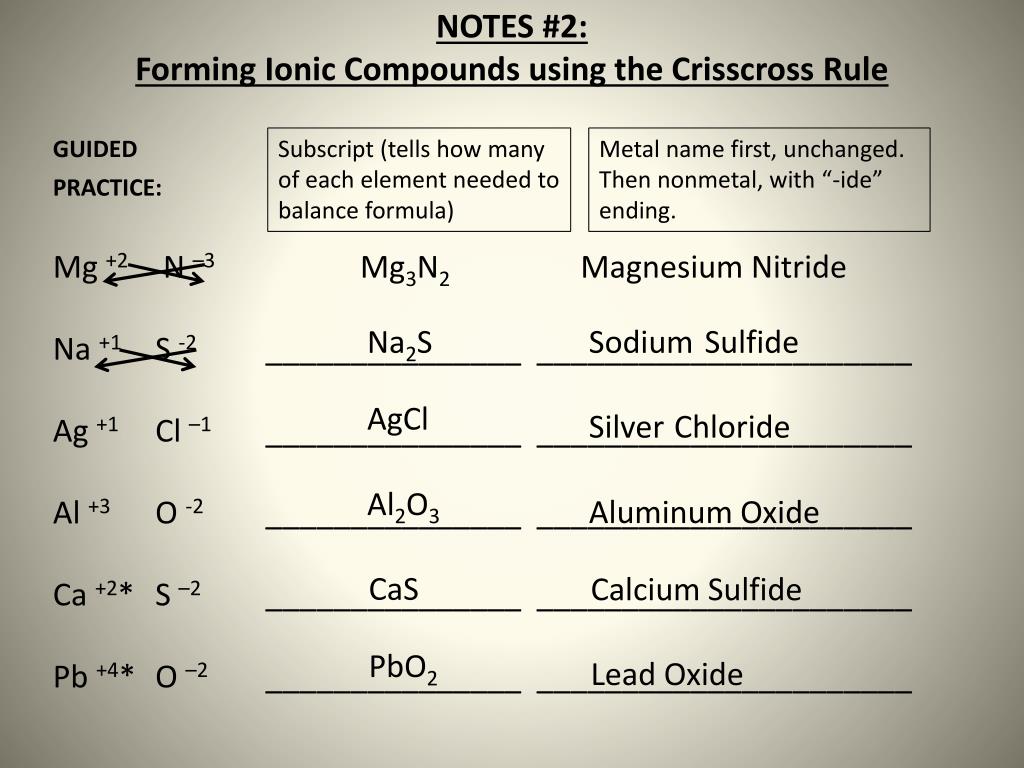

  14. GUIDED PRACTICE: Mg +2 N –3 Mg3N2 Magnesium Nitride Na +1 S -2 _______________ ______________________ Ag +1 Cl –1 _______________ ______________________ Al +3 O -2 _______________ ______________________ Ca +2* S –2 _______________ ______________________ Pb +4* O –2 _______________ ______________________ Subscript (tells how many of each element needed to balance formula) Metal name first, unchanged. Then nonmetal, with “-ide” ending. NOTES #2: Forming Ionic Compounds using the Crisscross Rule Na2S Sodium Sulfide AgCl Silver Chloride Al2O3 Aluminum Oxide CaS Calcium Sulfide PbO2 Lead Oxide

  15. Metals electrons, resulting in a charge. A charged ion is called a(n) . • Nonmetals electrons, resulting in a charge. A charged ion is called a(n) . • When naming ionic compounds, the is written first with its name unchanged. The is written second, but the end of its name is changed to –ide. • Crisscross rule: balances positive & negative charges. • Each ion’s charge number is crossed over & becomes subscript for other ion; always showing lowest whole-number ratio & dropping the signs. lose + positively cation NOTES #2: Binary Ionic Chemical Names and Formulas gain - negatively anion cation anion

  16. Independent Practice NOTES #2: Binary Ionic Chemical Names and Formulas

  17. The Assessment on page 9 is due tomorrow!!! NOTES #2: Assessment

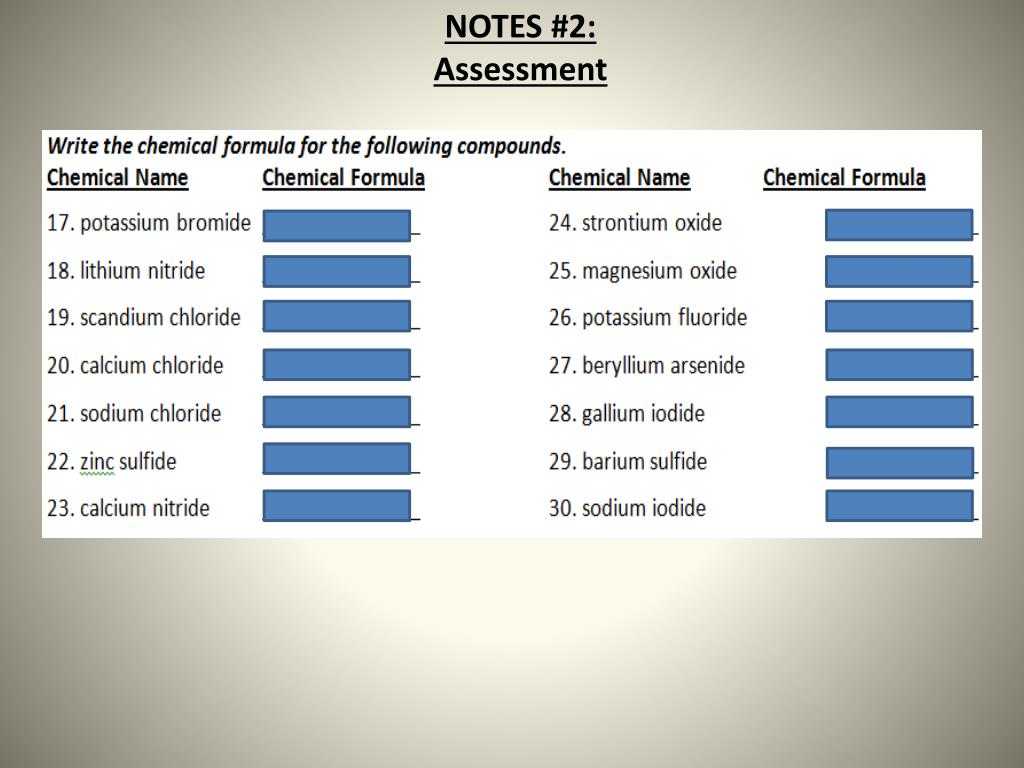

  18. NOTES #2: Assessment

  19. NOTES #2: Assessment

  20. NOTES #2: Assessment
