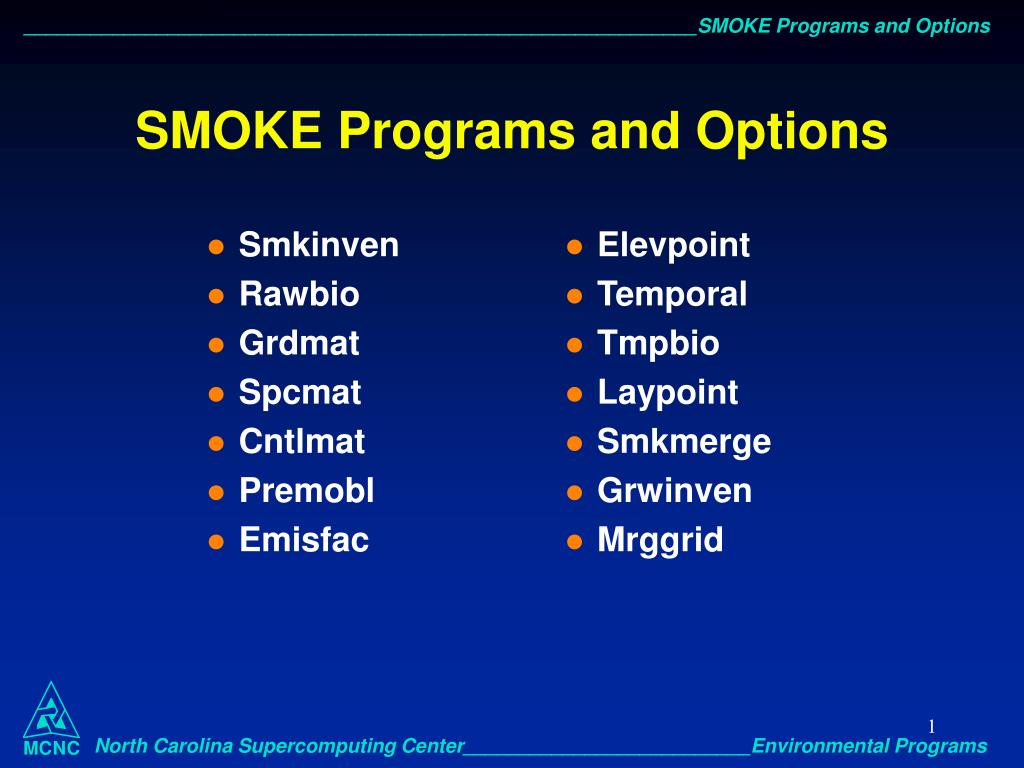

  1. SMOKE Programs and Options • Smkinven • Rawbio • Grdmat • Spcmat • Cntlmat • Premobl • Emisfac • Elevpoint • Temporal • Tmpbio • Laypoint • Smkmerge • Grwinven • Mrggrid

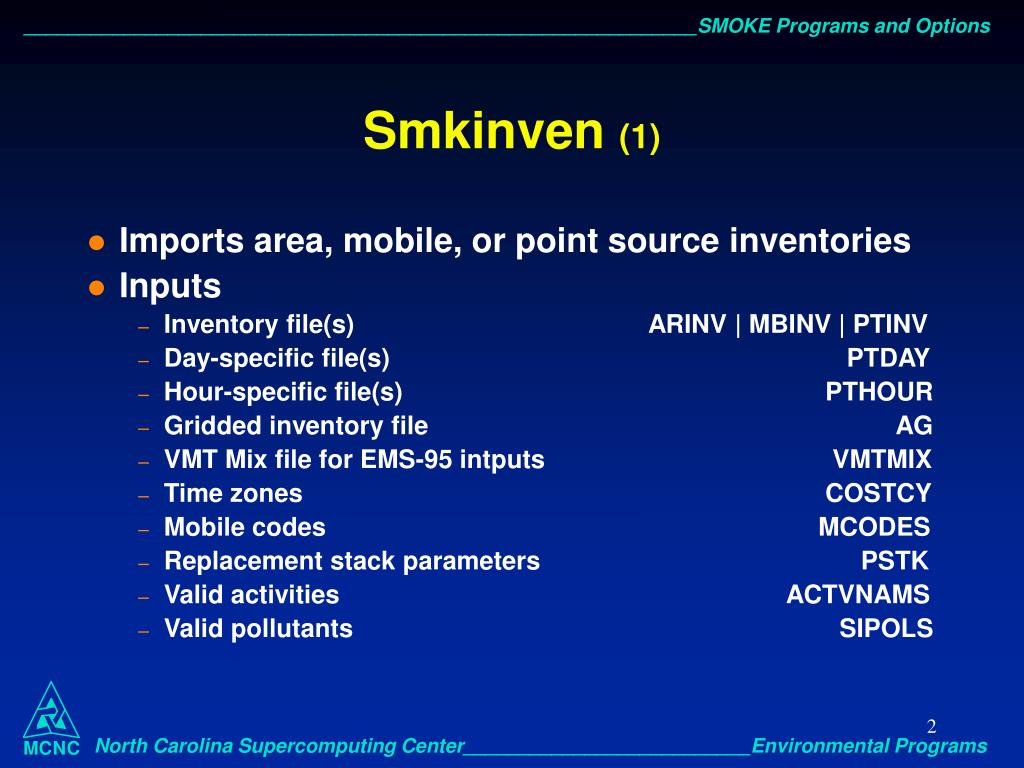

  2. Smkinven (1) • Imports area, mobile, or point source inventories • Inputs • Inventory file(s) ARINV | MBINV | PTINV • Day-specific file(s) PTDAY • Hour-specific file(s) PTHOUR • Gridded inventory file AG • VMT Mix file for EMS-95 intputs VMTMIX • Time zones COSTCY • Mobile codes MCODES • Replacement stack parameters PSTK • Valid activities ACTVNAMS • Valid pollutants SIPOLS

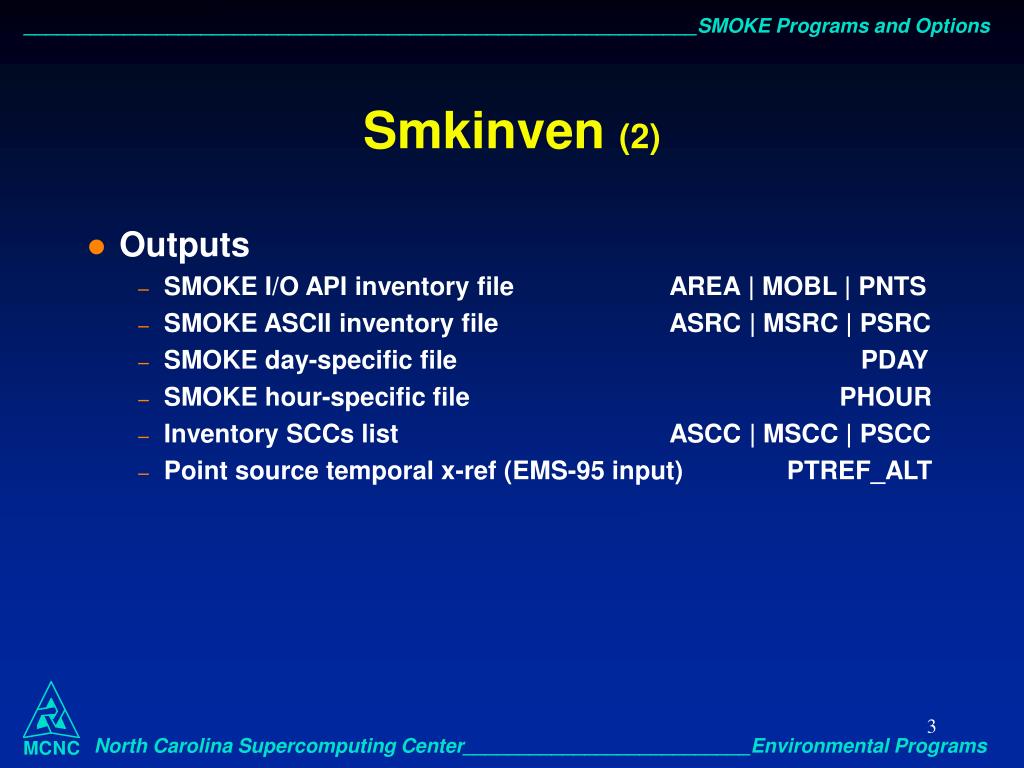

  3. Smkinven (2) • Outputs • SMOKE I/O API inventory file AREA | MOBL | PNTS • SMOKE ASCII inventory file ASRC | MSRC | PSRC • SMOKE day-specific file PDAY • SMOKE hour-specific file PHOUR • Inventory SCCs list ASCC | MSCC | PSCC • Point source temporal x-ref (EMS-95 input) PTREF_ALT

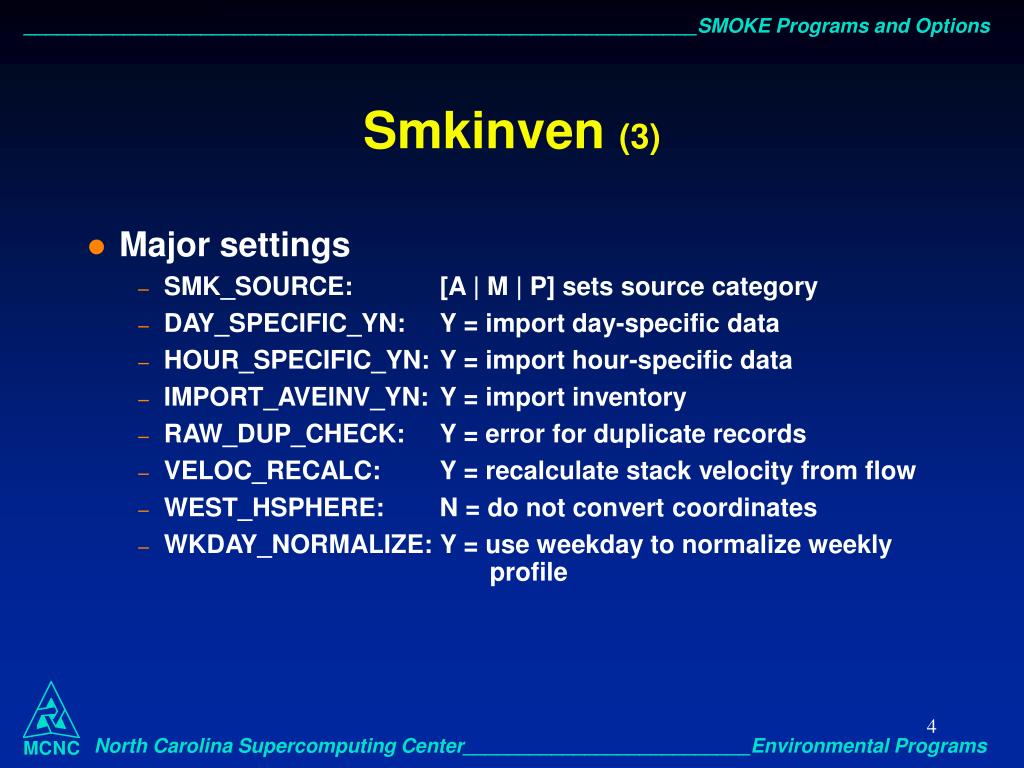

  4. Smkinven (3) • Major settings • SMK_SOURCE: [A | M | P] sets source category • DAY_SPECIFIC_YN: Y = import day-specific data • HOUR_SPECIFIC_YN: Y = import hour-specific data • IMPORT_AVEINV_YN: Y = import inventory • RAW_DUP_CHECK: Y = error for duplicate records • VELOC_RECALC: Y = recalculate stack velocity from flow • WEST_HSPHERE: N = do not convert coordinates • WKDAY_NORMALIZE: Y = use weekday to normalize weekly profile

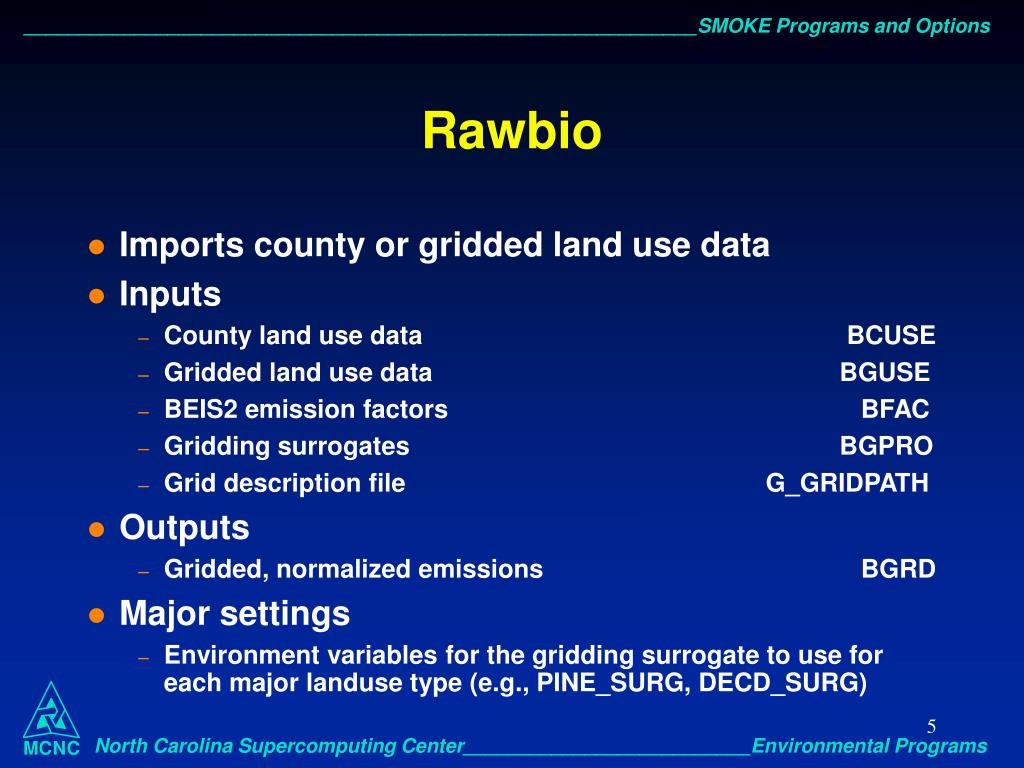

  5. Rawbio • Imports county or gridded land use data • Inputs • County land use data BCUSE • Gridded land use data BGUSE • BEIS2 emission factors BFAC • Gridding surrogates BGPRO • Grid description file G_GRIDPATH • Outputs • Gridded, normalized emissions BGRD • Major settings • Environment variables for the gridding surrogate to use for each major landuse type (e.g., PINE_SURG, DECD_SURG)

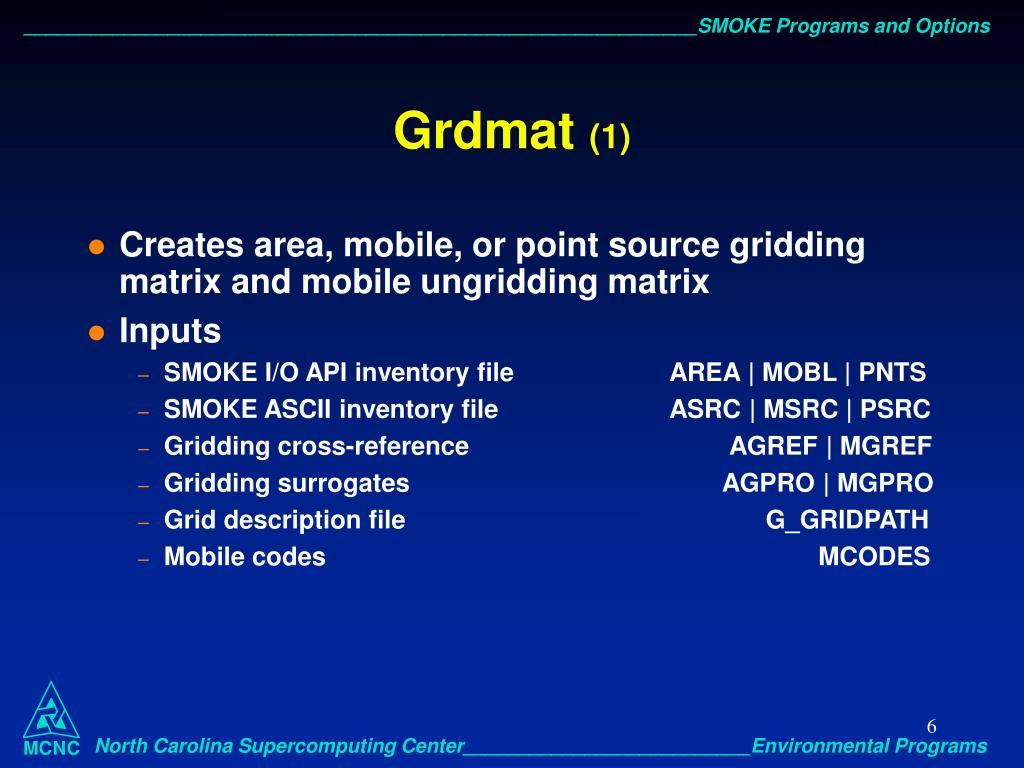

  6. Grdmat (1) • Creates area, mobile, or point source gridding matrix and mobile ungridding matrix • Inputs • SMOKE I/O API inventory file AREA | MOBL | PNTS • SMOKE ASCII inventory file ASRC | MSRC | PSRC • Gridding cross-reference AGREF | MGREF • Gridding surrogates AGPRO | MGPRO • Grid description file G_GRIDPATH • Mobile codes MCODES

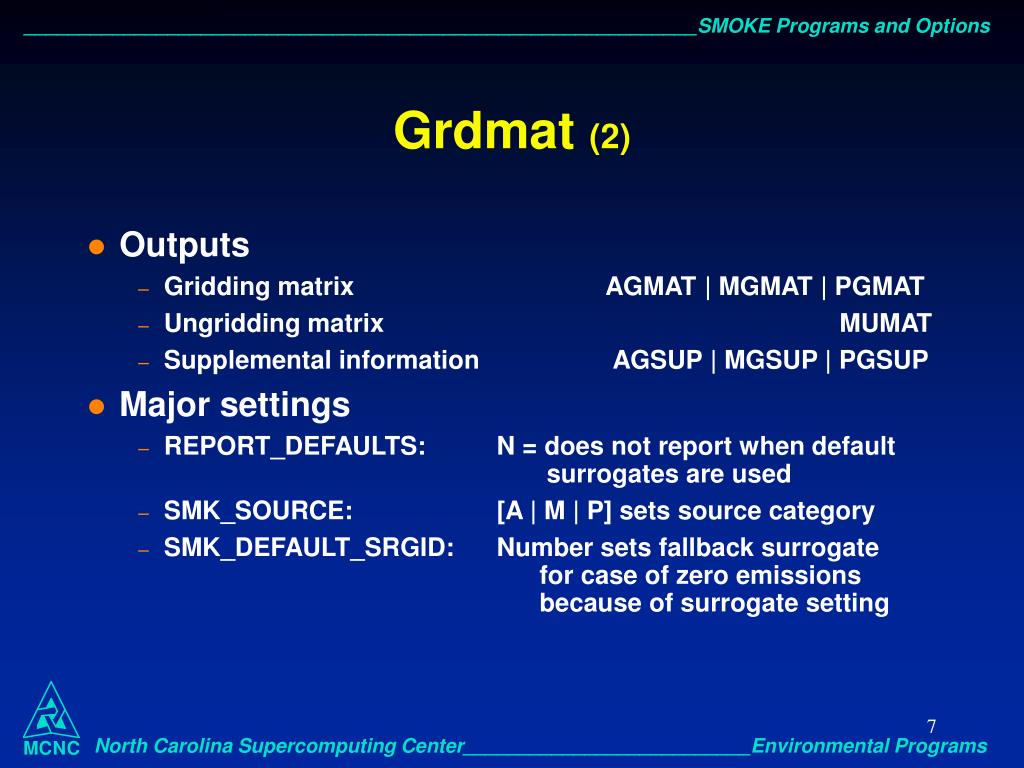

  7. Grdmat (2) • Outputs • Gridding matrix AGMAT | MGMAT | PGMAT • Ungridding matrix MUMAT • Supplemental information AGSUP | MGSUP | PGSUP • Major settings • REPORT_DEFAULTS: N = does not report when default surrogates are used • SMK_SOURCE: [A | M | P] sets source category • SMK_DEFAULT_SRGID: Number sets fallback surrogate for case of zero emissions because of surrogate setting

  8. Spcmat (1) • Creates area, mobile, or point source speciation matrix for mass-based and/or mole-based factors • Inputs • SMOKE I/O API inventory file AREA | MOBL | PNTS • SMOKE ASCII inventory file ASRC | MSRC | PSRC • Speciation profiles GSPRO • Speciation cross-reference GSREF • Pollutant conversion file GSCNV • Mobile codes MCODES • Mobile emission processes MEPROC

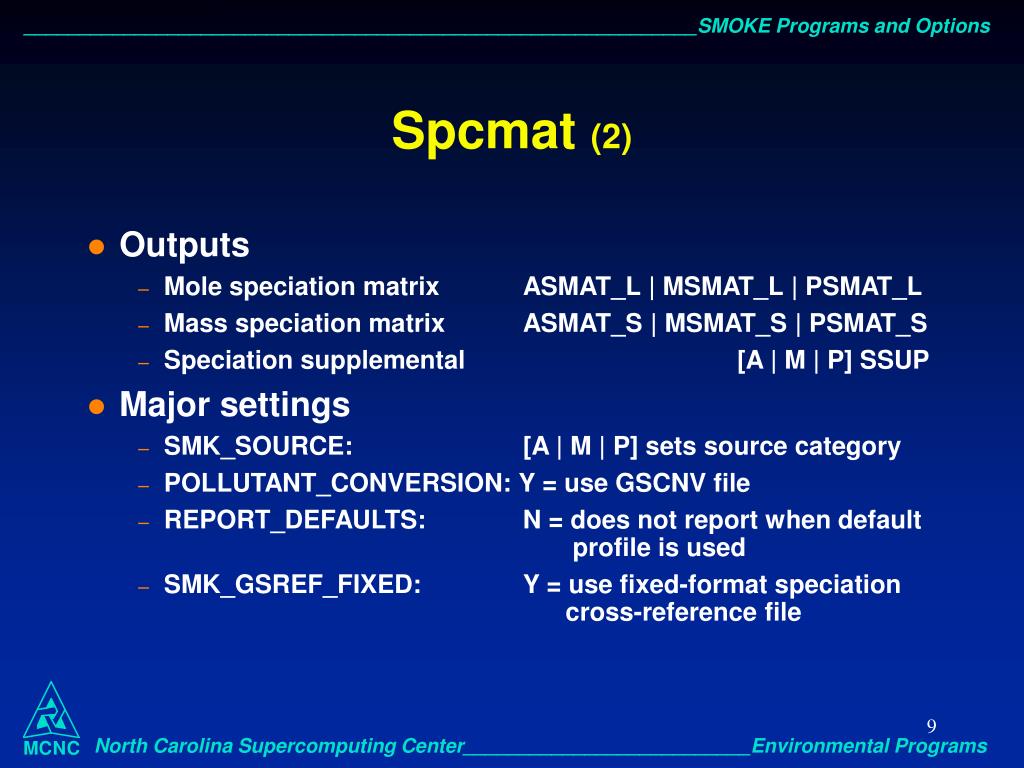

  9. Spcmat (2) • Outputs • Mole speciation matrix ASMAT_L | MSMAT_L | PSMAT_L • Mass speciation matrix ASMAT_S | MSMAT_S | PSMAT_S • Speciation supplemental [A | M | P] SSUP • Major settings • SMK_SOURCE: [A | M | P] sets source category • POLLUTANT_CONVERSION: Y = use GSCNV file • REPORT_DEFAULTS: N = does not report when default profile is used • SMK_GSREF_FIXED: Y = use fixed-format speciation cross-reference file

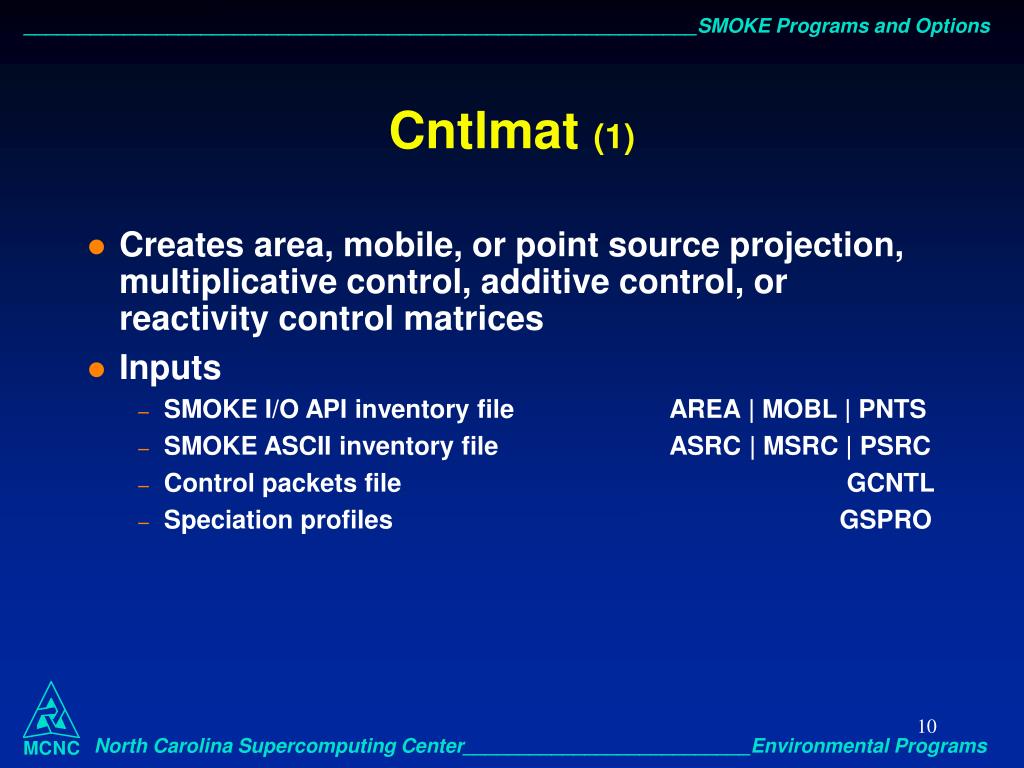

  10. Cntlmat (1) • Creates area, mobile, or point source projection, multiplicative control, additive control, or reactivity control matrices • Inputs • SMOKE I/O API inventory file AREA | MOBL | PNTS • SMOKE ASCII inventory file ASRC | MSRC | PSRC • Control packets file GCNTL • Speciation profiles GSPRO

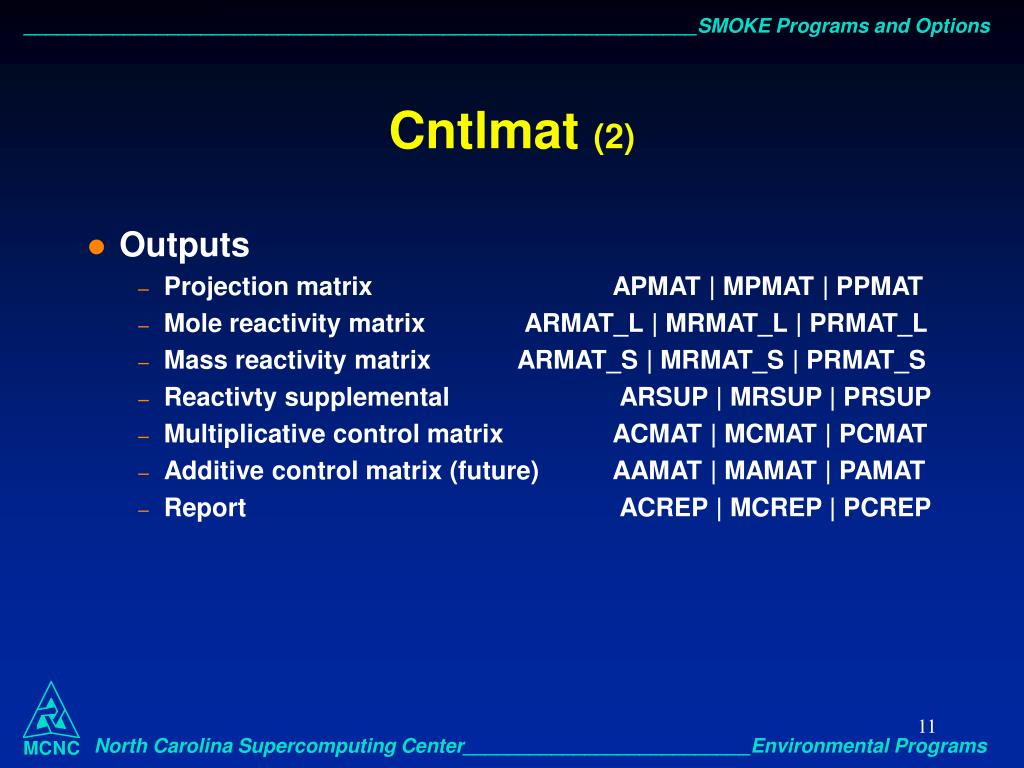

  11. Cntlmat (2) • Outputs • Projection matrix APMAT | MPMAT | PPMAT • Mole reactivity matrix ARMAT_L | MRMAT_L | PRMAT_L • Mass reactivity matrix ARMAT_S | MRMAT_S | PRMAT_S • Reactivty supplemental ARSUP | MRSUP | PRSUP • Multiplicative control matrix ACMAT | MCMAT | PCMAT • Additive control matrix (future) AAMAT | MAMAT | PAMAT • Report ACREP | MCREP | PCREP

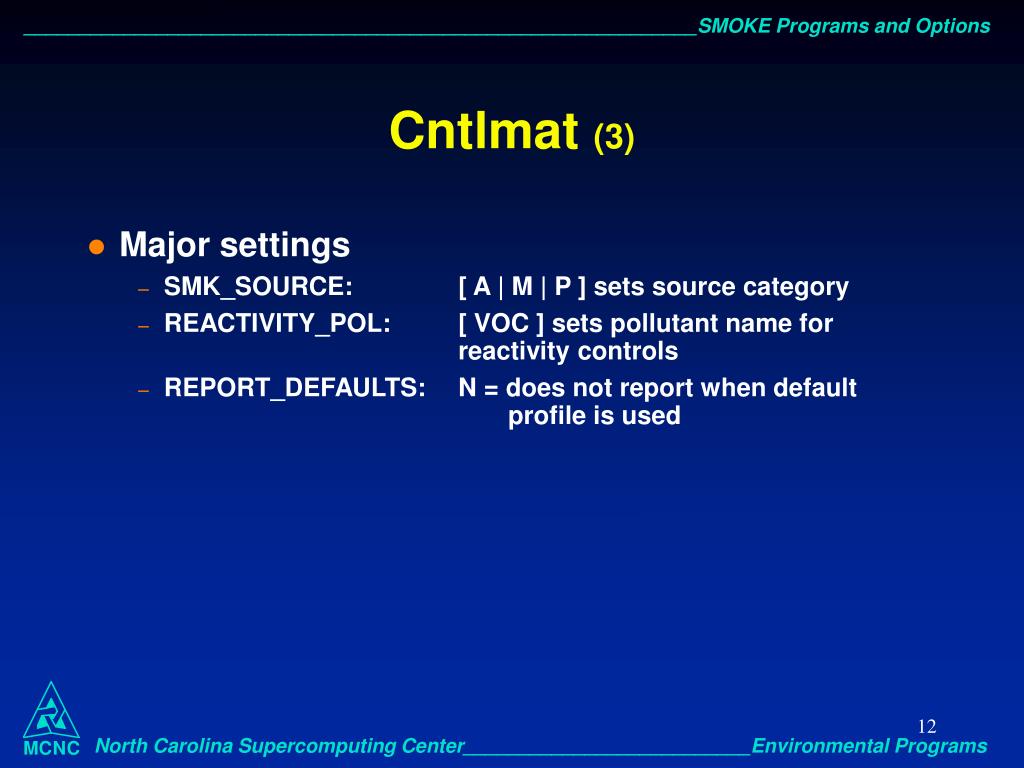

  12. Cntlmat (3) • Major settings • SMK_SOURCE: [ A | M | P ] sets source category • REACTIVITY_POL: [ VOC ] sets pollutant name for reactivity controls • REPORT_DEFAULTS: N = does not report when default profile is used

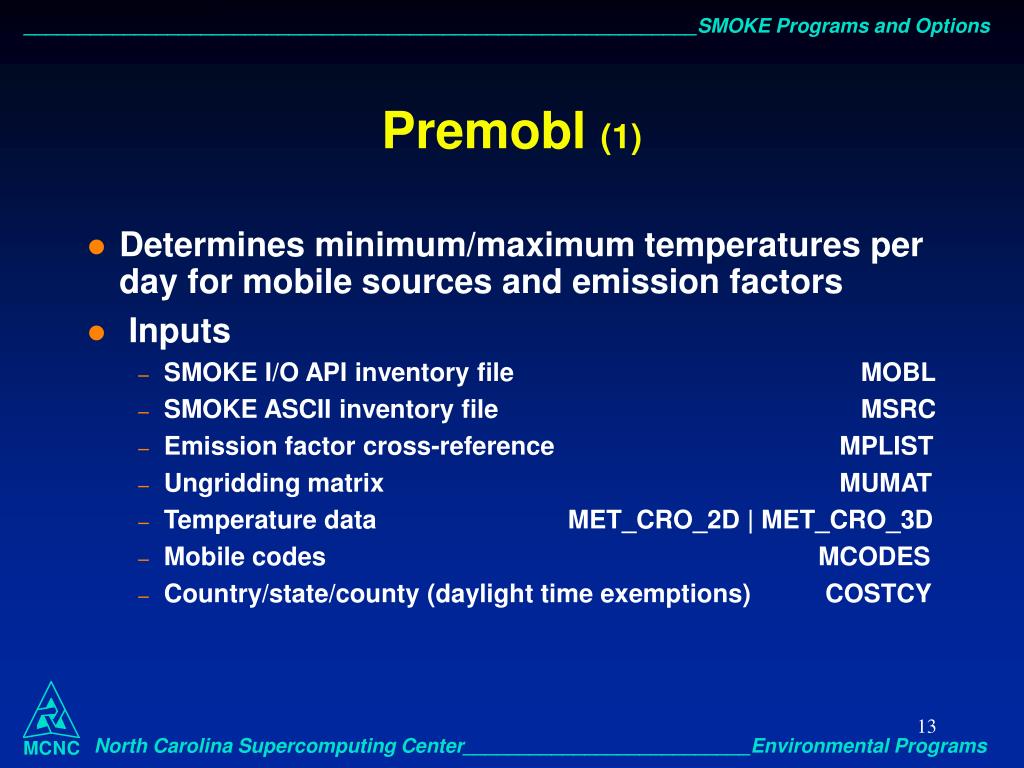

  13. Premobl (1) • Determines minimum/maximum temperatures per day for mobile sources and emission factors • Inputs • SMOKE I/O API inventory file MOBL • SMOKE ASCII inventory file MSRC • Emission factor cross-reference MPLIST • Ungridding matrix MUMAT • Temperature data MET_CRO_2D | MET_CRO_3D • Mobile codes MCODES • Country/state/county (daylight time exemptions) COSTCY

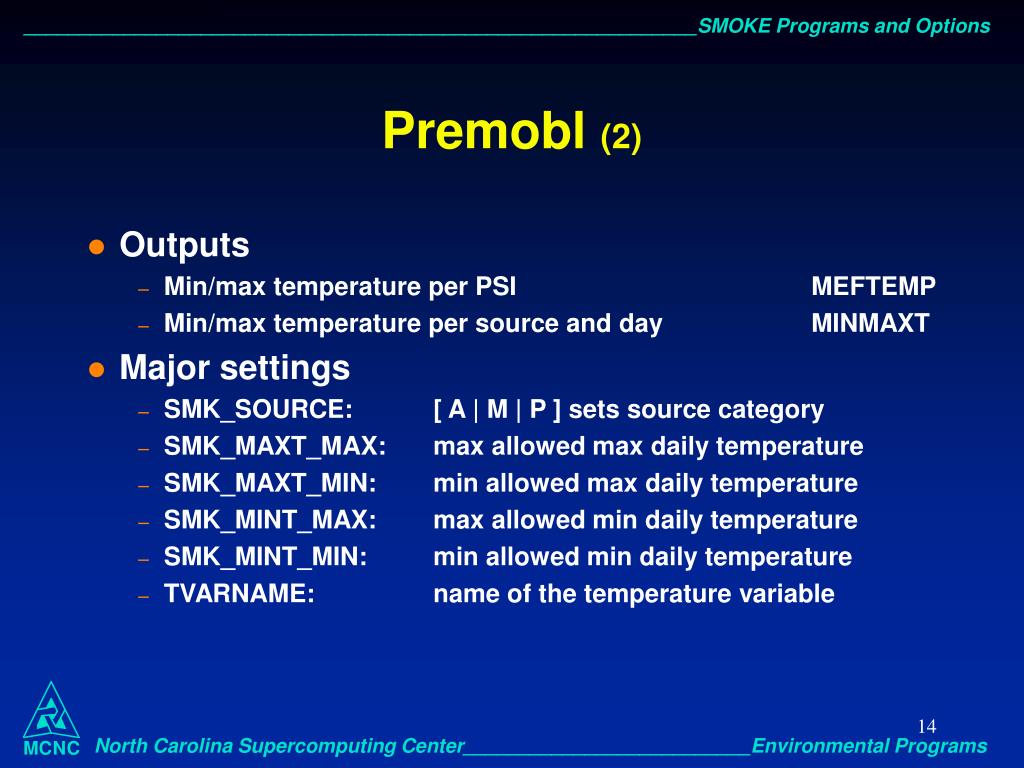

  14. Premobl (2) • Outputs • Min/max temperature per PSI MEFTEMP • Min/max temperature per source and day MINMAXT • Major settings • SMK_SOURCE: [ A | M | P ] sets source category • SMK_MAXT_MAX: max allowed max daily temperature • SMK_MAXT_MIN: min allowed max daily temperature • SMK_MINT_MAX: max allowed min daily temperature • SMK_MINT_MIN: min allowed min daily temperature • TVARNAME: name of the temperature variable

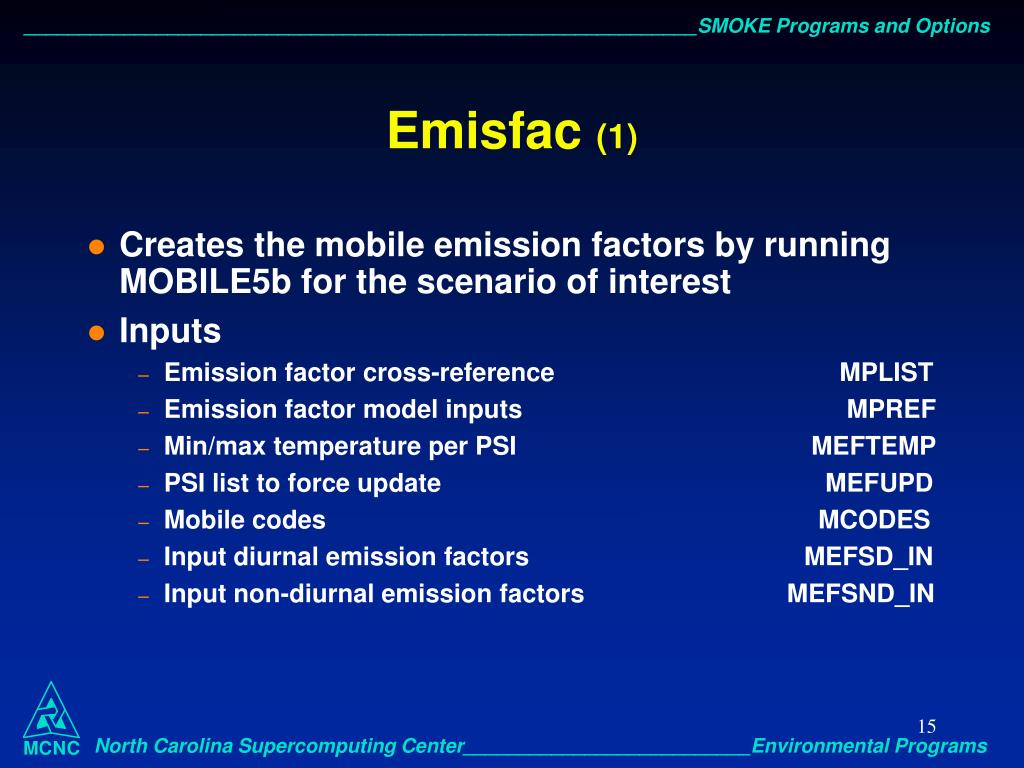

  15. Emisfac (1) • Creates the mobile emission factors by running MOBILE5b for the scenario of interest • Inputs • Emission factor cross-reference MPLIST • Emission factor model inputs MPREF • Min/max temperature per PSI MEFTEMP • PSI list to force update MEFUPD • Mobile codes MCODES • Input diurnal emission factors MEFSD_IN • Input non-diurnal emission factors MEFSND_IN

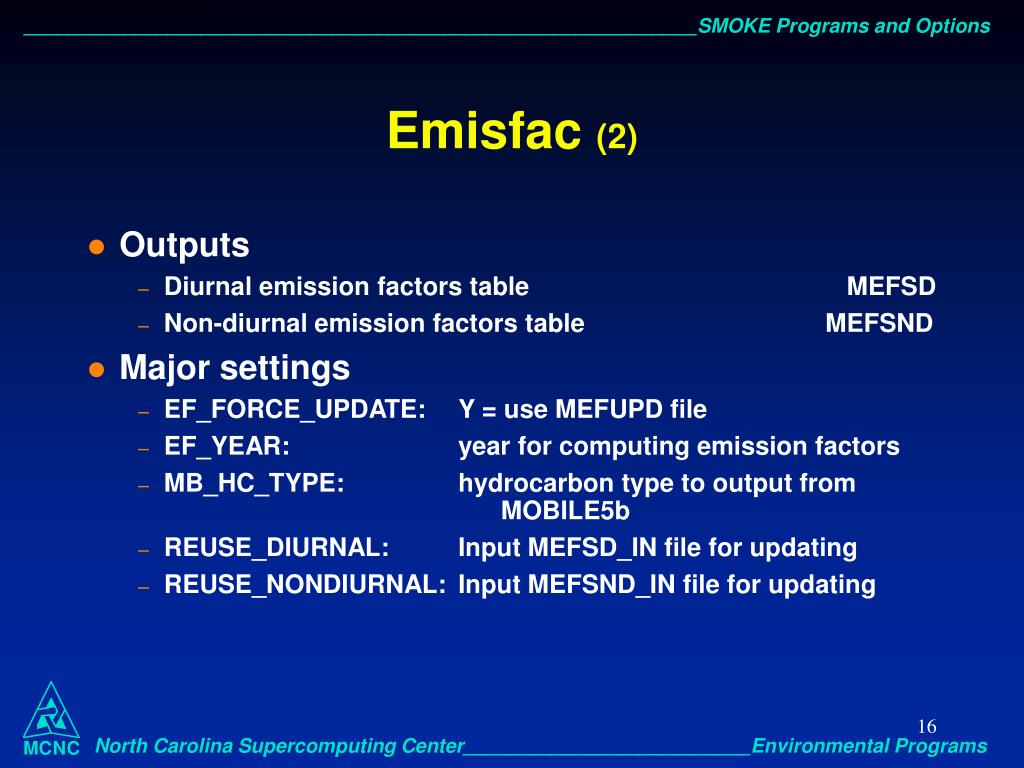

  16. Emisfac (2) • Outputs • Diurnal emission factors table MEFSD • Non-diurnal emission factors table MEFSND • Major settings • EF_FORCE_UPDATE: Y = use MEFUPD file • EF_YEAR: year for computing emission factors • MB_HC_TYPE: hydrocarbon type to output from MOBILE5b • REUSE_DIURNAL: Input MEFSD_IN file for updating • REUSE_NONDIURNAL: Input MEFSND_IN file for updating

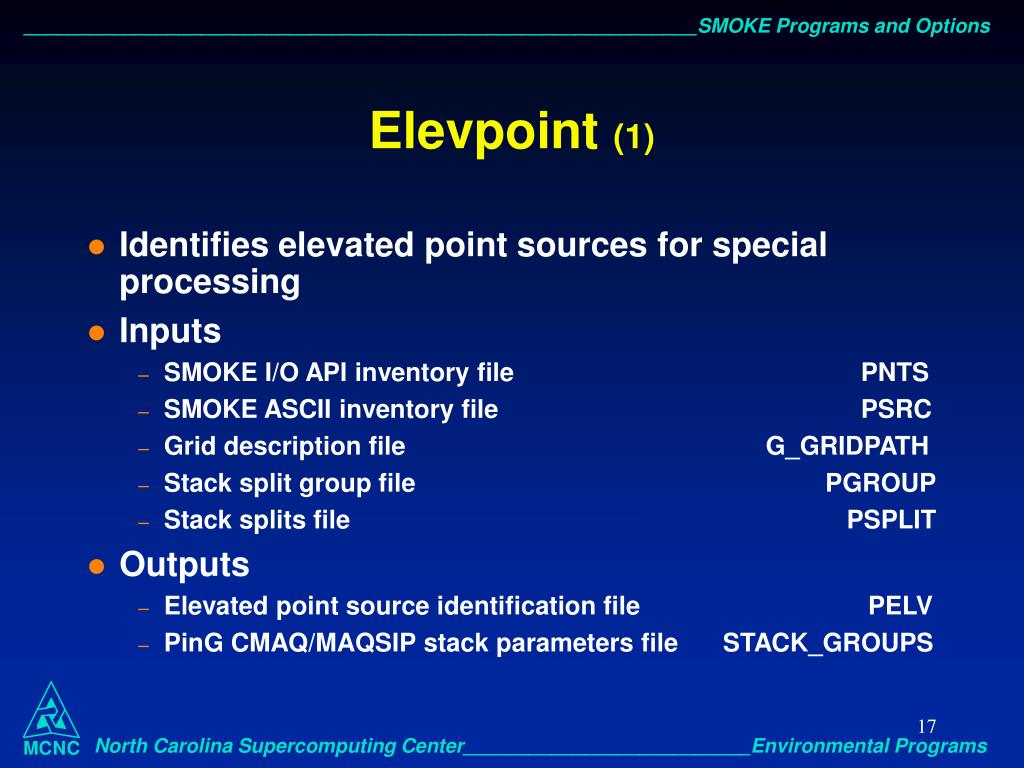

  17. Elevpoint (1) • Identifies elevated point sources for special processing • Inputs • SMOKE I/O API inventory file PNTS • SMOKE ASCII inventory file PSRC • Grid description file G_GRIDPATH • Stack split group file PGROUP • Stack splits file PSPLIT • Outputs • Elevated point source identification file PELV • PinG CMAQ/MAQSIP stack parameters file STACK_GROUPS

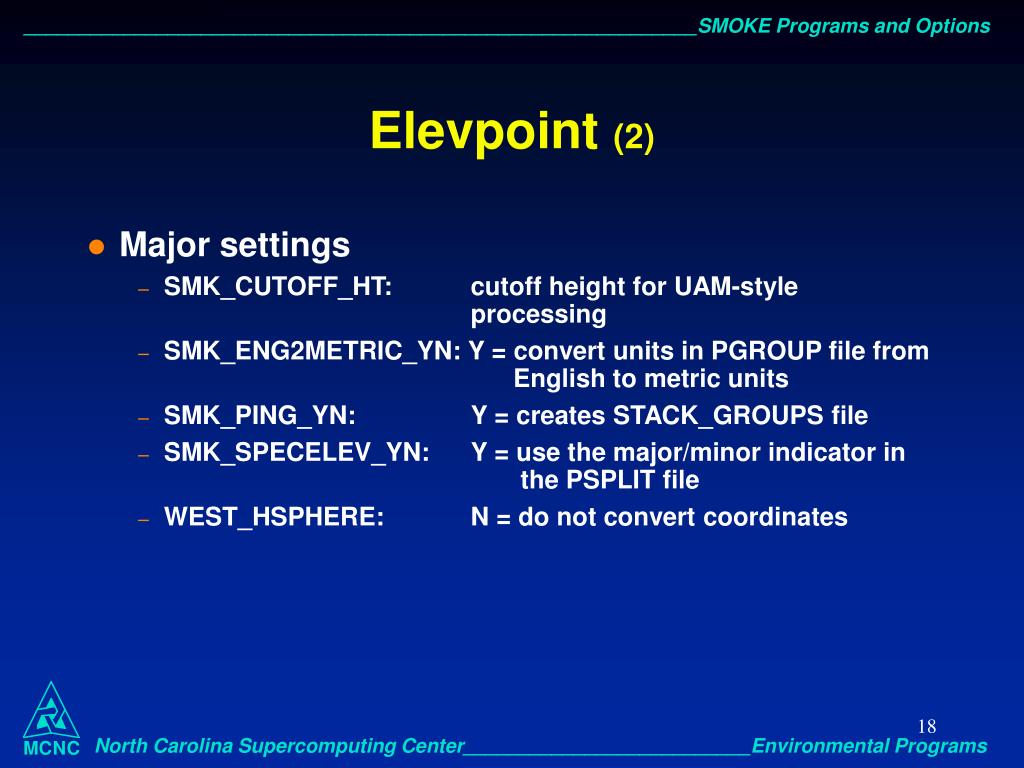

  18. Elevpoint (2) • Major settings • SMK_CUTOFF_HT: cutoff height for UAM-style processing • SMK_ENG2METRIC_YN: Y = convert units in PGROUP file from English to metric units • SMK_PING_YN: Y = creates STACK_GROUPS file • SMK_SPECELEV_YN: Y = use the major/minor indicator in the PSPLIT file • WEST_HSPHERE: N = do not convert coordinates

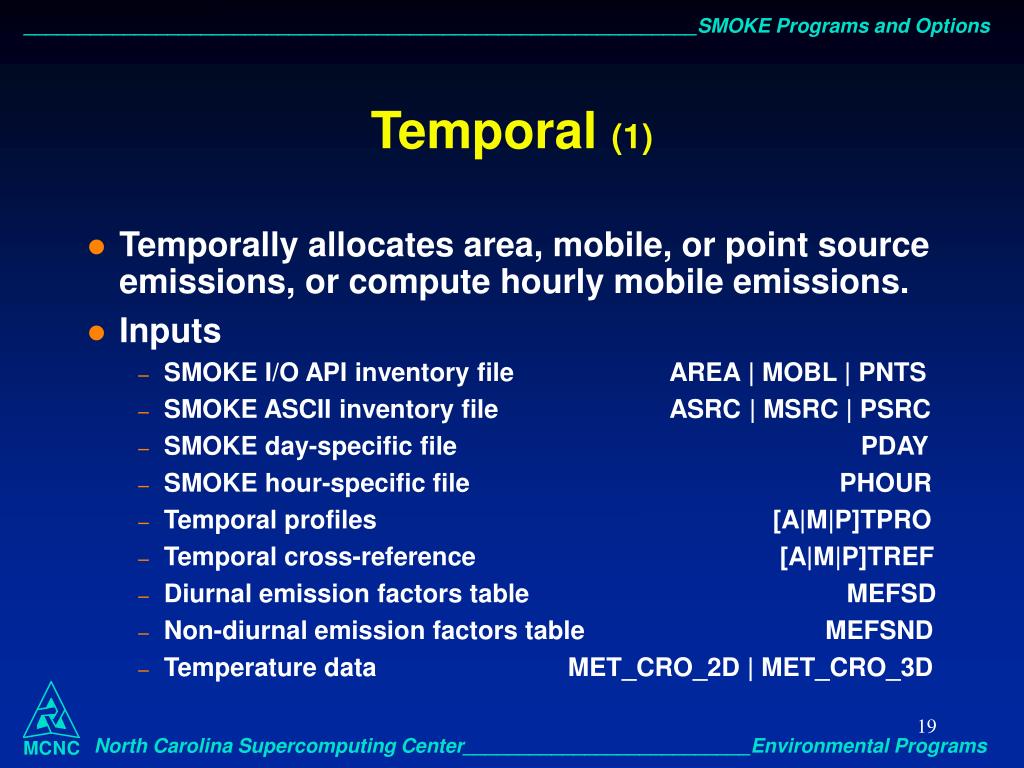

  19. Temporal (1) • Temporally allocates area, mobile, or point source emissions, or compute hourly mobile emissions. • Inputs • SMOKE I/O API inventory file AREA | MOBL | PNTS • SMOKE ASCII inventory file ASRC | MSRC | PSRC • SMOKE day-specific file PDAY • SMOKE hour-specific file PHOUR • Temporal profiles [A|M|P]TPRO • Temporal cross-reference [A|M|P]TREF • Diurnal emission factors table MEFSD • Non-diurnal emission factors table MEFSND • Temperature data MET_CRO_2D | MET_CRO_3D

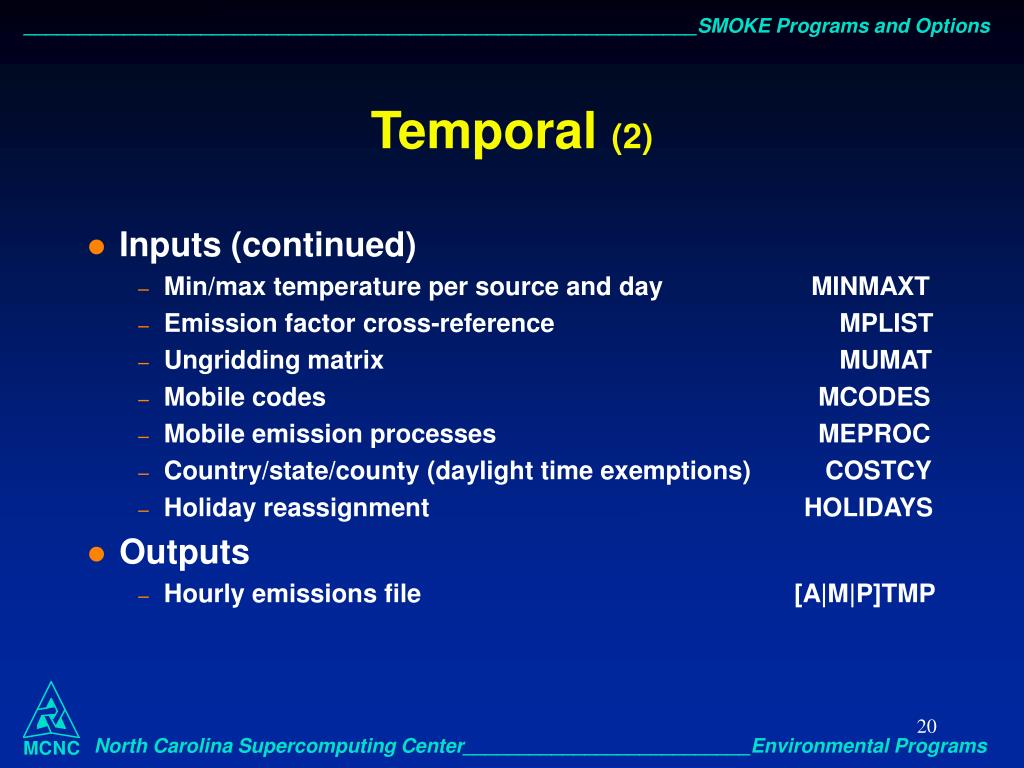

  20. Temporal (2) • Inputs (continued) • Min/max temperature per source and day MINMAXT • Emission factor cross-reference MPLIST • Ungridding matrix MUMAT • Mobile codes MCODES • Mobile emission processes MEPROC • Country/state/county (daylight time exemptions) COSTCY • Holiday reassignment HOLIDAYS • Outputs • Hourly emissions file [A|M|P]TMP

  21. Temporal (3) • Major settings • SMK_SOURCE: [A | M | P] sets source category • G_STDATE: Julian start date (YYYYDDD) • G_STTIME: start time output time zone (HHMMSS) • G_RUNLEN: episode duration (HHMMSS) • OUTZONE: output time zone • DAY_SPECIFIC_YN: Y = import day-specific data • HOUR_SPECIFIC_YN: Y = import hour-specific data • RENORM_TPROF: N = do not renormalize temporal profiles • REPORT_DEFAULTS: N = does not report when default profile is used

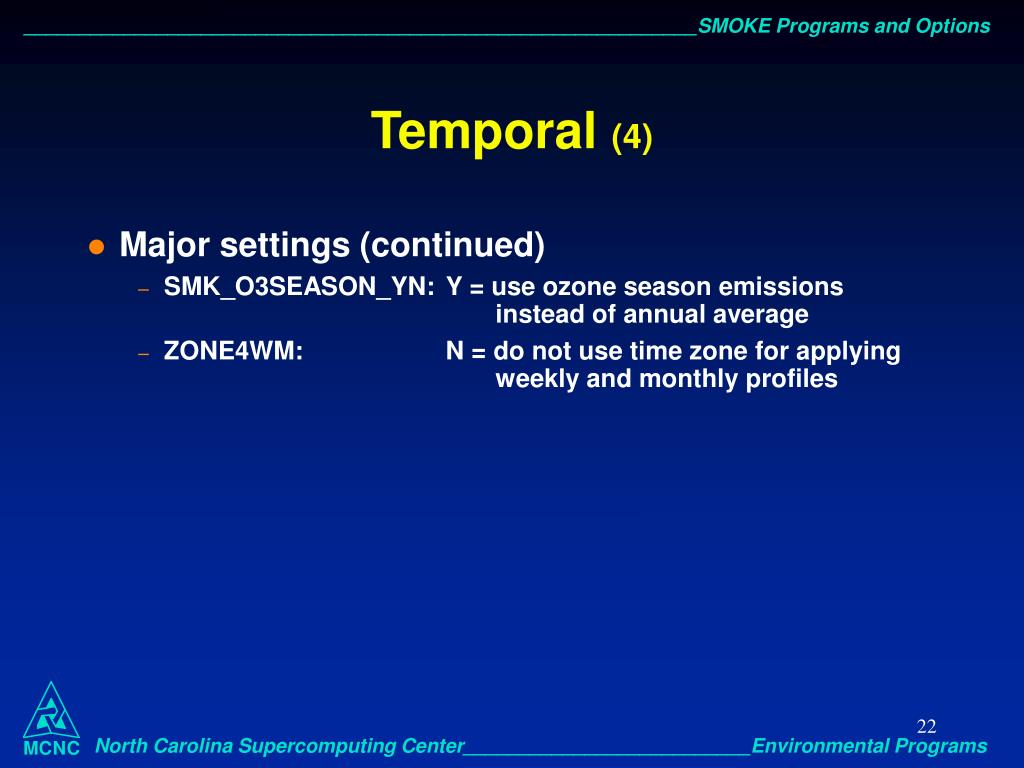

  22. Temporal (4) • Major settings (continued) • SMK_O3SEASON_YN: Y = use ozone season emissions instead of annual average • ZONE4WM: N = do not use time zone for applying weekly and monthly profiles

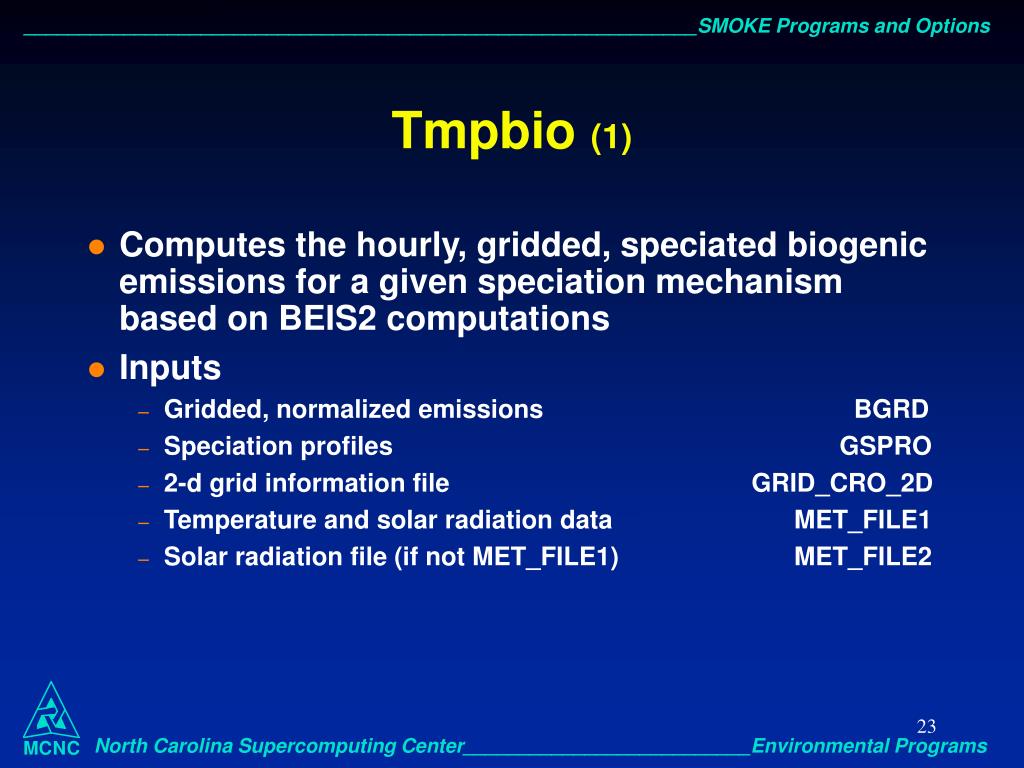

  23. Tmpbio (1) • Computes the hourly, gridded, speciated biogenic emissions for a given speciation mechanism based on BEIS2 computations • Inputs • Gridded, normalized emissions BGRD • Speciation profiles GSPRO • 2-d grid information file GRID_CRO_2D • Temperature and solar radiation data MET_FILE1 • Solar radiation file (if not MET_FILE1) MET_FILE2

  24. Tmpbio (2) • Outputs • Gridded, speciated, hourly molar emissions BGTS_L • Gridded, speciated, hourly mass emissions BGTS_S • Major settings • BG_CLOUD_TYPE: specifies method for computing photosynthetically active radiation (PAR) • TMPR_VAR: name of the temperature variable • BIOMET_SAME: Y = take temperature and solar radiation data from the same file • RAD_VAR: name of radiation or cloud data variable • BIOG_SPRO: speciation profile number to use • OUTZONE: output time zone

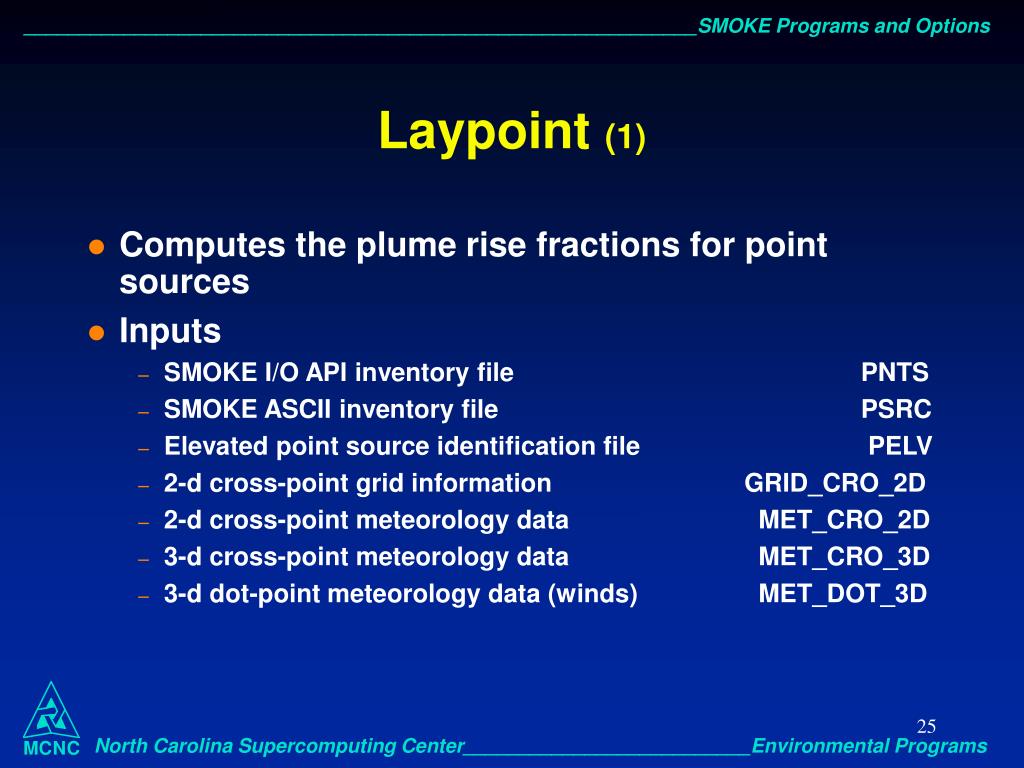

  25. Laypoint (1) • Computes the plume rise fractions for point sources • Inputs • SMOKE I/O API inventory file PNTS • SMOKE ASCII inventory file PSRC • Elevated point source identification file PELV • 2-d cross-point grid information GRID_CRO_2D • 2-d cross-point meteorology data MET_CRO_2D • 3-d cross-point meteorology data MET_CRO_3D • 3-d dot-point meteorology data (winds) MET_DOT_3D

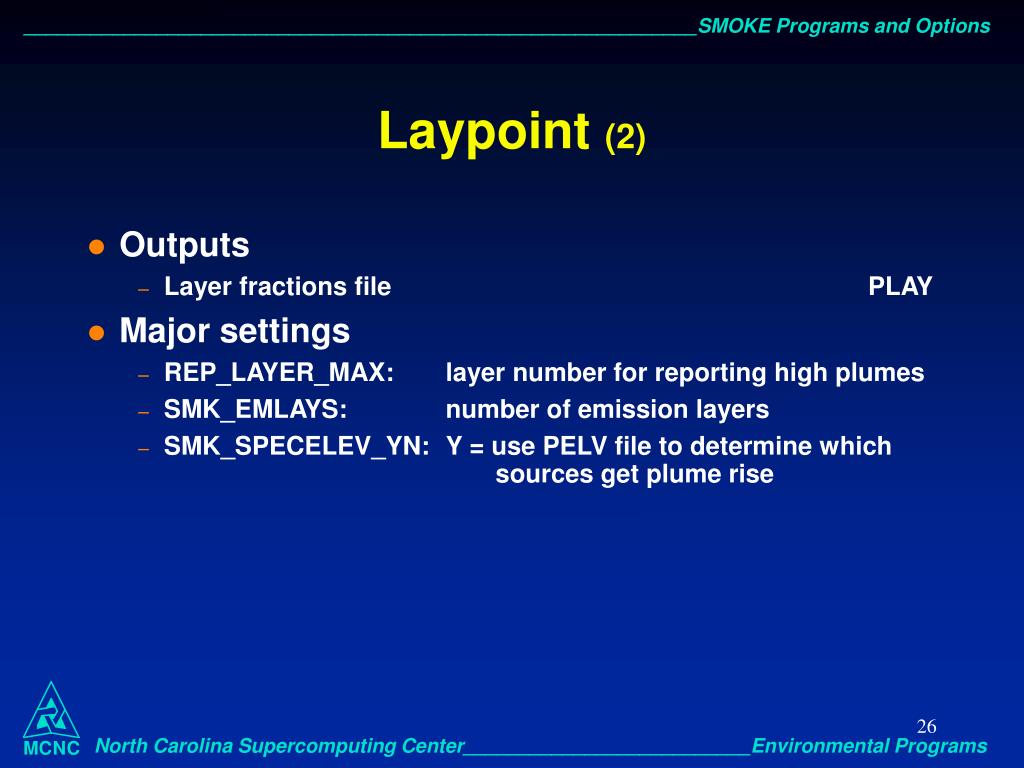

  26. Laypoint (2) • Outputs • Layer fractions file PLAY • Major settings • REP_LAYER_MAX: layer number for reporting high plumes • SMK_EMLAYS: number of emission layers • SMK_SPECELEV_YN: Y = use PELV file to determine which sources get plume rise

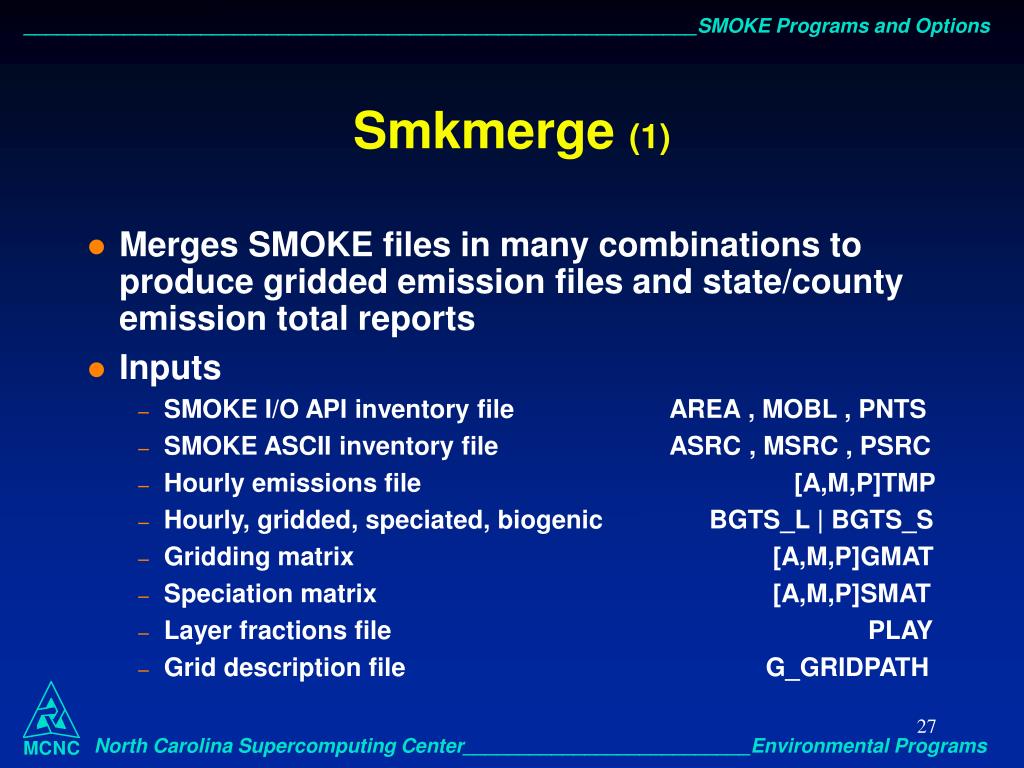

  27. Smkmerge (1) • Merges SMOKE files in many combinations to produce gridded emission files and state/county emission total reports • Inputs • SMOKE I/O API inventory file AREA , MOBL , PNTS • SMOKE ASCII inventory file ASRC , MSRC , PSRC • Hourly emissions file [A,M,P]TMP • Hourly, gridded, speciated, biogenic BGTS_L | BGTS_S • Gridding matrix [A,M,P]GMAT • Speciation matrix [A,M,P]SMAT • Layer fractions file PLAY • Grid description file G_GRIDPATH

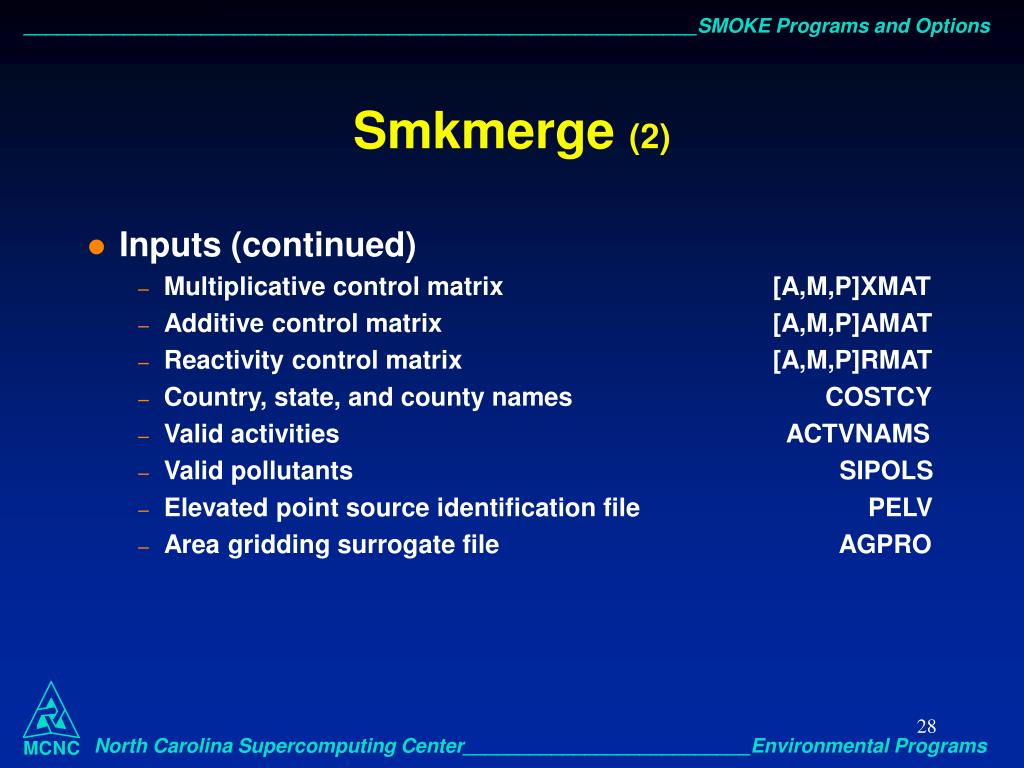

  28. Smkmerge (2) • Inputs (continued) • Multiplicative control matrix [A,M,P]XMAT • Additive control matrix [A,M,P]AMAT • Reactivity control matrix [A,M,P]RMAT • Country, state, and county names COSTCY • Valid activities ACTVNAMS • Valid pollutants SIPOLS • Elevated point source identification file PELV • Area gridding surrogate file AGPRO

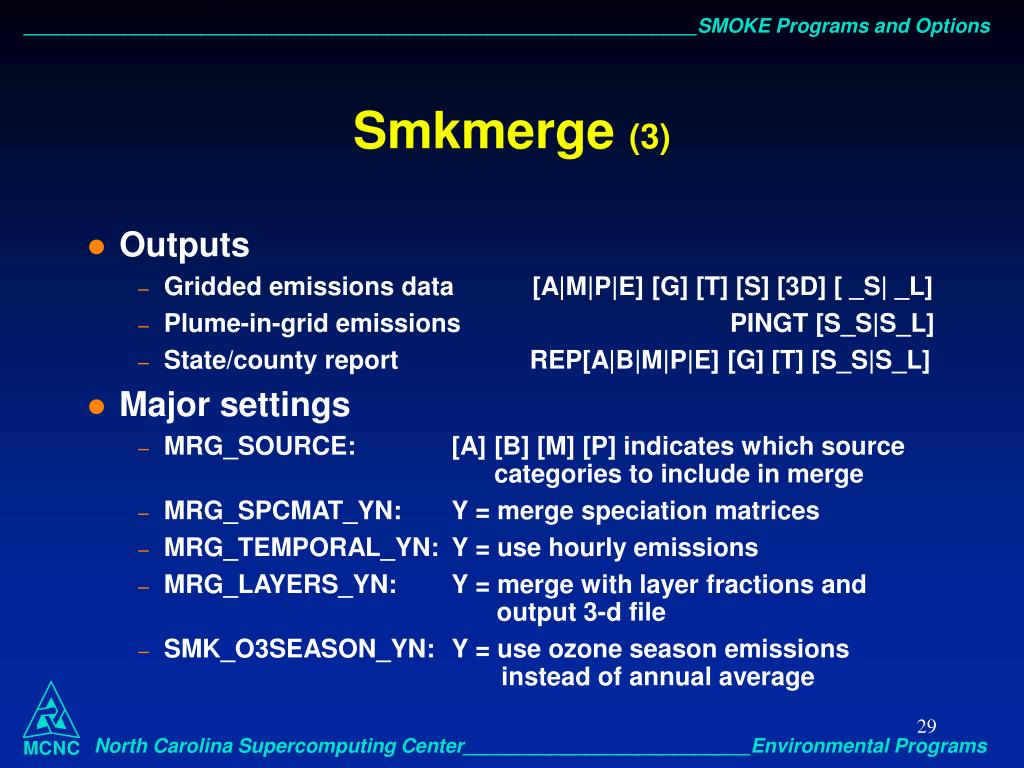

  29. Smkmerge (3) • Outputs • Gridded emissions data [A|M|P|E] [G] [T] [S] [3D] [ _S| _L] • Plume-in-grid emissions PINGT [S_S|S_L] • State/county report REP[A|B|M|P|E] [G] [T] [S_S|S_L] • Major settings • MRG_SOURCE: [A] [B] [M] [P] indicates which source categories to include in merge • MRG_SPCMAT_YN: Y = merge speciation matrices • MRG_TEMPORAL_YN: Y = use hourly emissions • MRG_LAYERS_YN: Y = merge with layer fractions and output 3-d file • SMK_O3SEASON_YN: Y = use ozone season emissions instead of annual average

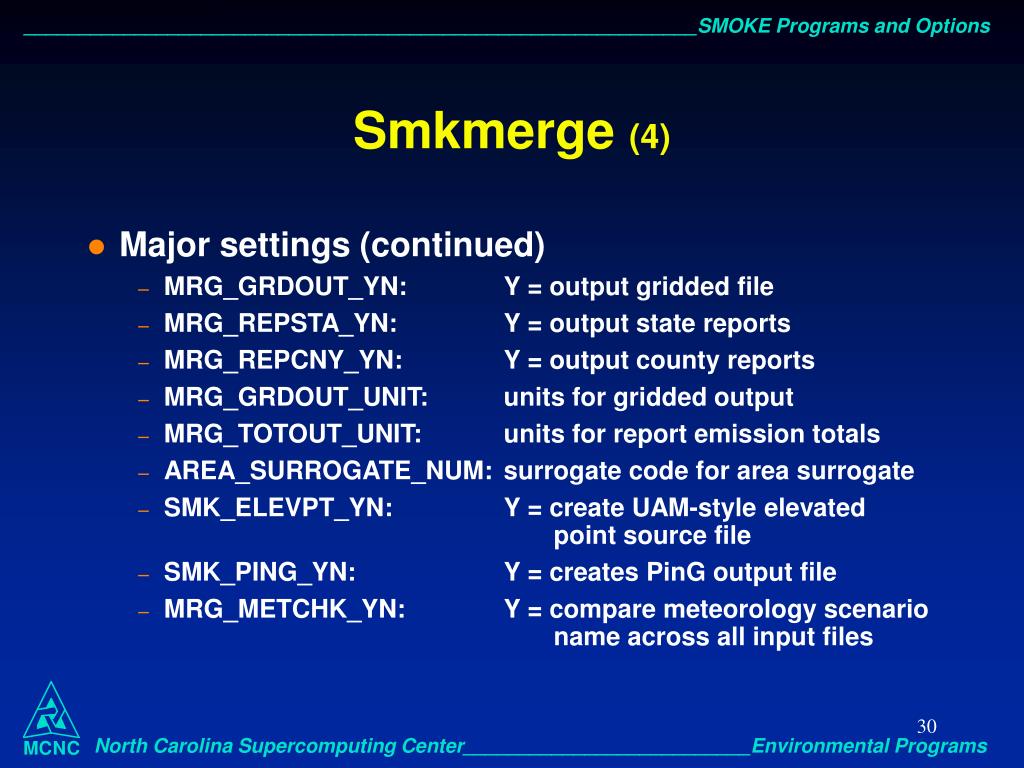

  30. Smkmerge (4) • Major settings (continued) • MRG_GRDOUT_YN: Y = output gridded file • MRG_REPSTA_YN: Y = output state reports • MRG_REPCNY_YN: Y = output county reports • MRG_GRDOUT_UNIT: units for gridded output • MRG_TOTOUT_UNIT: units for report emission totals • AREA_SURROGATE_NUM: surrogate code for area surrogate • SMK_ELEVPT_YN: Y = create UAM-style elevated point source file • SMK_PING_YN: Y = creates PinG output file • MRG_METCHK_YN: Y = compare meteorology scenario name across all input files

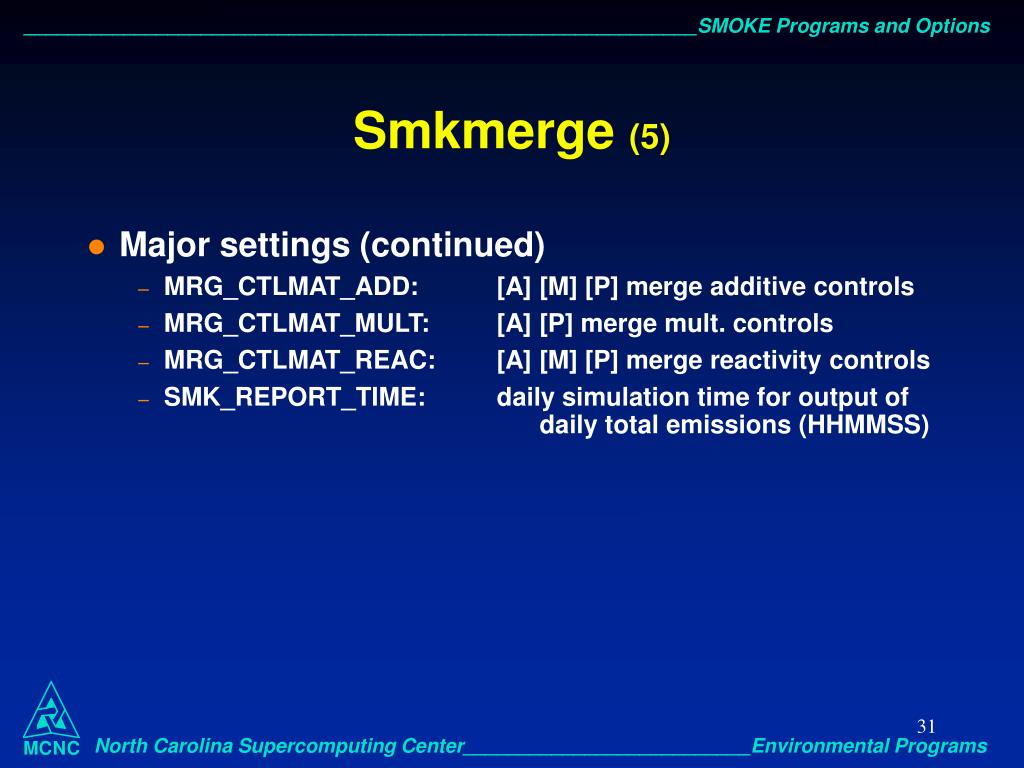

  31. Smkmerge (5) • Major settings (continued) • MRG_CTLMAT_ADD: [A] [M] [P] merge additive controls • MRG_CTLMAT_MULT: [A] [P] merge mult. controls • MRG_CTLMAT_REAC: [A] [M] [P] merge reactivity controls • SMK_REPORT_TIME: daily simulation time for output of daily total emissions (HHMMSS)

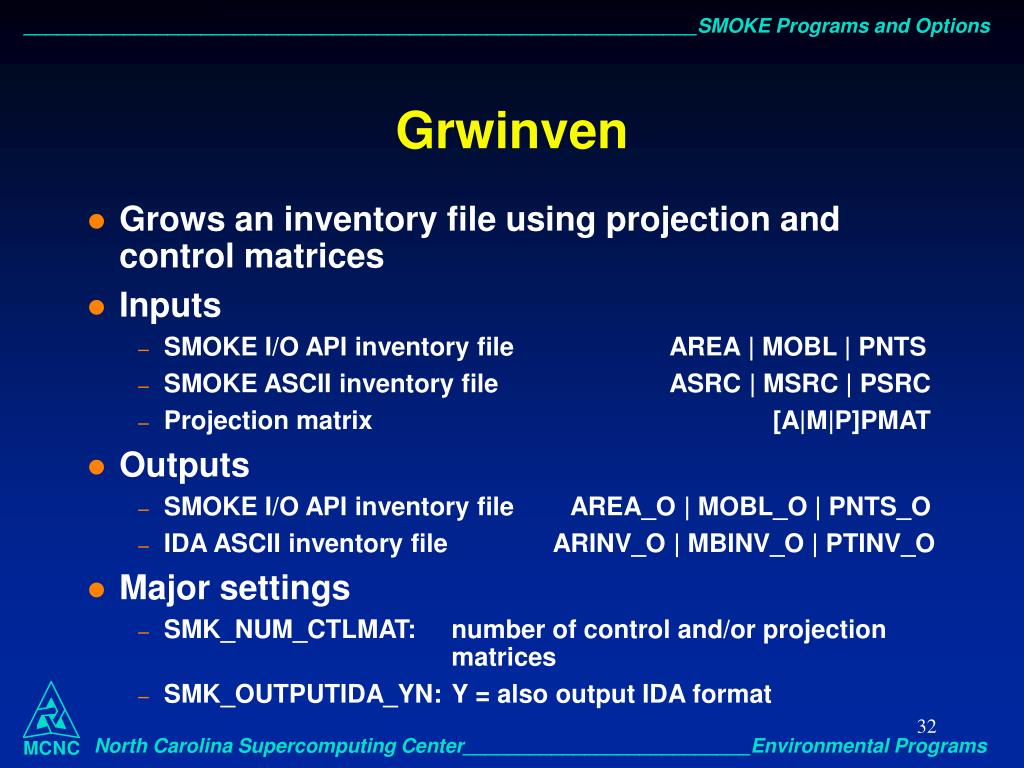

  32. Grwinven • Grows an inventory file using projection and control matrices • Inputs • SMOKE I/O API inventory file AREA | MOBL | PNTS • SMOKE ASCII inventory file ASRC | MSRC | PSRC • Projection matrix [A|M|P]PMAT • Outputs • SMOKE I/O API inventory file AREA_O | MOBL_O | PNTS_O • IDA ASCII inventory file ARINV_O | MBINV_O | PTINV_O • Major settings • SMK_NUM_CTLMAT: number of control and/or projection matrices • SMK_OUTPUTIDA_YN: Y = also output IDA format

  33. Mrggrid • Merges gridded emission files together • Inputs • List of logical names of 2-d files NLST2D • 3-d inputs emissions file LGTS • Outputs • 3-d output emissions file EMIS3D

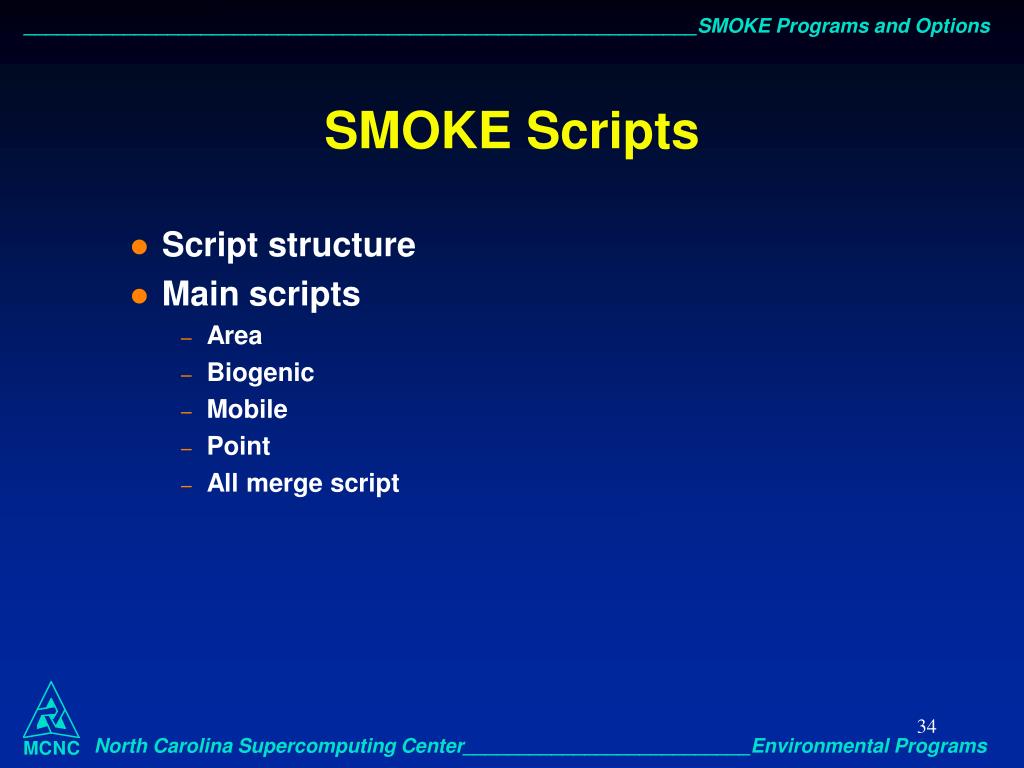

  34. SMOKE Scripts • Script structure • Main scripts • Area • Biogenic • Mobile • Point • All merge script

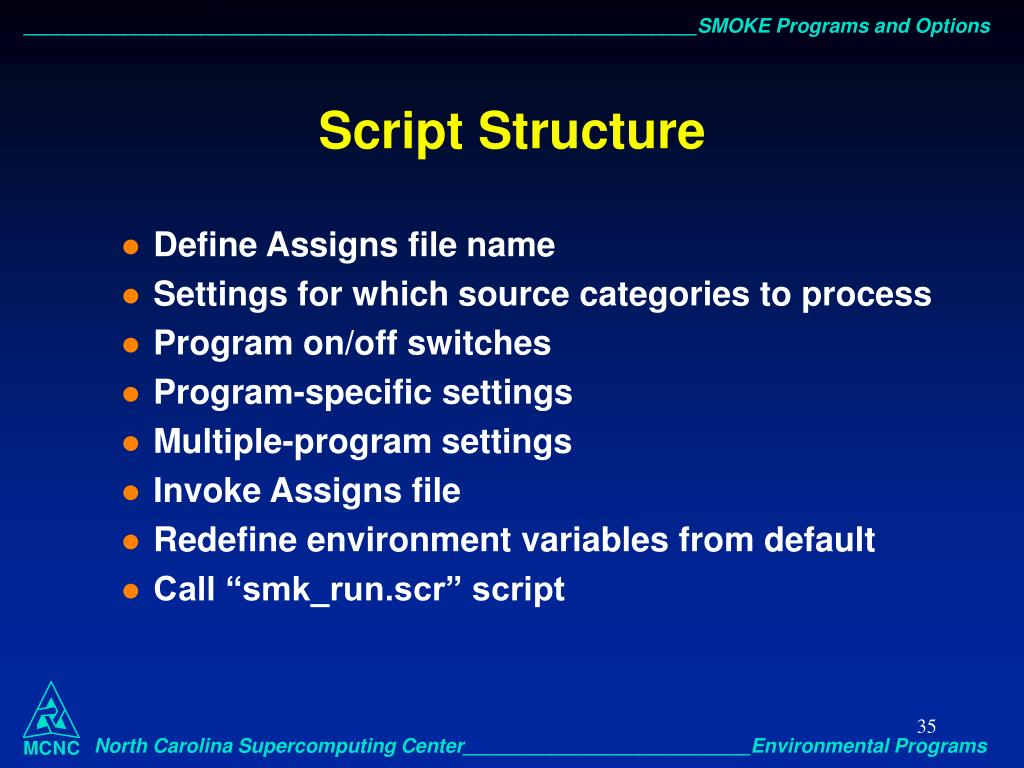

  35. Script Structure • Define Assigns file name • Settings for which source categories to process • Program on/off switches • Program-specific settings • Multiple-program settings • Invoke Assigns file • Redefine environment variables from default • Call “smk_run.scr” script

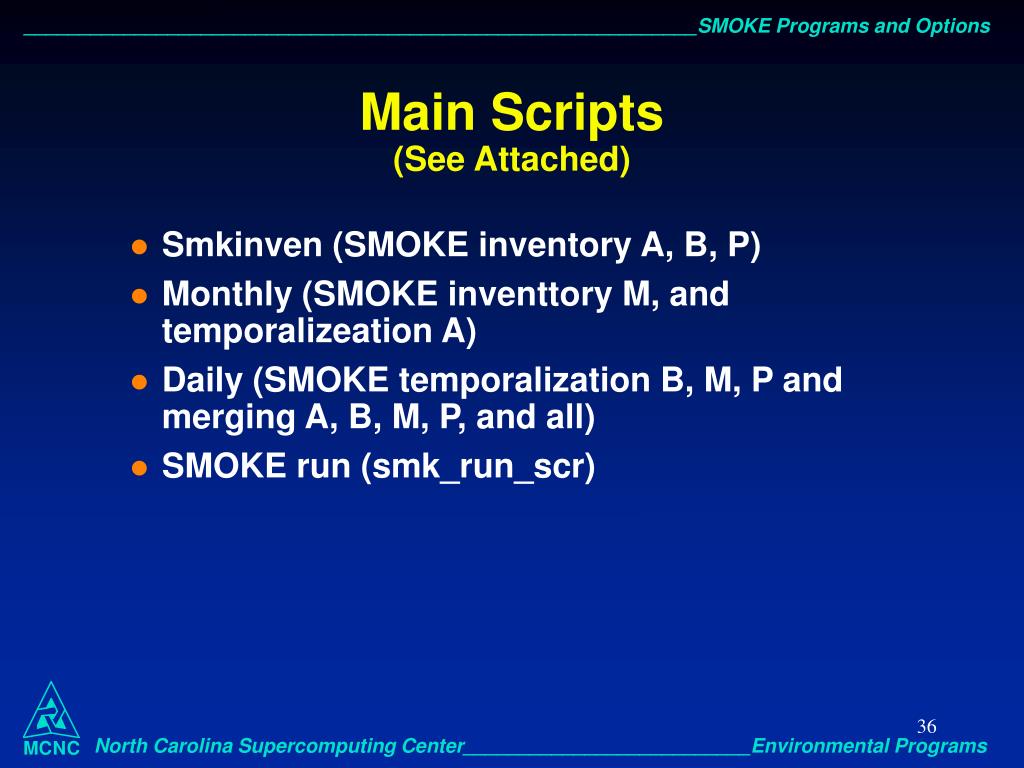

  36. Main Scripts(See Attached) • Smkinven (SMOKE inventory A, B, P) • Monthly (SMOKE inventtory M, and temporalizeation A) • Daily (SMOKE temporalization B, M, P and merging A, B, M, P, and all) • SMOKE run (smk_run_scr)
