  1. Weekly Report Speaker:陳琮夫 Advisor:梁肇文 老師 Date:20120912

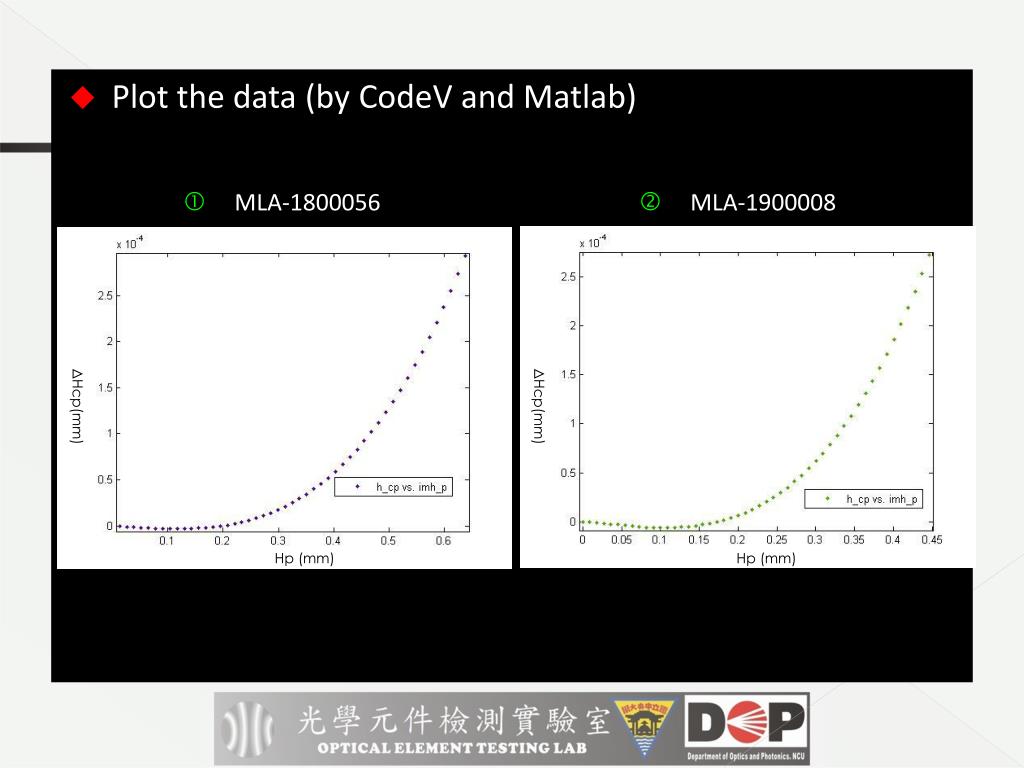

  2. MLA-1800056 MLA-1900008 • Plot the data (by CodeV and Matlab) ΔHcp(mm) ΔHcp(mm) Hc (mm) degree (∘) Hp(mm) Hp(mm)

  3. MLA-1800056 MLA-1900008 • Plot the data (by CodeV and Matlab) Delta H (mm) Delta H (mm) Paraxial Height (mm) Paraxial Height (mm)

  4. MLA-1800056 MLA-1900008 • Plot the data (by CodeV and Matlab) Delta H (mm) Delta H (mm) Centroid Height (mm) Centroid Height (mm)

  5. Spiral method reference

  6. Spiral method reference

  7. Spiral method reference

  8. Next week • Set up the stage . • Coma and distortion of the micro-lenslet

  9. Weekly Report Speaker:陳琮夫 Advisor:梁肇文 老師 Date:20120927

  10. MLA-1800056 MLA-1900008 • Plot the data (by CodeV and Matlab) • Suggestion1. 將縱軸座標 normalize(%) 表示,橫軸座標 wavefrontslope表示 Delta H (mm) Delta H (mm) Centroid Height (mm) Centroid Height (mm)

  11. Outline • Relation between the height of centroid and the wavefrontslope. • Relation between the aberration (Coma,Distortion...) and centroid of spot diagram. • Problem and Next week homework.

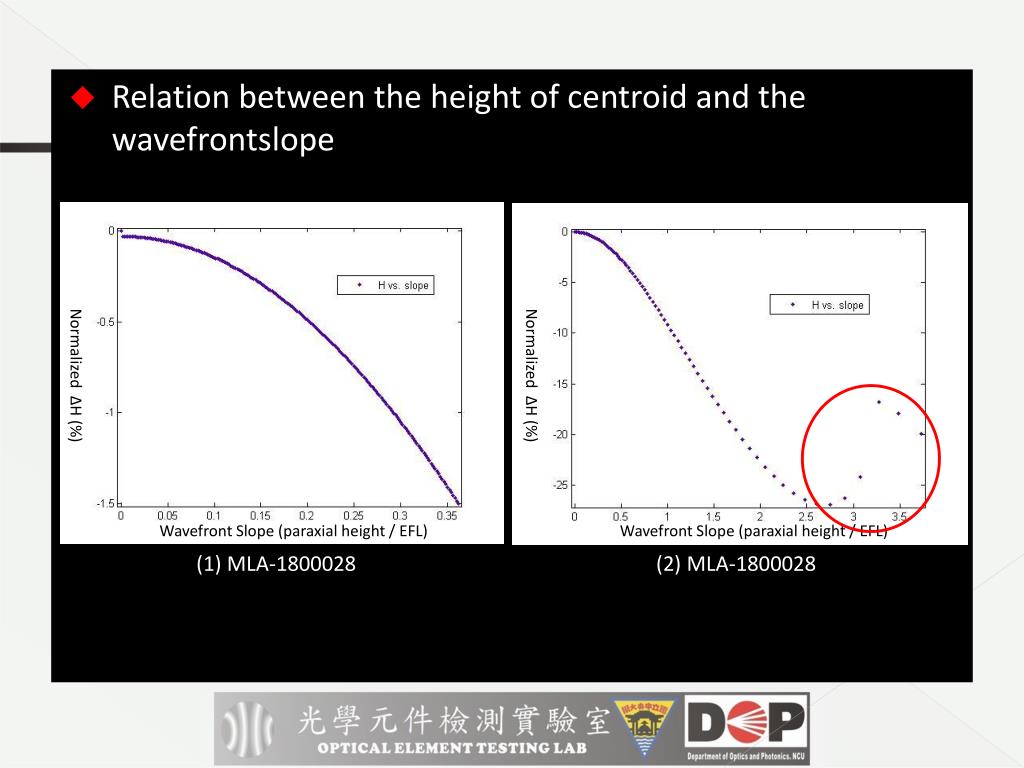

  12. Relation between the height of centroid and the wavefrontslope • Normalized ΔH (%) • Normalized ΔH (%) • Wavefront Slope (paraxial height / EFL) • Wavefront Slope (paraxial height / EFL) • (1) MLA-1800028 • (2) MLA-1800028

  13. Relation between the height of centroid and the wavefrontslope • Normalized ΔH (%) • Normalized ΔH (%) • Wavefront Slope (paraxial height / EFL) • Wavefront Slope (paraxial height / EFL) • (4) MLA-1900008 • (3) MLA-1800056

  14. Relation between the aberration (Coma) and centroid of spot diagram. * Centroid point * Paraxial point

  15. Problem • Using POLYGRID to calculate the centroid of the ray bundle through a lenslet spend more time. • Product a distortion(W311) Aberration to calculate the centroid of spot diagram. → single Zernike→ double Zernike • Next week homework • Centroid with spot diagram with distortion and image plane shift • Buy the Optic Element - “collimator”

  16. Weekly Report Speaker:陳琮夫 Advisor:梁肇文 老師 Date:20121004

  17. 25cm (y) 8cm 30cm (x) FIBER MOTOR

  18. Weekly Report Speaker:陳琮夫 Advisor:梁肇文 老師 Date:20121012

  19. Outline • Design the stage. • 器材購買1. 筆電2. 2吋mirror跟支架

  20. Weekly Report Speaker:陳琮夫 Advisor:梁肇文 老師 Date:20121018

  21. Outline • Design the stage. • 器材購買 • 筆電2台+相機 (採購組程序) • 支架 • 桌上型電腦 2台 • 高大鏡頭 2只

  22. Outline • Design the tray. • Next week homework

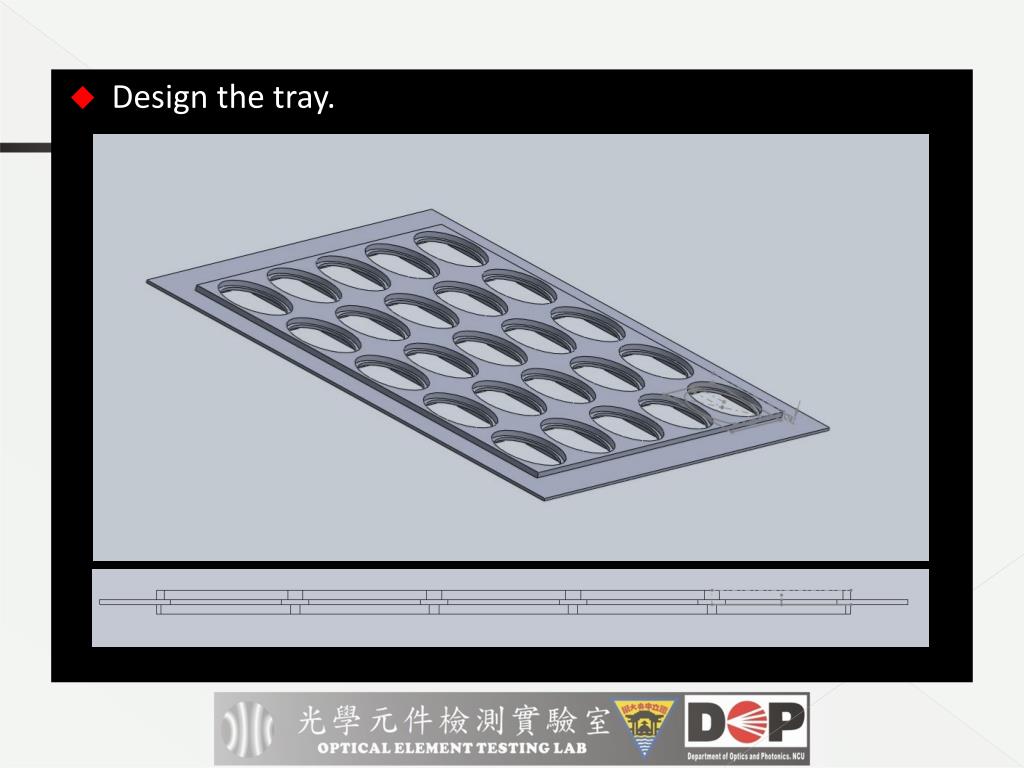

  23. Design the tray.

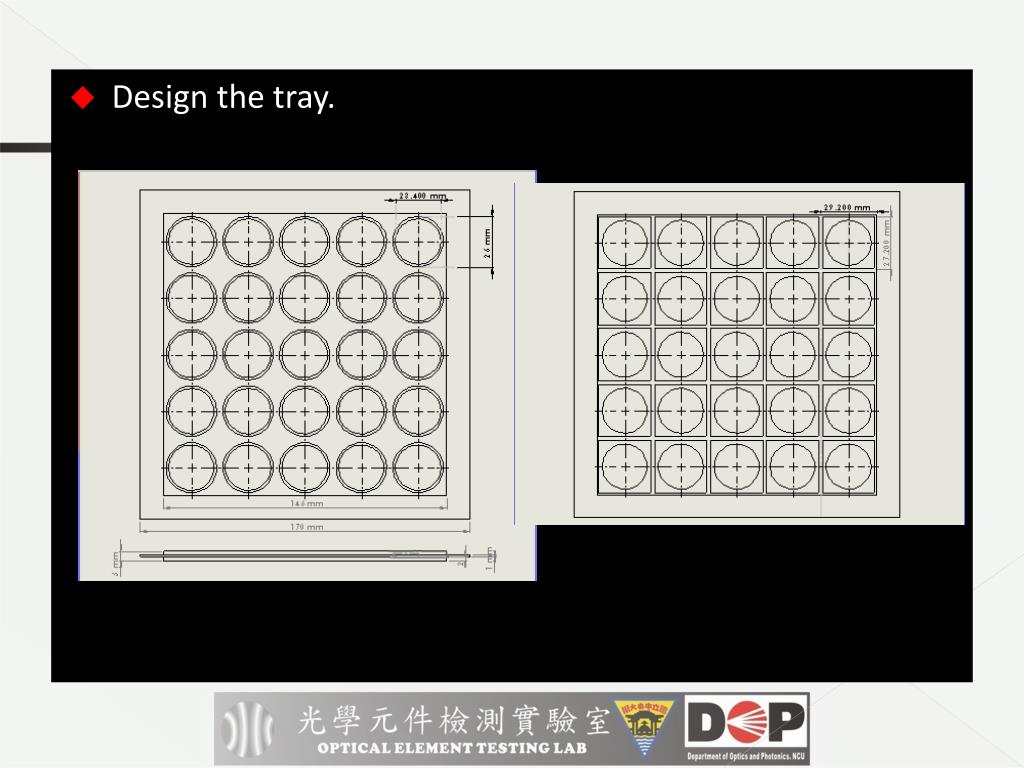

  24. Design the tray.

  25. Next week homework • Connect the CCD and capture the pictures.

  26. Weekly Report Speaker:陳琮夫 Advisor:梁肇文 老師 Date:20121025

  27. Outline • Connect the CCD and capture the pictures. • 非常感謝鴻聖跟廷謙!!!

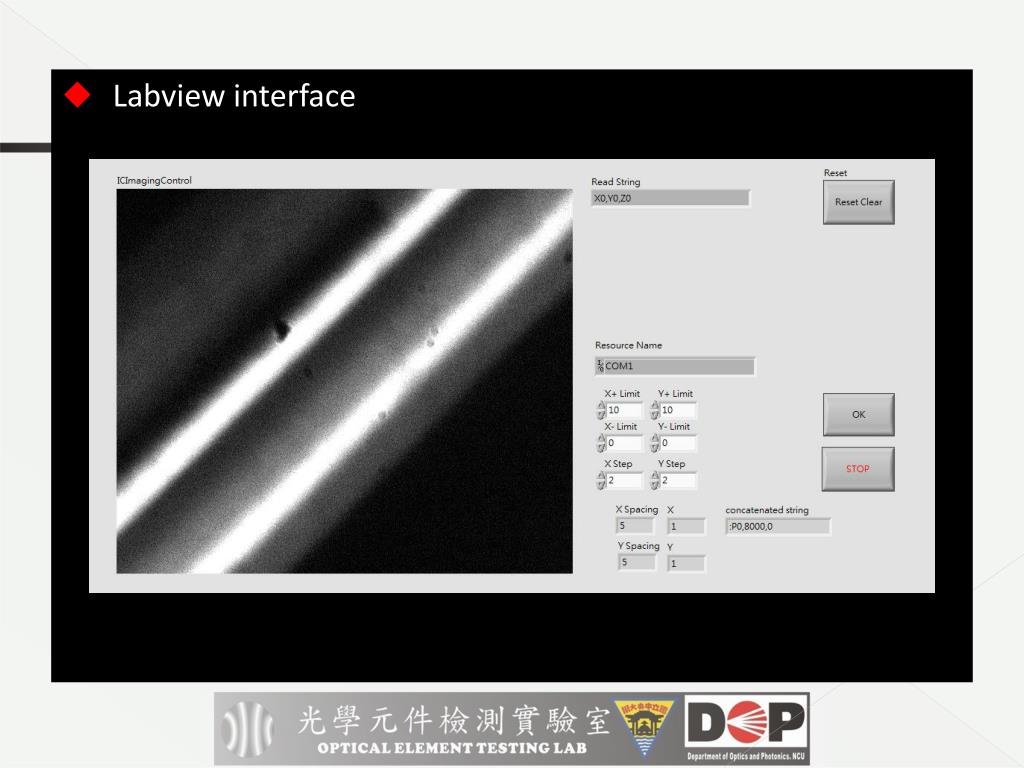

  28. Labview interface

  29. Labview interface - stage

  30. Labview interface – capture the pic

  31. Labview interface

  32. Labview interface – reset

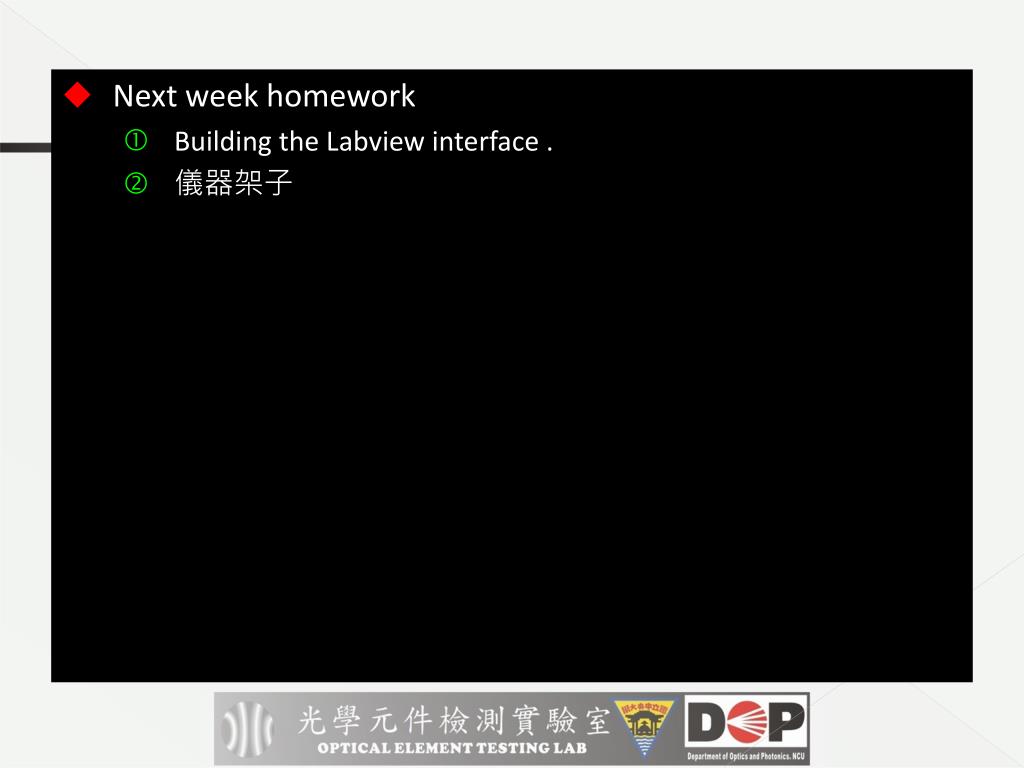

  33. Next week homework • Building the Labview interface . • 儀器架子

  34. Weekly Report Speaker:陳琮夫 Advisor:梁肇文 老師 Date:20121102

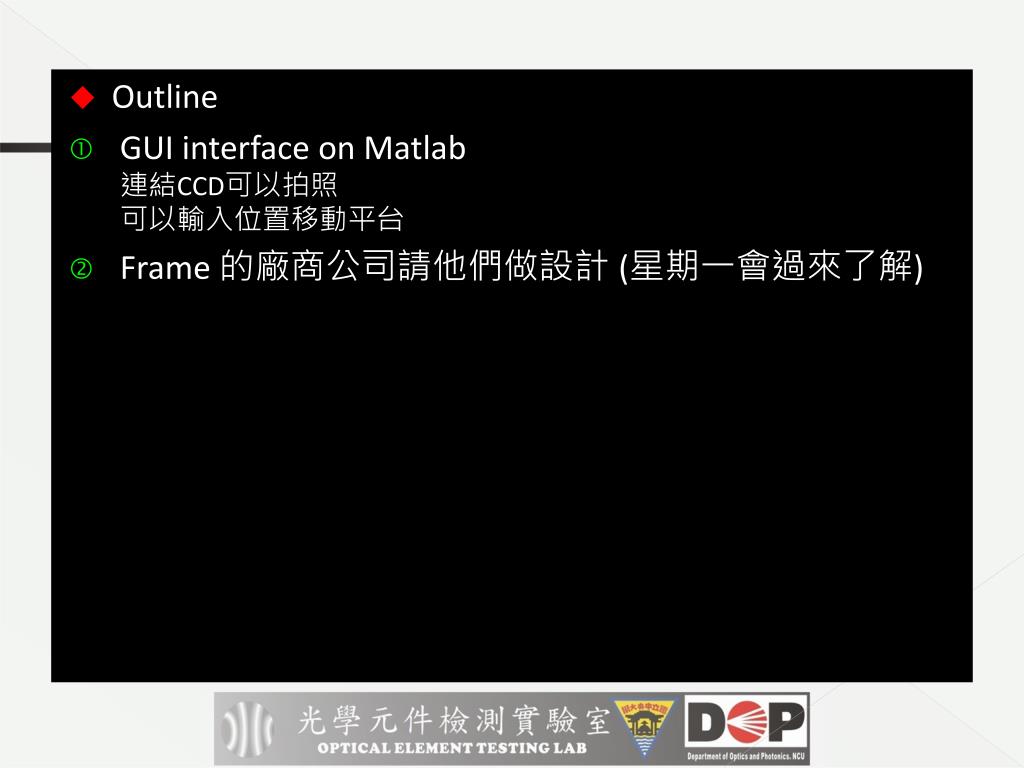

  35. Outline • GUI interface on Matlab連結CCD可以拍照可以輸入位置移動平台 • Frame 的廠商公司請他們做設計 (星期一會過來了解)

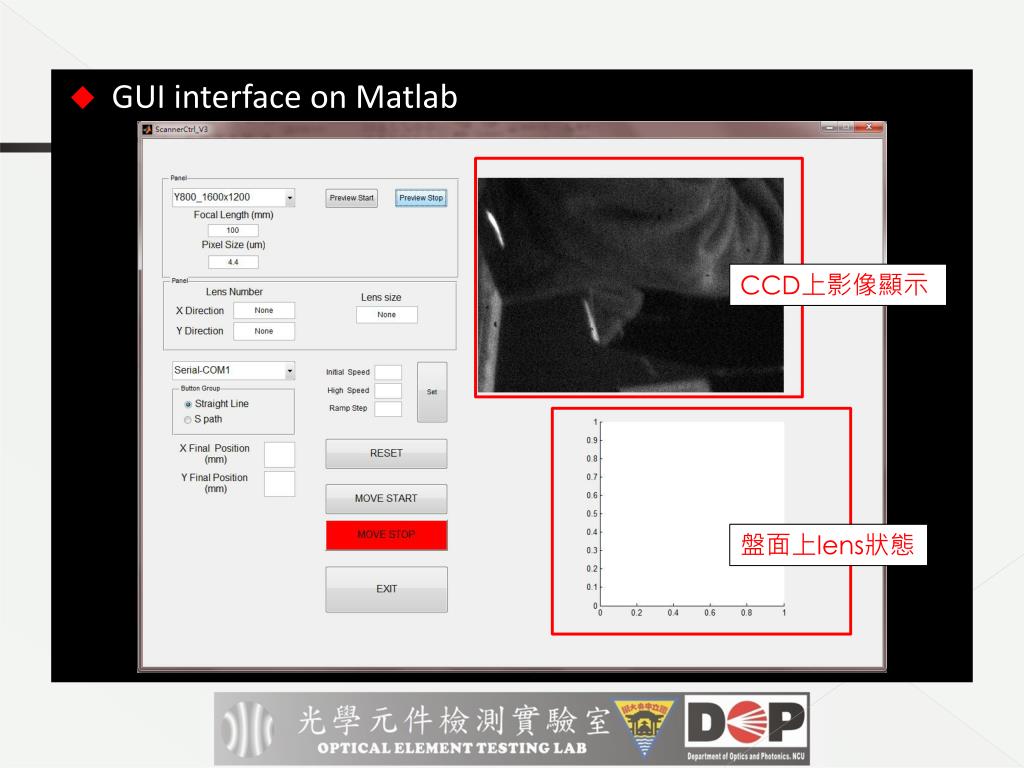

  36. GUI interface on Matlab CCD上影像顯示 盤面上lens狀態

  37. GUI interface on Matlab 呼叫function有問題

  38. GUI interface on Matlab • 參考曾蔚的介面做修改跟加入功能

  39. Frame 的 手繪草圖 側視圖 上視圖

  40. Next week homework • Building the Matlabinterface . • 儀器架子

  41. Weekly Report Speaker:陳琮夫 Advisor:梁肇文 老師 Date:20121109
