EE820 CO₂ Sensor for Demanding Applications | Instromart

The EE820 COu2082 sensor is designed for accurate and long-term stable measurement of carbon dioxide in harsh and demanding environments. It is ideal for applications such as greenhouses, livestock barns, and hatcheries, where exposure to dust and humidity is common. With dual-wavelength NDIR sensing technology, auto-calibration, and temperature compensation, the EE820 ensures high accuracy over time. The sensor features an IP54-rated enclosure and provides analog outputs for easy integration with control systems. Configuration and adjustment can be done via a USB-C interface using the free PCS10

instromart
Download Presentation

EE820 CO₂ Sensor for Demanding Applications | Instromart

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

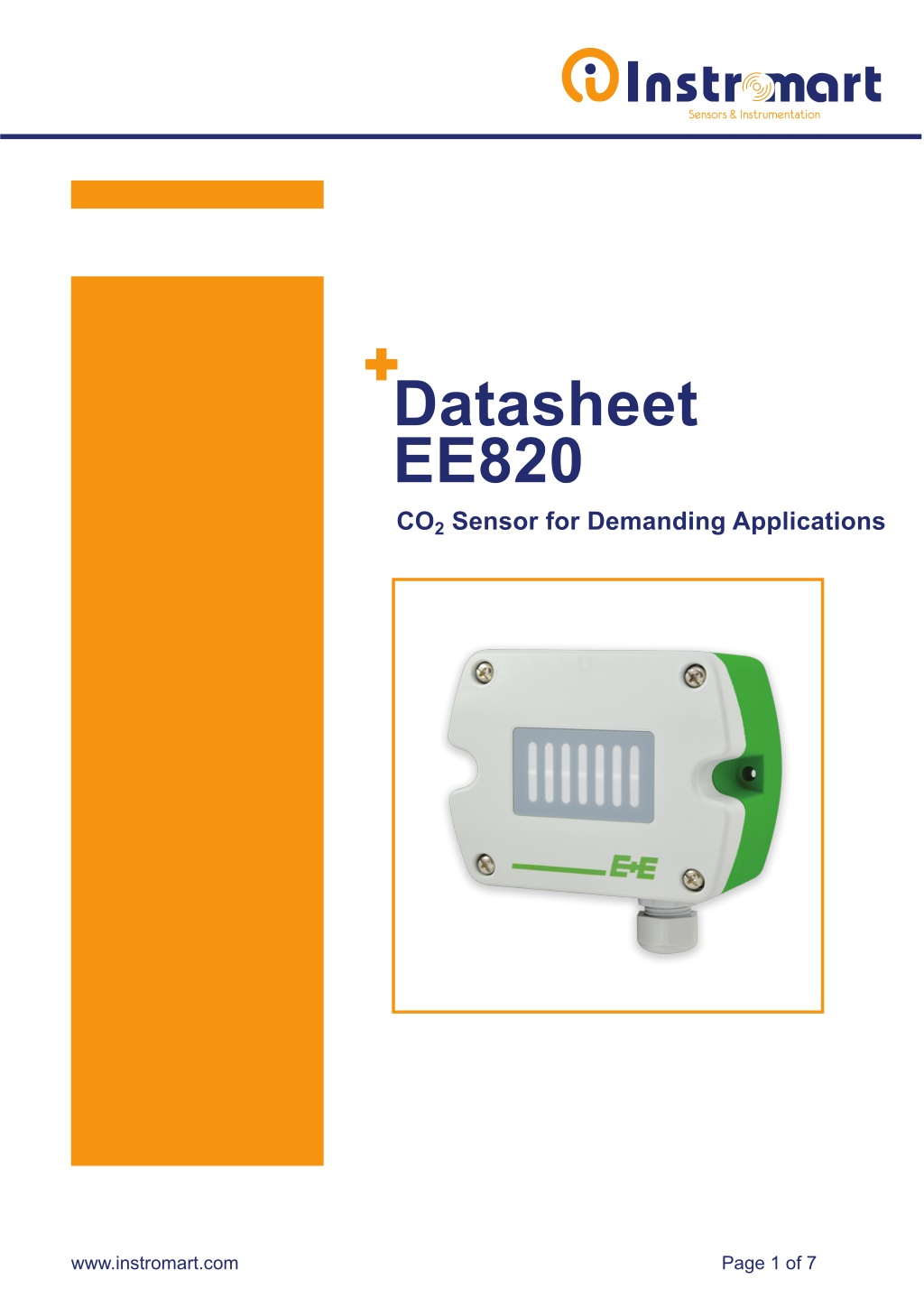

  1. Sensors & Instrumentation www.instromart.com Page 1 of 7

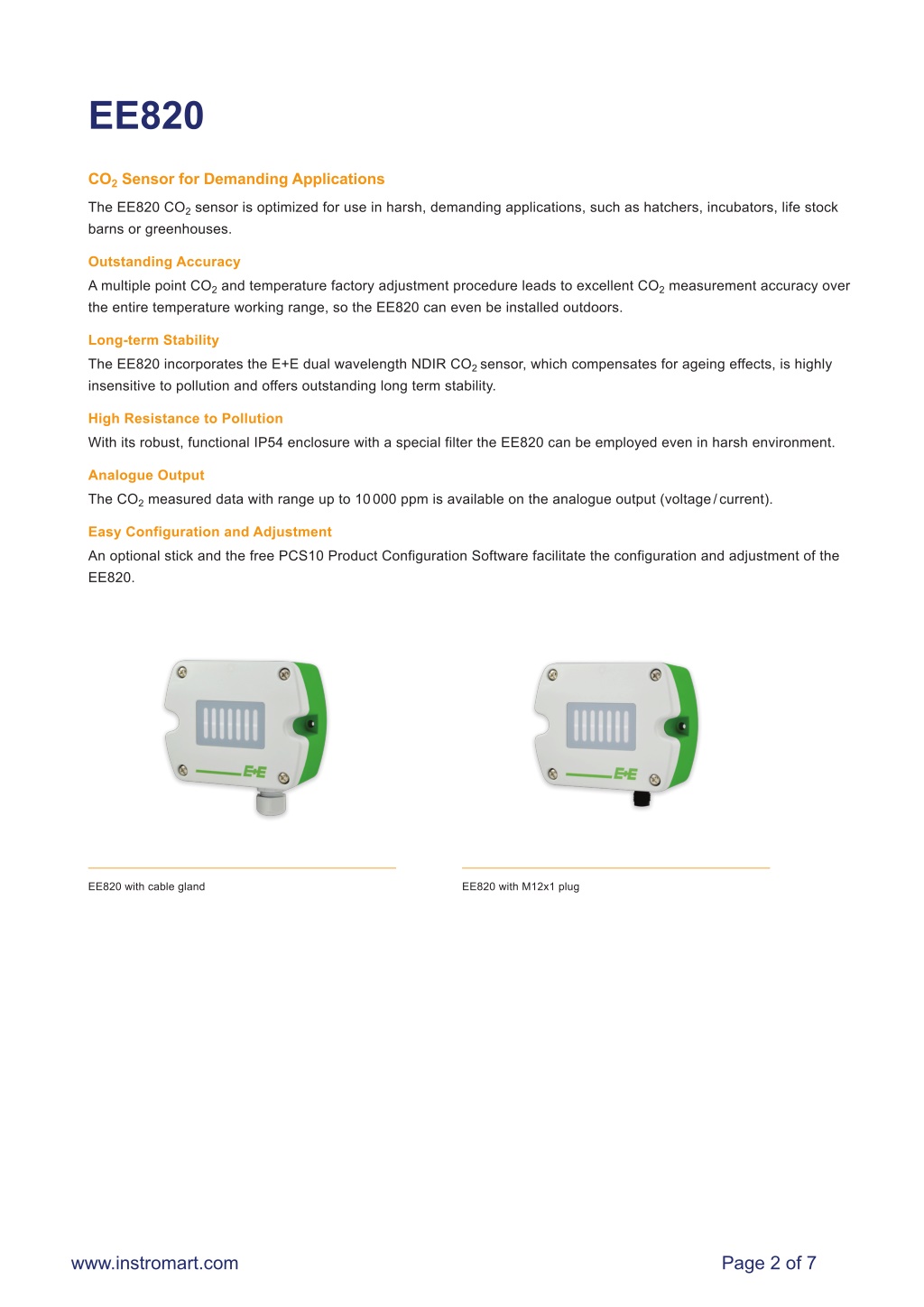

  2. www.instromart.com Page 2 of 7

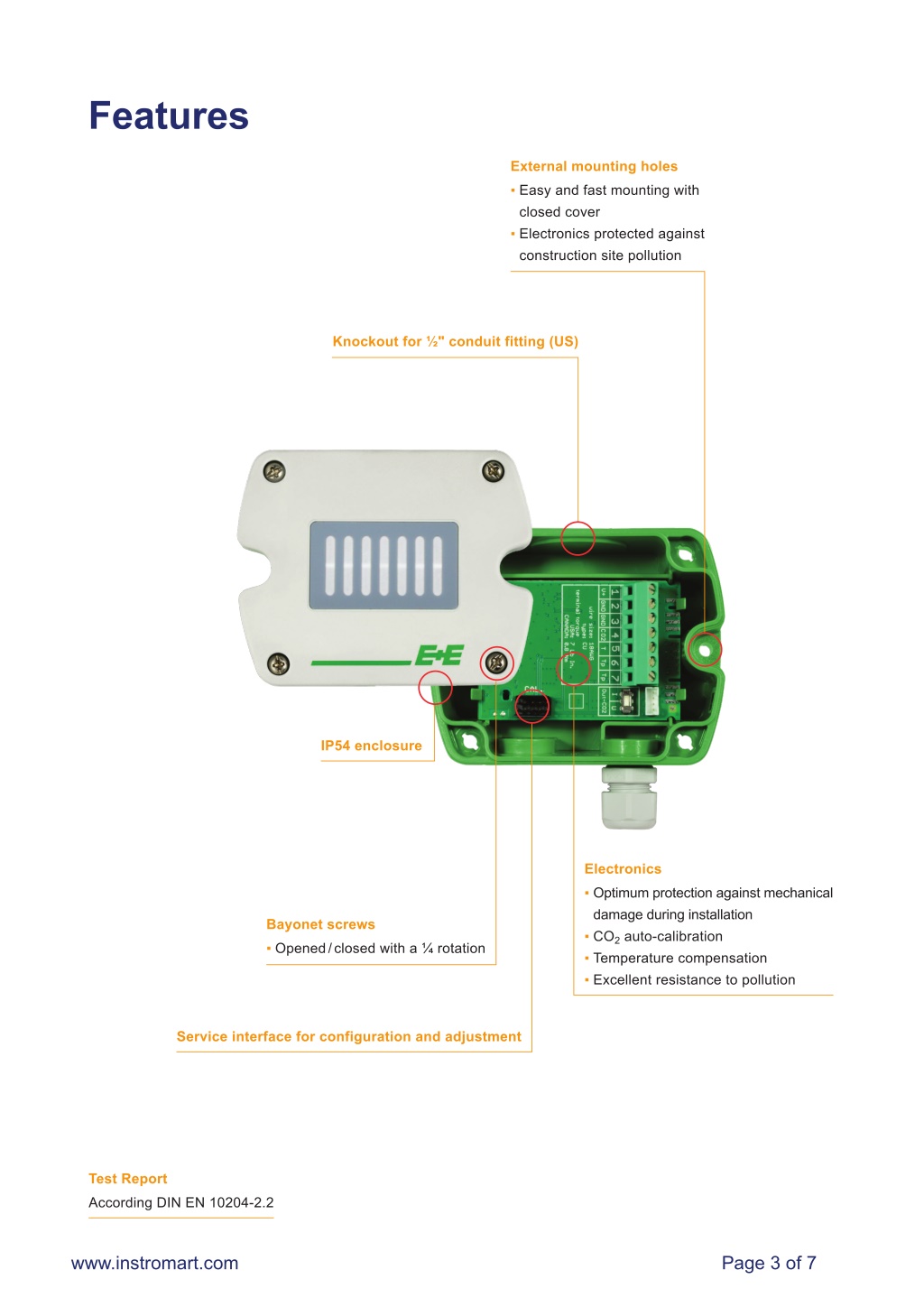

  3. www.instromart.com Page 3 of 7

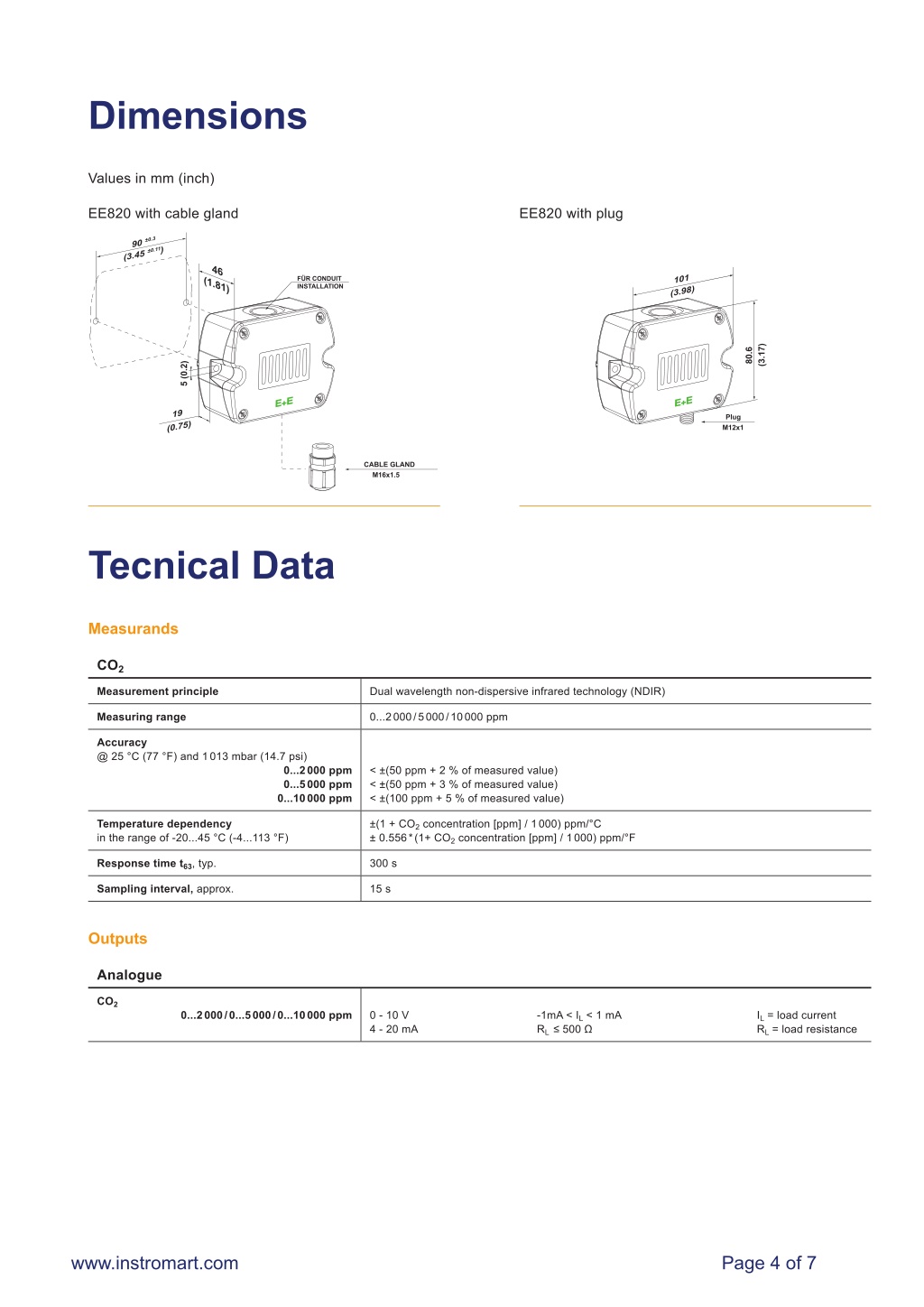

  4. www.instromart.com Page 4 of 7

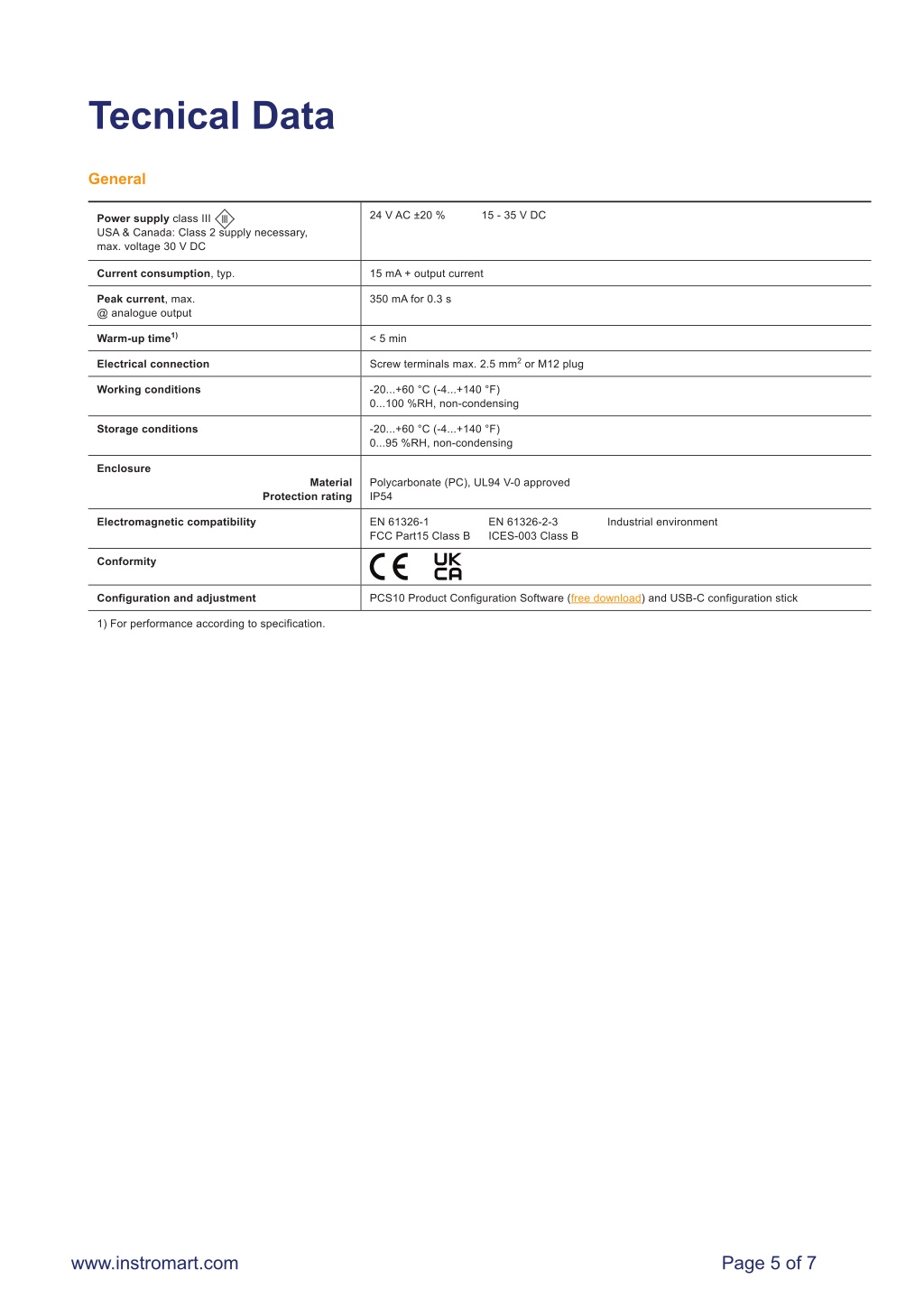

  5. www.instromart.com Page 5 of 7

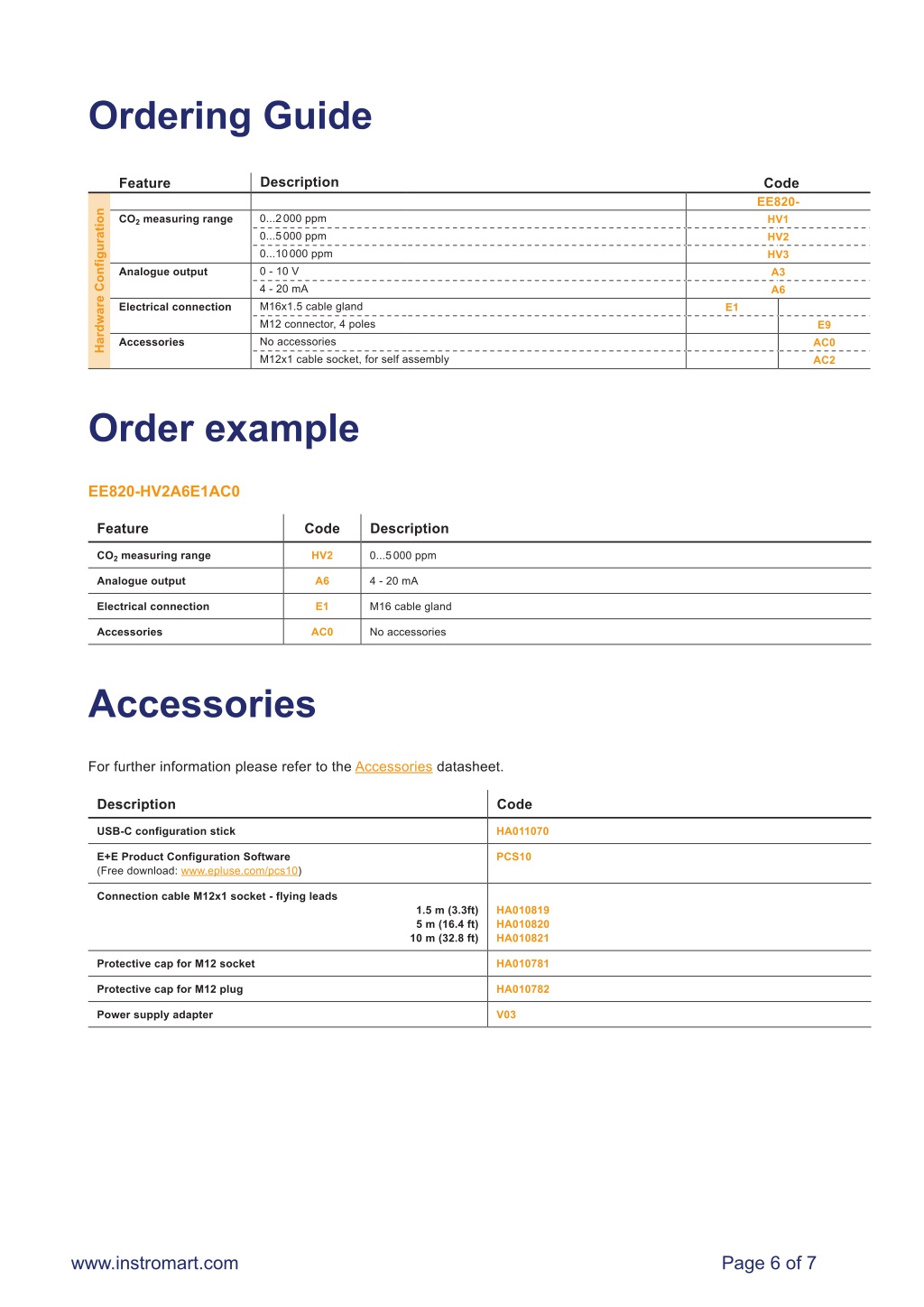

  6. www.instromart.com Page 6 of 7

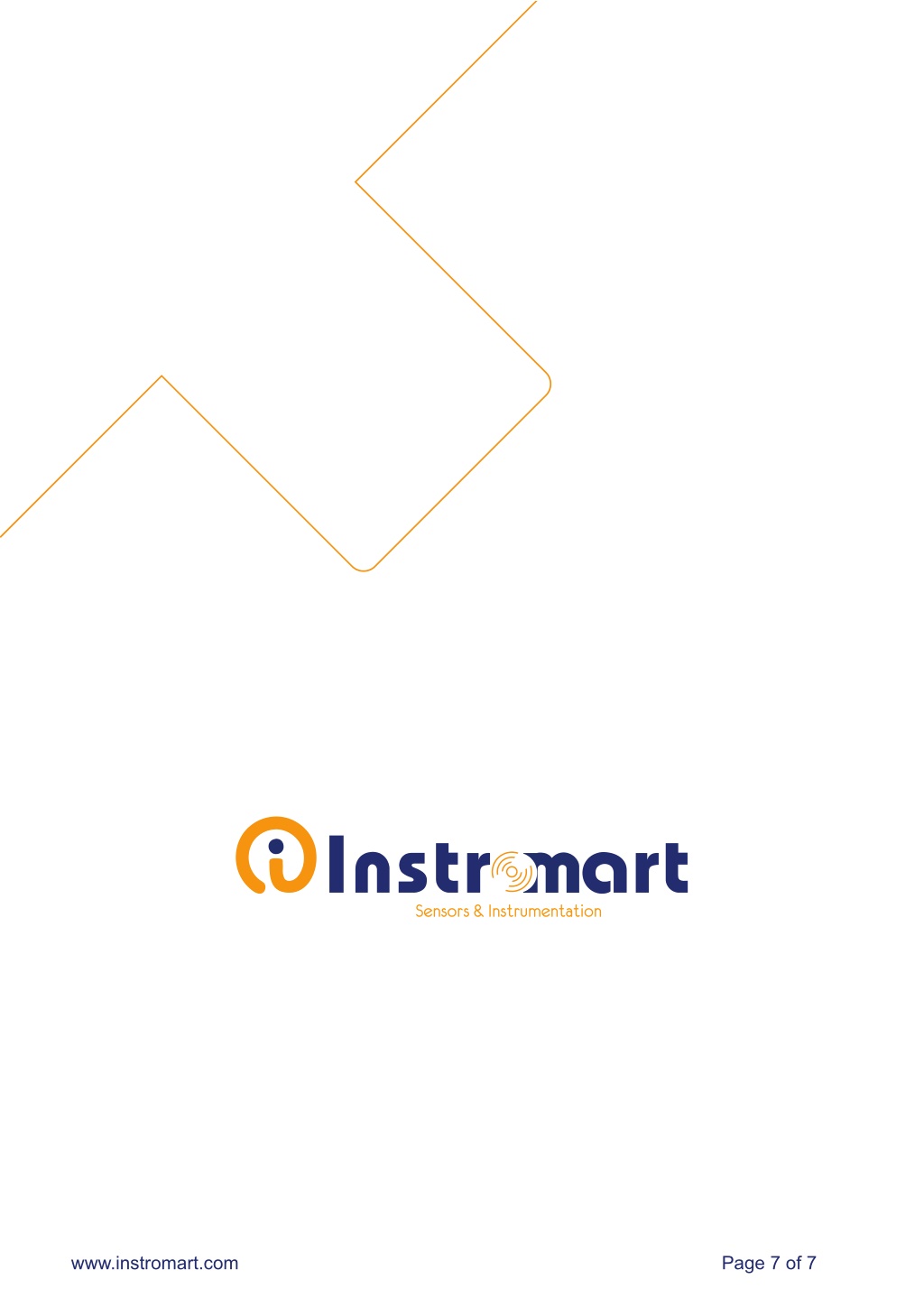

  7. Sensors & Instrumentation www.instromart.com Page 7 of 7
