Aurora cantilever umbrella

Looking for the best outdoor umbrellas that prevent maximum protection? Instant Shade Umbrellas provides cantilever umbrellas that can be rotated as per the angle of the sunu2019s rays. Our unique range of wind-rated Aurora cantilever umbrellas<br>

instantshade
Download Presentation

Aurora cantilever umbrella

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

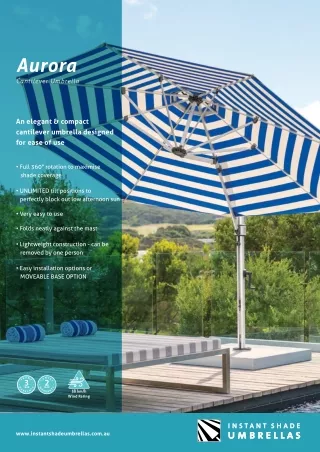

  1. Aurora Cantilever Umbrella An elegant & compact cantilever umbrella designed for ease of use • Full 360° rotation to maximise shade coverage • UNLIMITED tilt positions to perfectly block out low afternoon sun • Very easy to use • Folds neatly against the mast • Lightweight construction - can be removed by one person • Easy installation options or MOVEABLE BASE OPTION C A N VA S 2 YEAR F R A M E 3 YEAR W A R R A N T Y W A R R A N T Y 65 km/h Wind Rating Wind Rating 50 km/h www.instantshadeumbrellas.com.au

  2. The Aurora Lightweight & Elegant Cantilever Umbrella Standard Colours f Canopies are made of water repellant and UV- resistant 100% Solution Dyed Olefin Canvas (2 year warranty against fading). Black Smoked Tweed Slate Natural b a e d c Premium 100% Solution Dyed Acrylic Canvas (10 year warranty against fading) available to order, surcharge applies. Dimensions *Fabric colours may vary slightly from printed swatches shown above. *all measurements are rounded and are subject to change. 3.5m oct 2.8m sq Dimensions of closed umbrella Frames 282 282 a: Mast height (cm) 100 76 b: Distance from arms to ground (cm) Frames are made of Marine Grade Anodised Aluminium with a 3 year warranty against mechanical defects. Weight of umbrella when folded (kg) 27 27 Dimensions of open umbrella c: Height to canopy hub (cm) 200 210 d: Total height to top of canopy (cm) 264 274 e: Height to edge of canopy (cm) 210 215 f: Distance from outside edge of mast to outside edge of canopy (cm) 360 310 Width of canopy (cm) 350 280 Packaging dimensions Dimensions of cardboard packaging (cm) 27x47x290 27x47x290 EXTRUDED ALUMINUM MAST INFINITY TILT SYSTEM Weight of umbrella when packaged in carton with spigot (kg) 39 39 Base and Installation Options Spigot Included Cross Base In Ground Fitting - to be concreted into ground Base Plate 315mm - to bolt to concrete patio or wooden deck ø EASY-GLIDE ACTION SLIDER CAR LIGHTWEIGHT & ELEGANT MAST PROFILE Available Australia Wide Check our website for a dealer near you www.instantshadeumbrellas.com.au
