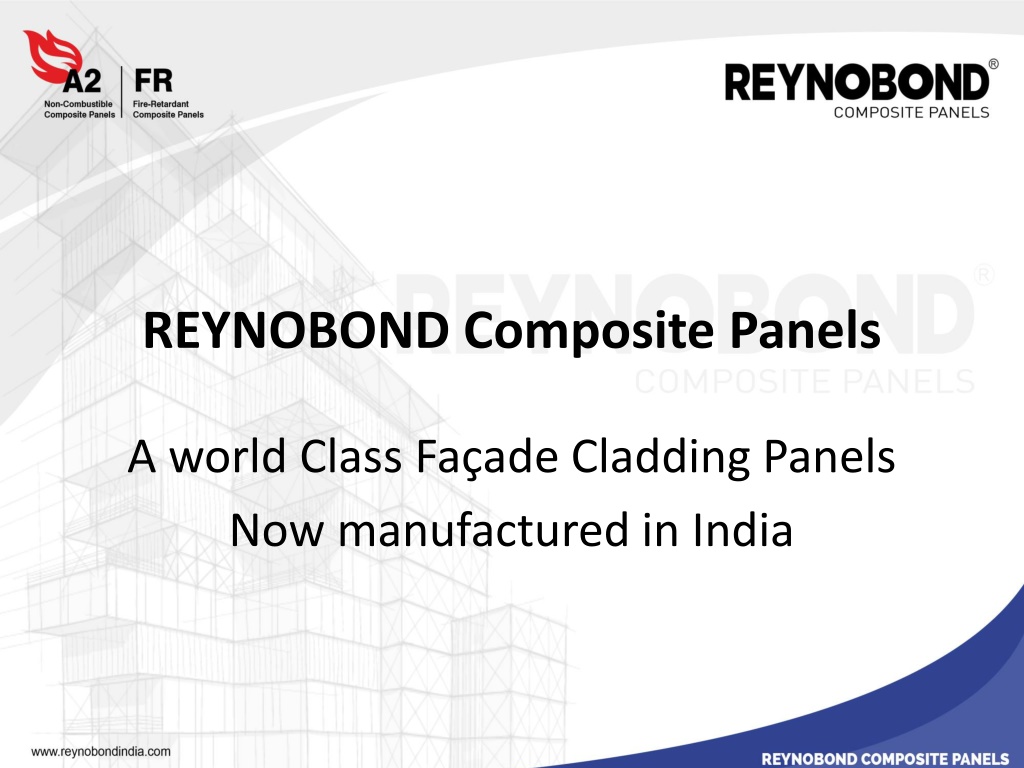

  1. ALSTONE Aluminium Composite panel REYNOBOND Composite Panels A world Class Façade Cladding Panels Now manufactured in India

  2. ALSTONE Aluminium Composite panel Hindustan Times June 02,2020 ‘Need to manufacture ‘Made in India’ products which are ‘Made for the World’: Top 10 points from PM Modi’s CII address

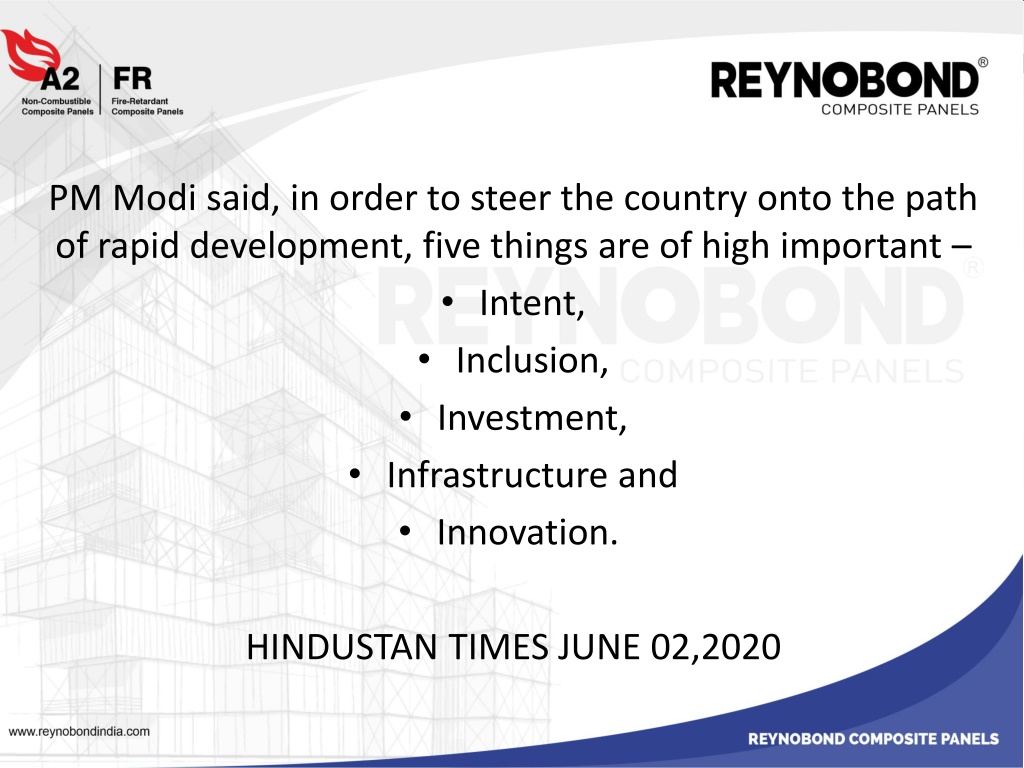

  3. ALSTONE Aluminium Composite panel • PM Modi said, in order to steer the country onto the path of rapid development, five things are of high important – • Intent, • Inclusion, • Investment, • Infrastructure and • Innovation.  • Hindustan Times June 02,2020

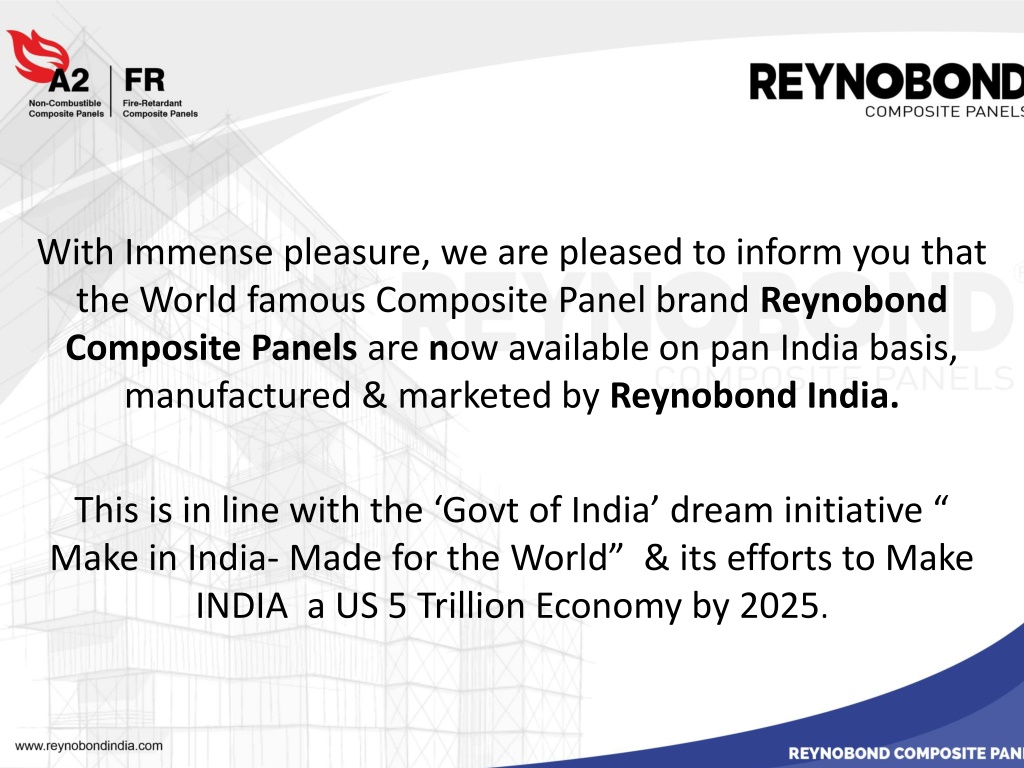

  4. ALSTONE Aluminium Composite panel With Immense pleasure, we are pleased to inform you that the World famous Composite Panel brand Reynobond Composite Panels are now available on pan India basis, manufactured & marketed by ReynobondIndia. This is in line with the ‘Govt of India’ dream initiative “ Make in India- Made for the World”  & its efforts to Make INDIA  a US 5 Trillion Economy by 2025.

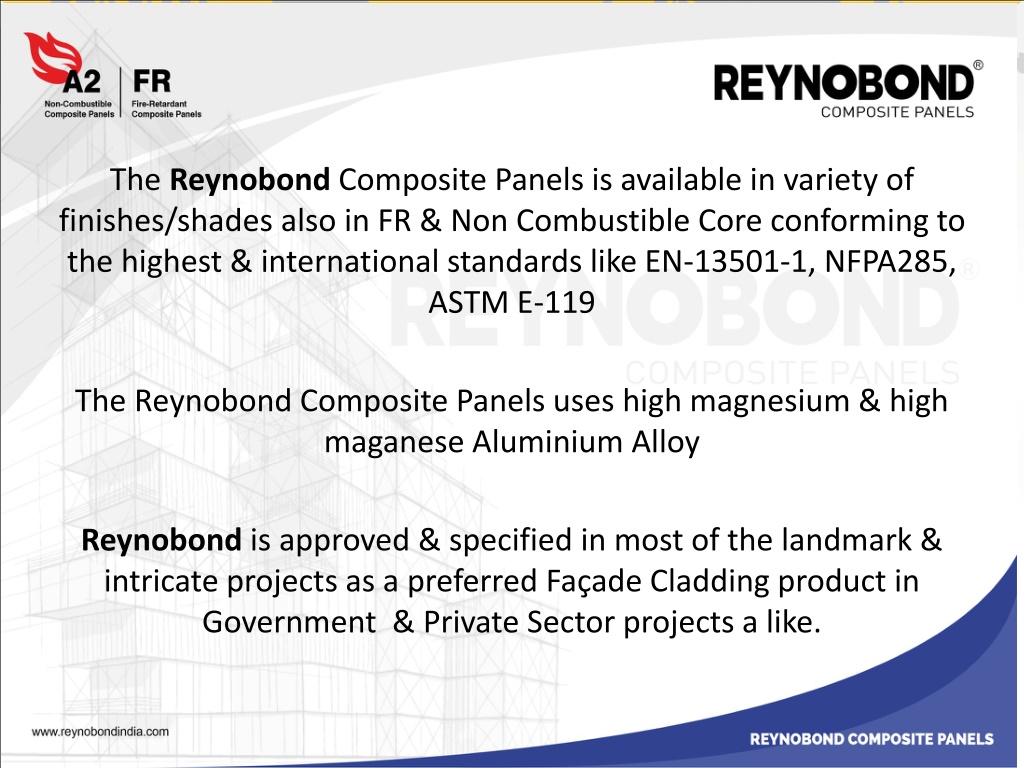

  5. ALSTONE Aluminium Composite panel The Reynobond Composite Panels is available in variety of finishes/shades also in FR & Non Combustible Core conforming to the highest & international standards like EN-13501-1, NFPA285, ASTM E-119 The Reynobond Composite Panels uses high magnesium & high maganese Aluminium Alloy Reynobond is approved & specified in most of the landmark & intricate projects as a preferred Façade Cladding product in Government  & Private Sector projects a like.

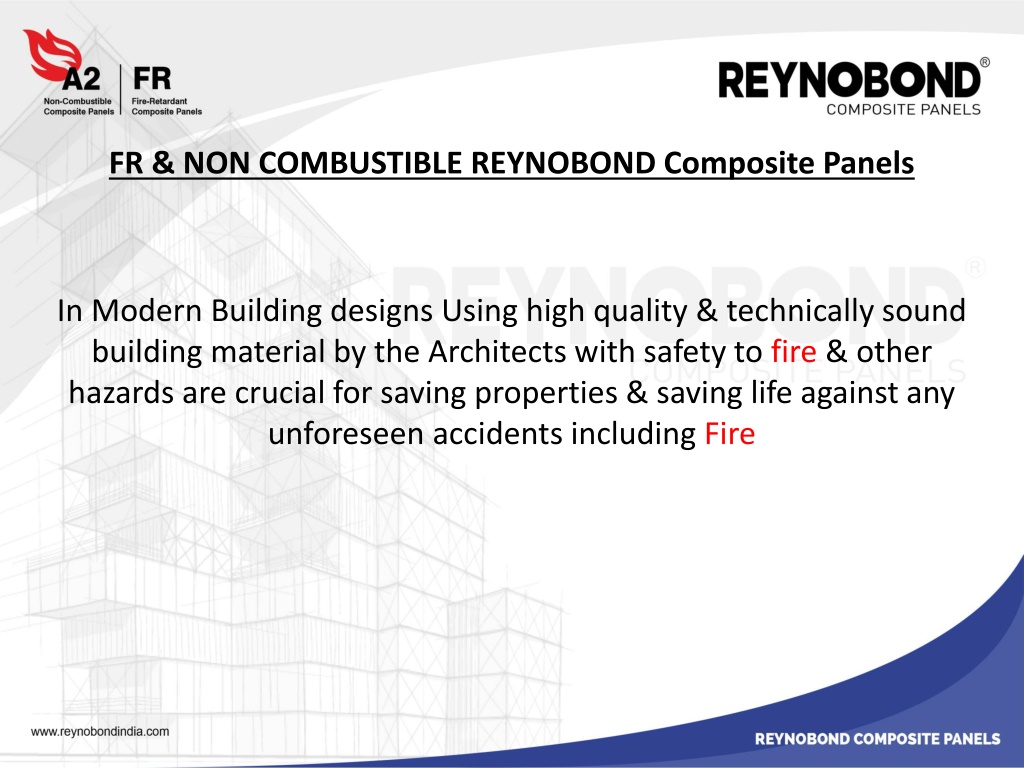

  6. ALSTONE Aluminium Composite panel FR & NON COMBUSTIBLE REYNOBOND Composite Panels In Modern Building designs Using high quality & technically sound building material by the Architects with safety to fire & other hazards are crucial for saving properties & saving life against any unforeseen accidents including Fire

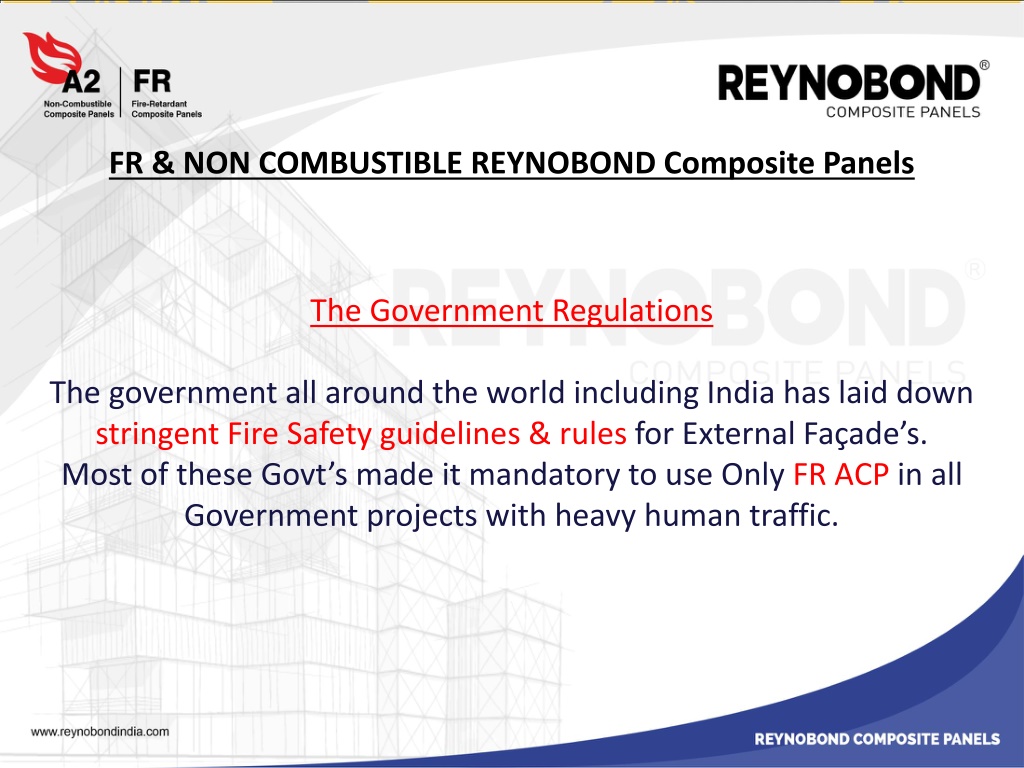

  7. ALSTONE Aluminium Composite panel FR & NON COMBUSTIBLE REYNOBOND Composite Panels The Government RegulationsThe government all around the world including India has laid down stringent Fire Safety guidelines & rules for External Façade’s. Most of these Govt’s made it mandatory to use Only FR ACP in all Government projects with heavy human traffic.

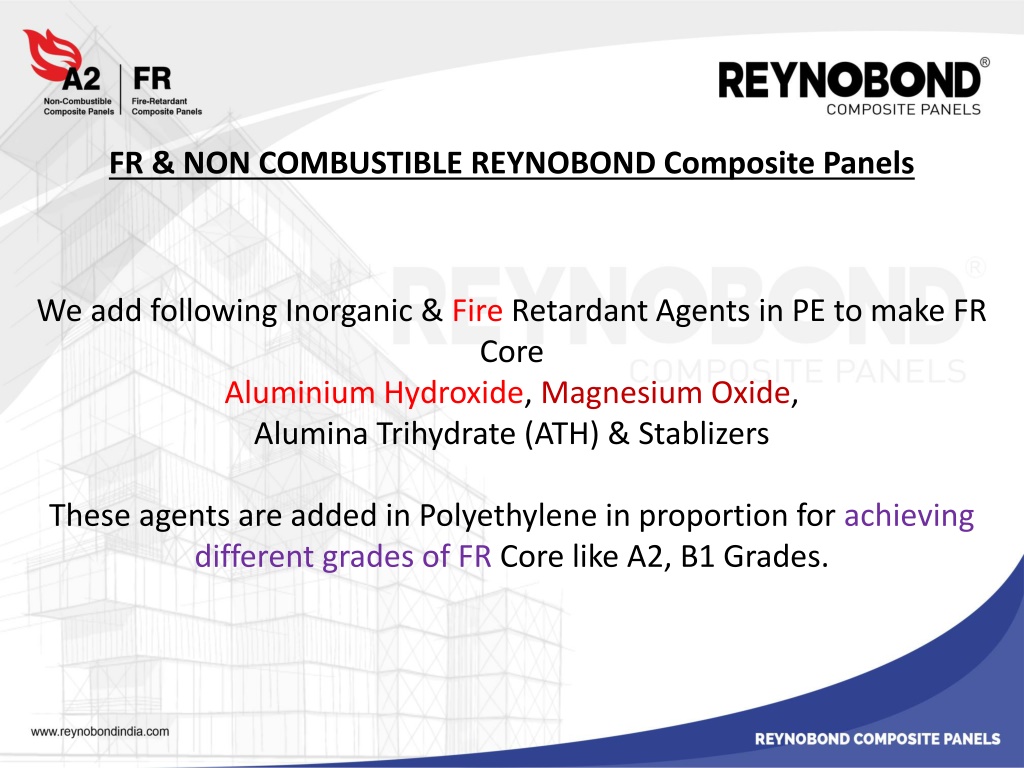

  8. ALSTONE Aluminium Composite panel FR & NON COMBUSTIBLE REYNOBOND Composite Panels We add following Inorganic & Fire Retardant Agents in PE to make FR Core Aluminium Hydroxide, Magnesium Oxide,Alumina Trihydrate (ATH) & Stablizers These agents are added in Polyethylene in proportion for achieving different grades of FR Core like A2, B1 Grades.

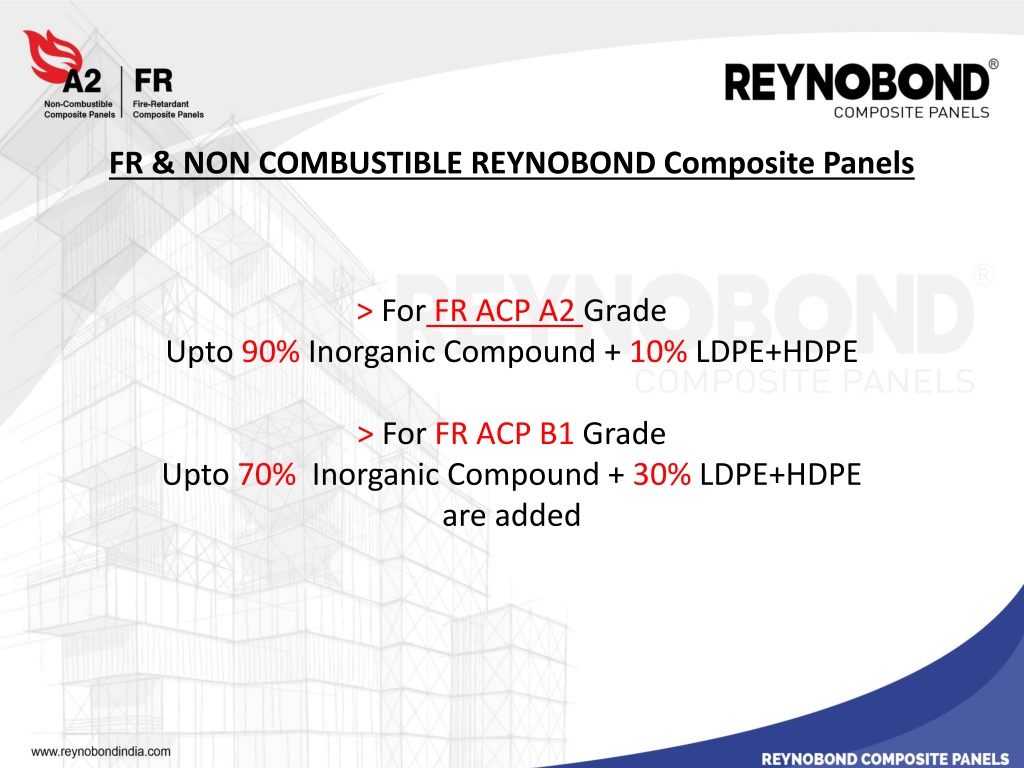

  9. ALSTONE Aluminium Composite panel FR & NON COMBUSTIBLE REYNOBOND Composite Panels > For FR ACP A2 GradeUpto 90% Inorganic Compound + 10% LDPE+HDPE> For FR ACP B1 GradeUpto 70% Inorganic Compound + 30% LDPE+HDPE are added

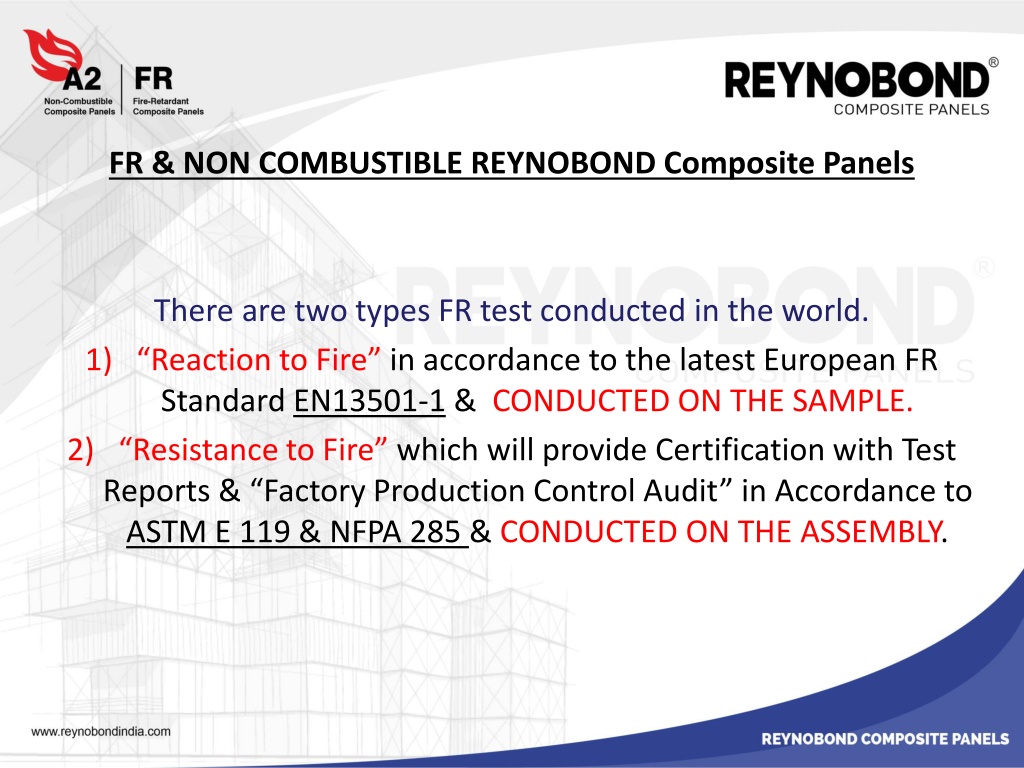

  10. ALSTONE Aluminium Composite panel • FR & NON COMBUSTIBLE REYNOBOND Composite Panels • There are two types FR test conducted in the world. • “Reaction to Fire” in accordance to the latest European FR Standard EN13501-1 & CONDUCTED ON THE SAMPLE. • “Resistance to Fire” which will provide Certification with Test Reports & “Factory Production Control Audit” in Accordance to ASTM E 119 & NFPA 285 & CONDUCTED ON THE ASSEMBLY.

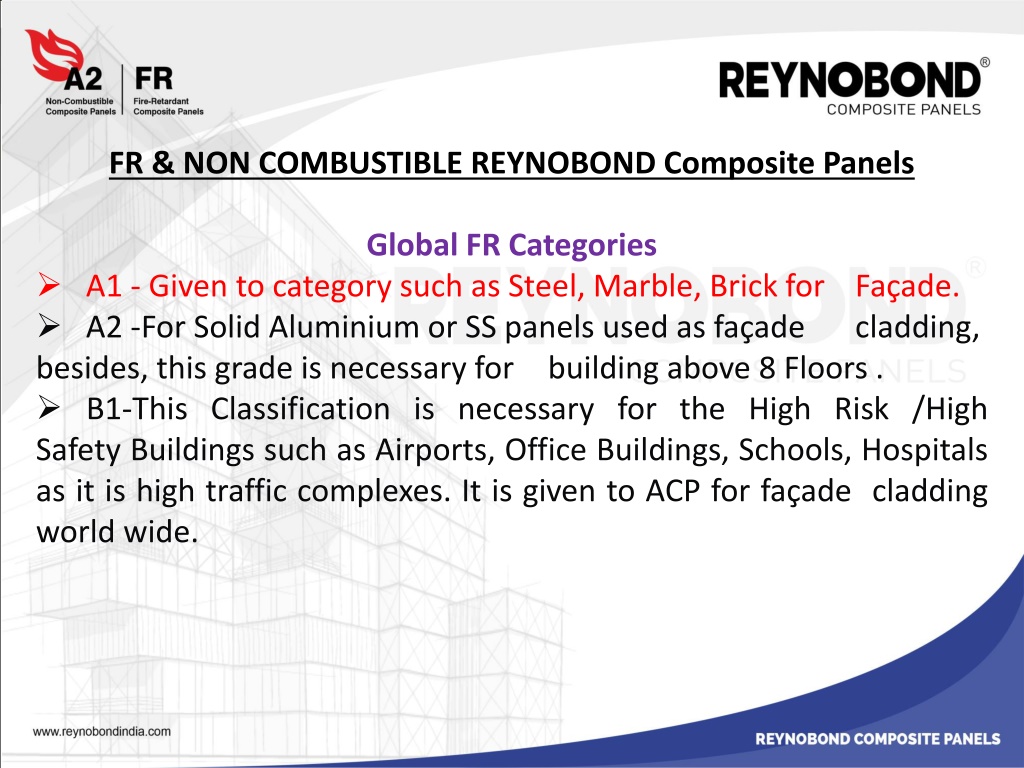

  11. ALSTONE Aluminium Composite panel • FR & NON COMBUSTIBLE REYNOBOND Composite Panels • Global FR Categories • A1 - Given to category such as Steel, Marble, Brick for Façade. • A2 -For Solid Aluminium or SS panels used as façade cladding, besides, this grade is necessary for building above 8 Floors . • B1-This Classification is necessary for the High Risk /High Safety Buildings such as Airports, Office Buildings, Schools, Hospitals as it is high traffic complexes. It is given to ACP for façade cladding world wide.

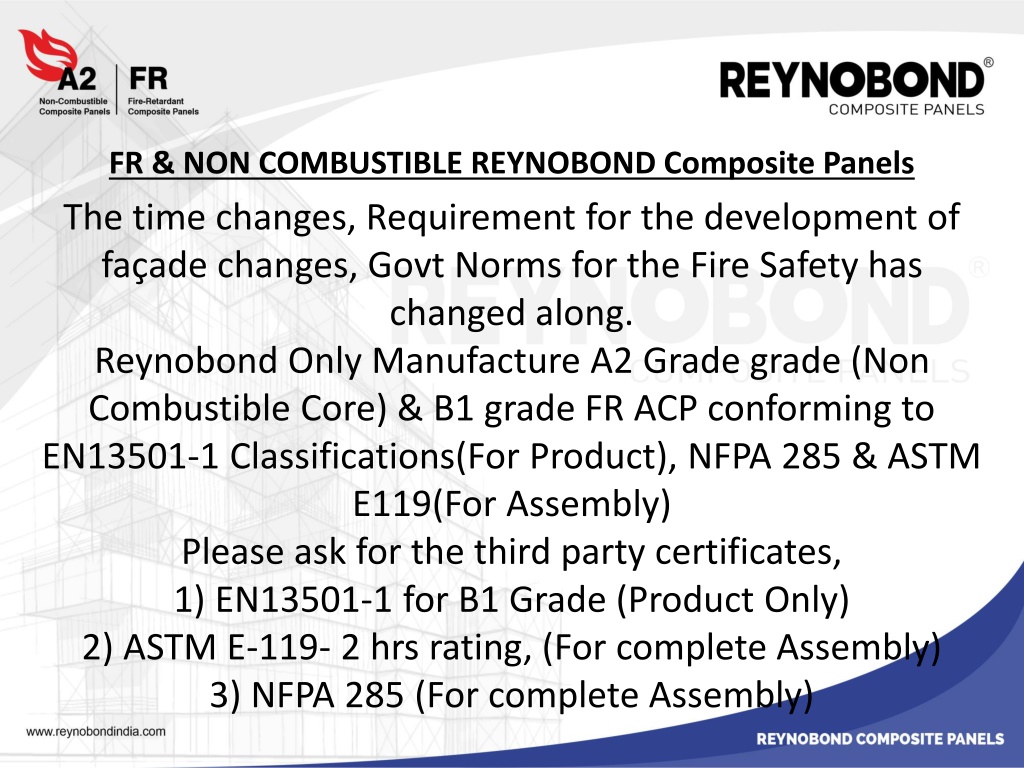

  12. ALSTONE Aluminium Composite panel FR & NON COMBUSTIBLE REYNOBOND Composite Panels The time changes, Requirement for the development of façade changes, Govt Norms for the Fire Safety has changed along.Reynobond Only Manufacture A2 Grade grade (Non Combustible Core) & B1 grade FR ACP conforming to EN13501-1 Classifications(For Product), NFPA 285 & ASTM E119(For Assembly)Please ask for the third party certificates, 1) EN13501-1 for B1 Grade (Product Only)2) ASTM E-119- 2 hrs rating, (For complete Assembly)3) NFPA 285 (For complete Assembly)

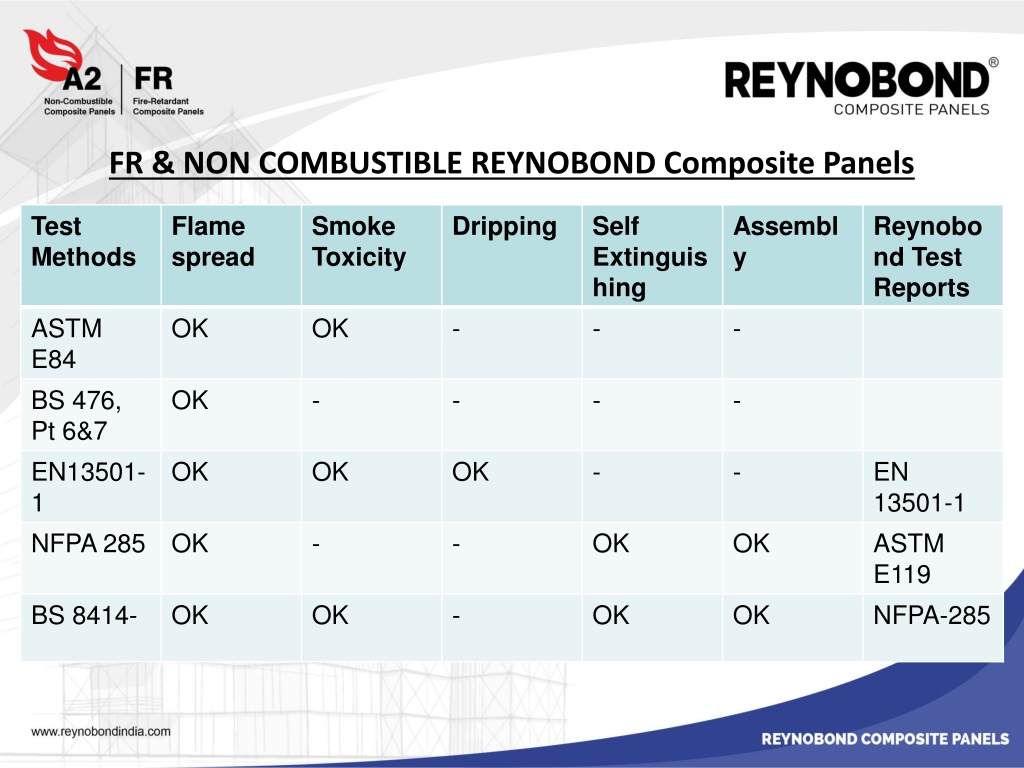

  13. ALSTONE Aluminium Composite panel FR & NON COMBUSTIBLE REYNOBOND Composite Panels

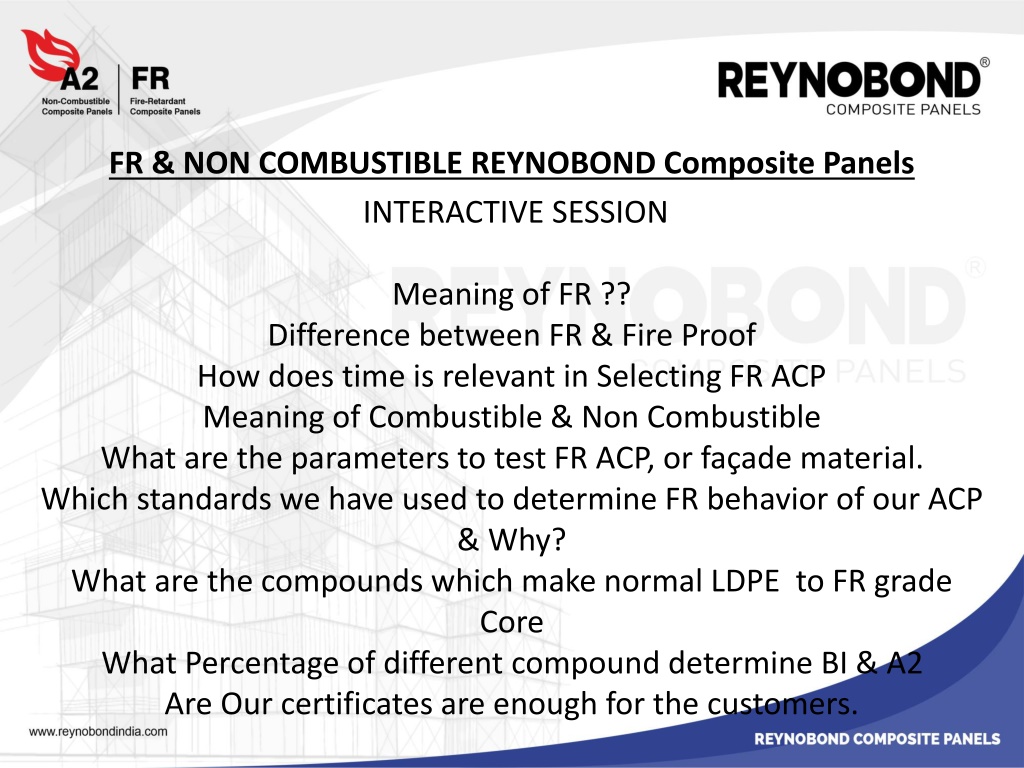

  14. ALSTONE Aluminium Composite panel FR & NON COMBUSTIBLE REYNOBOND Composite Panels INTERACTIVE SESSIONMeaning of FR ??Difference between FR & Fire ProofHow does time is relevant in Selecting FR ACPMeaning of Combustible & Non Combustible What are the parameters to test FR ACP, or façade material.Which standards we have used to determine FR behavior of our ACP & Why?What are the compounds which make normal LDPE to FR grade CoreWhat Percentage of different compound determine BI & A2Are Our certificates are enough for the customers.

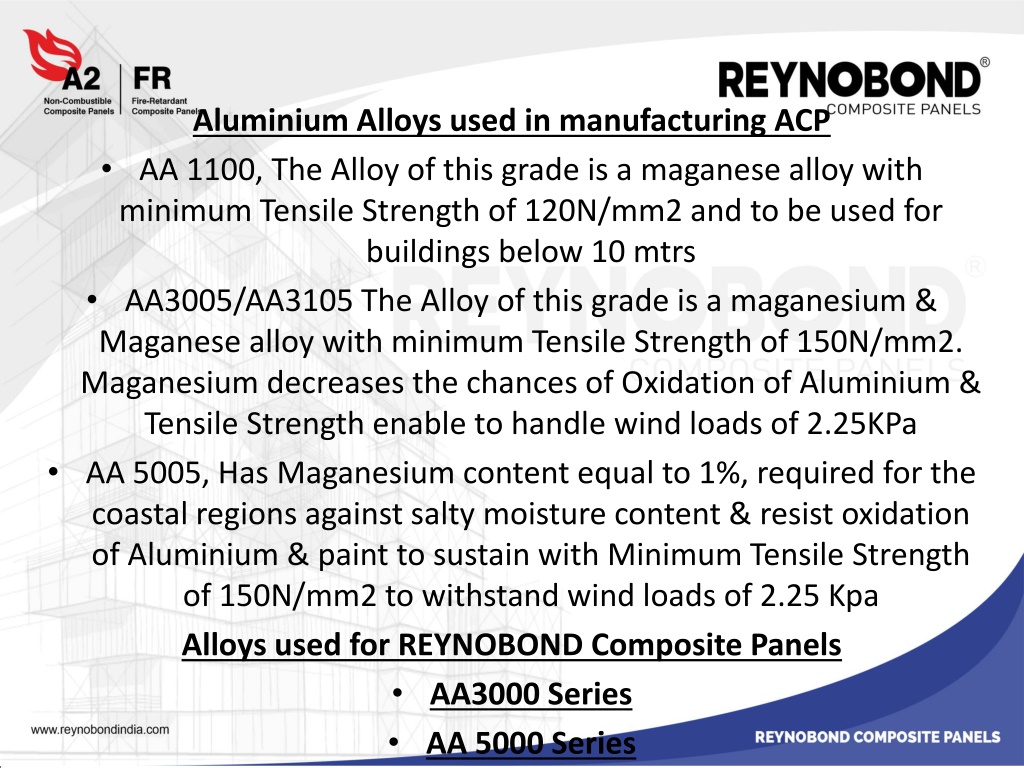

  15. Aluminium Alloys used in manufacturing ACP • AA 1100, The Alloy of this grade is a maganese alloy with minimum Tensile Strength of 120N/mm2 and to be used for buildings below 10 mtrs • AA3005/AA3105 The Alloy of this grade is a maganesium & Maganese alloy with minimum Tensile Strength of 150N/mm2. Maganesium decreases the chances of Oxidation of Aluminium & Tensile Strength enable to handle wind loads of 2.25KPa • AA 5005, Has Maganesium content equal to 1%, required for the coastal regions against salty moisture content & resist oxidation of Aluminium & paint to sustain with Minimum Tensile Strength of 150N/mm2 to withstand wind loads of 2.25 Kpa • Alloys used for REYNOBOND Composite Panels • AA3000 Series • AA 5000 Series ALSTONE Aluminium Composite panel

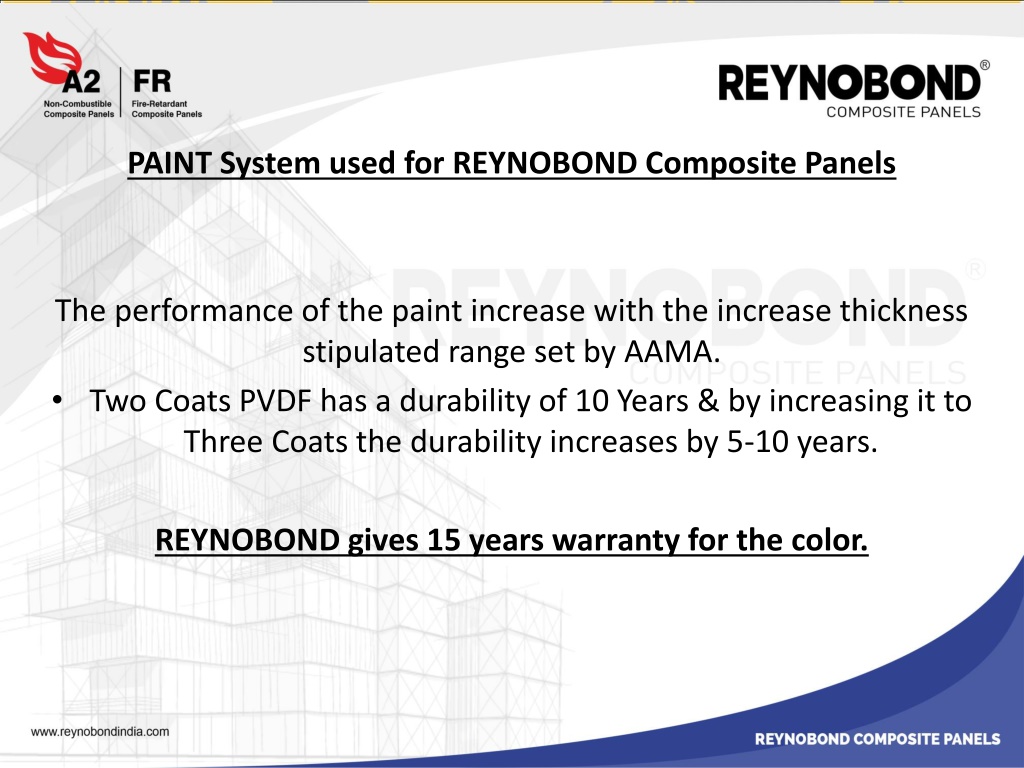

  16. ALSTONE Aluminium Composite panel • PAINT System used for REYNOBOND Composite Panels • The performance of the paint increase with the increase thickness stipulated range set by AAMA. • Two Coats PVDF has a durability of 10 Years & by increasing it to Three Coats the durability increases by 5-10 years. • REYNOBOND gives 15 years warranty for the color.

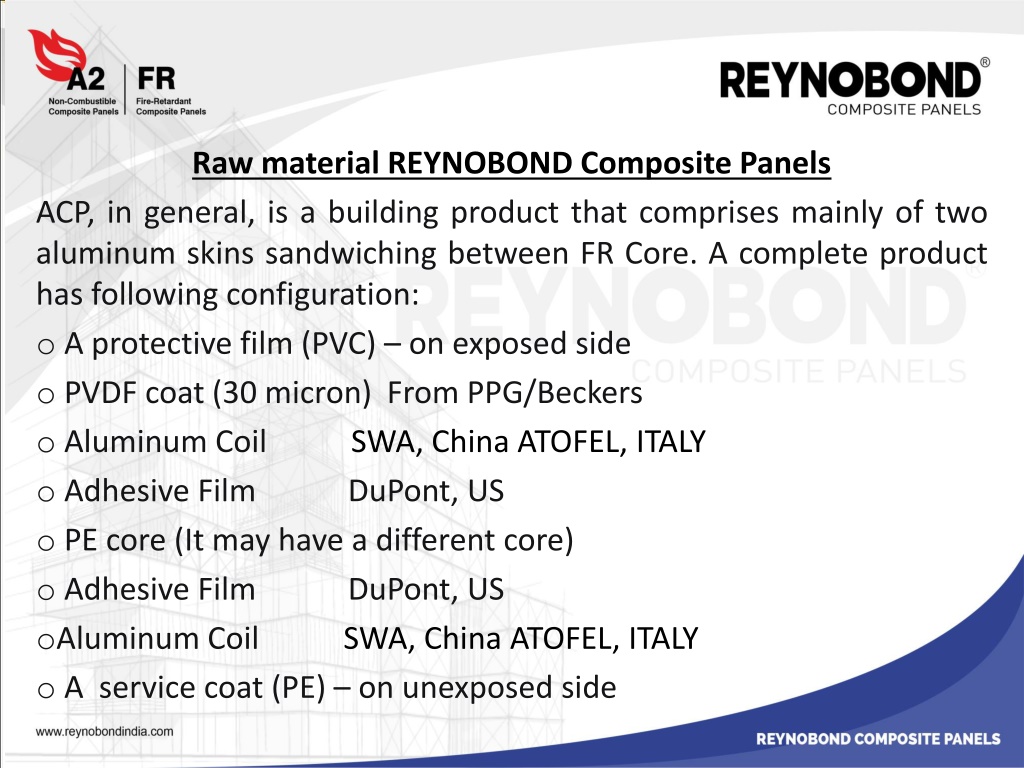

  17. ALSTONE Aluminium Composite panel • Raw material REYNOBOND Composite Panels • ACP, in general, is a building product that comprises mainly of two aluminum skins sandwiching between FR Core. A complete product has following configuration: • A protective film (PVC) – on exposed side • PVDF coat (30 micron) From PPG/Beckers • Aluminum Coil SWA, China ATOFEL, ITALY • Adhesive Film DuPont, US • PE core (It may have a different core) • Adhesive Film DuPont, US • Aluminum Coil SWA, China ATOFEL, ITALY • A service coat (PE) – on unexposed side

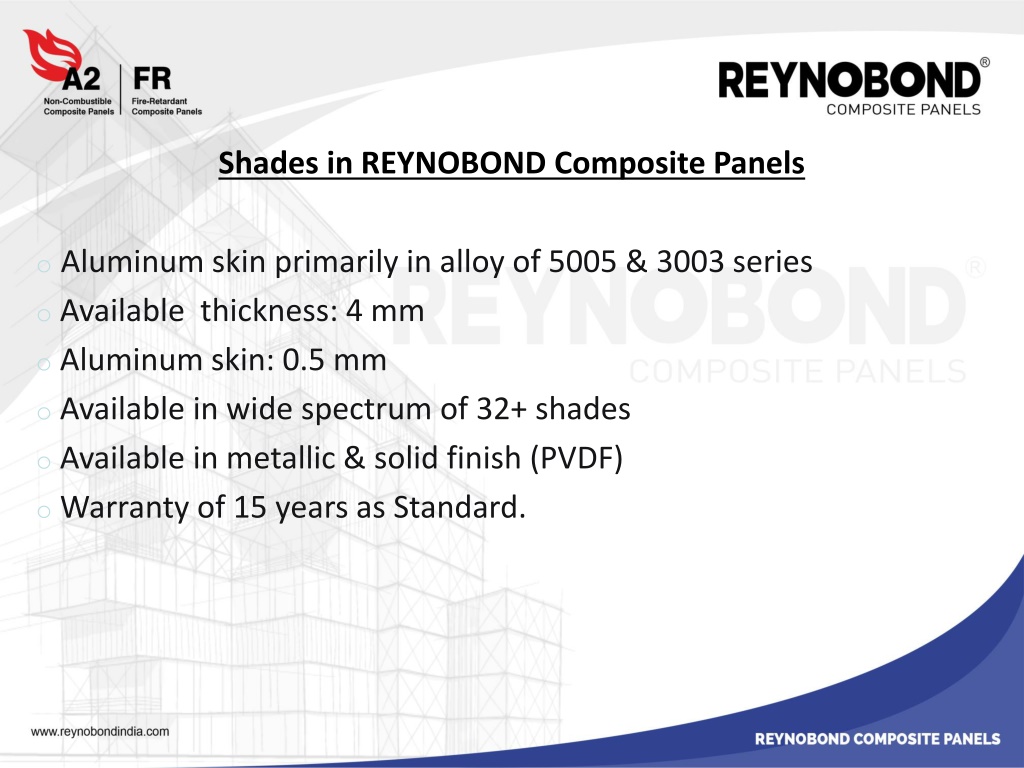

  18. ALSTONE Aluminium Composite panel • Shades in REYNOBOND Composite Panels • Aluminum skin primarily in alloy of 5005 & 3003 series • Available thickness: 4 mm • Aluminum skin: 0.5 mm • Available in wide spectrum of 32+ shades • Available in metallic & solid finish (PVDF) • Warranty of 15 years as Standard.

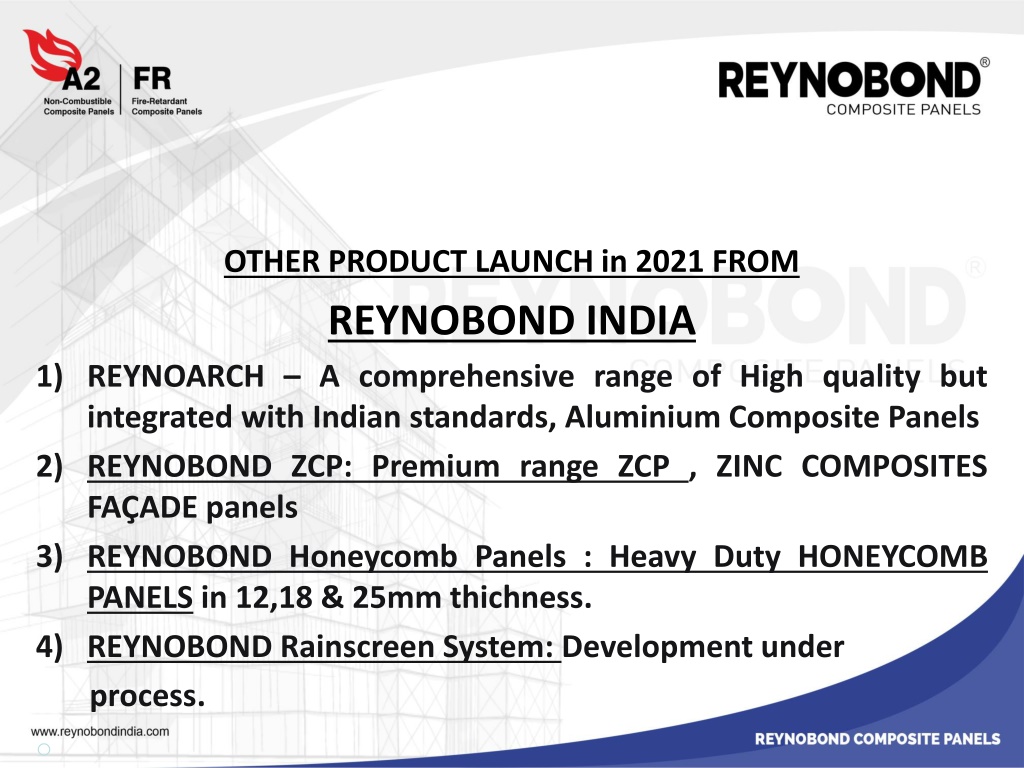

  19. ALSTONE Aluminium Composite panel • OTHER PRODUCT LAUNCH in 2021 FROM • REYNOBOND INDIA • REYNOARCH – A comprehensive range of High quality but integrated with Indian standards, Aluminium Composite Panels • REYNOBOND ZCP: Premium range ZCP , ZINC COMPOSITES FAÇADE panels • REYNOBOND Honeycomb Panels : Heavy Duty HONEYCOMB PANELS in 12,18 & 25mm thichness. • REYNOBOND Rainscreen System: Development under • process.

  20. ALSTONE Aluminium Composite panel REYNOBOND ZCP, ZINC Composite Panels • 4mm thickness. Skin of Zinc Titanium Alloy in Place of Aluminium • Elegant look, Environment friendly, Natural beauty, Self Healing.• Width 700/1000mm, & 1200mm• Length 2400mm• Exterior & Interior application, Lifetime “FOREVER” warranty. A premium product from the House of REYNOBOND India

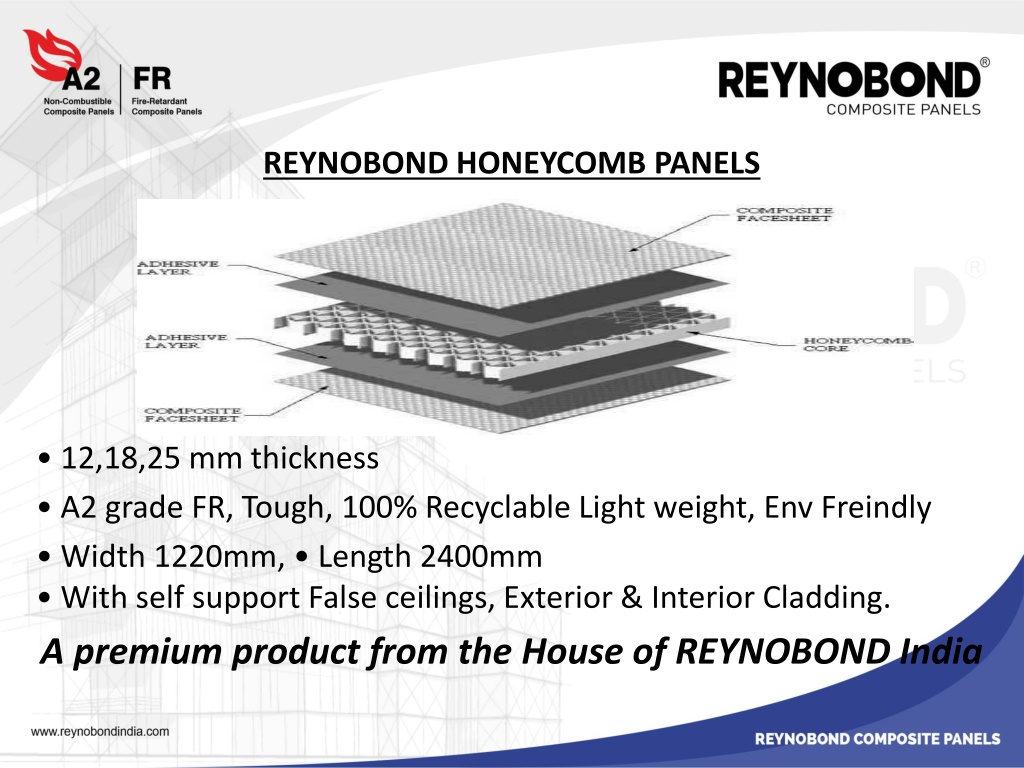

  21. ALSTONE Aluminium Composite panel REYNOBOND HONEYCOMB PANELS • 12,18,25 mm thickness • A2 grade FR, Tough, 100% Recyclable Light weight, Env Freindly • Width 1220mm, • Length 2400mm• With self support False ceilings, Exterior & Interior Cladding. A premium product from the House of REYNOBOND India

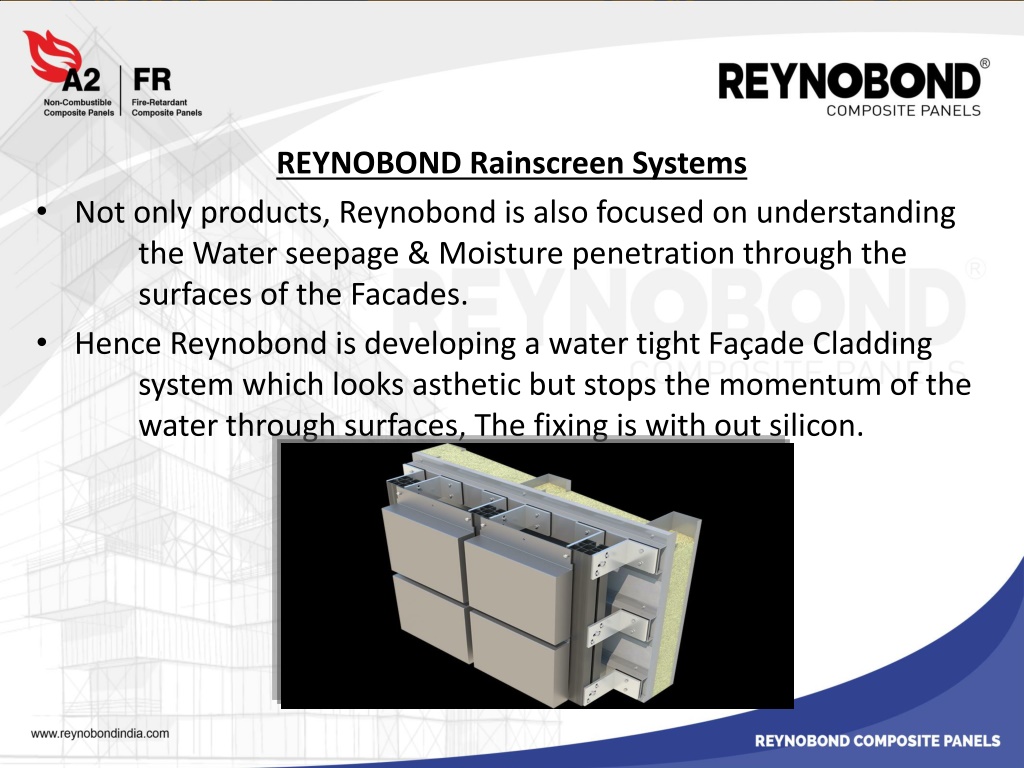

  22. ALSTONE Aluminium Composite panel • REYNOBOND Rainscreen Systems • Not only products, Reynobond is also focused on understanding the Water seepage & Moisture penetration through the surfaces of the Facades. • Hence Reynobond is developing a water tight Façade Cladding system which looks asthetic but stops the momentum of the water through surfaces, The fixing is with out silicon.
