INFIX-PROTECK

INFIXu2122 PROTECK is High Density Polyethylene Fibre Cloth Bonded with Moisture Control Metal Foil films attached with High Strength Self Adhesive. It is generally used to secure and protect insulation of pipe, duct or any surface.

innerengineering
Download Presentation

INFIX-PROTECK

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

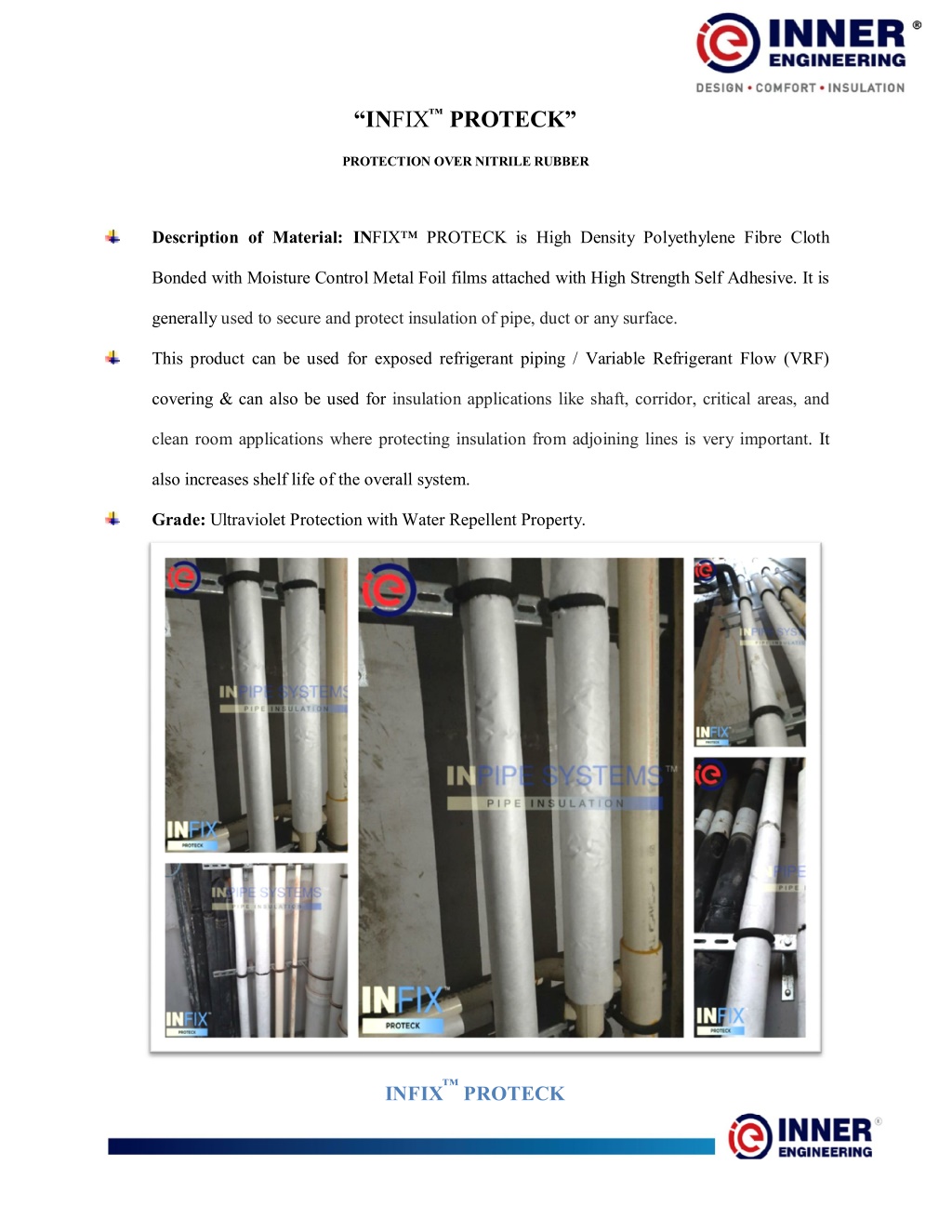

  1. “INFIX™ PROTECK” PROTECTION OVER NITRILE RUBBER Description of Material: INFIX™ PROTECK is High Density Polyethylene Fibre Cloth Bonded with Moisture Control Metal Foil films attached with High Strength Self Adhesive. It is generally used to secure and protect insulation of pipe, duct or any surface. This product can be used for exposed refrigerant piping / Variable Refrigerant Flow (VRF) covering & can also be used for insulation applications like shaft, corridor, critical areas, and clean room applications where protecting insulation from adjoining lines is very important. It also increases shelf life of the overall system. Grade: Ultraviolet Protection with Water Repellent Property. INFIX™ PROTECK

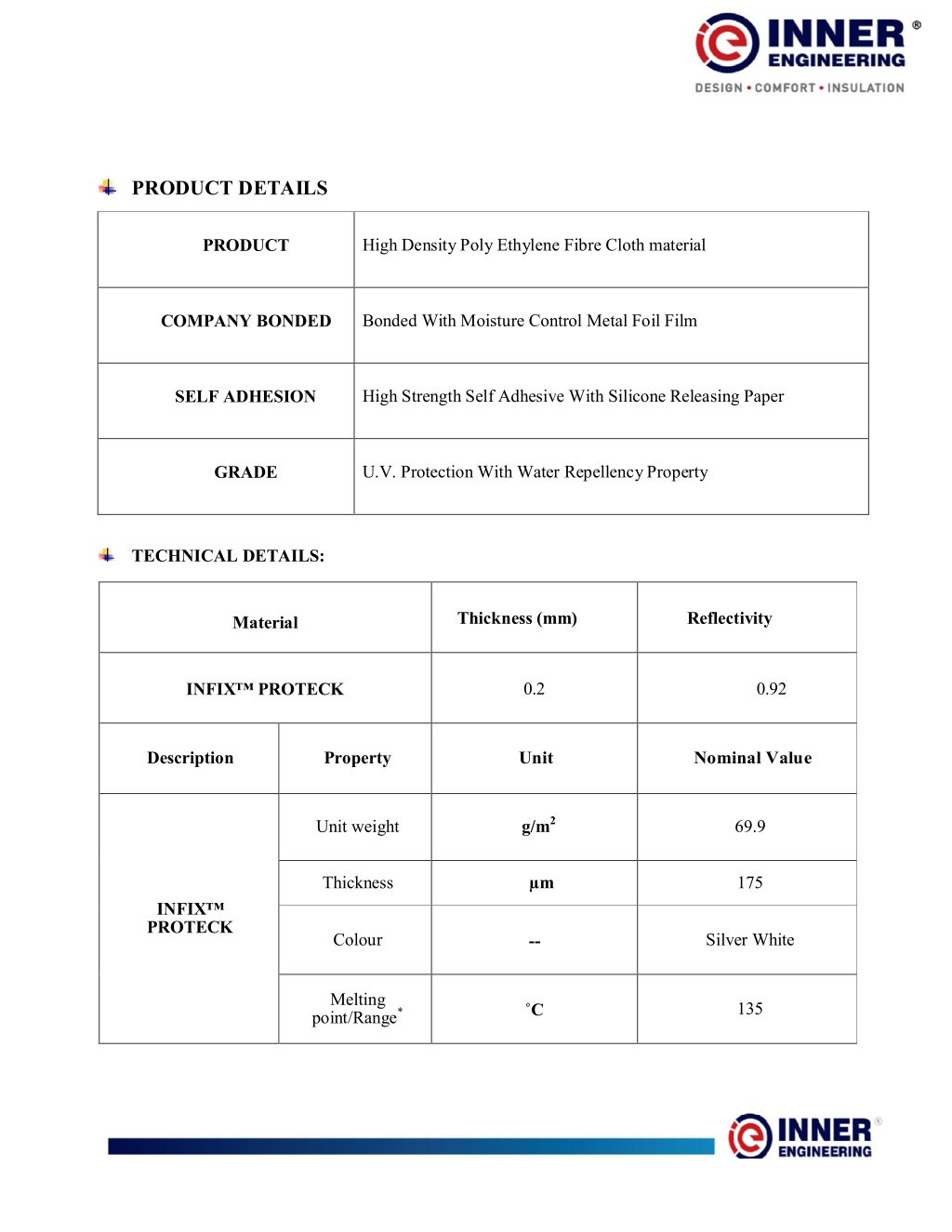

  2. PRODUCT DETAILS High Density Poly Ethylene Fibre Cloth material PRODUCT Bonded With Moisture Control Metal Foil Film COMPANY BONDED High Strength Self Adhesive With Silicone Releasing Paper SELF ADHESION U.V. Protection With Water Repellency Property GRADE TECHNICAL DETAILS: Thickness (mm) Reflectivity Material 0.2 0.92 INFIX™ PROTECK Description Property Unit Nominal Value g/m2 Unit weight 69.9 Thickness µm 175 INFIX™ PROTECK Colour Silver White -- Melting point/Range* 135 ˚C
