  1. EdgeCAM Setup Setting up the EdgeCAM work environment

  2. The Screen Toolbars and Menus Graphics Area Browser Area

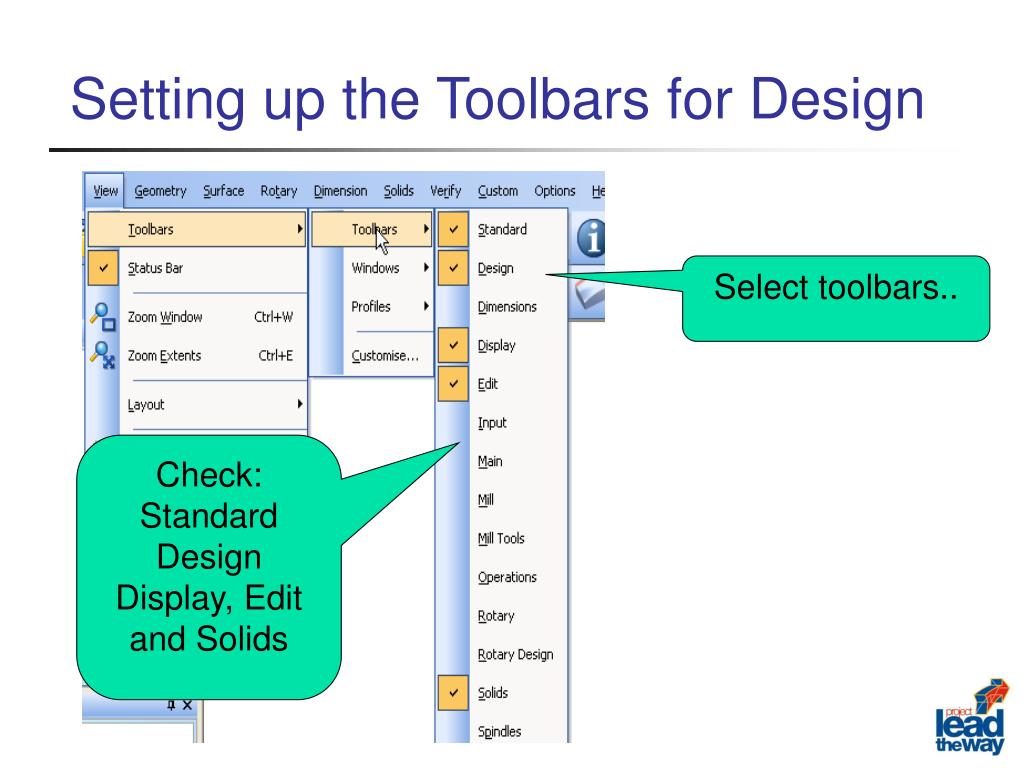

  3. Setting up the Toolbars for Design Select toolbars.. Check: Standard Design Display, Edit and Solids

  4. Setting up the Screen Dock Toolbars where convenient Dock Feedback

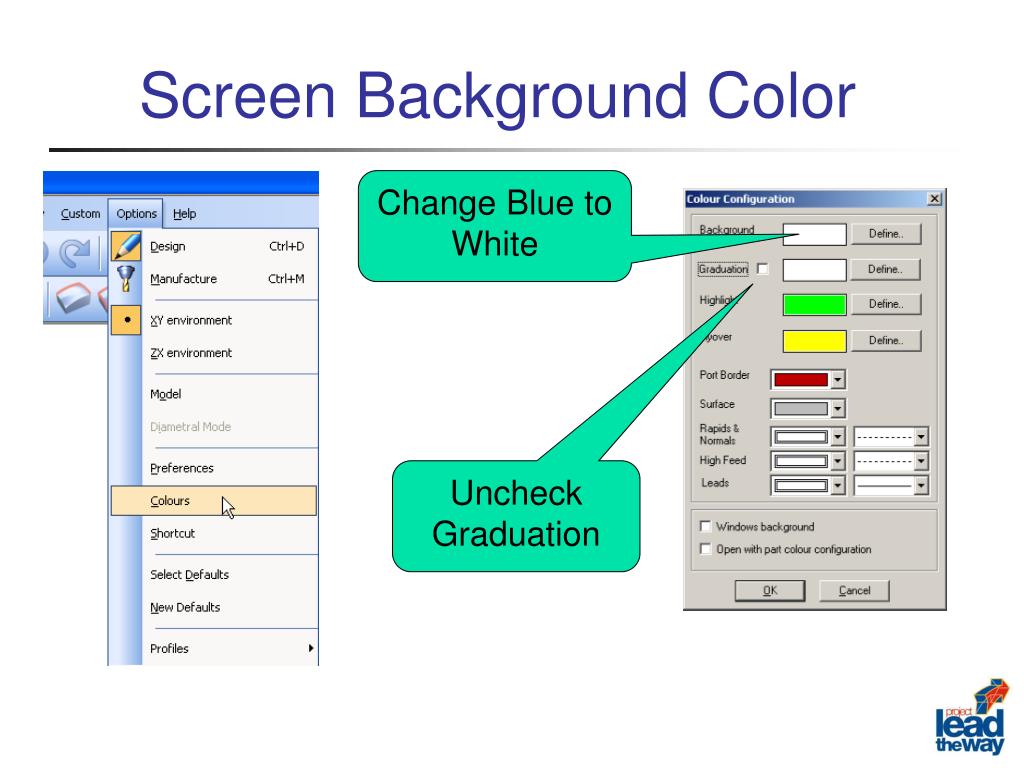

  5. Screen Background Color Change Blue to White Uncheck Graduation

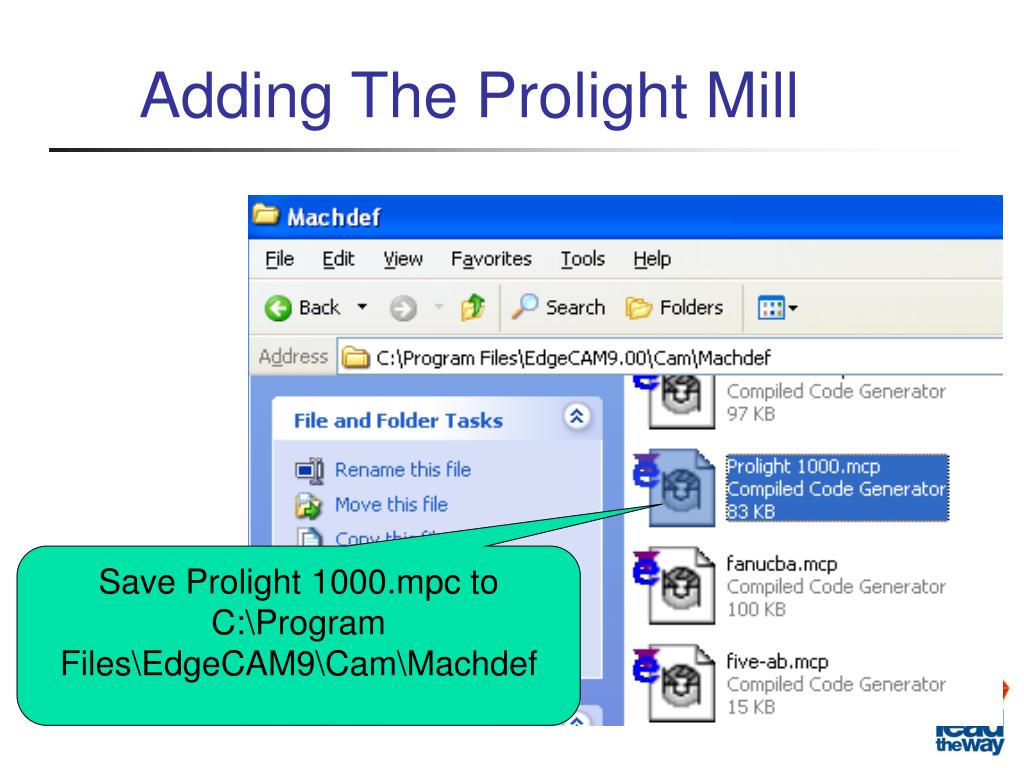

  6. Adding The Prolight Mill Save Prolight 1000.mpc to C:\Program Files\EdgeCAM9\Cam\Machdef

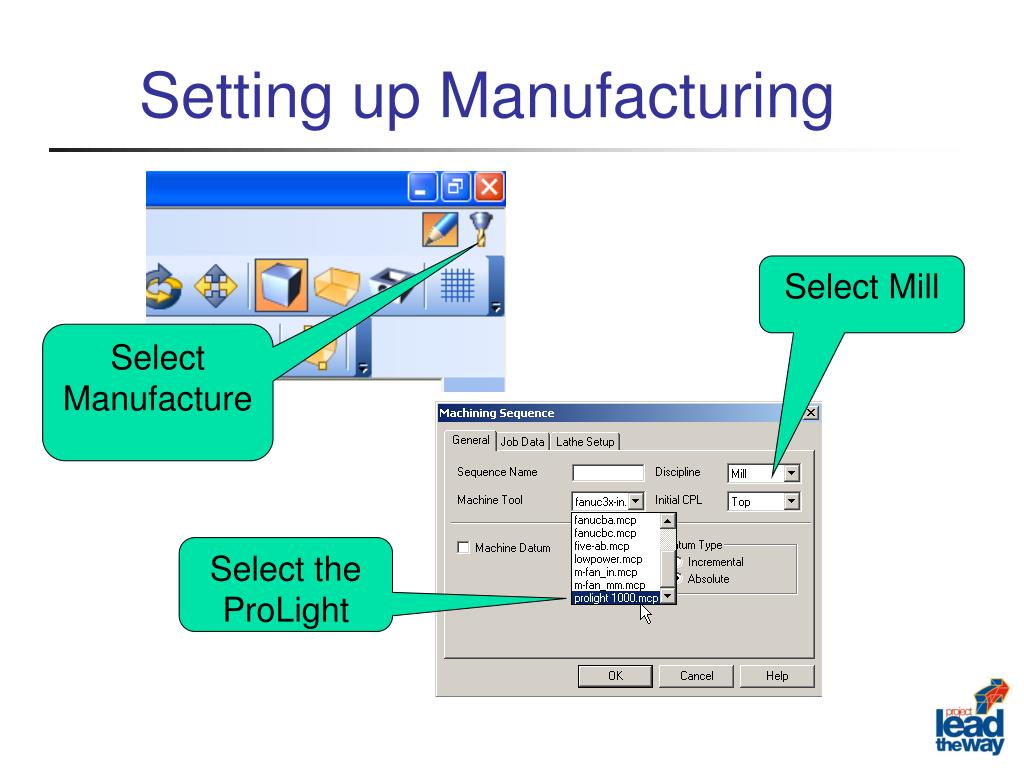

  7. Setting up Manufacturing Select Mill Select Manufacture Select the ProLight

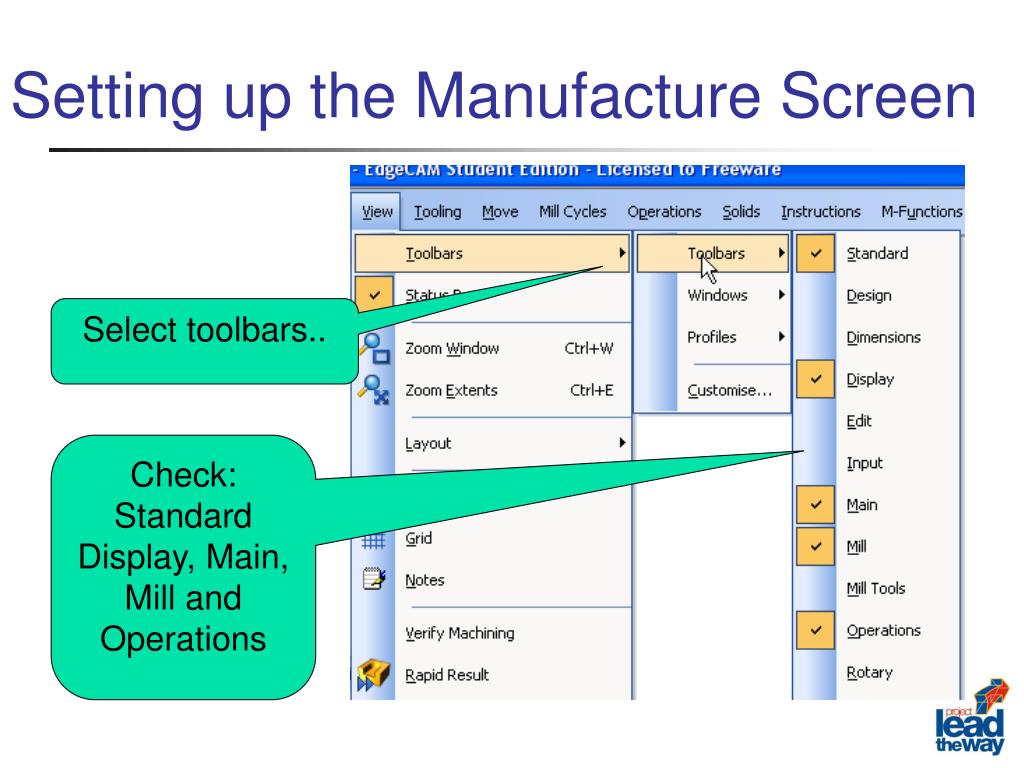

  8. Setting up the Manufacture Screen Select toolbars.. Check: Standard Display, Main, Mill and Operations

  9. Manufacture Main Tool Bar Rapid Result Post Simulate Machining

  10. Switching Back to Adjust Geometry Design button Switch to work with Geometry Manufacture button Switch to toolpath design

  11. Viewing Geometry Rotate, Revolve and Pan View Menu at the bottom of the Graphics screen Zoom Extents, Window, In and Out

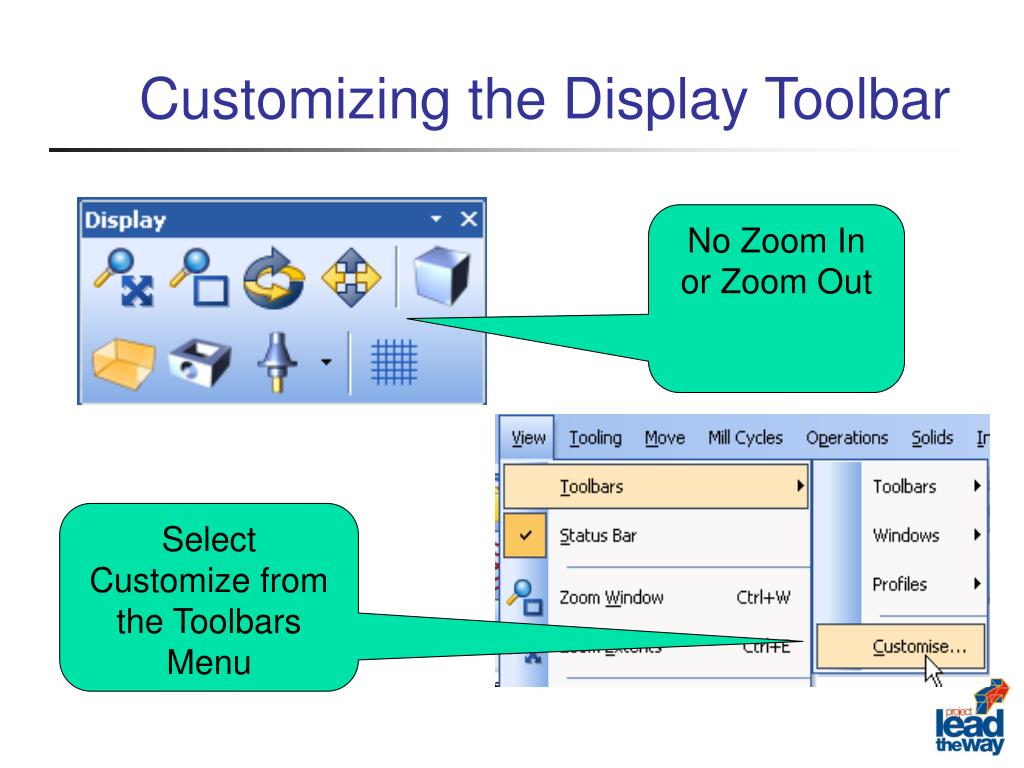

  12. Customizing the Display Toolbar No Zoom In or Zoom Out Select Customize from the Toolbars Menu

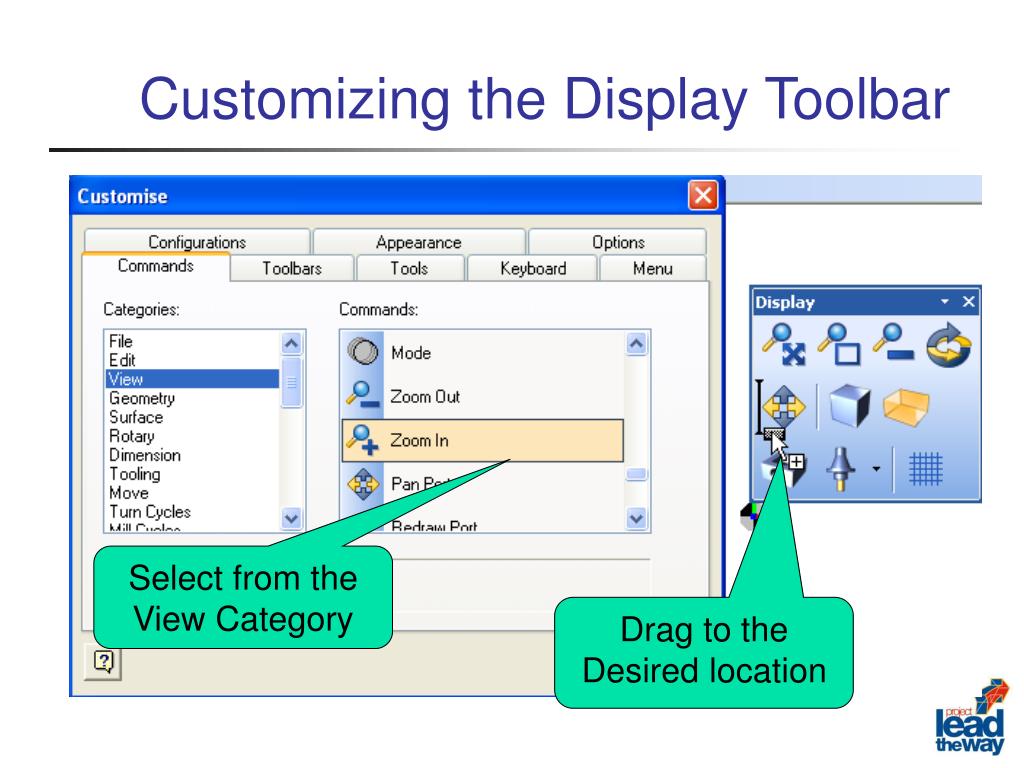

  13. Customizing the Display Toolbar Select from the View Category Drag to the Desired location
