Proper usage and functions of the Vernier Caliper

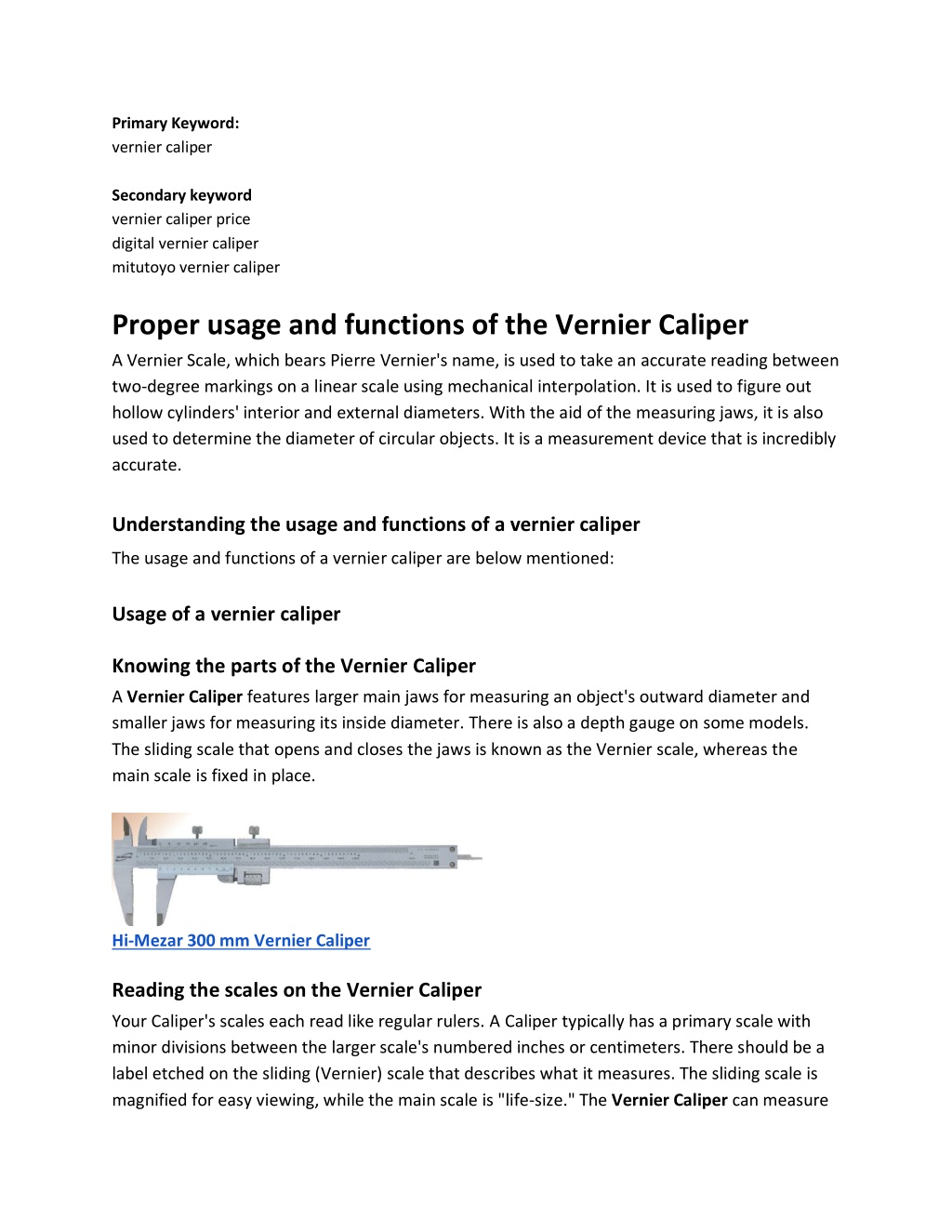

1. Primary Keyword: vernier caliper Secondary keyword vernier caliper price digital vernier caliper mitutoyo vernier caliper Proper usage and functions of the Vernier Caliper A Vernier Scale, which bears Pierre Vernier's name, is used to take an accurate reading between two-degree markings on a linear scale using mechanical interpolation. It is used to figure out hollow cylinders' interior and external diameters. With the aid of the measuring jaws, it is also used to determine the diameter of circular objects. It is a measurement device that is incredibly accurate. Understanding the usage and functions of a vernier caliper The usage and functions of a vernier caliper are below mentioned: Usage of a vernier caliper Knowing the parts of the Vernier Caliper A Vernier Caliper features larger main jaws for measuring an object's outward diameter and smaller jaws for measuring its inside diameter. There is also a depth gauge on some models. The sliding scale that opens and closes the jaws is known as the Vernier scale, whereas the main scale is fixed in place. Hi-Mezar 300 mm Vernier Caliper Reading the scales on the Vernier Caliper Your Caliper's scales each read like regular rulers. A Caliper typically has a primary scale with minor divisions between the larger scale's numbered inches or centimeters. There should be a label etched on the sliding (Vernier) scale that describes what it measures. The sliding scale is magnified for easy viewing, while the main scale is "life-size." The Vernier Caliper can measure

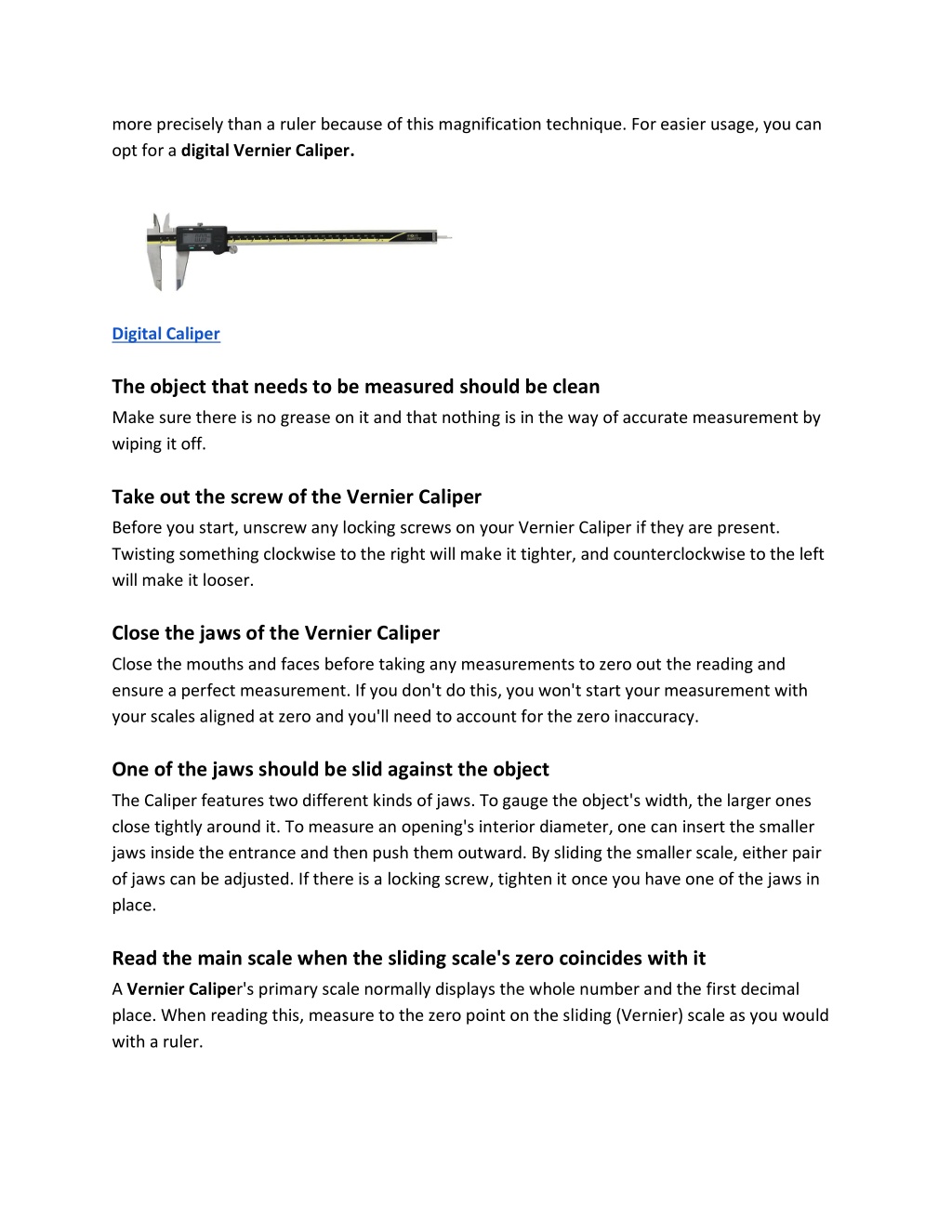

2. more precisely than a ruler because of this magnification technique. For easier usage, you can opt for a digital Vernier Caliper. Digital Caliper The object that needs to be measured should be clean Make sure there is no grease on it and that nothing is in the way of accurate measurement by wiping it off. Take out the screw of the Vernier Caliper Before you start, unscrew any locking screws on your Vernier Caliper if they are present. Twisting something clockwise to the right will make it tighter, and counterclockwise to the left will make it looser. Close the jaws of the Vernier Caliper Close the mouths and faces before taking any measurements to zero out the reading and ensure a perfect measurement. If you don't do this, you won't start your measurement with your scales aligned at zero and you'll need to account for the zero inaccuracy. One of the jaws should be slid against the object The Caliper features two different kinds of jaws. To gauge the object's width, the larger ones close tightly around it. To measure an opening's interior diameter, one can insert the smaller jaws inside the entrance and then push them outward. By sliding the smaller scale, either pair of jaws can be adjusted. If there is a locking screw, tighten it once you have one of the jaws in place. Read the main scale when the sliding scale's zero coincides with it A Vernier Caliper's primary scale normally displays the whole number and the first decimal place. When reading this, measure to the zero point on the sliding (Vernier) scale as you would with a ruler.

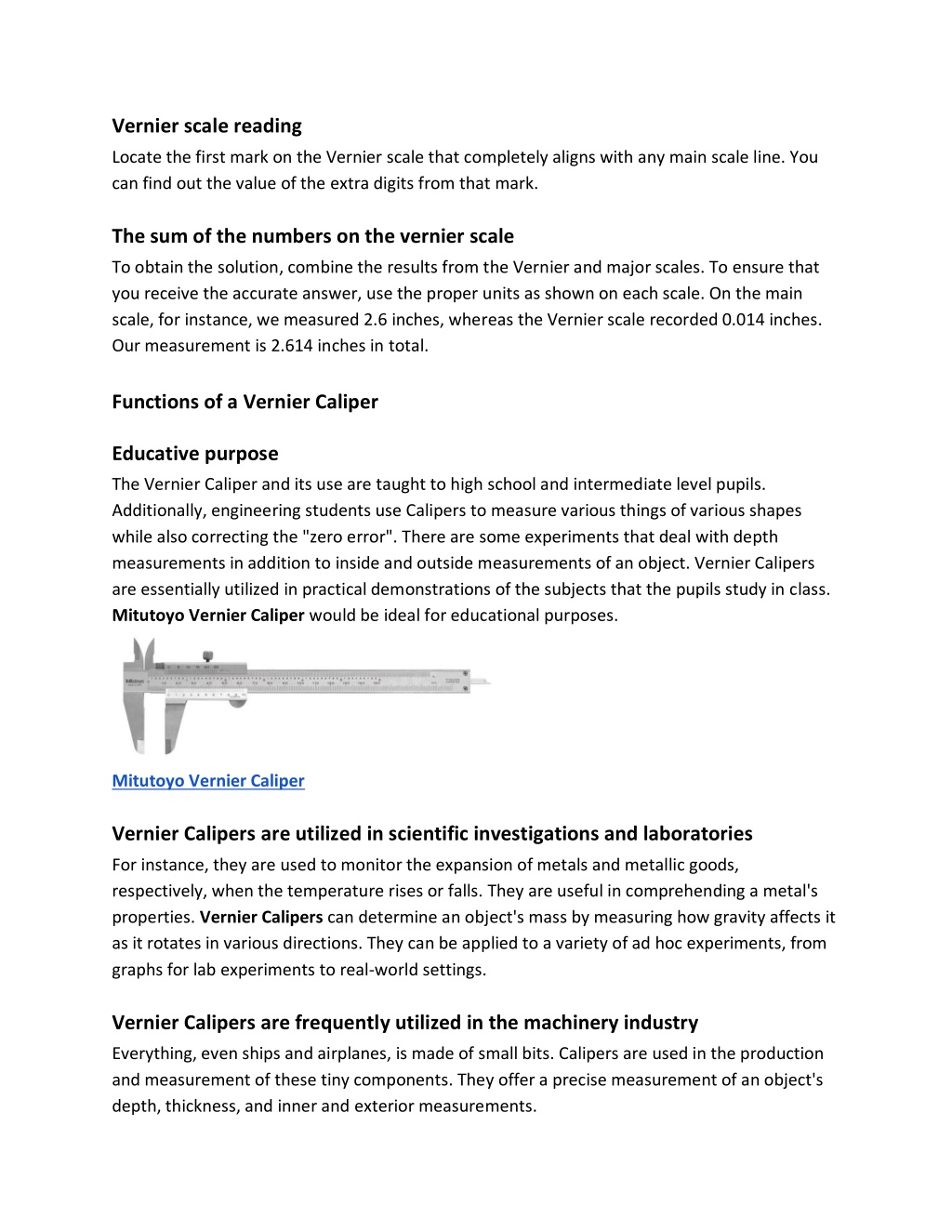

3. Vernier scale reading Locate the first mark on the Vernier scale that completely aligns with any main scale line. You can find out the value of the extra digits from that mark. The sum of the numbers on the vernier scale To obtain the solution, combine the results from the Vernier and major scales. To ensure that you receive the accurate answer, use the proper units as shown on each scale. On the main scale, for instance, we measured 2.6 inches, whereas the Vernier scale recorded 0.014 inches. Our measurement is 2.614 inches in total. Functions of a Vernier Caliper Educative purpose The Vernier Caliper and its use are taught to high school and intermediate level pupils. Additionally, engineering students use Calipers to measure various things of various shapes while also correcting the "zero error". There are some experiments that deal with depth measurements in addition to inside and outside measurements of an object. Vernier Calipers are essentially utilized in practical demonstrations of the subjects that the pupils study in class. Mitutoyo Vernier Caliper would be ideal for educational purposes. Mitutoyo Vernier Caliper Vernier Calipers are utilized in scientific investigations and laboratories For instance, they are used to monitor the expansion of metals and metallic goods, respectively, when the temperature rises or falls. They are useful in comprehending a metal's properties. Vernier Calipers can determine an object's mass by measuring how gravity affects it as it rotates in various directions. They can be applied to a variety of ad hoc experiments, from graphs for lab experiments to real-world settings. Vernier Calipers are frequently utilized in the machinery industry Everything, even ships and airplanes, is made of small bits. Calipers are used in the production and measurement of these tiny components. They offer a precise measurement of an object's depth, thickness, and inner and exterior measurements.

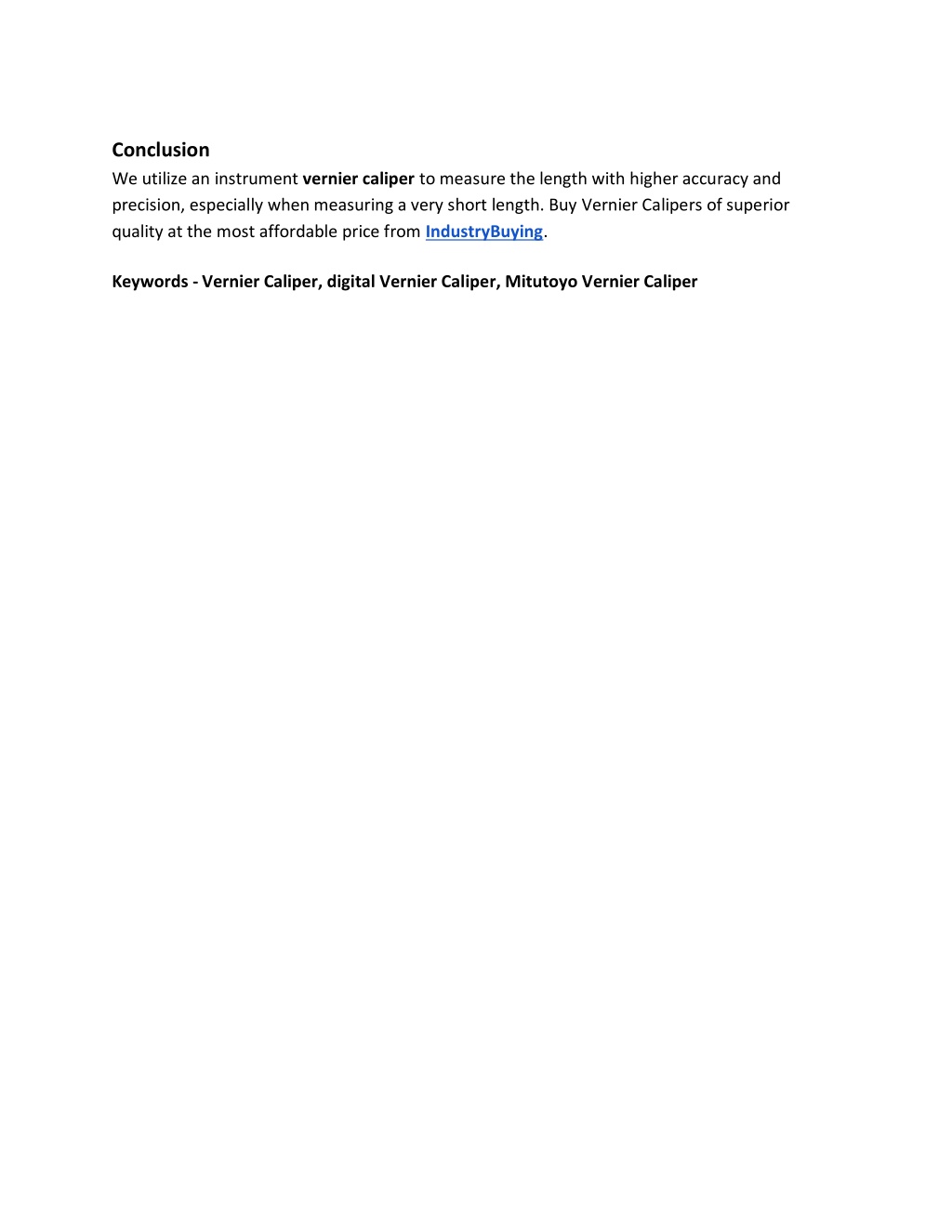

4. Conclusion We utilize an instrument vernier caliper to measure the length with higher accuracy and precision, especially when measuring a very short length. Buy Vernier Calipers of superior quality at the most affordable price from IndustryBuying. Keywords -Vernier Caliper, digital Vernier Caliper, Mitutoyo Vernier Caliper
