5 impedance matching and tuning
5. Impedance Matching and Tuning
  • Apply the theory and techniques of the previous chapters to practical problems in microwave engineering.
  • Impedance matching is the 1st topic.

Figure 5.1 (p. 223)A lossless network matching an arbitrary load impedance to a transmission line.

slide2
Impedance matching or tuning is important since
    • Maximum power is delivered when the load is matched to the line, and power loss in the feed line is minimized.
    • Impedance matching sensitive receiver components improves the signal-to-noise ratio of the system.
    • Impedance matching in a power distribution network will reduce the amplitude and phase errors.
slide3
Important factors in the selection of matching network.
    • Complexity
    • Bandwidth
    • Implementation
    • Ajdustability
5 1 matching with lumped elements
5.1 Matching with Lumped Elements
  • L-section is the simplest type of matching network.
  • 2 possible configurations

Figure 5.2 (p. 223)L-section matching networks. (a) Network for zL inside the 1 + jx circle. (b) Network for zL outside the 1 + jx circle.

analytic solution

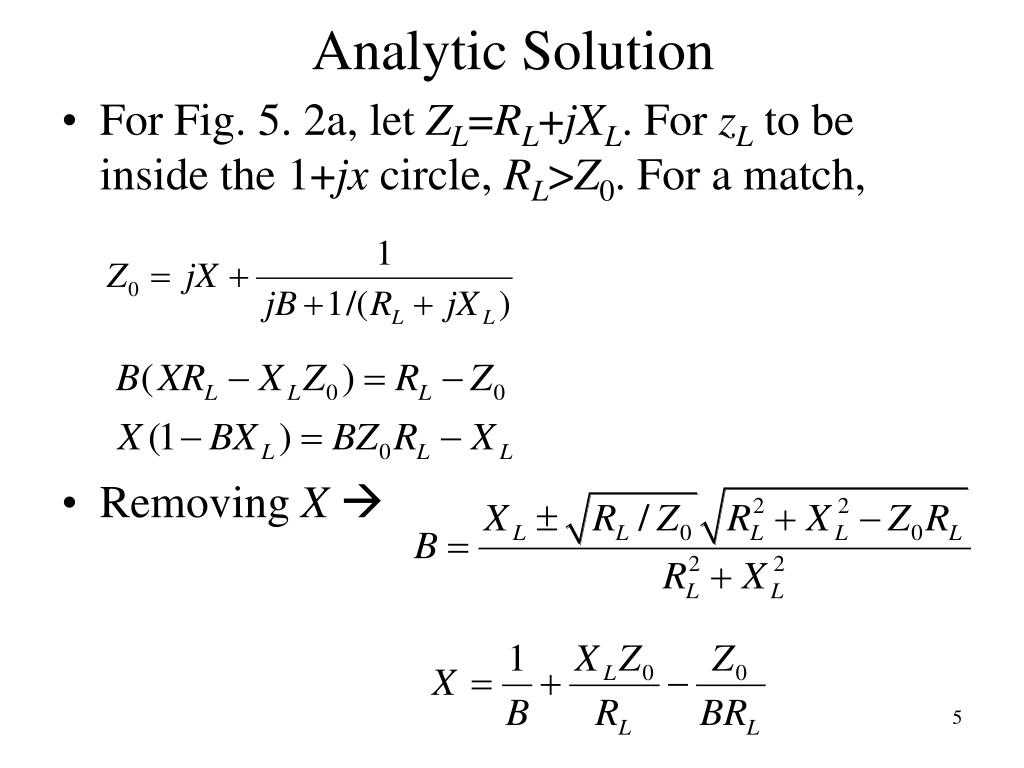

Analytic Solution
  • For Fig. 5. 2a, let ZL=RL+jXL. For zL to be inside the 1+jx circle, RL>Z0. For a match,
  • Removing X
slide8

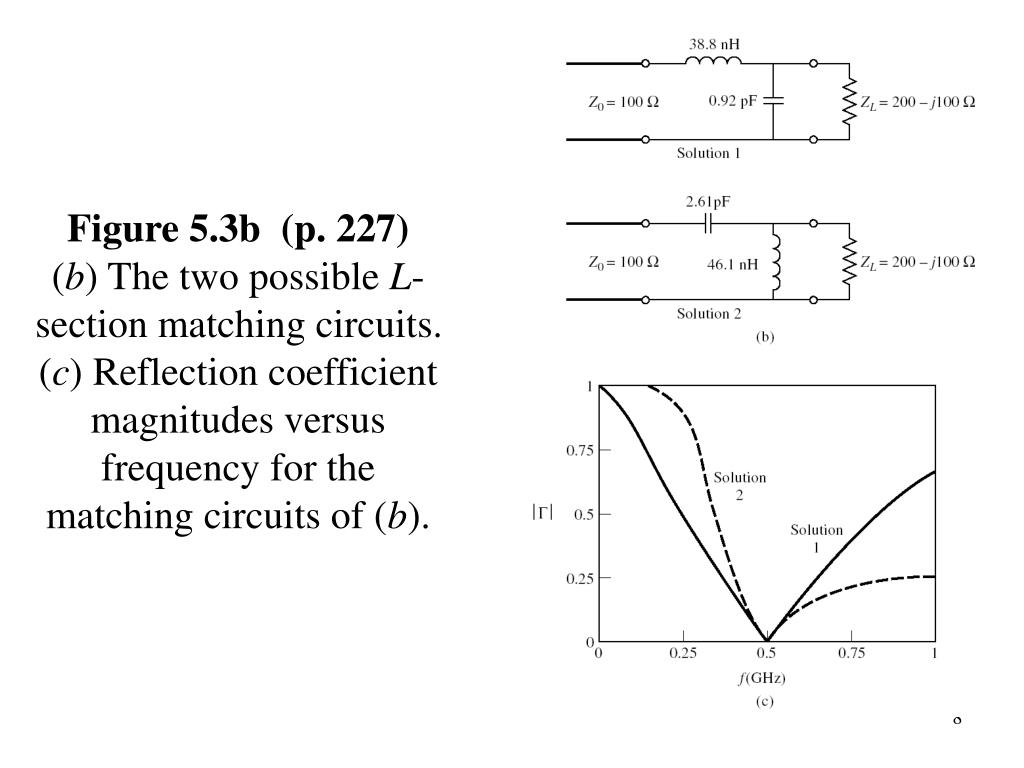

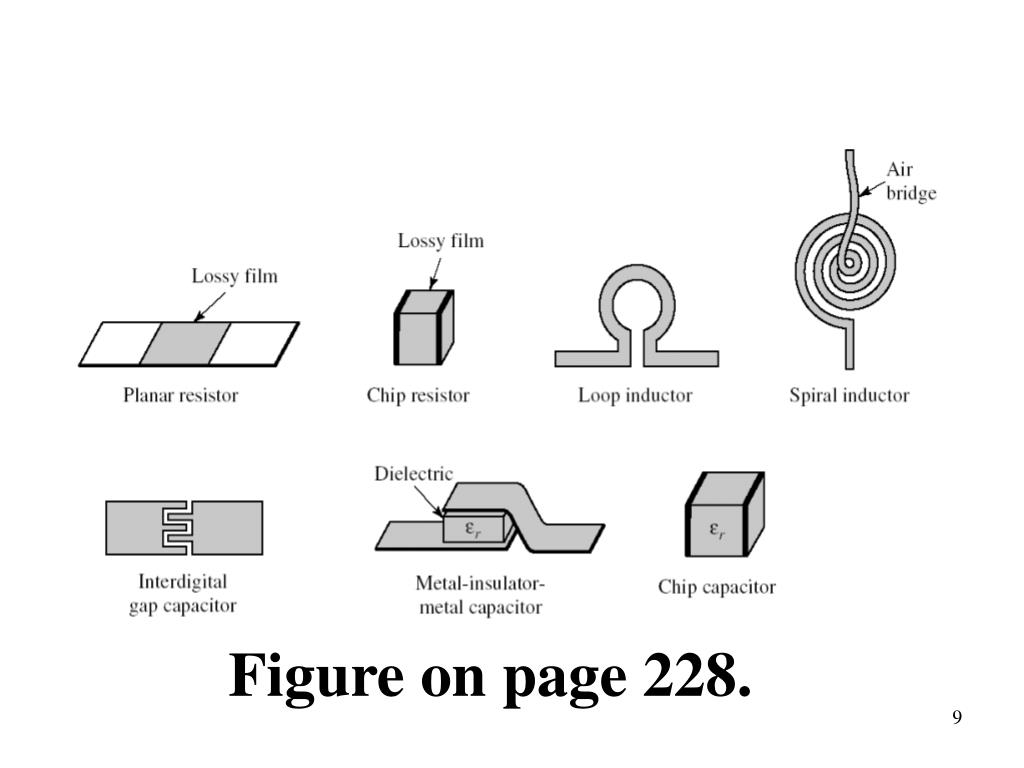

Figure 5.3b (p. 227)(b) The two possible L-section matching circuits. (c) Reflection coefficient magnitudes versus frequency for the matching circuits of (b).

5 2 single stub tuning
5.2 Single Stub Tuning

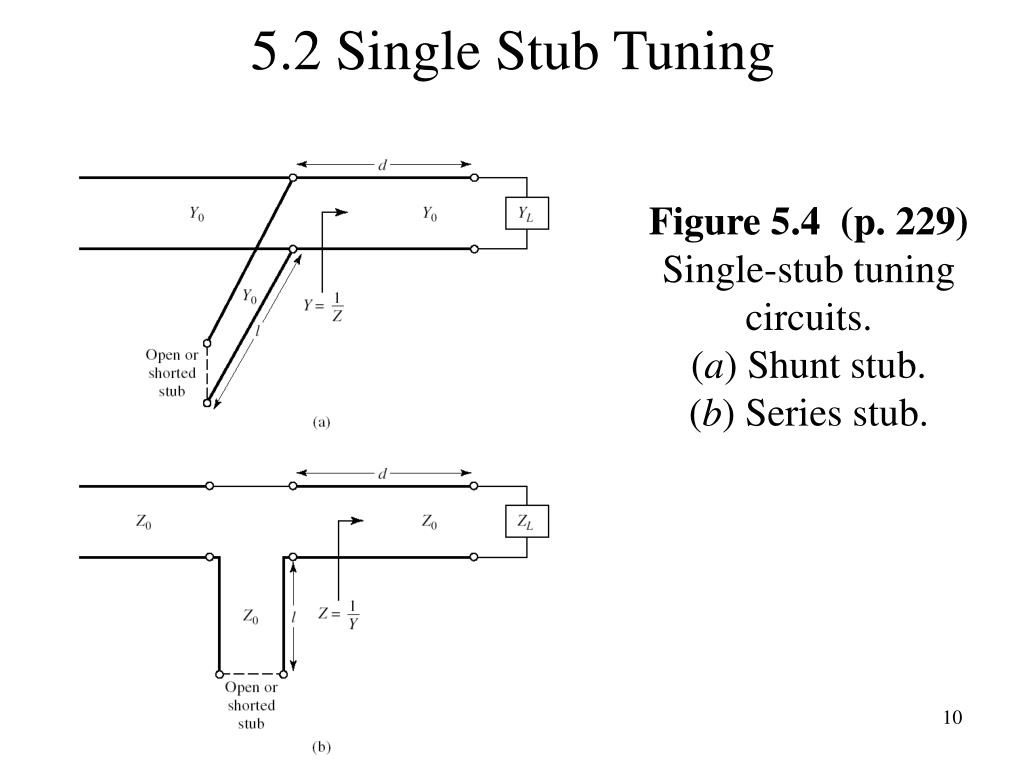

Figure 5.4 (p. 229)Single-stub tuning circuits. (a) Shunt stub. (b) Series stub.

slide11

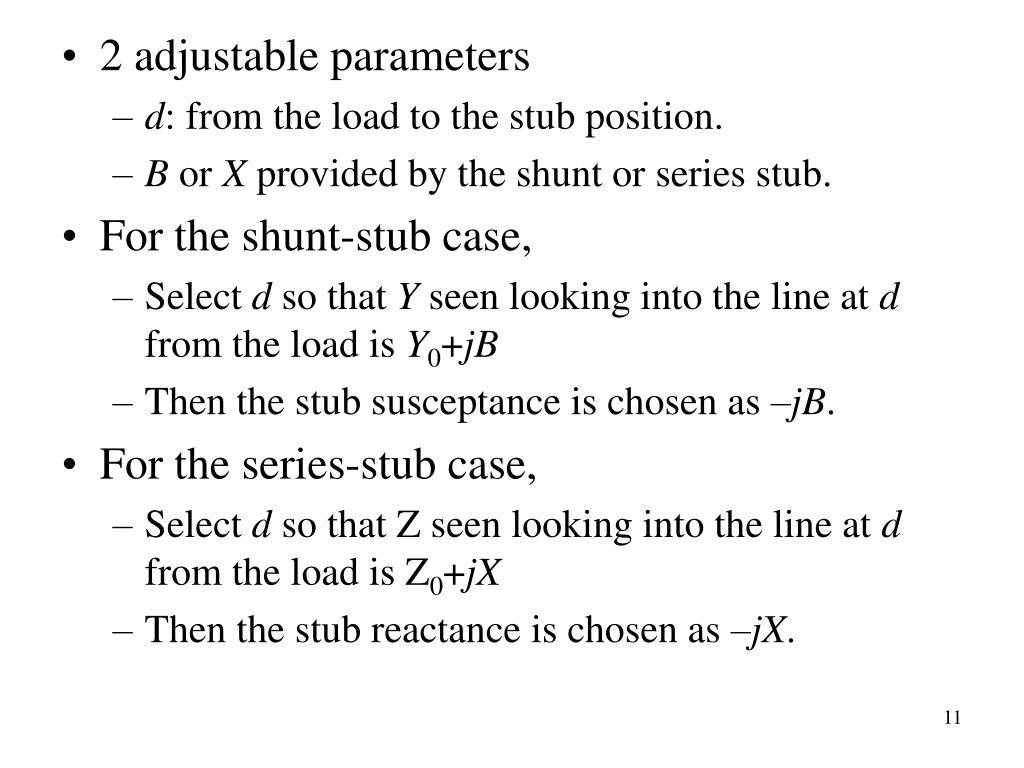

2 adjustable parameters
    • d: from the load to the stub position.
    • B or X provided by the shunt or series stub.
  • For the shunt-stub case,
    • Select d so that Y seen looking into the line at d from the load is Y0+jB
    • Then the stub susceptance is chosen as –jB.
  • For the series-stub case,
    • Select d so that Z seen looking into the line at d from the load is Z0+jX
    • Then the stub reactance is chosen as –jX.
shunt stubs
Shunt Stubs
  • Ex 5.2 Single-Stub Shunt Tuning

ZL=60-j80

Figure 5.5a (p. 230)Solution to Example 5.2. (a) Smith chart for the shunt-stub tuners.

slide13

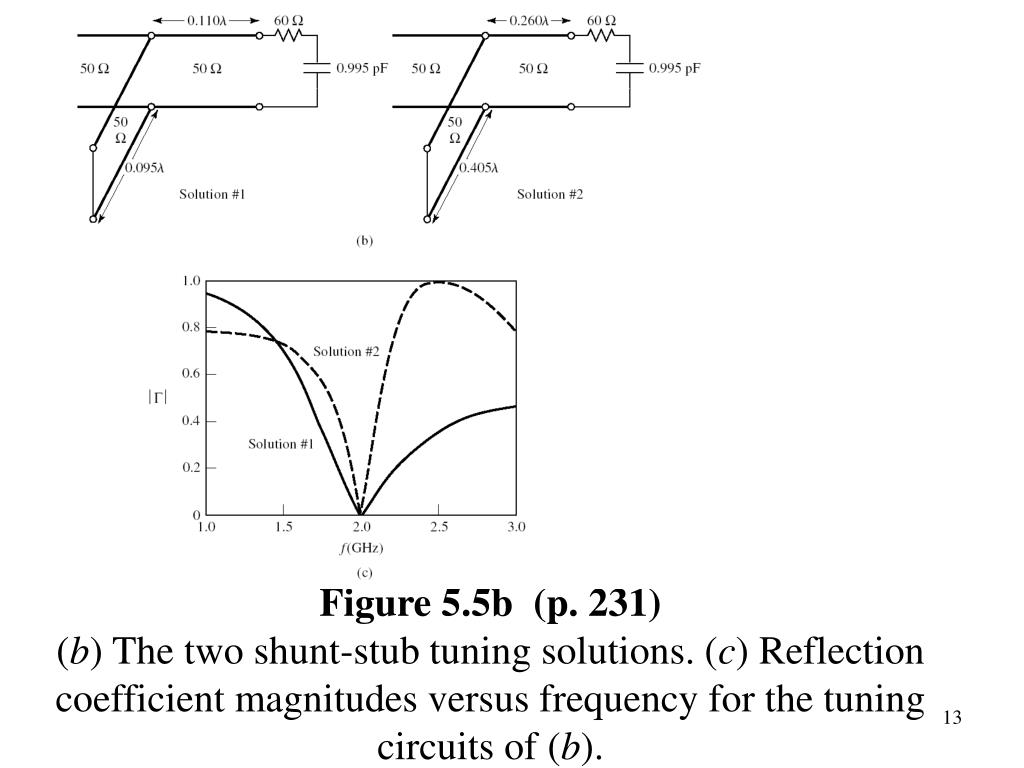

Figure 5.5b (p. 231)(b) The two shunt-stub tuning solutions. (c) Reflection coefficient magnitudes versus frequency for the tuning circuits of (b).

slide14

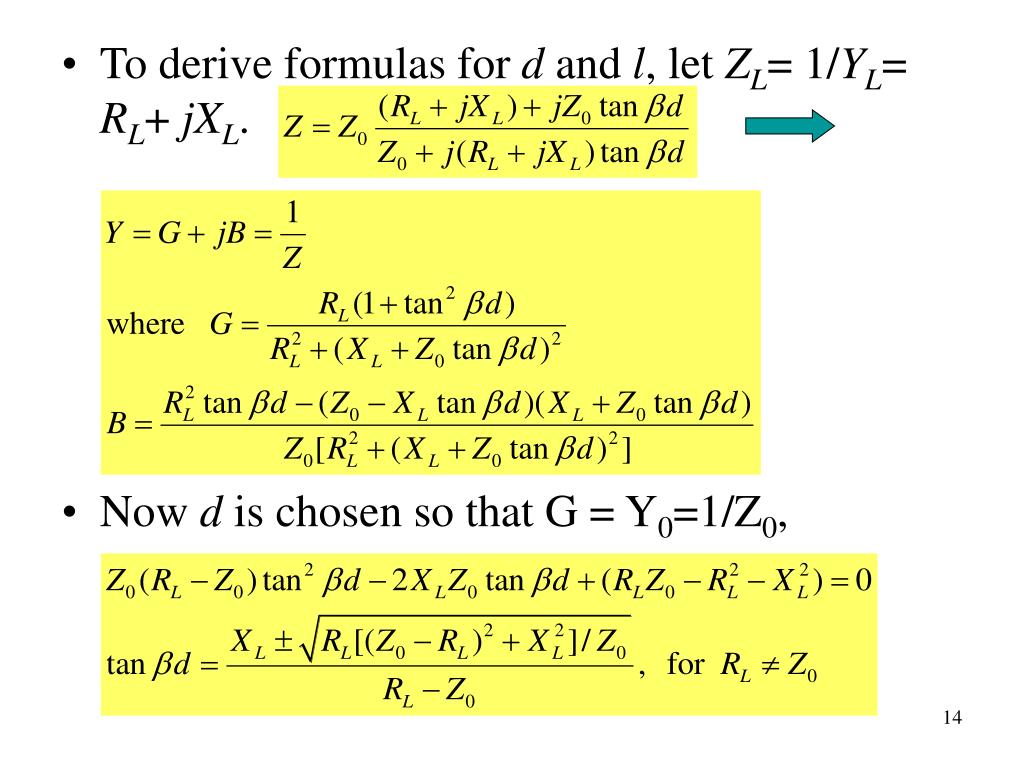

To derive formulas for d and l, let ZL= 1/YL= RL+ jXL.
  • Now d is chosen so that G = Y0=1/Z0,
slide15
If RL = Z0, then tanβd = -XL/2Z0. 2 principal solutions are
  • To find the required stub length, BS = -B.

for open stub

for short stub

series stubs
Series Stubs
  • Ex 5.3 Single Stub Series Tuning

ZL = 100+j80

Figure 5.6a (p. 233)Solution to Example 5.3. (a) Smith chart for the series-stub tuners.

slide17

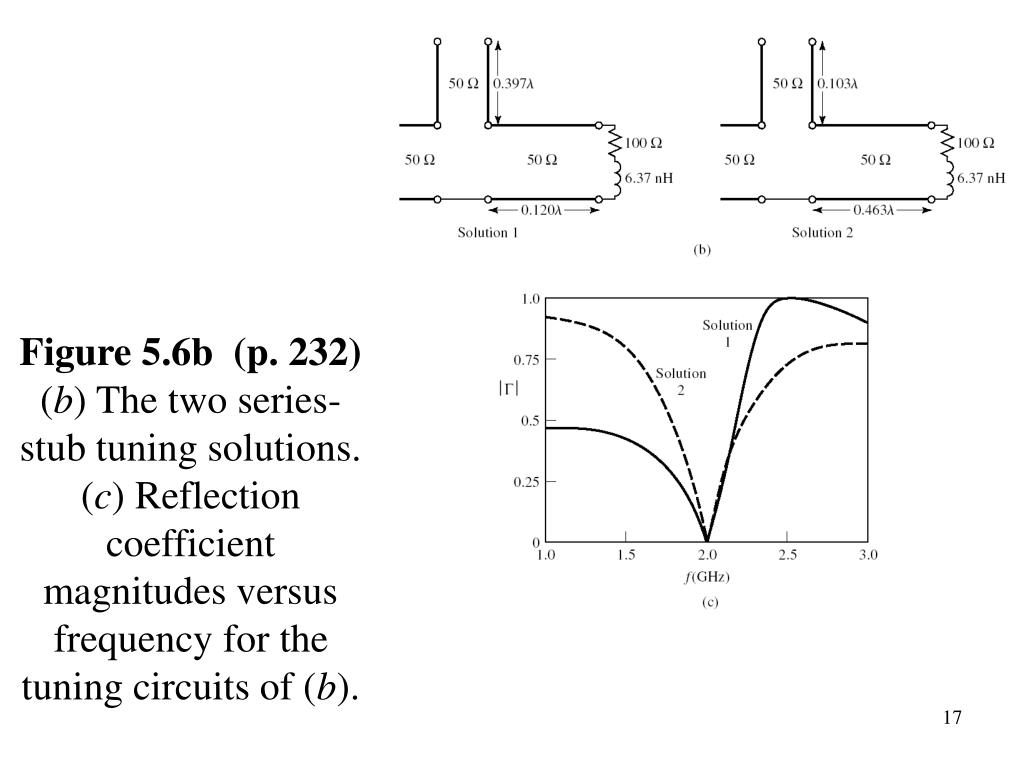

Figure 5.6b (p. 232)(b) The two series-stub tuning solutions. (c) Reflection coefficient magnitudes versus frequency for the tuning circuits of (b).

slide18

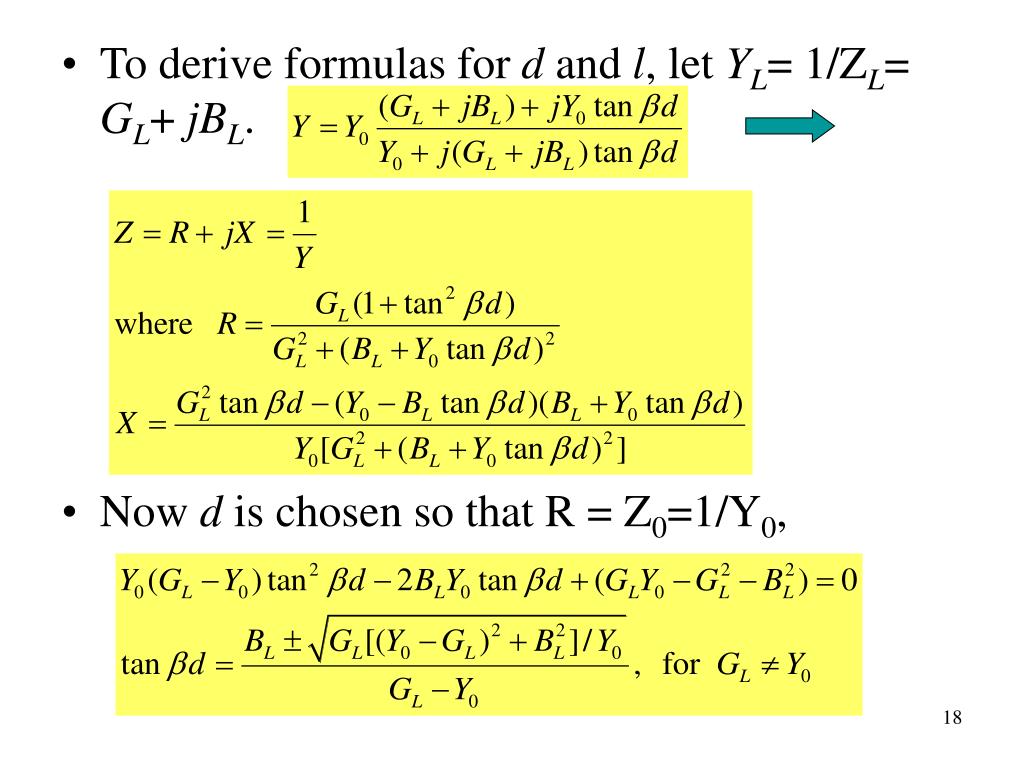

To derive formulas for d and l, let YL= 1/ZL= GL+ jBL.
  • Now d is chosen so that R = Z0=1/Y0,
slide19
If GL = Y0, then tanβd = -BL/2Y0. 2 principal solutions are
  • To find the required stub length, XS = -X.

for short stub

for open stub

5 3 double stub tuning

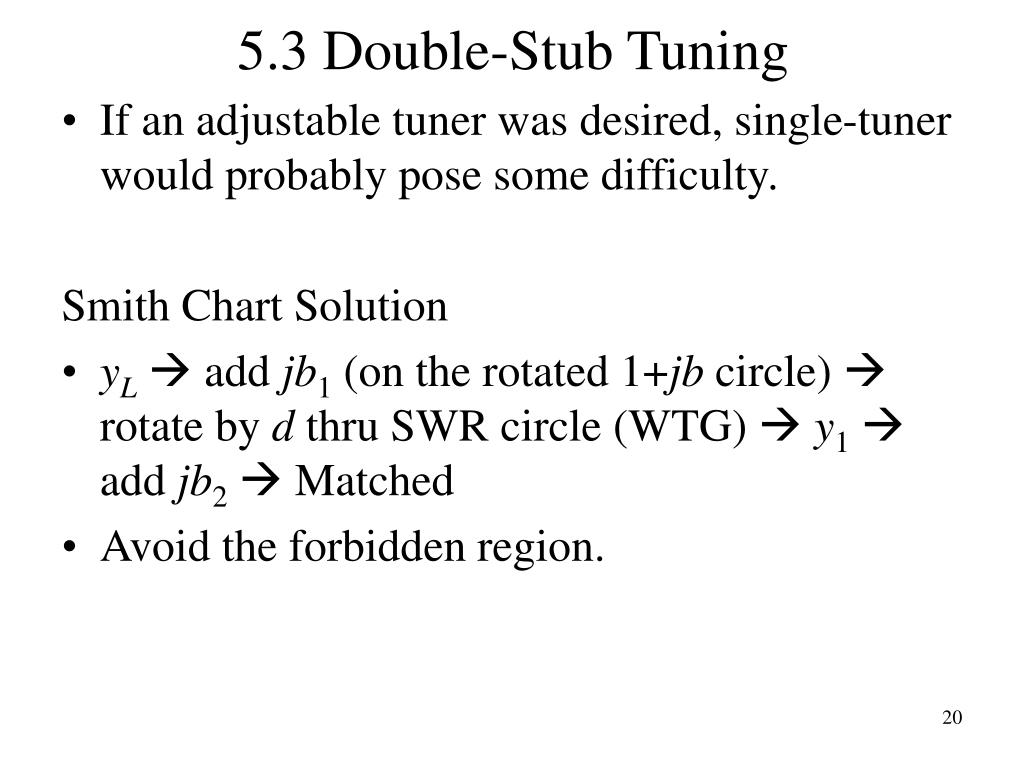

5.3 Double-Stub Tuning
  • If an adjustable tuner was desired, single-tuner would probably pose some difficulty.

Smith Chart Solution

  • yL add jb1 (on the rotated 1+jb circle)  rotate by d thru SWR circle(WTG)  y1  add jb2  Matched
  • Avoid the forbidden region.
slide21

Figure 5.7 (p. 236)Double-stub tuning. (a) Original circuit with the load an arbitrary distance from the first stub. (b) Equivalent-circuit with load at the first stub.

figure 5 9a p 238 solution to example 5 4 a smith chart for the double stub tuners
Figure 5.9a (p. 238)Solution to Example 5.4. (a) Smith chart for the double-stub tuners.

Ex. 5.4 ZL = 60-j80

Open stubs, d = λ/8

slide24

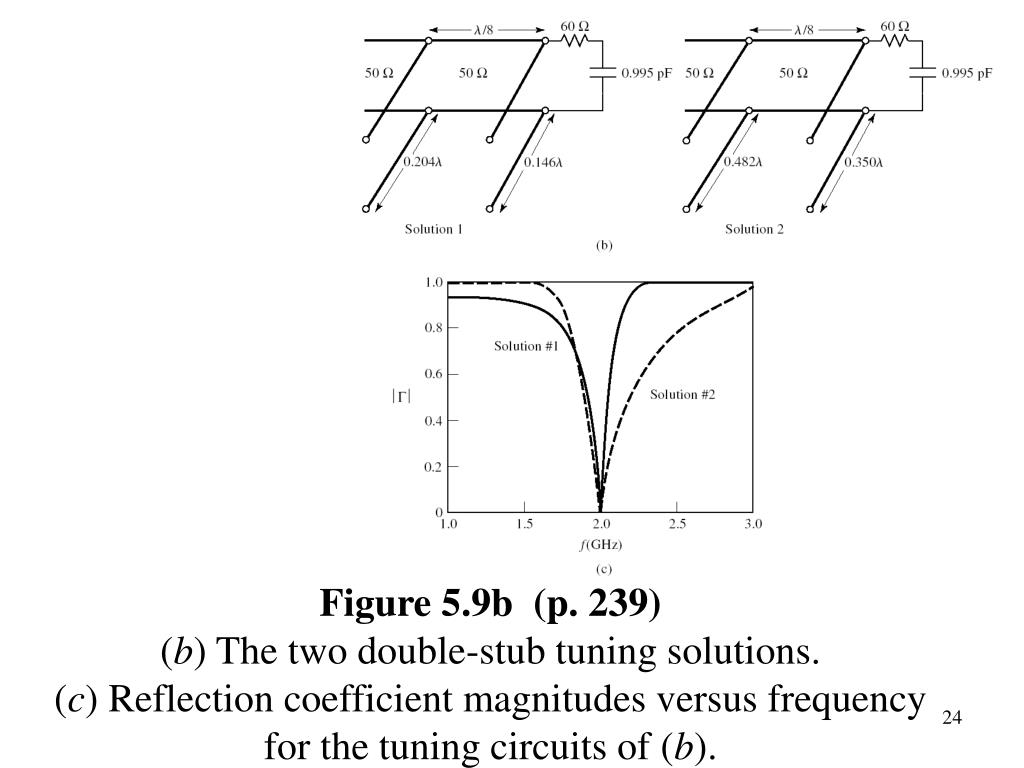

Figure 5.9b (p. 239)(b) The two double-stub tuning solutions. (c) Reflection coefficient magnitudes versus frequency for the tuning circuits of (b).

analytic solution25

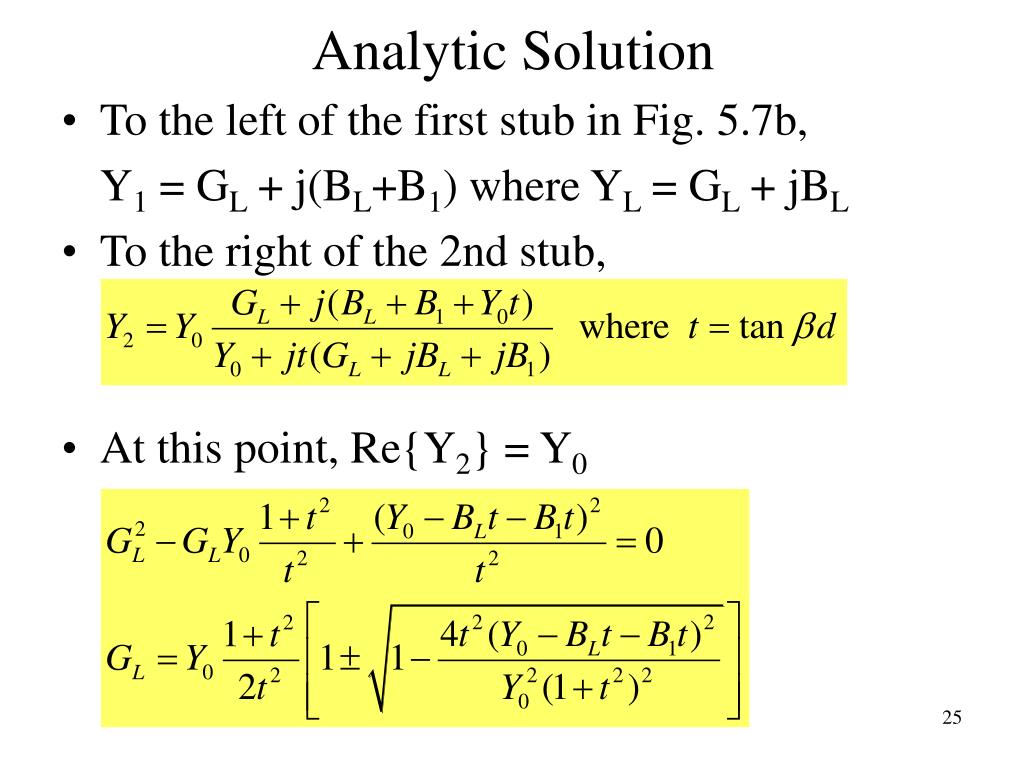

Analytic Solution
  • To the left of the first stub in Fig. 5.7b,

Y1 = GL + j(BL+B1) where YL = GL + jBL

  • To the right of the 2nd stub,
  • At this point, Re{Y2} = Y0
slide26

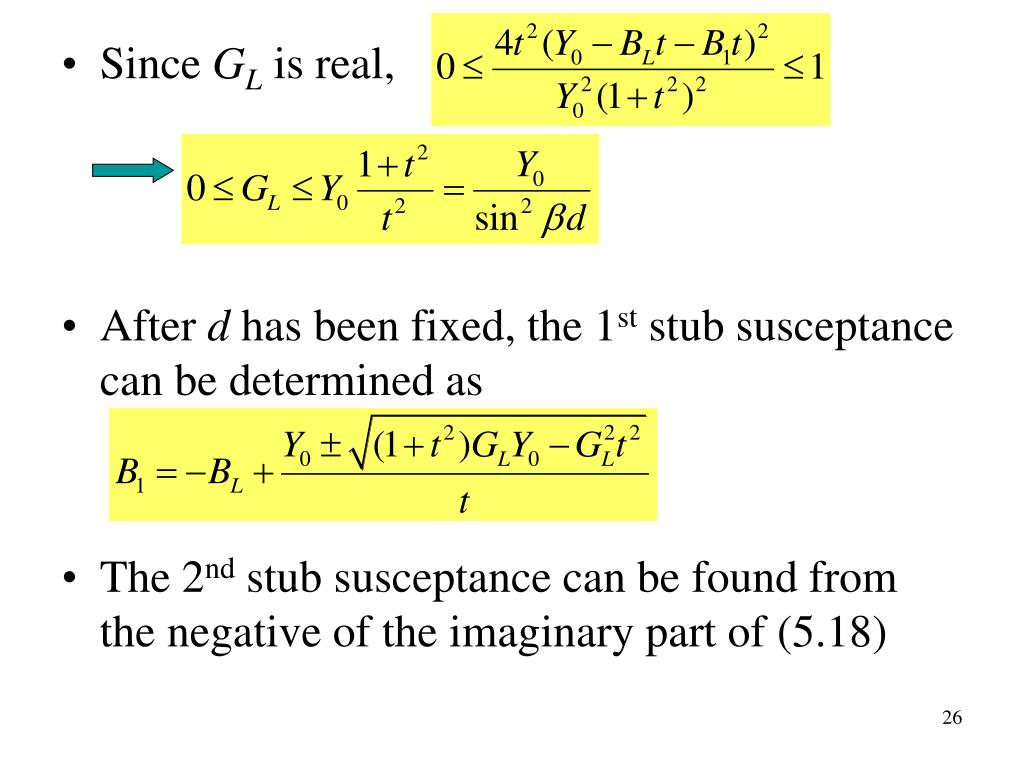

Since GL is real,
  • After d has been fixed, the 1st stub susceptance can be determined as
  • The 2nd stub susceptance can be found from the negative of the imaginary part of (5.18)
slide27
B2 =
  • The open-circuited stub length is
  • The short-circuited stub length is
5 4 the quarter wave transformer

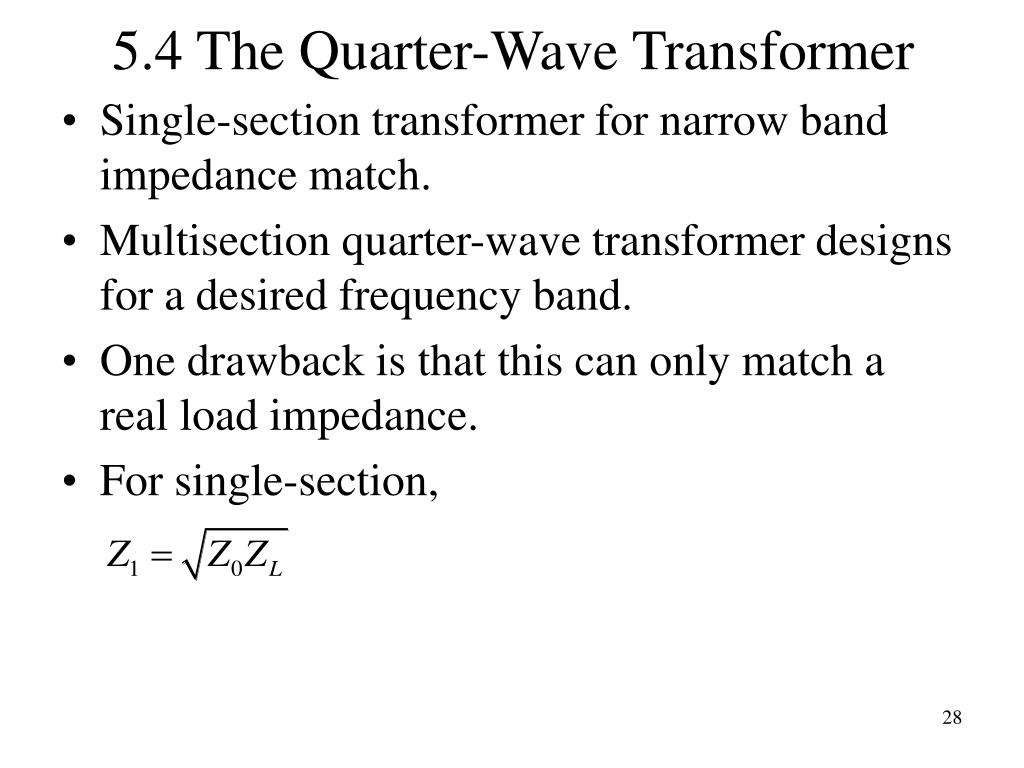

5.4 The Quarter-Wave Transformer
  • Single-section transformer for narrow band impedance match.
  • Multisection quarter-wave transformer designs for a desired frequency band.
  • One drawback is that this can only match a real load impedance.
  • For single-section,
figure 5 10 p 241 a single section quarter wave matching transformer at the design frequency f 0
Figure 5.10 (p. 241)A single-section quarter-wave matching transformer. at the design frequency f0.
slide30

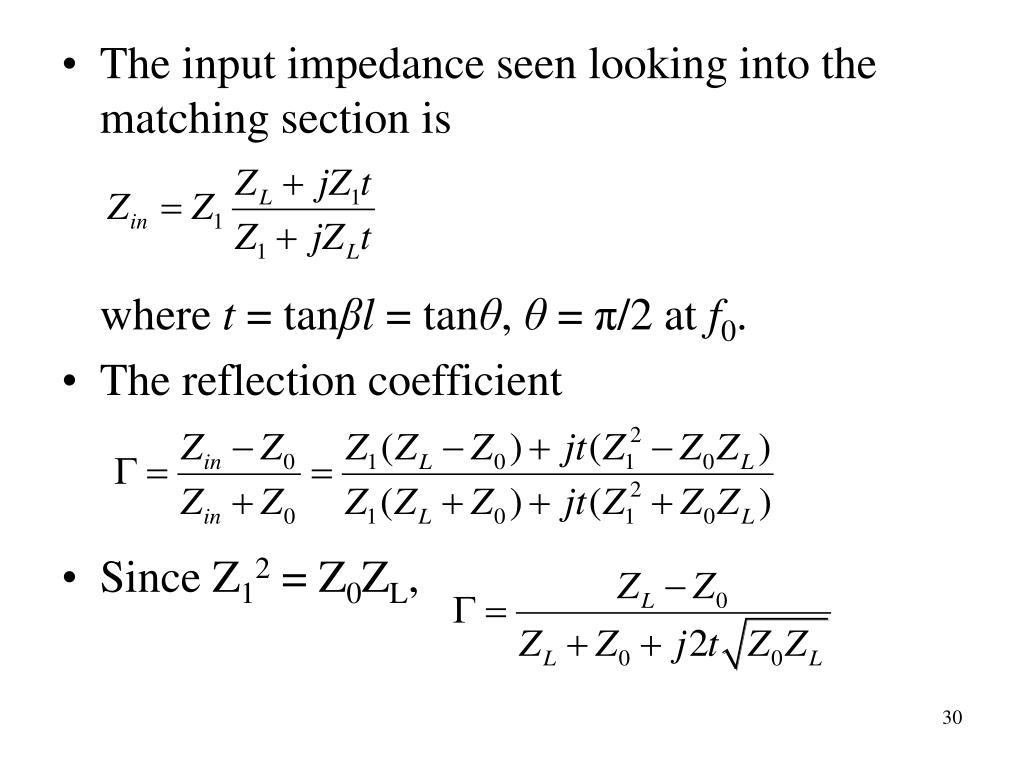

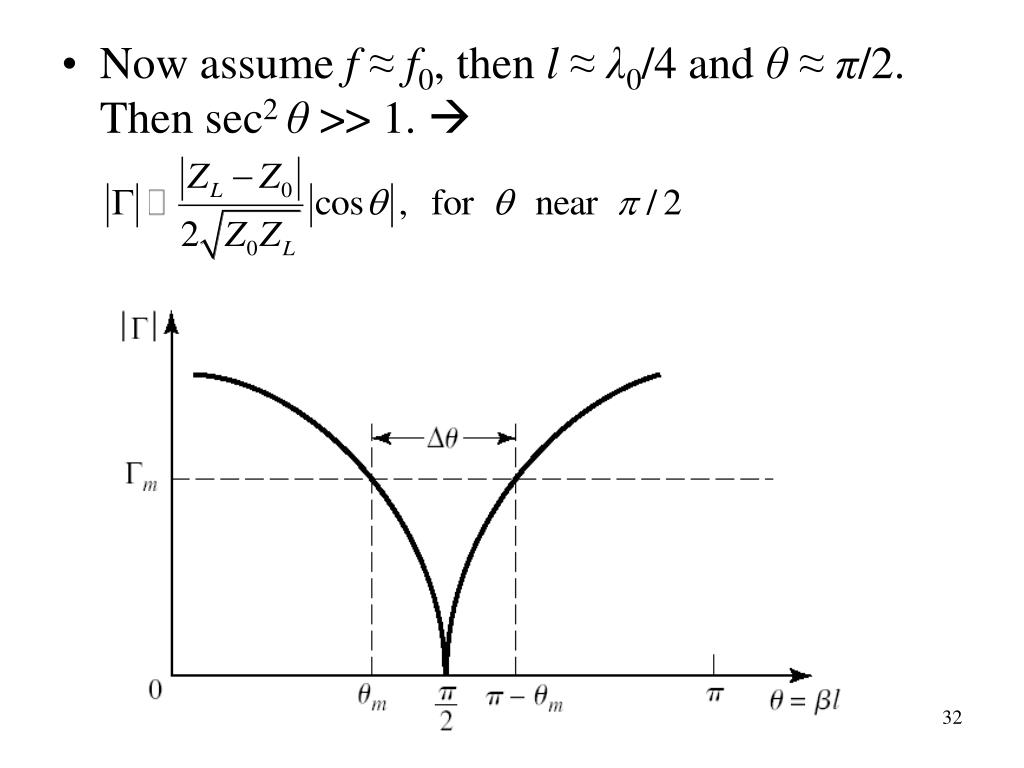

The input impedance seen looking into the matching section is

where t = tanβl = tanθ, θ = π/2 at f0.

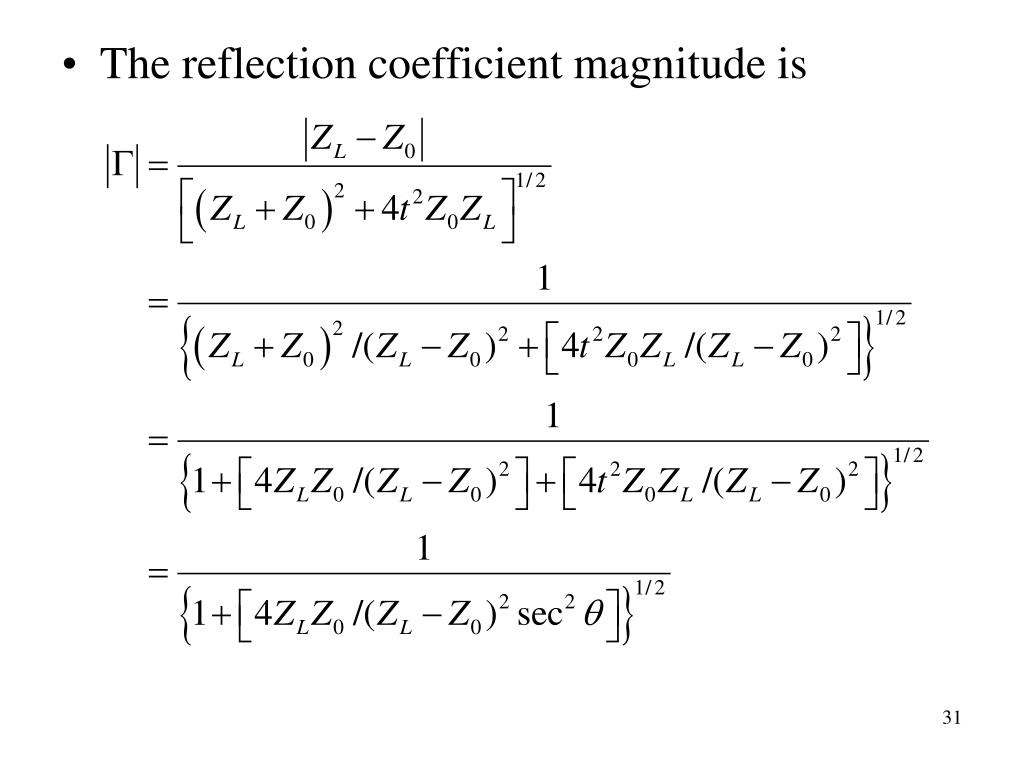

  • The reflection coefficient
  • Since Z12 = Z0ZL,
slide34

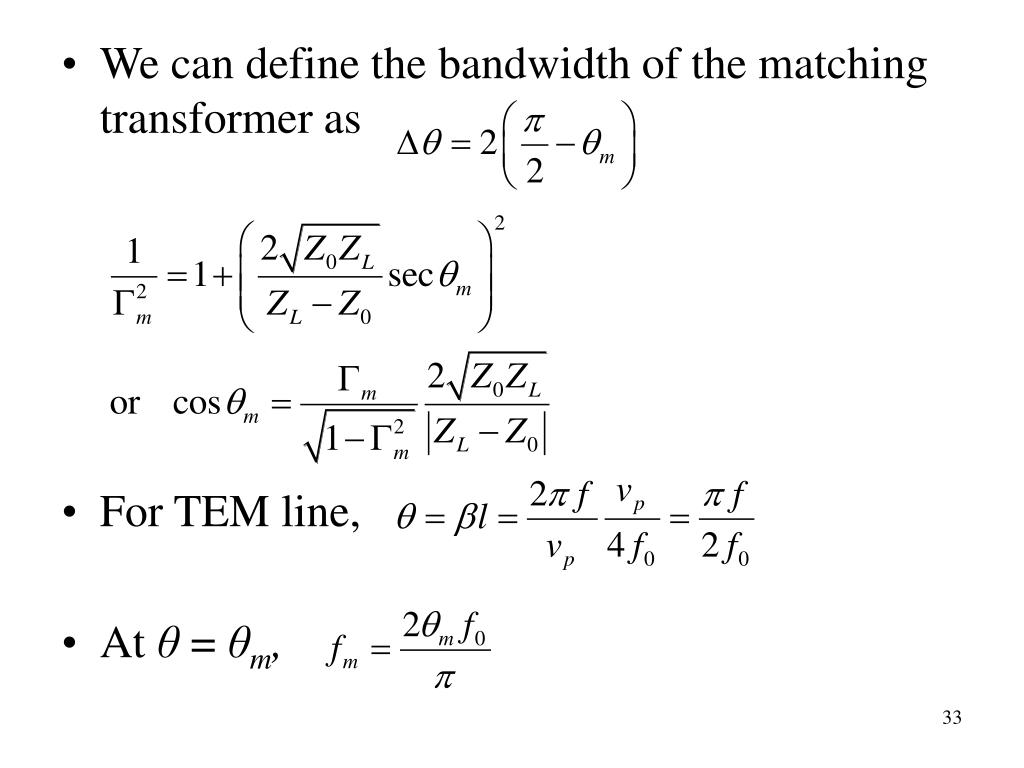

The fractional bandwidth is
  • Ex. 5.5 Quarter-Wave Transformer Bandwidth

ZL = 10, Z0 = 50, f0= 3 GHz, SWR ≤ 1.5

slide35

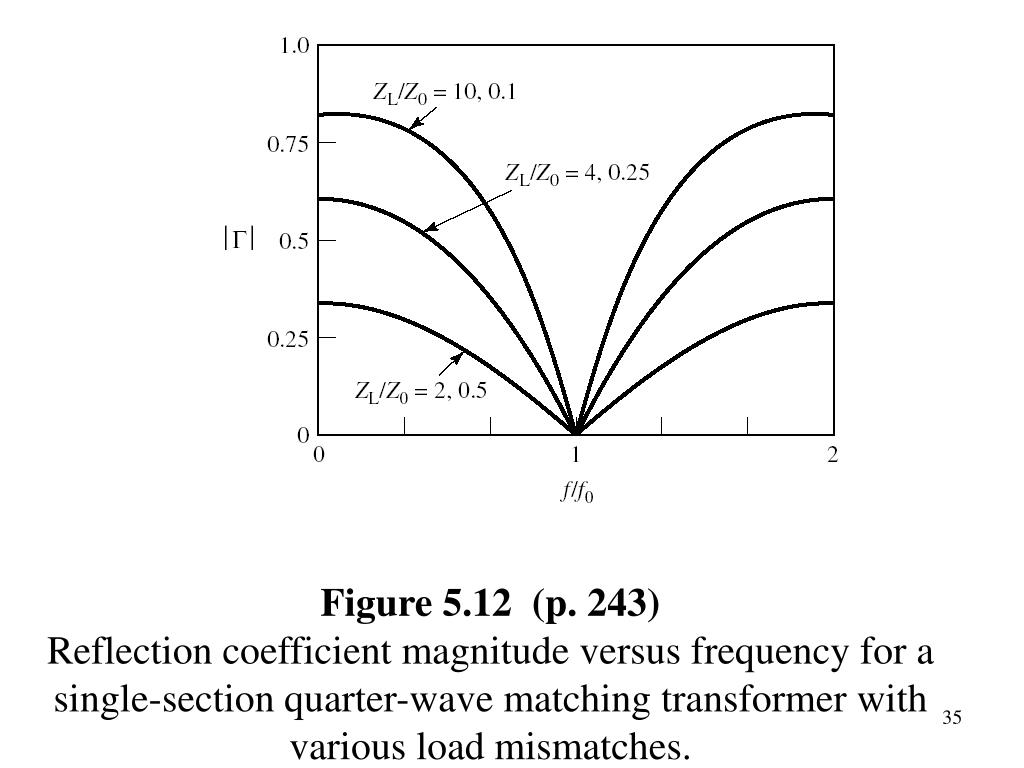

Figure 5.12 (p. 243)Reflection coefficient magnitude versus frequency for a single-section quarter-wave matching transformer with various load mismatches.

5 5 the theory of small reflection

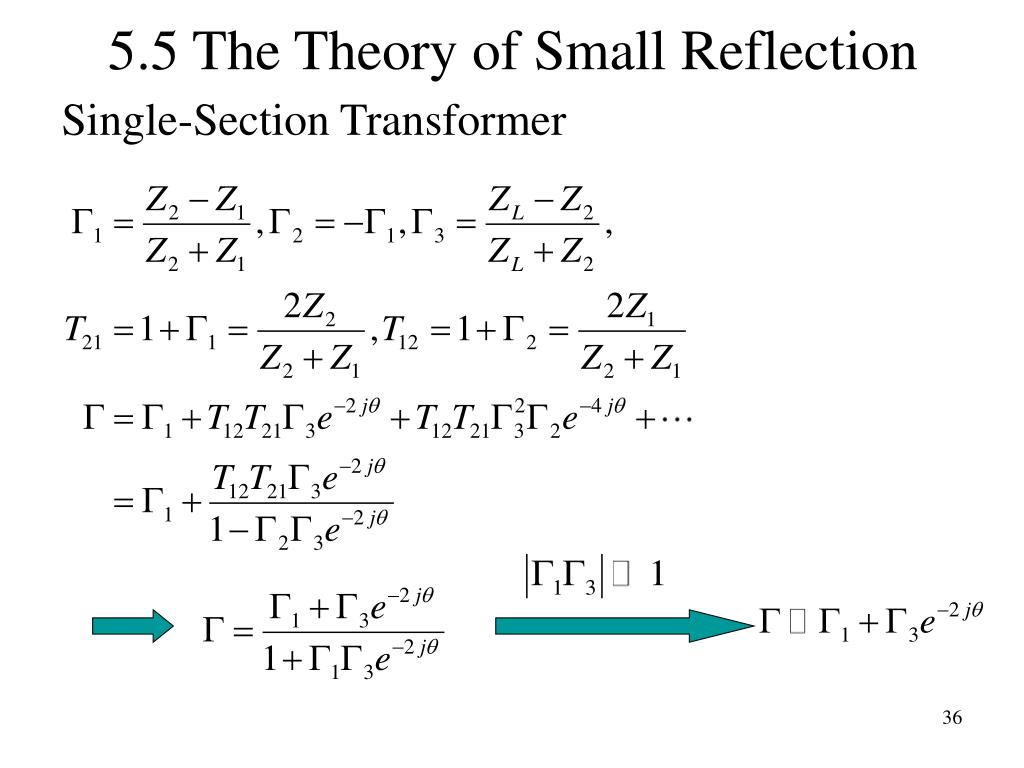

5.5 The Theory of Small Reflection

Single-Section Transformer

figure 5 13 p 244 partial reflections and transmissions on a single section matching transformer
Figure 5.13 (p. 244)Partial reflections and transmissions on a single-section matching transformer.
multisection transformer

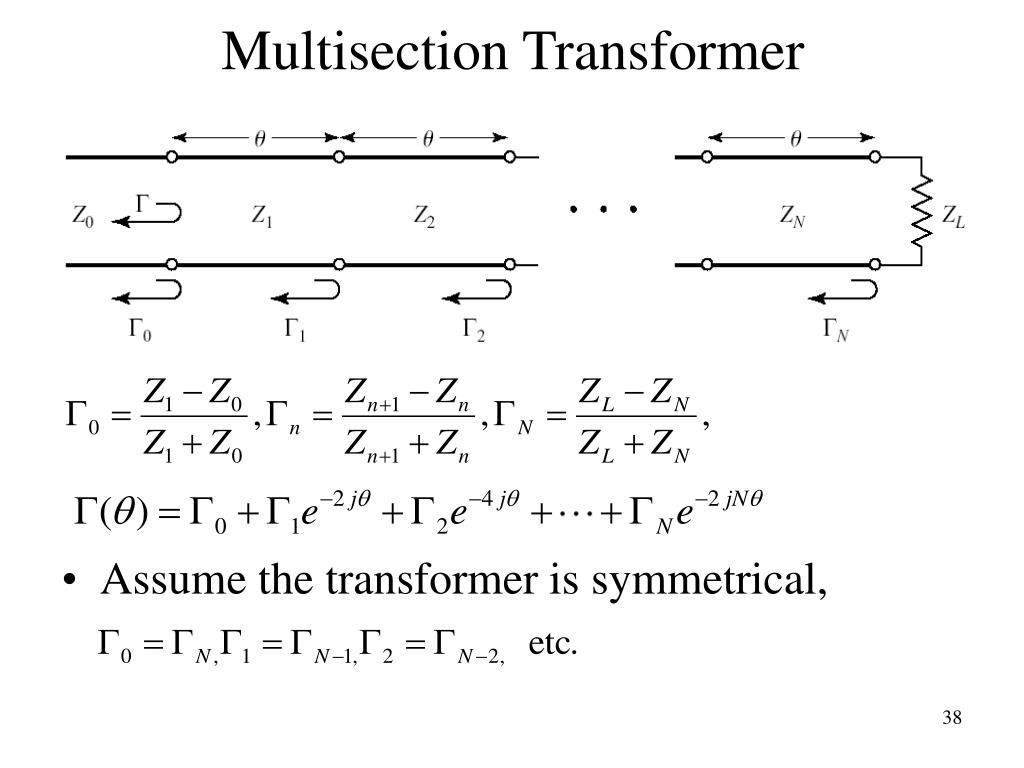

Multisection Transformer

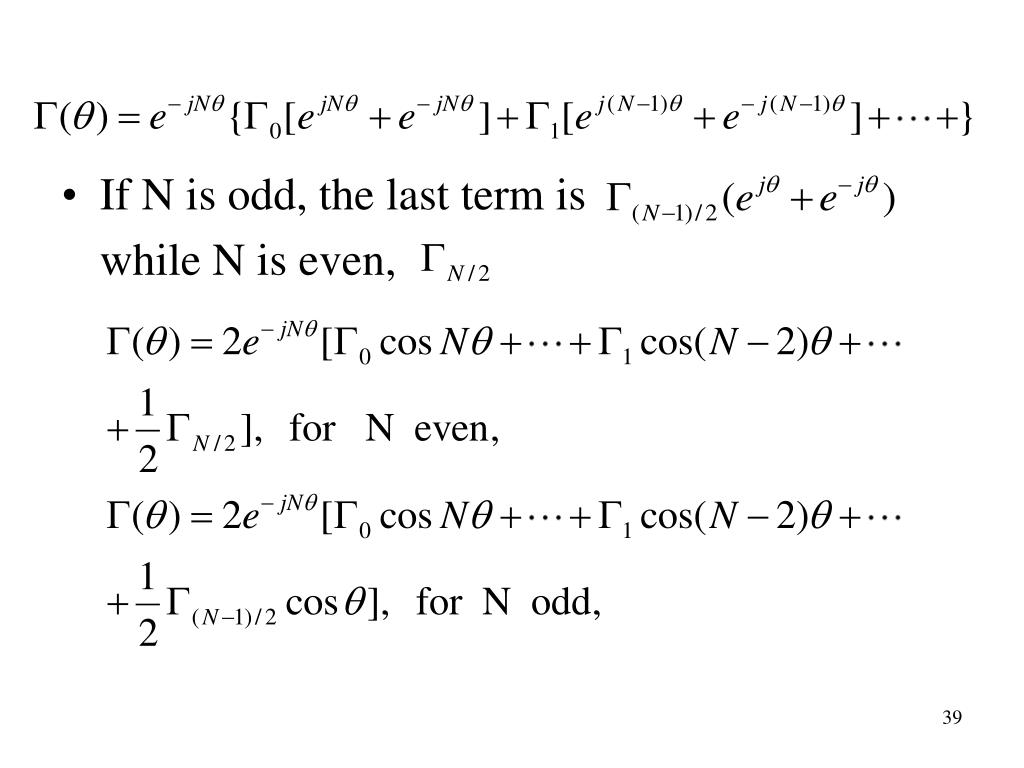

  • Assume the transformer is symmetrical,
5 6 binomial multisection matching transformer

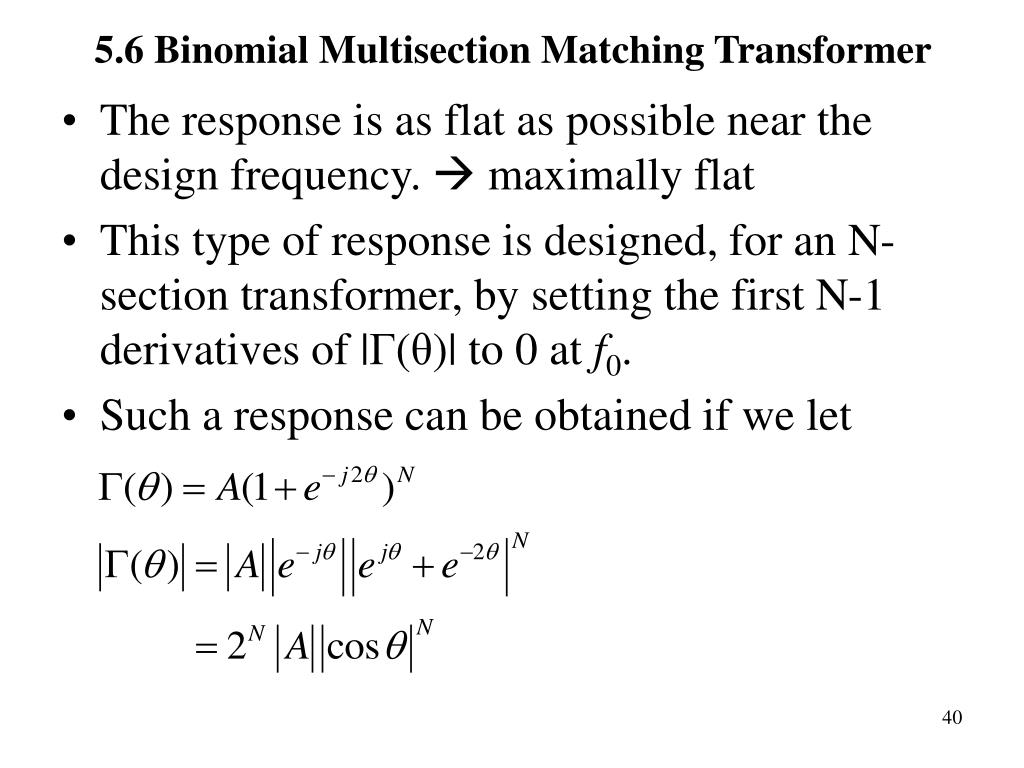

5.6 Binomial Multisection Matching Transformer
  • The response is as flat as possible near the design frequency.  maximally flat
  • This type of response is designed, for an N-section transformer, by setting the first N-1 derivatives of |Γ(θ)| to 0 at f0.
  • Such a response can be obtained if we let
slide41
Note that |Γ(θ)| = 0 for θ=π/2, (dn |Γ(θ)|/dθn ) = 0 at θ=π/2 for n = 1, 2, …, N-1.
  • By letting f  0,
slide42

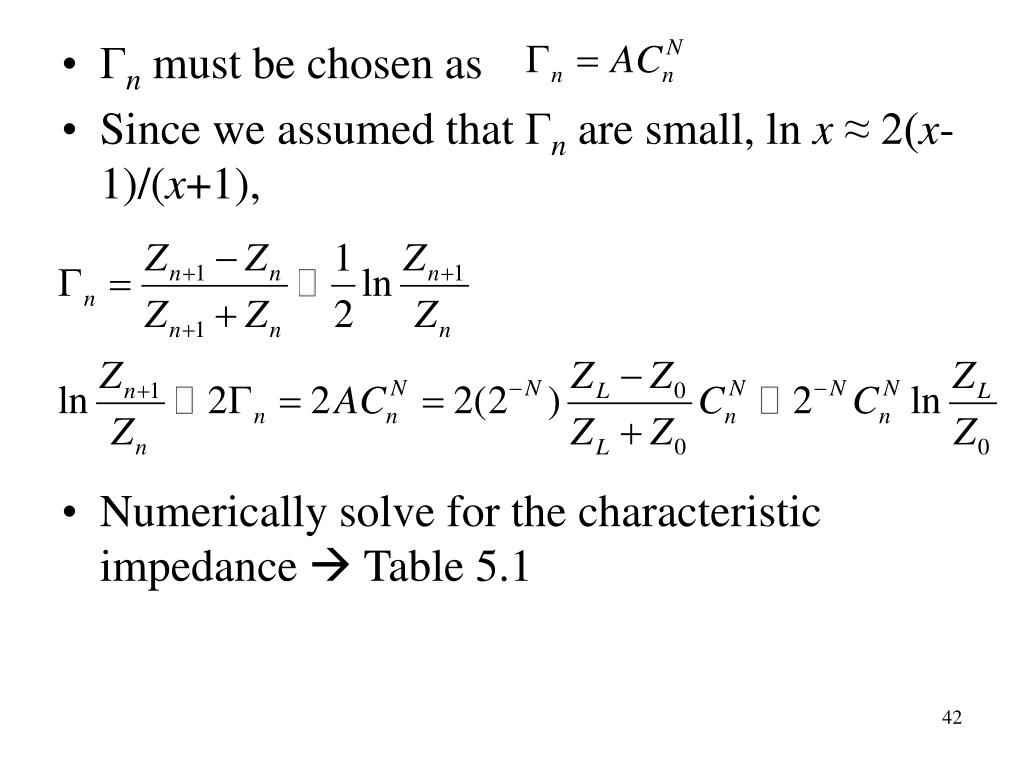

Γn must be chosen as
  • Since we assumed that Γn are small, ln x ≈ 2(x-1)/(x+1),
  • Numerically solve for the characteristic impedance  Table 5.1
slide43

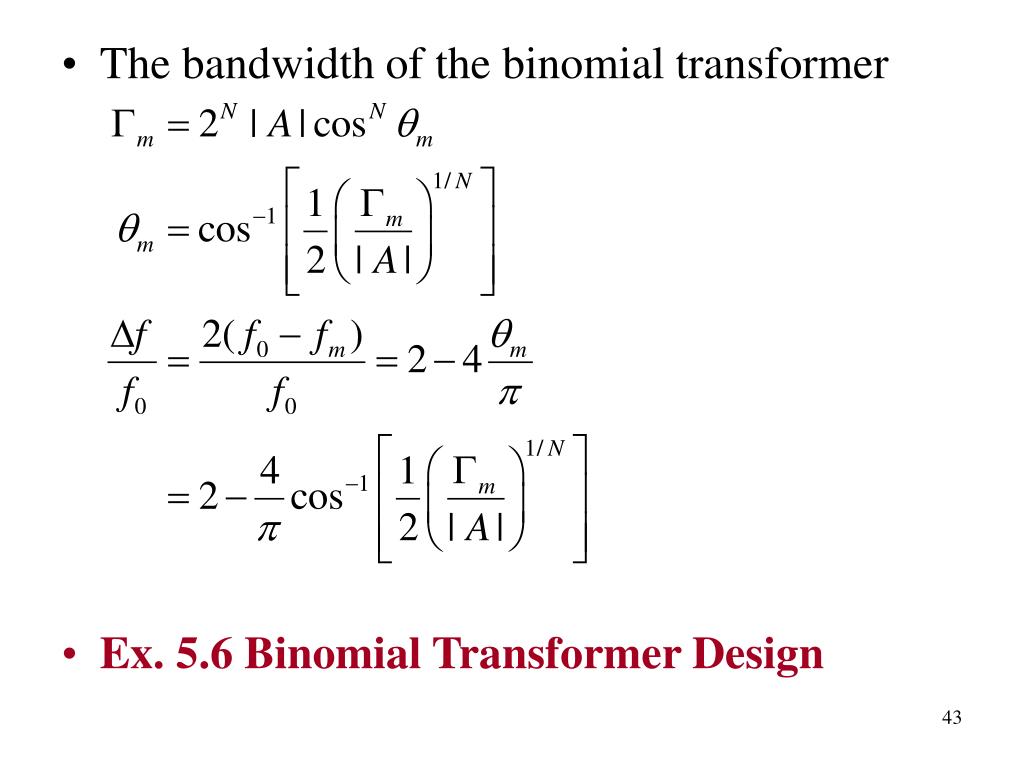

The bandwidth of the binomial transformer
  • Ex. 5.6 Binomial Transformer Design
slide44

Figure 5.15 (p. 250)Reflection coefficient magnitude versus frequency for multisection binomial matching transformers of Example 5.6 ZL = 50Ω and Z0 = 100Ω.

5 7 chebyshev multisection matching transformer
5.7 Chebyshev Multisection Matching Transformer

Chebyshev Polynomial

  • The first 4 polynomials are
  • Higher-order polynomials can be found using
slide47

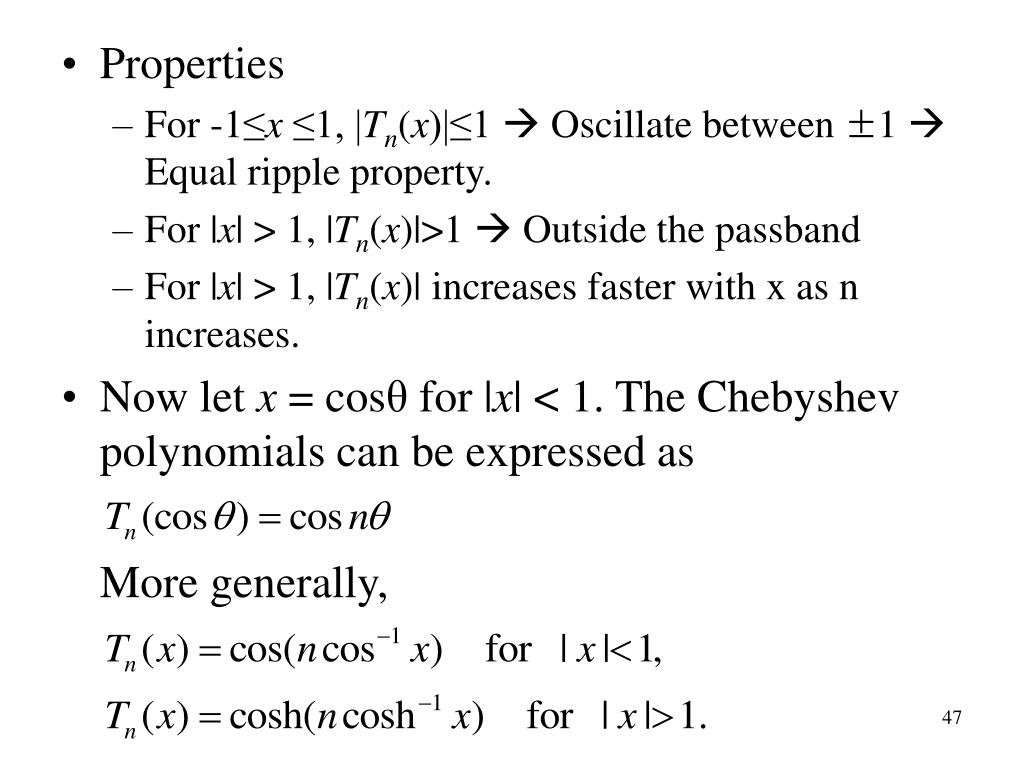

Properties
    • For -1≤x ≤1, |Tn(x)|≤1  Oscillate between ±1  Equal ripple property.
    • For |x| > 1, |Tn(x)|>1  Outside the passband
    • For |x| > 1, |Tn(x)| increases faster with x as n increases.

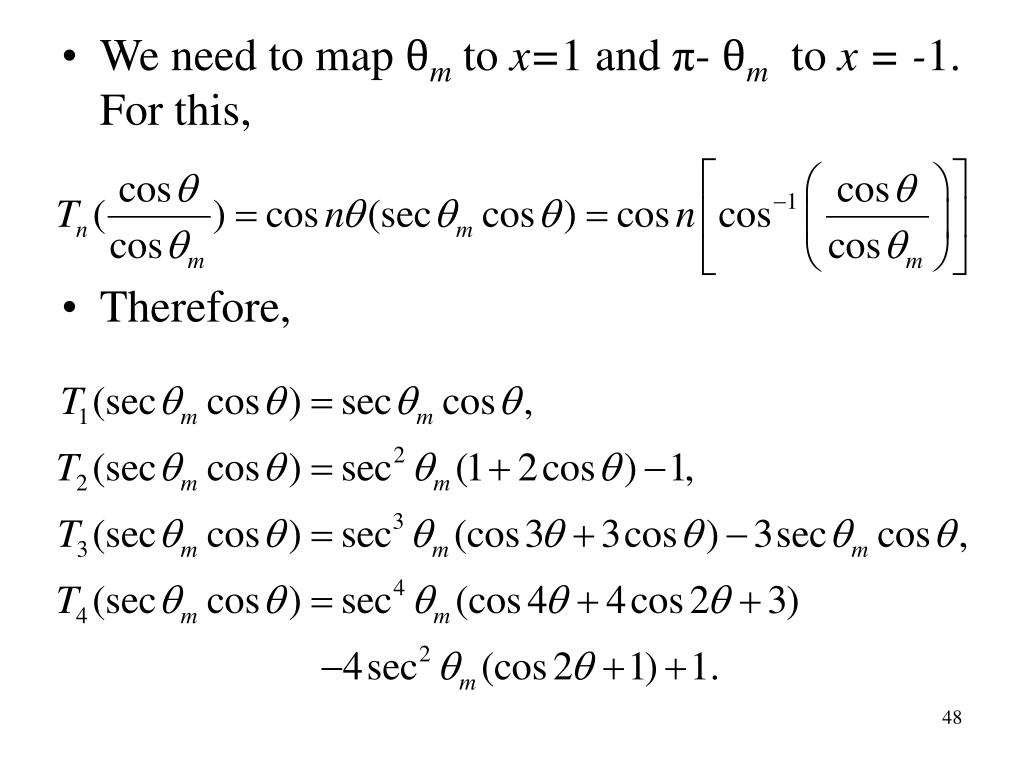

  • Now let x = cosθ for |x| < 1. The Chebyshev polynomials can be expressed as

More generally,

design of chebyshev transformers

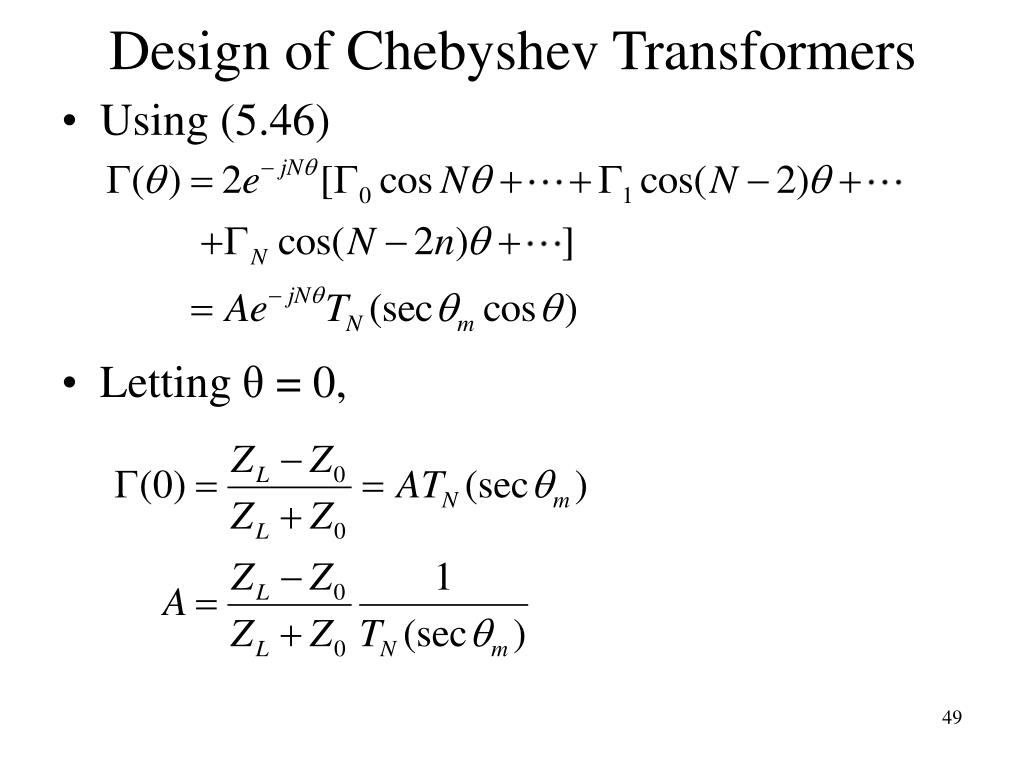

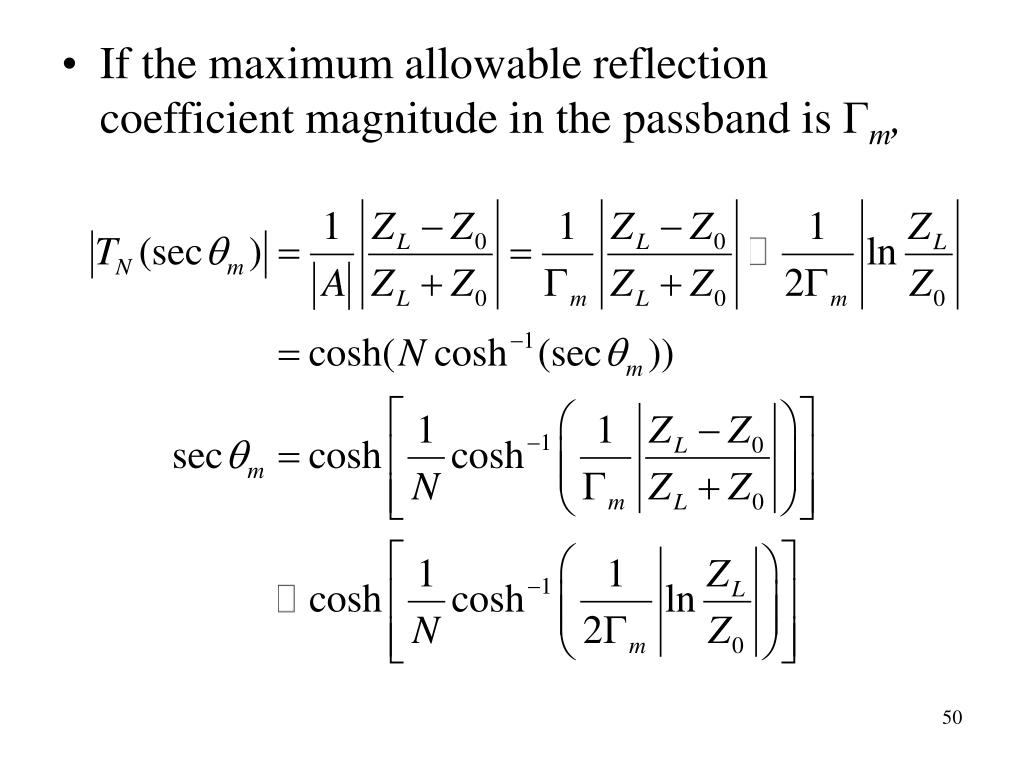

Design of Chebyshev Transformers
  • Using (5.46)
  • Letting θ = 0,
slide51
Once θm is known,

Ex 5.7 Chebyshev Transformer Design

Γm = 0.05, Z0 = 50, ZL = 100

Use Table 5.2

slide52
Figure 5.17 (p. 255)Reflection coefficient magnitude versus frequency for the multisection matching transformers of Example 5.7.
slide53

Figure 5.18 (p. 256)A tapered transmission line matching section and the model for an incremental length of tapered line. (a) The tapered transmission line matching section. (b) Model for an incremental step change in impedance of the tapered line.

slide54

Figure 5.19 (p. 257)A matching section with an exponential impedance taper. (a) Variation of impedance. (b) Resulting reflection coefficient magnitude response.

slide55

Figure 5.20 (p. 258)A matching section with a triangular taper for d(In Z/Z0/dz. (a) Variation of impedance. (b) Resulting reflection coefficient magnitude response.

slide56

Figure 5.21 (p. 260)Solution to Example 5.8. (a) Impedance variations for the triangular, exponential, and Klopfenstein tapers. (b) Resulting reflection coefficient magnitude versus frequency for the tapers of (a).

slide57

Figure 5.22 (p. 262)The Bode-Fano limits for RC and RL loads matched with passive and lossless networks (ω0 is the center frequency of the matching bandwidth). (a) Parallel RC. (b) Series RC. (c) Parallel RL. (d) Series RL.

slide58

Figure 5.23 (p. 263)Illustrating the Bode-Fano criterion. (a) A possible reflection coefficient response. (b) Nonrealizable and realizable reflection coefficient responses.
