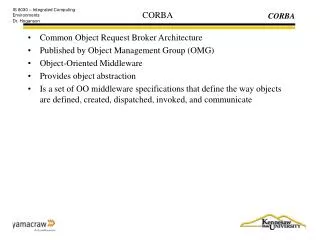

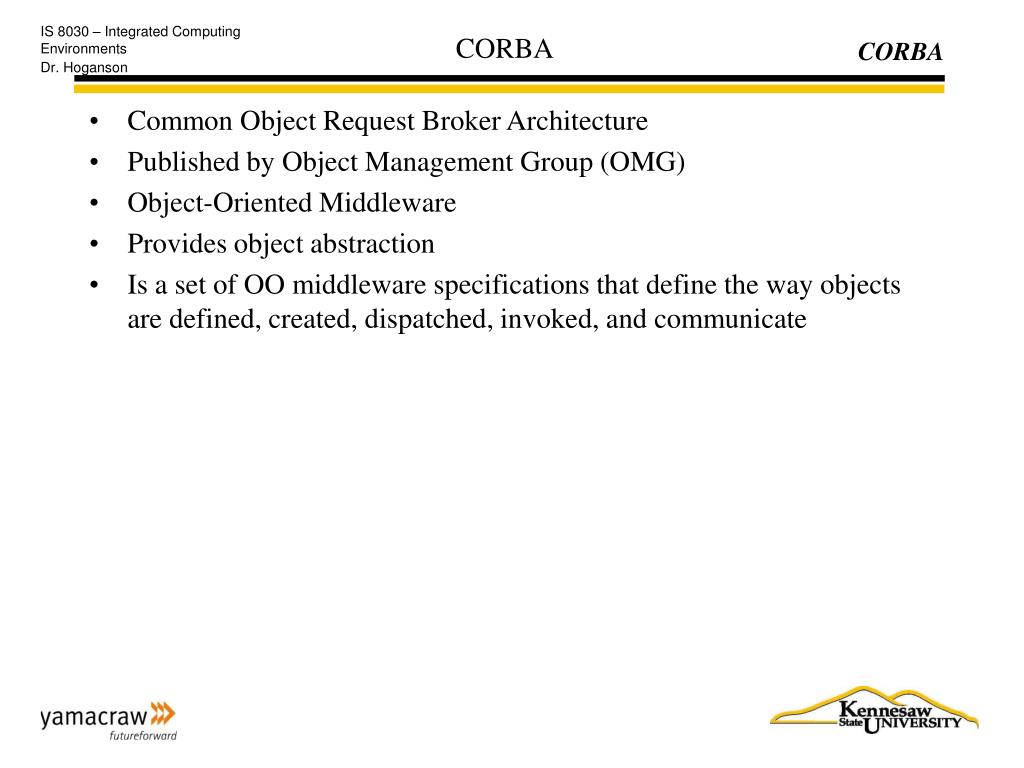

  1. CORBA • Common Object Request Broker Architecture • Published by Object Management Group (OMG) • Object-Oriented Middleware • Provides object abstraction • Is a set of OO middleware specifications that define the way objects are defined, created, dispatched, invoked, and communicate

  2. CORBA components 4 service components/levels • Object services • Domain independent naming, etc. for distributed objects • Common facilities • Domain independent for end-user applications • Domain interfaces • Tailored for specific industries • Application interfaces • Specific to a given application – not standardized by OMG

  3. Object Request Broker • Object Request Broker (ORB) • Middleware – applications communicate to ORB • ORB is horizontal integration Object Repository Server Application Client Application CORBA ORB Middle-ware CORBA ORB Middle-ware NOS NOS Physical NW Layers Physical NW Layers

  4. Static Invocation Interface • SII • Objects interface does not change • Client gets a stub interface • Server gets a skeleton interface • Actual code is located in the object repository • Note that code could change, but object interface is fixed • Works like RPC • Code is fetched from repository at run time

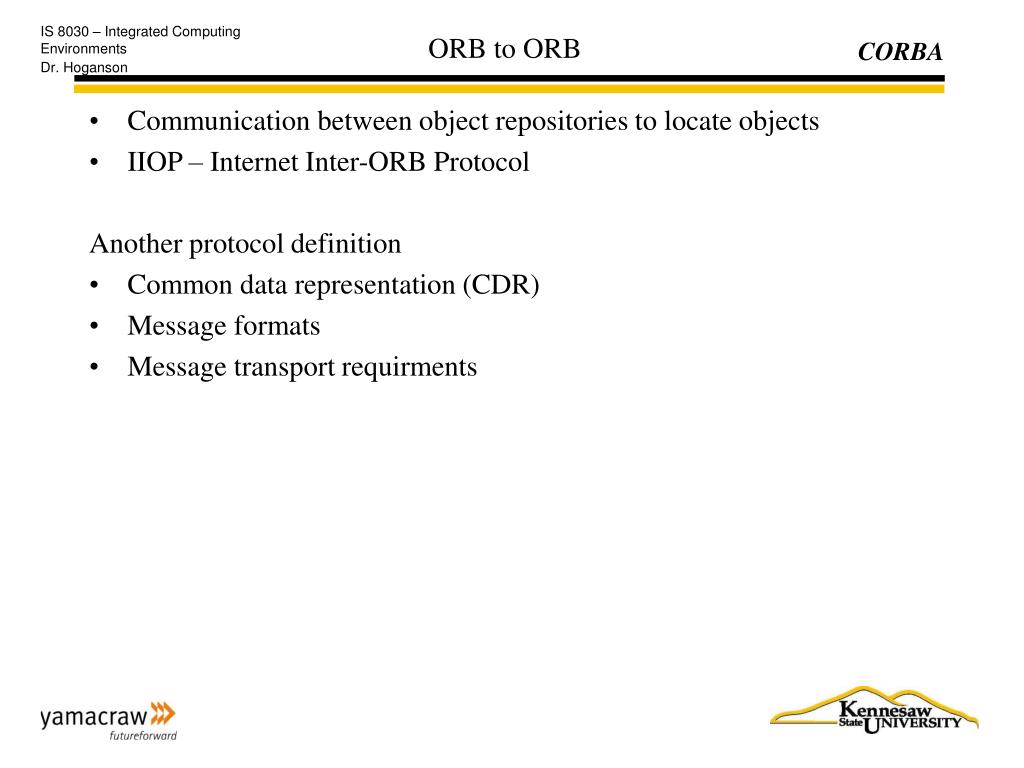

  5. ORB to ORB • Communication between object repositories to locate objects • IIOP – Internet Inter-ORB Protocol Another protocol definition • Common data representation (CDR) • Message formats • Message transport requirments

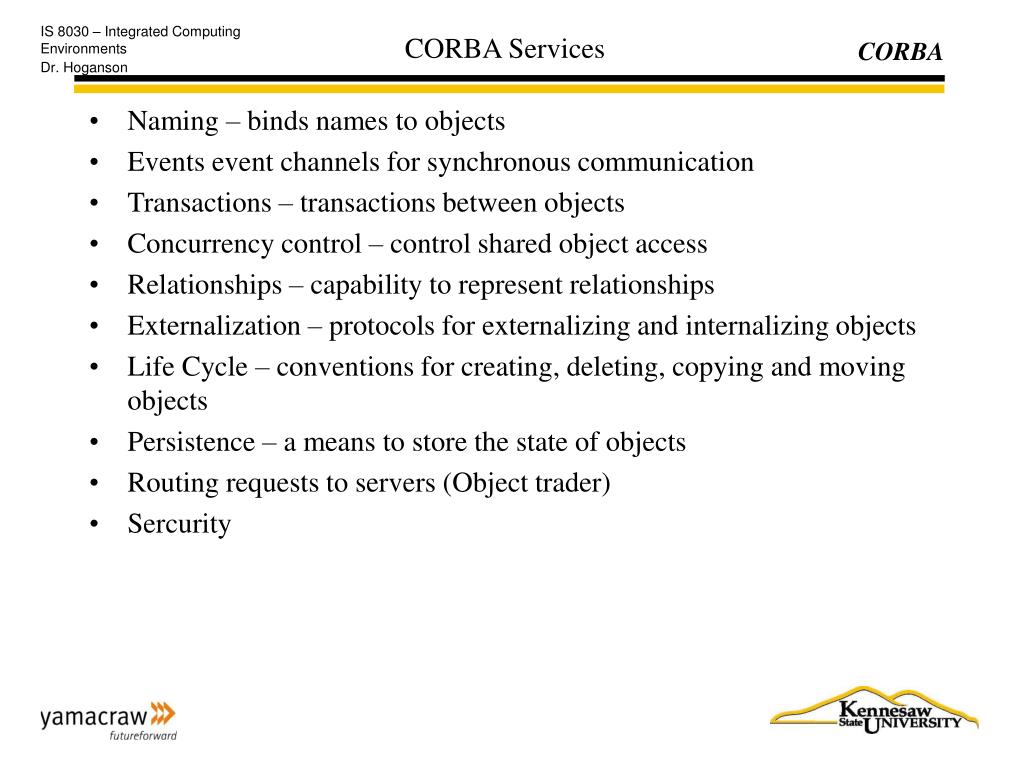

  6. CORBA Services • Naming – binds names to objects • Events event channels for synchronous communication • Transactions – transactions between objects • Concurrency control – control shared object access • Relationships – capability to represent relationships • Externalization – protocols for externalizing and internalizing objects • Life Cycle – conventions for creating, deleting, copying and moving objects • Persistence – a means to store the state of objects • Routing requests to servers (Object trader) • Sercurity
