slide1

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

Worldwide Leader in Rotary Positive Displacement Pumping Technology, Serving Industrial, OEM and Sanitary Applications

slide2

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

Rotary Positive Displacement Pumps:

Product

Overview

  • Internal Gear Pumps

Custom

Solutions

Corporate

Structure

  • External Gear Pumps

Global

Support

  • Timed Lobe Pumps

Manufac-

turing

  • Vane Pumps

Certifi-

cations

Pump accessories:

History

  • Gear Reducers
  • Strainers
  • Controllers

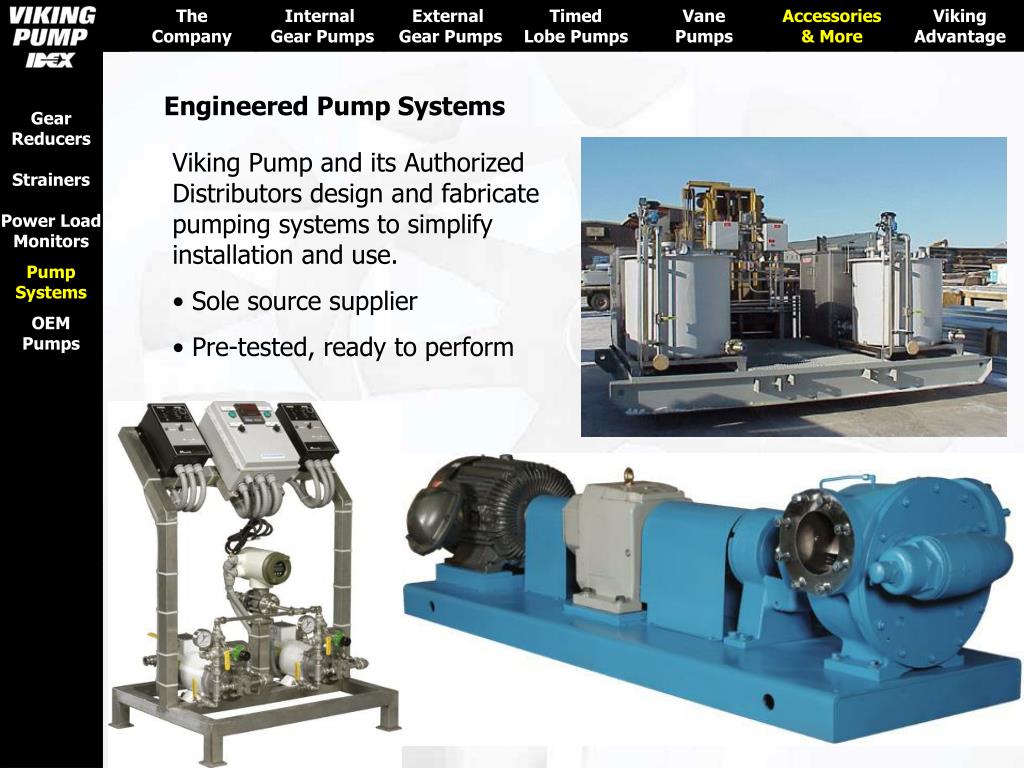

Engineered Pump Systems

Custom OEM Pumps

slide3

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

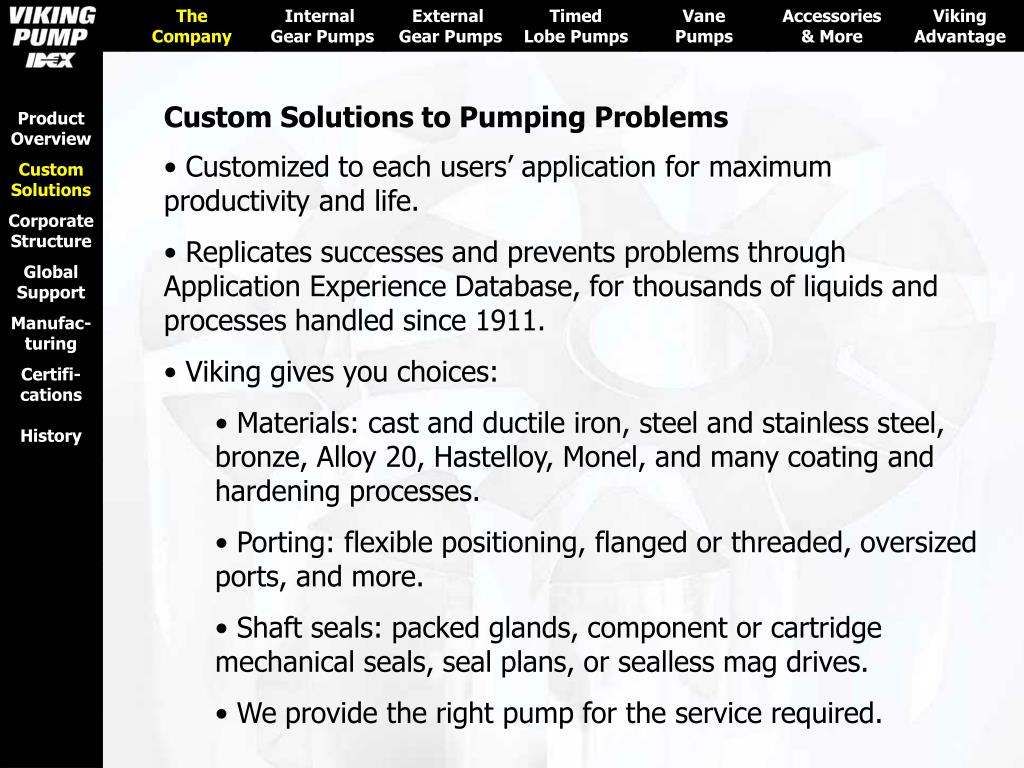

Custom Solutions to Pumping Problems

Product

Overview

  • Customized to each users’ application for maximum productivity and life.
  • Replicates successes and prevents problems through Application Experience Database, for thousands of liquids and processes handled since 1911.
  • Viking gives you choices:
    • Materials: cast and ductile iron, steel and stainless steel, bronze, Alloy 20, Hastelloy, Monel, and many coating and hardening processes.
    • Porting: flexible positioning, flanged or threaded, oversized ports, and more.
    • Shaft seals: packed glands, component or cartridge mechanical seals, seal plans, or sealless mag drives.
    • We provide the right pump for the service required.

Custom

Solutions

Corporate

Structure

Global

Support

Manufac-

turing

Certifi-

cations

History

slide4

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

Dispensing Equipment Fire & Safety / Diversified Products Health & Science Technologies Fluid and Metering Technologies

IDEX Corp.

Product

Overview

Custom

Solutions

Corporate

Structure

Manufacturing / North American Sales & Support

Sales & Support

Outside N. America

Global

Support

  • Pulsafeeder
    • Classic Engineering
    • Halox Technologies
    • Knight Equipment
  • AODD Group
    • Warren Rupp
    • Versa-Matic
    • Blagdon Pump
    • Pumper Parts
  • Liquid Controls
    • Sponsler
  • Viking Pump
    • Johnson Pump (UK)
    • Wright Pump
    • Viking Pump Europe
    • Viking Pump Canada

Manufac-

turing

  • Europe / Africa Pump Group (EPG)
  • Asia Pacific Pump Group (APG)
  • Latin America Pump Group (LAPG)

Certifi-

cations

History

Synergies between the IDEX companies make us all stronger!

slide5

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

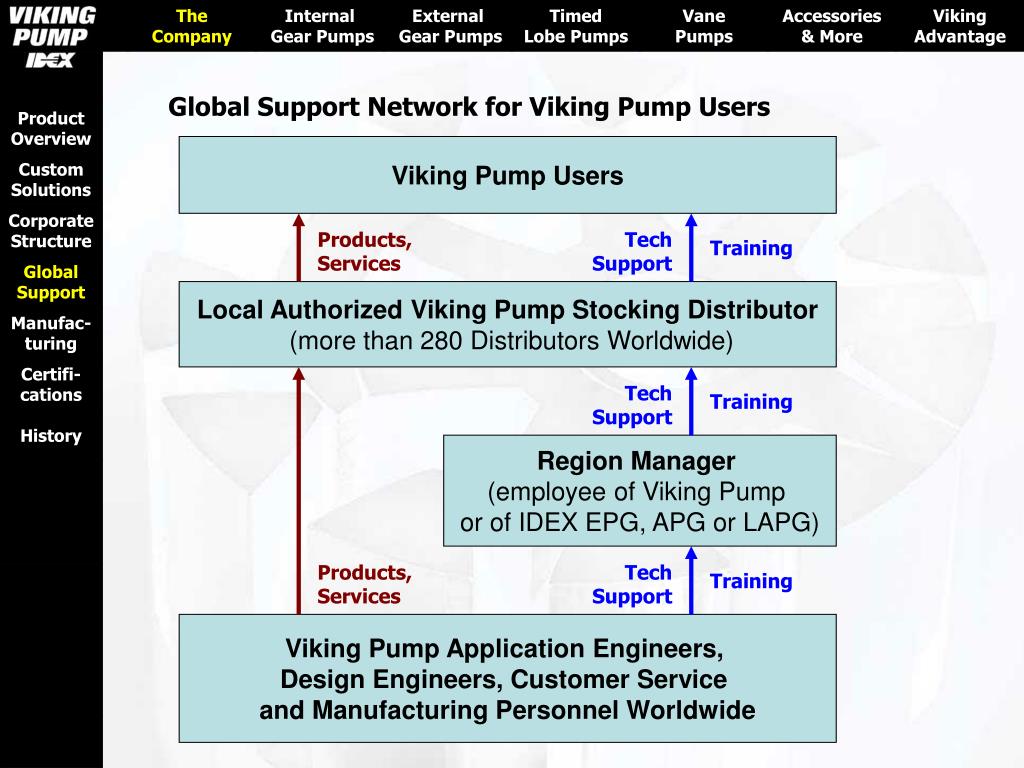

Global Support Network for Viking Pump Users

Product

Overview

Viking Pump Users

Custom

Solutions

Corporate

Structure

Products, Services

Tech Support

Training

Global

Support

Local Authorized Viking Pump Stocking Distributor

(more than 280 Distributors Worldwide)

Manufac-

turing

Certifi-

cations

Tech Support

Training

History

Region Manager

(employee of Viking Pump

or of IDEX EPG, APG or LAPG)

Products, Services

Tech Support

Training

Viking Pump Application Engineers,

Design Engineers, Customer Service

and Manufacturing Personnel Worldwide

slide6

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

Product

Overview

Custom

Solutions

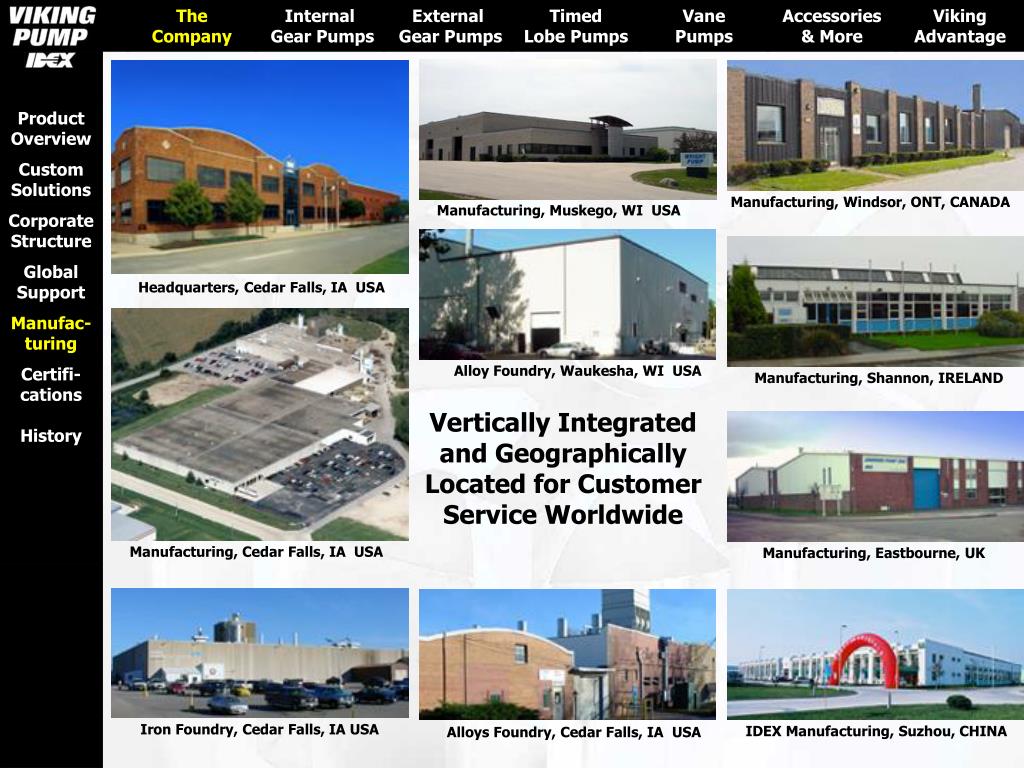

Manufacturing, Windsor, ONT, CANADA

Manufacturing, Muskego, WI USA

Corporate

Structure

Global

Support

Headquarters, Cedar Falls, IA USA

Manufac-

turing

Alloy Foundry, Waukesha, WI USA

Certifi-

cations

Manufacturing, Shannon, IRELAND

Vertically Integrated and Geographically Located for Customer Service Worldwide

History

Manufacturing, Cedar Falls, IA USA

Manufacturing, Eastbourne, UK

Iron Foundry, Cedar Falls, IA USA

IDEX Manufacturing, Suzhou, CHINA

Alloys Foundry, Cedar Falls, IA USA

slide7

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

Viking Industrial Certifications

Product

Overview

Custom

Solutions

Certified to the ISO – 9001 quality standard.

Viking uses Six Sigma and Lean Manufacturing business processes for continuous quality improvement.

UL-listed pumps for fuel oil, petroleum products and LP Gas.

Corporate

Structure

Global

Support

Manufac-

turing

Certifi-

cations

History

ATEX compliant pumps for hazardous locations.

CE marked pumps from Viking Europe.

Certified to ISO-14001 environmental management system standard.

slide8

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

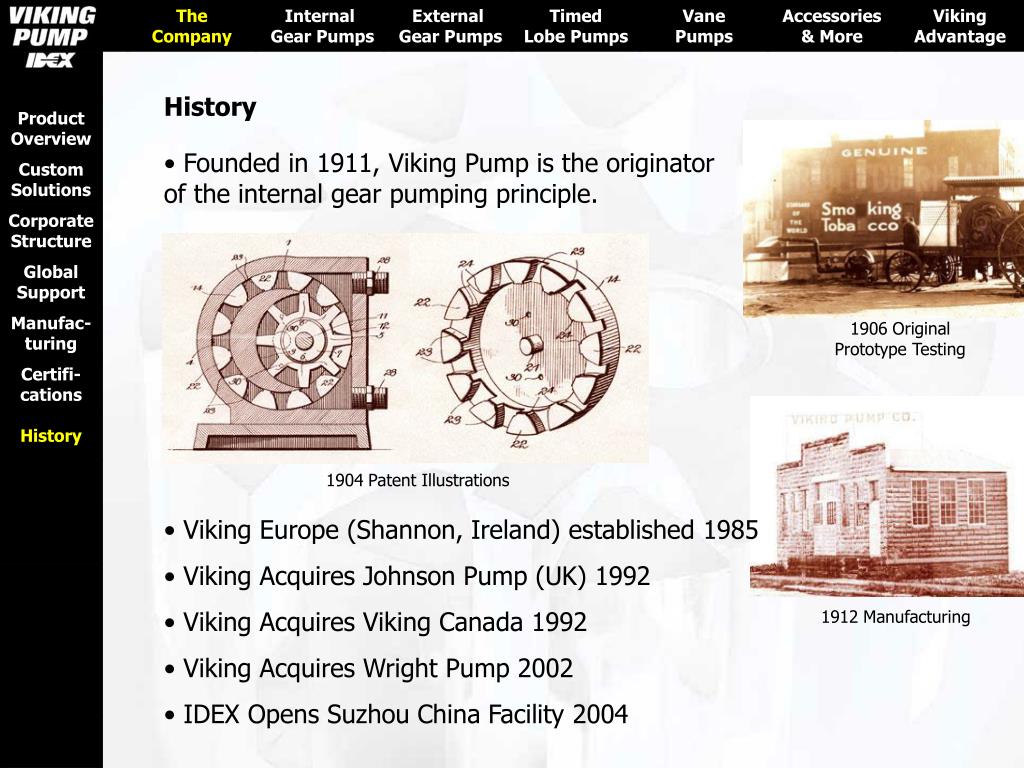

History

Product

Overview

  • Founded in 1911, Viking Pump is the originator of the internal gear pumping principle.

Custom

Solutions

Corporate

Structure

Global

Support

Manufac-

turing

1906 Original Prototype Testing

Certifi-

cations

History

1904 Patent Illustrations

  • Viking Europe (Shannon, Ireland) established 1985
  • Viking Acquires Johnson Pump (UK) 1992
  • Viking Acquires Viking Canada 1992
  • Viking Acquires Wright Pump 2002
  • IDEX Opens Suzhou China Facility 2004

1912 Manufacturing

slide9

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

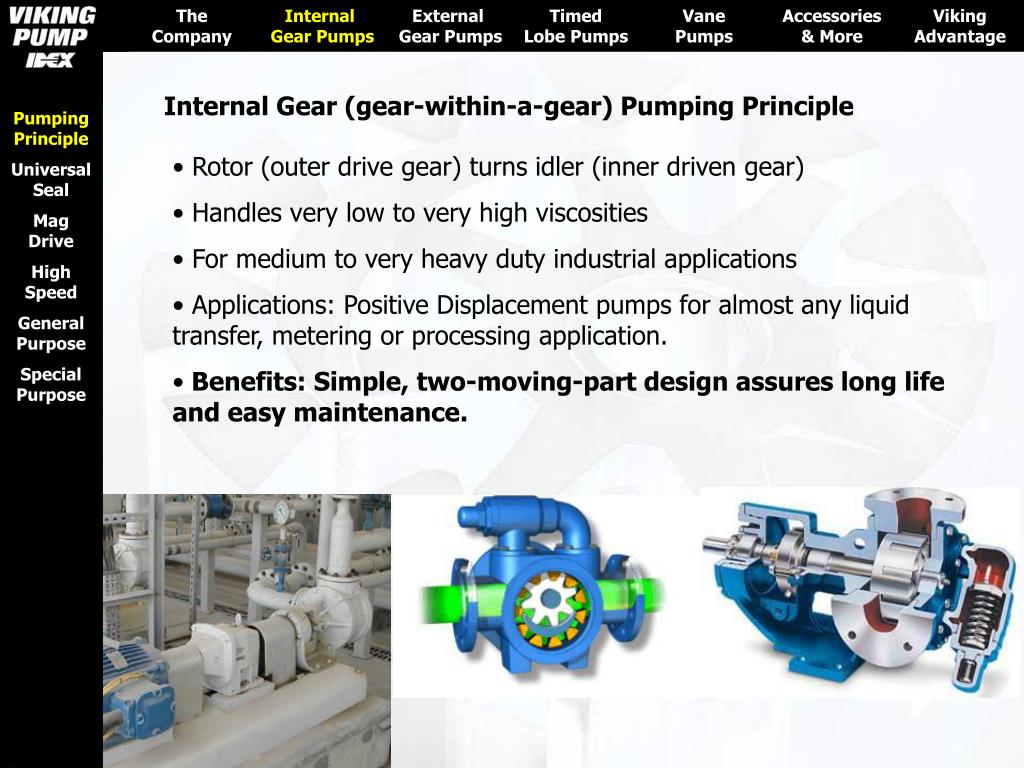

Internal Gear (gear-within-a-gear) Pumping Principle

Pumping

Principle

  • Rotor (outer drive gear) turns idler (inner driven gear)
  • Handles very low to very high viscosities
  • For medium to very heavy duty industrial applications
  • Applications: Positive Displacement pumps for almost any liquid transfer, metering or processing application.
  • Benefits: Simple, two-moving-part design assures long life and easy maintenance.

Universal

Seal

Mag

Drive

High

Speed

General

Purpose

Special

Purpose

slide10

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

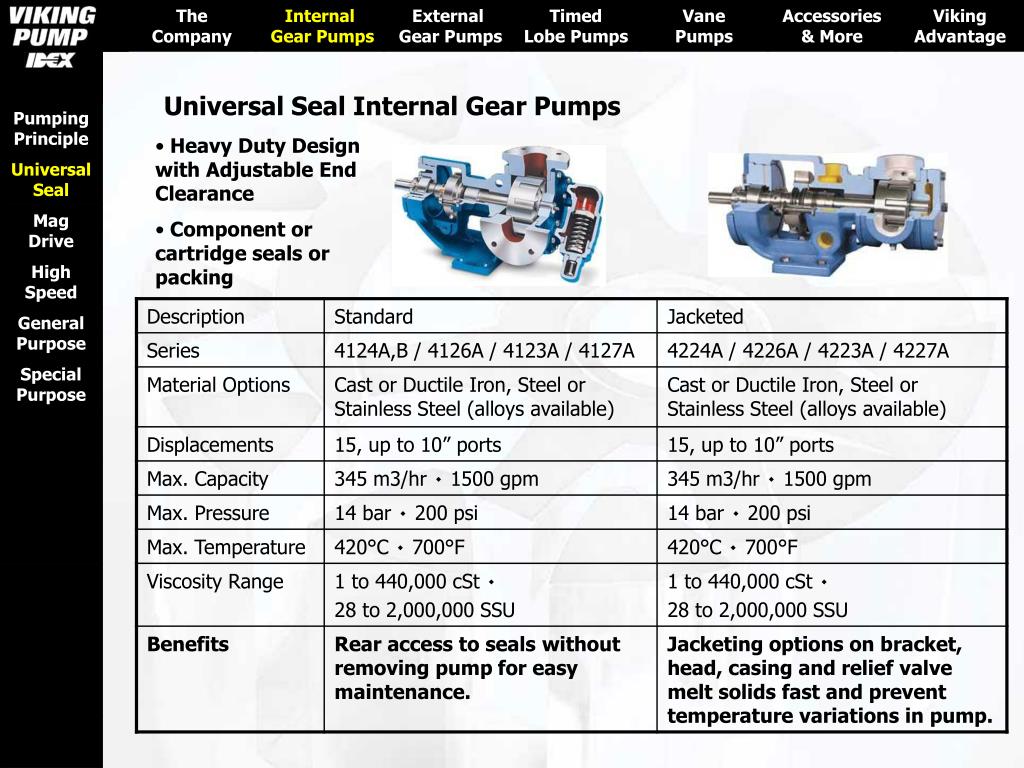

Universal Seal Internal Gear Pumps

Pumping

Principle

  • Heavy Duty Design with Adjustable End Clearance
  • Component or cartridge seals or packing

Universal

Seal

Mag

Drive

High

Speed

General

Purpose

Special

Purpose

slide11

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

Mag Drive Internal Gear Pumps

Pumping

Principle

  • No shaft seals
  • Rigid Shaft Support

Universal

Seal

Mag

Drive

High

Speed

General

Purpose

Special

Purpose

slide12

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

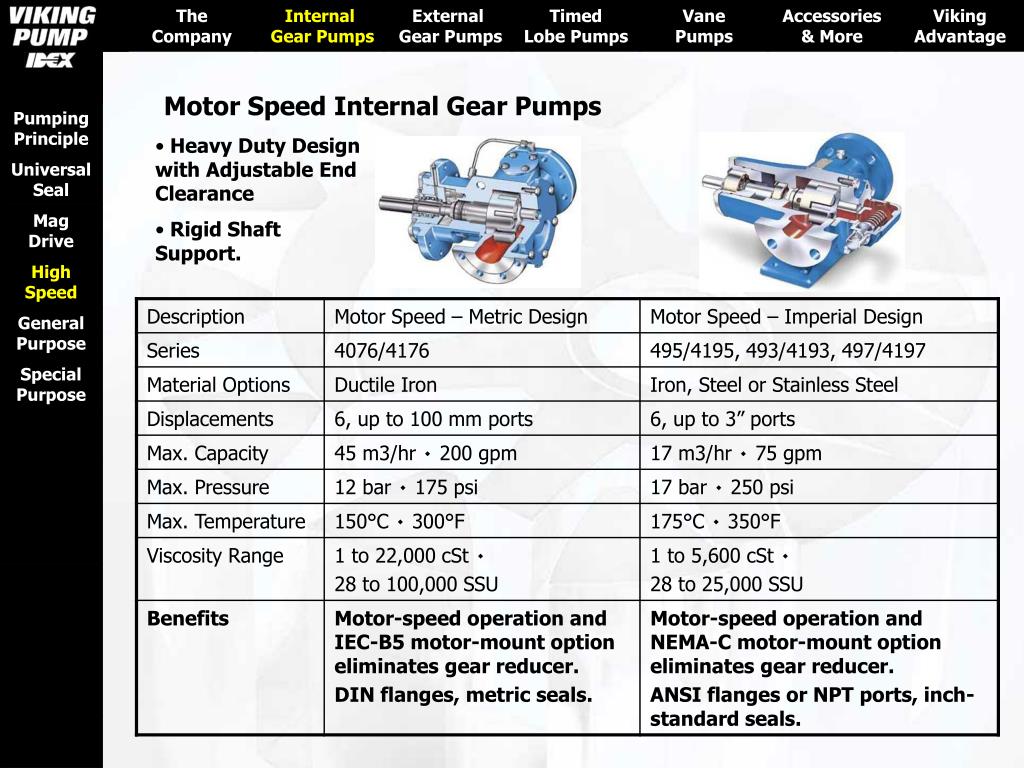

Motor Speed Internal Gear Pumps

Pumping

Principle

  • Heavy Duty Design with Adjustable End Clearance
  • Rigid Shaft Support.

Universal

Seal

Mag

Drive

High

Speed

General

Purpose

Special

Purpose

slide13

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

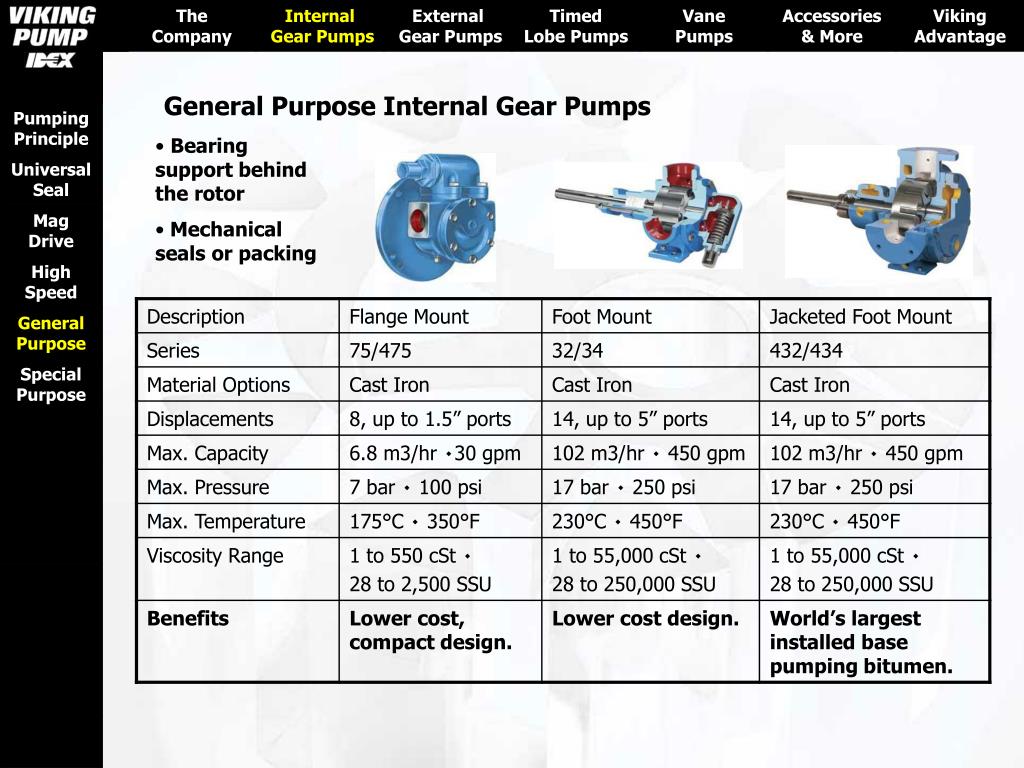

General Purpose Internal Gear Pumps

Pumping

Principle

  • Bearing support behind the rotor
  • Mechanical seals or packing

Universal

Seal

Mag

Drive

High

Speed

General

Purpose

Special

Purpose

slide14

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

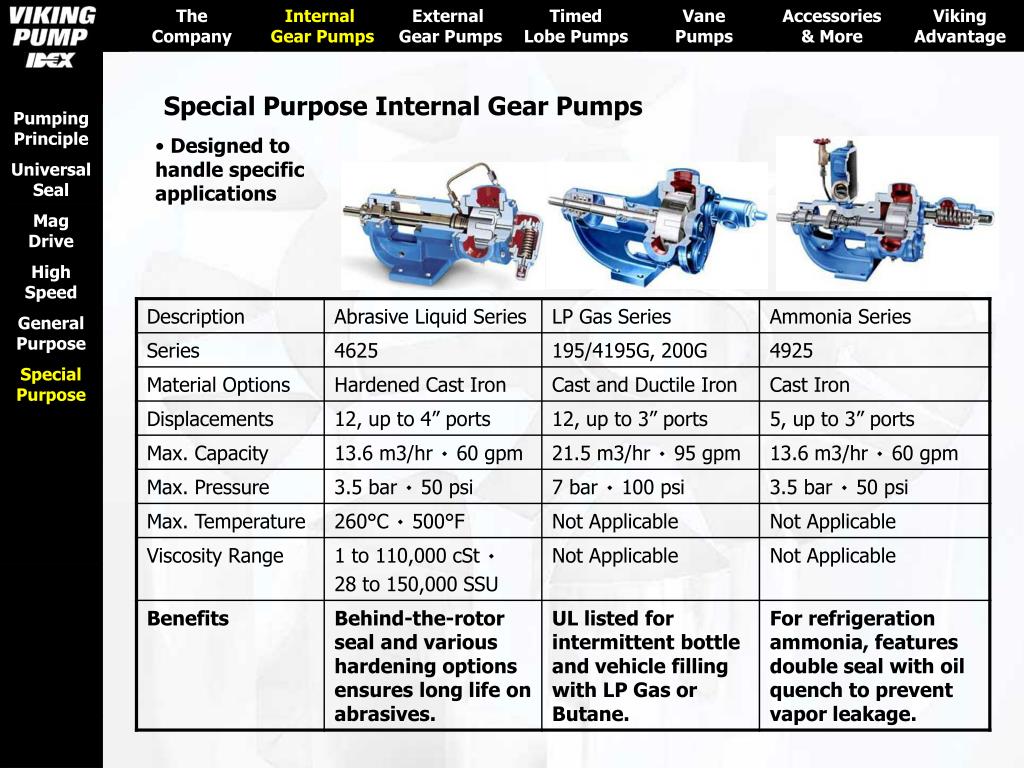

Special Purpose Internal Gear Pumps

Pumping

Principle

  • Designed to handle specific applications

Universal

Seal

Mag

Drive

High

Speed

General

Purpose

Special

Purpose

slide15

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

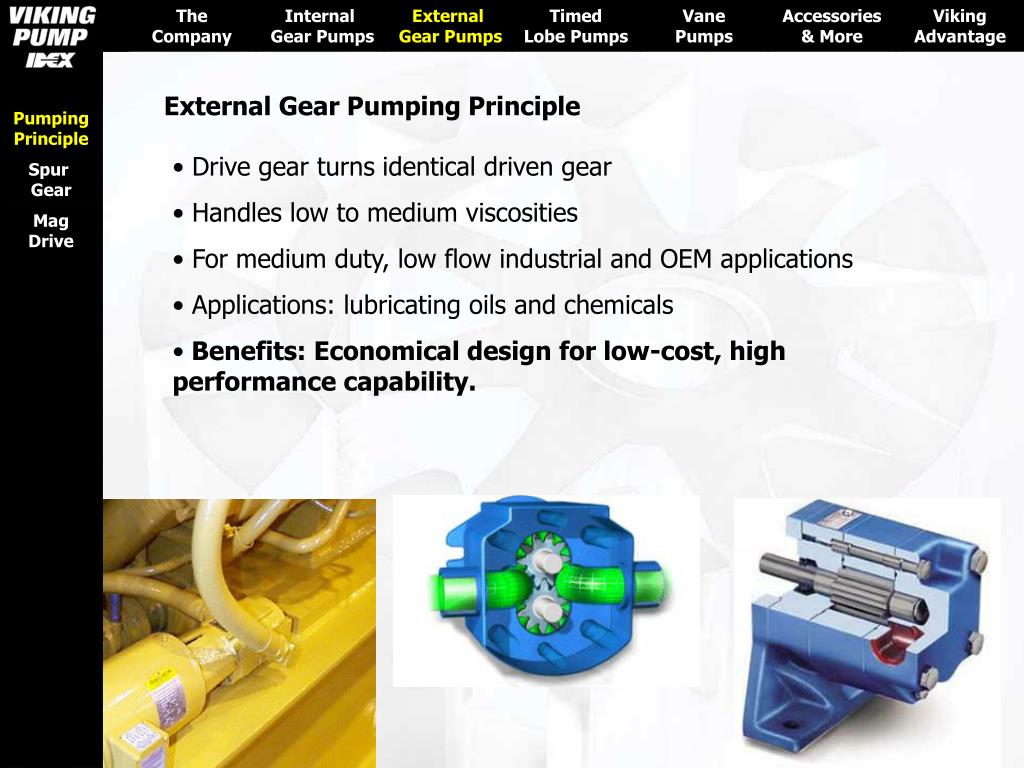

External Gear Pumping Principle

Pumping

Principle

  • Drive gear turns identical driven gear
  • Handles low to medium viscosities
  • For medium duty, low flow industrial and OEM applications
  • Applications: lubricating oils and chemicals
  • Benefits: Economical design for low-cost, high performance capability.

Spur

Gear

Mag

Drive

slide16

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

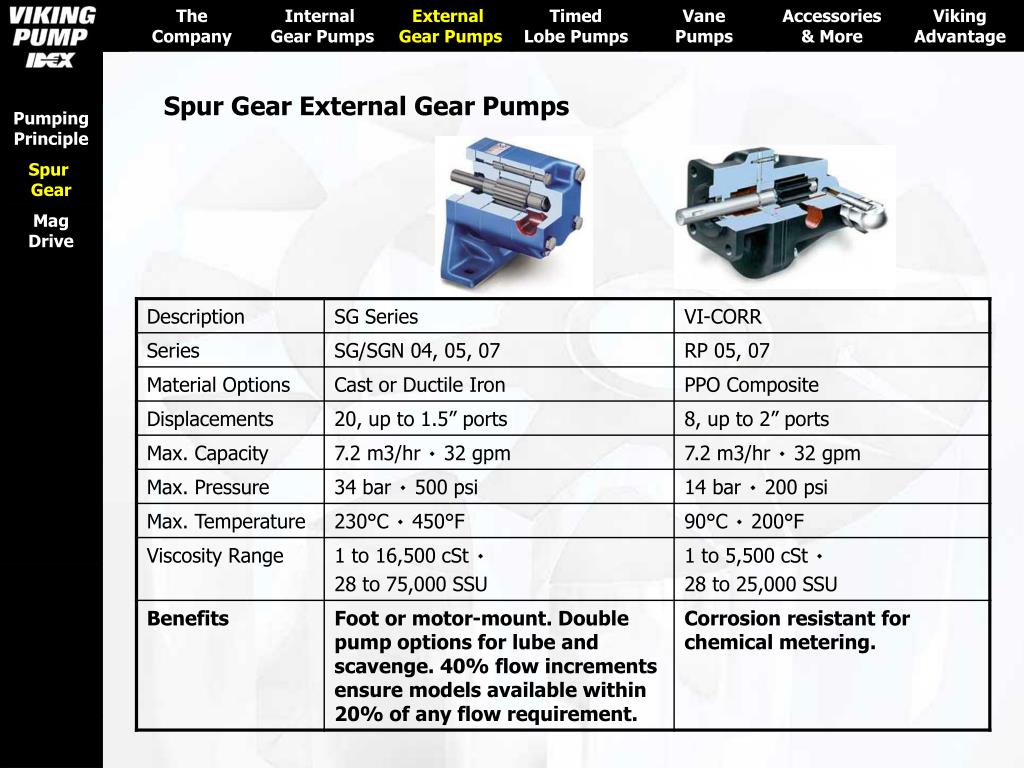

Spur Gear External Gear Pumps

Pumping

Principle

Spur

Gear

Mag

Drive

slide17

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

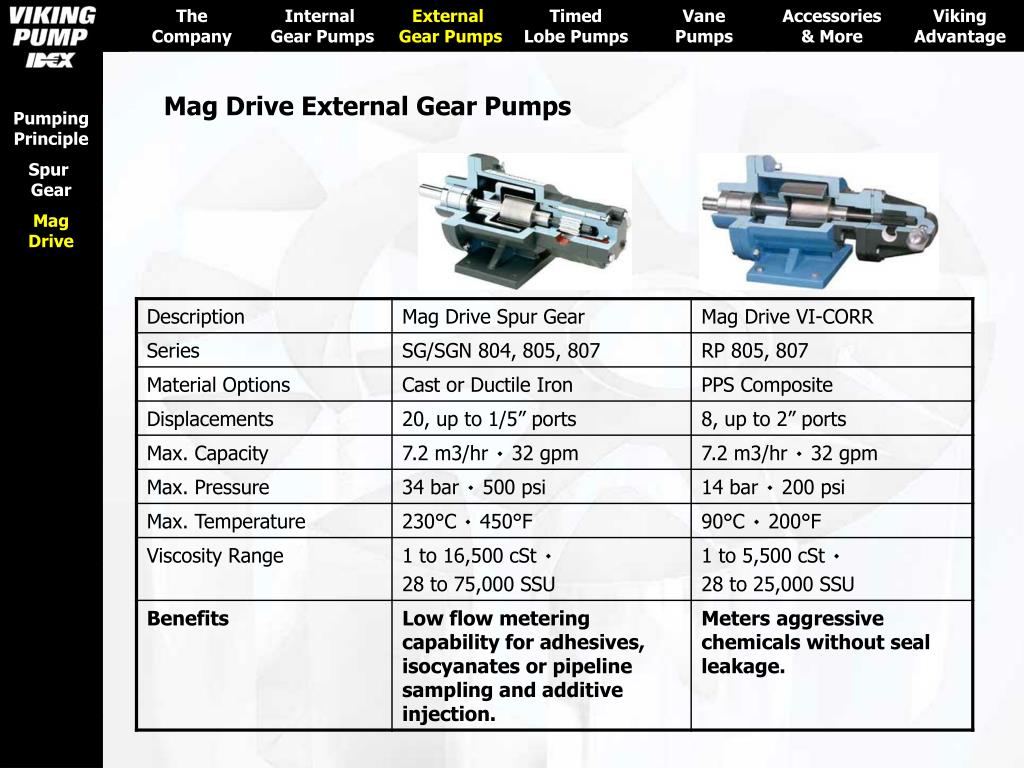

Mag Drive External Gear Pumps

Pumping

Principle

Spur

Gear

Mag

Drive

slide18

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

Timed Lobe Pumping Principle

Pumping

Principle

  • Timing gears turn identical, non-contacting lobes
  • Handles low to high viscosities
  • For medium to heavy duty industrial applications
  • Applications: shear-sensitive and non-lubricating liquids, or where higher pressures or between-batch cleanability are required.
  • Benefits: protects integrity of liquids; develops pressures to 27 bar (400 psi)

Industrial

Lobe

slide19

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

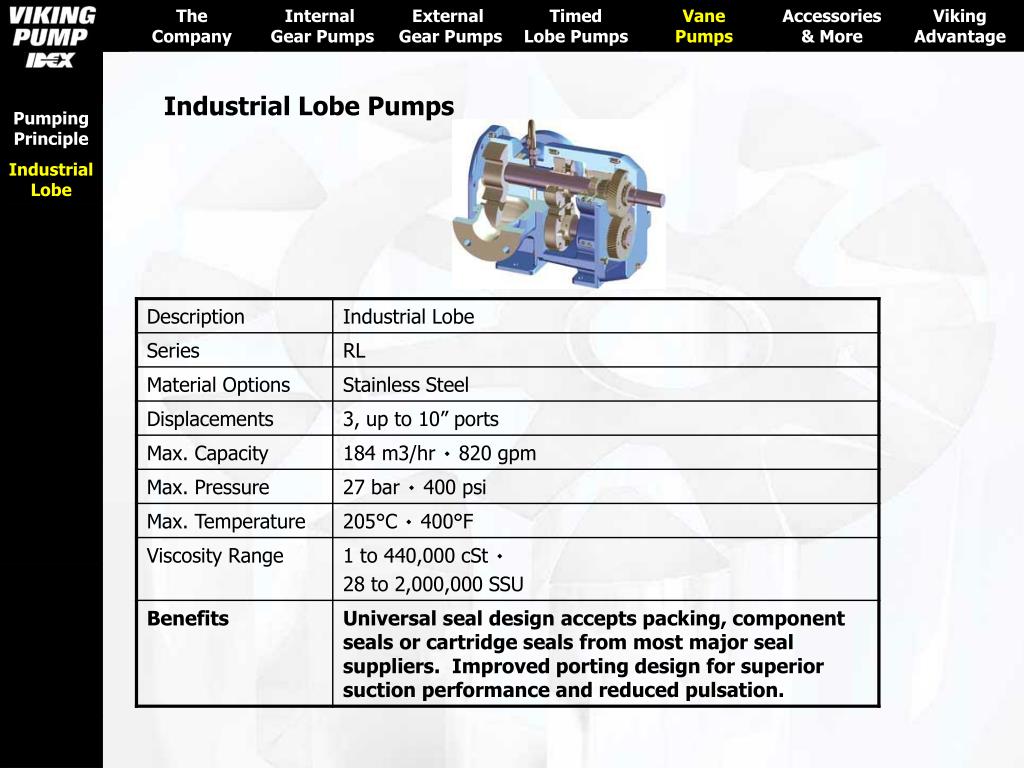

Industrial Lobe Pumps

Pumping

Principle

Industrial

Lobe

slide20

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

Vane Pumping Principle

Pumping

Principle

  • Round rotor turns in cam-shaped cavity
  • Vanes extend to sweep fluid through cam area, with help from push rods, hydraulic force, centrifugal force and gravity
  • For heavy duty industrial process or transfer applications
  • Applications: on thin, flammable or corrosive liquids where higher pressures are required
  • Benefits: Develops pressures to 14 bar (200 psi) even on the thinnest liquids

Vane

slide21

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

Vane Pumps

Pumping

Principle

LVP Vane

slide22

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

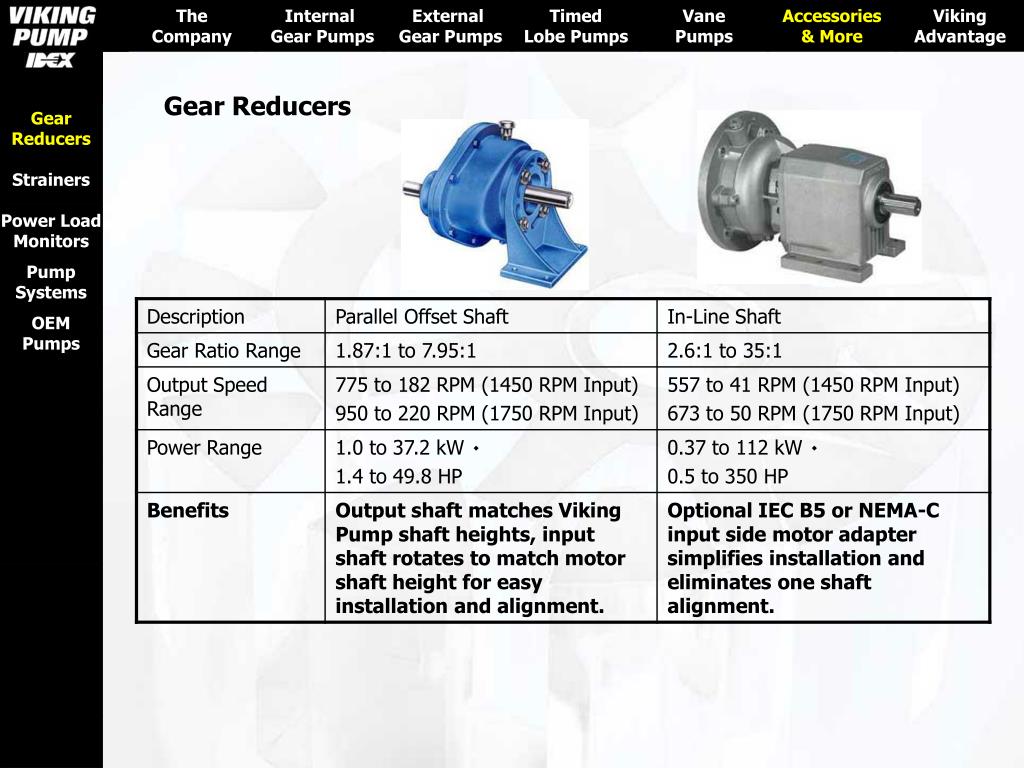

Gear Reducers

Gear

Reducers

Strainers

Power Load

Monitors

Pump

Systems

OEM

Pumps

slide23

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

Strainers

Gear

Reducers

Strainers

Power Load

Monitors

Pump

Systems

OEM

Pumps

slide24

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

Power Load Monitors

Gear

Reducers

Strainers

Power Load

Monitors

Pump

Systems

OEM

Pumps

slide25

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

Engineered Pump Systems

Gear

Reducers

  • Viking Pump and its Authorized Distributors design and fabricate pumping systems to simplify installation and use.
  • Sole source supplier
  • Pre-tested, ready to perform

Strainers

Power Load

Monitors

Pump

Systems

OEM

Pumps

slide26

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

Custom OEM Pumps

Gear

Reducers

  • Custom pumps and pump kits for Original Equipment Manufacturers
  • Vertical integration for fast prototype and development
  • Engineering expertise for simplified designs and lower overall costs

Strainers

Power Load

Monitors

Pump

Systems

OEM

Pumps

Wind turbine gearbox lube pump with flow in one direction, regardless of direction of drive shaft rotation.

Stepper-motor driven pump for metering colorants into paint.

slide27

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

Typical OEM Applications

Gear

Reducers

  • Hot oil filtration (fryers)
  • Heat transfer fluids
  • Compressor / turbine lube
  • Adhesive dispensing
  • Chemical metering
  • Ink metering (printing presses)
  • Bitumen metering (hot mix)
  • Automotive fluid systems
  • Fluid power (hydraulics)
  • Flow dividers and hydraulic motors

Strainers

Power Load

Monitors

Pump

Systems

OEM

Pumps

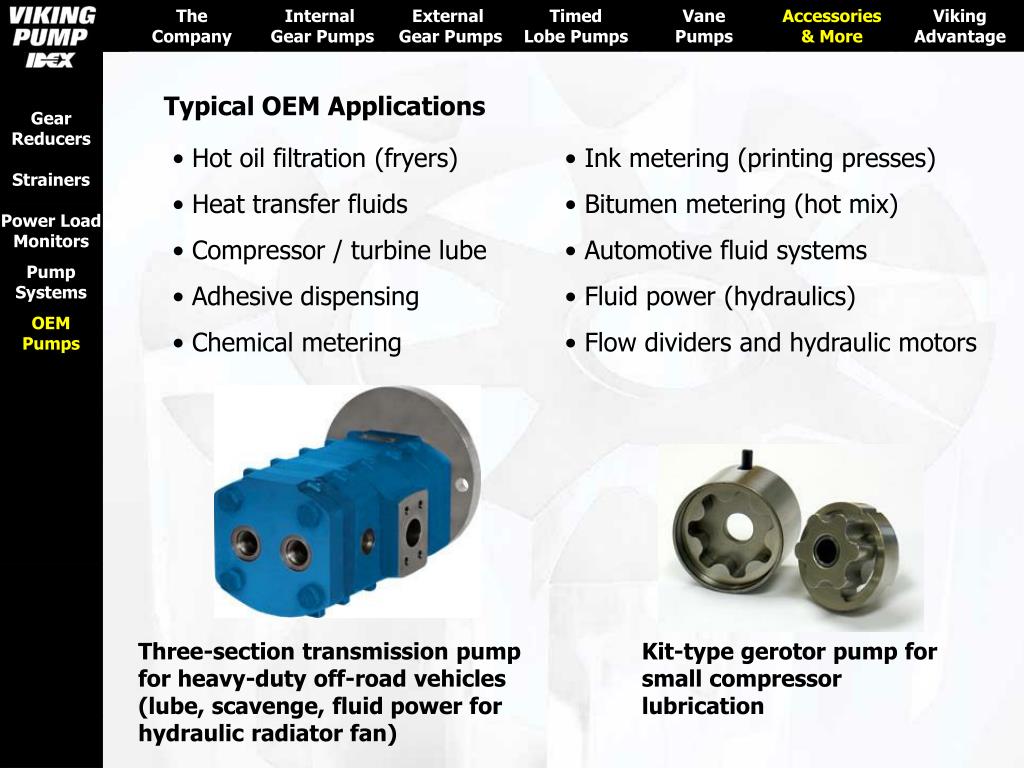

Three-section transmission pump for heavy-duty off-road vehicles (lube, scavenge, fluid power for hydraulic radiator fan)

Kit-type gerotor pump for small compressor lubrication

slide28

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

Application Overview

Application

Overview

Compare

Principles

Viking

Advantage

- Use Jacketing Options

slide29

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

Compare Pumping Principles

Application

Overview

Compare

Principles

Viking

Advantage

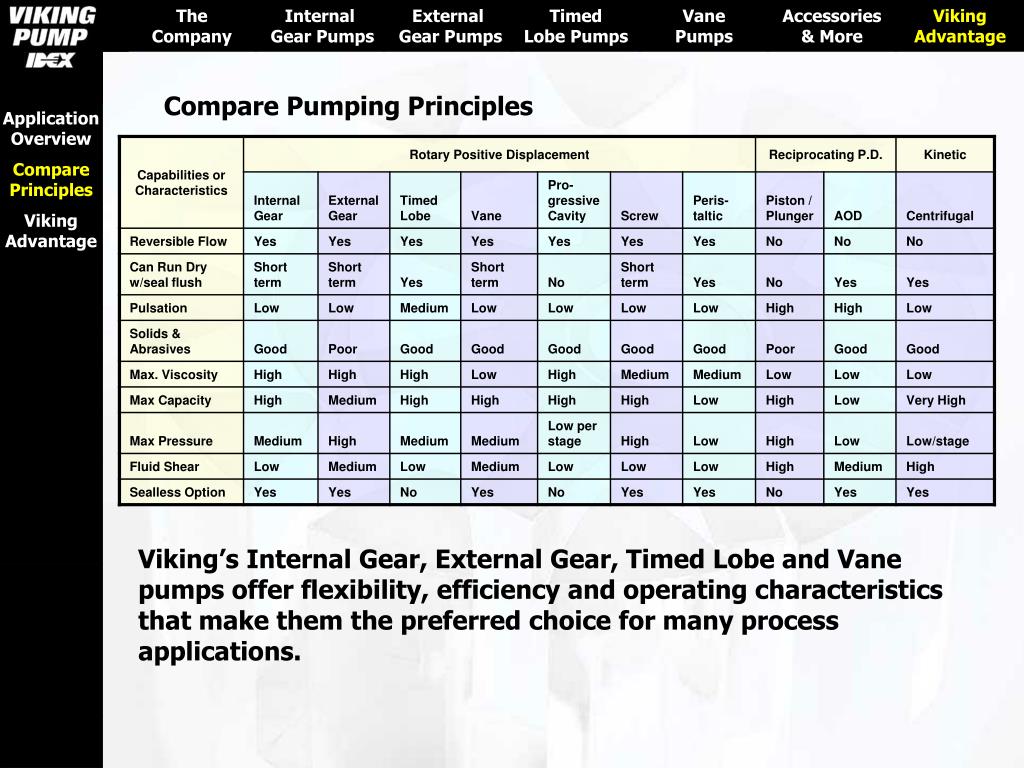

Viking’s Internal Gear, External Gear, Timed Lobe and Vane pumps offer flexibility, efficiency and operating characteristics that make them the preferred choice for many process applications.

slide30

The

Company

Internal

Gear Pumps

External

Gear Pumps

Timed

Lobe Pumps

Vane

Pumps

Accessories

& More

Viking

Advantage

The Viking Advantage

Application

Overview

  • Almost universal applicability of Viking’s internal gear pumps on thin or thick liquids allows user standardization on one pump design.
  • Vertically integrated, globally produced pumping solutions with local service and support.
  • Customization based on extensive application experience ensures long service life with minimal maintenance.
  • Manufacturing expertise and modularity minimize customization costs, ensuring superior customer value.

Compare

Principles

Viking

Advantage
