  1. COE 1502Interrupt and Exception Handling

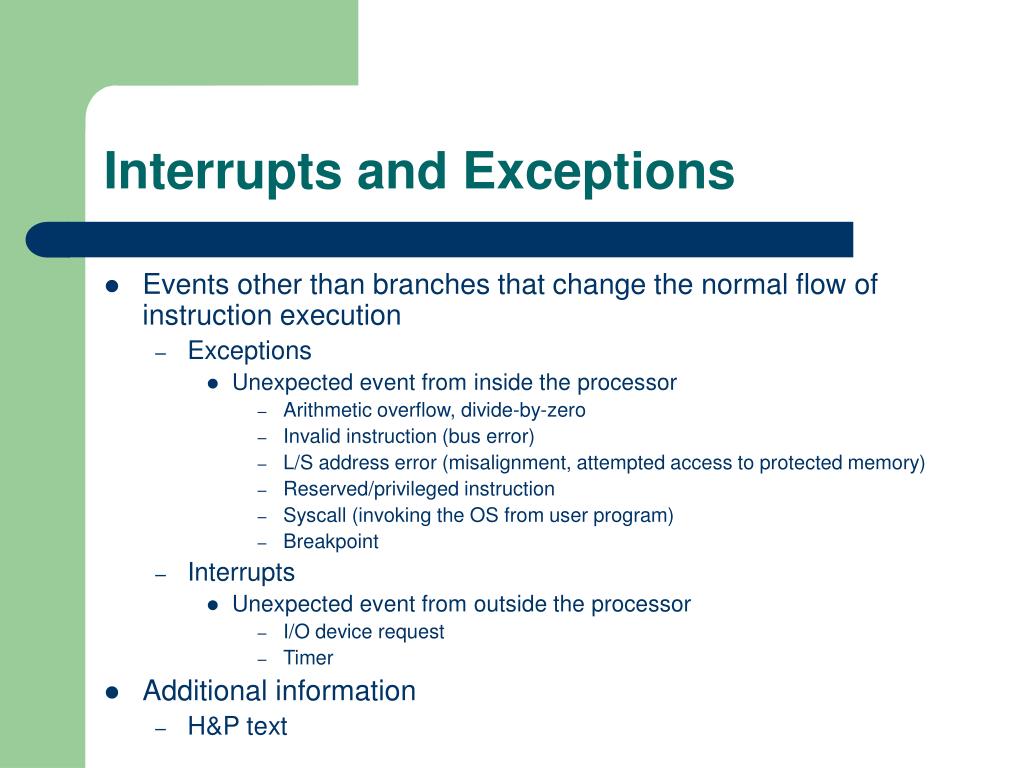

  2. Interrupts and Exceptions • Events other than branches that change the normal flow of instruction execution • Exceptions • Unexpected event from inside the processor • Arithmetic overflow, divide-by-zero • Invalid instruction (bus error) • L/S address error (misalignment, attempted access to protected memory) • Reserved/privileged instruction • Syscall (invoking the OS from user program) • Breakpoint • Interrupts • Unexpected event from outside the processor • I/O device request • Timer • Additional information • H&P text

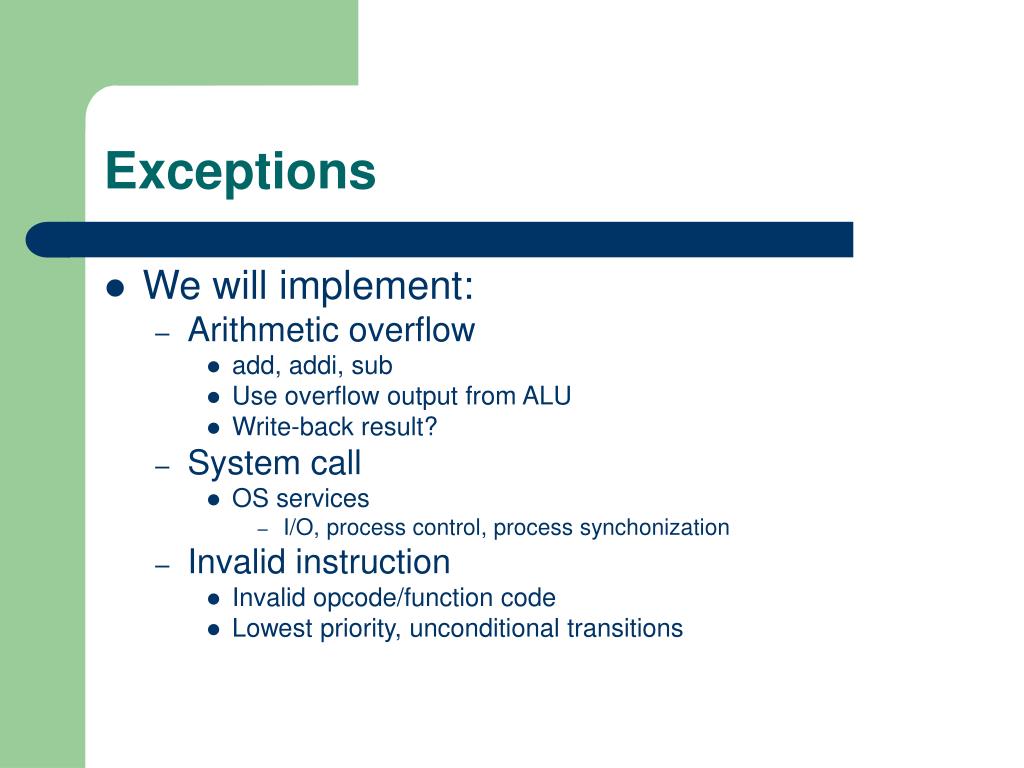

  3. Exceptions • We will implement: • Arithmetic overflow • add, addi, sub • Use overflow output from ALU • Write-back result? • System call • OS services • I/O, process control, process synchonization • Invalid instruction • Invalid opcode/function code • Lowest priority, unconditional transitions

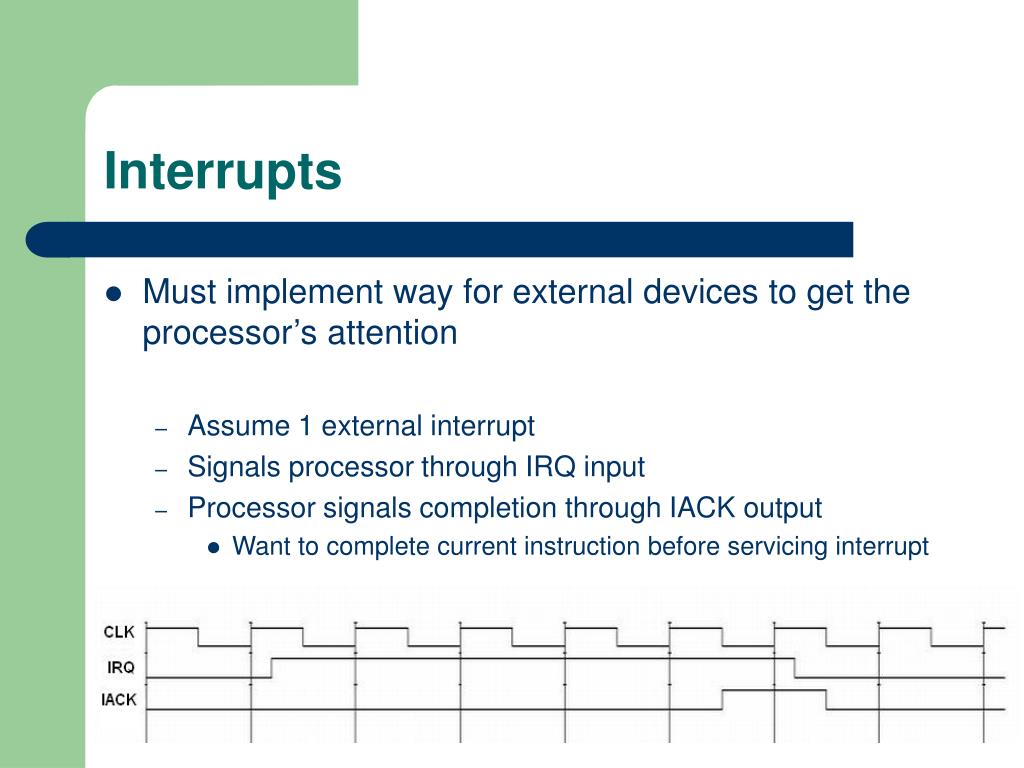

  4. Interrupts • Must implement way for external devices to get the processor’s attention • Assume 1 external interrupt • Signals processor through IRQ input • Processor signals completion through IACK output • Want to complete current instruction before servicing interrupt

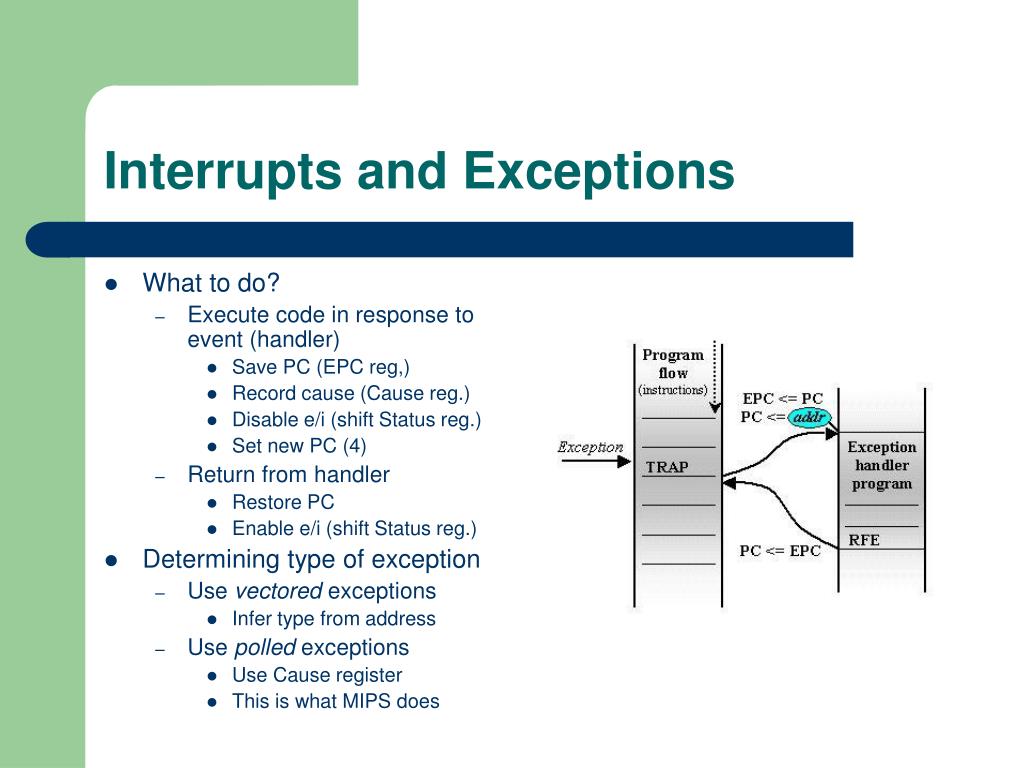

  5. Interrupts and Exceptions • What to do? • Execute code in response to event (handler) • Save PC (EPC reg,) • Record cause (Cause reg.) • Disable e/i (shift Status reg.) • Set new PC (4) • Return from handler • Restore PC • Enable e/i (shift Status reg.) • Determining type of exception • Use vectored exceptions • Infer type from address • Use polled exceptions • Use Cause register • This is what MIPS does

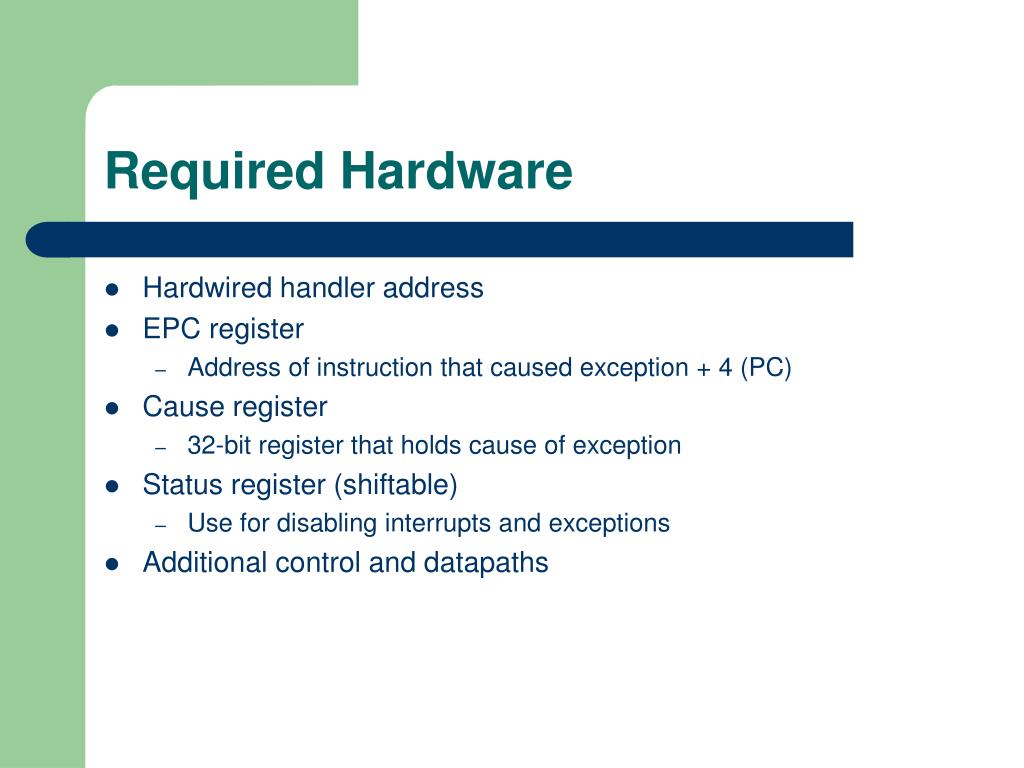

  6. Required Hardware • Hardwired handler address • EPC register • Address of instruction that caused exception + 4 (PC) • Cause register • 32-bit register that holds cause of exception • Status register (shiftable) • Use for disabling interrupts and exceptions • Additional control and datapaths

  7. Cause Register • Use last 2 bits…

  8. Status Register • Use last 4 bits…

  9. Control • When an exception or interrupt occurs, must have a state where… • EPC <= PC • Cause <= (cause) • Status <= Status << 4 • PC <= (handler address) • Return… • PC <= EPC • Status >> 4 • How to add states?

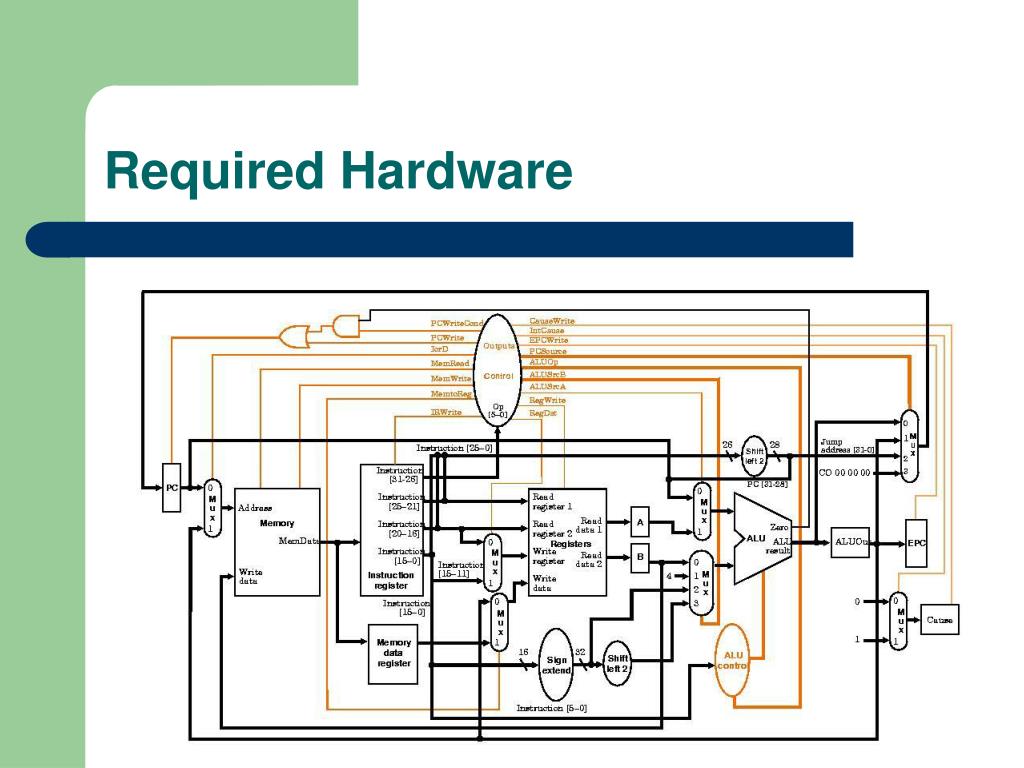

  10. Required Hardware

  11. Required Instructions • EPC, Status, and Cause registers • Instruction set treats these registers as being on coprocessor 0 • Status (12), Cause (13), and EPC (14) • To use these registers, we’ll implement two instructions: • mfc0 rt, rd • mtc0 rd, rt • Datapath analysis for these instructions?

  12. Required Instructions • Also, we need a syscall instruction to implement system calls • Syscall call value in $v0 • Return from exception (rfe instruction)
