  1. Programowanie pod Windows W środowisku Visual C++ Część IV Anna Tomkowska Politechnika Koszalińska 2007

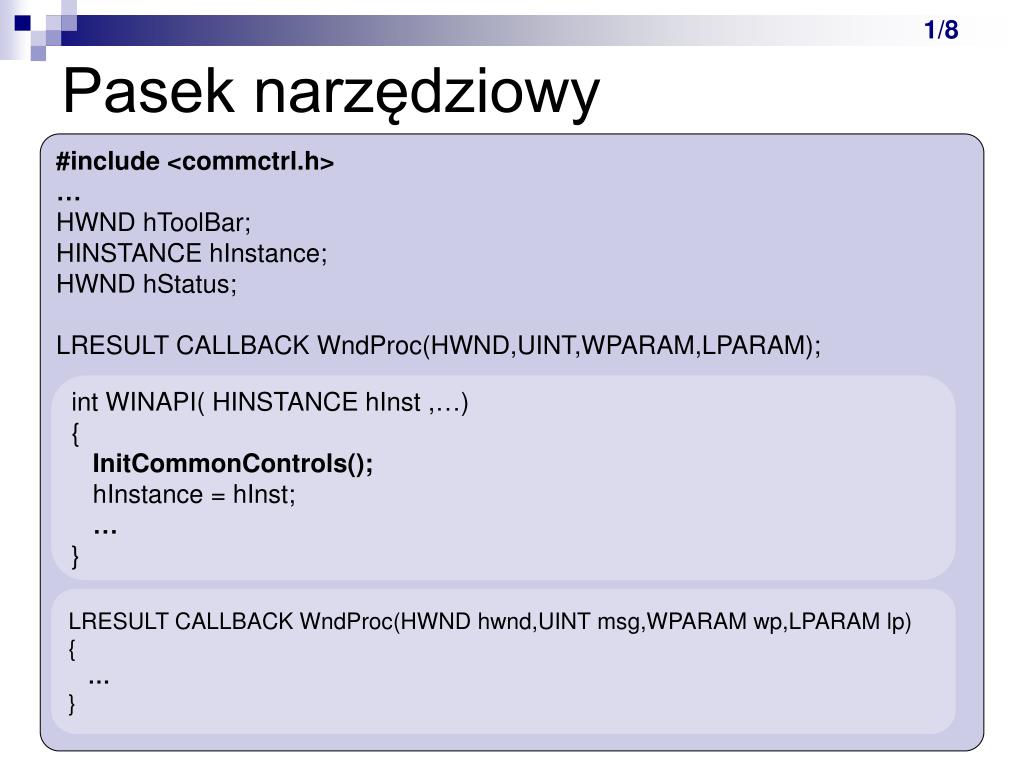

  2. 1/8 Pasek narzędziowy #include <commctrl.h> … HWND hToolBar; HINSTANCE hInstance; HWND hStatus; LRESULT CALLBACK WndProc(HWND,UINT,WPARAM,LPARAM); int WINAPI(…) { InitCommonControls(); … } LRESULT CALLBACK WndProc(HWND hwnd,UINT msg,WPARAM wp,LPARAM lp) { … } int WINAPI(HINSTANCE hInst ,…) { InitCommonControls(); hInstance = hInst; … } LRESULT CALLBACK WndProc(HWND hwnd,UINT msg,WPARAM wp,LPARAM lp) { … }

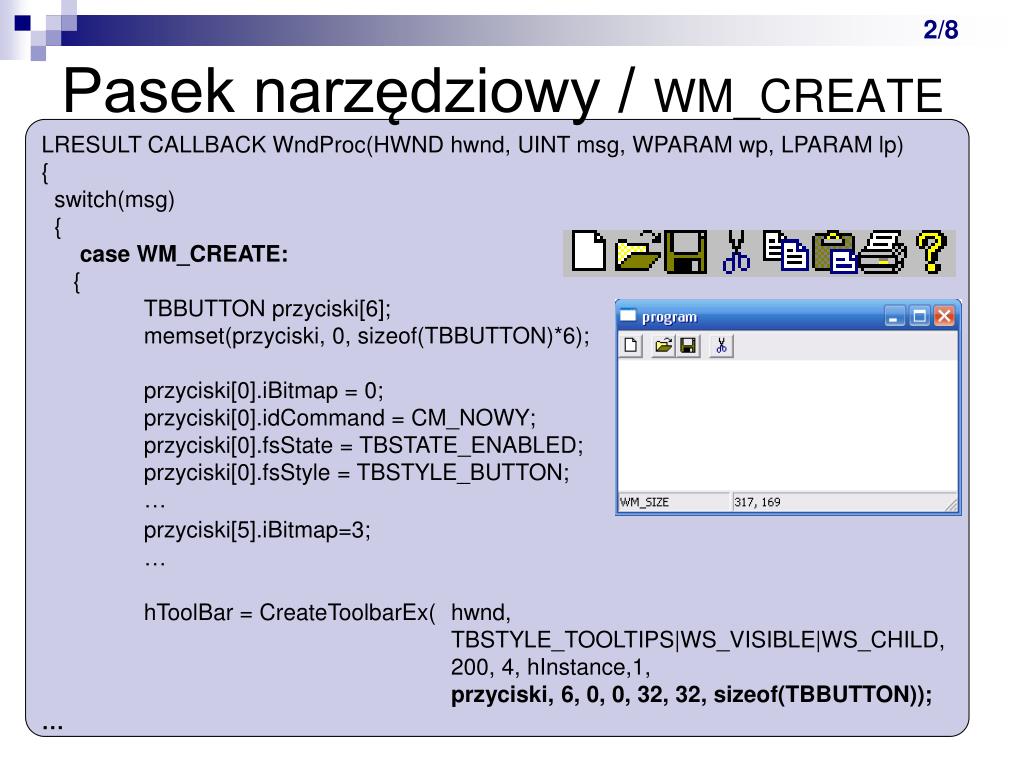

  3. 2/8 Pasek narzędziowy / WM_CREATE LRESULT CALLBACK WndProc(HWND hwnd, UINT msg, WPARAM wp, LPARAM lp) { switch(msg) { case WM_CREATE: { TBBUTTON przyciski[6]; memset(przyciski, 0, sizeof(TBBUTTON)*6); przyciski[0].iBitmap = 0; przyciski[0].idCommand = CM_NOWY; przyciski[0].fsState = TBSTATE_ENABLED; przyciski[0].fsStyle = TBSTYLE_BUTTON; … przyciski[5].iBitmap=3; … hToolBar = CreateToolbarEx( hwnd, TBSTYLE_TOOLTIPS|WS_VISIBLE|WS_CHILD, 200, 4, hInstance,1, przyciski, 6, 0, 0, 32, 32, sizeof(TBBUTTON)); …

  4. 3/8 Pasek narzędziowy / WM_SIZE LRESULT CALLBACK WndProc(HWND hwnd, UINT msg, WPARAM wp, LPARAM lp) { switch(msg) { case WM_CREATE: … case WM_SIZE: SendMessage(hToolBar, WM_SIZE, wParam, lParam); break; } …

  5. 4/8 Pasek narzędziowy / WM_COMMAND LRESULT CALLBACK WndProc(HWND hwnd, UINT msg, WPARAM wp, LPARAM lp) { switch(msg) { … case WM_COMMAND: switch(LOWORD(wParam)) { case CM_NOWY: … break; case CM_OTWORZ: … break; … } …

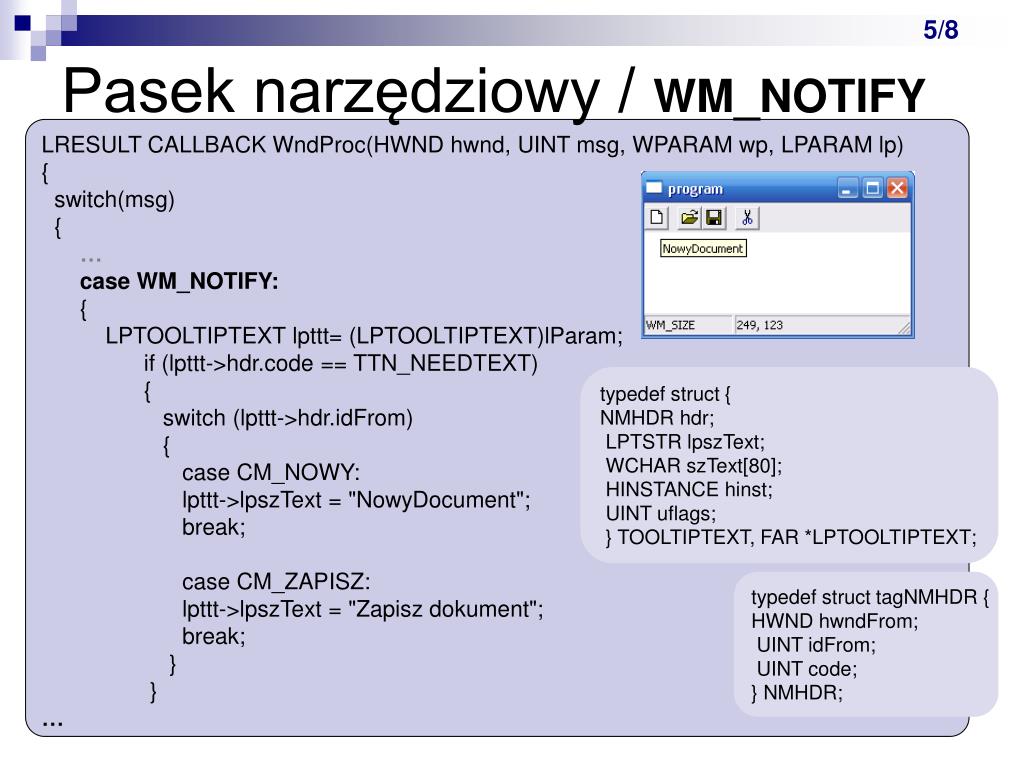

  6. 5/8 Pasek narzędziowy / WM_NOTIFY LRESULT CALLBACK WndProc(HWND hwnd, UINT msg, WPARAM wp, LPARAM lp) { switch(msg) { … case WM_NOTIFY: { LPTOOLTIPTEXT lpttt= (LPTOOLTIPTEXT)lParam; if (lpttt->hdr.code == TTN_NEEDTEXT) { switch (lpttt->hdr.idFrom) { case CM_NOWY: lpttt->lpszText = "NowyDocument"; break; case CM_ZAPISZ: lpttt->lpszText = "Zapisz dokument"; break; } } … typedef struct { NMHDR hdr; LPTSTR lpszText; WCHAR szText[80]; HINSTANCE hinst; UINT uflags; } TOOLTIPTEXT, FAR *LPTOOLTIPTEXT; typedef struct tagNMHDR { HWND hwndFrom; UINT idFrom; UINT code; } NMHDR;

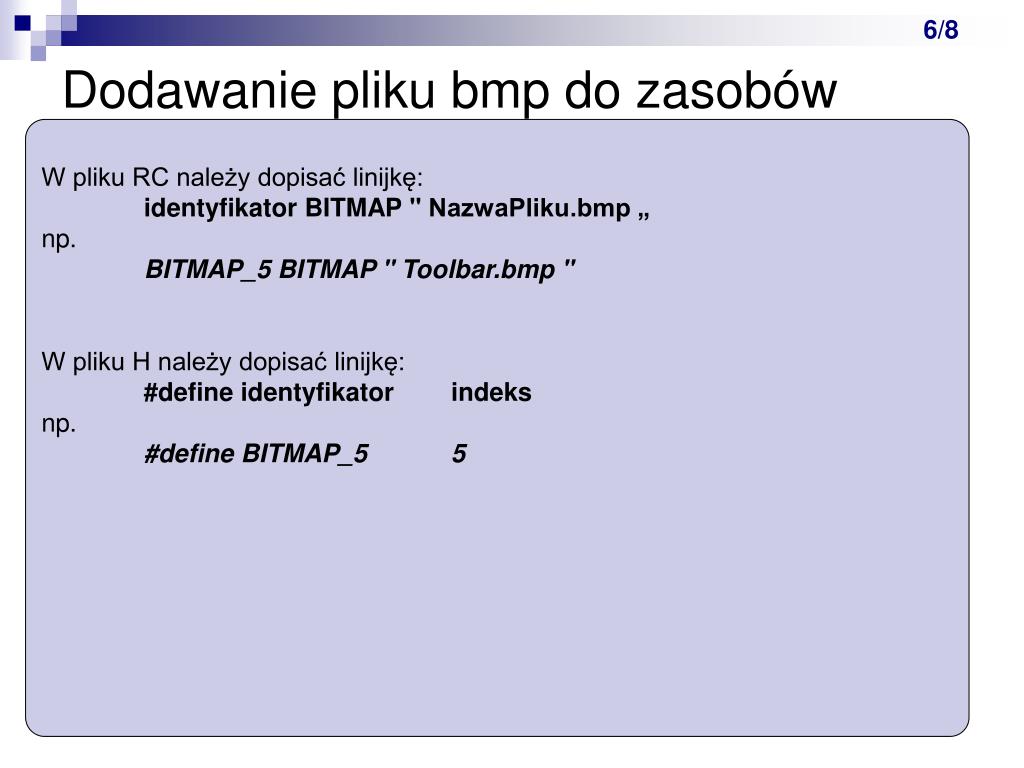

  7. 6/8 Dodawanie pliku bmp do zasobów W pliku RC należy dopisać linijkę: identyfikatorBITMAP "NazwaPliku.bmp „ np. BITMAP_5 BITMAP "Toolbar.bmp " W pliku H należy dopisać linijkę: #define identyfikator indeks np. #define BITMAP_5 5

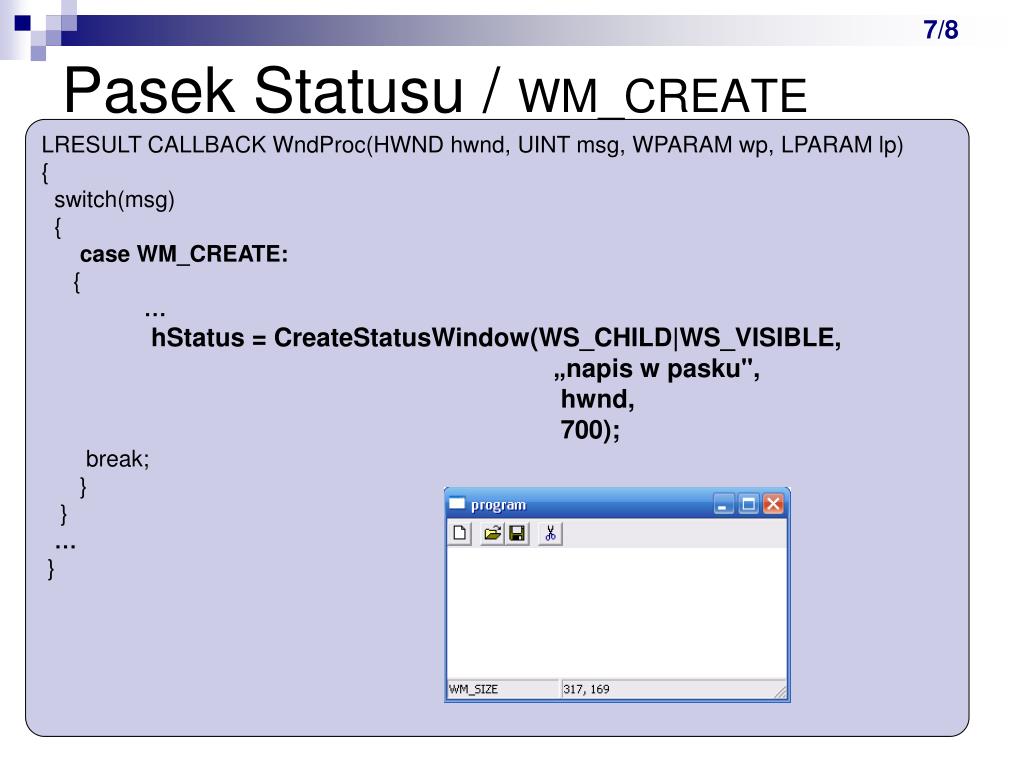

  8. 7/8 Pasek Statusu / WM_CREATE LRESULT CALLBACK WndProc(HWND hwnd, UINT msg, WPARAM wp, LPARAM lp) { switch(msg) { case WM_CREATE: { … hStatus= CreateStatusWindow(WS_CHILD|WS_VISIBLE, „napis w pasku", hwnd, 700); break; } } … }

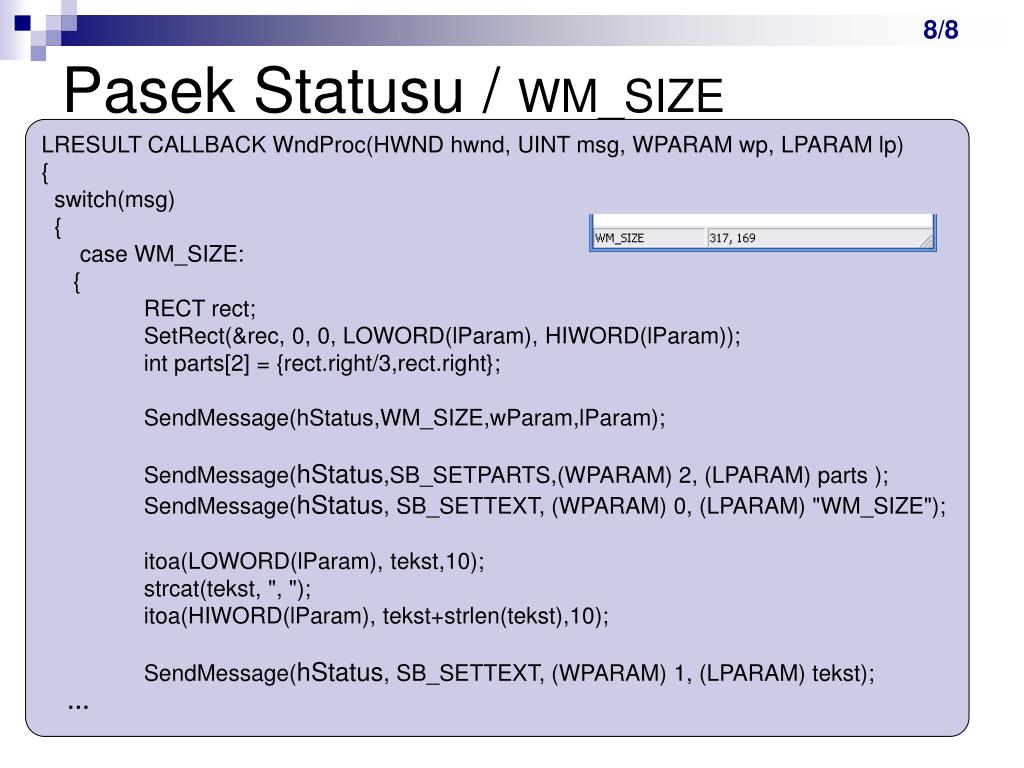

  9. 8/8 Pasek Statusu / WM_SIZE LRESULT CALLBACK WndProc(HWND hwnd, UINT msg, WPARAM wp, LPARAM lp) { switch(msg) { case WM_SIZE: { RECT rect; SetRect(&rec, 0, 0, LOWORD(lParam), HIWORD(lParam)); int parts[2] = {rect.right/3,rect.right}; SendMessage(hStatus,WM_SIZE,wParam,lParam); SendMessage(hStatus,SB_SETPARTS,(WPARAM) 2, (LPARAM) parts ); SendMessage(hStatus, SB_SETTEXT, (WPARAM) 0, (LPARAM) "WM_SIZE"); itoa(LOWORD(lParam), tekst,10); strcat(tekst, ", "); itoa(HIWORD(lParam), tekst+strlen(tekst),10); SendMessage(hStatus, SB_SETTEXT, (WPARAM) 1, (LPARAM) tekst); …
