slide1

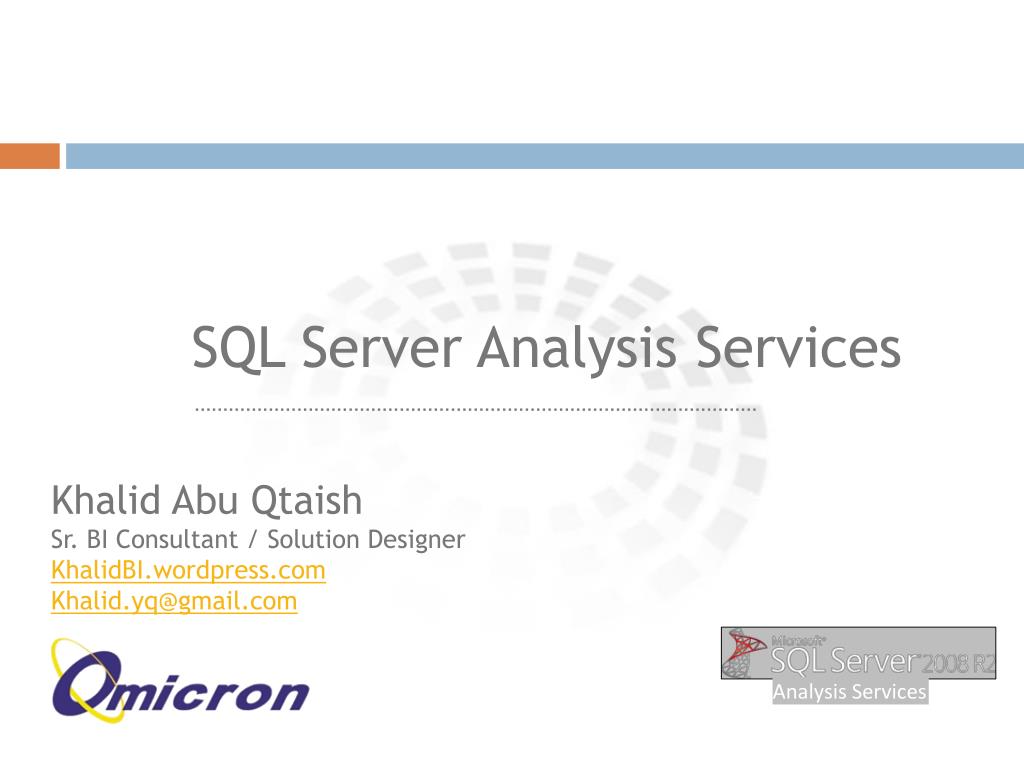

SQL Server Analysis Services

………………………………………………………………………………………

Khalid Abu Qtaish

Sr. BI Consultant / Solution Designer

KhalidBI.wordpress.com

Khalid.yq@gmail.com

Analysis Services

agenda
Agenda
  • Introduction
  • ETL
  • OLAP Terms
  • Storage Modes
  • Queries (MDX)
  • Tools
  • Live Demo
  • Q&A
sql server 2008 r2 bi platform
SQL Server 2008 R2 BI Platform

IT PROFESSIONALS

BUSINESS DECISIONMAKERS

INFORMATIONWORKERS

POWER USERS

DEVELOPERS

MICROSOFT BI PLATFORM

introduction

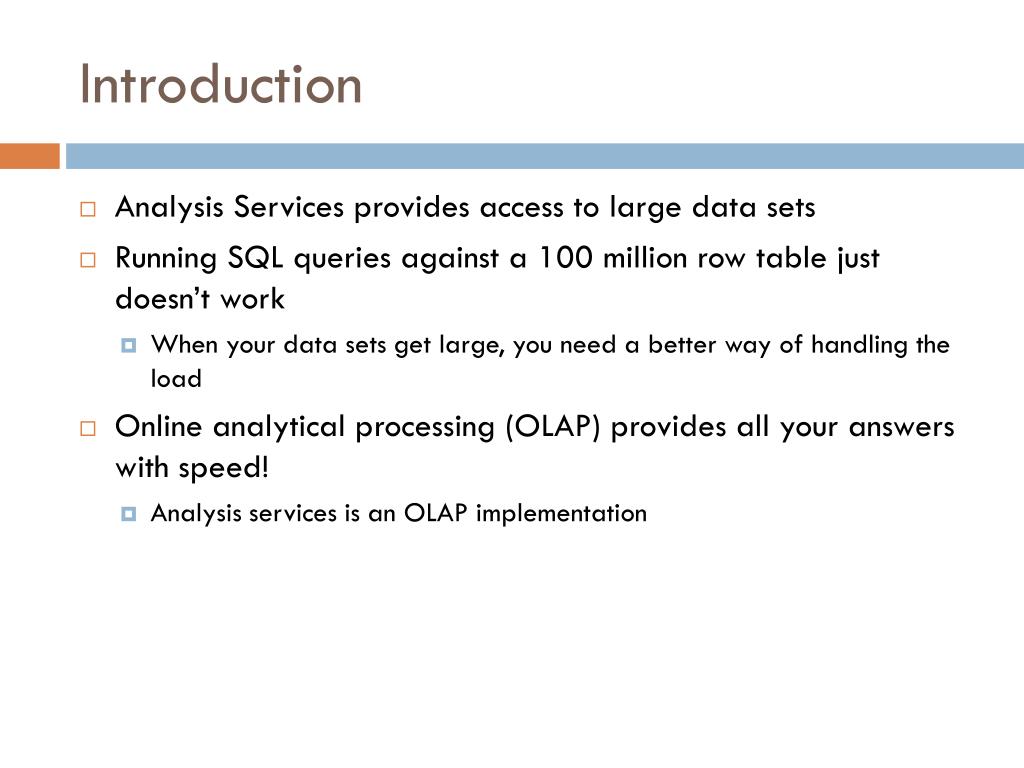

Introduction
  • Analysis Services provides access to large data sets
  • Running SQL queries against a 100 million row table just doesn’t work
    • When your data sets get large, you need a better way of handling the load
  • Online analytical processing (OLAP) provides all your answers with speed!
    • Analysis services is an OLAP implementation
managing information

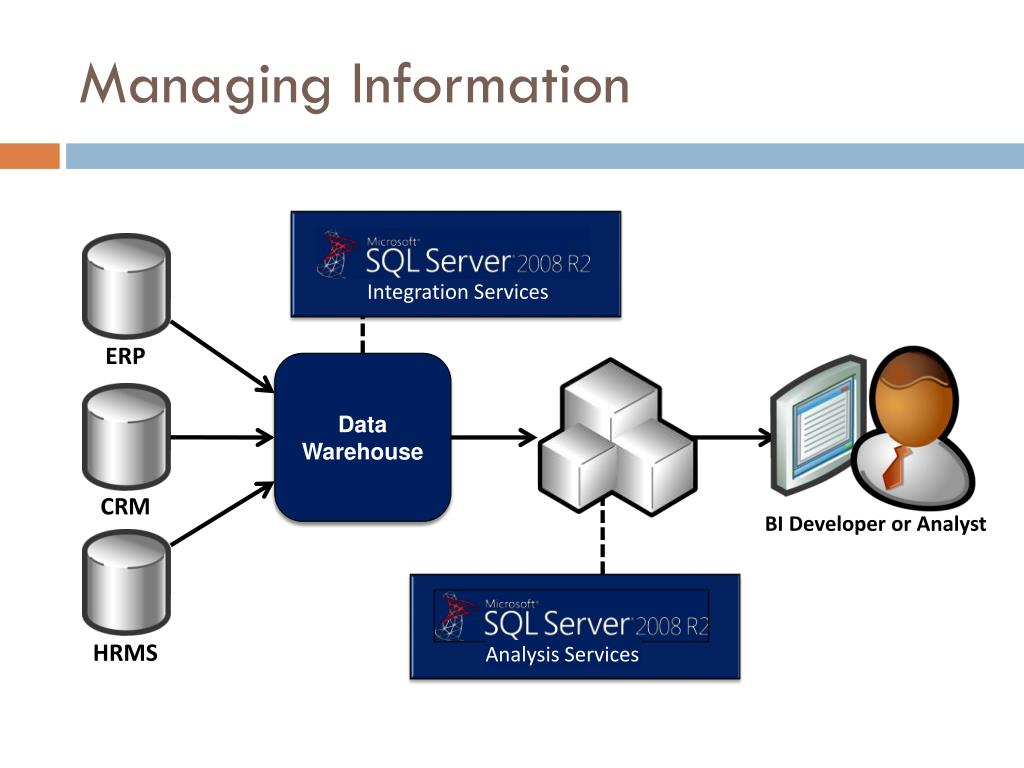

Managing Information

ERP

BI Developer or Analyst

Data Warehouse

CRM

HRMS

Analysis Services

Integration Services

slide7
ETL
  • The Extract, Transform and Load (ETL) process is vital to the OLAP results
    • If you input junk, you get junk back out!
    • All data that enters the OLAP database must be valid or your results could be exponentially wrong!
  • Make sure that all possible means are employed when ensuring only valid data is entered into the system and that it is entered only once!
    • Common issue is data inserted more than once which causes invalid results
integration challenge

Call Center

Web Apps

CRM

Finance

Inventory

Data Warehouse

HR

ERP

Integration Challenge

SOA – Enterprise Service Bus

source systems

HR

Inventory

Finance

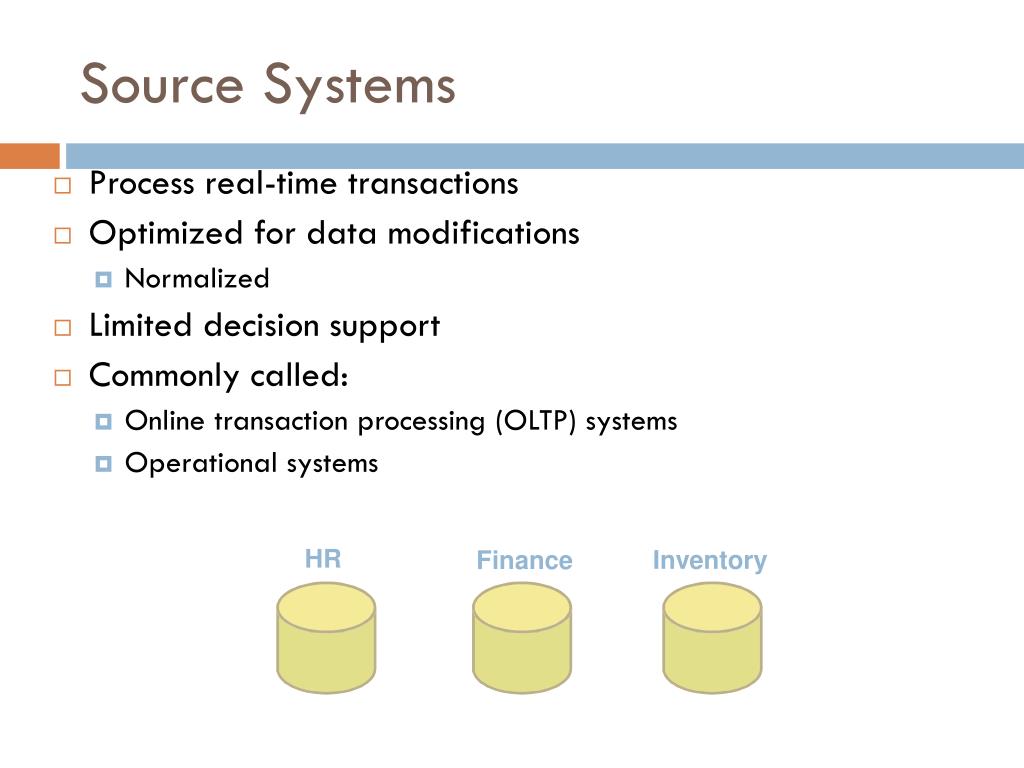

Source Systems
  • Process real-time transactions
  • Optimized for data modifications
    • Normalized
  • Limited decision support
  • Commonly called:
    • Online transaction processing (OLTP) systems
    • Operational systems
data warehouse
Data Warehouse
  • Provides data for business analysis
    • Grouped in subject-specific stores called Data Marts
  • Optimized for rapid ad-hoc information retrieval
  • Integrates heterogeneous source systems
  • Consistent historical data store
star schema benefits
Star Schema Benefits
  • Simple, not-so-normalized model
  • High-performance queries
    • Especially with Star Join Query Optimization
  • Mature and widely supported
  • Low-maintenance
data source view
Data Source View
  • Diagrams of star schemas – state cube, perf cube
dimensions
Dimensions
  • Describe business entities
  • Contain attributes that provide context to numerical data
  • Present data organised into hierarchies
fact table fundamentals
Fact Table Fundamentals
  • Collection of measurements associated with a specific business process
  • Specific column types
    • Foreign keys to dimensions
    • Measures – numeric and additive
    • Metadata and lineage
  • Consistent granularity – the most atomic level by which the facts can be defined
cube udm unified dimensional model

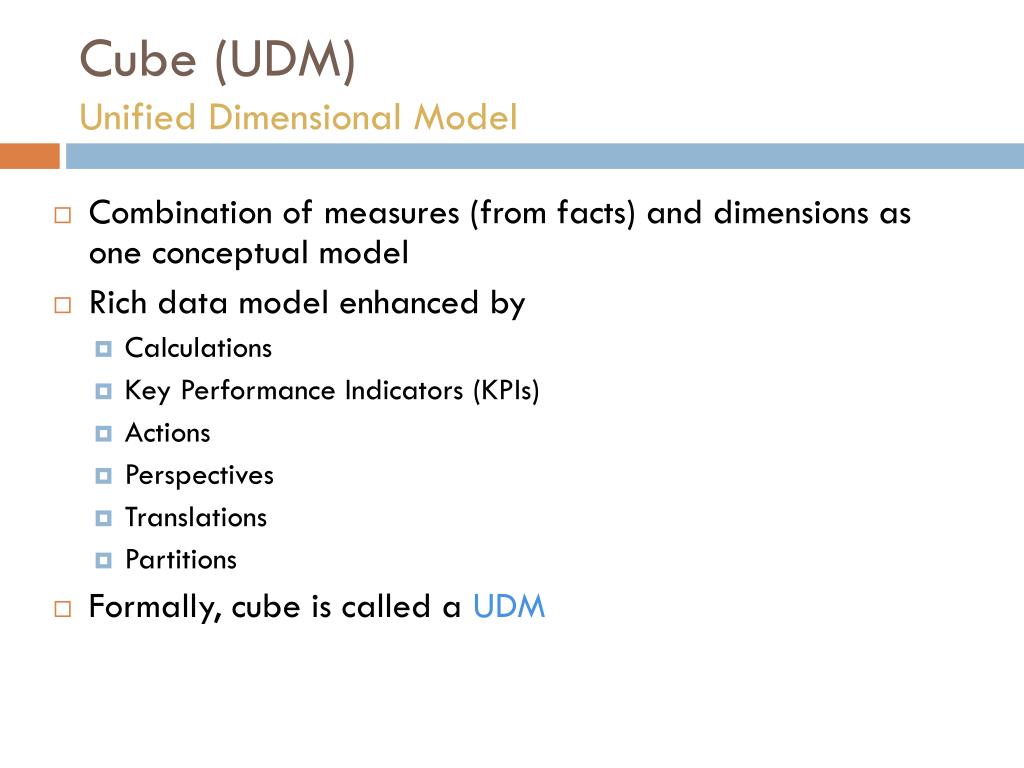

Cube (UDM)Unified Dimensional Model
  • Combination of measures (from facts) and dimensions as one conceptual model
  • Rich data model enhanced by
    • Calculations
    • Key Performance Indicators (KPIs)
    • Actions
    • Perspectives
    • Translations
    • Partitions
  • Formally, cube is called a UDM
slide19

Ритейл

Cube

Cars

Parts

Products

Accessories

2009

Q1

Dates

Jan

Feb

Mar

Measures

Cost

Items Sold

Sales$

dicing a cube

Ритейл

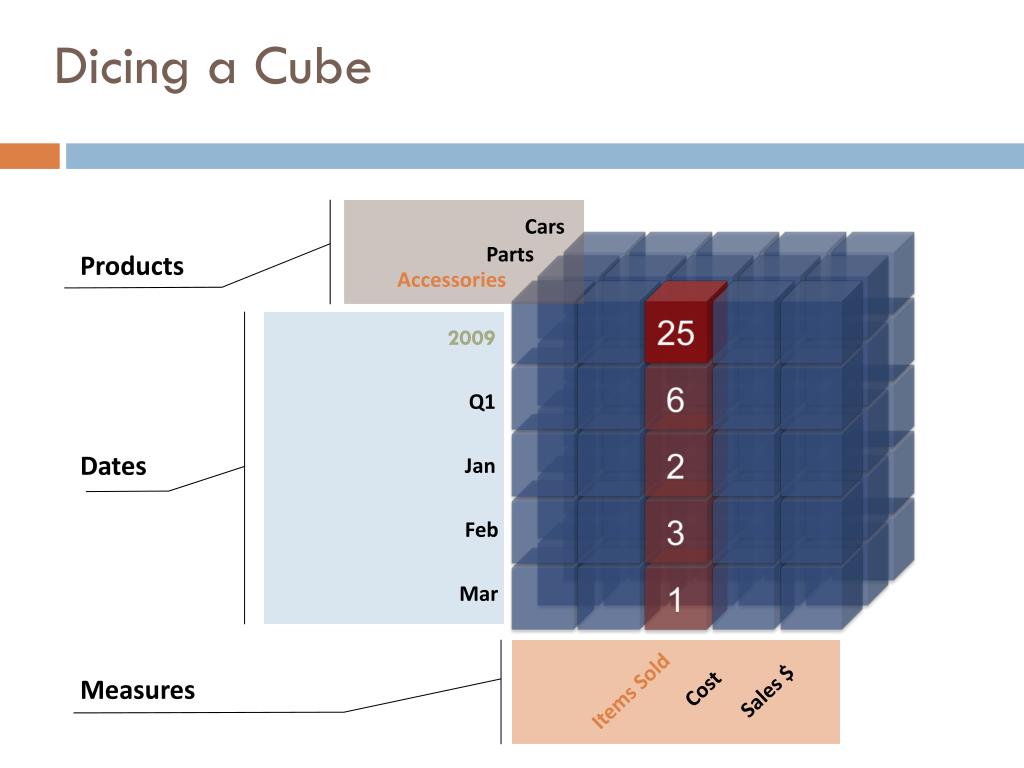

Dicing a Cube

Cars

Parts

Products

Accessories

25

2009

6

Q1

Dates

Jan

2

Feb

3

Mar

1

Measures

Cost

Items Sold

Sales$

hierarchies
Hierarchies
  • Benefits
    • View of data at different levels of summarization
    • Path to drill down or drill up
  • Implementation
    • Denormalized starschema dimension
    • Normalized snowflakedimension
    • Self-referencing relationship
dimension relationships
Dimension Relationships
  • Define interaction between dimensions and measure groups
  • Relationship types
    • Regular
    • Reference
    • Fact (Degenerate)
    • Many-to-many
    • Data mining
measure group
Measure Group
  • Group of measures with same dimensionality
  • Analogous to a fact table
  • Cube can contain more than one measure group
    • E.g. Sales, Inventory, Finance
  • Defined by dimension relationships
calculations
Calculations
  • Expressions evaluated at query time for values that cannot be stored in fact table
  • Types of calculations
    • Calculated members
    • Named sets
    • Scoped assignments
  • Calculations are defined using MDX
time and date dimensions

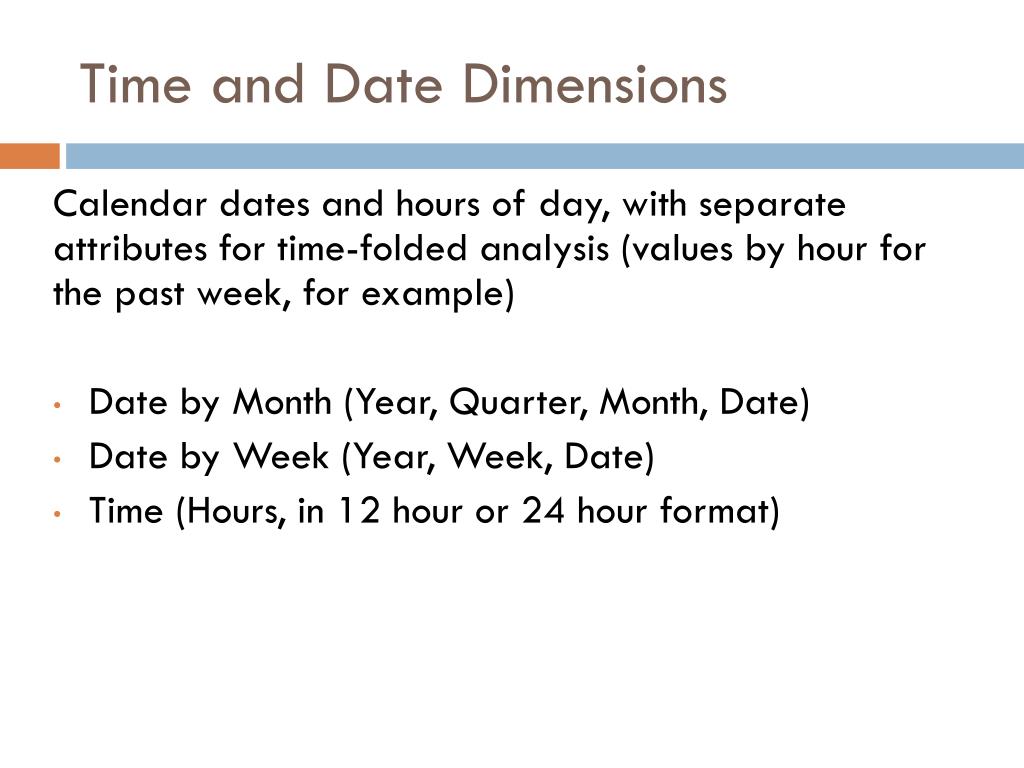

Time and Date Dimensions

Calendar dates and hours of day, with separate attributes for time-folded analysis (values by hour for the past week, for example)

  • Date by Month (Year, Quarter, Month, Date)
  • Date by Week (Year, Week, Date)
  • Time (Hours, in 12 hour or 24 hour format)
period calculations
Period Calculations

A dimension that contains dynamic, time-based calculations

  • Month-to-date
  • Quarter-to-date
  • Year-to-date
  • Prior Period
  • Year-to-date, Prior Year
  • Percentage change
parent child hierarchy

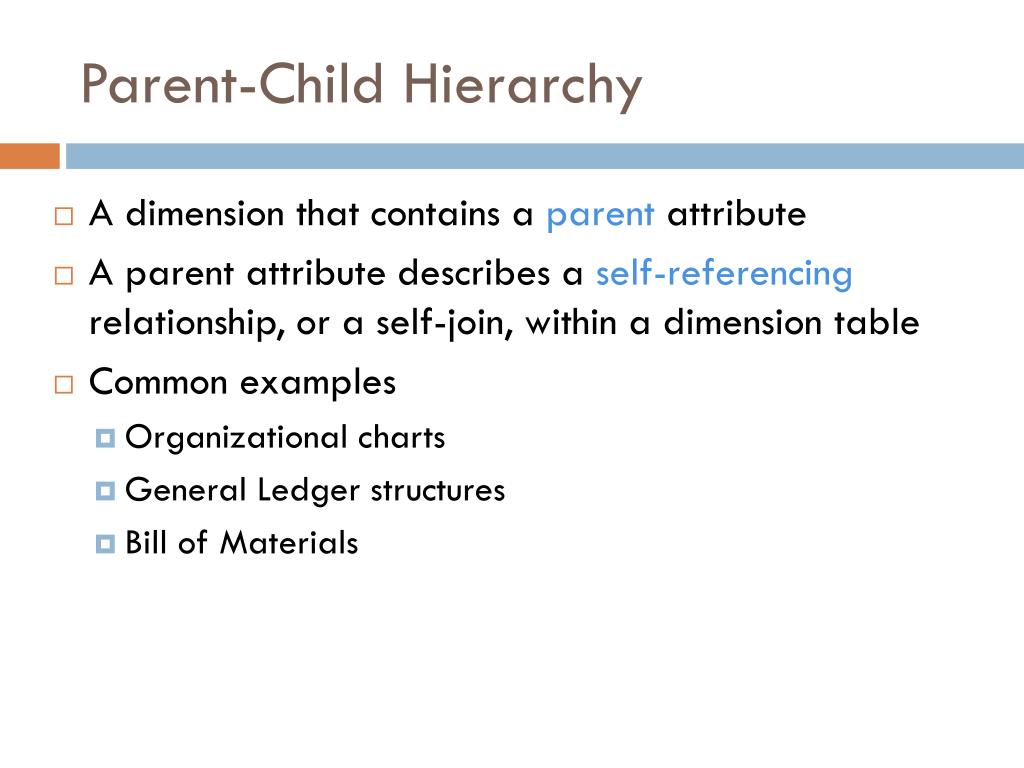

Parent-Child Hierarchy
  • A dimension that contains a parent attribute
  • A parent attribute describes a self-referencing relationship, or a self-join, within a dimension table
  • Common examples
    • Organizational charts
    • General Ledger structures
    • Bill of Materials
slowly changing dimensions
Slowly Changing Dimensions
  • Maintain historical context as dimension data changes
  • Three common ways (there are more):
    • Type 1: Overwrite the existing dimension record
    • Type 2: Insert a new ‘versioned’ dimension record
    • Type 3: Track limited history with attributes
key performance indicators kpi

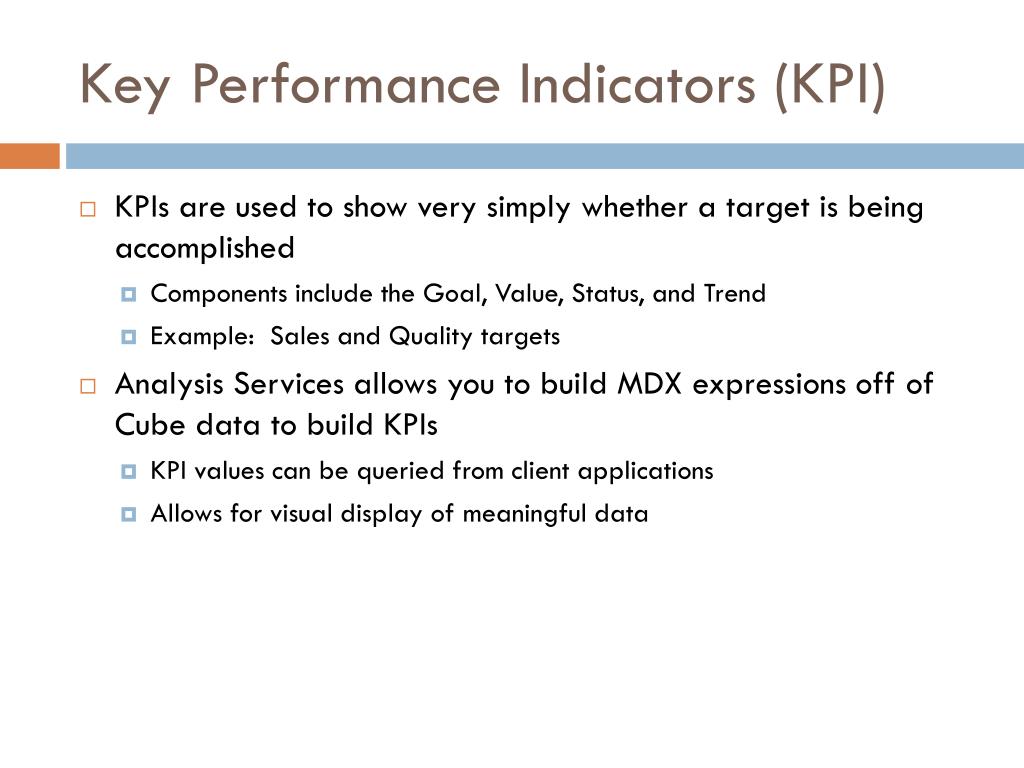

Key Performance Indicators (KPI)
  • KPIs are used to show very simply whether a target is being accomplished
    • Components include the Goal, Value, Status, and Trend
    • Example: Sales and Quality targets
  • Analysis Services allows you to build MDX expressions off of Cube data to build KPIs
    • KPI values can be queried from client applications
    • Allows for visual display of meaningful data
actions
Actions
  • Actions
    • Allows client application users to be able to interact with what the data means
    • Example: Browse to a customer or product via URL
  • Types of Actions:
    • CommandLine, DataSet, Drillthrough, Html, Custom, Report, URL
    • Define and assign to objects in the Cube
perspectives
Perspectives
  • Perspectives work similar to views in a relational database
    • Shows different users the data they need to see for a particular role they may be in
  • Used to reduce complexity of cube data
  • Not meant to be security mechanism for data
storage modes
Storage Modes
  • Data in an Analysis Services database is stored differently than a relational database
    • Optimized storage provides the OLAP query performance
  • Partition
    • MOLAP – multidimensional OLAP (fact data and aggregations are stored in special format)
    • ROLAP – Relational OLAP (fact data and aggregations remain in relational database)
    • HOLAP – Hybrid OLAP (fact data is relational, aggregations are stored in special format)
  • Dimension (dimension attributes only)
    • MOLAP – stored in special format
    • ROLAP – stay in relational format
querying cubes
Querying Cubes
  • SQL is not used in OLAP databases
  • MDX (multidimensional queries) is used for querying cubes
  • DMX (Data Mining queries) is used for querying data mining models
mdx queries

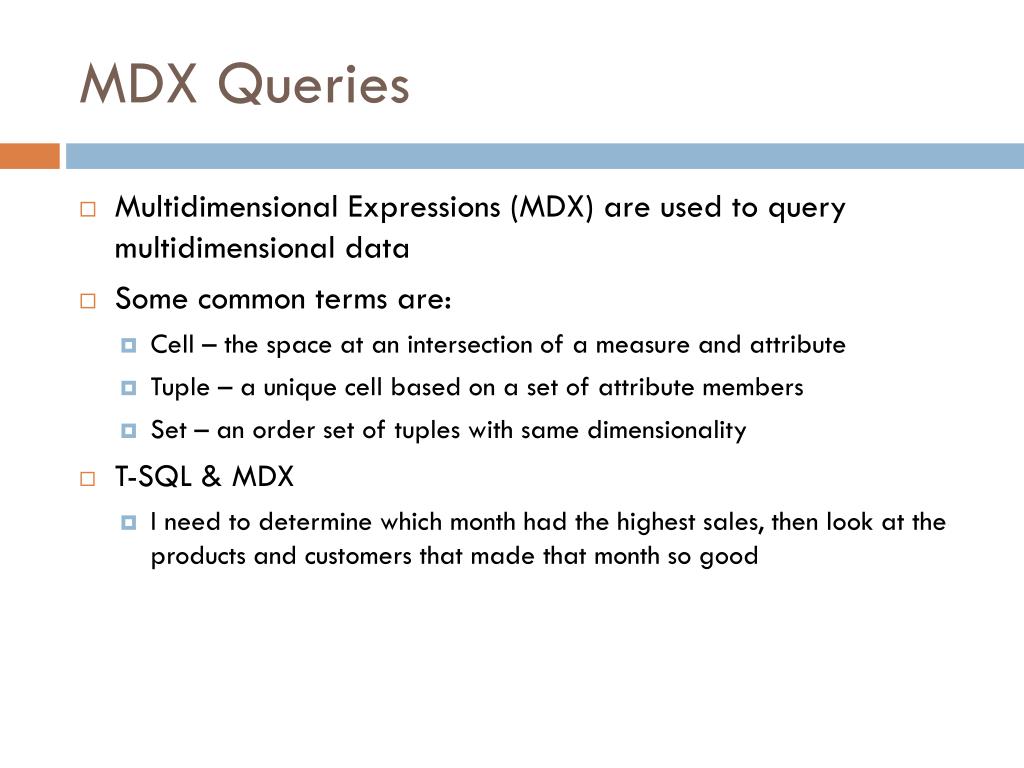

MDX Queries
  • Multidimensional Expressions (MDX) are used to query multidimensional data
  • Some common terms are:
    • Cell – the space at an intersection of a measure and attribute
    • Tuple – a unique cell based on a set of attribute members
    • Set – an order set of tuples with same dimensionality
  • T-SQL & MDX
    • I need to determine which month had the highest sales, then look at the products and customers that made that month so good
calculated members and named sets
Calculated Members and Named Sets
  • Calculated Members are used when you need to determine something at query time
    • Can be query or session scoped
    • Value are only stored in memory not on disk
  • Named Sets are basically predefined MDX queries that can be reused in other queries
    • Used to group dimension members
partitioning

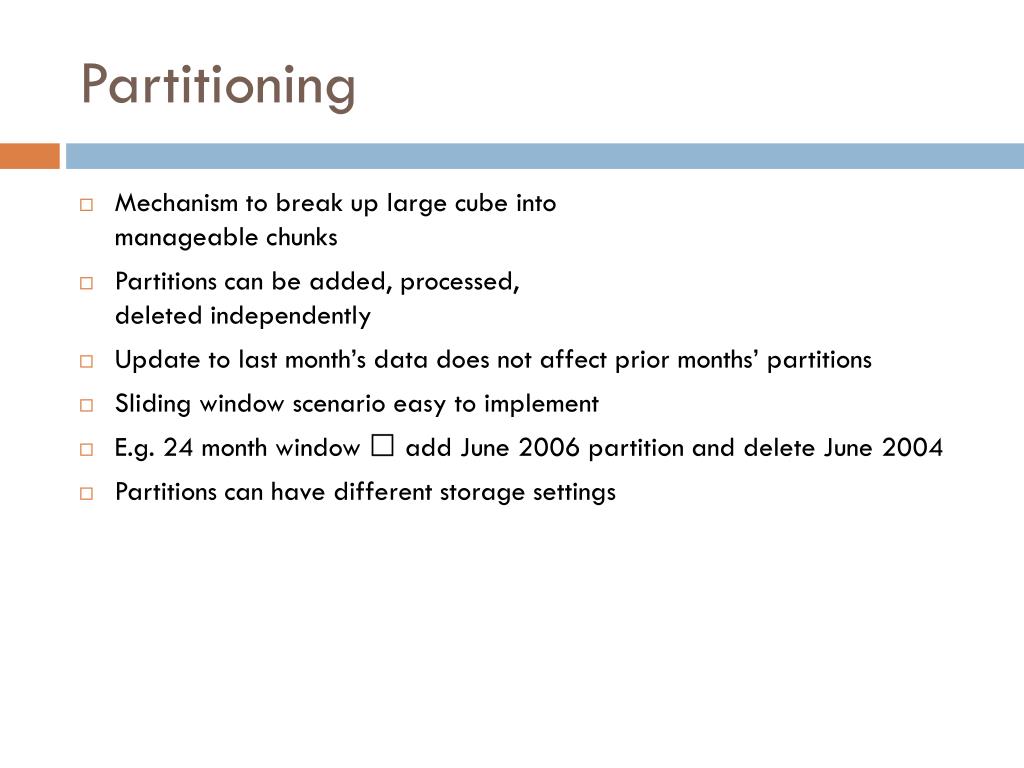

Partitioning
  • Mechanism to break up large cube into manageable chunks
  • Partitions can be added, processed, deleted independently
  • Update to last month’s data does not affect prior months’ partitions
  • Sliding window scenario easy to implement
  • E.g. 24 month window  add June 2006 partition and delete June 2004
  • Partitions can have different storage settings
what could go wrong
What could go wrong?
  • Cubes really are simple things to build and utilize
    • As simple as they are, it is easy to create a cube that has the wrong data
  • Always validate that the data that is displayed in the Cube is valid and accurate
    • Never hurts to be overly aggressive when testing Cube data
business intelligence development studio
Business Intelligence Development Studio
  • BI Studio is just Visual Studio with project templates installed
  • Project templates provide item templates and wizards
    • New 2008 Wizards are much easier to use and more powerful
  • Context sensitive functionality keeps toolbars and menus trimmed to what elements you need based on what you are looking at
  • Because it is Visual Studio it is fully customizable
    • 3rd party add-ons can make it even more powerful
designing an analysis services database
Designing an Analysis Services Database
  • BI Studio will be used to create new AS Databases
  • Steps include:
    • Define data source
    • Define data view
    • Create a new cube
    • Define fact tables
    • Define dimensions (data and time)
    • Define measures
    • Aggregate/Run the cube
ssas 2008 r2 new features
SSAS 2008 R2 New Features
  • Develop solutions quickly with the new, streamlined Cube Designer
  • Take advantage of enhanced Dimension and Aggregation Designers
  • Create attribute relationships easily by using the new Attribute Relationship Designer
  • Avoid common design problems by using best practice
  • Enable high-performance “what if” scenarios by using MOLAP enabled write-back
  • Take advantage of enhanced data mining structures and improved Time Series support
  • Monitor and optimize analytical solutions by using Analysis
live demo
Live Demo

SQL Server Analysis Services

slide45
Q & A

SQL Server Analysis Services
