How AGA 12-1 Protects SCADA Data In Transit

1. A Presentation To The COTF1 Group By Bill Rush Gas Technology Institute April 26, 2003 Sun Valley, Idaho How AGA 12-1 Protects SCADA Data In Transit

2. We Will Overview AGA 12-1 And Develop Background • Project History • Threats And Attacks • Cryptographic Fundamentals • How AGA 12 Protects Communications • Future Developments

3. HISTORY OF AGA 12

4. The AGA 12 Group Adopted A Broad Charter • AGA = American Gas Association • AGA Report = Recommended Practice • AGA 12-1, “Cryptographic Protection Of SCADA Communications” • Launched Effort In October 2001 • Goal: Cover Gas, Water, and Electric • Balloting: March 25 to April 24 “We have no competitors – only partners we have not yet met !”

5. SCADA Communications Are Vulnerable • Assailants Can Attack SCADA Communications Control Room Network Is Insecure RTU (Secure) (Secure)

6. AGA 12-1 Has Several Goals • Solid Cryptographic Communication Protection • Retrofit To Existing Systems • Reasonable Cost • Tolerable Message Delays • Reliable Certification Methods • Interoperability Among Manufacturers Today, Focus Is “What Attacks We Protect Against And How”

7. THREATS AND ATTACKS

8. There Are Several Possible SCADA Attackers • Hackers • Organized Crime • Financial Traders • Terrorists • Foreign Governments • Insiders/Disgruntled Employees • Combinations

9. We Protect Against 5 Attacks • Interception – Listening To Messages • Fabrication – Creating Forged Messages • Alteration – Changing Valid Messages • Replay – Copying Message, Sending Later • Key Guessing/Extraction – Trial & Error OR Taking Key From Module

10. AGA 12-1 Protects SCADA Communications • Technical Approach: Attackers can’t read “Open A Valve!” “Open A Valve!” Encrypt Decrypt “^fD%b*m>s#H!j“ Even Intercepted SCADA Commands Are Secure Until They Reach Their Destination

11. CRYPTOGRAPHIC FUNDAMENTALS

12. YES - And In Fact, It Is The Best Way. How Can This Be? Can A Published, Known Standard Encryption Mechanism Really Keep Data A Secret? The Key, Not Algorithm Secrecy, Provides Security

13. The Mechanism Of Locks Is Public Knowledge But Without The Key Or Combination - You Can’t Open A Single One !

14. Substitute One Letter For Another Rotate Letters By “N” Positions A Simple Rotation Algorithm Provides A Simple Example GOAL: An Algorithm Simple Enough To See, But Real Enough To Show Issues

15. Plaintext Maps To Ciphertext Easily - With The Key Key = Rotate Each Letter 2 To The Right Plaintext: A B C D E F G H …Z Cyphertext: A B C D E F G H I J … C With Rotation Key: 2 “HAD” Becomes “JCF” 3 “HAD” Becomes “KDG”

16. Substitute One Letter For Another Rotate Letters By “N” Positions N Is The (Shared, Secret) Key 0 < N < 25 A Rotation Algorithm Is A Simple Example GOAL: An Algorithm Simple Enough To See, But Real Enough To Show Issues

17. The Rotation Algorithm Has General Characteristics • Algorithm Is Known, Key Provides Security • Unique Mapping Of Plaintext To Ciphertext • Coding/Decoding Easy With The Key • Decoding Hard Without The Key • Can Be Broken By Guessing • Longer Keys Harder To Break

18. A Digression: How Hard Is “Hard”? • A $250,000 Computer Can Guess A 56-Bit Key In 2 Hours • Each Additional Bit Doubles Guessing Time • 64 Bits Takes 128x2=256 hours • 128 Bits Takes 2x293 hours

19. The Rotation Algorithm Has General Characteristics (Cont) • “Symmetric Key” Means Both Keys The Same • Both Parties Have Common, SECRET Key • If One Key For Many Units, Getting 1 Gets All • “Symmetric Key” Management An Issue • Changing Keys Adds Security • Never Use A Key To Send A New Key

20. There Are Three Kinds Of Algorithm • Symmetric Key - Same, Secret Key • Public Key - Publish Half Of A Key • Common Number - Parties Get Same Keys AGA 12-1 Uses Only Symmetric Key. AGA 12-2 Will Include Public Key, Too

21. Symmetric Keys Are The Same For Both Parties • Key Must Be Secret • One Key For All Raises Risk • One Key Per Pair Is Hard On A Big Network • Key Knowledge Is Weak Authentication • Must “Introduce” Units To Each Other • “AES” Is An Example Of A Symmetric Key

22. AES Shuffles And Changes Bits According To A Key 0 1 0 0 0 1 0 1 0 1 0 0 1 1 0 1 Move Change 0 1 1 0 1 1 1 0

23. AES Encrypts Messages • Advanced Encryption Standard (AES) • AES-128, 192, or 256 -> Key Length • Winner Of NIST “Shoot-out” • Both Units Have SHARED, SECRET Key • NIST/FIPS Approved Algorithm • Changing One Bit In Plain (Cipher) Text Changes Half The Bits In Cipher (Plain) Text

24. RSA Uses A Public And A Private Key • Public Key Is 2 Numbers, N And E • N Is A Modulus • E Is A Large Number Used To Encrypt • D Is A Large Number Used To Decode

25. RSA Is Easy In Principle • Message Is Called M • Encrypt Message With RECIPIENT’S (N, E) • C = Cyphertext = (M)E Mod N • Mod N = Remainder After Dividing By N • Recipient Decrypts With Private Half Of Key • P = Plaintext = (C)D Mod N

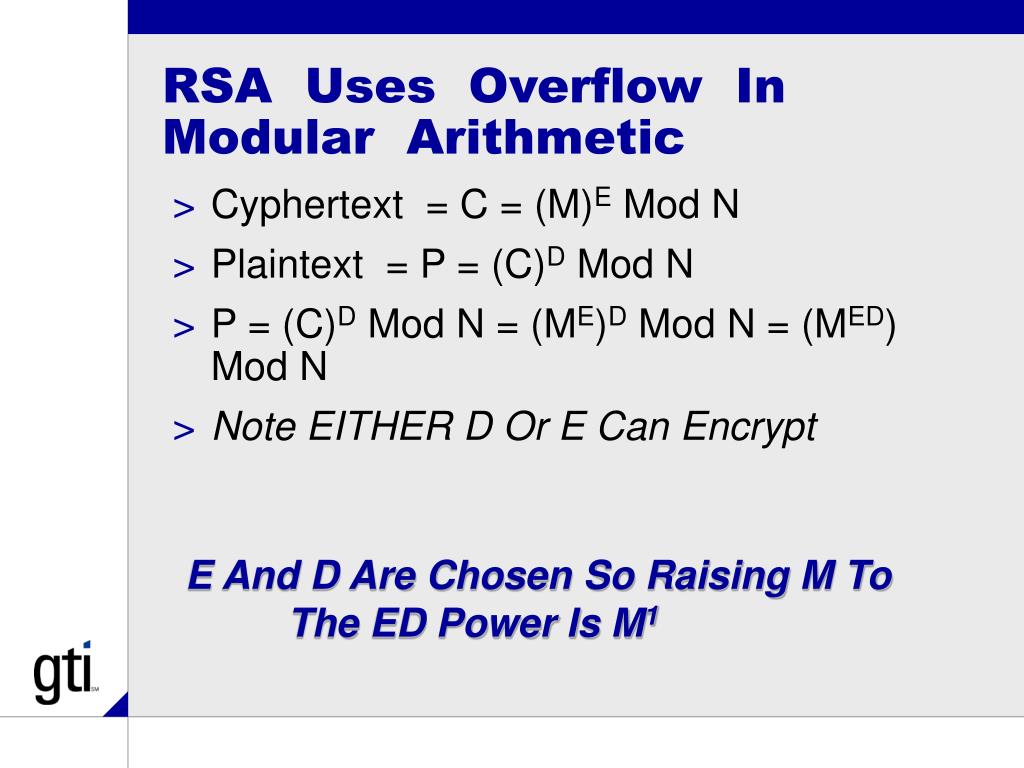

26. RSA Uses Overflow In Modular Arithmetic • Cyphertext = C = (M)E Mod N • Plaintext = P = (C)D Mod N • P = (C)D Mod N = (ME)D Mod N = (MED) Mod N • Note EITHER D Or E Can Encrypt E And D Are Chosen So Raising M To The ED Power Is M1

27. RSA Is Easy To Demonstrate By Example • Take (E,N) As (7, 33) • Take D = 3 • Take M = 15 • C = (15)7 Mod 33 = 27 (Transmit This) • P = (27)3 Mod 33 = 15 (Original Message, M) The Security Comes From How Hard It Is To Find D, Given (E, N)

28. Public Key Has Many Advantages • No Need To Track Key Pairs • Can Authenticate AND Encrypt

29. RSA Will Send Session Keys And Authenticate • Public Key • 1024 Bit Key • Relatively Slow • Authentic Signature (With Valid Public Key)

30. Algorithm Classes Require Different Resources • Public Code Length 3 Times Symmetric • Public Key Is 10 Times Symmetric Key • Public Key Execution = 100 Symmetric Assumes Same Security, (128 Bit Symmetric Key, 1024 Public Key)

31. BUT WAIT! We Have A Problem! • Formulas Are Deterministic • Same Messages Give Same Ciphertext • Assailants Can Deduce SCADA Messages • “Cipher Block Chaining” Is The Solution

32. Protocol Requires Using The “CBC Mode” • Communicate In Sessions • Unit A Generates A Random Number • A Encrypts & Sends To B • B Decrypts, Both Units Call This The “IV” • IV = “Initialization Vector • XOR Message With IV • Encrypt XORed Message • Same Plaintext -> Different Ciphertext • Use Last Ciphertext As Next IV

33. HOW AGA 12 PROTECTS COMMUNICATIONS

34. AGA 12-1 Scrambles To Protect Against Interception • AES-128, 192, or 256 Give Privacy • Winner Of NIST “Shoot-out” • Both Units Have SHARED, SECRET Key • Operates In “CBC Mode” • “Cipher Block Chaining” • Same Plaintext -> Different Ciphertext • XOR Plaintext With Last Ciphertext • Both Units Have Same IV • XOR Is Self-Inverse Operation

35. AGA 12-1 Protects Against Fabrication • Shared Secret Key Helps • CMID (Unique ID #) • Public Key Coming • AGA 12-1.1 • “Digital Certificates”

36. AGA 12-1 Protects Against Alteration & Replay • CBC Mode Prevents • Block Insertion • Block Deletion • Block Re-ordering • Replay Won’t Decrypt Properly Either • Messages Change Due To XOR With NEW Number

37. AGA 12-1 Indicates Key Guessing / Extraction • “Guessing” Possible, But Slow • Millions of Years • Change Keys Per Policy • Minimum: Tamper Indication • Can Specify Tamper Resistant/Envelope

38. FUTURE DEVELOPMENTS

39. A Few Things We Did Not Have Time To Mention • Need A Security Policy • A Certification Program Exists • Work Is Starting To Embed • There Is A Cryptographic Protocol (SLS) • Lab & Field Tests Starting • . . . And A Lot More !

40. What Should You Do? • Take A Full Course/Read The Standard • Contact Bill Rush For Details/Questions • 847/768-0554 • Bill.Rush@gastechnology.org • Champion AGA 12 As A Standard • Champion AGA 12 In Your Company

41. Use AGA 12-1 To Protect SCADA Communications • Gas, Water, Electric • Protects Against Many Attacks • Retrofits Many Systems • Under 100 Millisecond Latency Added • Reasonable Cost • Will Be Upgraded AGA 12-1 Uses Only Symmetric Key. AGA 12-1.1 Will Include Public Key, Too
