Presentation Transcript

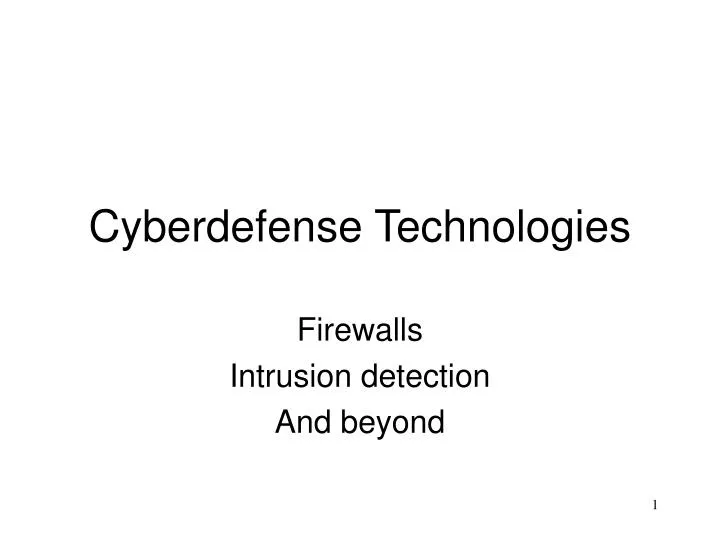

cyberdefense technologies

Cyberdefense Technologies


Intrusion detection

And beyond

defensive strategy

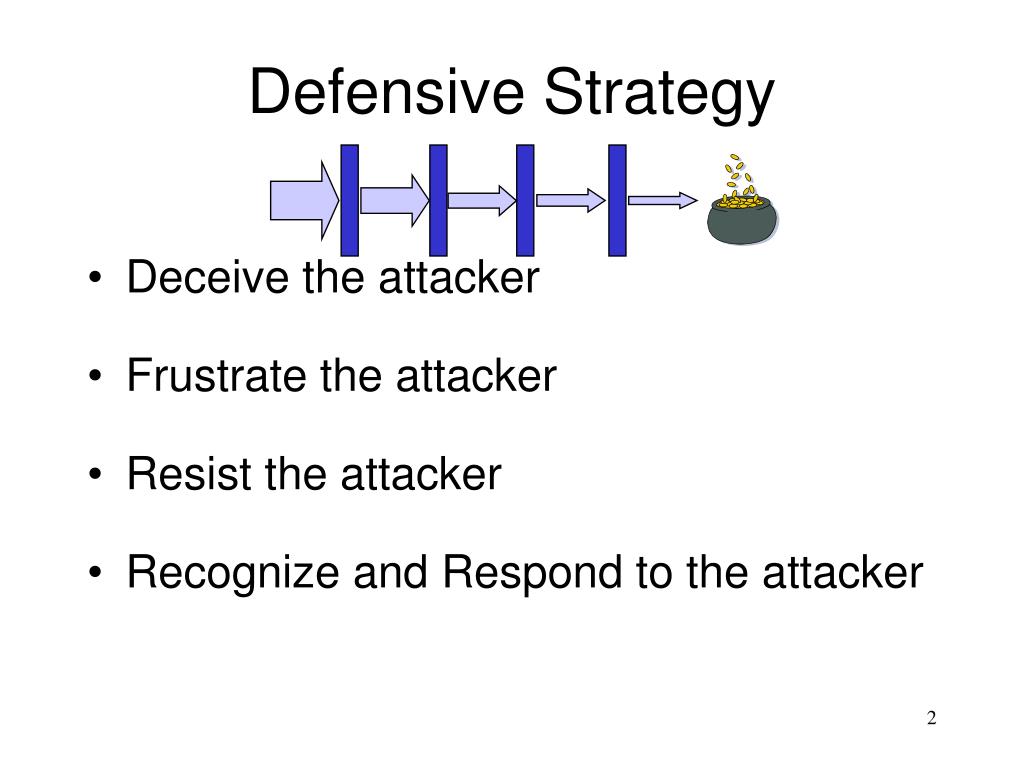

Defensive Strategy
  • Deceive the attacker
  • Frustrate the attacker
  • Resist the attacker
  • Recognize and Respond to the attacker
security desires

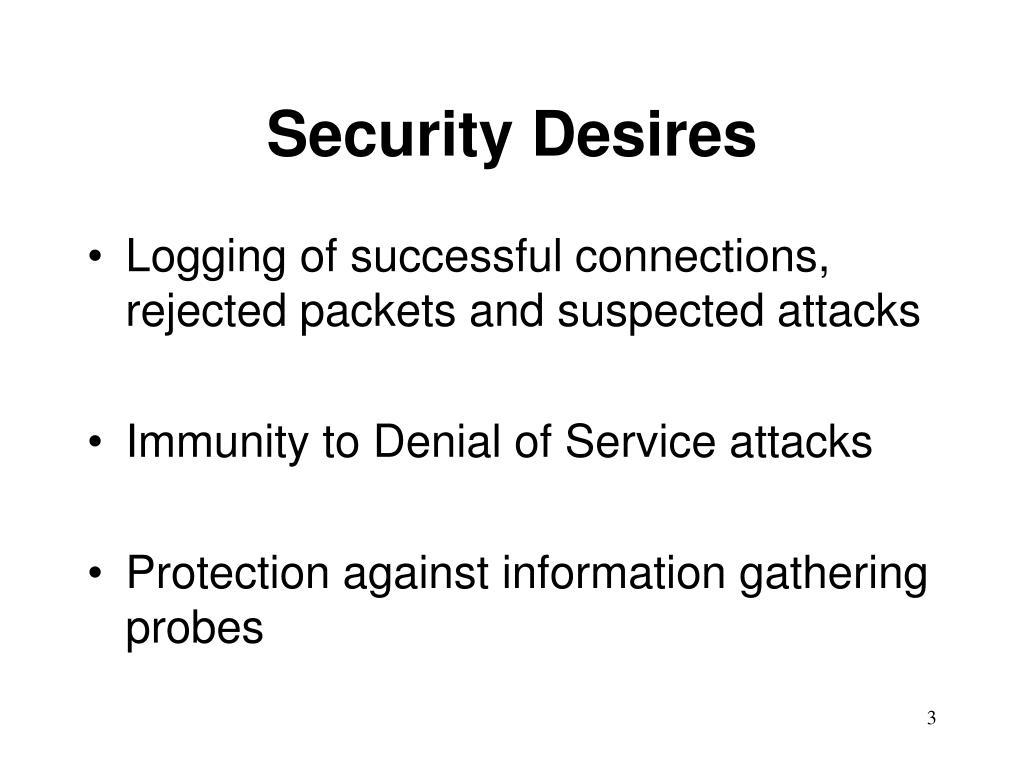

Security Desires
  • Logging of successful connections, rejected packets and suspected attacks
  • Immunity to Denial of Service attacks
  • Protection against information gathering probes
defenses against dos

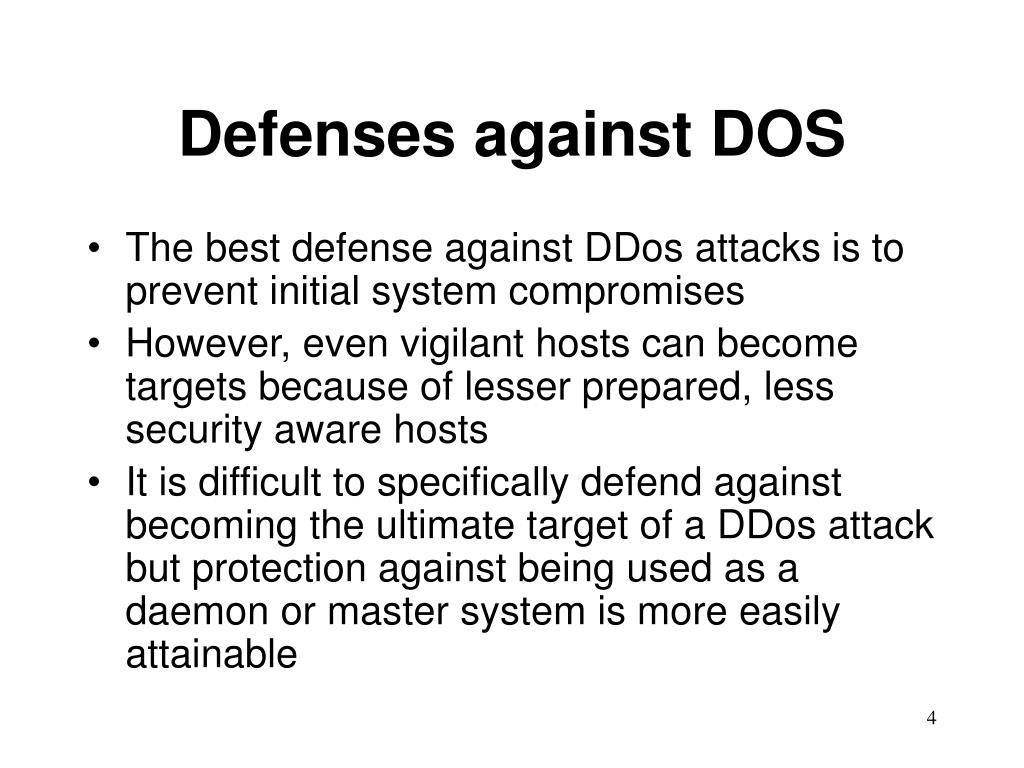

Defenses against DOS
  • The best defense against DDos attacks is to prevent initial system compromises
  • However, even vigilant hosts can become targets because of lesser prepared, less security aware hosts
  • It is difficult to specifically defend against becoming the ultimate target of a DDos attack but protection against being used as a daemon or master system is more easily attainable

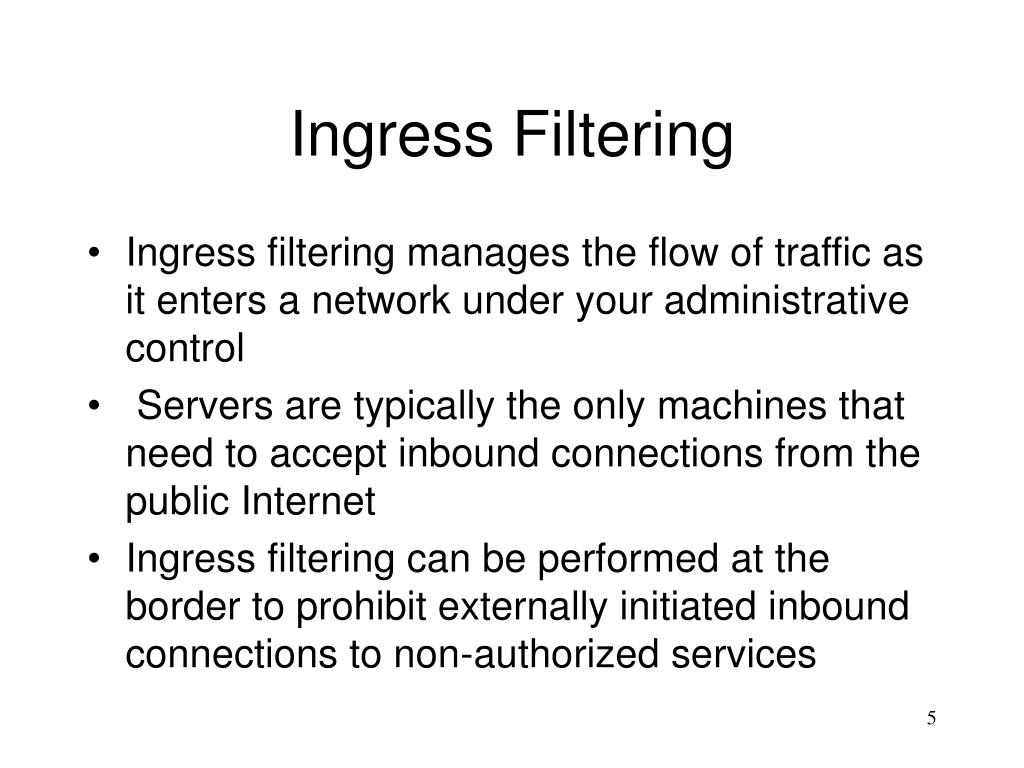

ingress filtering
Ingress Filtering
  • Ingress filtering manages the flow of traffic as it enters a network under your administrative control
  • Servers are typically the only machines that need to accept inbound connections from the public Internet
  • Ingress filtering can be performed at the border to prohibit externally initiated inbound connections to non-authorized services
egress filtering

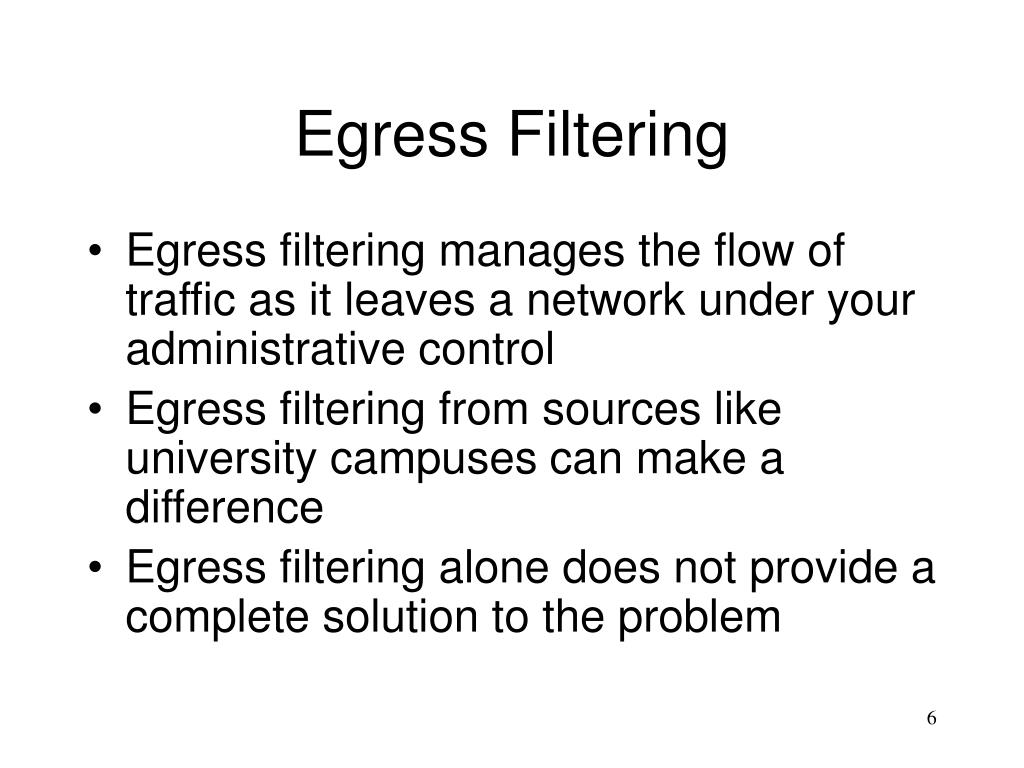

Egress Filtering
  • Egress filtering manages the flow of traffic as it leaves a network under your administrative control
  • Egress filtering from sources like university campuses can make a difference
  • Egress filtering alone does not provide a complete solution to the problem

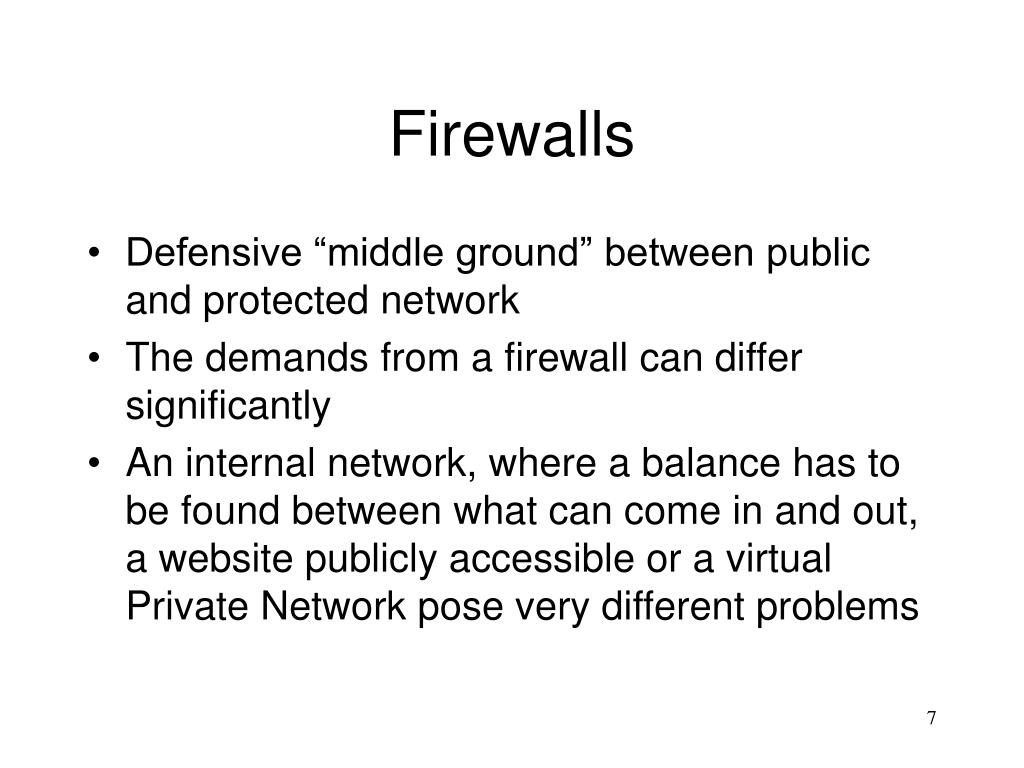

  • Defensive “middle ground” between public and protected network
  • The demands from a firewall can differ significantly
  • An internal network, where a balance has to be found between what can come in and out, a website publicly accessible or a virtual Private Network pose very different problems

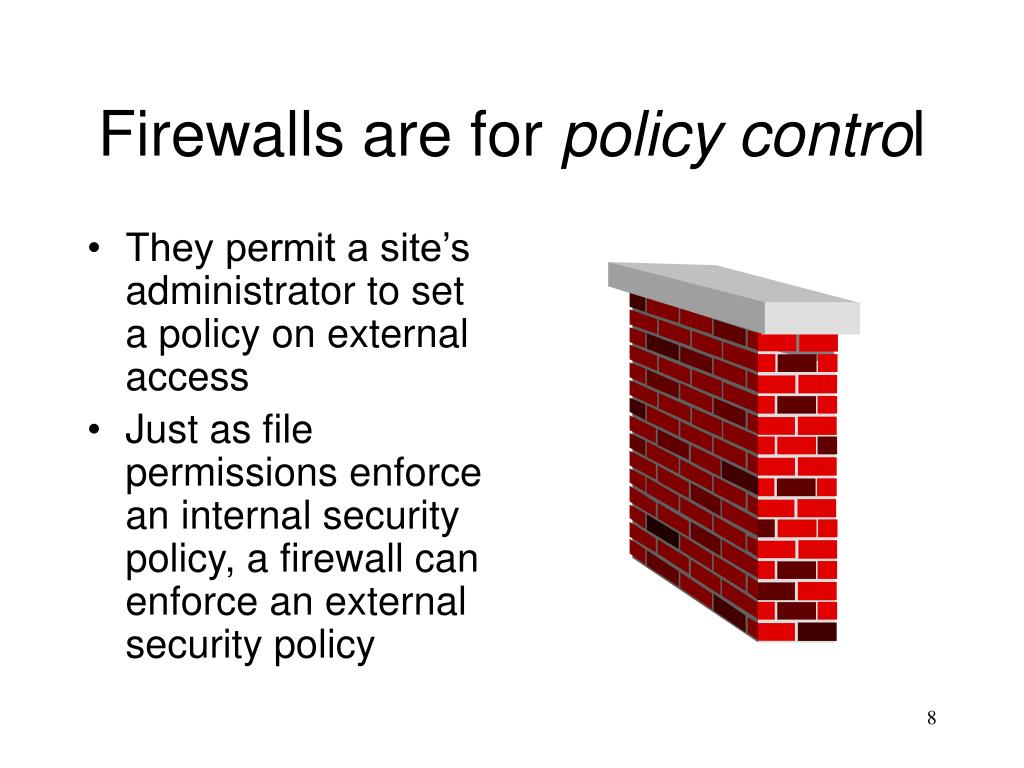

firewalls are for policy contro l
Firewalls are for policy control
  • They permit a site’s administrator to set a policy on external access
  • Just as file permissions enforce an internal security policy, a firewall can enforce an external security policy
firewall technologies

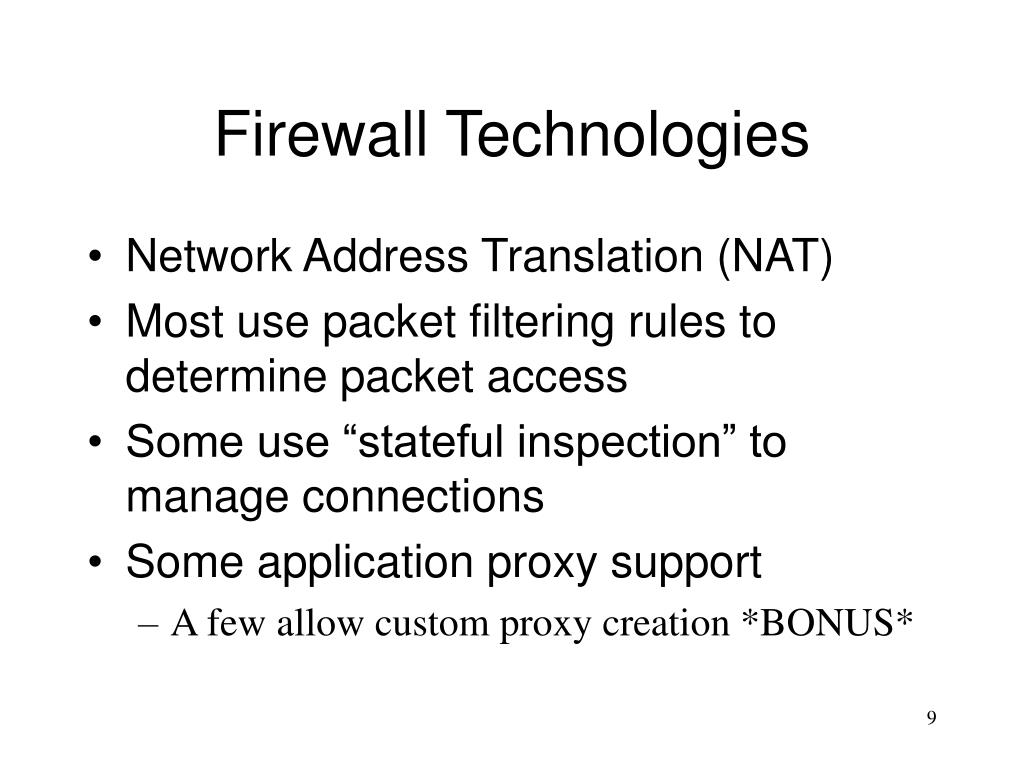

Firewall Technologies
  • Network Address Translation (NAT)
  • Most use packet filtering rules to determine packet access
  • Some use “stateful inspection” to manage connections
  • Some application proxy support
    • A few allow custom proxy creation *BONUS*
static packet filtering

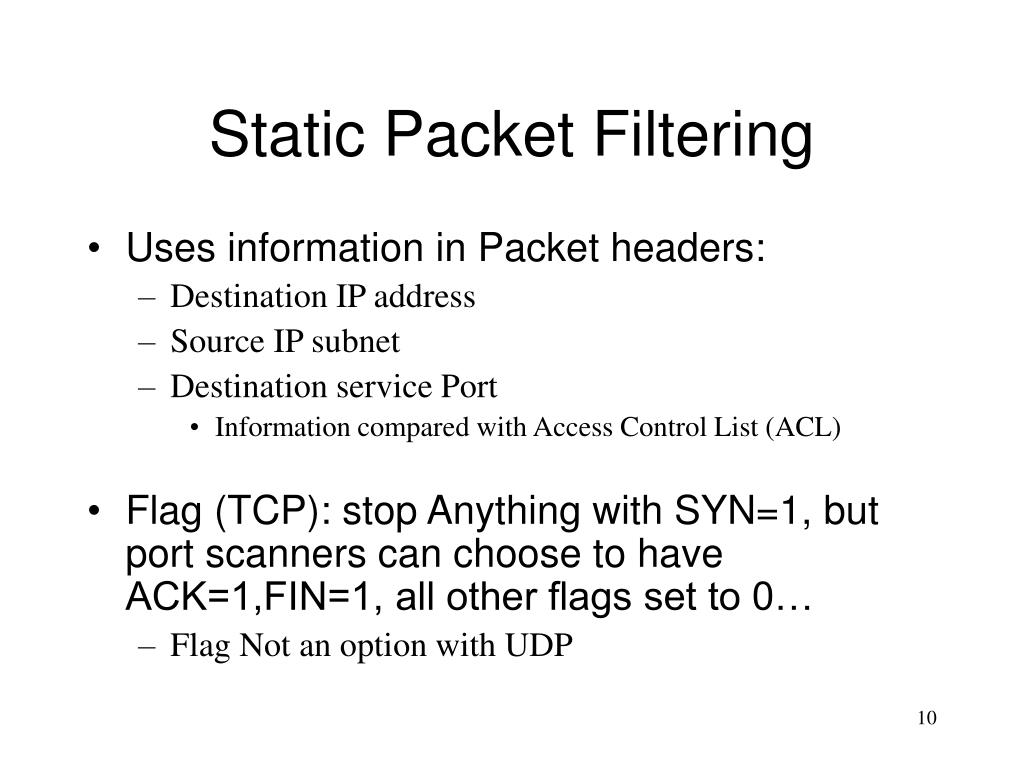

Static Packet Filtering
  • Uses information in Packet headers:
    • Destination IP address
    • Source IP subnet
    • Destination service Port
      • Information compared with Access Control List (ACL)
  • Flag (TCP): stop Anything with SYN=1, but port scanners can choose to have ACK=1,FIN=1, all other flags set to 0…
    • Flag Not an option with UDP

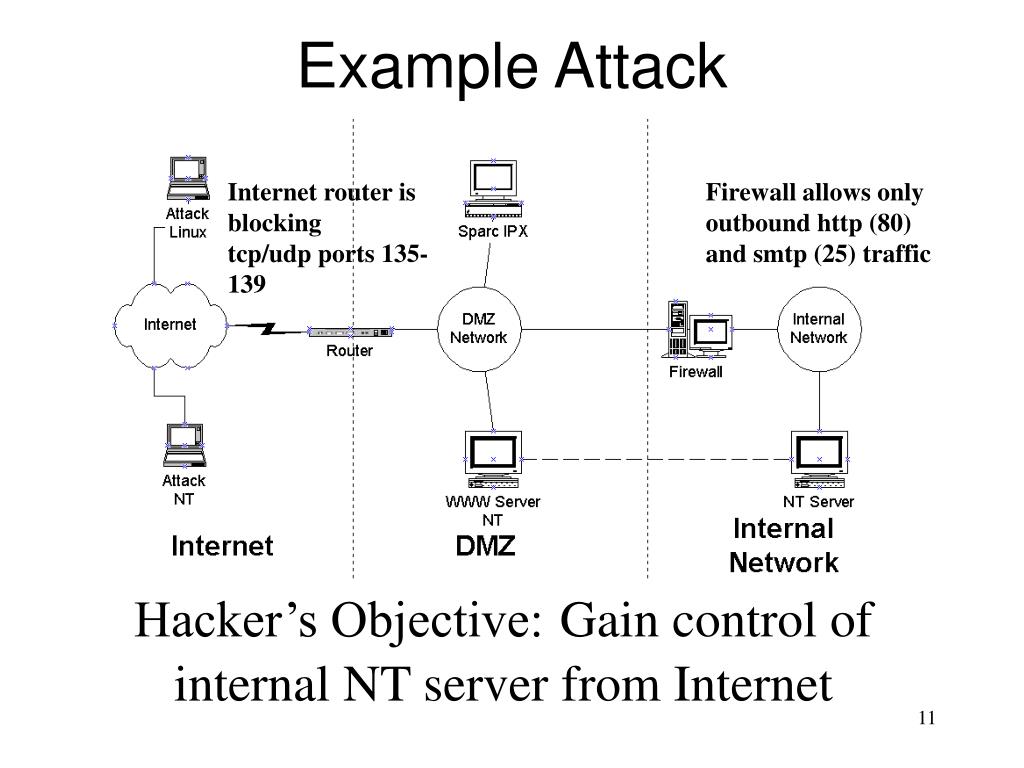

example attack

Internet router is blocking tcp/udp ports 135-139

Firewall allows only outbound http (80) and smtp (25) traffic

Example Attack

Hacker’s Objective:Gain control of internal NT server from Internet

dynamic packet filtering stateful inspection

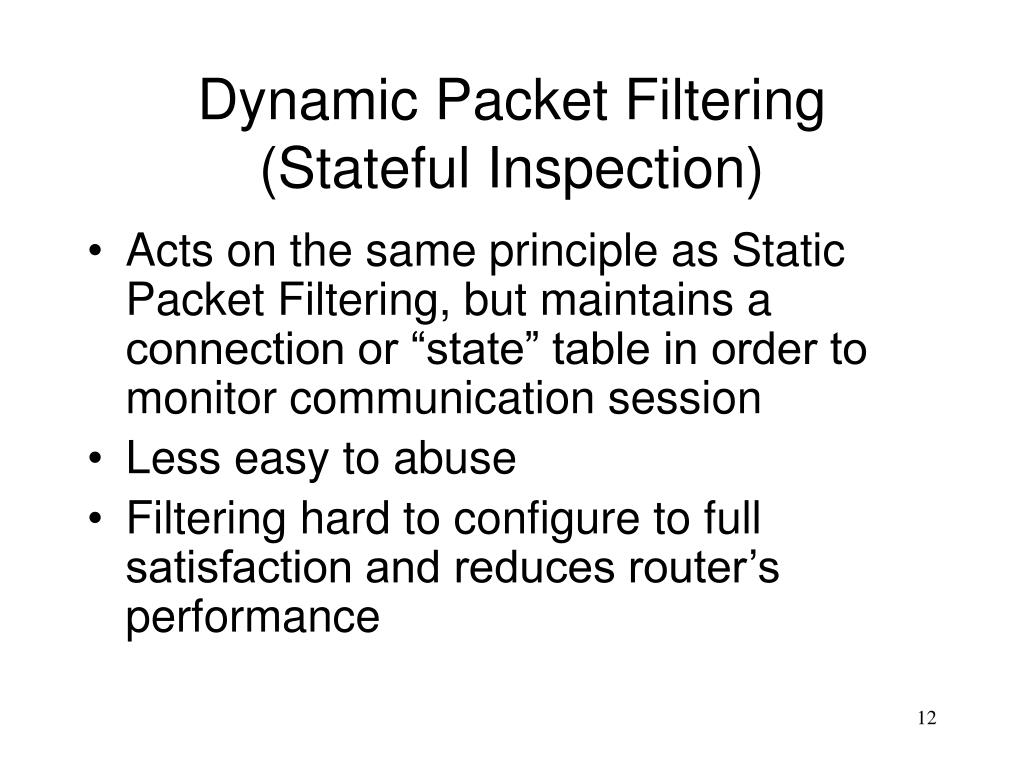

Dynamic Packet Filtering (Stateful Inspection)
  • Acts on the same principle as Static Packet Filtering, but maintains a connection or “state” table in order to monitor communication session
  • Less easy to abuse
  • Filtering hard to configure to full satisfaction and reduces router’s performance
problems with firewalls

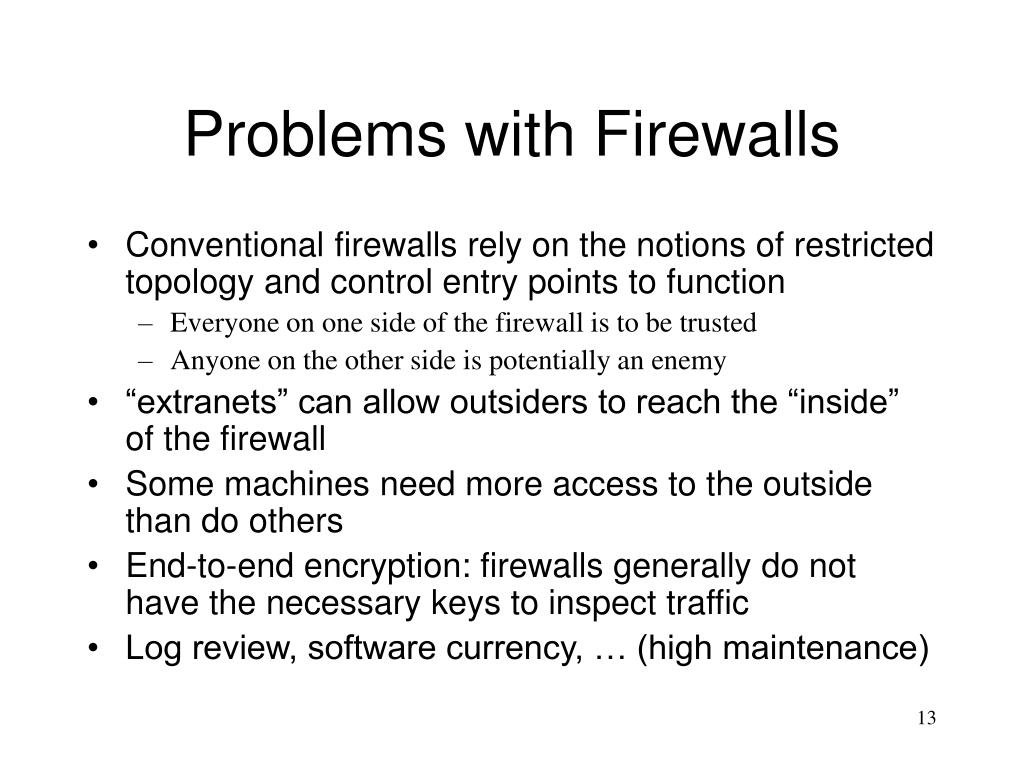

Problems with Firewalls
  • Conventional firewalls rely on the notions of restricted topology and control entry points to function
    • Everyone on one side of the firewall is to be trusted
    • Anyone on the other side is potentially an enemy
  • “extranets” can allow outsiders to reach the “inside” of the firewall
  • Some machines need more access to the outside than do others
  • End-to-end encryption: firewalls generally do not have the necessary keys to inspect traffic
  • Log review, software currency, … (high maintenance)

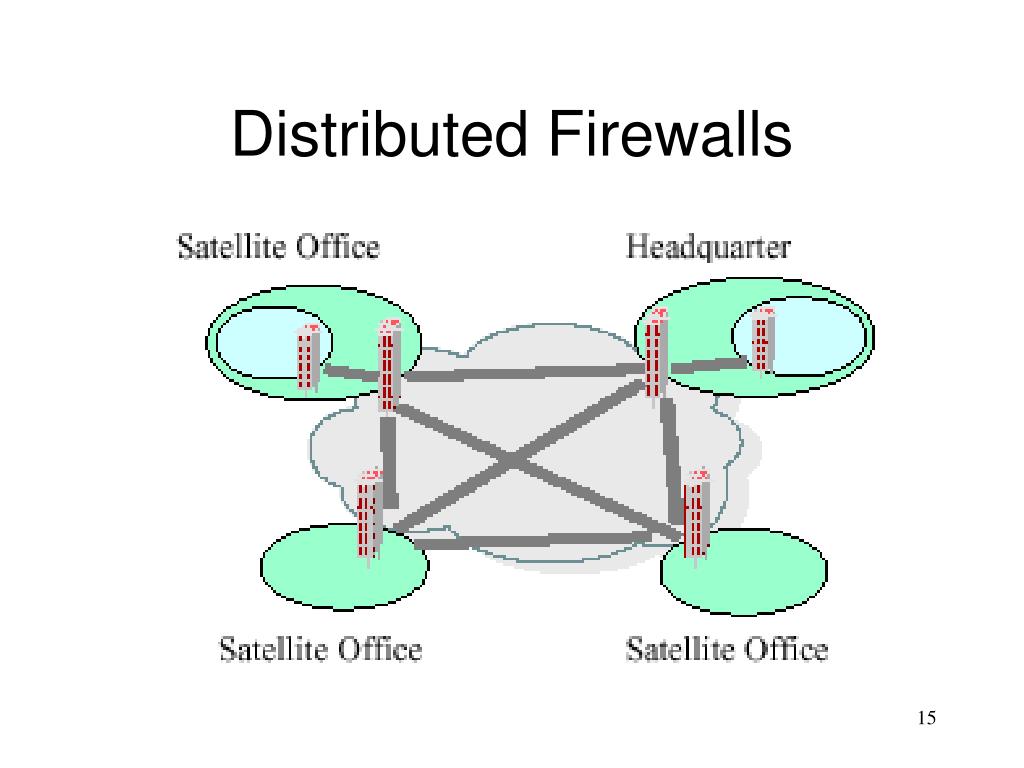

distributed firewalls

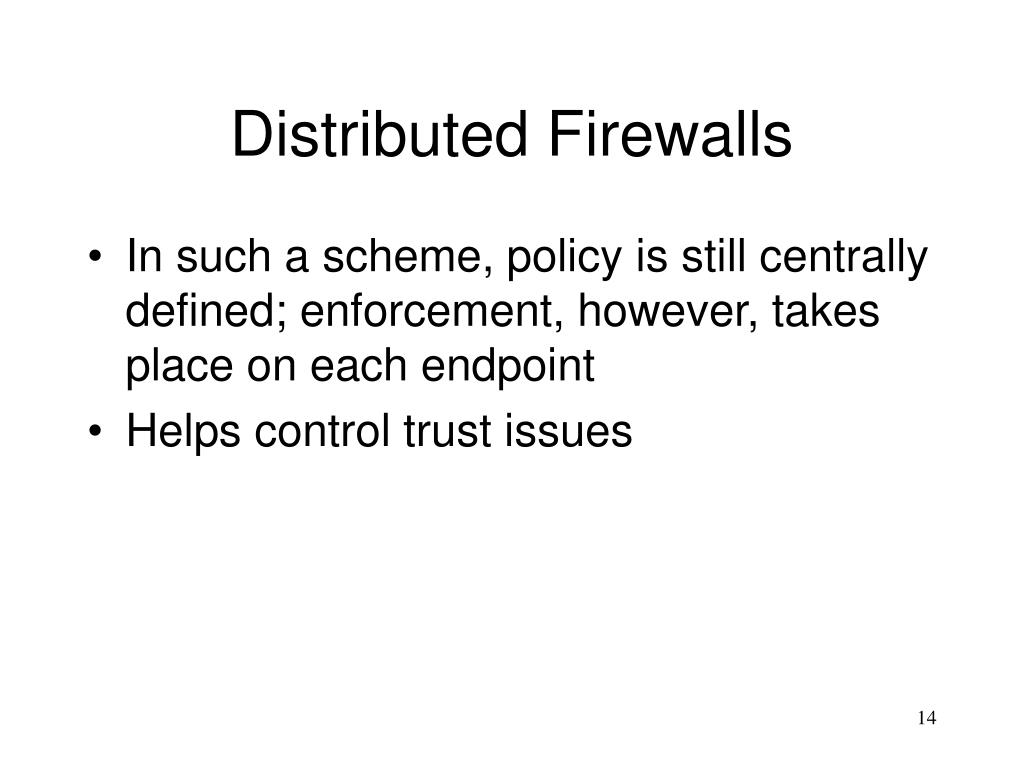

Distributed Firewalls
  • In such a scheme, policy is still centrally defined; enforcement, however, takes place on each endpoint
  • Helps control trust issues
what are honeypots

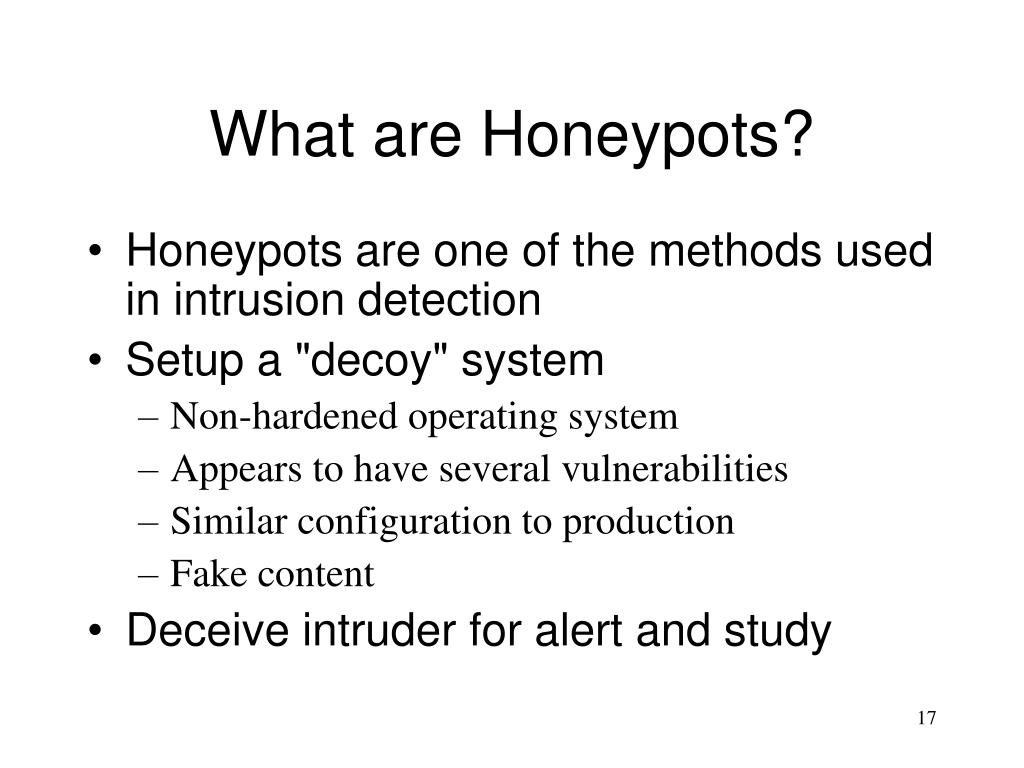

What are Honeypots?
  • Honeypots are one of the methods used in intrusion detection
  • Setup a "decoy" system
    • Non-hardened operating system
    • Appears to have several vulnerabilities
    • Similar configuration to production
    • Fake content
  • Deceive intruder for alert and study
attracting blackhats

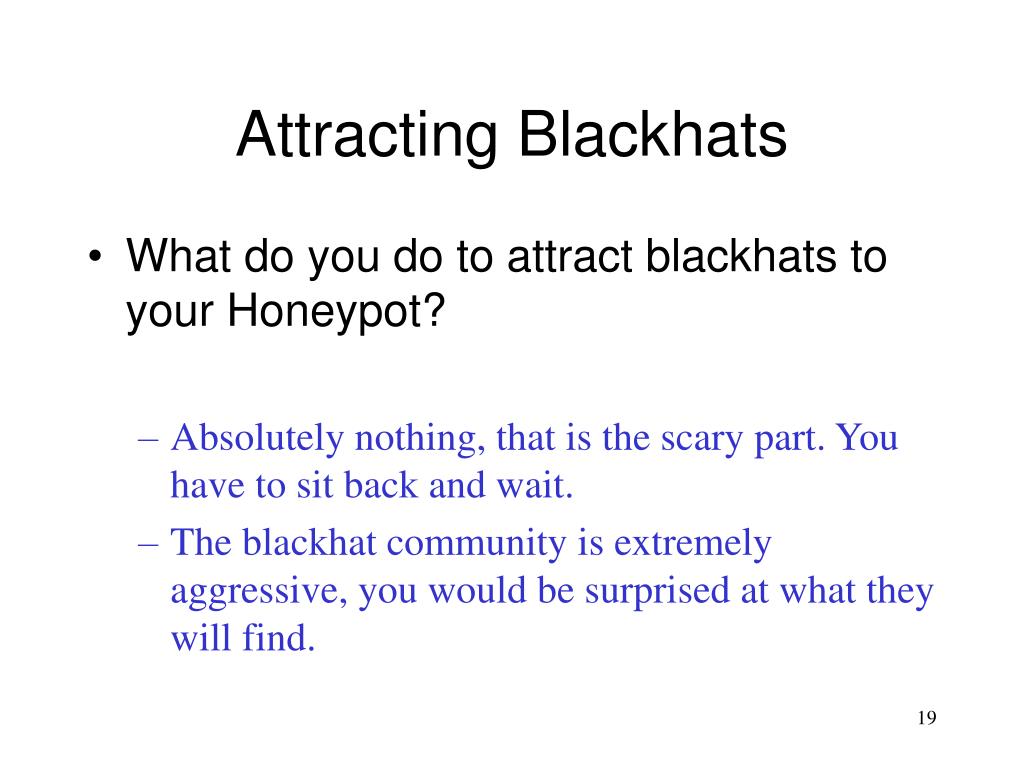

Attracting Blackhats
  • What do you do to attract blackhats to your Honeypot?
    • Absolutely nothing, that is the scary part. You have to sit back and wait.
    • The blackhat community is extremely aggressive, you would be surprised at what they will find.
honeypot as attack host

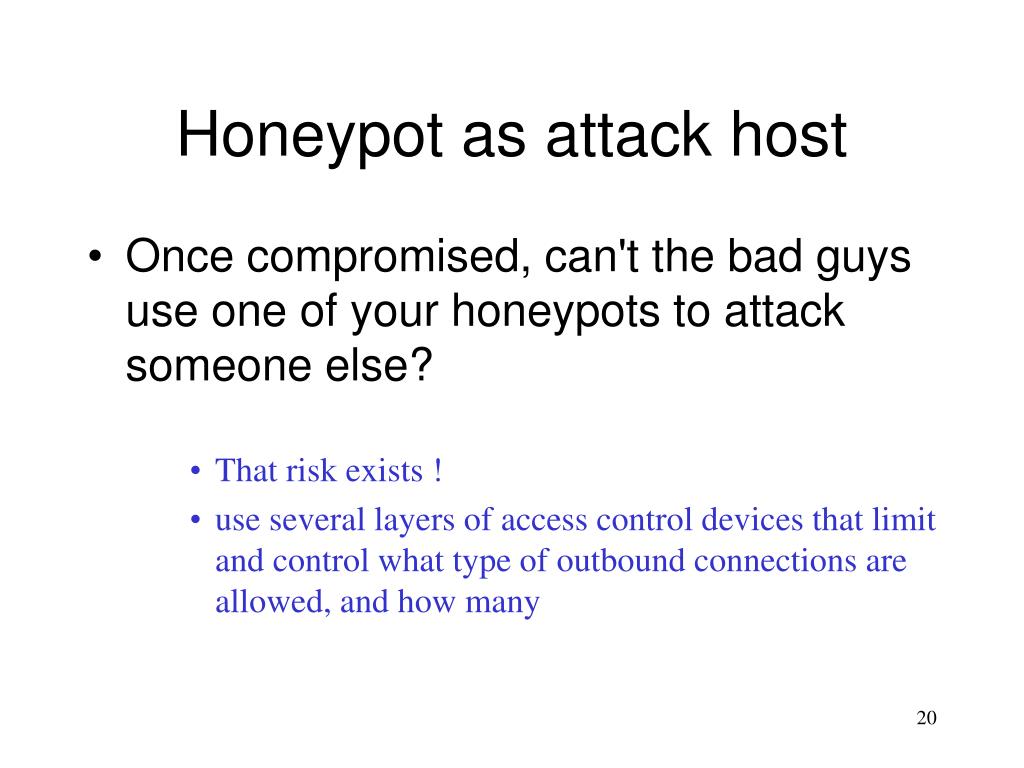

Honeypot as attack host
  • Once compromised, can't the bad guys use one of your honeypots to attack someone else?
      • That risk exists !
      • use several layers of access control devices that limit and control what type of outbound connections are allowed, and how many
the honeynet project

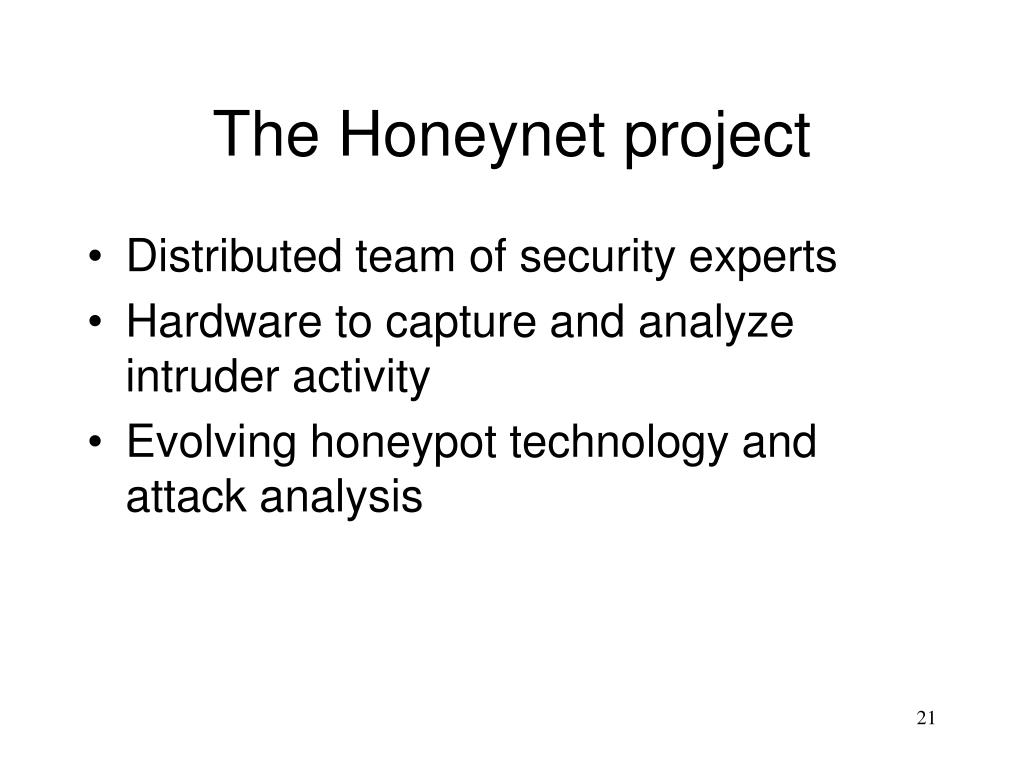

The Honeynet project
  • Distributed team of security experts
  • Hardware to capture and analyze intruder activity
  • Evolving honeypot technology and attack analysis
what s wrong with honeypots
What’s wrong with honeypots?
  • The insurance model will not allow you to take unnecessary risks without a substantial increase in premium
  • Risk management says that honey pots increase risk for demonstrably invalid reasons
  • You can learn more by using better instrumentation
  • Transient effectiveness
transient effectiveness

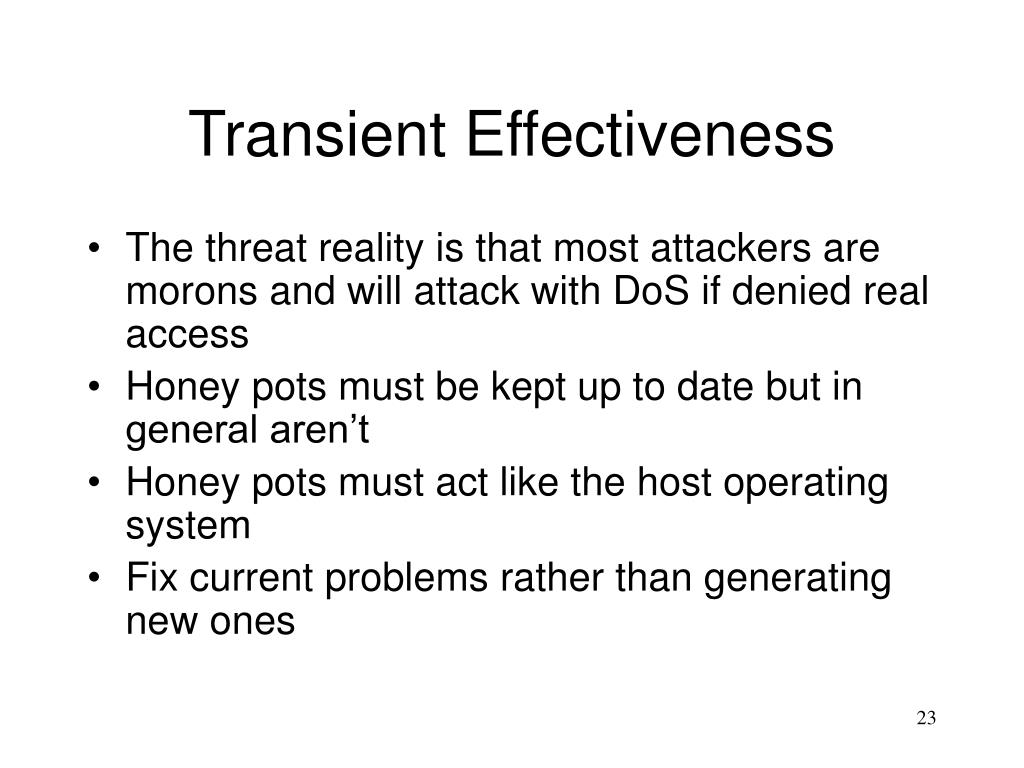

Transient Effectiveness
  • The threat reality is that most attackers are morons and will attack with DoS if denied real access
  • Honey pots must be kept up to date but in general aren’t
  • Honey pots must act like the host operating system
  • Fix current problems rather than generating new ones

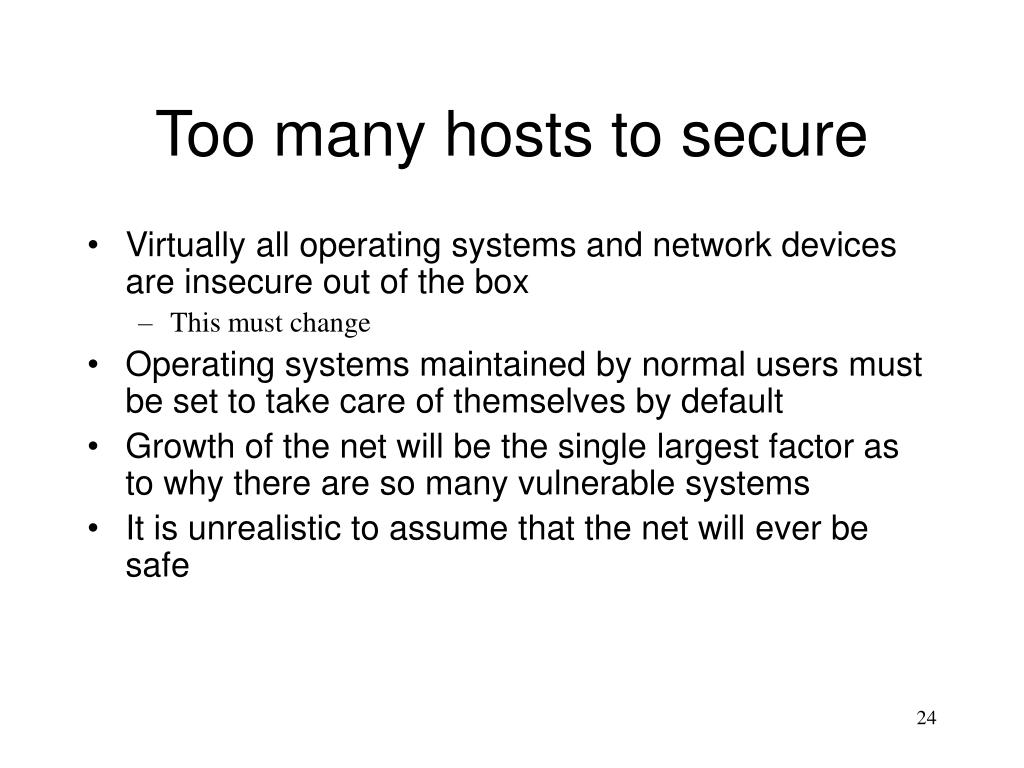

too many hosts to secure
Too many hosts to secure
  • Virtually all operating systems and network devices are insecure out of the box
    • This must change
  • Operating systems maintained by normal users must be set to take care of themselves by default
  • Growth of the net will be the single largest factor as to why there are so many vulnerable systems
  • It is unrealistic to assume that the net will ever be safe

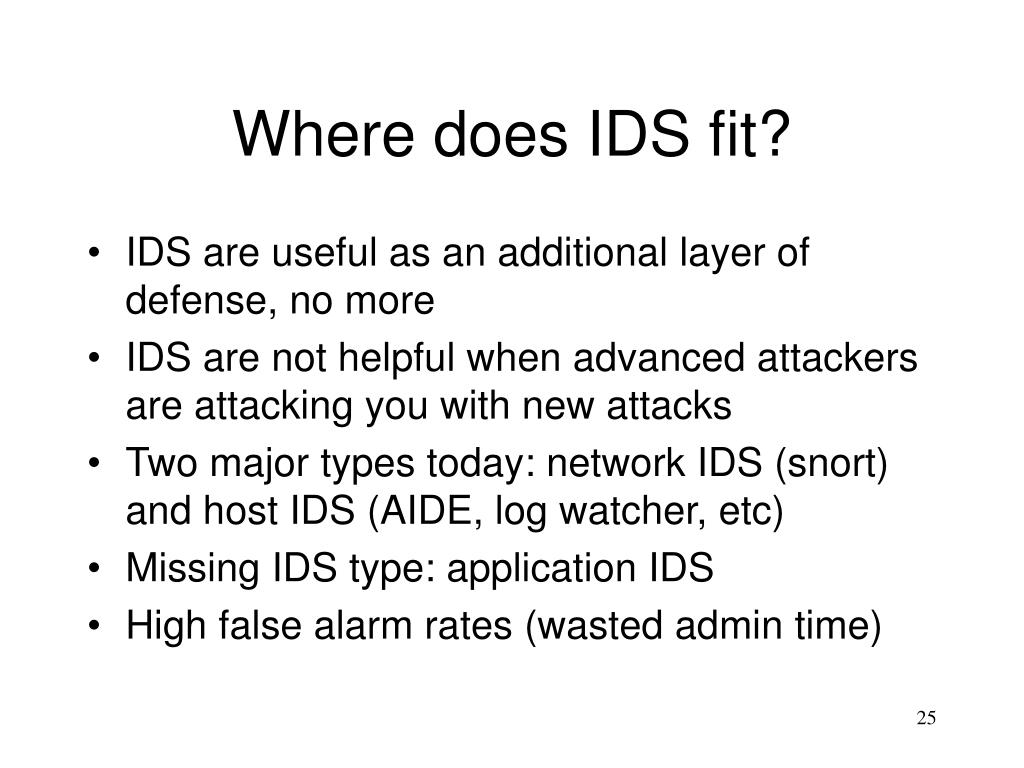

where does ids fit
Where does IDS fit?
  • IDS are useful as an additional layer of defense, no more
  • IDS are not helpful when advanced attackers are attacking you with new attacks
  • Two major types today: network IDS (snort) and host IDS (AIDE, log watcher, etc)
  • Missing IDS type: application IDS
  • High false alarm rates (wasted admin time)
ids and policy

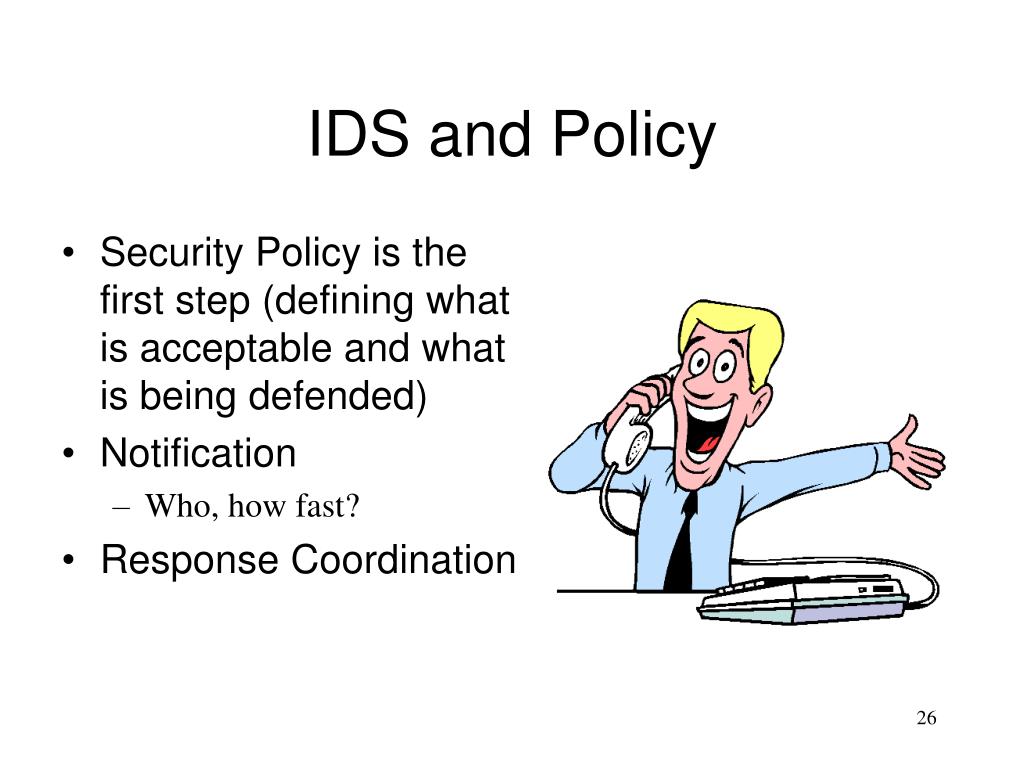

IDS and Policy
  • Security Policy is the first step (defining what is acceptable and what is being defended)
  • Notification
    • Who, how fast?
  • Response Coordination

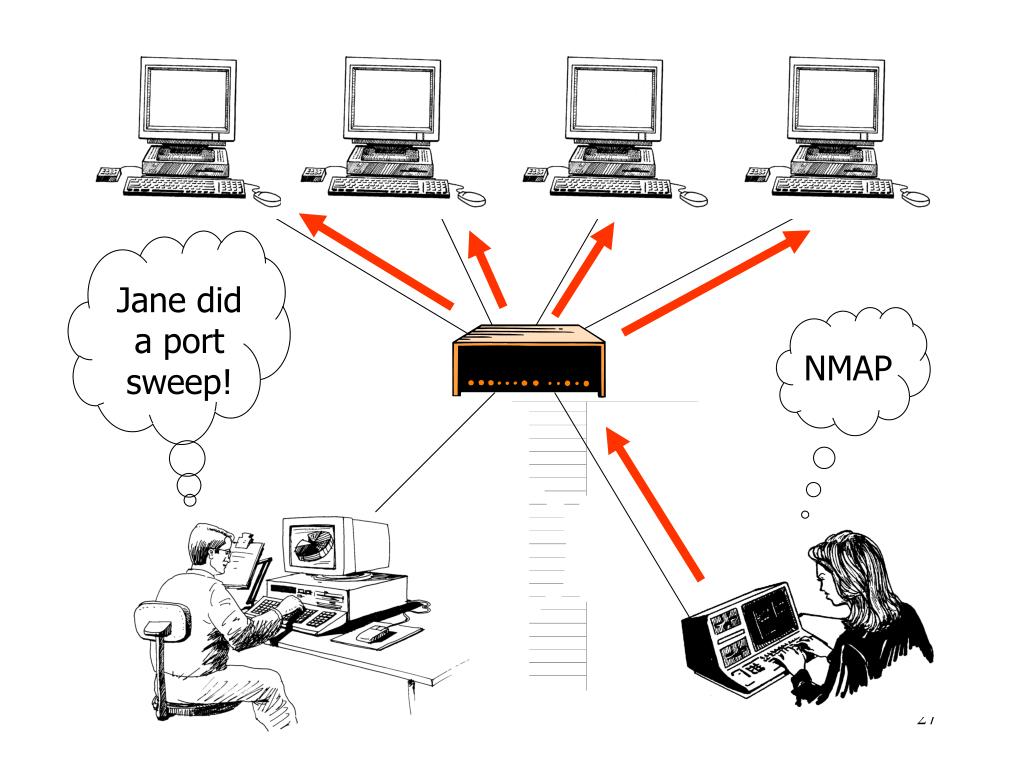

Jane did

a port

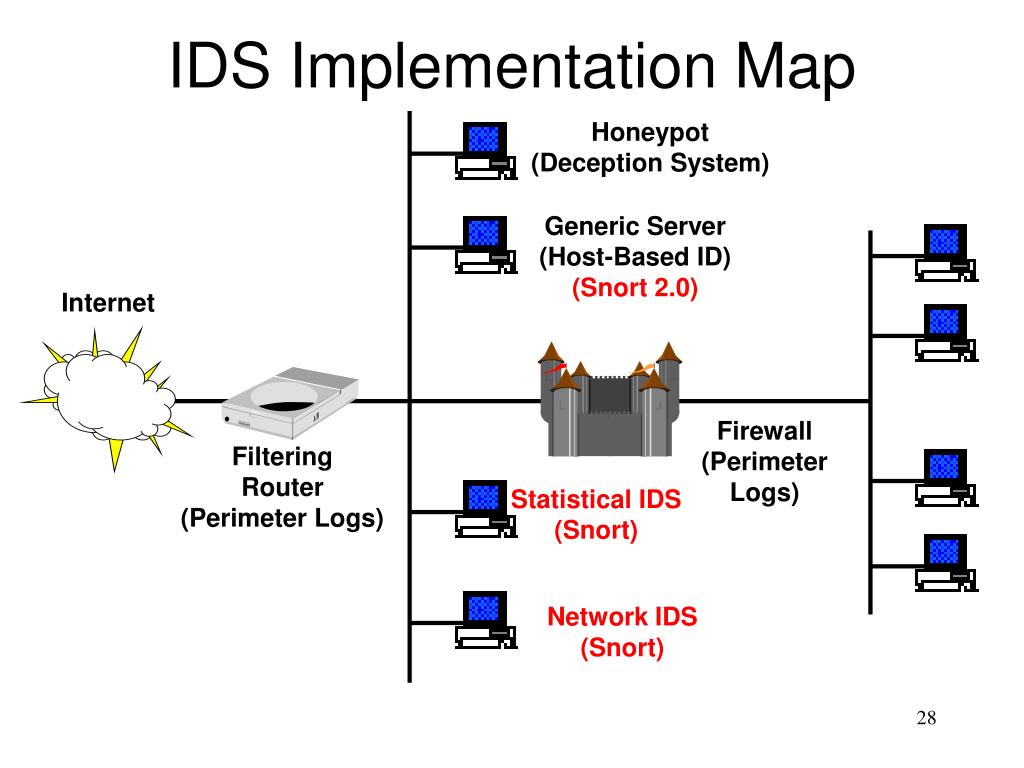

ids implementation map


(Deception System)

Generic Server

(Host-Based ID)

(Snort 2.0)







(Perimeter Logs)

Statistical IDS (Snort)

Network IDS


IDS Implementation Map
detection engine

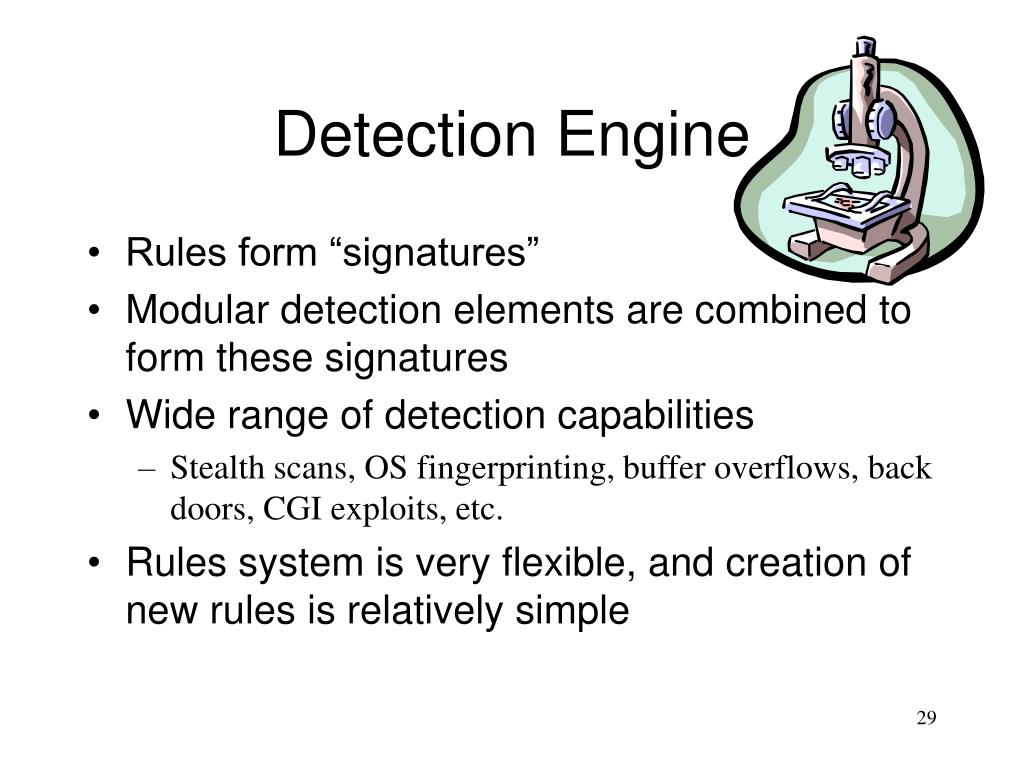

Detection Engine
  • Rules form “signatures”
  • Modular detection elements are combined to form these signatures
  • Wide range of detection capabilities
    • Stealth scans, OS fingerprinting, buffer overflows, back doors, CGI exploits, etc.
  • Rules system is very flexible, and creation of new rules is relatively simple
learning more

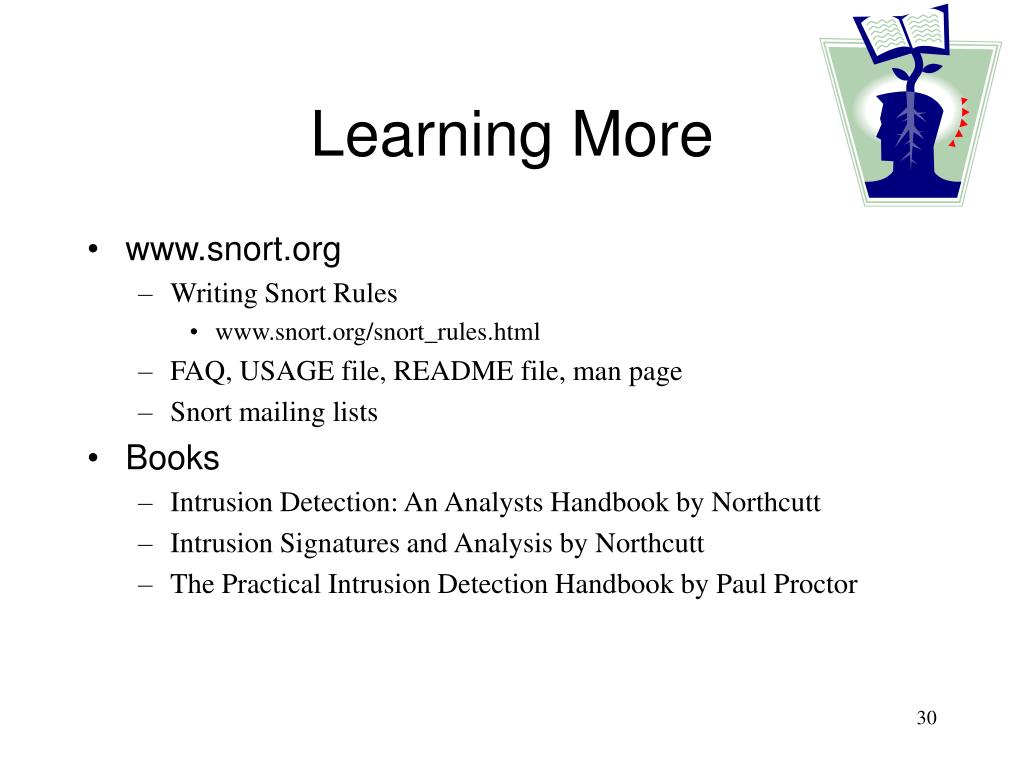

Learning More
    • Writing Snort Rules
    • FAQ, USAGE file, README file, man page
    • Snort mailing lists
  • Books
    • Intrusion Detection: An Analysts Handbook by Northcutt
    • Intrusion Signatures and Analysis by Northcutt
    • The Practical Intrusion Detection Handbook by Paul Proctor

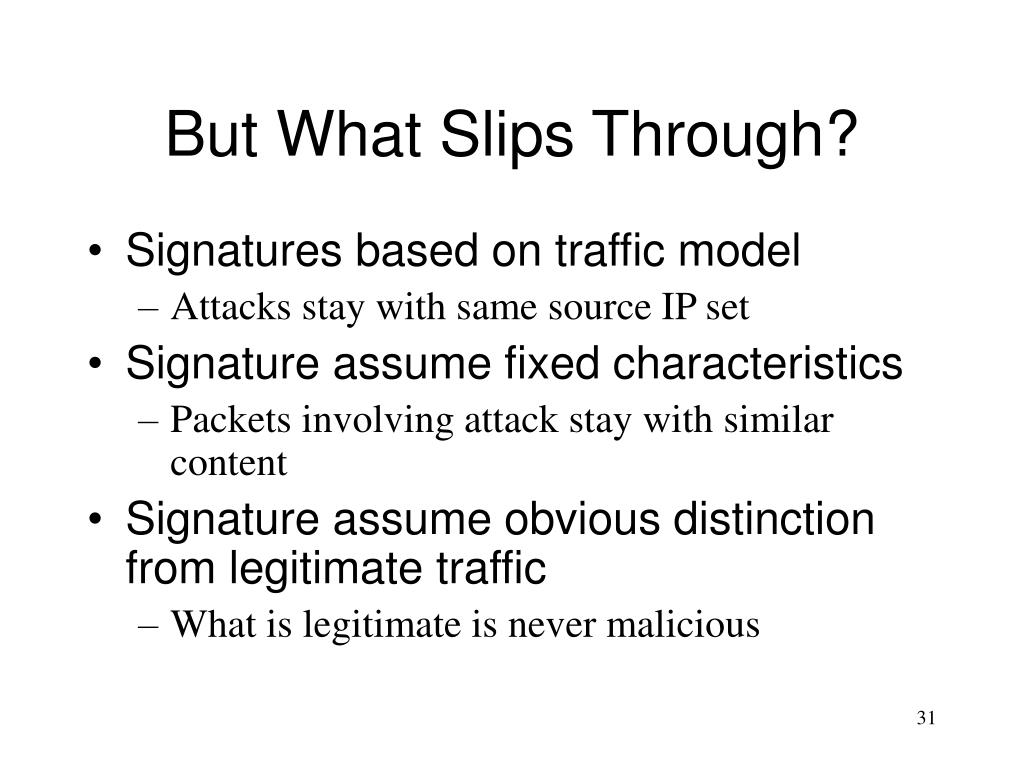

but what slips through
But What Slips Through?
  • Signatures based on traffic model
    • Attacks stay with same source IP set
  • Signature assume fixed characteristics
    • Packets involving attack stay with similar content
  • Signature assume obvious distinction from legitimate traffic
    • What is legitimate is never malicious
how do we catch the slips

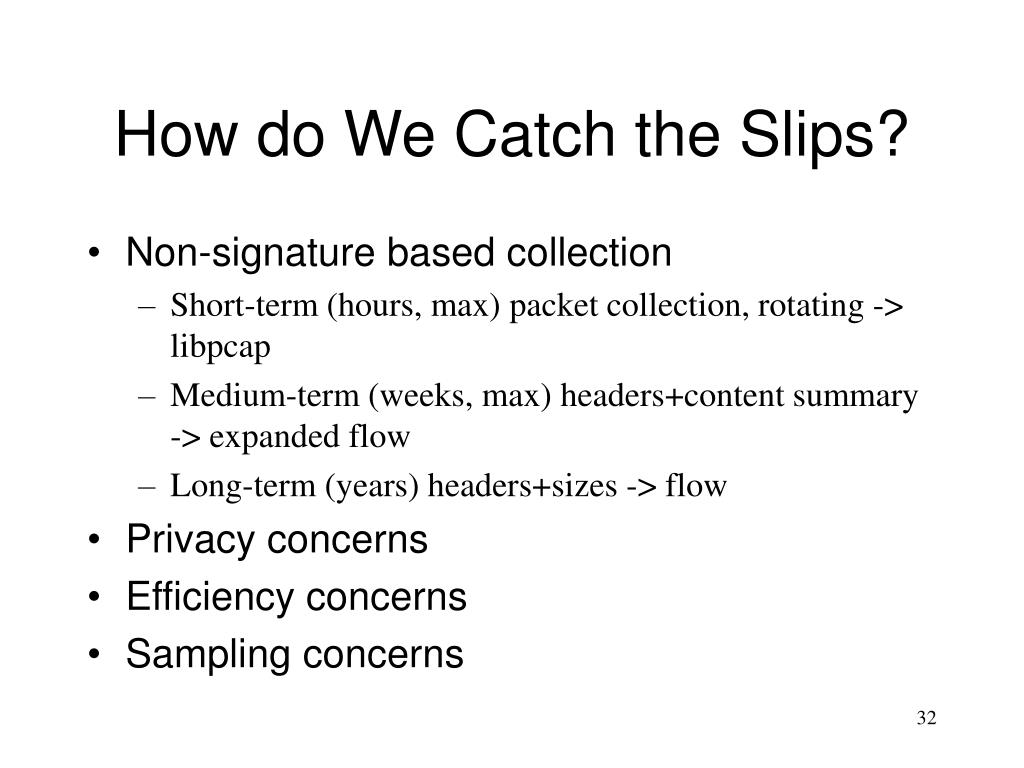

How do We Catch the Slips?
  • Non-signature based collection
    • Short-term (hours, max) packet collection, rotating -> libpcap
    • Medium-term (weeks, max) headers+content summary -> expanded flow
    • Long-term (years) headers+sizes -> flow
  • Privacy concerns
  • Efficiency concerns
  • Sampling concerns
what can you do with just flows

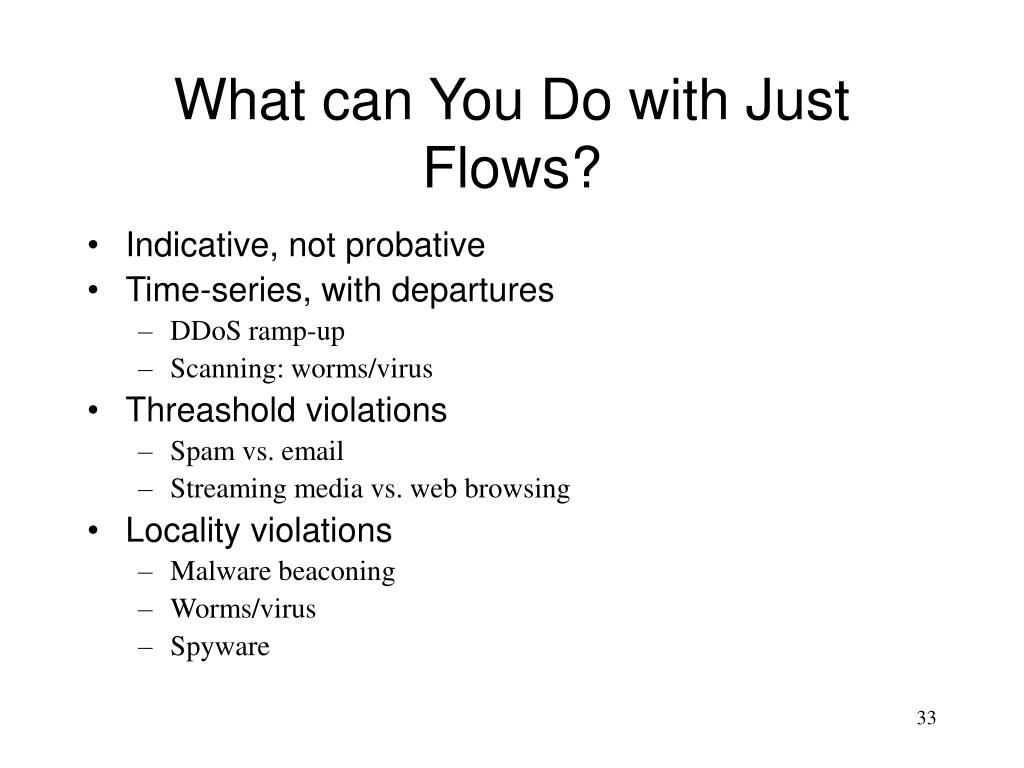

What can You Do with Just Flows?
  • Indicative, not probative
  • Time-series, with departures
    • DDoS ramp-up
    • Scanning: worms/virus
  • Threashold violations
    • Spam vs. email
    • Streaming media vs. web browsing
  • Locality violations
    • Malware beaconing
    • Worms/virus
    • Spyware

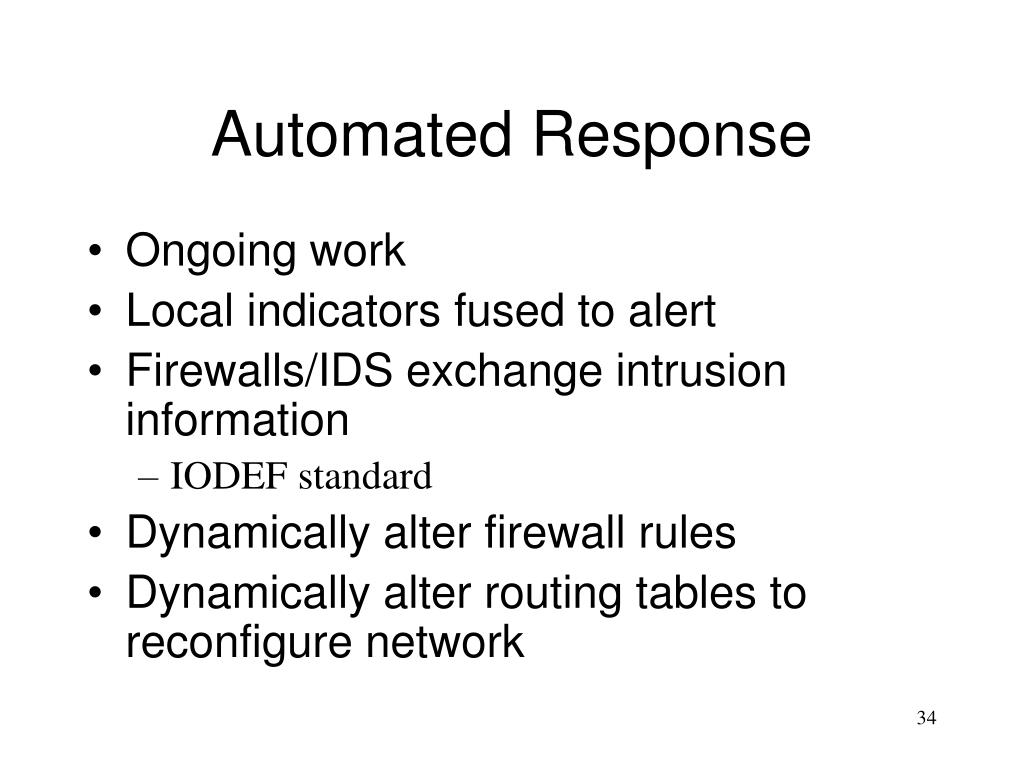

automated response
Automated Response
  • Ongoing work
  • Local indicators fused to alert
  • Firewalls/IDS exchange intrusion information
    • IODEF standard
  • Dynamically alter firewall rules
  • Dynamically alter routing tables to reconfigure network
layered defenses





Layered Defenses

Source: Shawn Butler, Security Attribute Evaluation Method

Goal 1

Goal 8

Goal 2

Goal 7

Goal 3

Goal 6

Goal 5

Goal 4
