  1. Advances in Earthquake LocationandTomography William Menke Lamont-Doherty Earth Observatory Columbia University

  2. Outline Part 1: Advantage of using differential arrival times to locate earthquakes Part 2: Simultaneous earthquake location and tomography Part 3: In depth analysis of the special case of unknown origin time

  3. Part 1 Advantage of using differential arrival times to locate earthquakes

  4. Waves from earthquake first arrived in Palisades NY at 15:00:32 on Sept 10, 2006

  5. that was a Gulf of Mexico earthquake, by the way …

  6. Suppose you contour arrival timeon surface of earth Earthquake’s (x,y) is center of bullseye but what about its depth?

  7. Earthquake’s depth related to curvature of arrival time at origin Deep Shallow

  8. differential arrival time = difference in arrival times

  9. mean origin time cancels out T = arrival time TT = travel time To = Origin Time (start time of earthquake)

  10. Station i

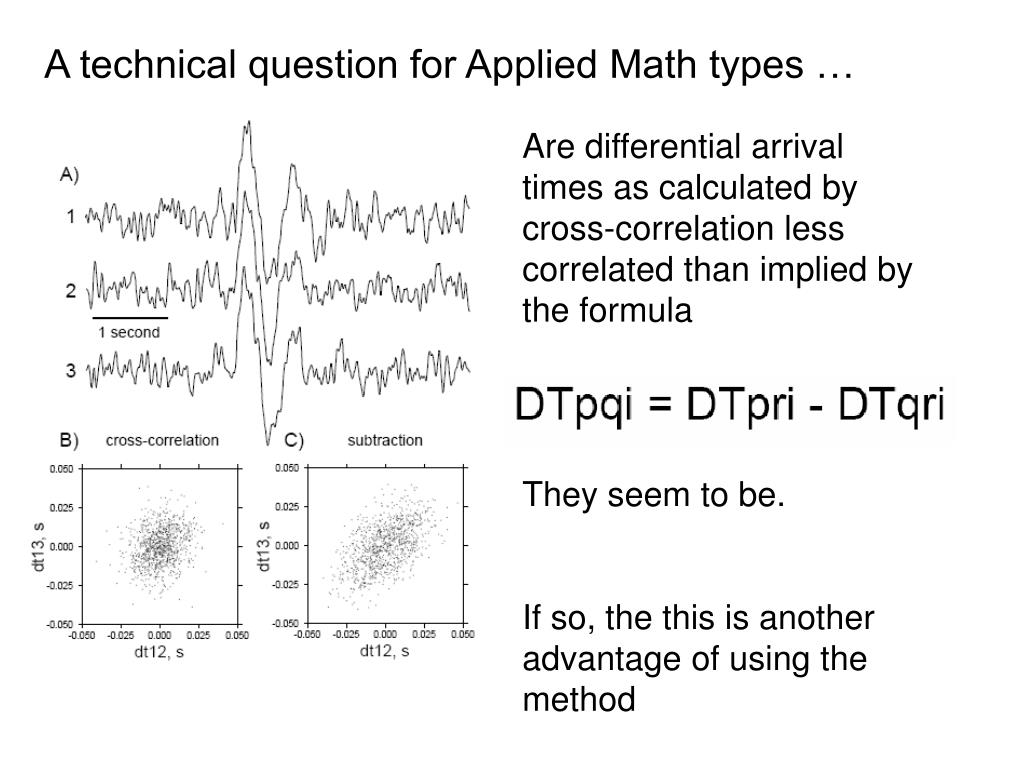

  11. A technical question for Applied Math types … Are differential arrival times as calculated by cross-correlation less correlated than implied by the formula They seem to be. If so, the this is another advantage of using the method

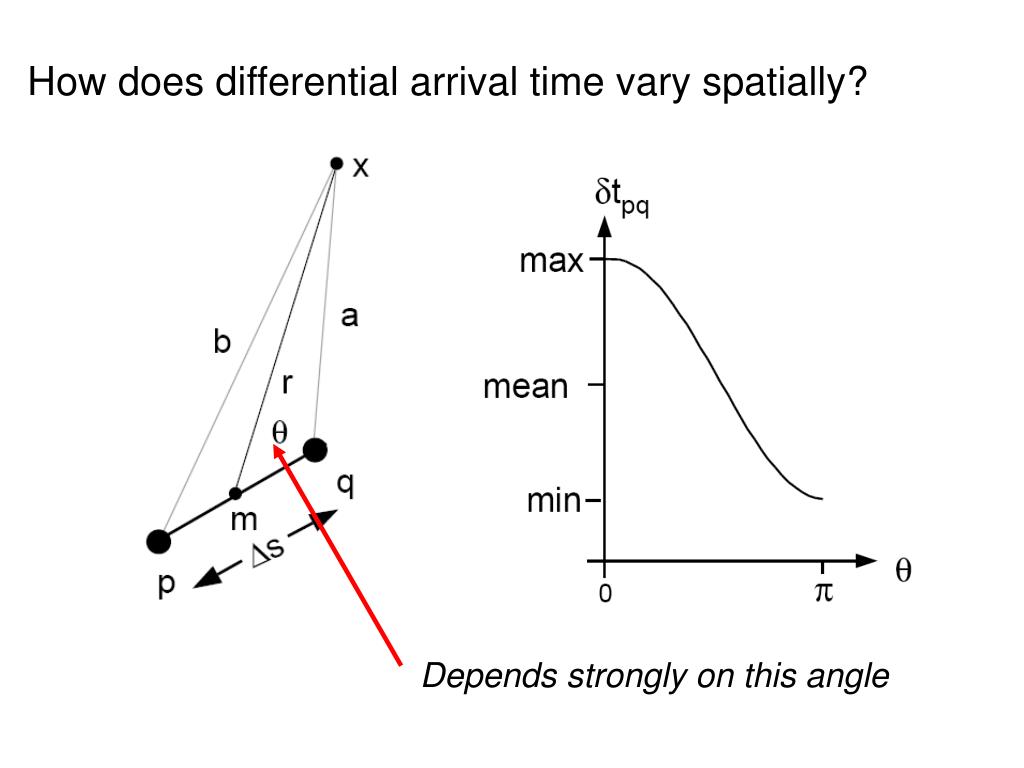

  12. How does differential arrival time vary spatially? Depends strongly on this angle

  13. In a 3 dimensional homogeneous box … maximum minimum mean If you can identify the line AB, then you can locate earthquakes

  14. as long as you have more than two earthquakes

  15. In a vertically-stratified earth, rays are bent back up to the surface, so both Points A and B are on the surface. ray wavefront The pattern of differnetial traveltime is more complicated …

  16. The same idea works …

  17. B B A B C C C A A A B C C C Patterns of differential arrival time Can you guess the orientation of the two sources in these six cases?

  18. This pattern an be seen in actual data, in this case from a pair of earthquakes on the San Andreas Fault Boxes: differential arrival times observed at particular stations Shading: theoretical calculation for best-fitting locations of the earthquake pair A B C

  19. Another example …

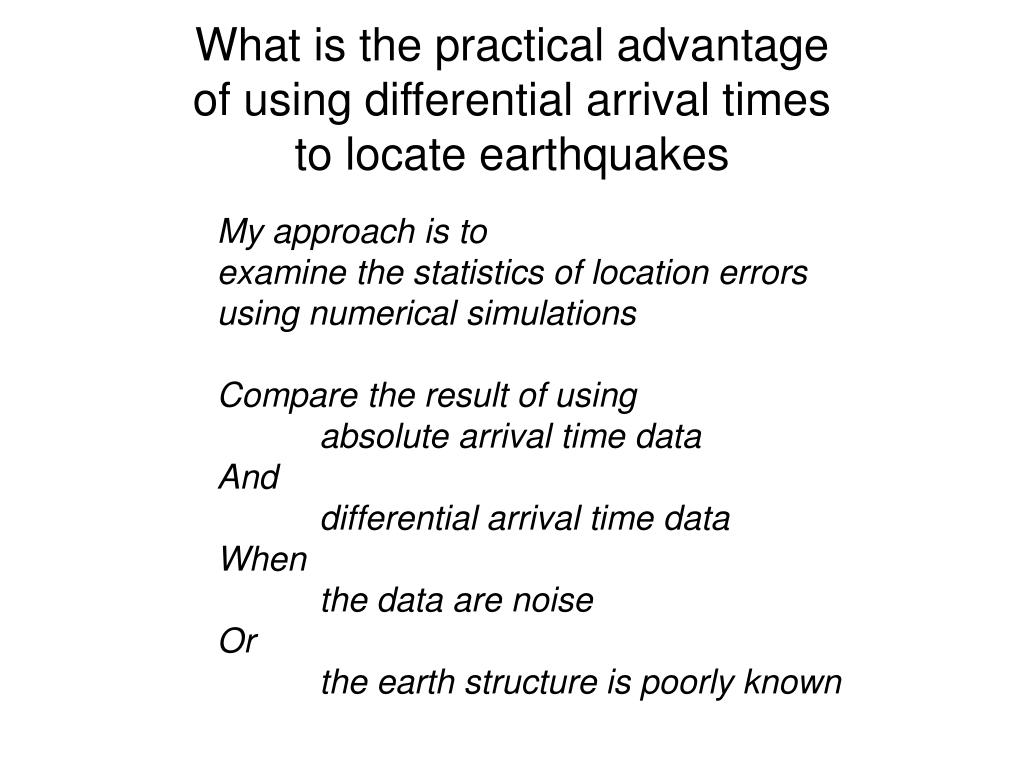

  20. What is the practical advantageof using differential arrival timesto locate earthquakes My approach is to examine the statistics of location errors using numerical simulations Compare the result of using absolute arrival time data And differential arrival time data When the data are noise Or the earth structure is poorly known

  21. Geometry of the numerical experiment …

  22. Effect of noisy data (10 milliseconds of measurement error) differential data differential data absolute data absolute data

  23. Effect of near surface heterogeneities (1 km/s of velocity variation with a scale length of 5 km) differential data absolute data differential data absolute data

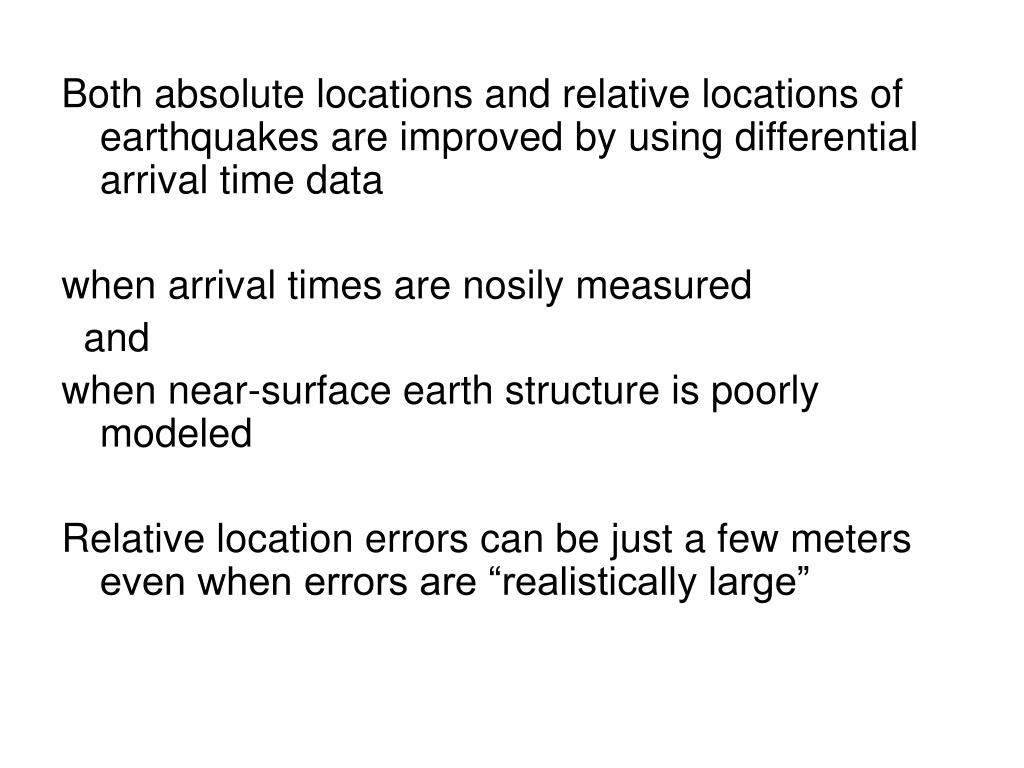

  24. Both absolute locations and relative locations of earthquakes are improved by using differential arrival time data when arrival times are nosily measured and when near-surface earth structure is poorly modeled Relative location errors can be just a few meters even when errors are “realistically large”

  25. Part 2 Simultaneous earthquake location and tomography

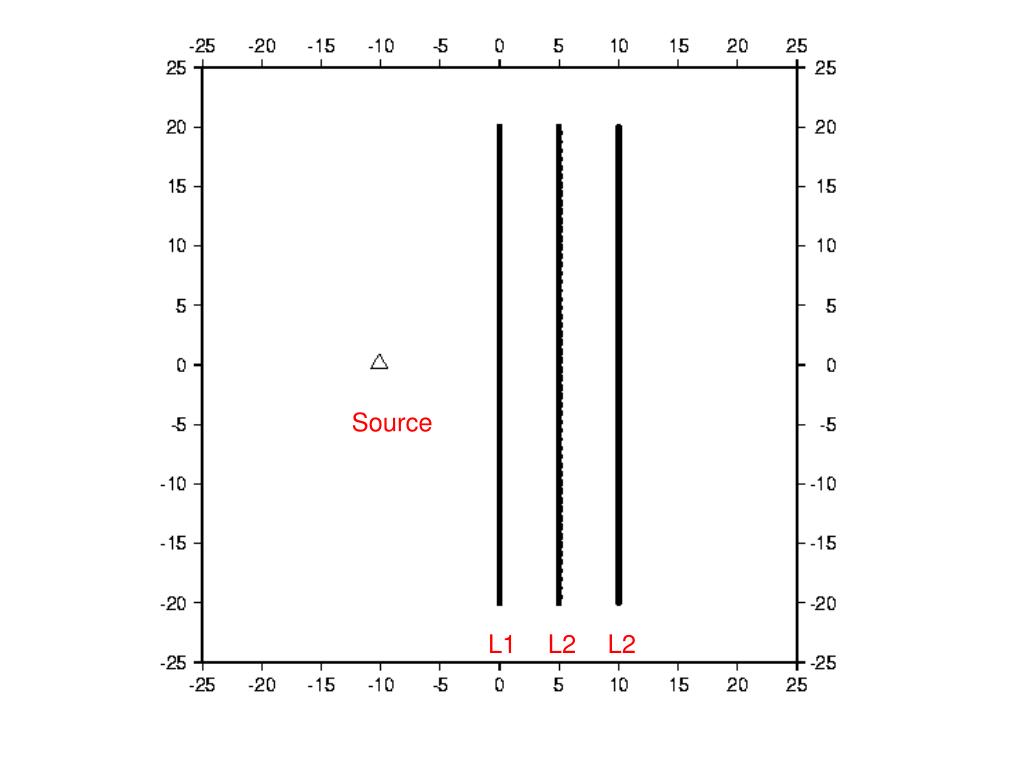

  26. Source L1 L2 L2

  27. Line 3 traveltime Line 2 traveltime Very late secondary arrivals Slightly late first arrivals Line 1 traveltime Distance along receiver array

  28. note In a typical tomography experiment, there are lots of secondary arrivals. But nobody really has a good way of analyzing them and extracting useful information from them. Its an area that needs work …

  29. What about simultaneous earthquake location and tomography? Many earthquakes with unknown X, Y, Z, To Unknown velocity structure Solve for everything Using either absolute arrival times or differential arrival times

  30. A numerical test 11 stations 50 earthquakes on fault zone Heterogenity near fault zone only

  31. True earthquake locations And fault zone heterogenity ( 1 km/s) Reconstructed earthquake locations And fault zone heterogenity, using noise free differential data Note the amplitude of the “signal” is only 1 ms, so noise might be a problem.

  32. Part 3 Is Joint Tomography/Earthquake Location Really Possible ? In depth analysis of the special case of unknown origin time but known location A simplified version of the problem
