  1. RJ - 45 網路線製作

  2. Unshielded Twisted-Pair Cable • Category 5e

  3. RJ - 45 Connector

  4. RJ - 45 Jack

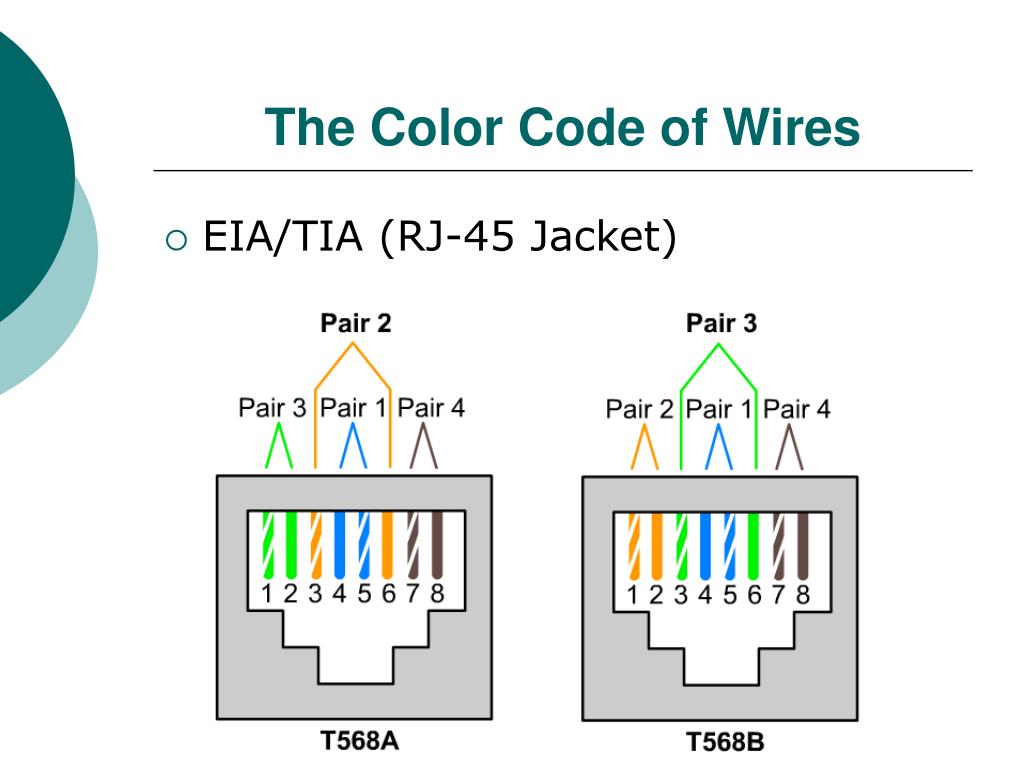

  5. The Color Code of Wires • EIA/TIA (RJ-45 Jacket)

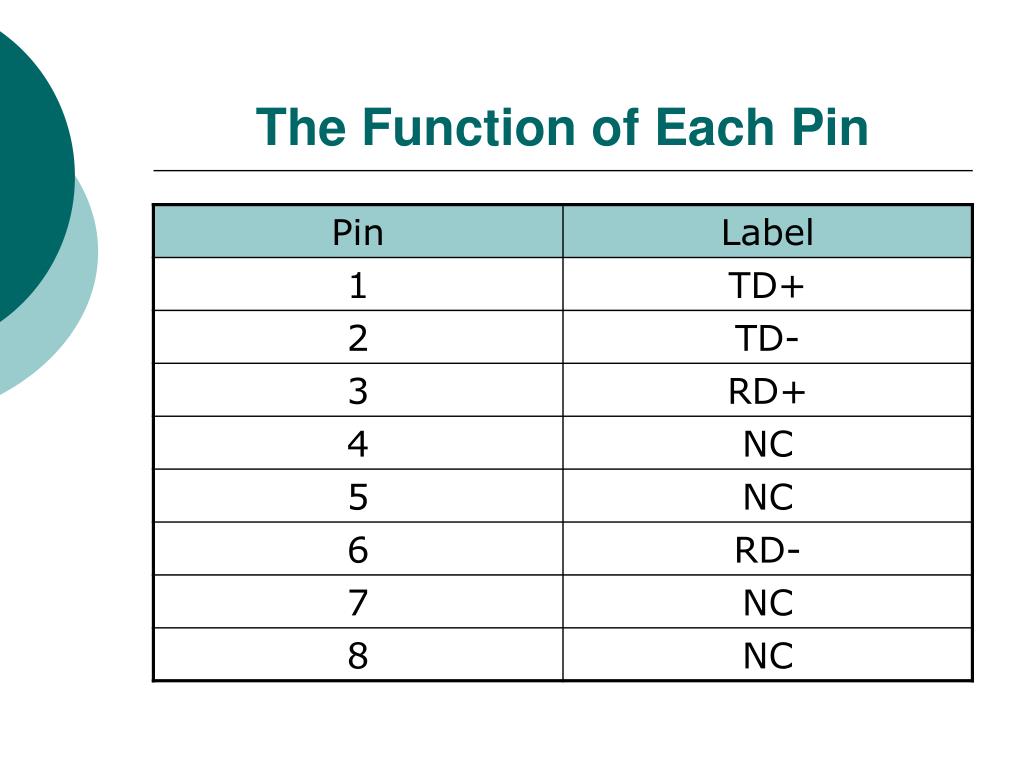

  6. The Function of Each Pin

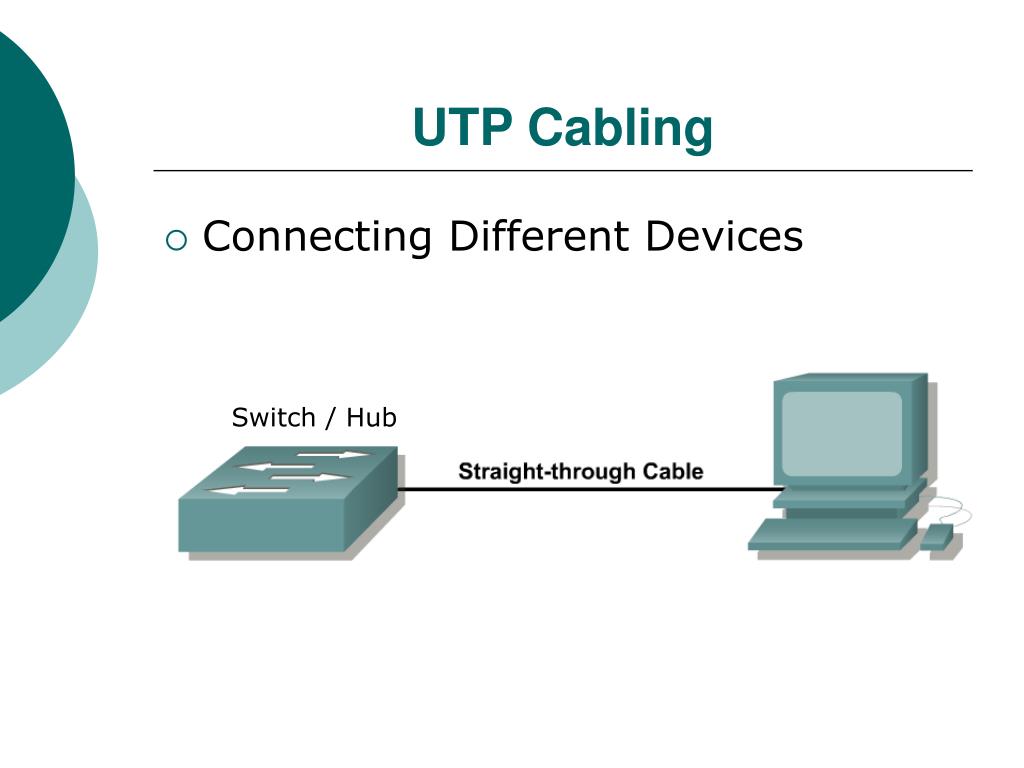

  7. UTP Cabling • Connecting Different Devices Switch / Hub

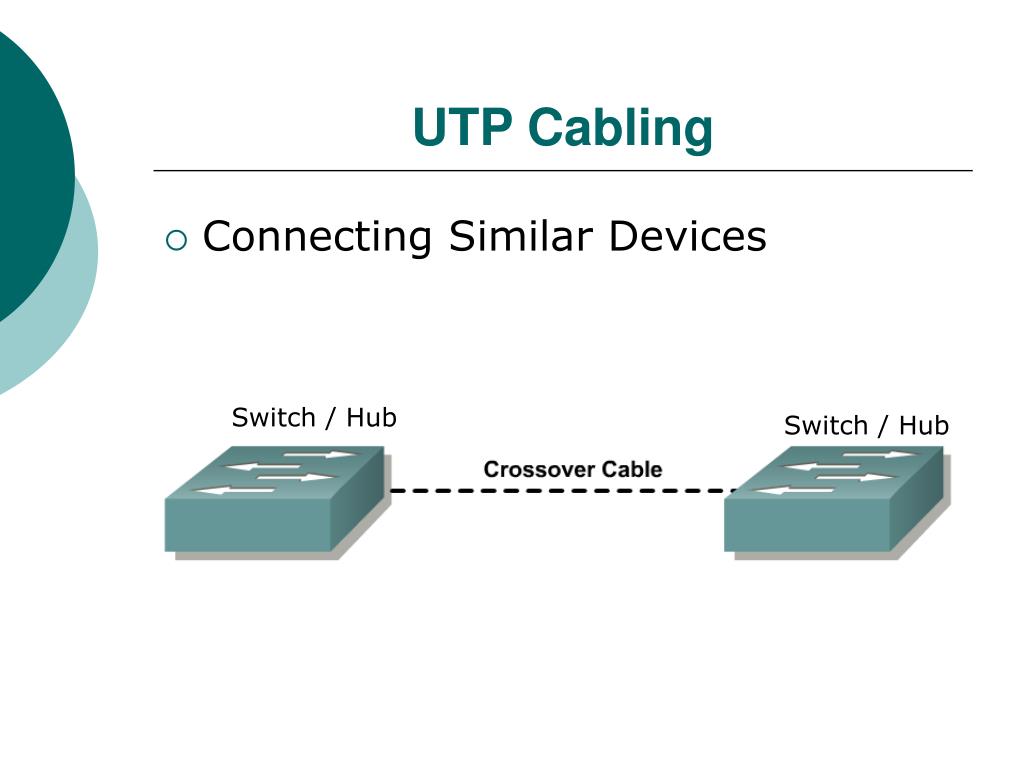

  8. UTP Cabling • Connecting Similar Devices Switch / Hub Switch / Hub

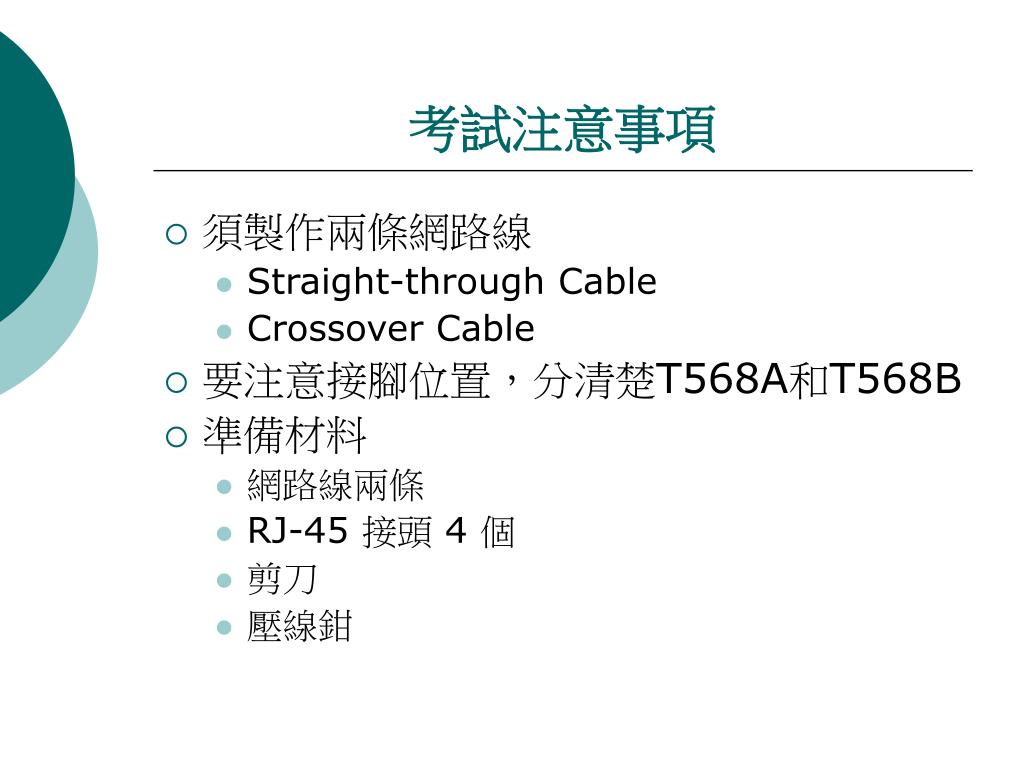

  9. 考試注意事項 • 須製作兩條網路線 • Straight-through Cable • Crossover Cable • 要注意接腳位置，分清楚T568A和T568B • 準備材料 • 網路線兩條 • RJ-45 接頭 4 個 • 剪刀 • 壓線鉗
