  1. i3 on Internet in a Box Zhangxi Tan, Wei Xu, David Patterson UC Berkeley

  2. Outline • Project Overview • System Architecture • Sample Software and Demo • Future Work

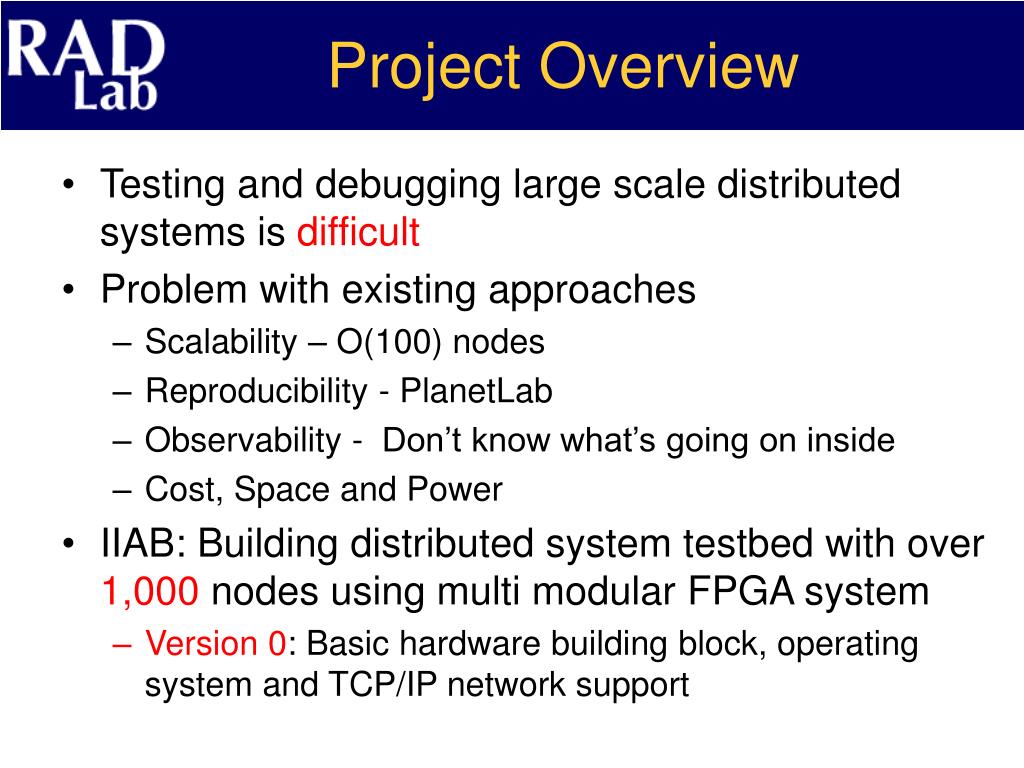

  3. Project Overview • Testing and debugging large scale distributed systems is difficult • Problem with existing approaches • Scalability – O(100) nodes • Reproducibility - PlanetLab • Observability - Don’t know what’s going on inside • Cost, Space and Power • IIAB: Building distributed system testbed with over 1,000 nodes using multi modular FPGA system • Version 0: Basic hardware building block, operating system and TCP/IP network support

  4. Methodology Target Platform Xilinx XUP boards • Price $299 • Xilinx Virtex II Pro FPGA (VP30) • 256 MB DDR memory • 10/100 Mbps Ethernet Research Accelerator for MultiProcessing (RAMP) • 5 Xilinx Virtex II Pro FPGA (VP70) • DDR II memory / FPGA • 10 Gbps Ethernet Version 0 platform

  5. Version 0 Status • 4 32-bit RISC processor (MicroBlaze) in a chip • Running at 100 MHz with L1 Cache (Instruction 16KB, Data 16KB) • HW Div/Mult, Barrier Shifter and etc • 64 MB DDR memory (100 MHz) for each processor (different address space) • 50 MIPS (measured from Linux kernel) • Running uClinux 2.4.32 kernel • Inter-processor connection • P2P 32-bit high speed FIFO link • 3.2 Gbps throughput, 1 cycle access latency • Emulate Ethernet device through Linux kernel driver • Support TCP/IP protocol stack • Standard UNIX socket programming interface • Software implementation (Polling/Interrupt) • Software router through Linux kernel

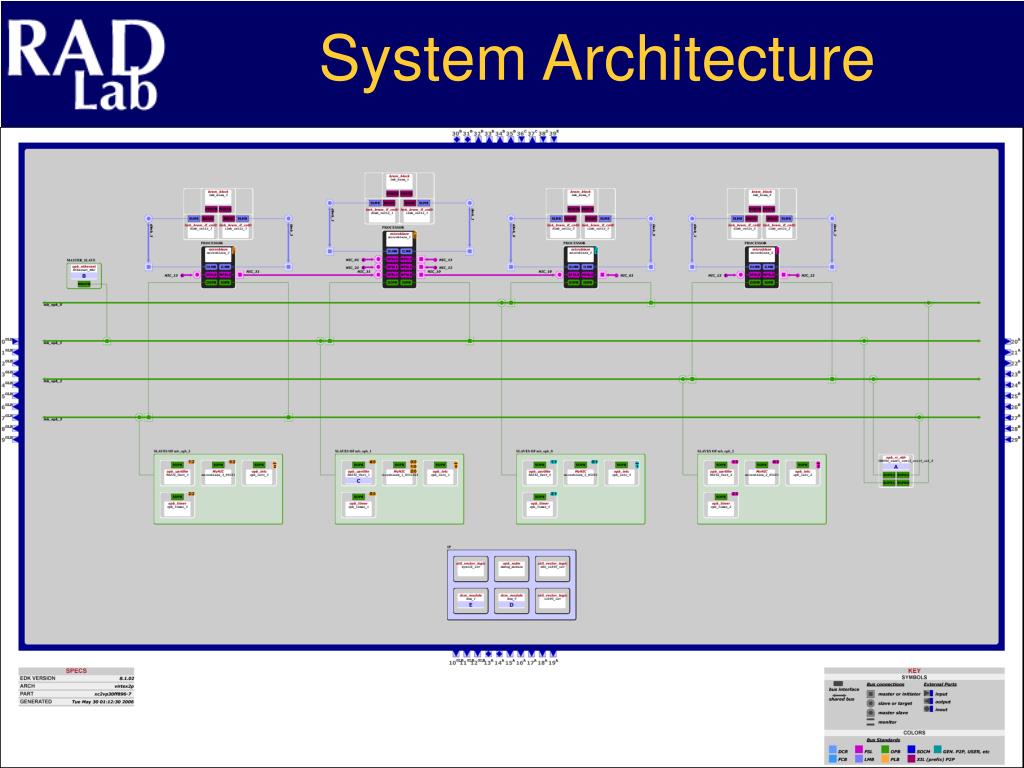

  6. System Architecture

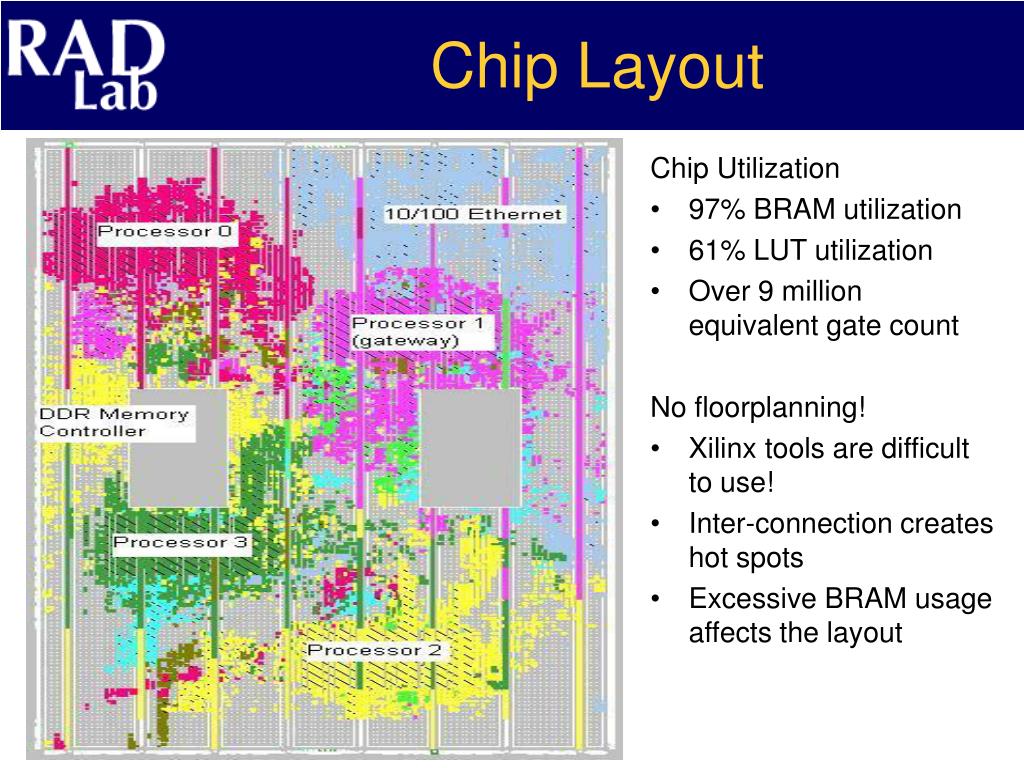

  7. Chip Layout Chip Utilization • 97% BRAM utilization • 61% LUT utilization • Over 9 million equivalent gate count No floorplanning! • Xilinx tools are difficult to use! • Inter-connection creates hot spots • Excessive BRAM usage affects the layout

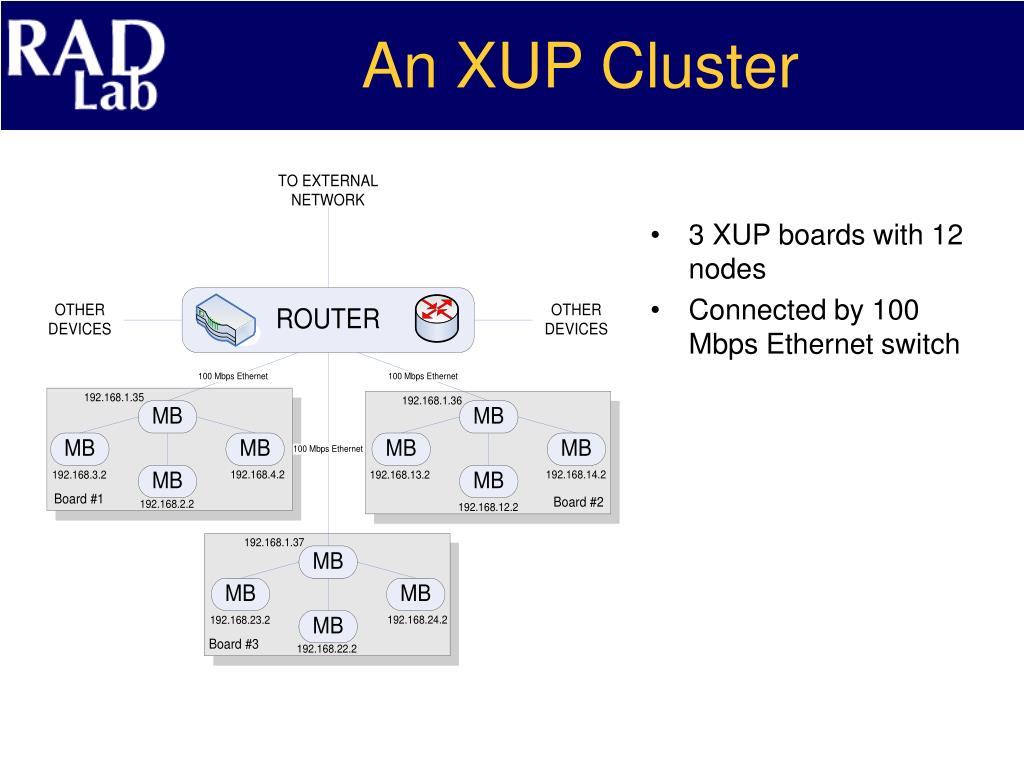

  8. An XUP Cluster • 3 XUP boards with 12 nodes • Connected by 100 Mbps Ethernet switch

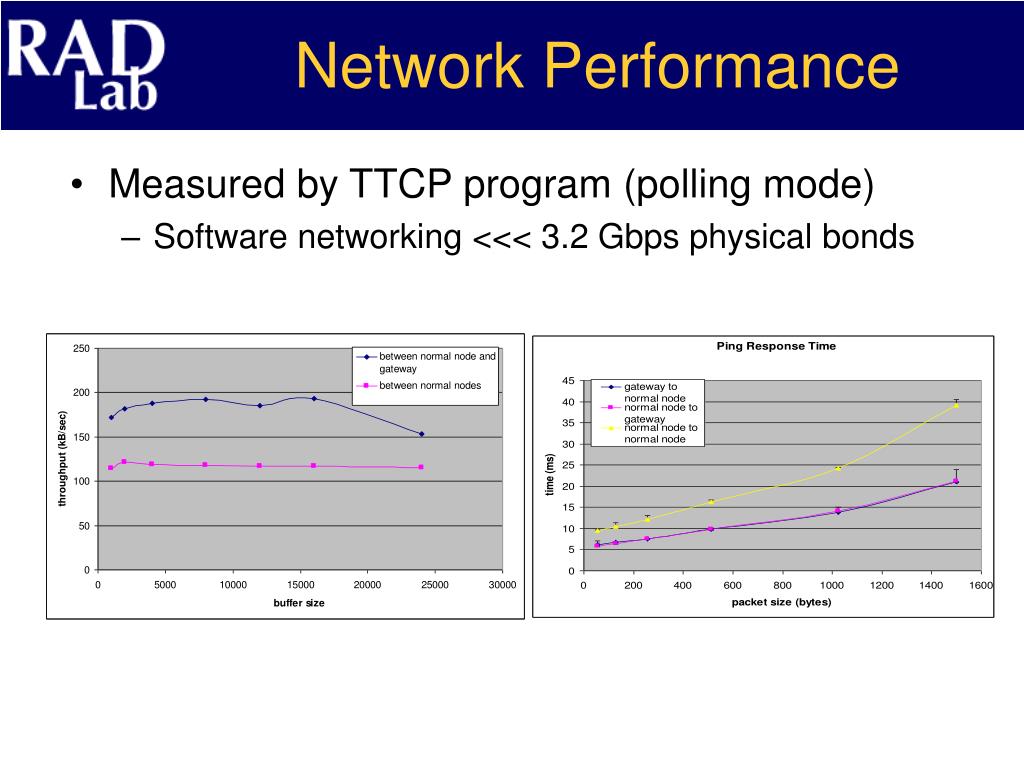

  9. Network Performance • Measured by TTCP program (polling mode) • Software networking <<< 3.2 Gbps physical bonds

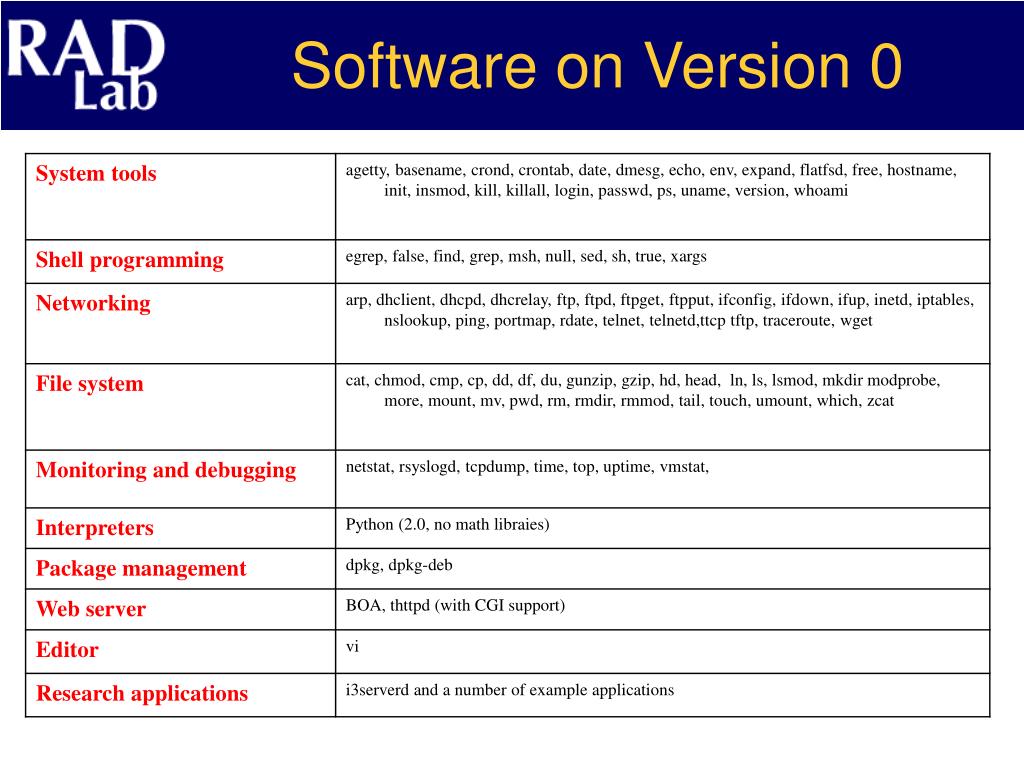

  10. Software on Version 0

  11. i3 on IIAB trigger data data data id id R id R Internet Indirection Infrastructure (i3) • A new Internet architecture from Berkeley • Multicast, unicast, anycast and etc. • Chord DHT based C implementation Sender Receiver (R)

  12. Future Work (1/2) • LEON3 (SPARC v8) as the next supported processor • MMU Support • Double precision floating point • Reconfigurable parameters (Cache, MMU and etc.) • Cache coherent (snooping) • 0.85 MIPS/MHz (5000 LUTs, 90 MHz on Virtex-II) • Huge benefit on software support • Full version Linux support (Linux 2.6 Kernel) • Java support • Putting multiple LEON3 will be more challenging • Floorplanning and physical synthesis (less PAR time and QoR)

  13. Future Work (2/2) • Time Dilation • Make 50 MIPS processor looks like 1000 MIPS processor to software • Network/Link emulation: delay, bandwidth, jitter and etc. • Disk emulation • An abstraction layer (HW/SW approach) to software • Better internal architecture • Processor/memory subsystem • High performance internal network (1 gigabit Ethernet)
