Explain Six Sigma Simply (Football story from SSDSI)

1. Explain Six Sigma Simply(Football story from SSDSI) http://www.sixsigmadsi.com/ Six Sigma Simplicity

2. We teach the concept of ‘Six Sigma’ with a story that helps our students understand the concept. Afootball coach is evaluating five kickers as field goal kickers for an upcoming game. He has a GPS solution that tells him exactly where the ball crosses the field goal. He gives each of his kickers 100 chances to kick the ball through the goal posts (spec limits) from the center of the field at 35 yards back.  His first four kickers take their turns. Each kicker kicks all 100 balls between the uprights, but all four kickers were "all over the place", meaning that they never consistently crossed the goal post at the same point. The fifth kicker also kicks all 100 through the uprights but he consistently "splits" the uprights.  We then ask the class, "Who are you going to choose when it comes time to kick a field goal during the game?". Most will choose the fifth kicker. Why? ... because he is more consistent. The fifth kicker will be more predictable because he has learned to have better control over the critical inputs when kicking the ball. If you were to film all 100 kicks that the fifth kicker made, you would see little variation in his kicking method which leads to little variation in his output, which is the ball "splitting the uprights“ down the middle. Reduce Variation, Make Money Six Sigma Simplicity

3. Sigma Illustrated • Sigma is used to describe the “spread” of a distribution relative to it’s center (mean) • What changed in the graphs below? Six Sigma Simplicity

4. How Does Sigma Help? • Most things in nature to have a common shape relative to variation • That common shape is referred to as a normal distribution • Using that normal distribution allows us to determine a probability of occurrence based on some middle value and the amount of variation in the group Six Sigma Simplicity

5. Normal Distribution • The area under sections of the curve can be used to estimate the cumulative probability of a certain “event” occurring Cumulative probability of obtaining a value between two values 68% 40% 30% 95% Probability of sample value 20% 99.73% 10% 0% - 4 - 3 - 2 - 1 0 1 2 3 4 Number of (sigma) standard deviations from the mean Six Sigma Simplicity

6. Recall: this is 3 Sigma Capability 6 Sigma Capability = 12 Std Deviations (Total) Lower Spec Upper Spec s s s s s s s s s s s s Six Sigma capability is where the distance between the mean and the nearest specification limit equals 6 standard deviation units Six Sigma Simplicity

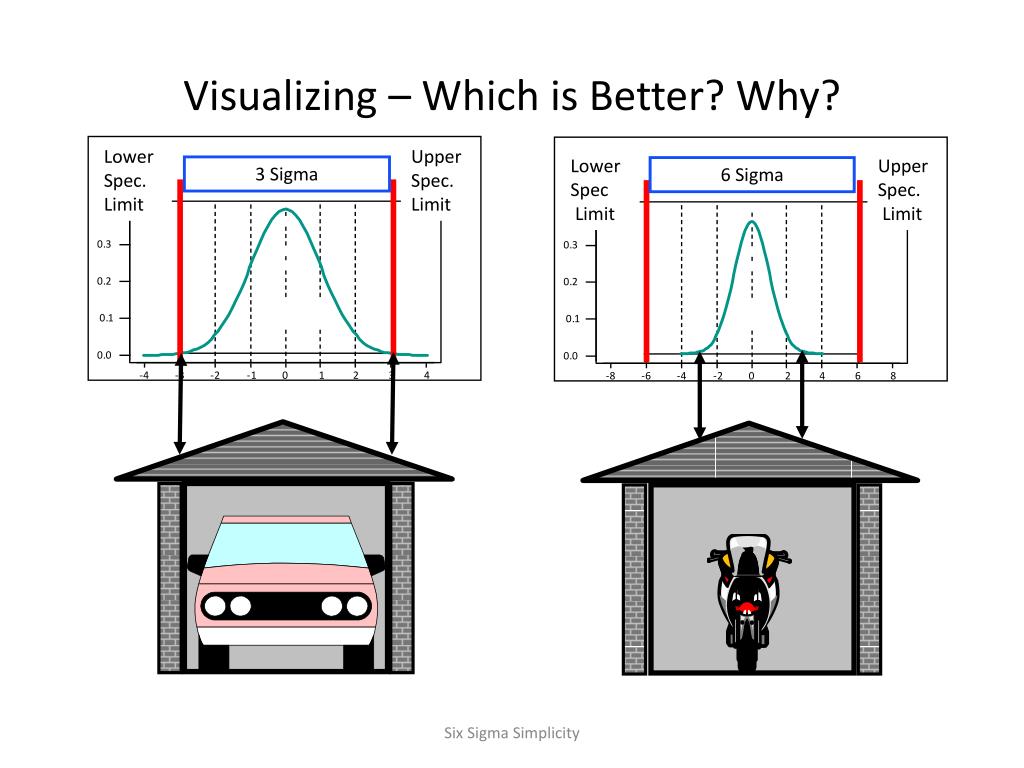

7. Lower Spec. Limit Upper Spec. Limit Lower Spec Limit Upper Spec. Limit 3 Sigma 6 Sigma 0 . 4 0 . 4 0 . 3 0 . 3 0 . 2 0 . 2 0 . 1 0 . 1 0 . 0 0 . 0 - 4 - 3 - 2 - 1 0 1 2 3 4 - 8 - 6 - 4 - 2 0 2 4 6 8 Visualizing – Which is Better? Why? Six Sigma Simplicity

8. Measurement Variation Material / Component Variation Process/ Assembly Variation Environment LSL USL Defects resulting in additional cost Process Distribution Dissecting Capability: Sources of Variability Six Sigma Simplicity

9. s PPM s % Non-Defective 2 308,537 3 66,807 2 69.1% 4 6,210 3 93.32% 5 233 4 99.379% 6 3.4 5 99.9767% 6 99.99966% Defects per Million Opportunity (DPMO) What is the Significance of Sigma? Six Sigma Simplicity

10. Why 99% Isn’t Always Enough 99% Good (3.8 sigma) • 50 newborn babies dropped at birth by doctors each day • Toxic drinking water for 15 minutes each day • 5,000 incorrect surgical operations per week • 204,000 wrong drug prescriptions each year • Two short or long landings at major U.S. airports each day 99.99966% Great (6 sigma) • 6 newborn babies dropped in a year • Unsafe water for one minute every seven months • 1.7 incorrect surgical operations per week • 68 wrong prescriptions each year • Two short or long landings at major U.S. airports in 10 years Six Sigma Simplicity

11. 1 2 3 4 5 6 What Does 6 Sigma Mean In Your Daily Life? PPM Prescription Writing Tax Advice Restaurant Bills 1,000,000 Payroll Processing 100,000 Baggage Handling 10,000 1,000 Best in Class 100 10 Airline Safety Rate 1 7 Sigma Level Six Sigma Simplicity

12. More Examples 99% Good (3.8σ) • No electricity for almost seven hours per month • 1 misspelled word per 30 pages in a book • 11.8 million shares incorrectly traded on the NYSE everyday • 3 warranty claims for every new automobile • 48,000 to 96,000 deaths attributed to hospital errors each year • Cell Phone would be out-of-service (down) 54 hours a year 99.99966% Great (6σ) • One hour without electricity every 34 years • 1 misspelled word in all the books in a medium sized library • 4,021 shares incorrectly traded on the NYSE everyday • 1 warranty claim for every 980 new automobiles • 17 to 34 deaths attributed to hospital errors each year • Cell Phone would be down less than 2 minutes a year Six Sigma Simplicity

13. Prevention Costs Education and training Safety Controlling processes Appraisal Costs Incoming inspection Maintenance and calibration of equipment Process audits Internal Failure Incorrect transactions Things Done Wrong Rework Re-inspection Late Delivery Times External Failures Processing customer inquiries Incurring penalties/claims Lost sales Business Impacts of Variability Six Sigma Simplicity

14. Lean + Six Sigma Work Together • Along with the Kaizen (waste reduction) process, the concept of ‘Six Sigma’ is another structured team approach for improving process performance • It emphasizes the importance of identifying key critical inputs that effect your key outputs through statistical analysis • It drives for perfection in those processes by reducing variation and/or moving the mean Six Sigma Simplicity
