  1. Geospatial Workshop Geospatial Best Practices for Architects Lessons learned – Metadata

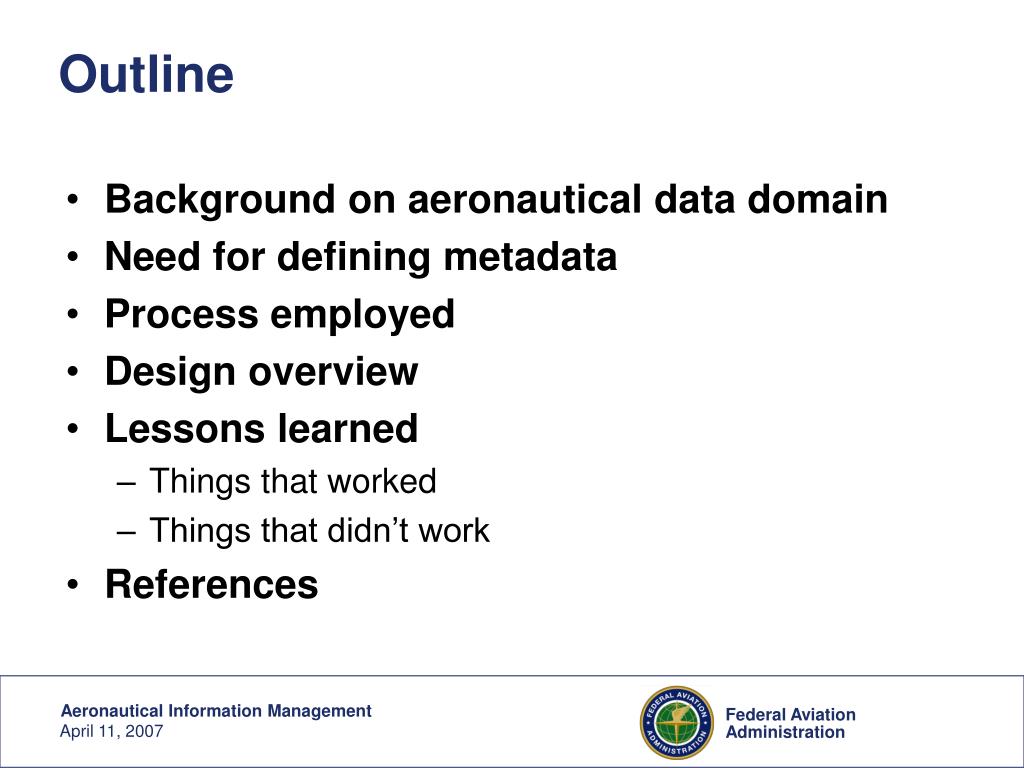

  2. Outline • Background on aeronautical data domain • Need for defining metadata • Process employed • Design overview • Lessons learned • Things that worked • Things that didn’t work • References

  3. Aeronautical InformationFAA responsible for releasing National Airspace System (NAS) data to our international partners, distributors and automation systems EnRoute Airspace Route Terminal Fix Procedures Service Airport/Runway Airport/Runway • Aerodromes • Airspace • NAVAIDS & Fixes • Routes • Procedures • Organizations & Services

  4. Airports Concept Aerodrome and Heliport AICM:AD_HP AIXM:<Ahp> Defines the airport or heliport and provides general information. Obstacle at Airport AICM:AD_HP_OBSTACLE AIXM:<Aho> Obstacle at an airport Usage Limitation AICM: AD_HP_USAGE AIXM:<Ahu> Rules describing flights and aircraft that can operate at the airport or heliport. Apron AICM:APRON AIXM:<Apn> Locations where aircraft park and passengers enter and exit the aircraft. Runway AICM:RWY AIXM:<Rwy> A runway at an airport. Taxiway AICM:TWY AIXM:<Twy> Fixed path used by aircraft to travel to and from a runway. Airport Timesheet AICM:TIMESHEET AIXM:<Aht> Operating hours of the airport Runway Direction AICM:RWY_DIRECTION AIXM:<Rdn> Defines runway direction, approach lighting and thresholds. Continuous

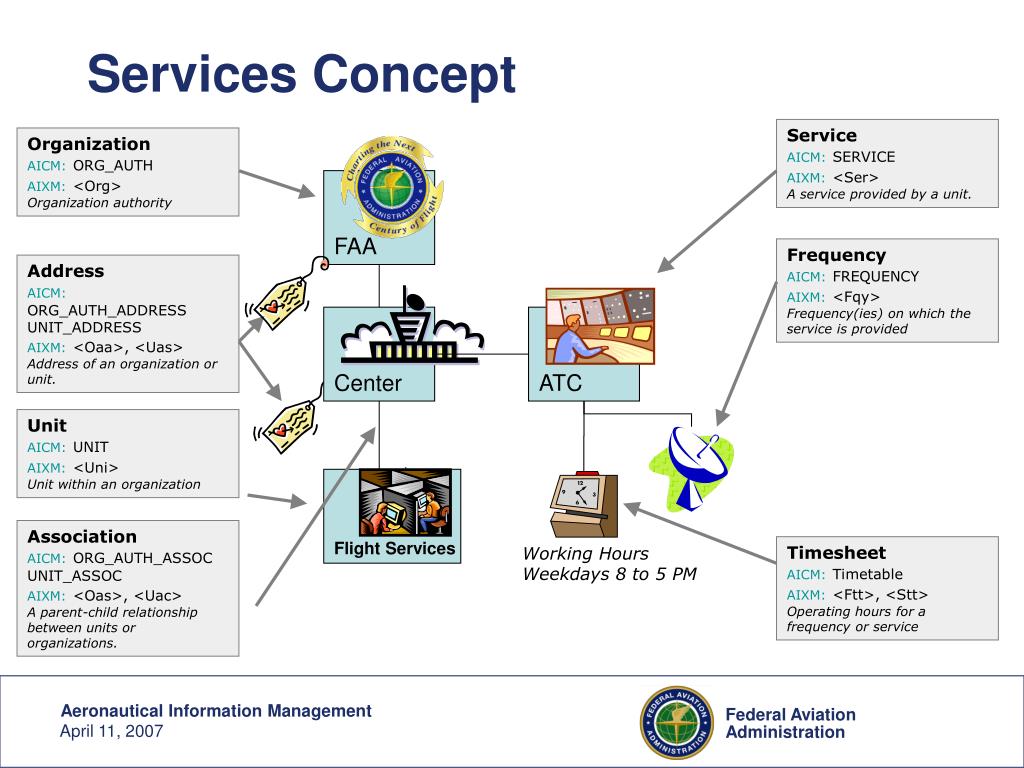

  5. Services Concept Service AICM:SERVICE AIXM:<Ser> A service provided by a unit. Organization AICM:ORG_AUTH AIXM:<Org> Organization authority FAA Frequency AICM:FREQUENCY AIXM:<Fqy> Frequency(ies) on which the service is provided Address AICM:ORG_AUTH_ADDRESS UNIT_ADDRESS AIXM:<Oaa>, <Uas> Address of an organization or unit. Center ATC Unit AICM:UNIT AIXM:<Uni> Unit within an organization Flight Services Association AICM:ORG_AUTH_ASSOC UNIT_ASSOC AIXM:<Oas>, <Uac> A parent-child relationship between units or organizations. Timesheet AICM:Timetable AIXM:<Ftt>, <Stt> Operating hours for a frequency or service Working Hours Weekdays 8 to 5 PM

  6. Data is integrated with other data and loaded into aircraft autopilots and air traffic control systems Attention: Taxiway P closed!

  7. Data is also used to produce charts and aeronautical publications

  8. Data is distributed to the general public via graphical maps on FAA websites

  9. The importance of data about data • Underlying mission to keep the skies and flying public safe!!! • Critical for data to be timely and accurate • Essential for data specialists to know: • Who is responsible for the data • What is the source of the data • When is the data effective • Where is the data source • How was the data captured • METADATA is the who, what, when, where and how

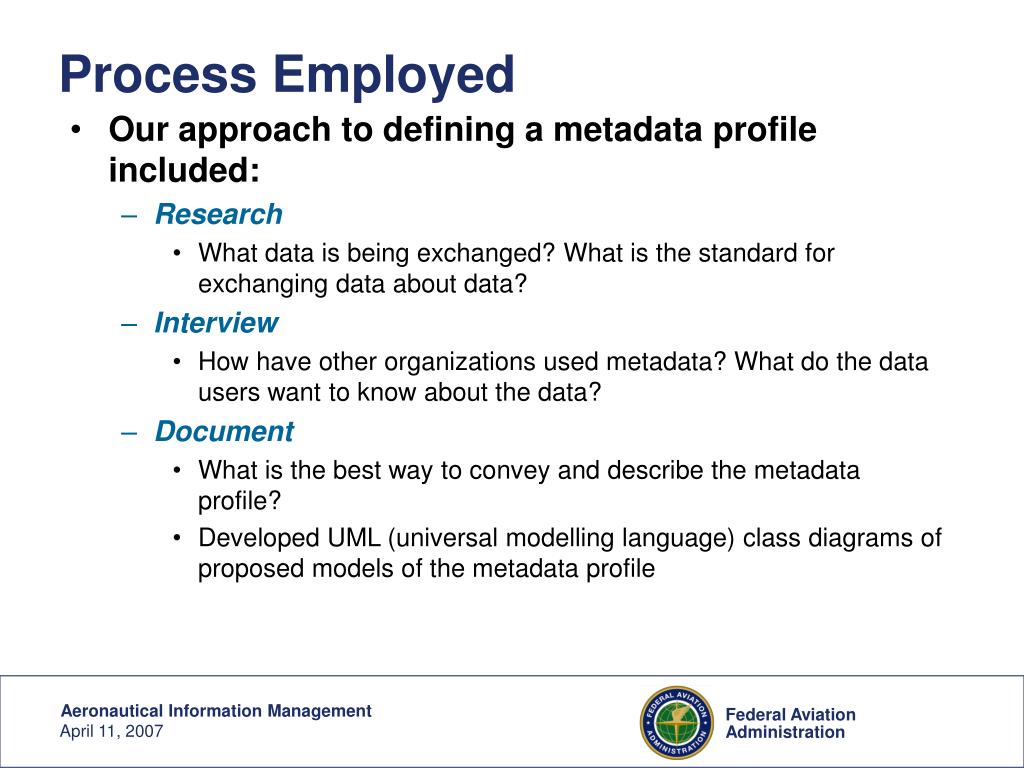

  10. Process Employed • Our approach to defining a metadata profile included: • Research • What data is being exchanged? What is the standard for exchanging data about data? • Interview • How have other organizations used metadata? What do the data users want to know about the data? • Document • What is the best way to convey and describe the metadata profile? • Developed UML (universal modelling language) class diagrams of proposed models of the metadata profile

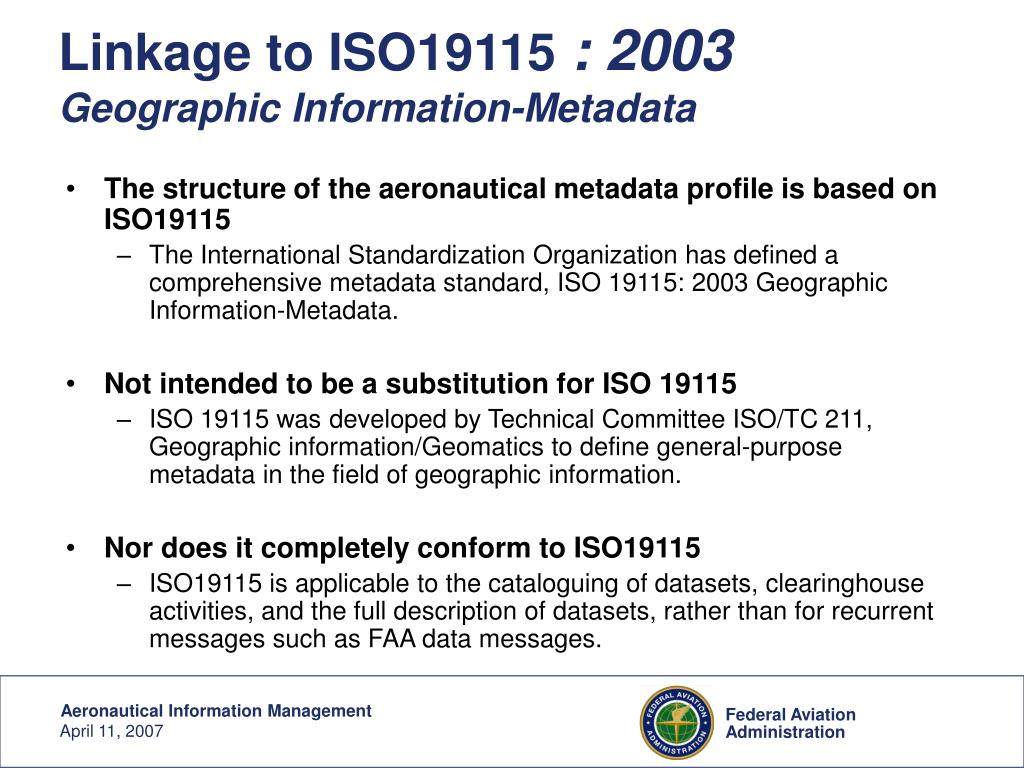

  11. Linkage to ISO19115 : 2003 Geographic Information-Metadata • The structure of the aeronautical metadata profile is based on ISO19115 • The International Standardization Organization has defined a comprehensive metadata standard, ISO 19115: 2003 Geographic Information-Metadata. • Not intended to be a substitution for ISO 19115 • ISO 19115 was developed by Technical Committee ISO/TC 211, Geographic information/Geomatics to define general-purpose metadata in the field of geographic information. • Nor does it completely conform to ISO19115 • ISO19115 is applicable to the cataloguing of datasets, clearinghouse activities, and the full description of datasets, rather than for recurrent messages such as FAA data messages.

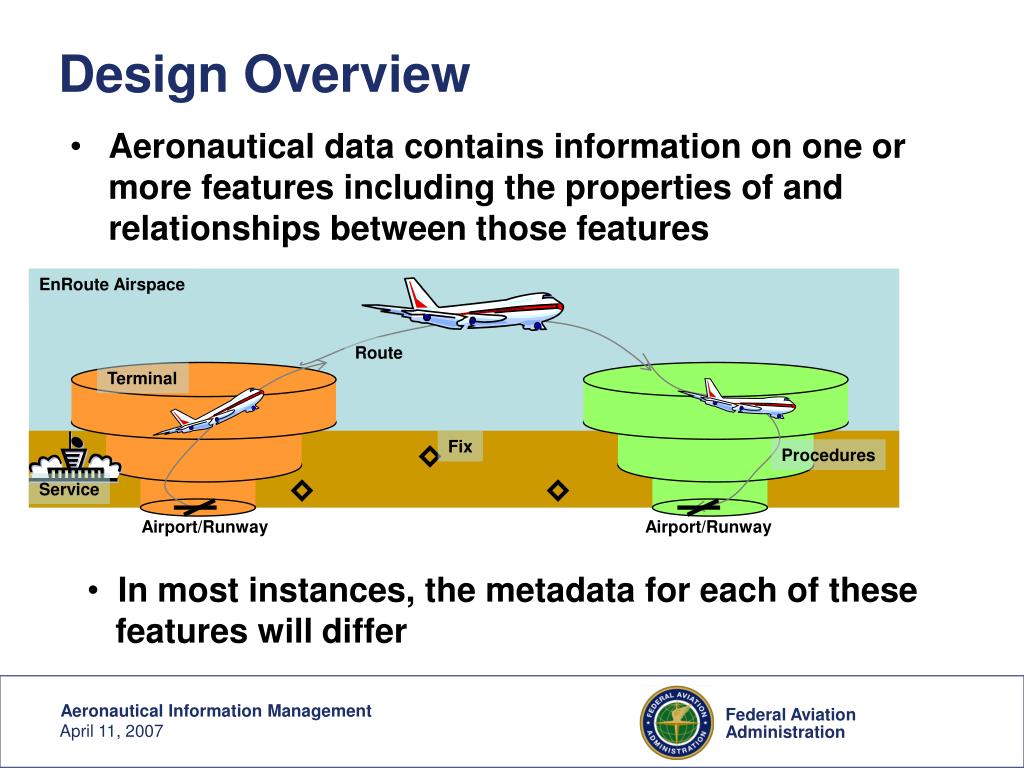

  12. Design Overview • Aeronautical data contains information on one or more features including the properties of and relationships between those features EnRoute Airspace Route Terminal Fix Procedures Service Airport/Runway Airport/Runway • In most instances, the metadata for each of these features will differ

  13. The AIXM Metadata Profile • The profile includes six models: • Metadata for the AIXM message • Metadata for an AIXM feature • Metadata for an AIXM feature timeslice • A timeslice allows for temporality – able to exchange data on features described at different points in time • Constraint information • Citation and Responsible Party information • Data Quality information AIXM – aeronautical information exchange model – international data exchange standard

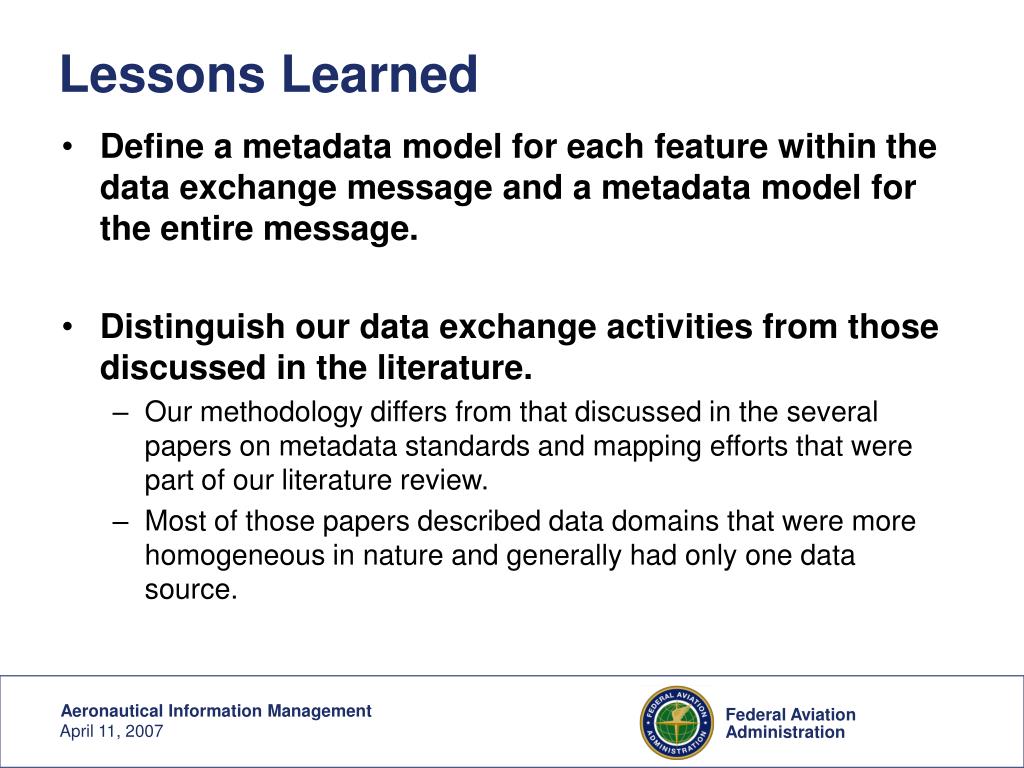

  14. Lessons Learned • Define a metadata model for each feature within the data exchange message and a metadata model for the entire message. • Distinguish our data exchange activities from those discussed in the literature. • Our methodology differs from that discussed in the several papers on metadata standards and mapping efforts that were part of our literature review. • Most of those papers described data domains that were more homogeneous in nature and generally had only one data source.

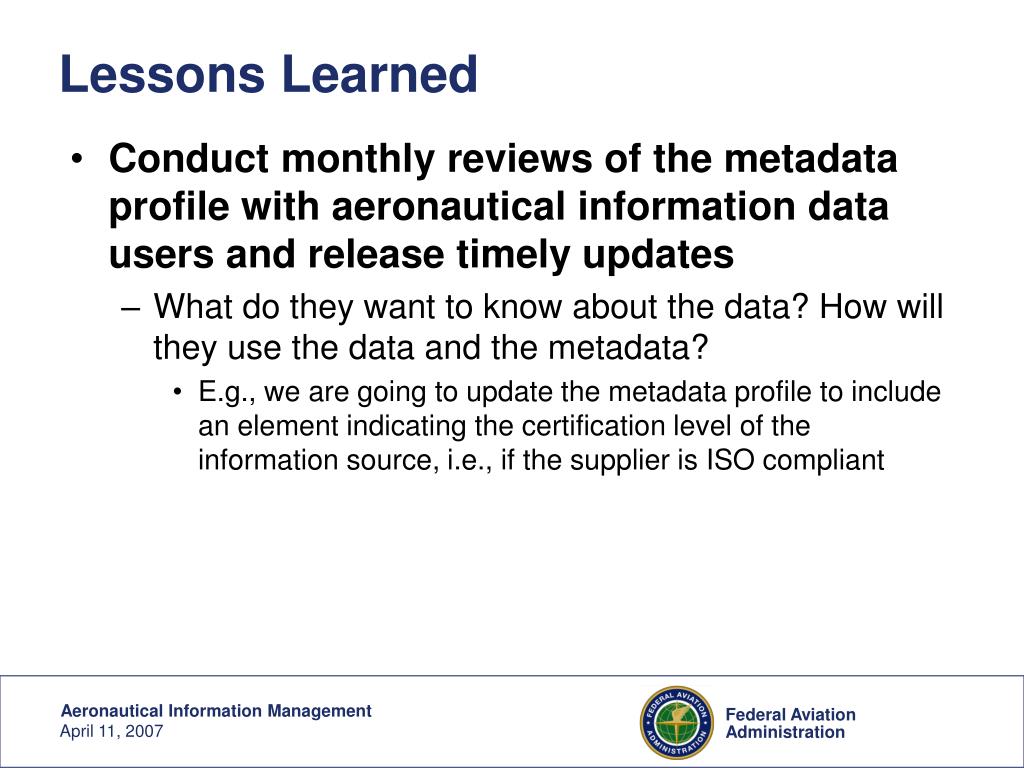

  15. Lessons Learned • Conduct monthly reviews of the metadata profile with aeronautical information data users and release timely updates • What do they want to know about the data? How will they use the data and the metadata? • E.g., we are going to update the metadata profile to include an element indicating the certification level of the information source, i.e., if the supplier is ISO compliant

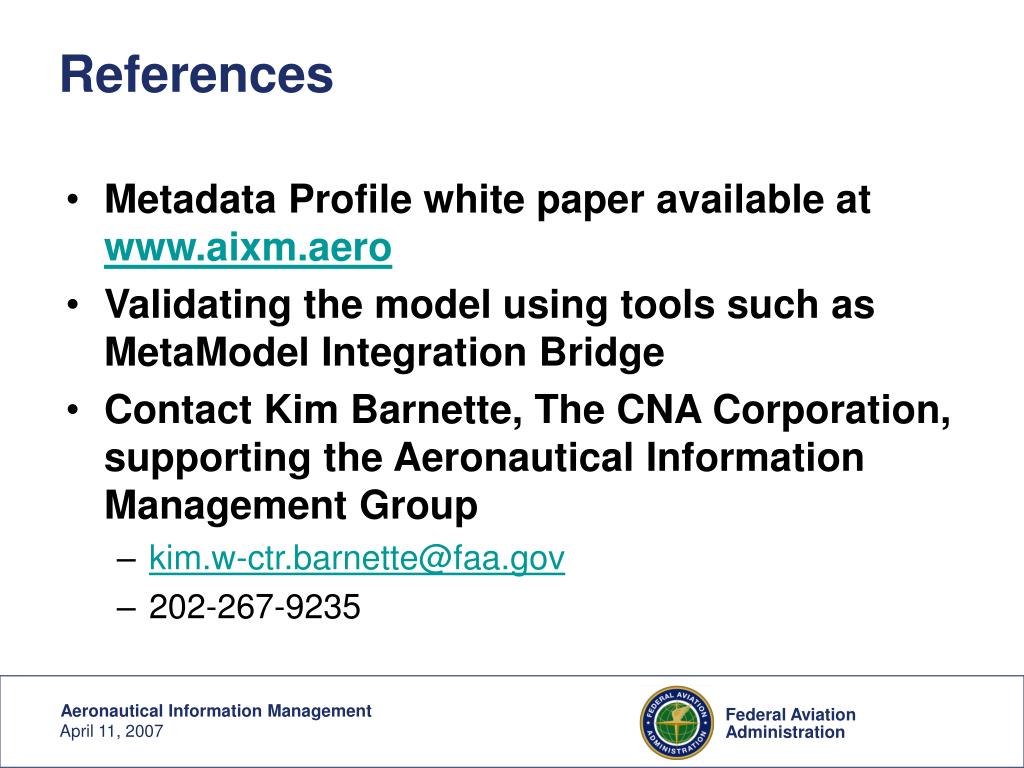

  16. References • Metadata Profile white paper available at www.aixm.aero • Validating the model using tools such as MetaModel Integration Bridge • Contact Kim Barnette, The CNA Corporation, supporting the Aeronautical Information Management Group • kim.w-ctr.barnette@faa.gov • 202-267-9235

  17. Background Slides • UML (universal modeling language) class diagrams for each model in the metadata profile • The model will be updated to include a few more suggestions from aeronautical information subject matter experts

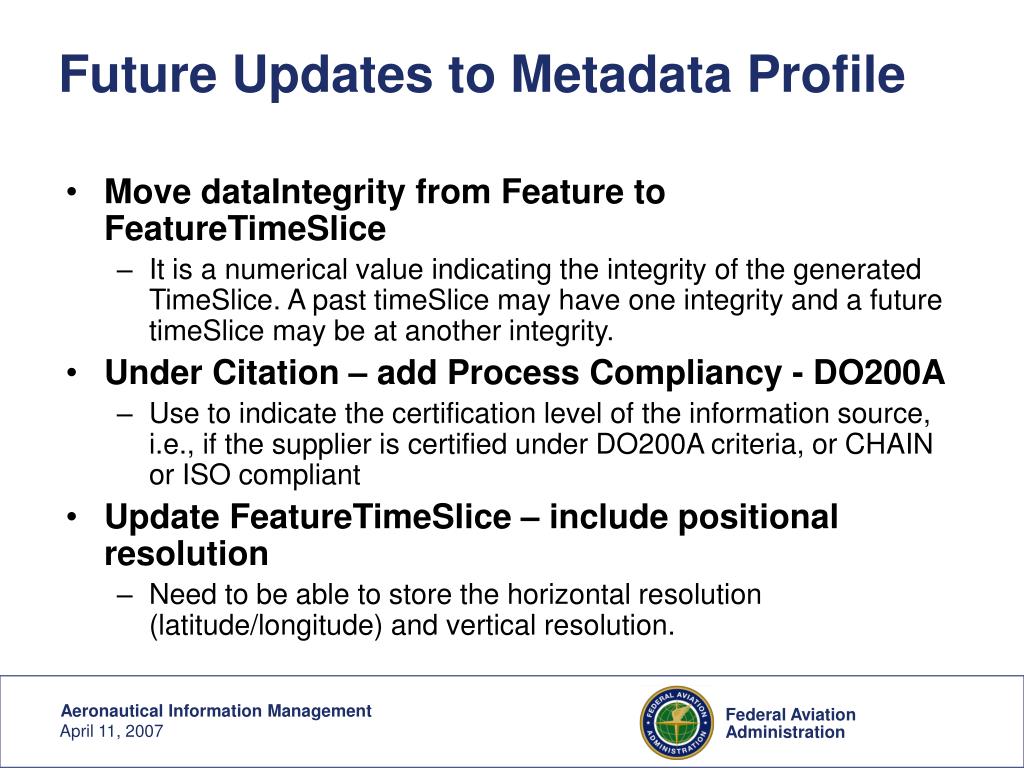

  18. Future Updates to Metadata Profile • Move dataIntegrity from Feature to FeatureTimeSlice • It is a numerical value indicating the integrity of the generated TimeSlice. A past timeSlice may have one integrity and a future timeSlice may be at another integrity. • Under Citation – add Process Compliancy - DO200A • Use to indicate the certification level of the information source, i.e., if the supplier is certified under DO200A criteria, or CHAIN or ISO compliant • Update FeatureTimeSlice – include positional resolution • Need to be able to store the horizontal resolution (latitude/longitude) and vertical resolution.

  19. Metadata to include about the AIXM message

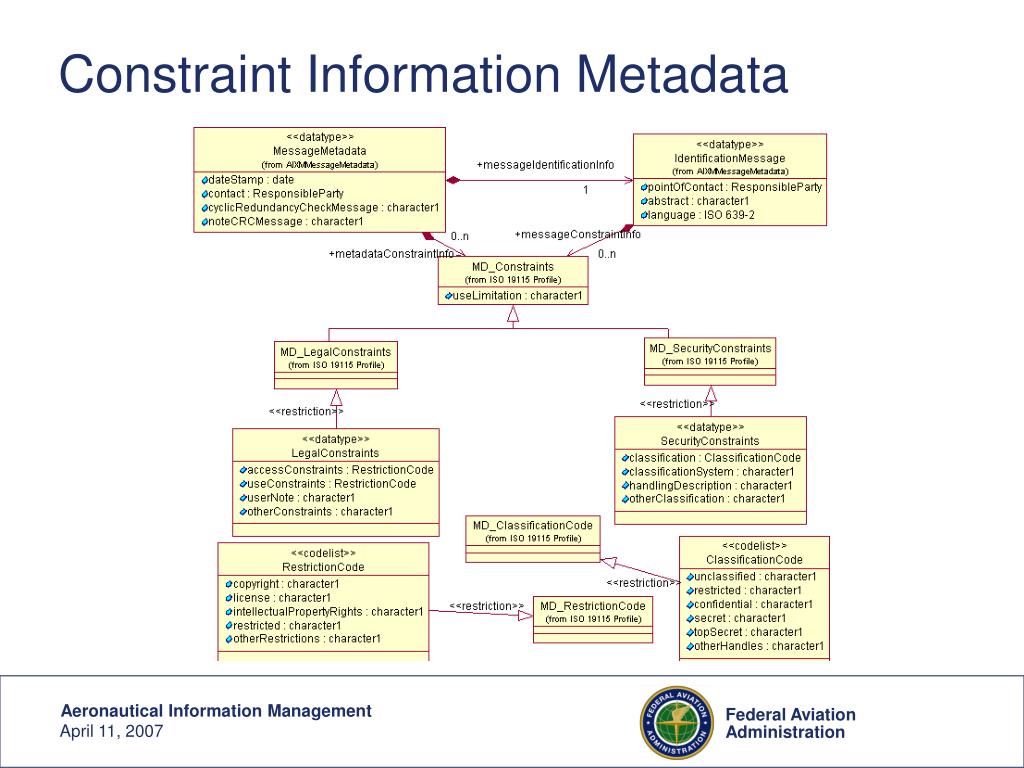

  20. Constraint Information Metadata

  21. Metadata to include about an AIXM feature

  22. Metadata to include about an AIXM feature timeslice

  23. Citation and Responsible Party Information Metadata

  24. Data Quality Information Metadata
