  1. Unix Watchdog in EPICS Ken Brobeck, Jingchen Zhou Ron Chestnut EPICS Collaboration Mtg June 18-20, 2003

  2. Motivation • Many Unix hosts supporting production • System folk and application folk in different worlds • Some failures require immediate attention • Some less critical failures go unnoticed for days EPICS Collaboration Mtg June 18-20, 2003

  3. Requirements • One set of configuration files only(CPU, MEMORY, DISK, QUOTA, PING, PROCESS) • Application scripts create • EPICS database templates • EPICS alarm handler configurations • System scripts use configuration files to drive monitoring EPICS Collaboration Mtg June 18-20, 2003

  4. Piece of PROCESS configuration • TEMPLATE microname:PROC:@@@:PSSTATUS • # • # monitoring processes running on production nodes • # • # HOST Node:Process Account REGEX • opi00gtw00 XVFB ROOT 'Xvfb' • opi00gtw00 CMLOG CMLOG 'cmlogServer' • opi00gtw00 CMD MCCOPS 'cmdSrv' • opi00gtw01 XVFB ROOT 'Xvfb' • opi00gtw01 CMD MCCOPS 'cmdSrv' • opi00gtw01 SLCW45 MCCOPS 'CUD_LUM_SLCW45' • opi00gtw02 XVFB ROOT 'Xvfb' • opi00gtw02 CMD MCCOPS 'cmdSrv' • opi00gtw02 GTWPUB CDDEV 'gateway.*pep2pubpvs' • opi00gtw02 GTWPEP2 CDDEV 'gateway.*pep2peppvs' • opi00gtw02 CWP2RF CDDEV 'ChannelWatcher.*P2RF' • opi00gtw02 CWPEP CDDEV 'ChannelWatcher.*PEPII' • opi00gtw02 CWNLC CDDEV 'ChannelWatcher.*NLCTA' • opi00gtw02 CWPACK CDDEV 'ChannelWatcher.*PACK' • opi00gtw02 ALHPEP CDDEV 'alhSLAC.*pepii.*pepii' • opi00gtw02 ALHP2RF CDDEV 'alhSLAC.*pepii.*p2rf' • opi00gtw02 ALHNLC CDDEV 'alhSLAC.*pepii.*tarf' • opi00gtw04 CMD CDDEV 'cmdSrv' EPICS Collaboration Mtg June 18-20, 2003

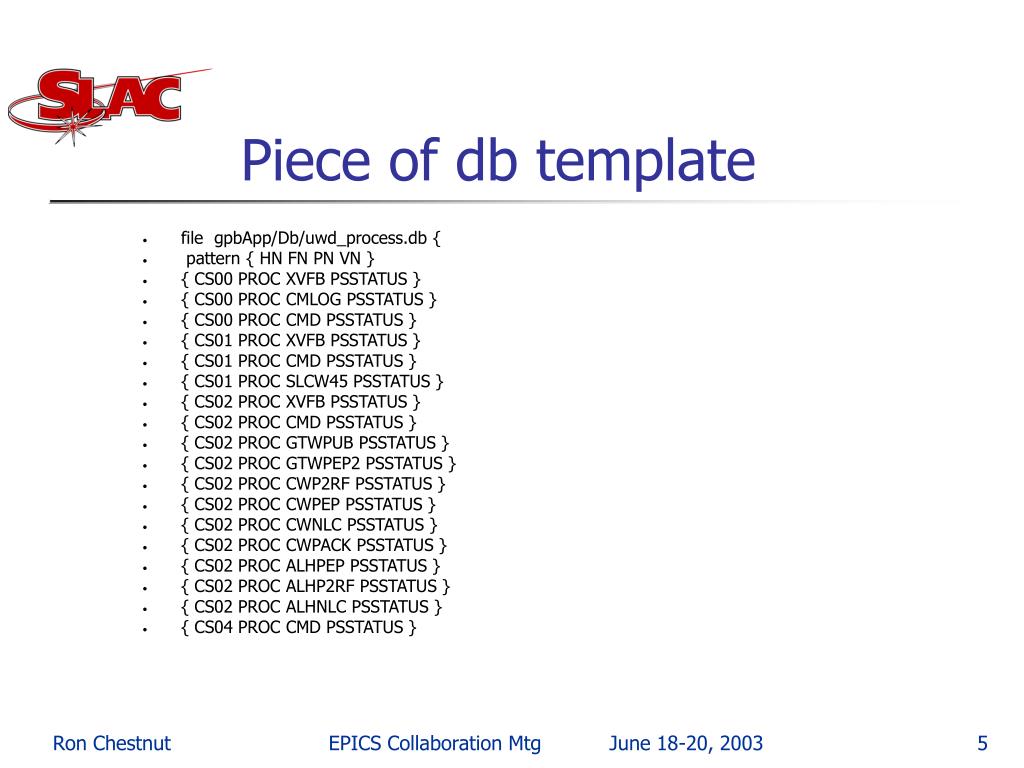

  5. Piece of db template • file gpbApp/Db/uwd_process.db { • pattern { HN FN PN VN } • { CS00 PROC XVFB PSSTATUS } • { CS00 PROC CMLOG PSSTATUS } • { CS00 PROC CMD PSSTATUS } • { CS01 PROC XVFB PSSTATUS } • { CS01 PROC CMD PSSTATUS } • { CS01 PROC SLCW45 PSSTATUS } • { CS02 PROC XVFB PSSTATUS } • { CS02 PROC CMD PSSTATUS } • { CS02 PROC GTWPUB PSSTATUS } • { CS02 PROC GTWPEP2 PSSTATUS } • { CS02 PROC CWP2RF PSSTATUS } • { CS02 PROC CWPEP PSSTATUS } • { CS02 PROC CWNLC PSSTATUS } • { CS02 PROC CWPACK PSSTATUS } • { CS02 PROC ALHPEP PSSTATUS } • { CS02 PROC ALHP2RF PSSTATUS } • { CS02 PROC ALHNLC PSSTATUS } • { CS04 PROC CMD PSSTATUS } EPICS Collaboration Mtg June 18-20, 2003

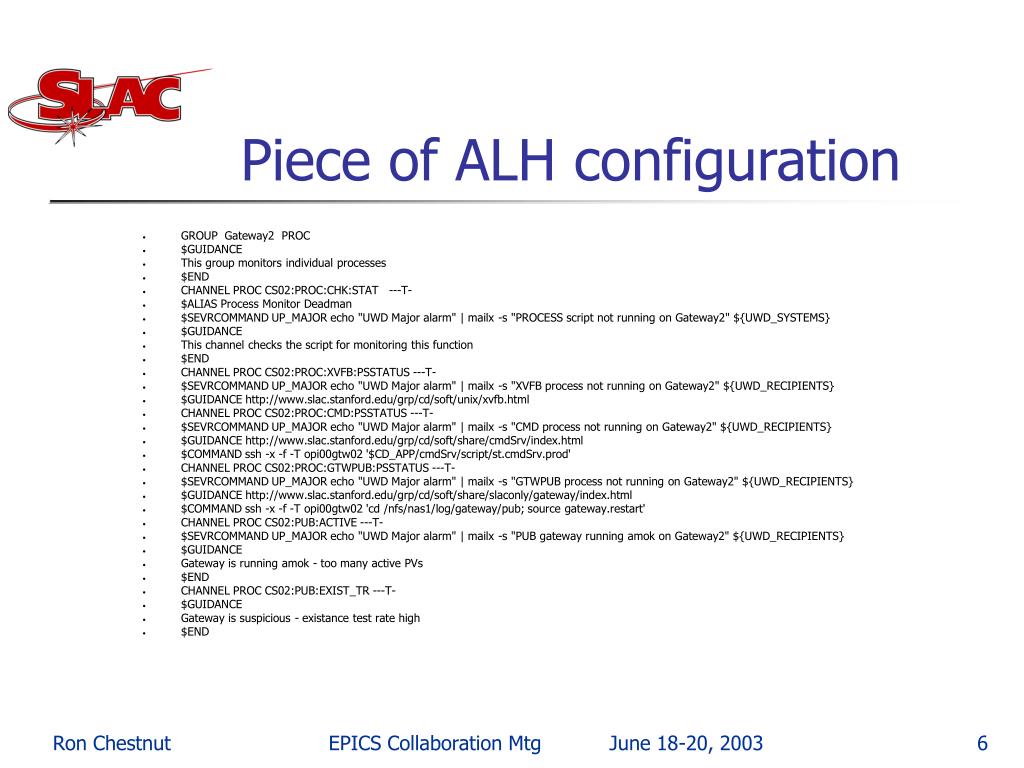

  6. Piece of ALH configuration • GROUP Gateway2 PROC • $GUIDANCE • This group monitors individual processes • $END • CHANNEL PROC CS02:PROC:CHK:STAT ---T- • $ALIAS Process Monitor Deadman • $SEVRCOMMAND UP_MAJOR echo "UWD Major alarm" | mailx -s "PROCESS script not running on Gateway2" ${UWD_SYSTEMS} • $GUIDANCE • This channel checks the script for monitoring this function • $END • CHANNEL PROC CS02:PROC:XVFB:PSSTATUS ---T- • $SEVRCOMMAND UP_MAJOR echo "UWD Major alarm" | mailx -s "XVFB process not running on Gateway2" ${UWD_RECIPIENTS} • $GUIDANCE http://www.slac.stanford.edu/grp/cd/soft/unix/xvfb.html • CHANNEL PROC CS02:PROC:CMD:PSSTATUS ---T- • $SEVRCOMMAND UP_MAJOR echo "UWD Major alarm" | mailx -s "CMD process not running on Gateway2" ${UWD_RECIPIENTS} • $GUIDANCE http://www.slac.stanford.edu/grp/cd/soft/share/cmdSrv/index.html • $COMMAND ssh -x -f -T opi00gtw02 '$CD_APP/cmdSrv/script/st.cmdSrv.prod' • CHANNEL PROC CS02:PROC:GTWPUB:PSSTATUS ---T- • $SEVRCOMMAND UP_MAJOR echo "UWD Major alarm" | mailx -s "GTWPUB process not running on Gateway2" ${UWD_RECIPIENTS} • $GUIDANCE http://www.slac.stanford.edu/grp/cd/soft/share/slaconly/gateway/index.html • $COMMAND ssh -x -f -T opi00gtw02 'cd /nfs/nas1/log/gateway/pub; source gateway.restart' • CHANNEL PROC CS02:PUB:ACTIVE ---T- • $SEVRCOMMAND UP_MAJOR echo "UWD Major alarm" | mailx -s "PUB gateway running amok on Gateway2" ${UWD_RECIPIENTS} • $GUIDANCE • Gateway is running amok - too many active PVs • $END • CHANNEL PROC CS02:PUB:EXIST_TR ---T- • $GUIDANCE • Gateway is suspicious - existance test rate high • $END EPICS Collaboration Mtg June 18-20, 2003

  7. Alarm Handler screen EPICS Collaboration Mtg June 18-20, 2003

  8. Other features • Special DB to avoid alarming on short CPU usage peaks • Heartbeats from each monitoring process verify rest of data • ALH Process buttons restart processes on any host if necessary • Flexible mail lists for different classes of problems (Utilities, System, EPICS tools) EPICS Collaboration Mtg June 18-20, 2003

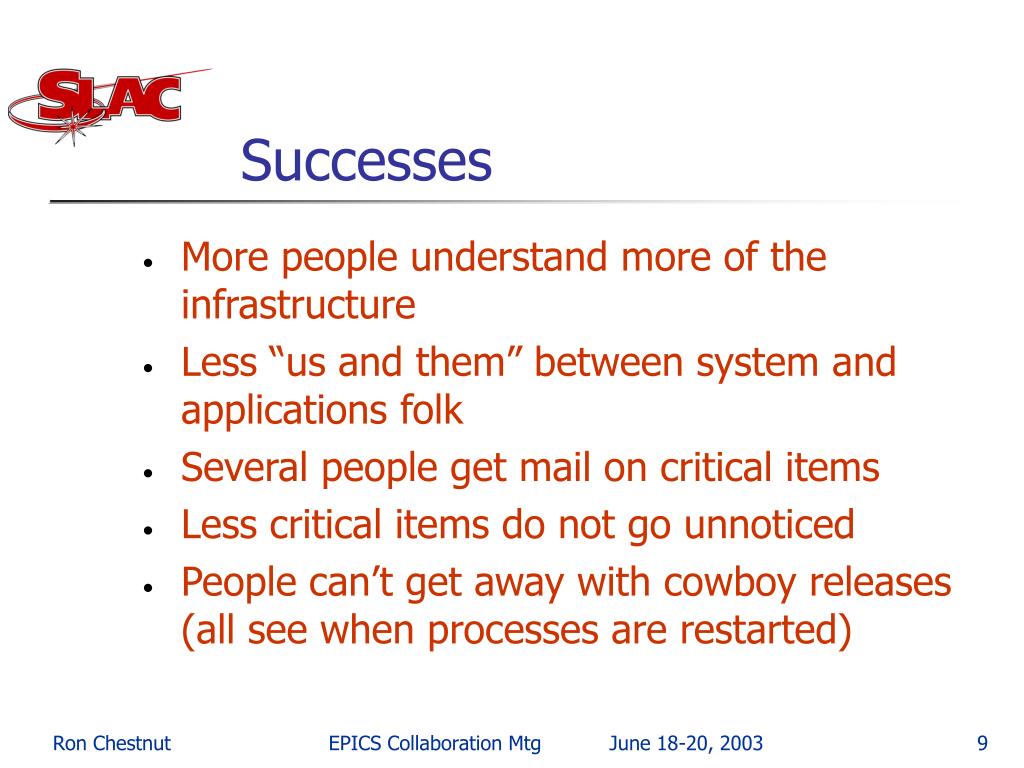

  9. Successes • More people understand more of the infrastructure • Less “us and them” between system and applications folk • Several people get mail on critical items • Less critical items do not go unnoticed • People can’t get away with cowboy releases (all see when processes are restarted) EPICS Collaboration Mtg June 18-20, 2003
