chapter 9 eukaryotic cells and multicellular organisms

Chapter 9Eukaryotic Cells andMulticellularOrganisms

Figure CO: Oblong shaped Giardia

Courtesy of Dr. Stan Erlandsen/CDC

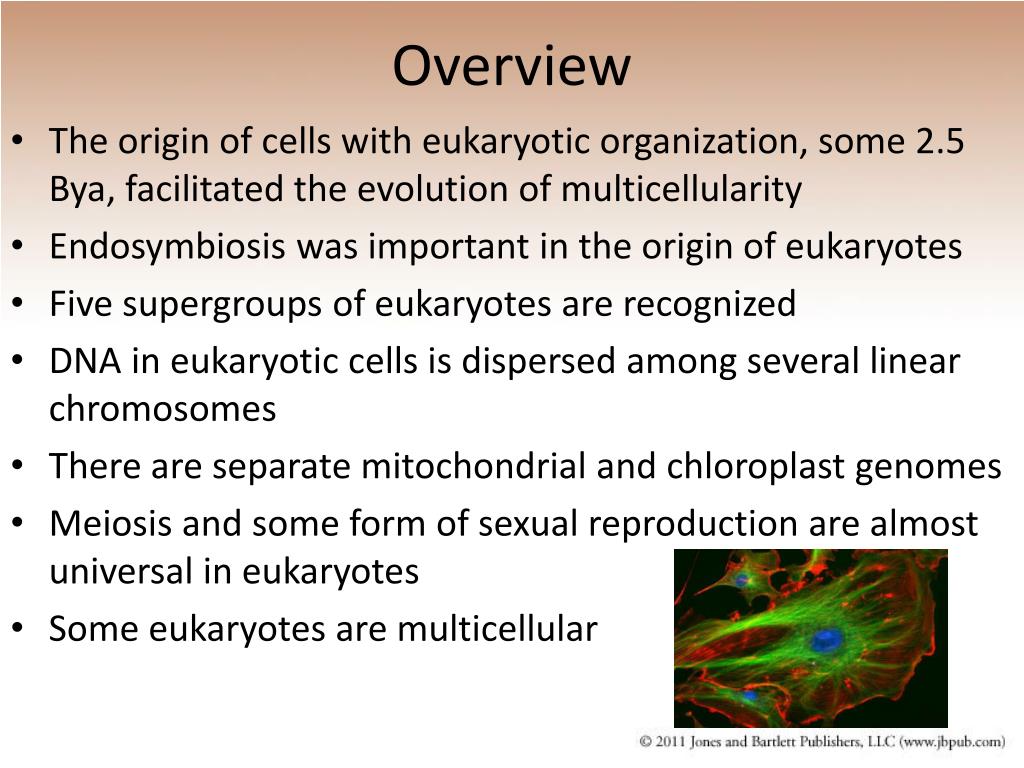

  • The origin of cells with eukaryotic organization, some 2.5 Bya, facilitated the evolution of multicellularity
  • Endosymbiosis was important in the origin of eukaryotes
  • Five supergroups of eukaryotes are recognized
  • DNA in eukaryotic cells is dispersed among several linear chromosomes
  • There are separate mitochondrial and chloroplast genomes
  • Meiosis and some form of sexual reproduction are almost universal in eukaryotes
  • Some eukaryotes are multicellular

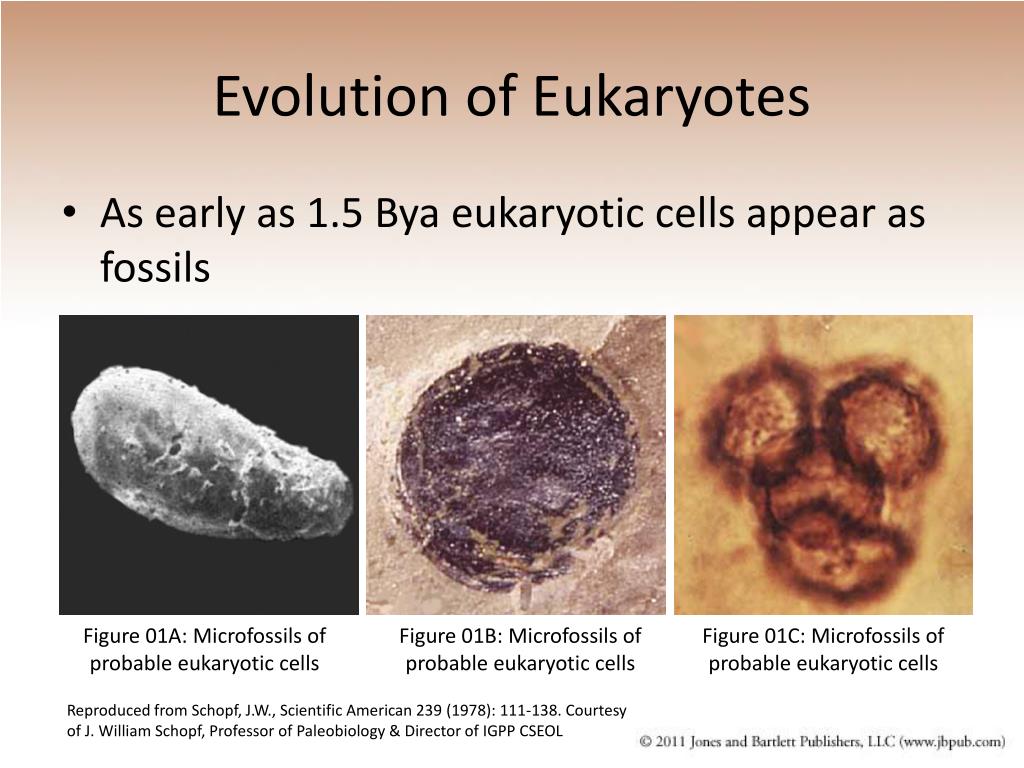

evolution of eukaryotes
Evolution of Eukaryotes
  • As early as 1.5 Bya eukaryotic cells appear as fossils

Figure 01A: Microfossils of probable eukaryotic cells

Figure 01B: Microfossils of probable eukaryotic cells

Figure 01C: Microfossils of probable eukaryotic cells

Reproduced from Schopf, J.W., Scientific American 239 (1978): 111-138. Courtesy of J. William Schopf, Professor of Paleobiology & Director of IGPP CSEOL

evolution of eukaryotes4
Evolution of Eukaryotes
  • Grypania spiralis has been found in ancient rocks in Michigan
  • This fossil species is preserved because it formed simple shells

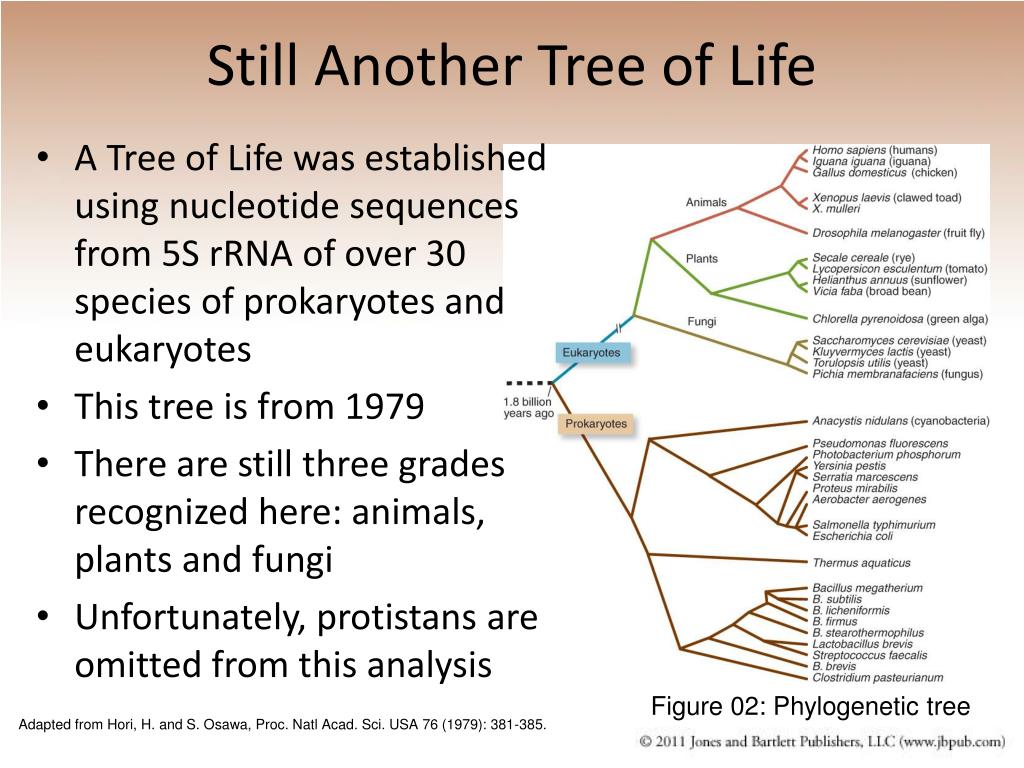

still another tree of life
Still Another Tree of Life
  • A Tree of Life was established using nucleotide sequences from 5S rRNA of over 30 species of prokaryotes and eukaryotes
  • This tree is from 1979
  • There are still three grades recognized here: animals, plants and fungi
  • Unfortunately, protistans are omitted from this analysis

Figure 02: Phylogenetic tree

Adapted from Hori, H. and S. Osawa, Proc. Natl Acad. Sci. USA 76 (1979): 381-385.

single celled eukaryotes protistans

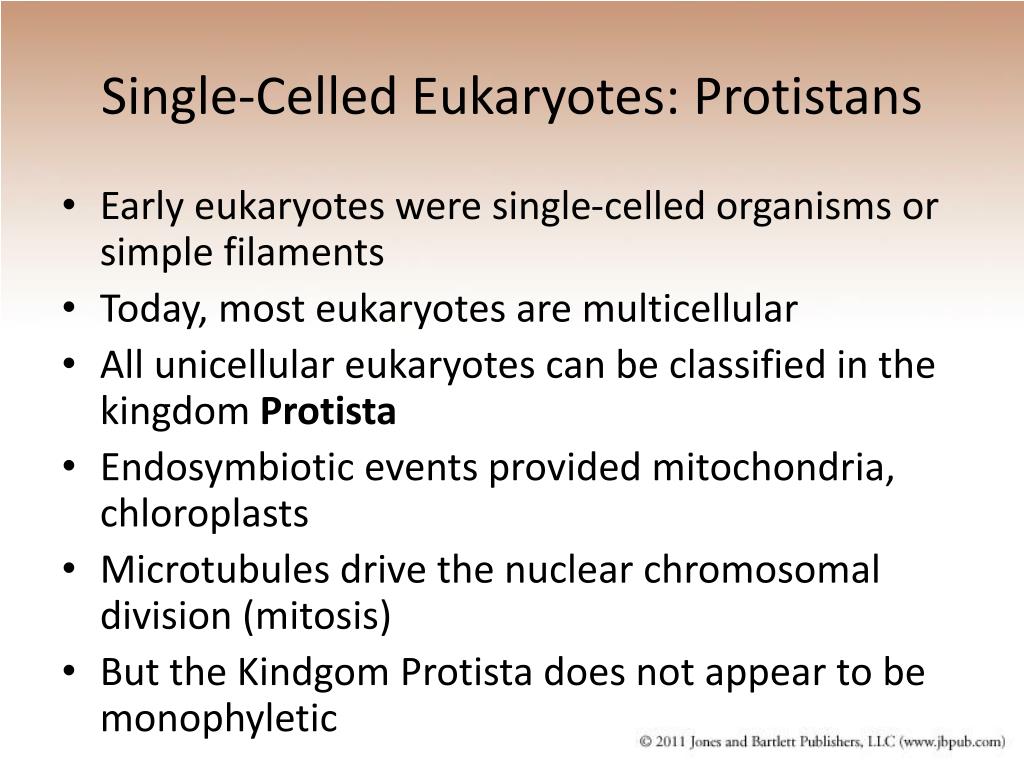

Single-Celled Eukaryotes: Protistans
  • Early eukaryotes were single-celled organisms or simple filaments
  • Today, most eukaryotes are multicellular
  • All unicellular eukaryotes can be classified in the kingdom Protista
  • Endosymbiotic events provided mitochondria, chloroplasts
  • Microtubules drive the nuclear chromosomal division (mitosis)
  • But the Kindgom Protista does not appear to be monophyletic

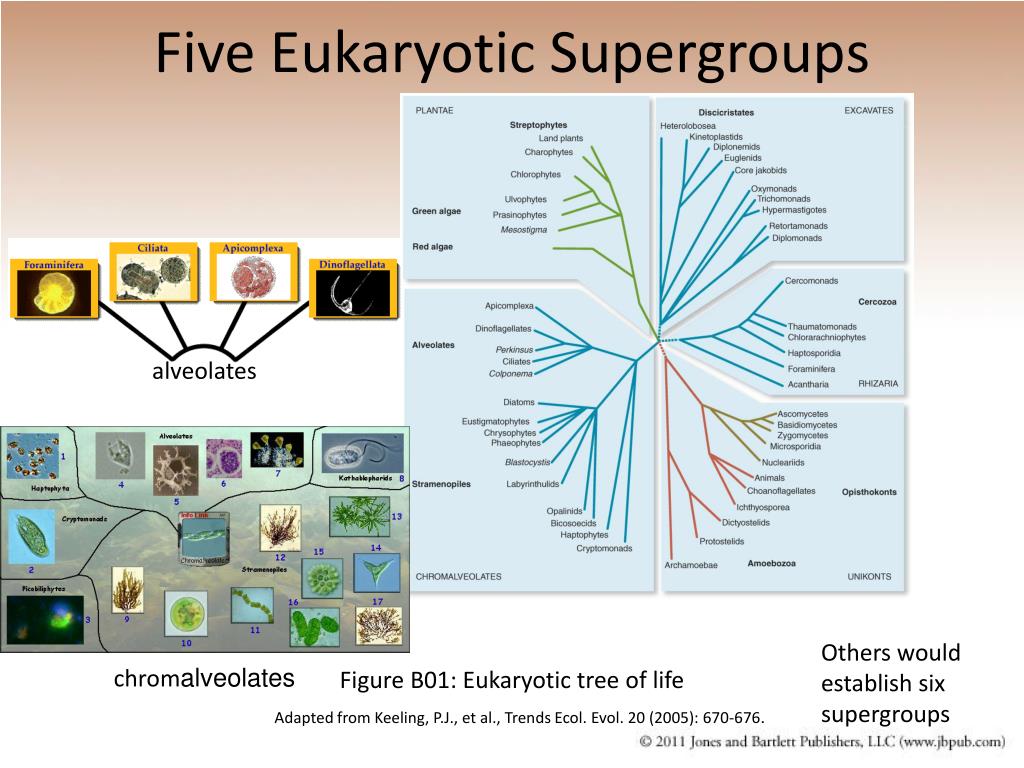

five eukaryotic supergroups
Five Eukaryotic Supergroups



Others would establish six supergroups

Figure B01: Eukaryotic tree of life

Adapted from Keeling, P.J., et al., Trends Ecol. Evol. 20 (2005): 670-676.

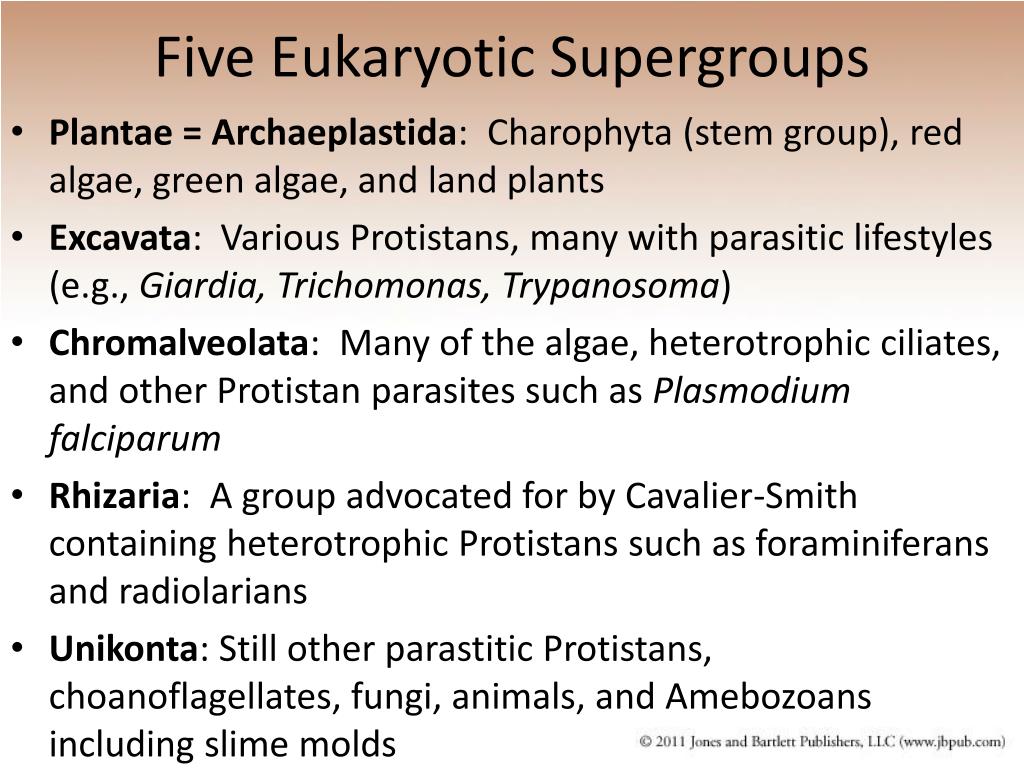

five eukaryotic supergroups8
Five Eukaryotic Supergroups
  • Plantae = Archaeplastida: Charophyta (stem group), red algae, green algae, and land plants
  • Excavata: Various Protistans, many with parasitic lifestyles (e.g., Giardia, Trichomonas, Trypanosoma)
  • Chromalveolata: Many of the algae, heterotrophic ciliates, and other Protistan parasites such as Plasmodium falciparum
  • Rhizaria: A group advocated for by Cavalier-Smith containing heterotrophic Protistans such as foraminiferans and radiolarians
  • Unikonta: Still other parastitic Protistans, choanoflagellates, fungi, animals, and Amebozoans including slime molds
five eukaryotic supergroups plantae archaeplastida
Five Eukaryotic Supergroups:Plantae = Archaeplastida


(stem group)

red and green algae

Red algae





land plants

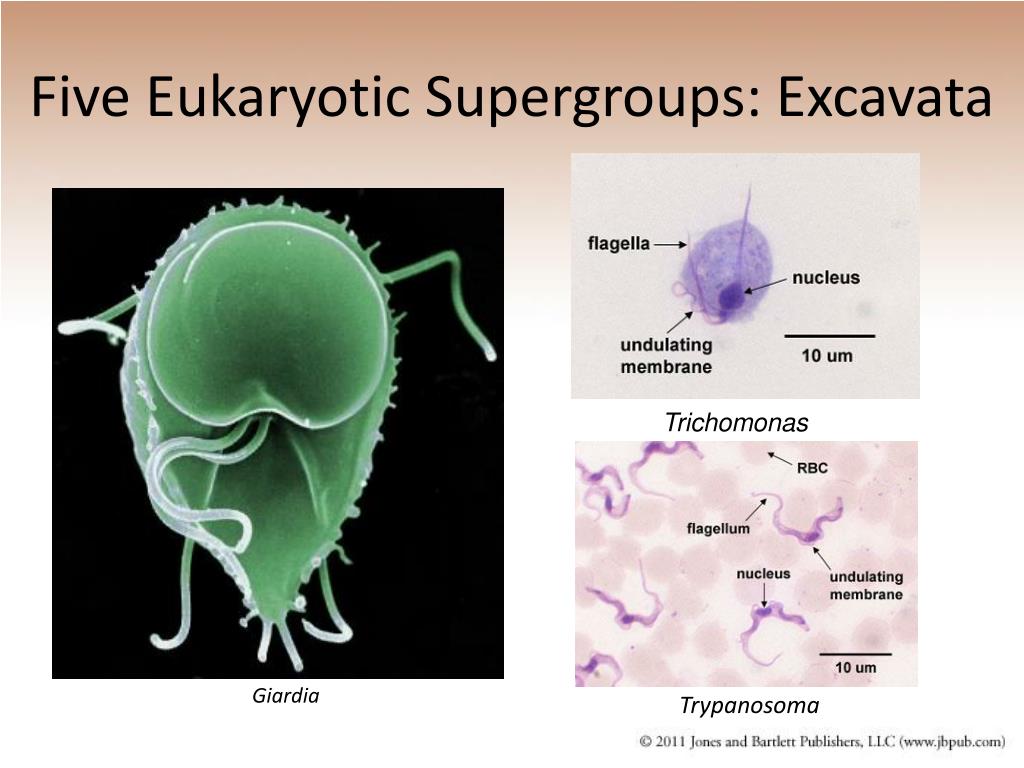

five eukaryotic supergroups excavata
Five Eukaryotic Supergroups: Excavata

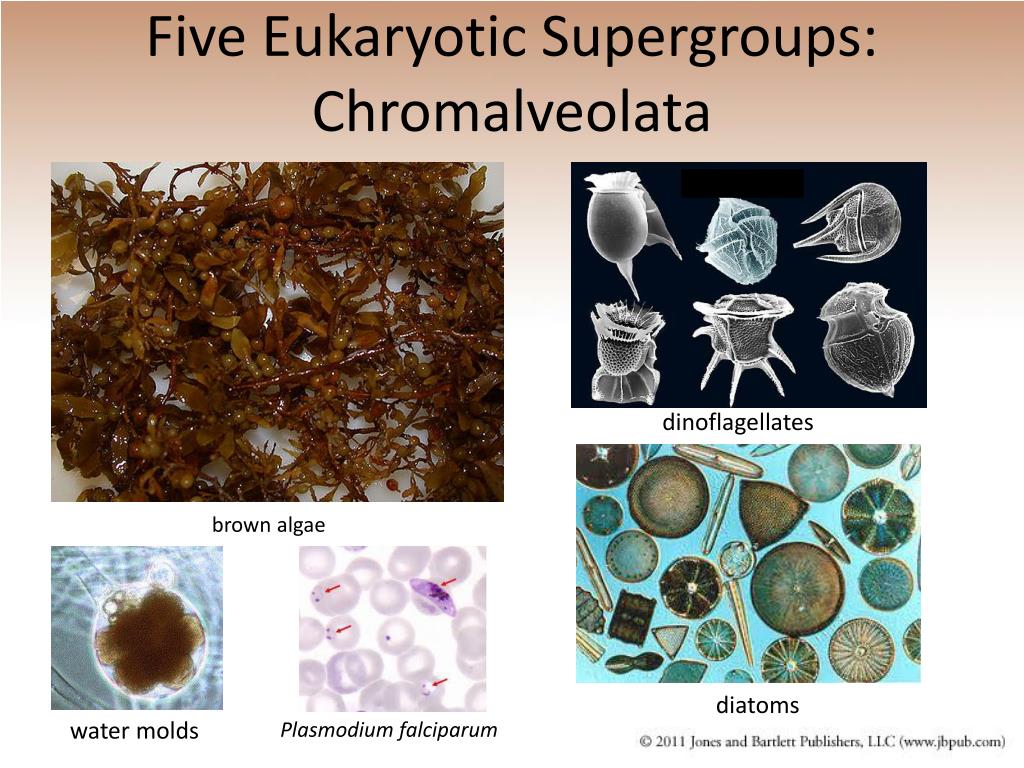

five eukaryotic supergroups chromalveolata
Five Eukaryotic Supergroups: Chromalveolata


brown algae


Plasmodium falciparum

water molds

five eukaryotic supergroups rhizaria
Five Eukaryotic Supergroups: Rhizaria


Figure B03: Diversity of forms of foraminiferans


Reproduced from E. Haeckel. Art Forms in Nature. New York: Dover Publications, Inc., 1974.

five eukaryotic supergroups unikonta
Five Eukaryotic Supergroups: Unikonta




cellular slime mold

plasmodial slime mold

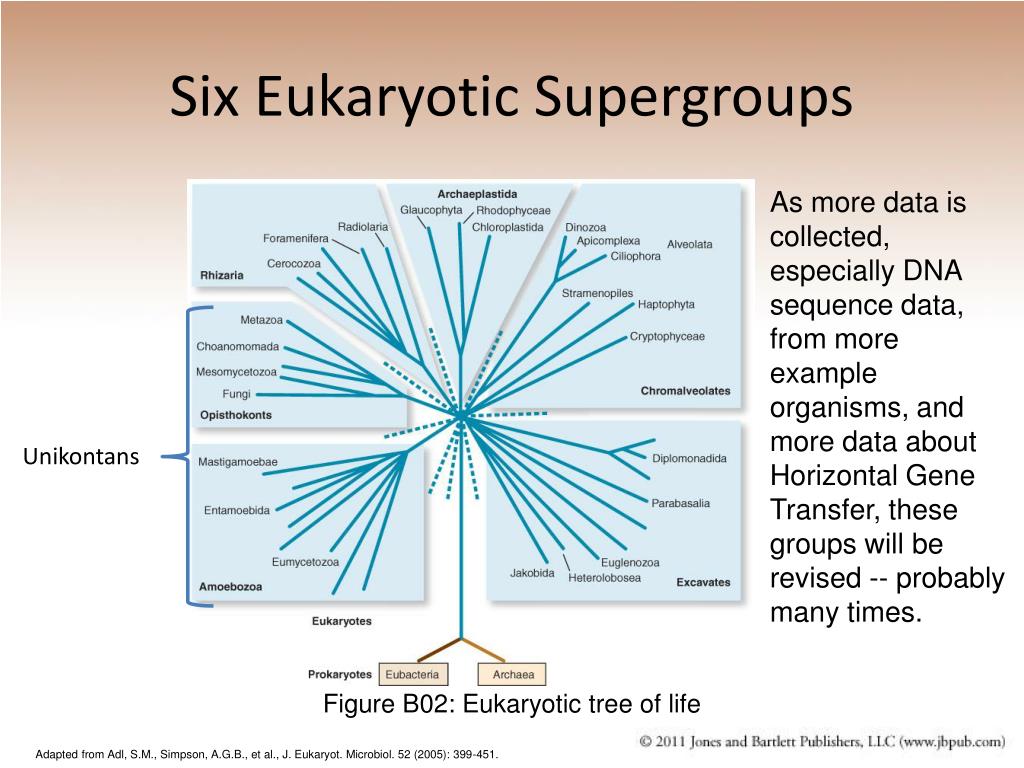

six eukaryotic supergroups
Six Eukaryotic Supergroups

As more data is collected, especially DNA sequence data, from more example organisms, and more data about Horizontal Gene Transfer, these groups will be revised -- probably many times.


Figure B02: Eukaryotic tree of life

Adapted from Adl, S.M., Simpson, A.G.B., et al., J. Eukaryot. Microbiol. 52 (2005): 399-451.

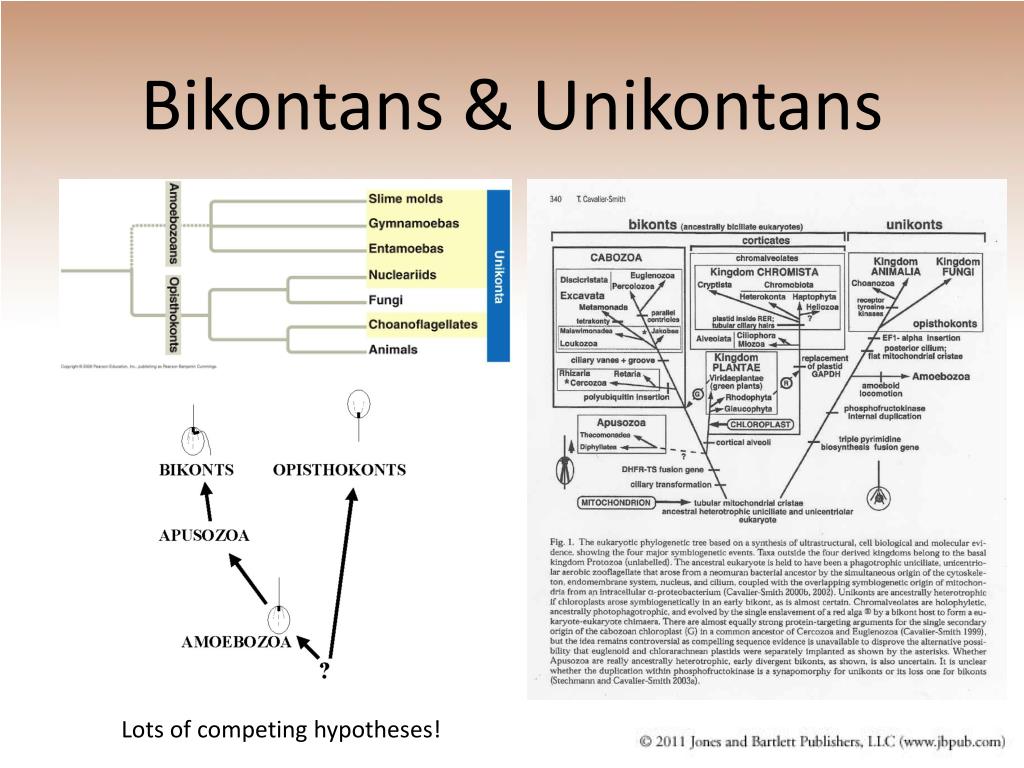

bikontans unikontans
Bikontans & Unikontans

Lots of competing hypotheses!

origin of the eukaryotes

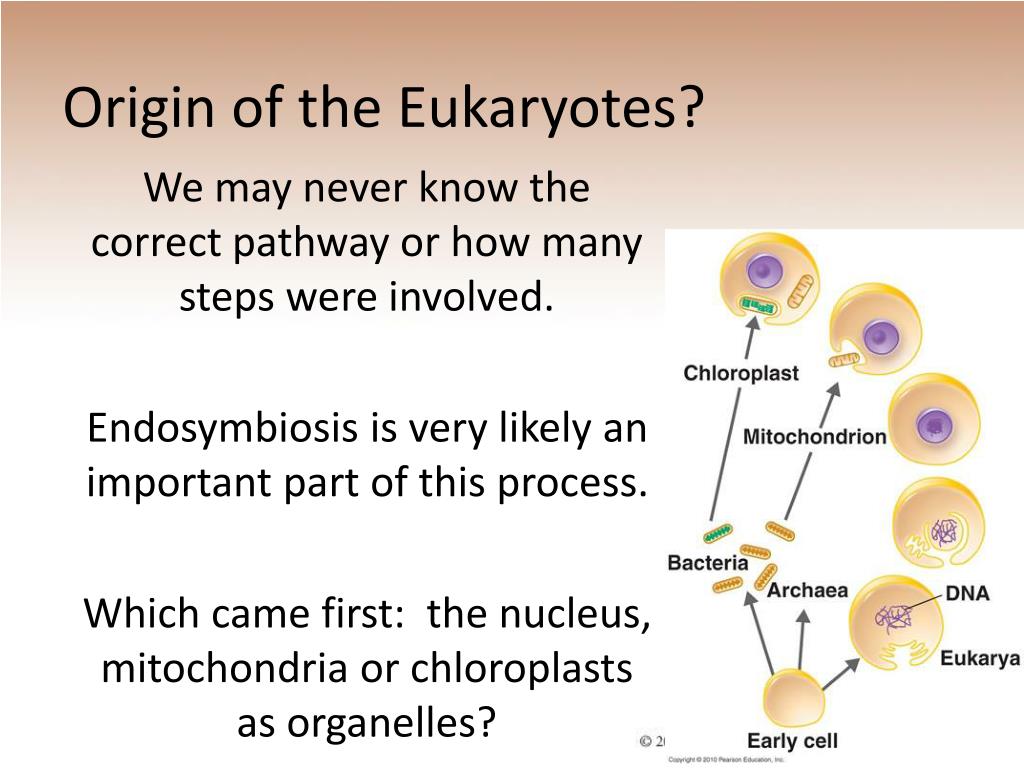

Origin of the Eukaryotes?

We may never know the correct pathway or how many steps were involved.

Endosymbiosis is very likely an important part of this process.

Which came first: the nucleus, mitochondria or chloroplasts as organelles?

origin of the eukaryotes17

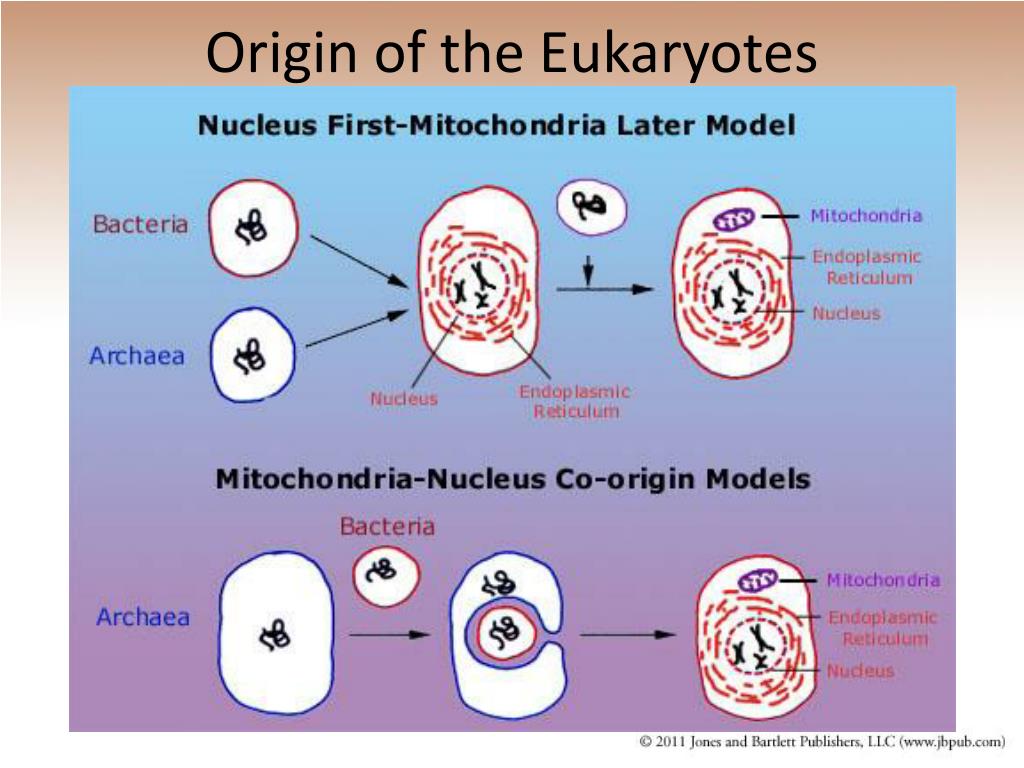

Origin of the Eukaryotes
  • Free-living bacteria developed mutually beneficial relationships within a host prokaryotic cell
  • Some aerobic bacteria developed into mitochondria and cyanobacteria into chloroplasts, eventually producing the eukaryotic cells of animals and plants
origin and evolution of mitochondria and chloroplasts
Origin and Evolution of Mitochondria and Chloroplasts
  • Ancient anaerobic eukaryotic cells evolved the ability to engulf (endocytose or phagocytize) prokaryotes

Figure 03: Symbiotic relationships between a eukaryote and its photosynthetic organelles

The ciliate Paramecium bursaria houses hundreds of symbiotic green algae which can be liberated from the Protistan cell and will live independently

Courtesy of Anthony L. Swinehart, Hillsdale College

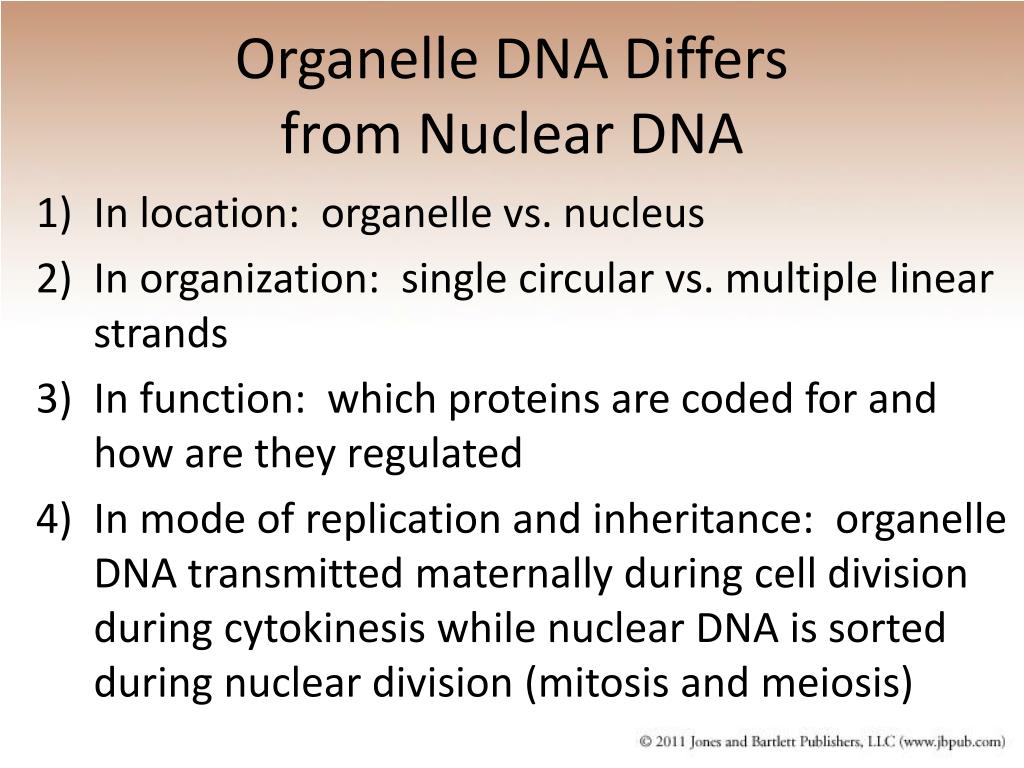

organelle dna differs from nuclear dna
Organelle DNA Differsfrom Nuclear DNA
  • In location: organelle vs. nucleus
  • In organization: single circular vs. multiple linear strands
  • In function: which proteins are coded for and how are they regulated
  • In mode of replication and inheritance: organelle DNA transmitted maternally during cell division during cytokinesis while nuclear DNA is sorted during nuclear division (mitosis and meiosis)

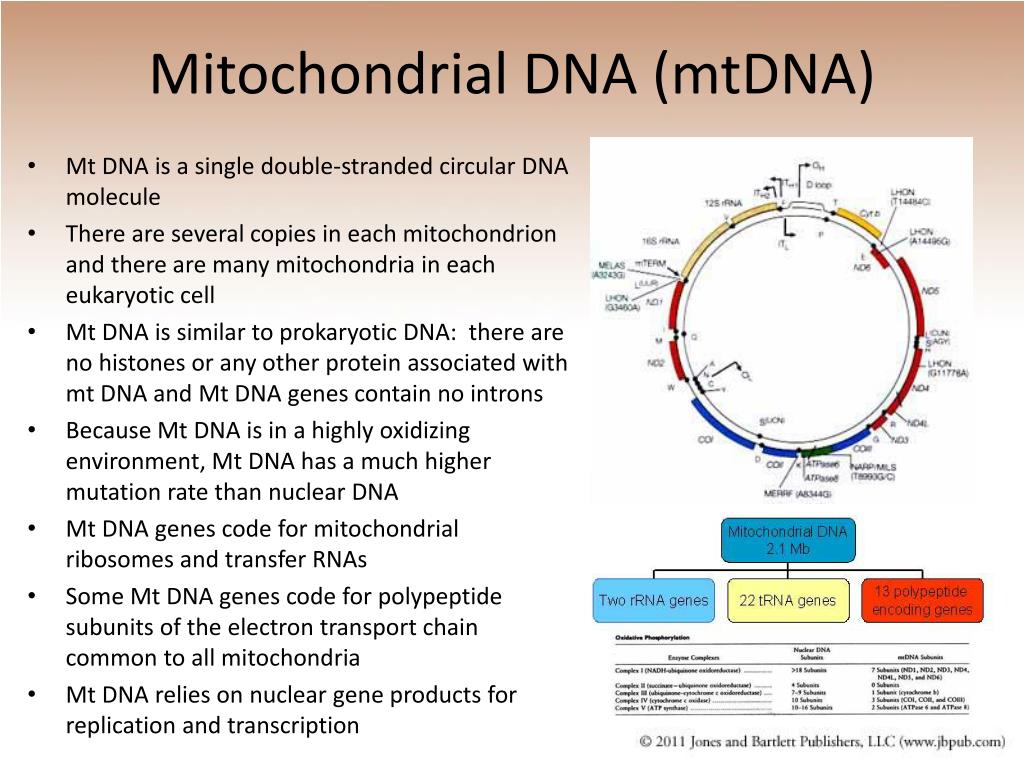

mitochondrial dna mtdna
Mitochondrial DNA (mtDNA)
  • Mt DNA is a single double-stranded circular DNA molecule
  • There are several copies in each mitochondrion and there are many mitochondria in each eukaryotic cell
  • Mt DNA is similar to prokaryotic DNA: there are no histones or any other protein associated with mt DNA and Mt DNA genes contain no introns
  • Because Mt DNA is in a highly oxidizing environment, Mt DNA has a much higher mutation rate than nuclear DNA
  • Mt DNA genes code for mitochondrial ribosomes and transfer RNAs
  • Some Mt DNA genes code for polypeptide subunits of the electron transport chain common to all mitochondria
  • Mt DNA relies on nuclear gene products for replication and transcription

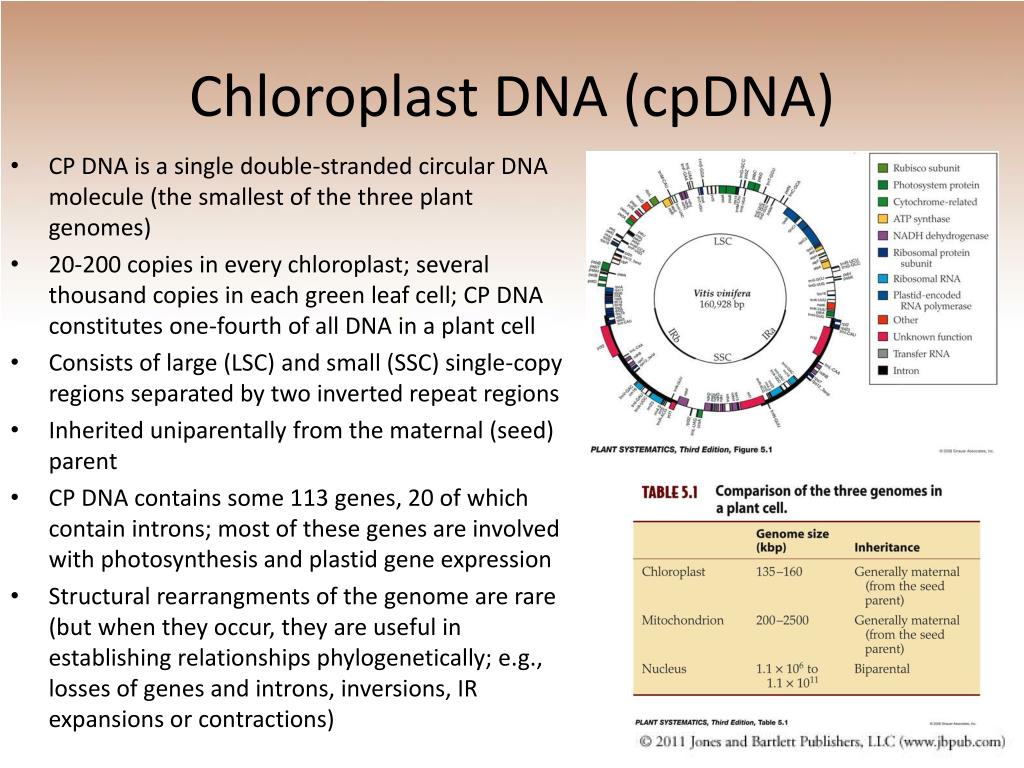

chloroplast dna cpdna
Chloroplast DNA (cpDNA)
  • CP DNA is a single double-stranded circular DNA molecule (the smallest of the three plant genomes)
  • 20-200 copies in every chloroplast; several thousand copies in each green leaf cell; CP DNA constitutes one-fourth of all DNA in a plant cell
  • Consists of large (LSC) and small (SSC) single-copy regions separated by two inverted repeat regions
  • Inherited uniparentally from the maternal (seed) parent
  • CP DNA contains some 113 genes, 20 of which contain introns; most of these genes are involved with photosynthesis and plastid gene expression
  • Structural rearrangments of the genome are rare (but when they occur, they are useful in establishing relationships phylogenetically; e.g., losses of genes and introns, inversions, IR expansions or contractions)
origin of various photosynthetic eukaryotes
Origin of VariousPhotosynthetic Eukaryotes

The Origin of early Eukaryotic Ancestors leading to the lineages of animals and fungi was probably an independent event from that of the origin of plants

Figure 04: Primary, secondary and tertiary endosymbiosis

Adapted Cracraft, J. and M. J. Donoghue (Eds). Assembling the Tree of Life. Oxford University Press, 2004.

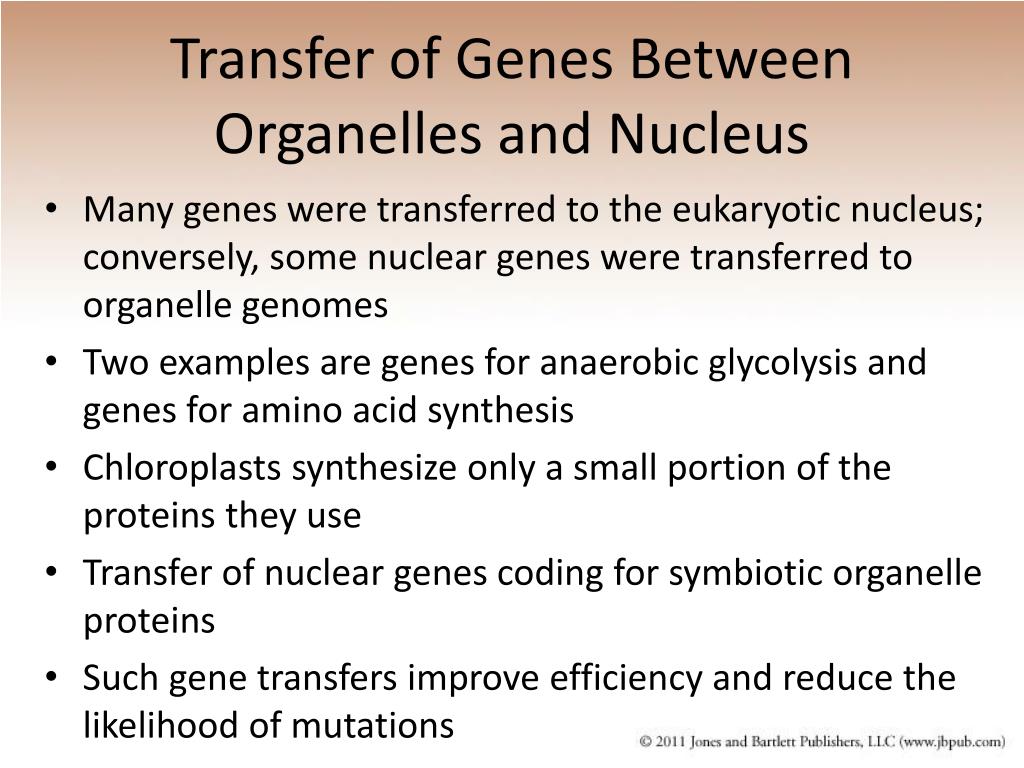

transfer of genes between organelles and nucleus
Transfer of Genes Between Organelles and Nucleus
  • Many genes were transferred to the eukaryotic nucleus; conversely, some nuclear genes were transferred to organelle genomes
  • Two examples are genes for anaerobic glycolysis and genes for amino acid synthesis
  • Chloroplasts synthesize only a small portion of the proteins they use
  • Transfer of nuclear genes coding for symbiotic organelle proteins
  • Such gene transfers improve efficiency and reduce the likelihood of mutations

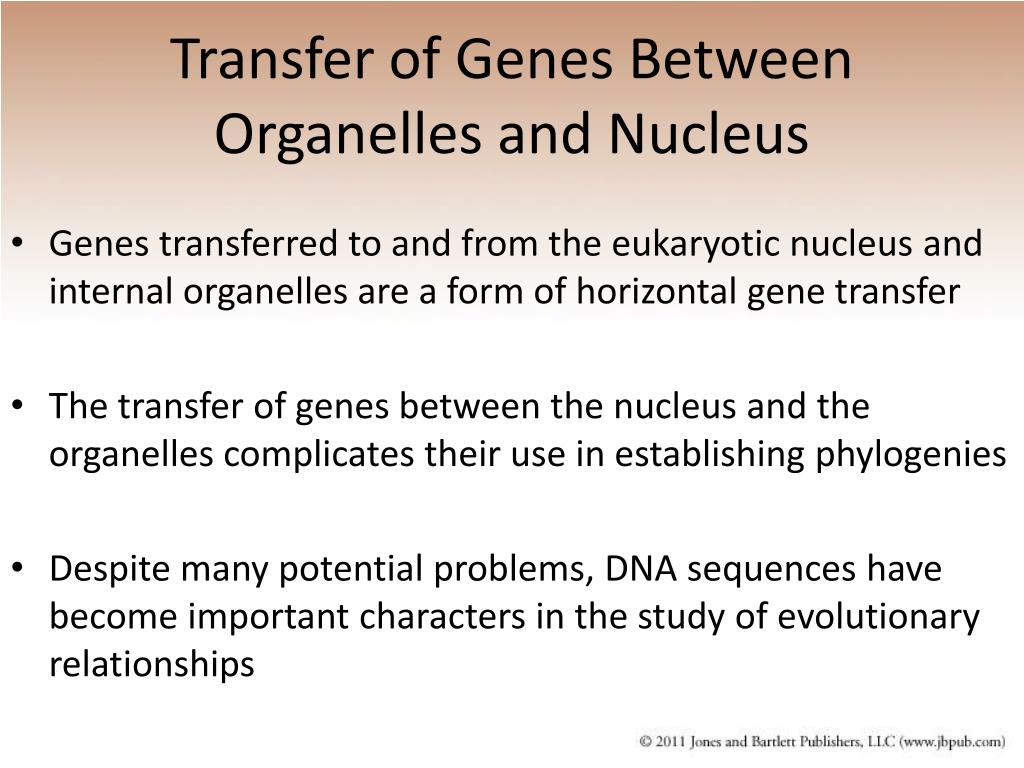

transfer of genes between organelles and nucleus26
Transfer of Genes Between Organelles and Nucleus
  • Genes transferred to and from the eukaryotic nucleus and internal organelles are a form of horizontal gene transfer
  • The transfer of genes between the nucleus and the organelles complicates their use in establishing phylogenies
  • Despite many potential problems, DNA sequences have become important characters in the study of evolutionary relationships
the molecular clock
The Molecular Clock
  • Molecular clocks use mutations to estimate evolutionary time
  • Mutations add up at a “constant rate” in related species
    • This rate is the ticking of the molecular clock
    • As more time passes, there will be more mutations
  • Scientists estimate mutation rates by linking molecular data and real time

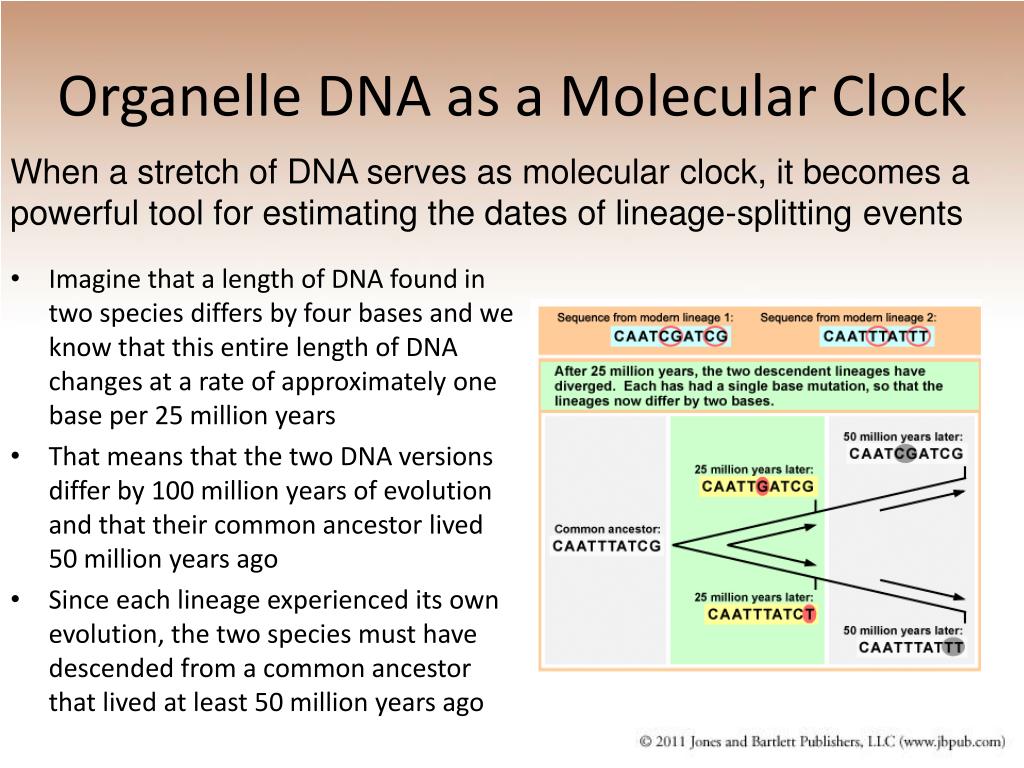

organelle dna as a molecular clock
Organelle DNA as a Molecular Clock

When a stretch of DNA serves as molecular clock, it becomes a powerful tool for estimating the dates of lineage-splitting events

  • Imagine that a length of DNA found in two species differs by four bases and we know that this entire length of DNA changes at a rate of approximately one base per 25 million years
  • That means that the two DNA versions differ by 100 million years of evolution and that their common ancestor lived 50 million years ago
  • Since each lineage experienced its own evolution, the two species must have descended from a common ancestor that lived at least 50 million years ago

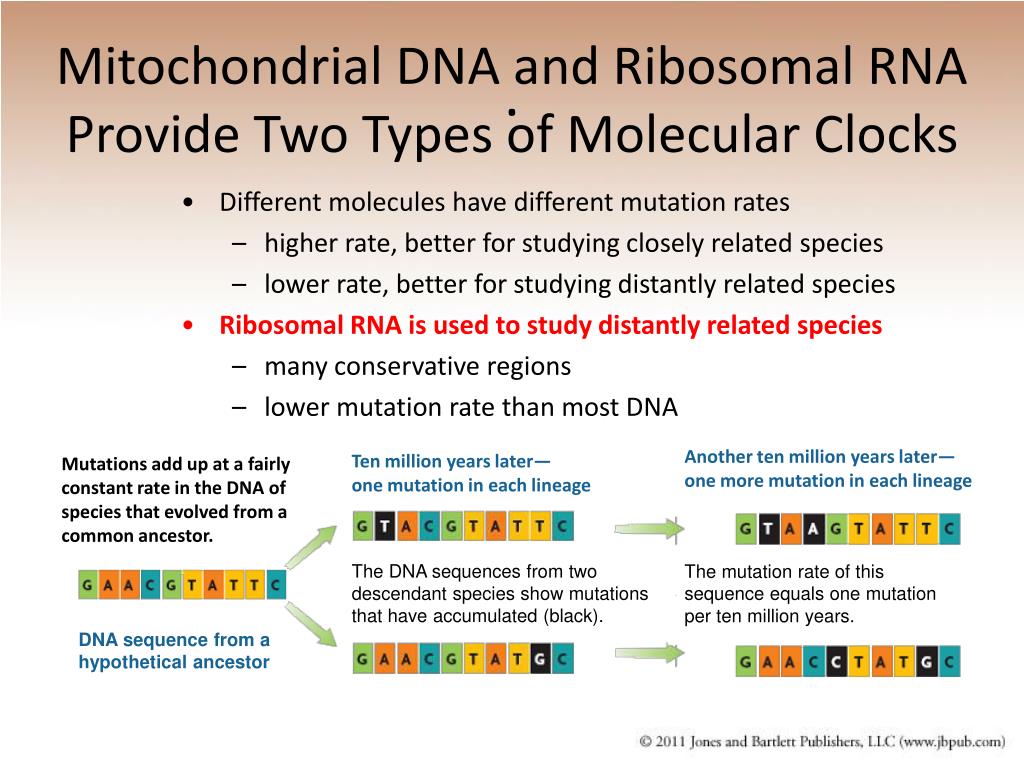

Mitochondrial DNA and Ribosomal RNA Provide Two Types of Molecular Clocks

Mutations add up at a fairly

constant rate in the DNA of species that evolved from a common ancestor.

Ten million years later—

one mutation in each lineage

Another ten million years later—

one more mutation in each lineage

  • Different molecules have different mutation rates
    • higher rate, better for studying closely related species
    • lower rate, better for studying distantly related species
  • Ribosomal RNA is used to study distantly related species
    • many conservative regions
    • lower mutation rate than most DNA

The DNA sequences from two

descendant species show mutations

that have accumulated (black).

The mutation rate of this

sequence equals one mutation

per ten million years.

DNA sequence from a

hypothetical ancestor

organelle dna as a molecular clock30




nuclear DNA


Mitochondrial DNA is

passed down only from

the mother of each generation, so it is not subject to recombination.


Nuclear DNA is inherited from both

parents, making it more difficult to

trace back through generations.

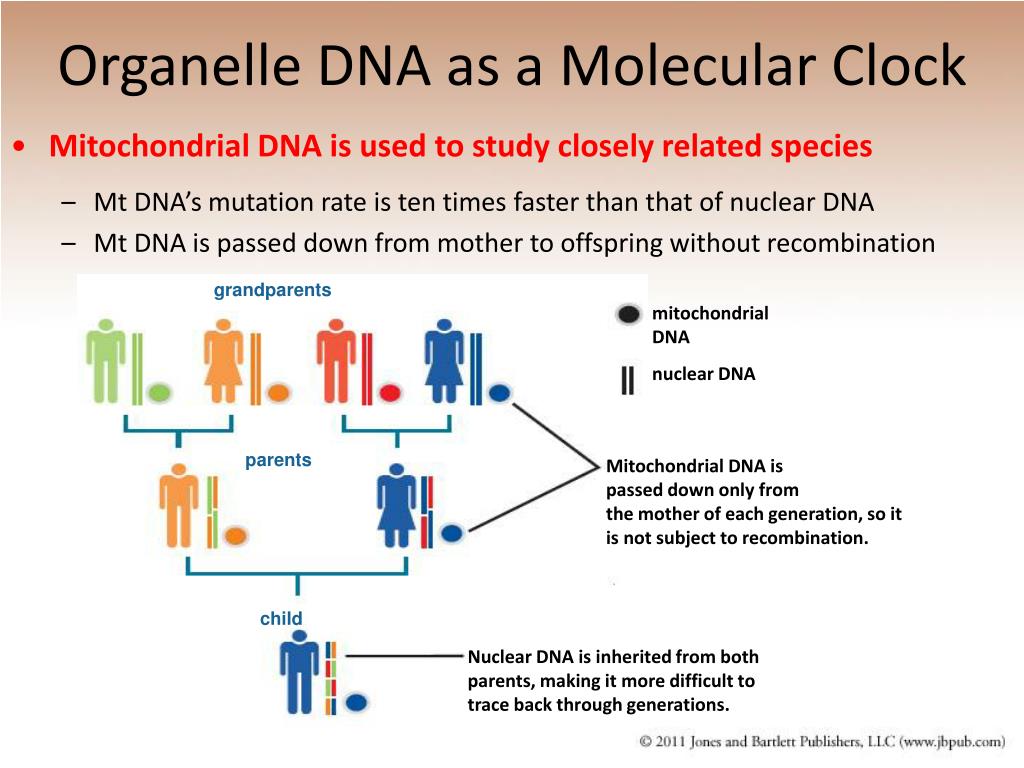

Organelle DNA as a Molecular Clock
  • Mitochondrial DNA is used to study closely related species
  • Mt DNA’s mutation rate is ten times faster than that of nuclear DNA
  • Mt DNA is passed down from mother to offspring without recombination
using dna as a molecular clock

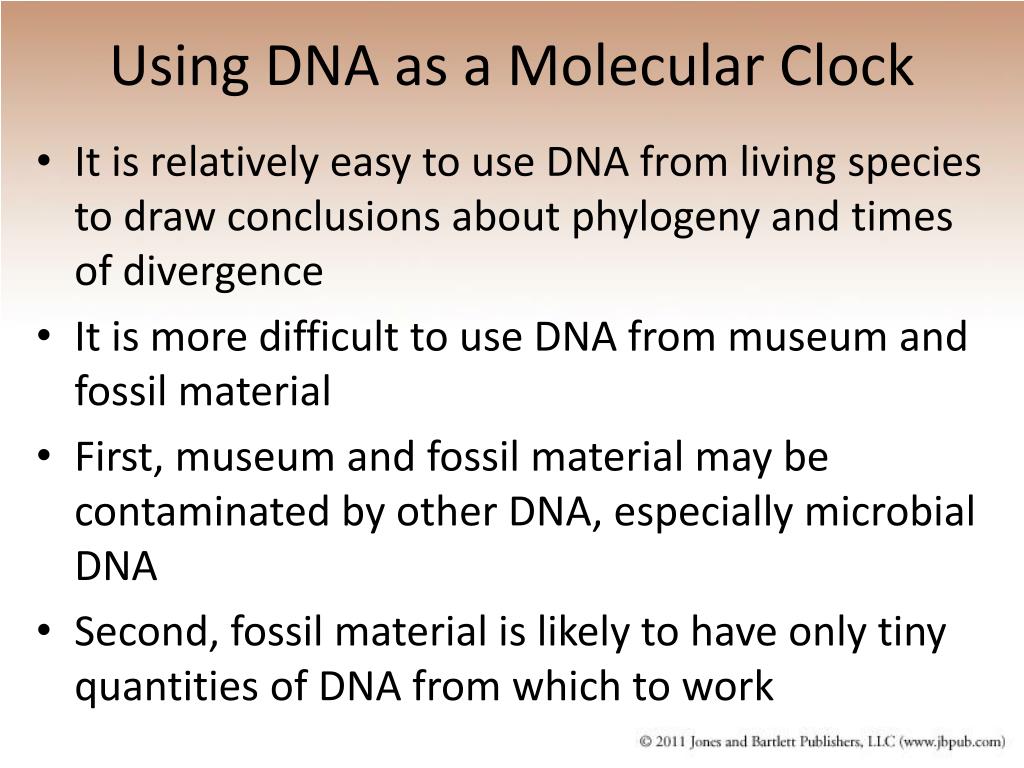

Using DNA as a Molecular Clock
  • It is relatively easy to use DNA from living species to draw conclusions about phylogeny and times of divergence
  • It is more difficult to use DNA from museum and fossil material
  • First, museum and fossil material may be contaminated by other DNA, especially microbial DNA
  • Second, fossil material is likely to have only tiny quantities of DNA from which to work
dna reveals the aboriginal australians are the first humans to leave africa
DNA Reveals the Aboriginal Australians Are the First Humans to Leave Africa
  • An international team of researchers has for the first time sequenced the genome of a man who was an Aboriginal Australian (Science: 22 September 2011)
  • They have shown that modern day Aboriginal Australians are the direct descendents of the first people who arrived on the continent some 50,000 years ago and that those ancestors left Africa earlier than their European and Asian counterparts
  • Although there is good archaeological evidence that shows humans in Australia around 50,000 years ago, this genome study re-writes the story of their journey there
  • The study provides good evidence that Aboriginal Australians are descendents of the earliest modern explorers, leaving Africa around 24,000 years before their Asian and European counterparts
  • This is contrary to the previous and most widely accepted theory that all modern humans derive from a single out-of-Africa migration wave into Europe, Asia, and Australia

The study derived from a lock of hair collected by a British anthropologist one hundred years ago from an Aboriginal man from the Goldfields region of Western Australia in the early 20th century

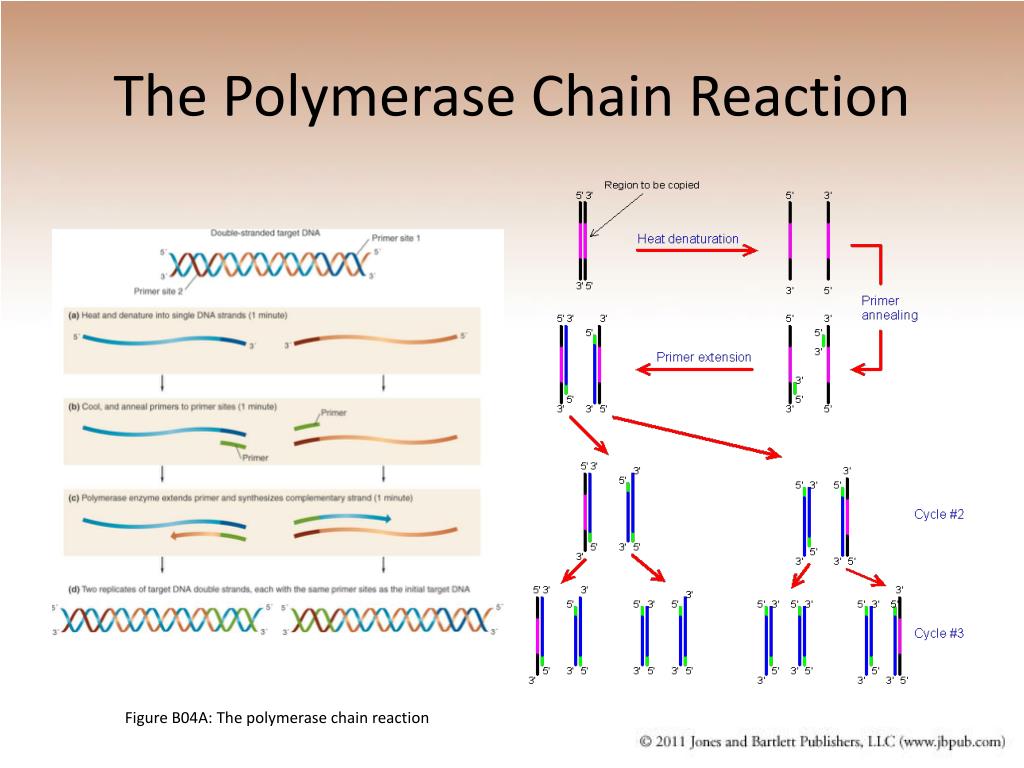

the polymerase chain reaction
The Polymerase Chain Reaction

Figure B04A: The polymerase chain reaction

eukaryote origins remain unclear
Eukaryote Origins Remain Unclear

Which came first – nucleus or organelle? Other details of the transition?

eukaryote characteristics
Eukaryote Characteristics
  • DNA organized as linear chromosomes; various states of ploidy
  • many cytoplasmic membrane-bound organelles
  • eukaryotic cytoskeleton and ribosomes
  • presence of external cell wall - variable
  • sexual reproduction predominates and various means of gene recombination available
  • unicellular or multicellular organisms
generalized eukaryotic cell animal
Generalized Eukaryotic Cell (Animal)
  • Plasma Membrane
    • microvilli
  • Cytoplasm
  • Cytoplasmic Organelles
    • cytoskeleton
    • ribosomes
    • mitochondria
    • rough endoplasmic reticulum
    • smooth endoplasmic reticulum
    • Golgi apparatus
    • lysosomes, etc.
  • Nuclear Envelope with pores
  • Nucleoplasm and nucleoli
  • DNA in chromosomes
generalized eukaryotic cell plant
Generalized Eukaryotic Cell (Plant)
  • The same basic components and organelles as the animal cell plus the addition of a cellulose cell wall, a central water vacuole, which sequesters various chemicals, and chloroplasts that carry out photosynthesis
generalized eukaryotic cell fungus

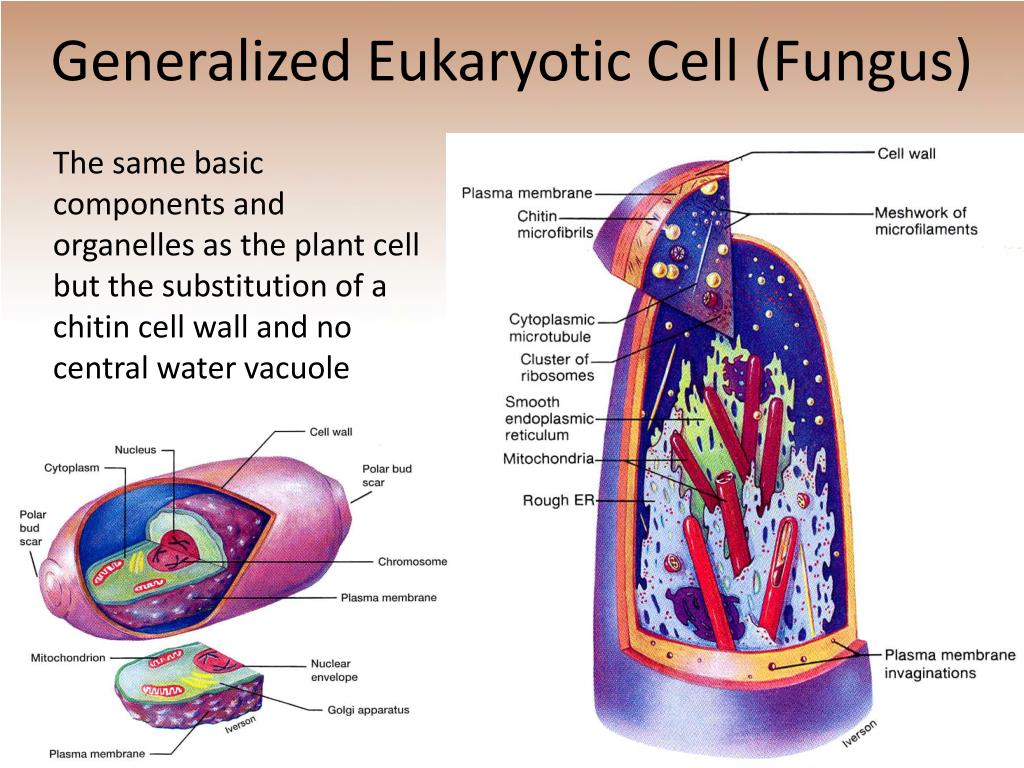

Generalized Eukaryotic Cell (Fungus)

The same basic components and organelles as the plant cell but the substitution of a chitin cell wall and no central water vacuole

transcription and translation in prokaryotes and eukaryotes
Transcription and Translation in Prokaryotes and Eukaryotes
  • Prokaryote genes lack introns and, therefore, no pre-mRNA processing is required
  • Prokaryotes have no nucleus, no separation between DNA and the cytoplasm
  • Prokaryotic ribosomes are different in structure
  • Methods of gene regulation differ
review gene expression
Review: Gene Expression
  • DNA contains a sequence of nitrogenous bases which codes for the sequence of amino acids in a protein
    • A triplet code, in which each codon is composed of 3 nitrogenous bases, forms the “genetic code”
  • During transcription
    • one strand of DNA serves as a template for formation of messenger RNA
    • mRNA has bases complementary to the base sequence in the DNA
  • Messenger RNA is processed, with intron removal, before leaving the nucleus

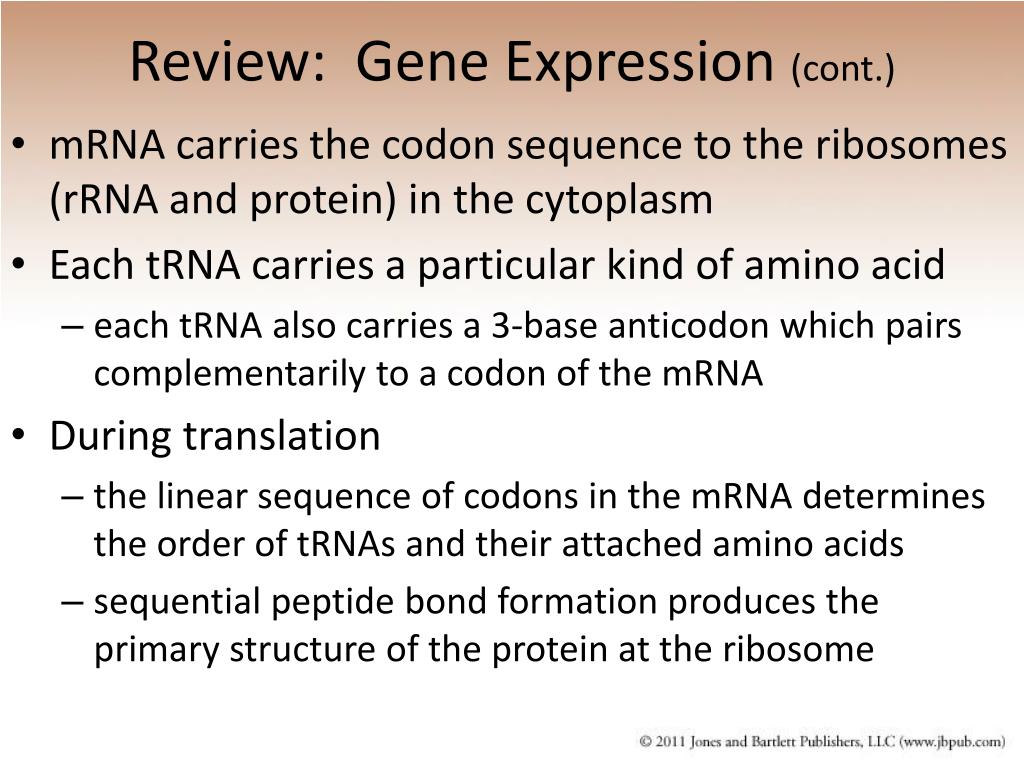

review gene expression cont
Review: Gene Expression (cont.)
  • mRNA carries the codon sequence to the ribosomes (rRNA and protein) in the cytoplasm
  • Each tRNA carries a particular kind of amino acid
    • each tRNA also carries a 3-base anticodon which pairs complementarily to a codon of the mRNA
  • During translation
    • the linear sequence of codons in the mRNA determines the order of tRNAs and their attached amino acids
    • sequential peptide bond formation produces the primary structure of the protein at the ribosome
oxidative nutrient metabolism

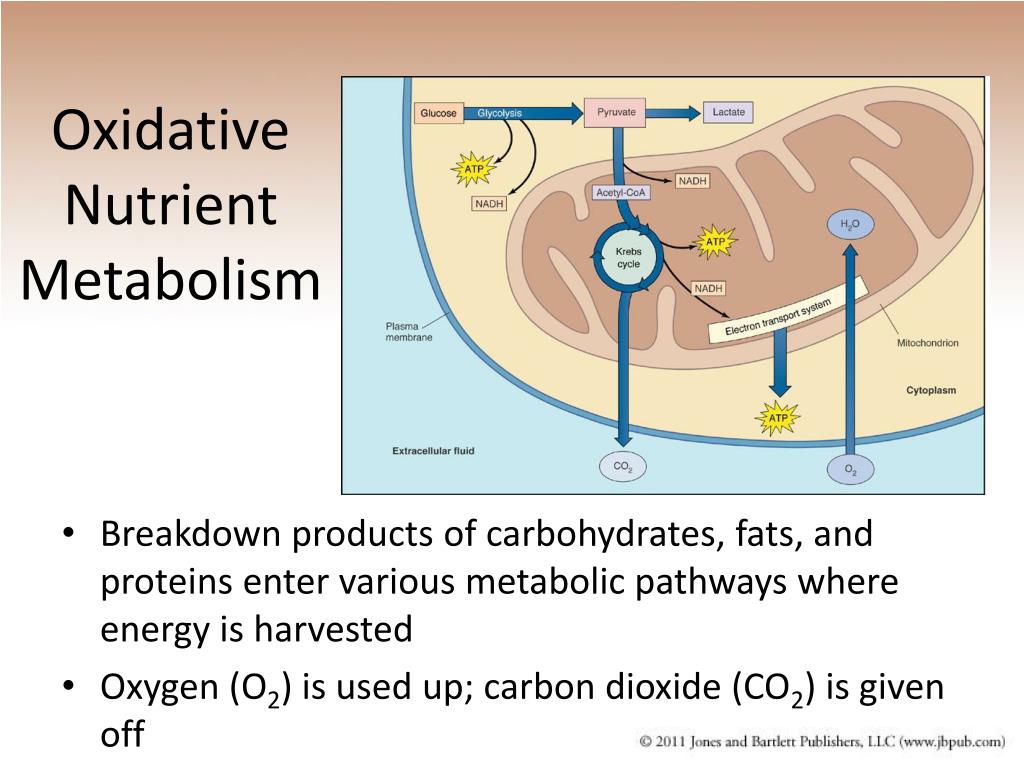

Oxidative Nutrient Metabolism
  • Breakdown products of carbohydrates, fats, and proteins enter various metabolic pathways where energy is harvested
  • Oxygen (O2) is used up; carbon dioxide (CO2) is given off

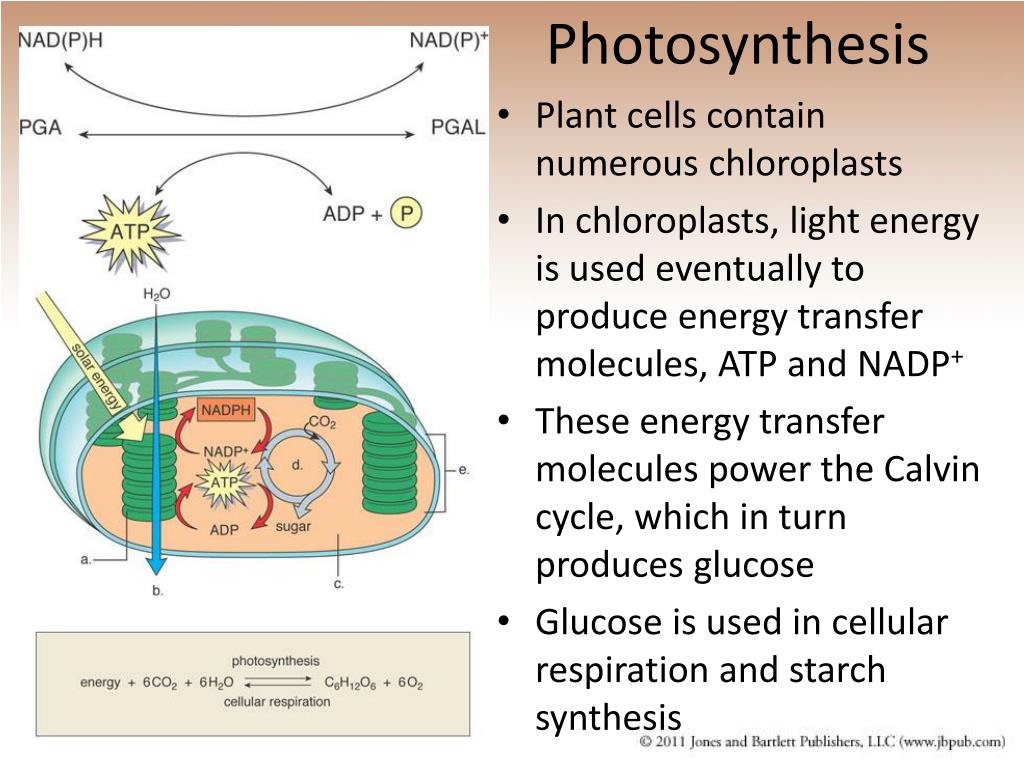

  • Plant cells contain numerous chloroplasts
  • In chloroplasts, light energy is used eventually to produce energy transfer molecules, ATP and NADP+
  • These energy transfer molecules power the Calvin cycle, which in turn produces glucose
  • Glucose is used in cellular respiration and starch synthesis

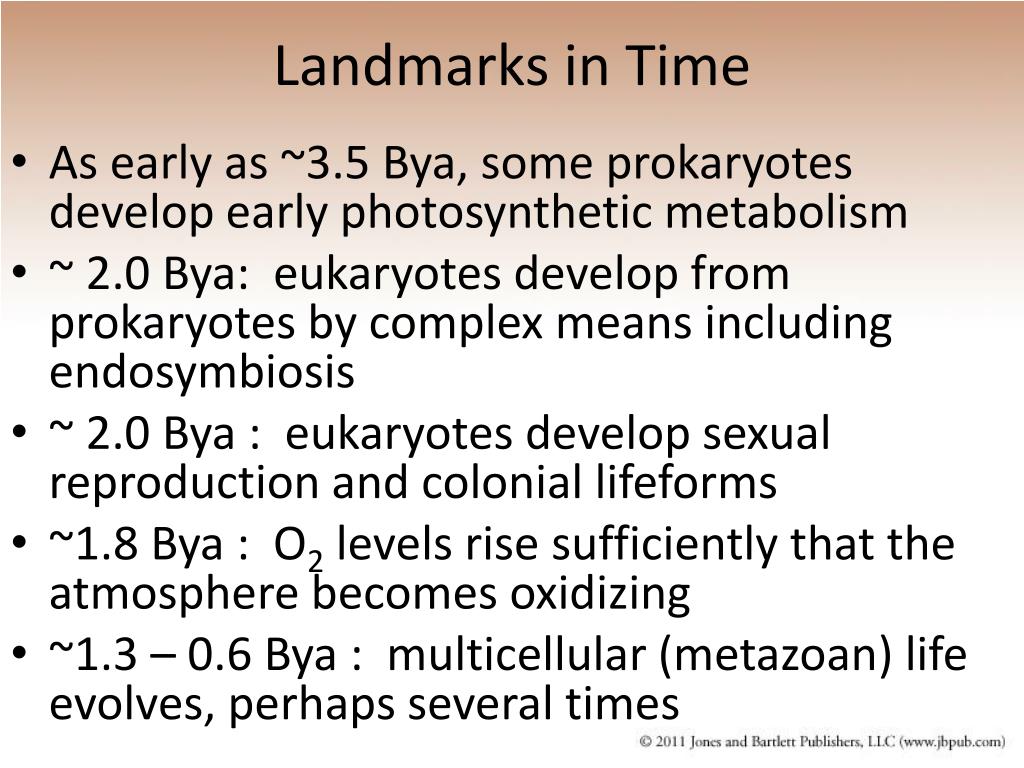

landmarks in time
Landmarks in Time
  • As early as ~3.5 Bya, some prokaryotes develop early photosynthetic metabolism
  • ~ 2.0 Bya: eukaryotes develop from prokaryotes by complex means including endosymbiosis
  • ~ 2.0 Bya : eukaryotes develop sexual reproduction and colonial lifeforms
  • ~1.8 Bya : O2 levels rise sufficiently that the atmosphere becomes oxidizing
  • ~1.3 – 0.6 Bya : multicellular (metazoan) life evolves, perhaps several times

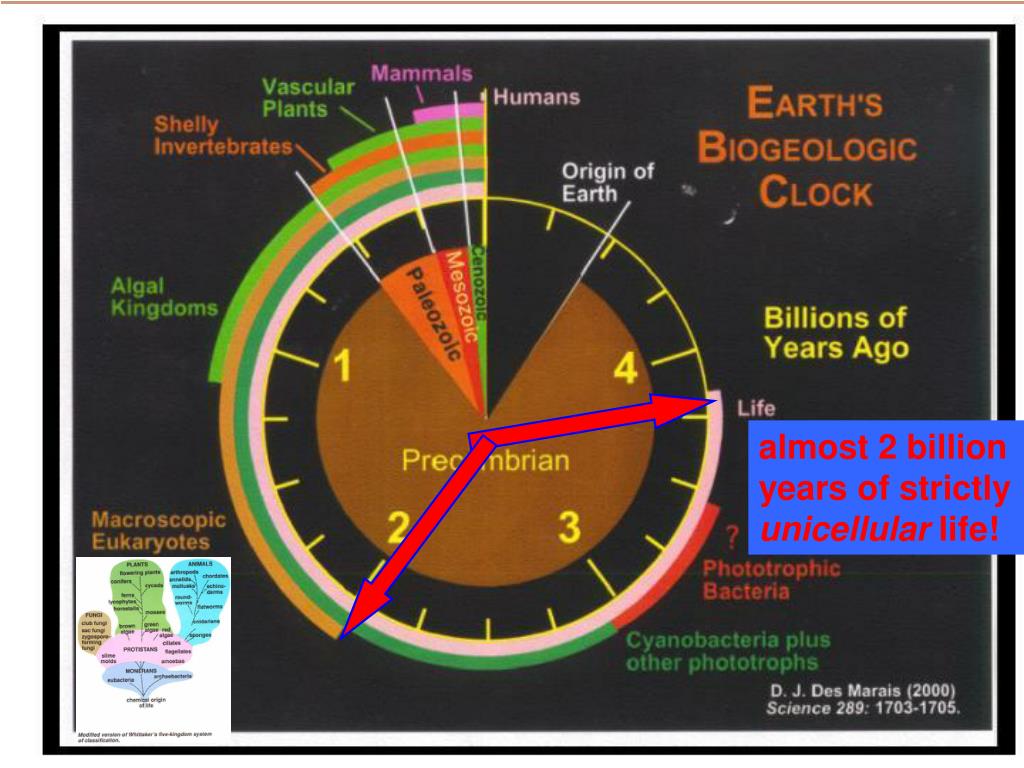

almost 2 billion

years of strictly

unicellular life!
