  1. For more vehicle monitoring solutions, scan Now! Intelligent Vehicle Surveillance Solutions ICARVISIONS (SHENZHEN) TECHNOLOGY CO.,LTD Https://www.icarvisions.com Tel / Fax：+86-755-8601 9266 Tel:+86-755-86019299 (English) /+86-755-86019266 (Chinese） Office Add: 4/F, Area D & F, Block 3, Tingwei Industry Park, Honglangbei 2 Road , Baoan District, Shenzhen, China P.C. 518101 Factory Add:3/F, Block 1, Invengo RFID Industrial Park, Tongguan Road, Guangming New District, Shenzhen, China P.C. 518107 Email:sale@icarvisions.com *Copyright © 2021 ICARVISIONS. All rights reserved.

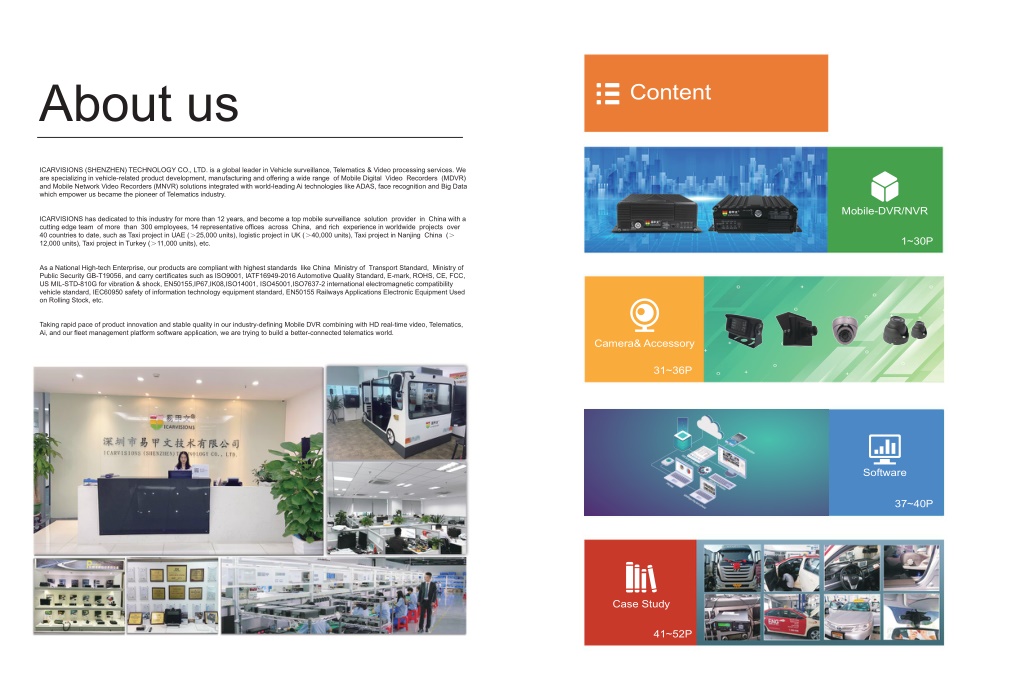

  2. About us Content ICARVISIONS (SHENZHEN) TECHNOLOGY CO., LTD. is a global leader in Vehicle surveillance, Telematics & Video processing services. We are specializing in vehicle-related product development, manufacturing and offering a wide range of Mobile Digital Video Recorders (MDVR) and Mobile Network Video Recorders (MNVR) solutions integrated with world-leading Ai technologies like ADAS, face recognition and Big Data which empower us became the pioneer of Telematics industry. Mobile-DVR/NVR ICARVISIONS has dedicated to this industry for more than 12 years, and become a top mobile surveillance solution provider in China with a cutting edge team of more than 300 employees, 14 representative offices across China, and rich experience in worldwide projects over 40 countries to date, such as Taxi project in UAE (＞25,000 units), logistic project in UK (＞40,000 units), Taxi project in Nanjing China (＞ 12,000 units), Taxi project in Turkey (＞11,000 units), etc. 1~30P As a National High-tech Enterprise, our products are compliant with highest standards like China Ministry of Transport Standard, Ministry of Public Security GB-T19056, and carry certificates such as ISO9001, IATF16949-2016 Automotive Quality Standard, E-mark, ROHS, CE, FCC, US MIL-STD-810G for vibration & shock, EN50155,IP67,IK08,ISO14001, ISO45001,ISO7637-2 international electromagnetic compatibility vehicle standard, IEC60950 safety of information technology equipment standard, EN50155 Railways Applications Electronic Equipment Used on Rolling Stock, etc. Taking rapid pace of product innovation and stable quality in our industry-defining Mobile DVR combining with HD real-time video, Telematics, Ai, and our fleet management platform software application, we are trying to build a better-connected telematics world. Camera& Accessory 31~36P Software 37~40P Case Study 41~52P

  3. Worldwide Solutions Offices Across China UK Vehicle>40,000 units Brazil Vehicle>10,000 units South Africa Truck>10,000 units Turkey Vehicle>15,000 units UAE Taxi>25,000 units Ecuador Vehicle>10,000 units NanJing Taxi>12,000 units USA Law enforcement>10,000 units 02 01

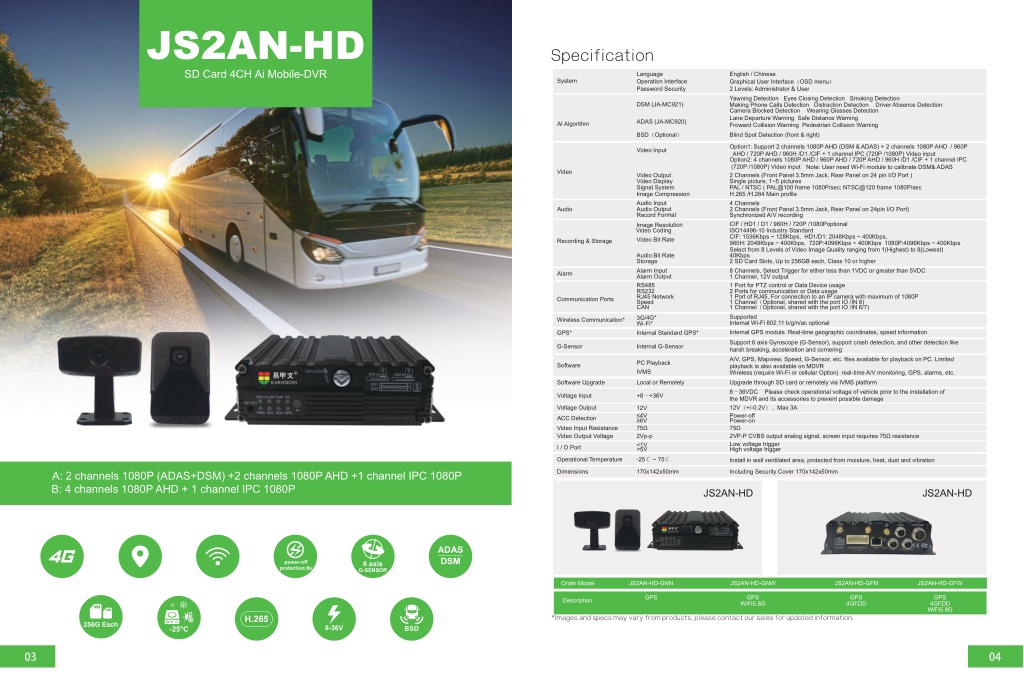

  4. JS2AN-HD SD Card 4CH Ai Mobile-DVR English / Chinese Graphical User Interface（OSD menu） 2 Levels: Administrator & User Language Operation Interface Password Security System Yawning Detection Eyes Closing Detection Smoking Detection DSM (JA-MC921) Making Phone Calls Detection Distraction Detection Driver Absence Detection Camera Blocked Detection Wearing Glasses Detection Lane Departure Warning Safe Distance Warning Froward Collision Warning Pedestrian Collision Warning ADAS (JA-MC920) AI Algorithm Blind Spot Detection (front & right) BSD（Optional） Option1: Support 2 channels 1080P AHD (DSM & ADAS) + 2 channels 1080P AHD / 960P AHD / 720P AHD / 960H /D1 /CIF + 1 channel IPC (720P /1080P) Video input Option2: 4 channels 1080P AHD / 960P AHD / 720P AHD / 960H /D1 /CIF + 1 channel IPC (720P /1080P) Video input Video Input Note: User need Wi-Fi module to calibrate DSM& ADAS Video 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24 pin I/O Port ) Single picture, 1~5 pictures PAL / NTSC ( PAL@100 frame 1080P/sec; NTSC@120 frame 1080P/sec H.265 /H.264 Main profile 4 Channels Video Output Video Display Signal System Image Compression Audio Input Audio Output Record Format Audio 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24pin I/O Port) Synchronized A/V recording CIF / HD1 / D1 / 960H / 720P /1080Poptional ISO14496-10 Industry Standard CIF: 1536Kbps ~ 128Kbps, HD1/D1: 2048Kbps ~ 400Kbps, 960H: 2048Kbps ~ 400Kbps, 720P:4096Kbps ~ 400Kbps 1080P:4096Kbps ~ 400Kbps Select from 8 Levels of Video Image Quality ranging from 1(Highest) to 8(Lowest) Image Resolution Video Coding Video Bit Rate Recording & Storage Audio Bit Rate Storage 40Kbps 2 SD Card Slots, Up to 256GB each, Class 10 or higher 8 Channels, Select Trigger for either less than 1VDC or greater than 5VDC 1 Channel, 12V output Alarm Input Alarm Output RS485 RS232 RJ45 Network Speed CAN Alarm 1 Port for PTZ control or Data Device usage 2 Ports for communication or Data usage 1 Port of RJ45, For connection to an IP camera with maximum of 1080P 1 Channel（Optional, shared with the port IO /IN 8) 1 Channel（Optional, shared with the port IO /IN 6/7) Supported Internal Wi-Fi 802.11 b/g/n/ac optional Communication Ports 3G/4G* Wi-Fi* Wireless Communication* Internal GPS module. Real-time geographic coordinates, speed information GPS* Internal Standard GPS* Support 6 axis Gyroscope (G-Sensor), support crash detection, and other detection like harsh breaking, acceleration and cornering G-Sensor Internal G-Sensor A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR Wireless (require Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms, etc. PC Playback IVMS Software Software Upgrade Local or Remotely Upgrade through SD card or remotely via IVMS platform 8～36VDC Please check operational voltage of vehicle prior to the installation of the MDVR and its accessories to prevent possible damage 12V（+/-0.2V），Max 3A Voltage Input +8～+36V Voltage Output 12V ≤4V ≥6V Power-off Power-on 75Ω 2VP-P CVBS output analog signal, screen input requires 75Ω resistance Low voltage trigger High voltage trigger ACC Detection Video Input Resistance Video Output Voltage 75Ω 2Vp-p <1V >5V I / O Port Operational Temperature -25℃ ~ 75℃ Install in well ventilated area, protected from moisture, heat, dust and vibration Dimensions 170x142x50mm Including Security Cover 170x142x50mm A: 2 channels 1080P (ADAS+DSM) +2 channels 1080P AHD +1 channel IPC 1080P B: 4 channels 1080P AHD + 1 channel IPC 1080P JS2AN-HD JS2AN-HD ADAS DSM power-off protection:8s 6 axis G-SENSOR Order Model JS2AN-HD-GNN JS2AN-HD-GNW JS2AN-HD-GFN JS2AN-HD-GFW GPS GPS WiFI5.8G GPS 4GFDD GPS 4GFDD Description WiFI5.8G H.265 256G Each 8-36V BSD -25°C 03 04

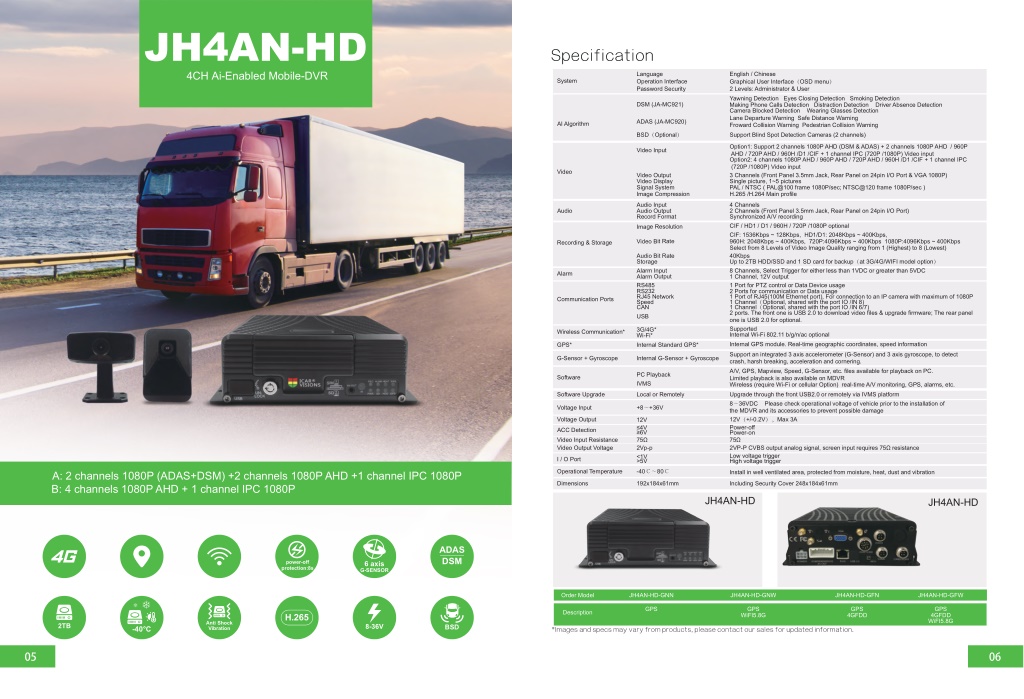

  5. JH4AN-HD 4CH Ai-Enabled Mobile-DVR English / Chinese Graphical User Interface（OSD menu） 2 Levels: Administrator & User Language Operation Interface Password Security System Yawning Detection Eyes Closing Detection Smoking Detection DSM (JA-MC921) Making Phone Calls Detection Distraction Detection Driver Absence Detection Camera Blocked Detection Wearing Glasses Detection Lane Departure Warning Safe Distance Warning Froward Collision Warning Pedestrian Collision Warning ADAS (JA-MC920) AI Algorithm Support Blind Spot Detection Cameras (2 channels) BSD（Optional） Option1: Support 2 channels 1080P AHD (DSM & ADAS) + 2 channels 1080P AHD / 960P AHD / 720P AHD / 960H /D1 /CIF + 1 channel IPC (720P /1080P) Video input Option2: 4 channels 1080P AHD / 960P AHD / 720P AHD / 960H /D1 /CIF + 1 channel IPC (720P /1080P) Video input Video Input Video 3 Channels (Front Panel 3.5mm Jack, Rear Panel on 24pin I/O Port & VGA 1080P) Single picture, 1~5 pictures PAL / NTSC ( PAL@100 frame 1080P/sec; NTSC@120 frame 1080P/sec ) H.265 /H.264 Main profile Video Output Video Display Signal System Image Compression Audio Input 4 Channels Audio Output Record Format Audio 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24pin I/O Port) Synchronized A/V recording CIF / HD1 / D1 / 960H / 720P /1080P optional CIF: 1536Kbps ~ 128Kbps, HD1/D1: 2048Kbps ~ 400Kbps, 960H: 2048Kbps ~ 400Kbps, 720P:4096Kbps ~ 400Kbps 1080P:4096Kbps ~ 400Kbps Select from 8 Levels of Video Image Quality ranging from 1 (Highest) to 8 (Lowest) Image Resolution Video Bit Rate Recording & Storage Audio Bit Rate Storage 40Kbps Up to 2TB HDD/SSD and 1 SD card for backup（at 3G/4G/WIFI model option） 8 Channels, Select Trigger for either less than 1VDC or greater than 5VDC 1 Channel, 12V output Alarm Input Alarm Output RS485 RS232 RJ45 Network Speed CAN USB Alarm 1 Port for PTZ control or Data Device usage 2 Ports for communication or Data usage 1 Port of RJ45(100M Ethernet port), For connection to an IP camera with maximum of 1080P 1 Channel（Optional, shared with the port IO /IN 8) 1 Channel（Optional, shared with the port IO /IN 6/7) 2 ports. The front one is USB 2.0 to download video files & upgrade firmware; The rear panel one is USB 2.0 for optional. Supported Internal Wi-Fi 802.11 b/g/n/ac optional Communication Ports 3G/4G* Wi-Fi* Wireless Communication* Internal GPS module. Real-time geographic coordinates, speed information GPS* Internal Standard GPS* Support an integrated 3 axis accelerometer (G-Sensor) and 3 axis gyroscope, to detect crash, harsh breaking, acceleration and cornering. G-Sensor + Gyroscope Internal G-Sensor + Gyroscope A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR Wireless (require Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms, etc. PC Playback IVMS Software Software Upgrade Local or Remotely Upgrade through the front USB2.0 or remotely via IVMS platform 8～36VDC Please check operational voltage of vehicle prior to the installation of the MDVR and its accessories to prevent possible damage 12V（+/-0.2V），Max 3A Voltage Input +8～+36V Voltage Output 12V ≤4V ≥6V Power-off Power-on 75Ω 2VP-P CVBS output analog signal, screen input requires 75Ω resistance Low voltage trigger High voltage trigger ACC Detection Video Input Resistance Video Output Voltage 75Ω 2Vp-p <1V >5V I / O Port Operational Temperature -40℃～80℃ Install in well ventilated area, protected from moisture, heat, dust and vibration A: 2 channels 1080P (ADAS+DSM) +2 channels 1080P AHD +1 channel IPC 1080P B: 4 channels 1080P AHD + 1 channel IPC 1080P Dimensions 192x184x61mm Including Security Cover 248x184x61mm JH4AN-HD JH4AN-HD ADAS DSM power-off protection:8s 6 axis G-SENSOR Order Model JH4AN-HD-GNN JH4AN-HD-GNW JH4AN-HD-GFN JH4AN-HD-GFW GPS 4GFDD GPS GPS WiFI5.8G GPS 4GFDD Description H.265 WiFI5.8G Anti Shock Vibration 2TB 8-36V BSD -40°C 05 06

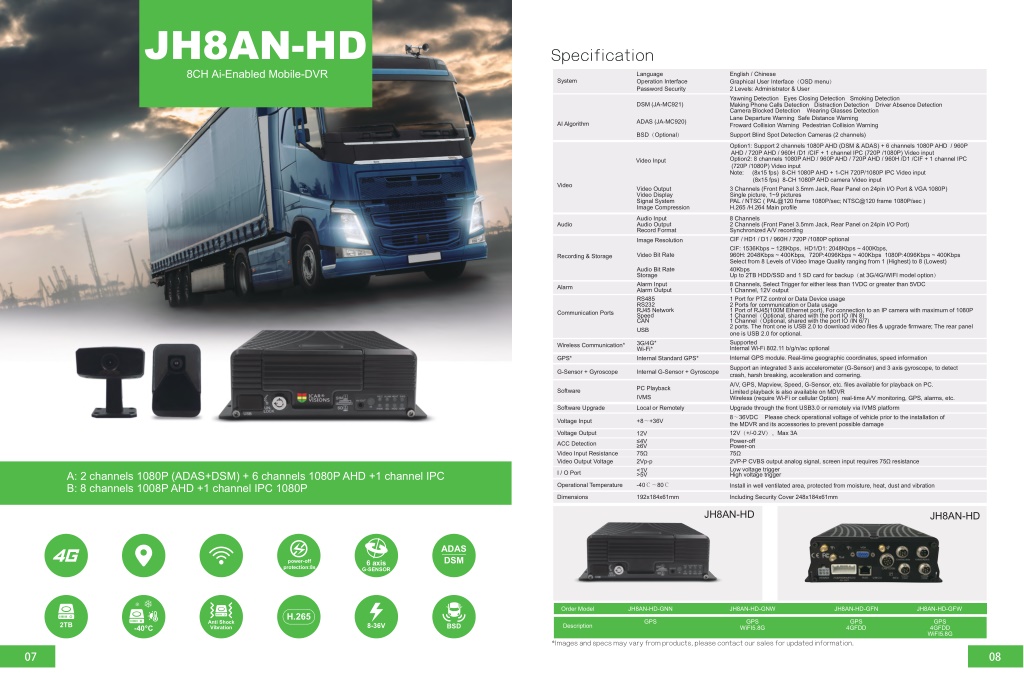

  6. JH8AN-HD 8CH Ai-Enabled Mobile-DVR English / Chinese Graphical User Interface（OSD menu） 2 Levels: Administrator & User Language Operation Interface Password Security System Yawning Detection Eyes Closing Detection Smoking Detection DSM (JA-MC921) Making Phone Calls Detection Distraction Detection Driver Absence Detection Camera Blocked Detection Wearing Glasses Detection Lane Departure Warning Safe Distance Warning Froward Collision Warning Pedestrian Collision Warning ADAS (JA-MC920) AI Algorithm Support Blind Spot Detection Cameras (2 channels) BSD（Optional） Option1: Support 2 channels 1080P AHD (DSM & ADAS) + 6 channels 1080P AHD / 960P AHD / 720P AHD / 960H /D1 /CIF + 1 channel IPC (720P /1080P) Video input Option2: 8 channels 1080P AHD / 960P AHD / 720P AHD / 960H /D1 /CIF + 1 channel IPC (720P /1080P) Video input Note: (8x15 fps) 8-CH 1080P AHD + 1-CH 720P/1080P IPC Video input (8x15 fps) 8-CH 1080P AHD camera Video input Video Input Video Video Output Video Display Signal System Image Compression 3 Channels (Front Panel 3.5mm Jack, Rear Panel on 24pin I/O Port & VGA 1080P) Single picture, 1~9 pictures PAL / NTSC ( PAL@120 frame 1080P/sec; NTSC@120 frame 1080P/sec ) H.265 /H.264 Main profile Audio Input 8 Channels Audio Output Record Format Audio 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 24pin I/O Port) Synchronized A/V recording CIF / HD1 / D1 / 960H / 720P /1080P optional CIF: 1536Kbps ~ 128Kbps, HD1/D1: 2048Kbps ~ 400Kbps, 960H: 2048Kbps ~ 400Kbps, 720P:4096Kbps ~ 400Kbps 1080P:4096Kbps ~ 400Kbps Select from 8 Levels of Video Image Quality ranging from 1 (Highest) to 8 (Lowest) Image Resolution Video Bit Rate Recording & Storage Audio Bit Rate Storage 40Kbps Up to 2TB HDD/SSD and 1 SD card for backup（at 3G/4G/WIFI model option） 8 Channels, Select Trigger for either less than 1VDC or greater than 5VDC 1 Channel, 12V output Alarm Input Alarm Output RS485 RS232 RJ45 Network Speed CAN USB Alarm 1 Port for PTZ control or Data Device usage 2 Ports for communication or Data usage 1 Port of RJ45(100M Ethernet port), For connection to an IP camera with maximum of 1080P 1 Channel（Optional, shared with the port IO /IN 8) 1 Channel（Optional, shared with the port IO /IN 6/7) 2 ports. The front one is USB 2.0 to download video files & upgrade firmware; The rear panel one is USB 2.0 for optional. Supported Internal Wi-Fi 802.11 b/g/n/ac optional Communication Ports 3G/4G* Wi-Fi* Wireless Communication* Internal GPS module. Real-time geographic coordinates, speed information GPS* Internal Standard GPS* Support an integrated 3 axis accelerometer (G-Sensor) and 3 axis gyroscope, to detect crash, harsh breaking, acceleration and cornering. G-Sensor + Gyroscope Internal G-Sensor + Gyroscope A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR Wireless (require Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms, etc. PC Playback IVMS Software Software Upgrade Local or Remotely Upgrade through the front USB3.0 or remotely via IVMS platform 8～36VDC Please check operational voltage of vehicle prior to the installation of the MDVR and its accessories to prevent possible damage 12V（+/-0.2V），Max 3A Voltage Input +8～+36V Voltage Output 12V ≤4V ≥6V Power-off Power-on 75Ω 2VP-P CVBS output analog signal, screen input requires 75Ω resistance Low voltage trigger High voltage trigger ACC Detection Video Input Resistance Video Output Voltage 75Ω 2Vp-p <1V >5V I / O Port A: 2 channels 1080P (ADAS+DSM) + 6 channels 1080P AHD +1 channel IPC B: 8 channels 1008P AHD +1 channel IPC 1080P Operational Temperature -40℃～80℃ Install in well ventilated area, protected from moisture, heat, dust and vibration Dimensions 192x184x61mm Including Security Cover 248x184x61mm JH8AN-HD JH8AN-HD ADAS DSM power-off protection:8s 6 axis G-SENSOR Order Model JH8AN-HD-GNN JH8AN-HD-GNW JH8AN-HD-GFN JH8AN-HD-GFW H.265 GPS 4GFDD GPS GPS WiFI5.8G GPS 4GFDD Anti Shock Vibration 2TB 8-36V BSD Description -40°C WiFI5.8G 07 08

  7. JT1 Taxi Surveillance Solution 1080P Android Touch Screen DVR for Taxi This powerful touch screen is perfect for taxi surveillance and fleet management. It’s running on Android system, including lots of functions such as real-time video / recording, GPS tracking, network communication, on-board navigation, ADAS/DSM analysis，Face recognition, message notification, telephone, order list, payment record, etc. It is able to integrate with other accessories such as fare meter, LED advertisement panel, POS machine, driver panic button, service evaluator, Status LED displayer, speaker for extended functions. Specification Operation System Cores CPU Frequency GPU RAM Capacity ROM Capacity Storage Slot Battery Android 7.1 8 Core ARM Cortex-A7 Processor 2.0G Adreno 506 2GB 16GB 1 SD Card slot, up to 256 GB Optional, support external battery License plate capture (Optional) ADAS+DSM(Optional) Device Size Screen Resolution Contrast Brightness 7 inch Touch Screen 800×480 500 450cd/m² Display Face recognition (Optional) Regular camera connection: A. Support 2 channels 720P AHD cameras (standard) B. Support 2 channels 720P AHD cams + 2 channels 720P IP cams (customized) With AI active safety functionality (customized) : A. Support 1 ADAS cam + 1 DSM cam + 1 channel 720P AHD cam B. Support 1 ADAS cam + 1 DSM cam + 2 channels 720P AHD camsvia a switch Video Video Input Note * ADAS cam (Alerts with video footage) * DMS cam ( Alerts without video footage) USB Alarm input Alarm output Output power Speed pulse RS232 RS485 Speaker/MIC 1 port 4 Channels 2 Channels 3A@12V DC 1 channel 3 channels 1 channel Internal one speaker and one MIC Communication Ports 3G/4G Bluetooth Internal WIFI (WCDMA/LTE/FDD/TDD) optional internal module Supports Bluetooth headset / OBD Supports Wi-Fi hotspot Network GPS Internal GPS Internal GPS module (Real-time geographic coordinates, speed info) 6 axis Gyroscope (G-Sensor), support crash detection, and other detection like harsh breaking, acceleration and cornerin G-Sensor Internal G-Sensor RFID card reader Internal RFID card reader Supports Non-contact IC Cards 7W DC 9~36V Power Consumption Voltage Input Power Install in well ventilated area, protected from moisture, heat, dust and vibration Operation Temperature -25℃～75℃ Dimension 228*109*36mm (W x H x L) 09 10

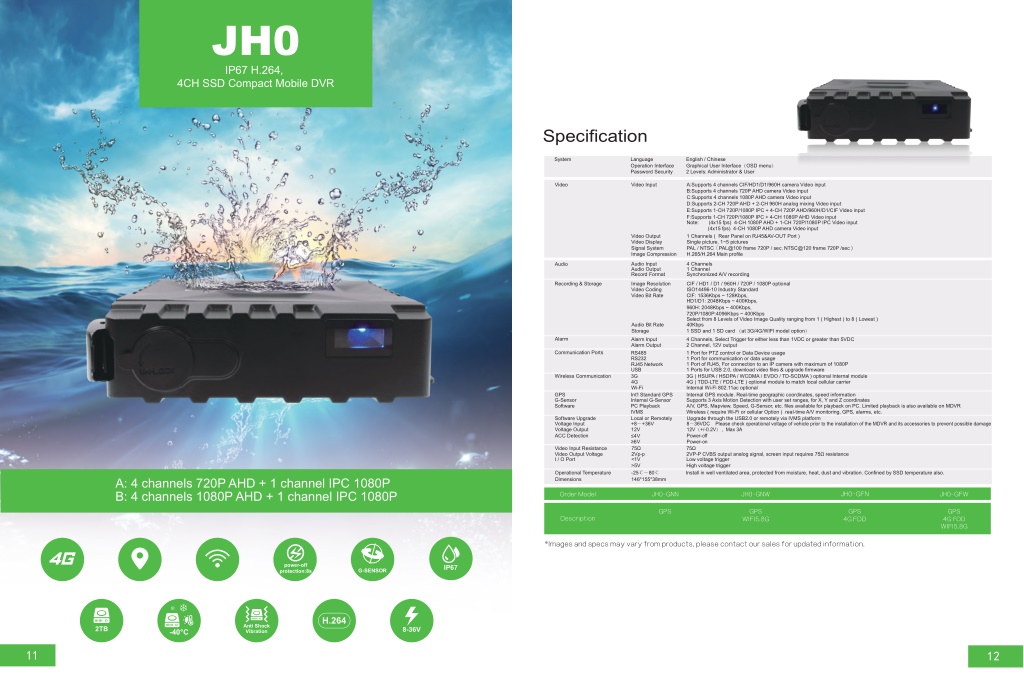

  8. JH0 IP67 H.264, 4CH SSD Compact Mobile DVR Specification System Language Operation Interface Password Security English / Chinese Graphical User Interface（OSD menu） 2 Levels: Administrator & User A:Supports 4 channels CIF/HD1/D1/960H camera Video input B:Supports 4 channels 720P AHD camera Video input C:Supports 4 channels 1080P AHD camera Video input D:Supports 2-CH 720P AHD + 2-CH 960H analog mixing Video input E:Supports 1-CH 720P/1080P IPC + 4-CH 720P AHD/960H/D1/CIF Video input F:Supports 1-CH 720P/1080P IPC + 4-CH 1080P AHD Video input Note: (4x15 fps) 4-CH 1080P AHD + 1-CH 720P/1080P IPC Video input (4x15 fps) 4-CH 1080P AHD camera Video input 1 Channels ( Rear Panel on RJ45&AV-OUT Port ) Single picture, 1~5 pictures PAL / NTSC （ PAL@100 frame 720P / sec； NTSC@120 frame 720P /sec ) H.265/H.264 Main profile Video Video Input Video Output Video Display Signal System Image Compression Audio Input Audio Output Record Format 4 Channels 1 Channel Synchronized A/V recording Audio Image Resolution Video Coding CIF / HD1 / D1 / 960H / 720P / 1080P optional ISO14496-10 Industry Standard CIF: 1536Kbps ~ 128Kbps, HD1/D1: 2048Kbps ~ 400Kbps, 960H: 2048Kbps ~ 400Kbps, 720P/1080P:4096Kbps ~ 400Kbps Select from 8 Levels of Video Image Quality ranging from 1 ( Highest ) to 8 ( Lowest ) 40Kbps 1 SSD and 1 SD card （at 3G/4G/WIFI model option） Recording & Storage Video Bit Rate Audio Bit Rate Storage Alarm Alarm Input Alarm Output 4 Channels, Select Trigger for either less than 1VDC or greater than 5VDC 2 Channel, 12V output Communication Ports 1 Port for PTZ control or Data Device usage 1 Port for communication or data usage 1 Port of RJ45, For connection to an IP camera with maximum of 1080P 1 Ports for USB 2.0, download video files & upgrade firmware RS485 RS232 RJ45 Network USB 3G 4G Wi-Fi 3G ( HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA ) optional Internal module 4G ( TDD-LTE / FDD-LTE ) optional module to match local cellular carrier Internal Wi-Fi 802.11ac optional Wireless Communication GPS G-Sensor Software Int'l Standard GPS Internal G-Sensor PC Playback IVMS Local or Remotely +8～+36V 12V ≤4V ≥6V 75Ω Internal GPS module. Real-time geographic coordinates, speed information Supports 3 Axis Motion Detection with user set ranges, for X, Y and Z coordinates A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR Wireless ( require Wi-Fi or cellular Option ) real-time A/V monitoring, GPS, alarms, etc. Upgrade through the USB2.0 or remotely via IVMS platform 8～36VDC Please check operational voltage of vehicle prior to the installation of the MDVR and its accessories to prevent possible damage 12V（+/-0.2V），Max 3A Power-off Power-on Software Upgrade Voltage Input Voltage Output ACC Detection Video Input Resistance Video Output Voltage I / O Port 75Ω 2VP-P CVBS output analog signal, screen input requires 75Ω resistance Low voltage trigger High voltage trigger Install in well ventilated area, protected from moisture, heat, dust and vibration. Confined by SSD temperature also. 2Vp-p <1V >5V Operational Temperature Dimensions -25℃～80℃ A: 4 channels 720P AHD + 1 channel IPC 1080P B: 4 channels 1080P AHD + 1 channel IPC 1080P 146*155*38mm power-off protection:8s IP67 G-SENSOR H.264 Anti Shock Vibration 2TB 8-36V -40°C 11 12

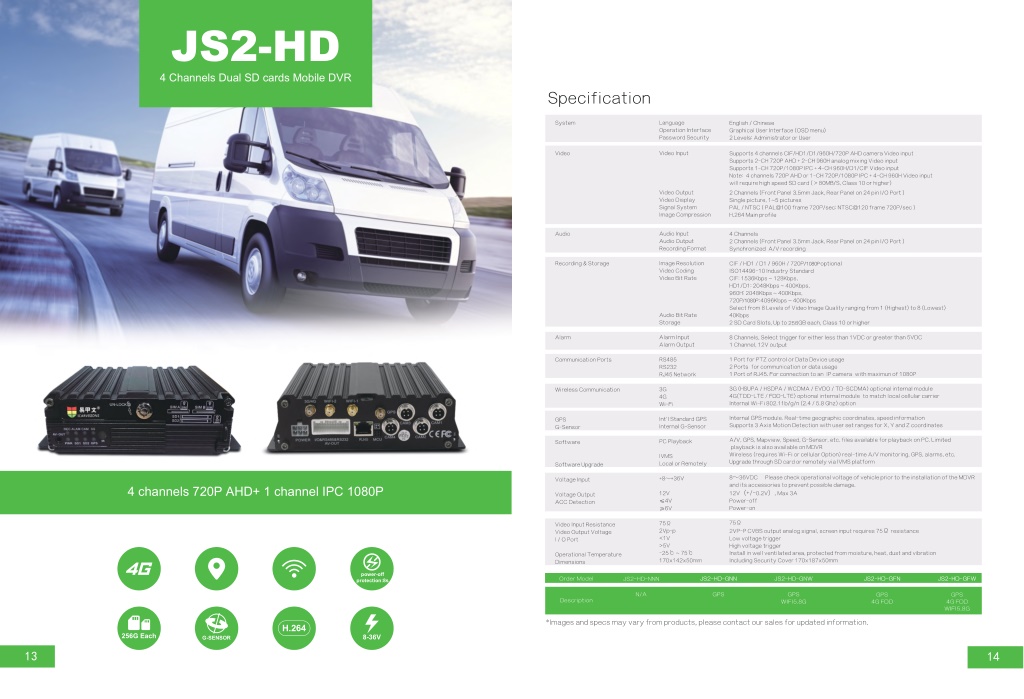

  9. JS2-HD 4 Channels Dual SD cards Mobile DVR 4 channels 720P AHD+ 1 channel IPC 1080P 8S power-off protection:8s H.264 256G Each 8-36V G-SENSOR 13 14

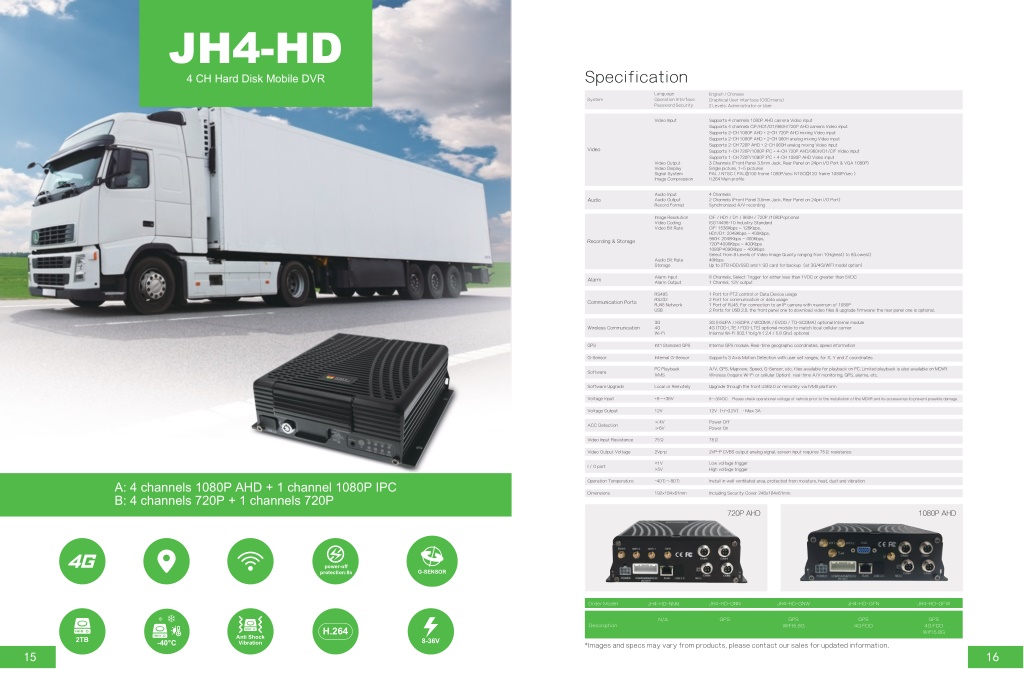

  10. JH4-HD 4 CH Hard Disk Mobile DVR A: 4 channels 1080P AHD + 1 channel 1080P IPC B: 4 channels 720P + 1 channels 720P power-off protection:8s G-SENSOR H.264 Anti Shock Vibration 2TB 8-36V -40°C 15 16

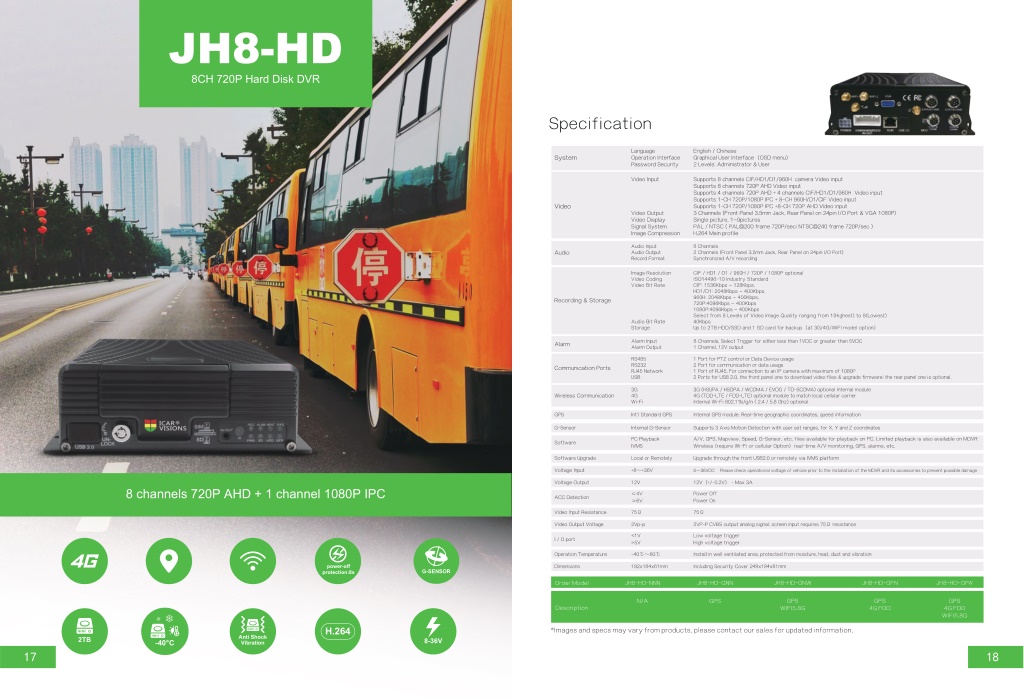

  11. JH8-HD 8CH 720P Hard Disk DVR 8 channels 720P AHD + 1 channel 1080P IPC power-off protection:8s G-SENSOR H.264 Anti Shock Vibration 2TB 8-36V -40°C 17 18

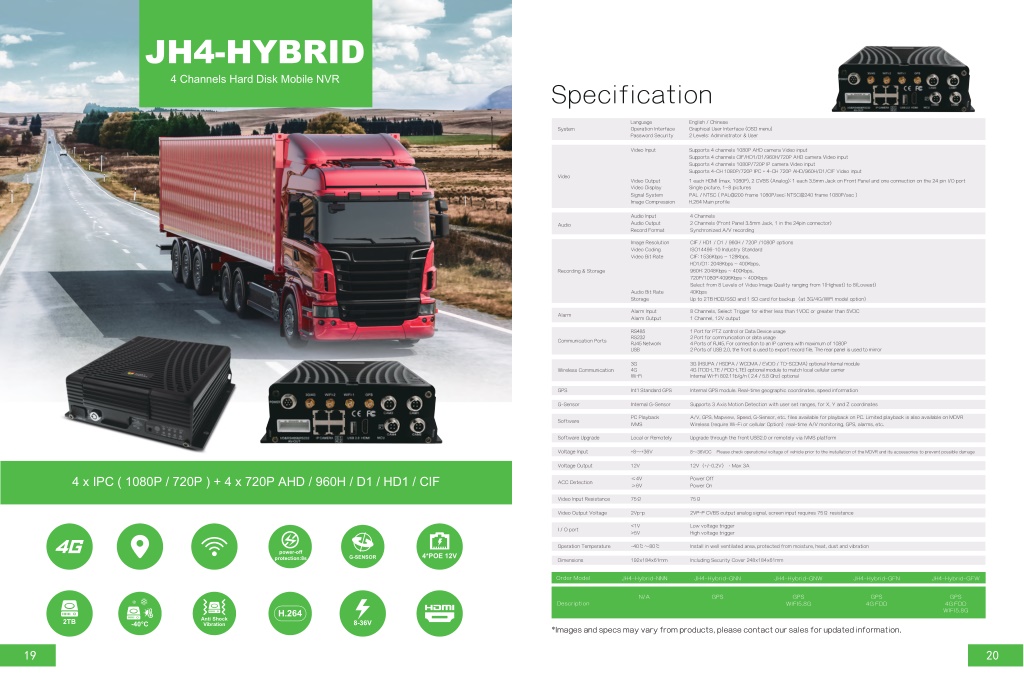

  12. JH4-HYBRID 4 Channels Hard Disk Mobile NVR 4 x IPC ( 1080P / 720P ) + 4 x 720P AHD / 960H / D1 / HD1 / CIF power-off protection:8s 4*POE 12V G-SENSOR H.264 Anti Shock Vibration 2TB 8-36V -40°C 19 20

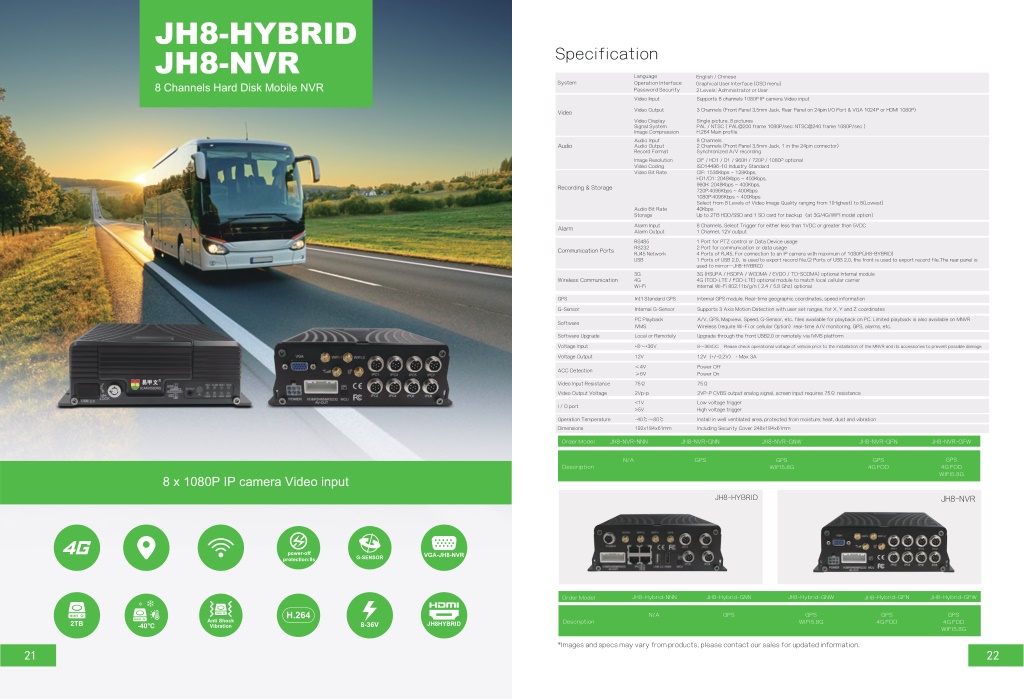

  13. JH8-HYBRID JH8-NVR 8 Channels Hard Disk Mobile NVR 好的 for backup ( at 3G / 4G / Wi-Fi model option ) 8 x 1080P IP camera Video input power-off protection:8s VGA-JH8-NVR G-SENSOR H.264 Anti Shock Vibration 2TB JH8HYBRID 8-36V -40°C 21 22

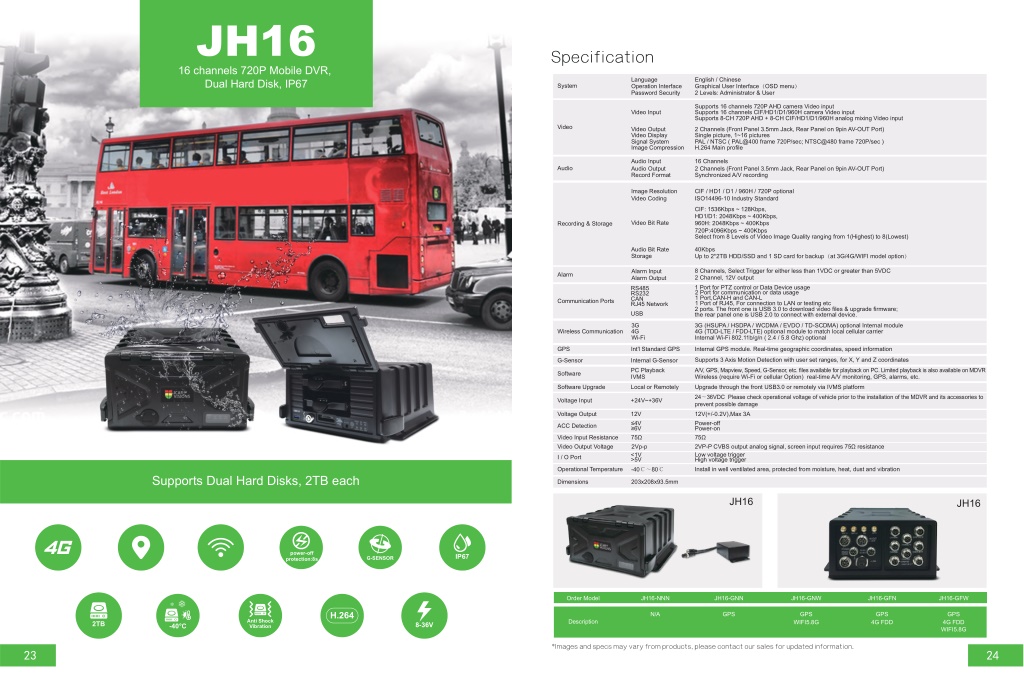

  14. JH16 16 channels 720P Mobile DVR, Dual Hard Disk, IP67 English / Chinese Graphical User Interface（OSD menu） 2 Levels: Administrator & User Language Operation Interface Password Security System Supports 16 channels 720P AHD camera Video input Supports 16 channels CIF/HD1/D1/960H camera Video input Supports 8-CH 720P AHD + 8-CH CIF/HD1/D1/960H analog mixing Video input Video Input Video Video Output Video Display Signal System Image Compression 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 9pin AV-OUT Port) Single picture, 1~16 pictures PAL / NTSC ( PAL@400 frame 720P/sec; NTSC@480 frame 720P/sec ) H.264 Main profile Audio Input Audio Output Record Format 16 Channels 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 9pin AV-OUT Port) Synchronized A/V recording Audio Image Resolution Video Coding CIF / HD1 / D1 / 960H / 720P optional ISO14496-10 Industry Standard CIF: 1536Kbps ~ 128Kbps, HD1/D1: 2048Kbps ~ 400Kbps, 960H: 2048Kbps ~ 400Kbps 720P:4096Kbps ~ 400Kbps Select from 8 Levels of Video Image Quality ranging from 1(Highest) to 8(Lowest) Video Bit Rate Recording & Storage Audio Bit Rate 40Kbps Storage Up to 2*2TB HDD/SSD and 1 SD card for backup（at 3G/4G/WIFI model option） 8 Channels, Select Trigger for either less than 1VDC or greater than 5VDC 2 Channel, 12V output Alarm Input Alarm Output Alarm 1 Port for PTZ control or Data Device usage 2 Port for communication or data usage 1 Port,CAN-H and CAN-L 1 Port of RJ45, For connection to LAN or testing etc 2 ports. The front one is USB 3.0 to download video files & upgrade firmware; the rear panel one is USB 2.0 to connect with external device. RS485 RS232 CAN RJ45 Network USB Communication Ports 3G 3G (HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA) optional Internal module 4G Wi-Fi 4G (TDD-LTE / FDD-LTE) optional module to match local cellular carrier Internal Wi-Fi 802.11b/g/n ( 2.4 / 5.8 Ghz) optional Wireless Communication GPS Int'l Standard GPS Internal GPS module. Real-time geographic coordinates, speed information Supports 3 Axis Motion Detection with user set ranges, for X, Y and Z coordinates G-Sensor Internal G-Sensor PC Playback IVMS A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR Software Wireless (require Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms, etc. Software Upgrade Local or Remotely Upgrade through the front USB3.0 or remotely via IVMS platform 24～36VDC Please check operational voltage of vehicle prior to the installation of the MDVR and its accessories to prevent possible damage Voltage Input +24V~+36V Voltage Output 12V 12V(+/-0.2V),Max 3A ≤4V ≥6V 75Ω Power-off Power-on 75Ω ACC Detection Video Input Resistance Video Output Voltage 2Vp-p <1V >5V 2VP-P CVBS output analog signal, screen input requires 75Ω resistance Low voltage trigger High voltage trigger Install in well ventilated area, protected from moisture, heat, dust and vibration I / O Port Operational Temperature -40℃～80℃ Supports Dual Hard Disks, 2TB each Dimensions 203x208x93.5mm JH16 JH16 power-off protection:8s IP67 G-SENSOR Order Model JH16-NNN JH16-GNN JH16-GNW JH16-GFN JH16-GFW H.264 N/A GPS GPS GPS 4G FDD GPS 4G FDD Anti Shock Vibration Description WIFI5.8G 2TB 8-36V -40°C WIFI5.8G 23 24

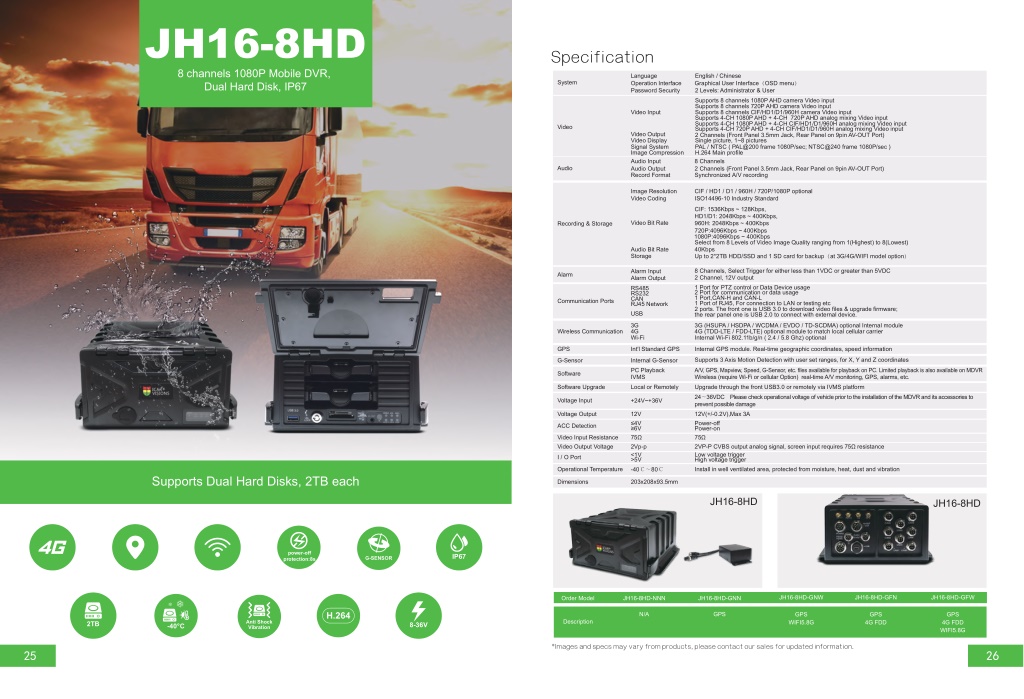

  15. JH16-8HD 8 channels 1080P Mobile DVR, Dual Hard Disk, IP67 Language Operation Interface Password Security English / Chinese Graphical User Interface（OSD menu） 2 Levels: Administrator & User System Supports 8 channels 1080P AHD camera Video input Supports 8 channels 720P AHD camera Video input Supports 8 channels CIF/HD1/D1/960H camera Video input Supports 4-CH 1080P AHD + 4-CH 720P AHD analog mixing Video input Supports 4-CH 1080P AHD + 4-CH CIF/HD1/D1/960H analog mixing Video input Supports 4-CH 720P AHD + 4-CH CIF/HD1/D1/960H analog mixing Video input 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 9pin AV-OUT Port) Single picture, 1~8 pictures PAL / NTSC ( PAL@200 frame 1080P/sec; NTSC@240 frame 1080P/sec ) Video Input Video Video Output Video Display Signal System Image Compression H.264 Main profile 8 Channels 2 Channels (Front Panel 3.5mm Jack, Rear Panel on 9pin AV-OUT Port) Synchronized A/V recording Audio Input Audio Output Record Format Audio Image Resolution Video Coding CIF / HD1 / D1 / 960H / 720P/1080P optional ISO14496-10 Industry Standard CIF: 1536Kbps ~ 128Kbps, HD1/D1: 2048Kbps ~ 400Kbps, 960H: 2048Kbps ~ 400Kbps 720P:4096Kbps ~ 400Kbps 1080P:4096Kbps ~ 400Kbps Select from 8 Levels of Video Image Quality ranging from 1(Highest) to 8(Lowest) Video Bit Rate Recording & Storage Audio Bit Rate 40Kbps Storage Up to 2*2TB HDD/SSD and 1 SD card for backup（at 3G/4G/WIFI model option） 8 Channels, Select Trigger for either less than 1VDC or greater than 5VDC 2 Channel, 12V output Alarm Input Alarm Output Alarm 1 Port for PTZ control or Data Device usage 2 Port for communication or data usage 1 Port,CAN-H and CAN-L 1 Port of RJ45, For connection to LAN or testing etc 2 ports. The front one is USB 3.0 to download video files & upgrade firmware; the rear panel one is USB 2.0 to connect with external device. RS485 RS232 CAN RJ45 Network USB Communication Ports 3G 3G (HSUPA / HSDPA / WCDMA / EVDO / TD-SCDMA) optional Internal module 4G (TDD-LTE / FDD-LTE) optional module to match local cellular carrier Internal Wi-Fi 802.11b/g/n ( 2.4 / 5.8 Ghz) optional 4G Wi-Fi Wireless Communication GPS Int'l Standard GPS Internal GPS module. Real-time geographic coordinates, speed information Supports 3 Axis Motion Detection with user set ranges, for X, Y and Z coordinates G-Sensor Internal G-Sensor A/V, GPS, Mapview, Speed, G-Sensor, etc. files available for playback on PC. Limited playback is also available on MDVR PC Playback IVMS Software Wireless (require Wi-Fi or cellular Option) real-time A/V monitoring, GPS, alarms, etc. Software Upgrade Local or Remotely Upgrade through the front USB3.0 or remotely via IVMS platform 24～36VDC Please check operational voltage of vehicle prior to the installation of the MDVR and its accessories to prevent possible damage Voltage Input +24V~+36V Voltage Output 12V 12V(+/-0.2V),Max 3A ≤4V ≥6V 75Ω Power-off Power-on 75Ω ACC Detection Video Input Resistance Video Output Voltage 2Vp-p <1V >5V 2VP-P CVBS output analog signal, screen input requires 75Ω resistance Low voltage trigger High voltage trigger Install in well ventilated area, protected from moisture, heat, dust and vibration I / O Port Operational Temperature -40℃～80℃ Supports Dual Hard Disks, 2TB each Dimensions 203x208x93.5mm JH16-8HD JH16-8HD power-off protection:8s IP67 G-SENSOR JH16-8HD-GNW JH16-8HD-GFN JH16-8HD-GFW Order Model JH16-8HD-NNN JH16-8HD-GNN H.264 N/A GPS GPS GPS 4G FDD GPS 4G FDD Description Anti Shock Vibration WIFI5.8G 2TB 8-36V -40°C WIFI5.8G 25 26

  16. DSM ADAS (Advanced Driver-Assistance Systems) (Driver Status Monitoring) AND MORE... Eyes Closing Distraction Smoking Safe Distance Warning Lane Departure Warning Making Phone Calls Yawning Forward Collision Warning Pedestrian Collision Warning 27 28

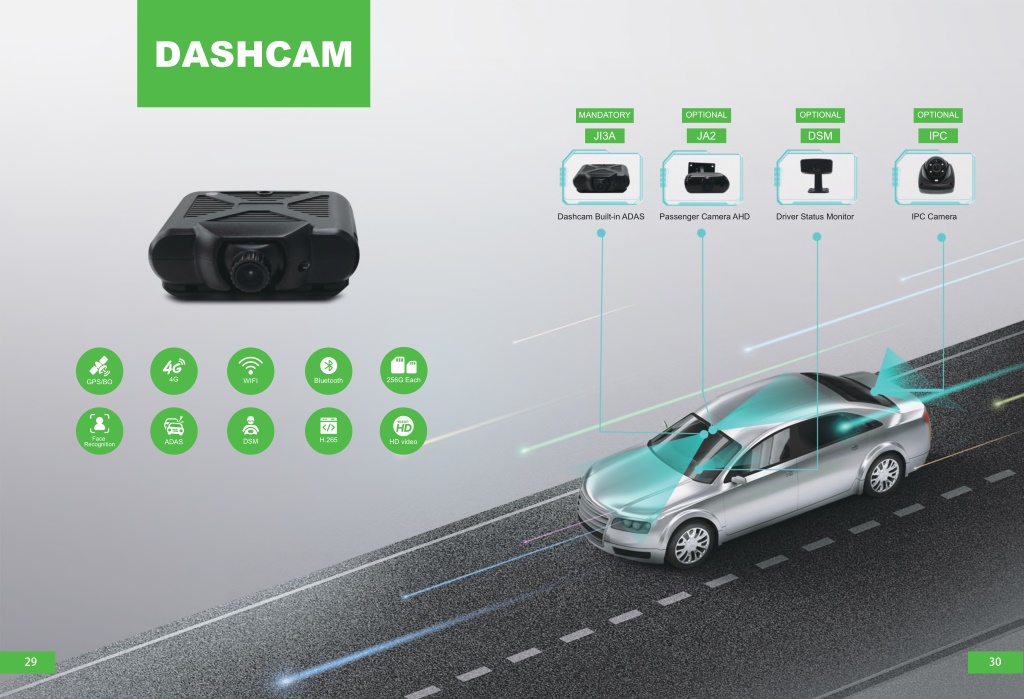

  17. DASHCAM OPTIONAL OPTIONAL OPTIONAL MANDATORY DSM JA2 IPC JI3A Dashcam Built-in ADAS Passenger Camera AHD Driver Status Monitor IPC Camera 4G 256G Each Bluetooth WIFI GPS/BO Face H.265 DSM HD video ADAS Recognition 29 30

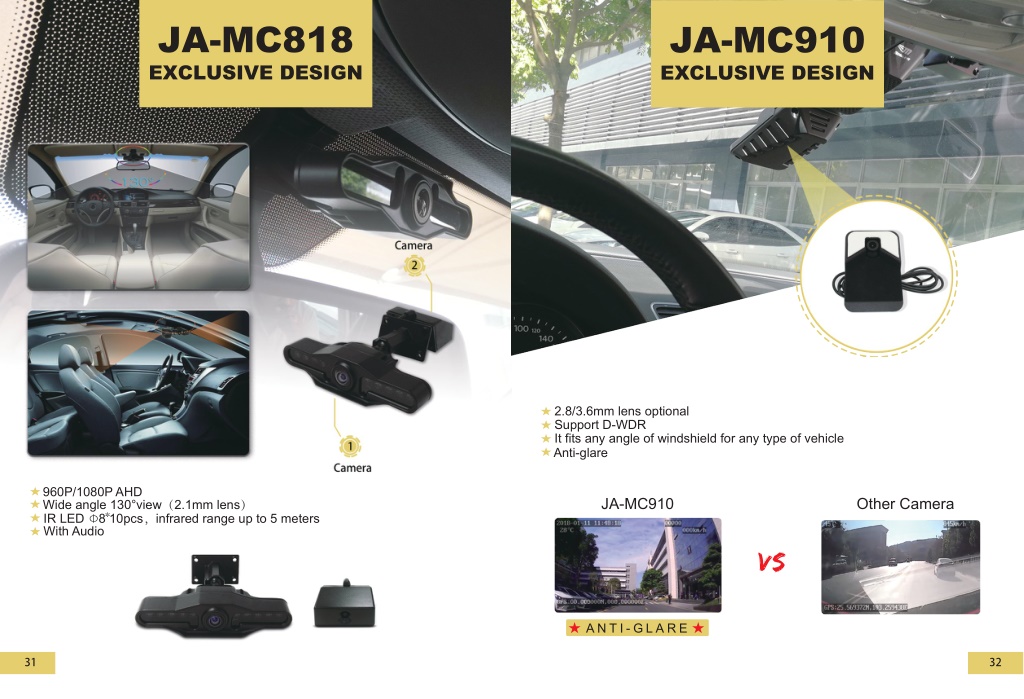

  18. EXCLUSIVE DESIGN JA-MC818 EXCLUSIVE DESIGN JA-MC910 EXCLUSIVE DESIGN 2.8/3.6mm lens optional Support D-WDR It fits any angle of windshield for any type of vehicle Anti-glare 960P/1080P AHD JA-MC910 Other Camera Wide angle 130°view（2.1mm lens） IR LED 8 10pcs，infrared range up to 5 meters With Audio VS A N T I - G L A R E 31 32

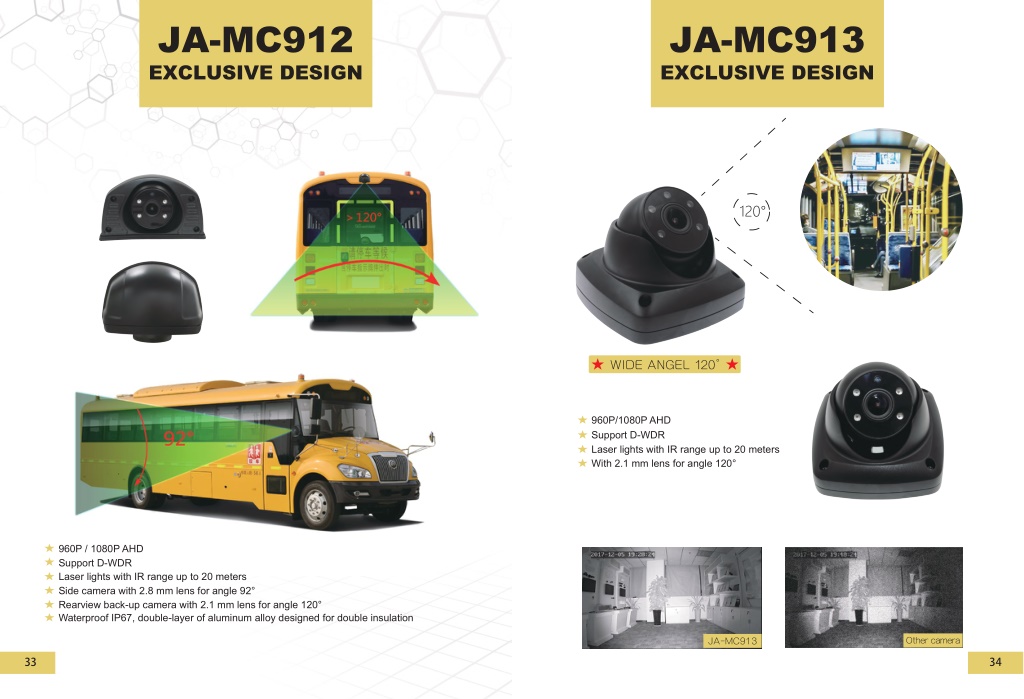

  19. JA-MC912 EXCLUSIVE DESIGN JA-MC913 EXCLUSIVE DESIGN 960P/1080P AHD Support D-WDR Laser lights with IR range up to 20 meters With 2.1 mm lens for angle 120° 960P / 1080P AHD Support D-WDR Laser lights with IR range up to 20 meters Side camera with 2.8 mm lens for angle 92° Rearview back-up camera with 2.1 mm lens for angle 120° Waterproof IP67, double-layer of aluminum alloy designed for double insulation 33 34

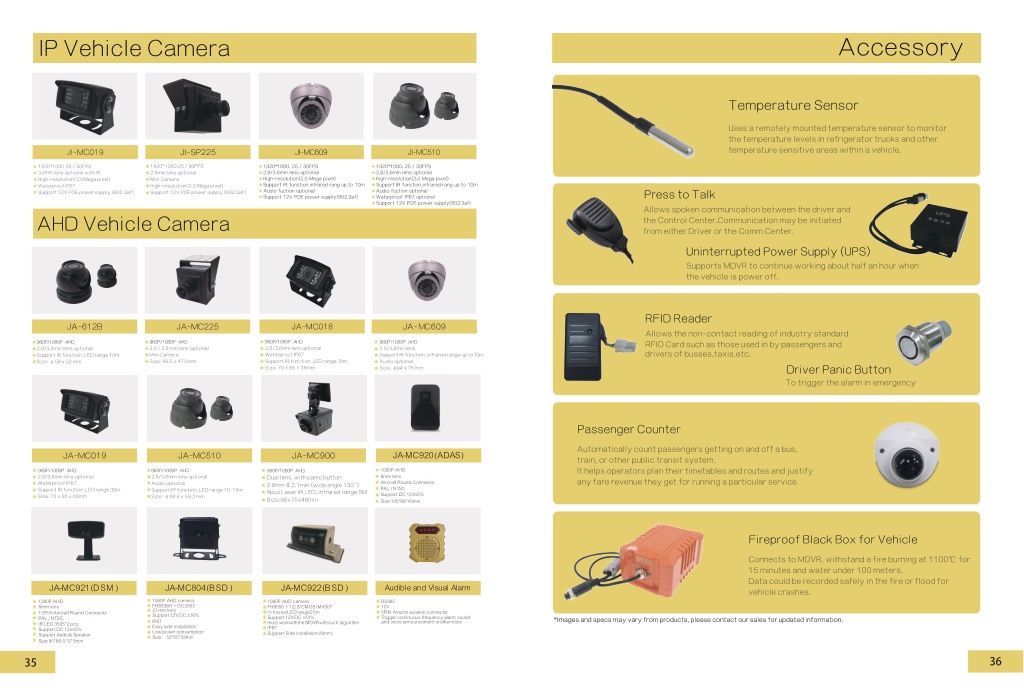

  20. JA-MC920(ADAS) 1080P AHD 6mm lens Aircraft Round Connector PAL / NTSC Support DC 12V±5% Size:105*68*43mm JA-MC922(BSD) JA-MC921(DSM) JA-MC804(BSD) Audible and Visual Alarm 1080P AHD camera FH8536H + GC2053 2.1mm lens Support 12V DC ±10% IP67 Easy side installation Low power consumption Size：52*55*33mm 1080P AHD 6mm lens 10PINAircraft Round Connector PAL / NTSC IR LED 3535*2 pcs, Support DC 12V±5% Support Audio& Speaker Size:80*86.5*37.5mm RS485 12V 5PIN Around aviation connector 1080P AHD camera FH8550 + 1/2.8”CMOS IMX307 InfraredLEDrange25m Support 12V DC ±10% must workwiththe MDVRwithsuch algorithm IP67 Support Side installation(6mm) Trigger continuous frequency alarm sound and voice announcement orothervoice 36 35

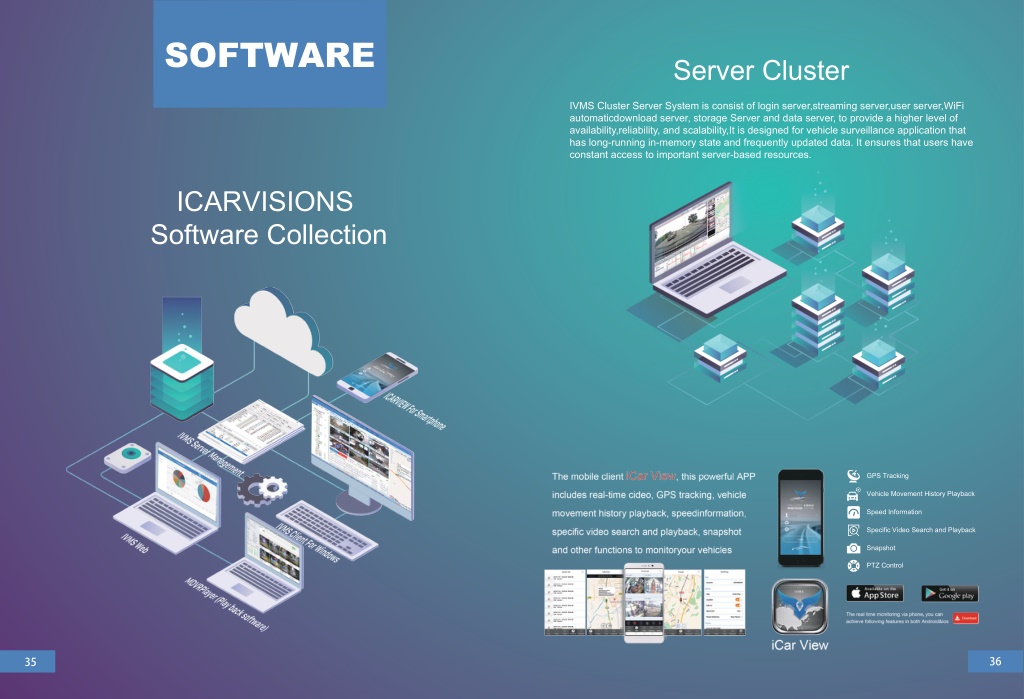

  21. SOFTWARE Server Cluster IVMS Cluster Server System is consist of login server,streaming server,user server,WiFi automaticdownload server, storage Server and data server, to provide a higher level of availability,reliability, and scalability,It is designed for vehicle surveillance application that has long-running in-memory state and frequently updated data. It ensures that users have constant access to important server-based resources. ICARVISIONS Software Collection GPS Tracking Vehicle Movement History Playback Speed Information Specific Video Search and Playback Snapshot PTZ Control 36 35

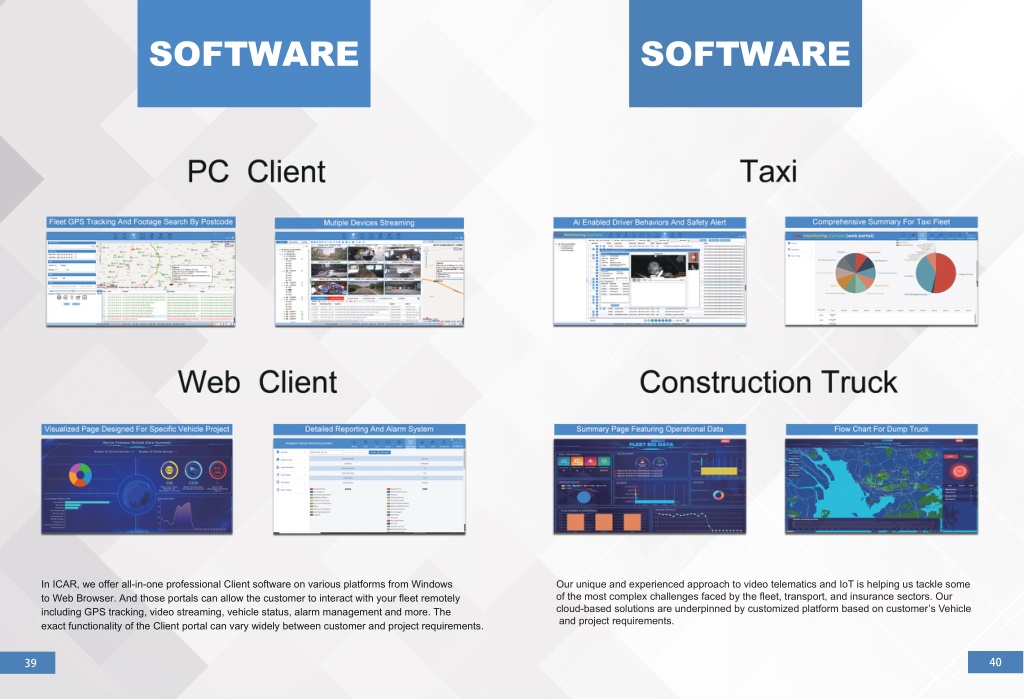

  22. SOFTWARE SOFTWARE In ICAR, we offer all-in-one professional Client software on various platforms from Windows to Web Browser. And those portals can allow the customer to interact with your fleet remotely including GPS tracking, video streaming, vehicle status, alarm management and more. The exact functionality of the Client portal can vary widely between customer and project requirements. Our unique and experienced approach to video telematics and IoT is helping us tackle some of the most complex challenges faced by the fleet, transport, and insurance sectors. Our cloud-based solutions are underpinned by customized platform based on customer’s Vehicle and project requirements. 40 39

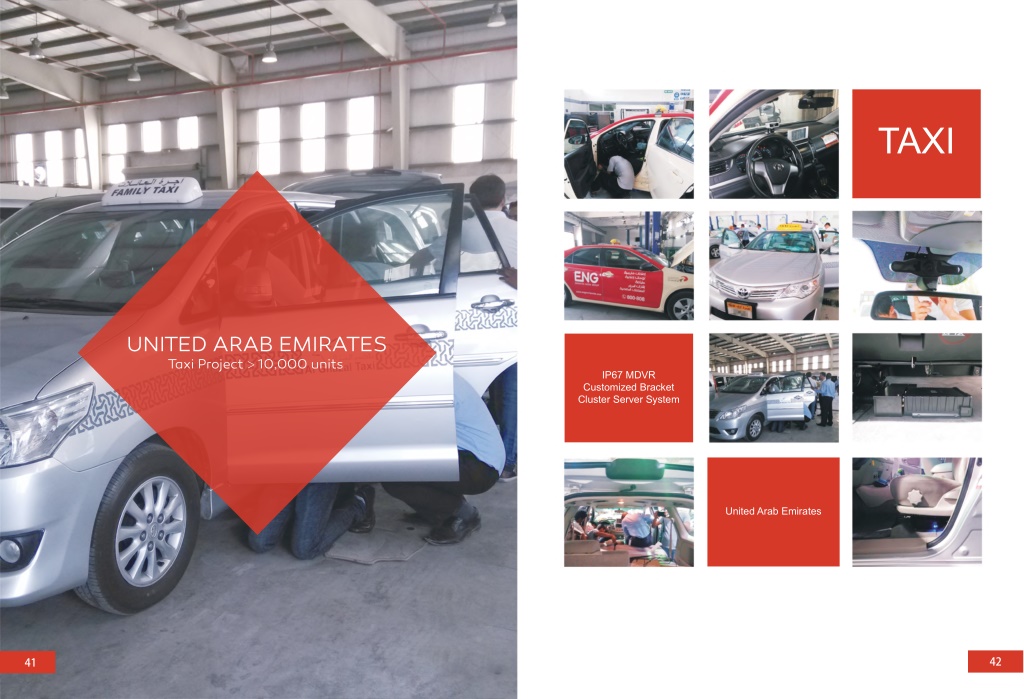

  23. TAXI UNITED ARAB EMIRATES Taxi Project > 10,000 units IP67 MDVR Customized Bracket Cluster Server System United Arab Emirates 42 41

  24. TAXI TURKEY Taxi Project > 11,000 units Integrated with taxi ride-hailing service application Support public transport card payment 44 43

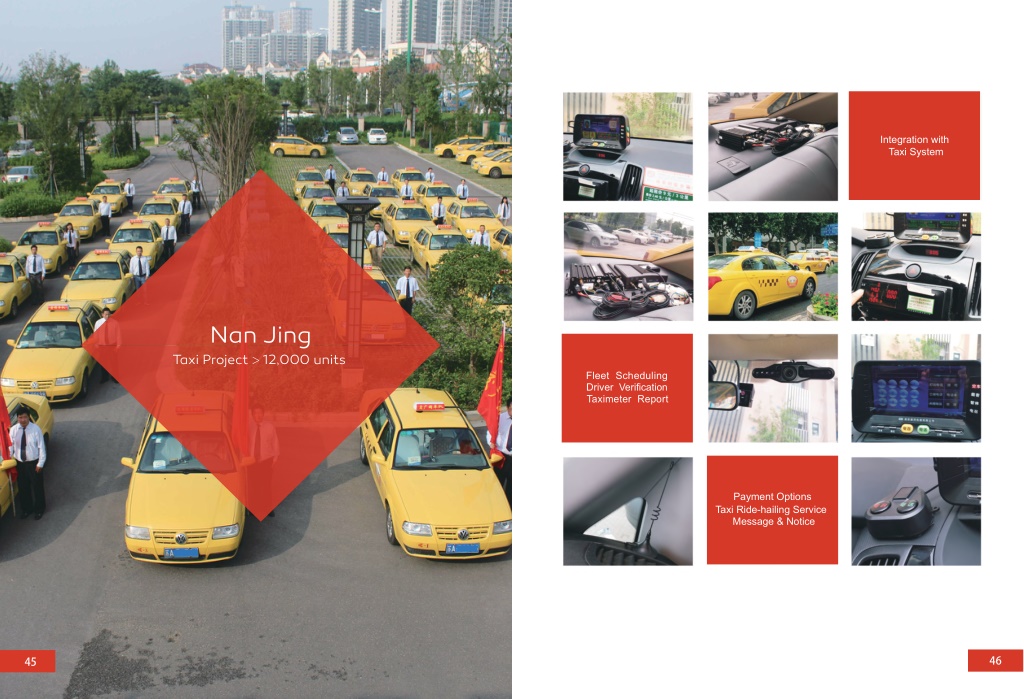

  25. Integration with Taxi System Nan Jing Taxi Project > 12,000 units Fleet Scheduling Driver Verification Taximeter Report Payment Options Taxi Ride-hailing Service Message & Notice 46 45

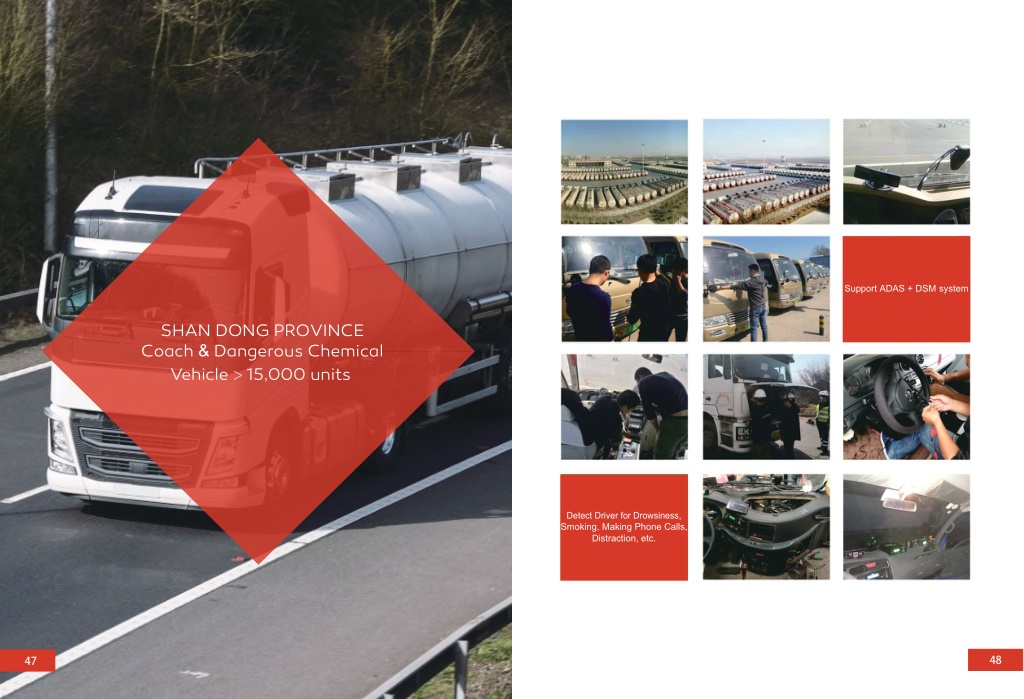

  26. Support ADAS + DSM system SHAN DONG PROVINCE Coach & Dangerous Chemical Vehicle > 15,000 units Detect Driver for Drowsiness, Smoking, Making Phone Calls, Distraction, etc. 48 47

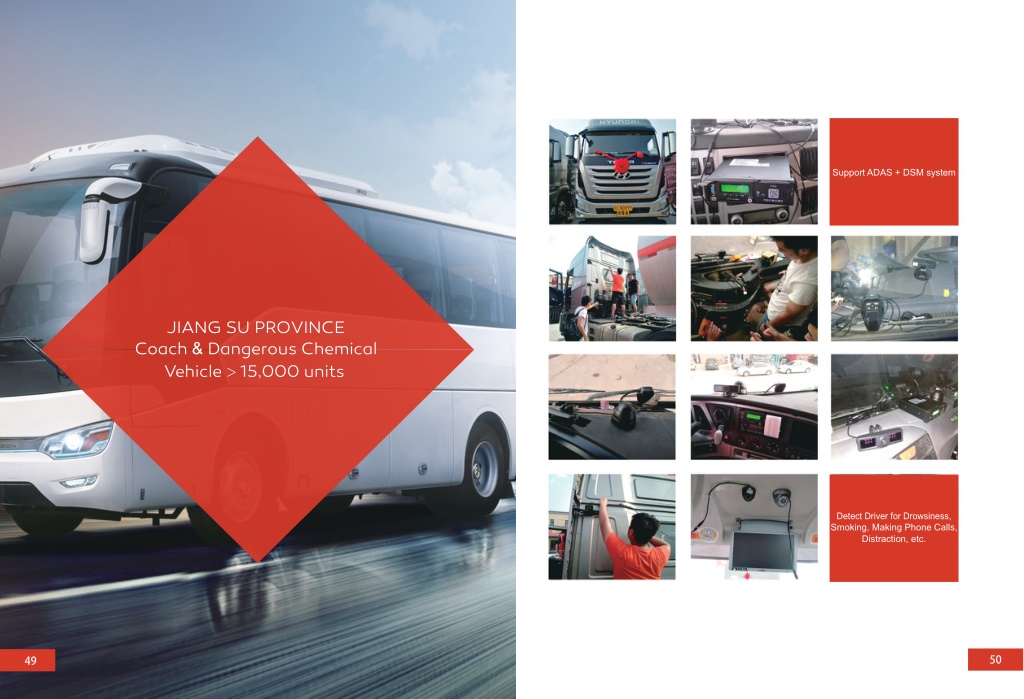

  27. Support ADAS + DSM system JIANG SU PROVINCE Coach & Dangerous Chemical Vehicle > 15,000 units Detect Driver for Drowsiness, Smoking, Making Phone Calls, Distraction, etc. 50 49

  28. ONE BELT, ONE ROAD The Silk Road Economic Belt The 21st-century Maritime Silk Road BELGIUM MOSCOW ITALY GREECE KYRGYZSTAN ISTANBUL URUMQI UZBEKISTAN Xi'AN PAKISTAN TEHRAN GUANGZHOU HANOI VIETNAM SRILANKA DJIBOUTI KUALA LUMPUR COLOMBO KENYA JAKARTA 52 51
