Presentation Transcript
group 2

GROUP 2

AYU FARHANA

CHUAR YEJUAN

FARAH HANIN MOHD NAIN

NAJIHAH AZMI

SITI NADIAH ABDUL RAHMAN

SURAYA HANI MOHD YUSOF

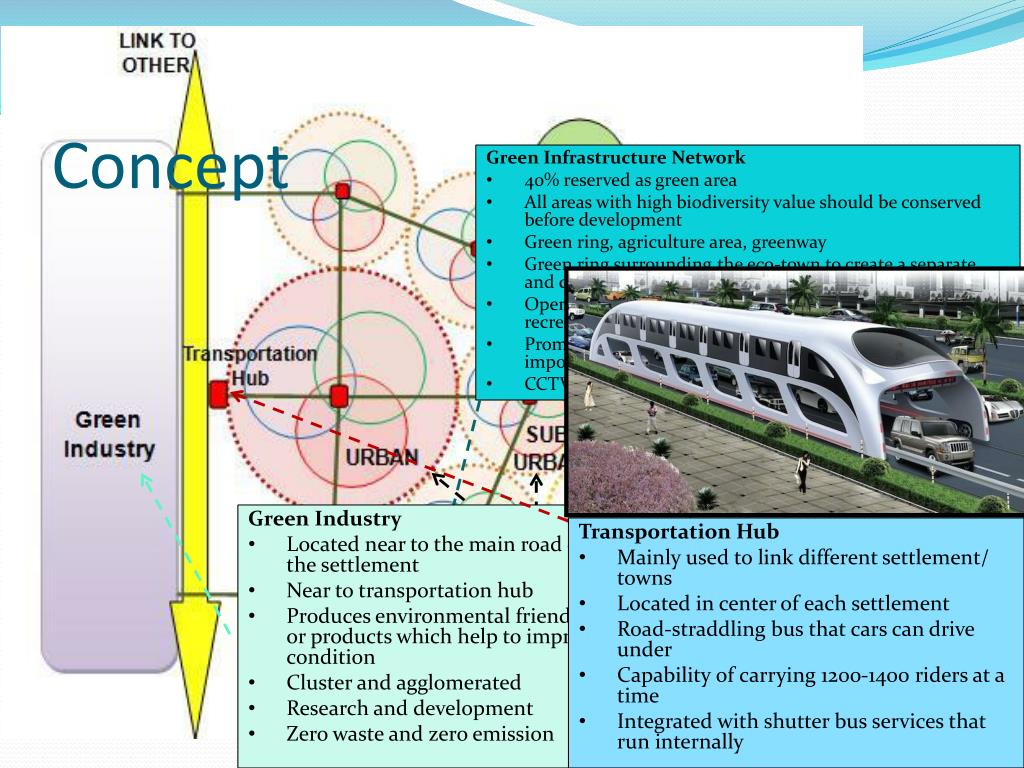

concept1
Concept

Green Infrastructure Network

  • 40% reserved as green area
  • All areas with high biodiversity value should be conserved before development
  • Green ring, agriculture area, greenway
  • Green ring surrounding the eco-town to create a separate and distinct environment
  • Open space has multifunction purposes – quality recreational & environmental function
  • Promote pedestrian & cycling on greenway that connect all important nodes.
  • CCTV to ensure safety
  • Radius: 5-15 min walking distance
  • Integration of recreational, commercial ,facilities and services in the core zone- special building design : road-straddling bus could stop
  • Connected by both roads and greenway
  • ‘real-time’ public transport information
  • Connected with good public transport- shutter bus
  • Transportation hub in the middle- road-straddling bus
  • Good ICT facilities
  • Compact and mixed-use development

Green Industry

  • Located near to the main road opposite the settlement
  • Near to transportation hub
  • Produces environmental friendly products or products which help to improve nature condition
  • Cluster and agglomerated
  • Research and development
  • Zero waste and zero emission

Transportation Hub

  • Mainly used to link different settlement/ towns
  • Located in center of each settlement
  • Road-straddling bus that cars can drive under
  • Capability of carrying 1200-1400 riders at a time
  • Integrated with shutter bus services that run internally
environmental
ENVIRONMENTAL
  • Type of environmentally sensitive areas (ESA)
  • Sector for environmental sensitive area (ESA)
  • Buffer zone
    • Determination of buffer zone
    • Criteria for determining distance zone
  • Land in the area high starling
    • Criteria slopes that can be developed
    • Gradient area should be cultivated
    • National heritage area
    • Keeping topographic
    • Gradient area to be preserved
environmental continue
ENVIRONMENTAL … continue
  • Open space
  • Green infrastructure scenic view
    • Design
    • Landscape
  • Landscape
    • Preparation of landscape open space and recreation area
    • Provision of housing area planned landscape / garden
    • Provision of rural landscape in residential area
    • Preparation of landscape in the industrial area
housing
HOUSING
  • Landed housing (terrace house)
  • Detached house & cluster
  • Ordinary single house & single 'zero lot boundary house
  • Town house
  • Multi storey building
  • Apartment (medium and high cost)
economy
ECONOMY
  • At least one job or employment opportunity per new dwelling
  • Jobs should be created near to homes and dispersed throughout the town.
  • Small scale businesses
    • Local and Small-scale Businesses should be diverse and near to homes
    • The location pattern of the business is depending on its capita demand.
  • Green industry
    • Industry area must be cluster and far from residential area.
    • There should provide an effective public transportation for labor from residential area to industry area
    • Industry should reinvest in natural capital such as 3R concept-reduce, reuse and recycle
    • Minimize the usage of non-renewable resources by using renewable resources like solar, biomass, water and others.
economy continue
ECONOMY….Continue…
  • Eco tourism
    • Eco tourism could be promoted at the rural fringe.
  • SOHO
    • In the commercial zone
    • Should have good network facilities
  • Labor
    • The labor should have their own skills
    • The labor are IT literacy
    • Provide a learning center such as IKBN, ILP, KolejKemahiran and others for people to develop their skills.
infrastructure
INFRASTRUCTURE
  • FACILITIES AND SERVICES health (public facilities)
    • education
    • post office
    • worship
    • community centre
    • safety facility
  • INFRASTRUCTURE AND UTILITIES
    • reserve TNB
    • facility for special need
    • wireless facility

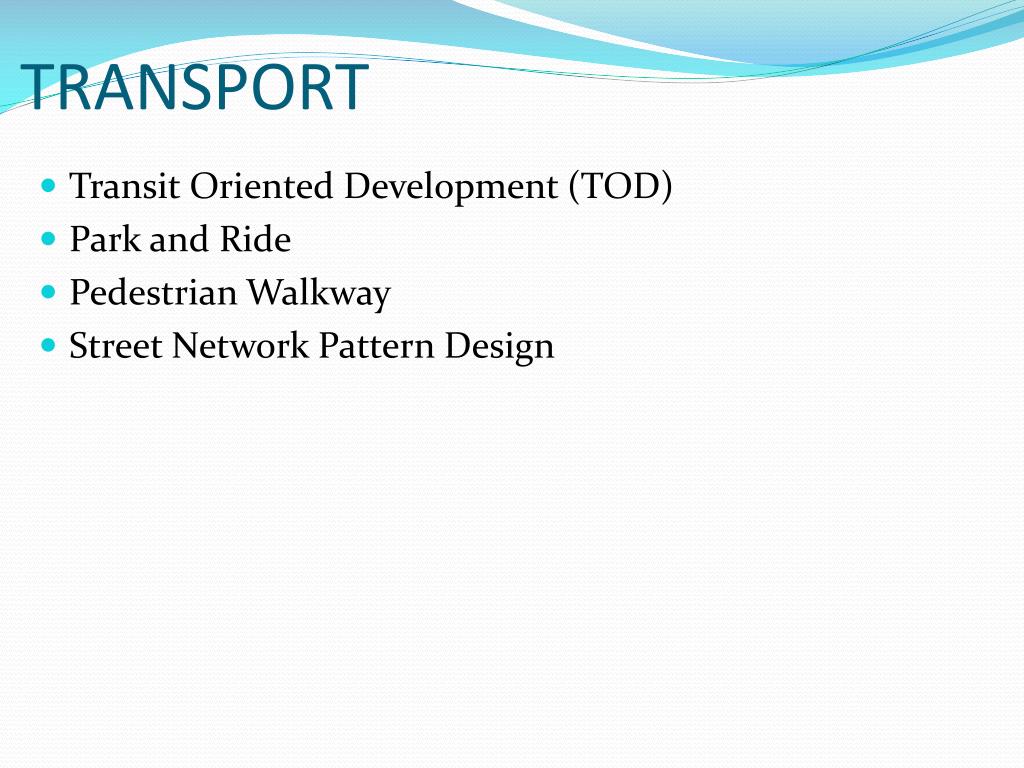

transport
TRANSPORT
  • Transit Oriented Development (TOD)
  • Park and Ride
  • Pedestrian Walkway
  • Street Network Pattern Design
land control
Land Control

Site Boundary

Buildable Area

Non-Buildable Area

Natural Environment to be conserved

linkages
Linkages

Penang Second Bridge

Special design road for Road-straddling bus

green ring
Green Ring

Greenway

Agriculture land

transportation hub
Transportation Hub

Road-straddling bus

Electric Shuttle Bus

green industry
Green Industry

High Tech Green Industry

Zero-Waste Manufacturing

rural fringe
Rural Fringe

Low- Density houses

Traditional houses
