design patterns for games

Design Patterns for Games

Stephen Wong

Dung Nguyen

Rice University

let s play a game

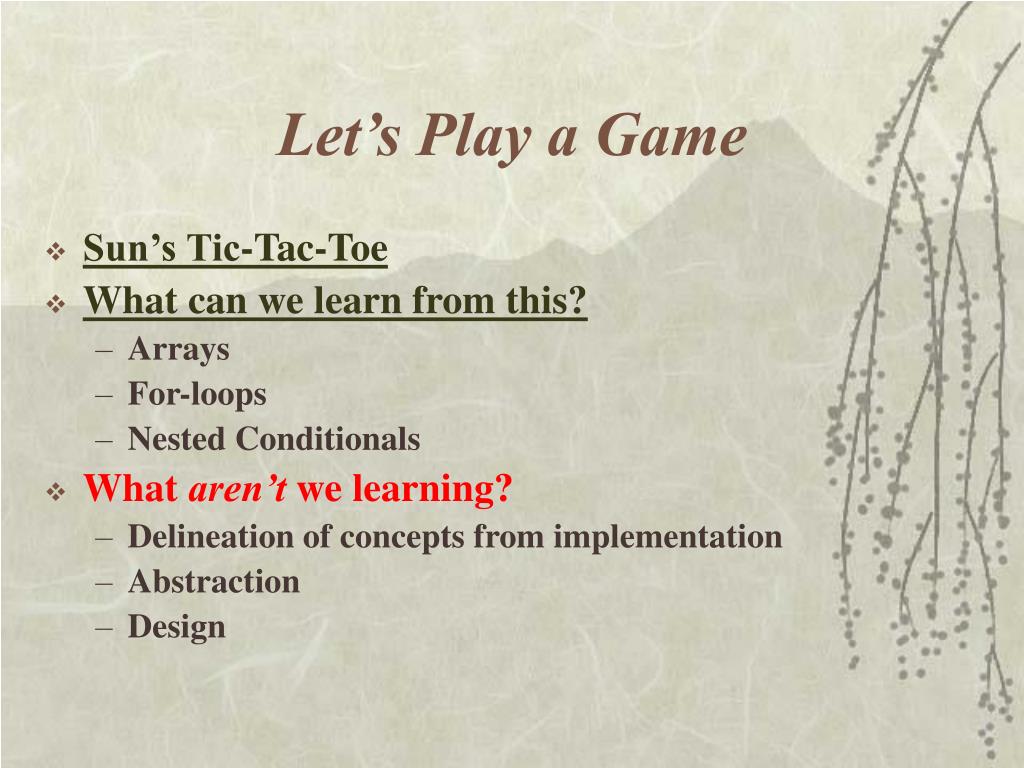

Let’s Play a Game
  • Sun’s Tic-Tac-Toe
  • What can we learn from this?
    • Arrays
    • For-loops
    • Nested Conditionals
  • What aren’t we learning?
    • Delineation of concepts from implementation
    • Abstraction
    • Design
something different
Something Different…
  • It’s not really about TicTacToe…
    • It’s a vehicle to teach something BIGGER.
  • Abstraction
  • Design Process
  • Fundamental Principles

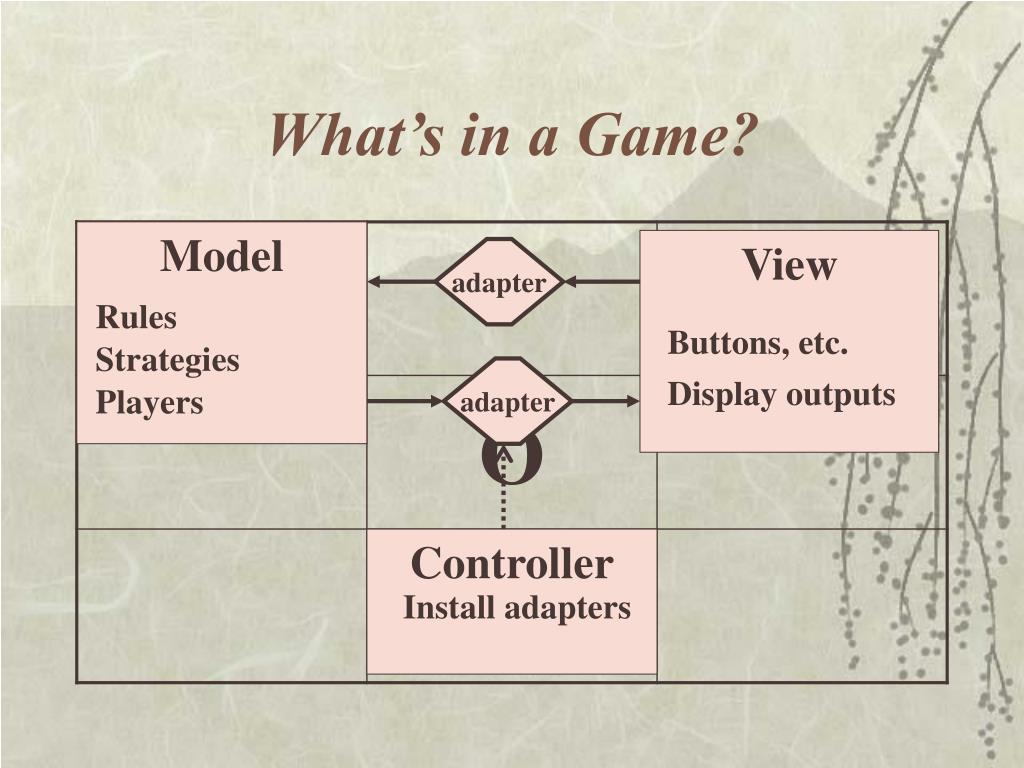

what s in a game

adapter

adapter

Install adapters

What’s in a Game?

Model

View

Rules

Buttons, etc.

Strategies

Display outputs

Players

Controller

game model
Game Model

Abstract

these components!

  • Rules of the Game
    • Board configurations
    • Legal moves
  • Next Move Strategies
    • Random
    • Min-Max
    • Etc.
  • Player Management
    • Turn taking
    • Win/lose/draw notification
    • Fault handling

Decouple

these components!

the rules of the game

IUndoMove

apply(…)

The Rules of the Game

IBoardModel

, chkMoveCmd)

, bdStatusVstr)

makeMove(player, row, col)

IUndoMove

Object execute(bdStatusVstr, param)

// other methods

commands

host/visitor

ICheckMoveCmd

validMoveCase()

IBoardStatusVisitor

invalidMoveCase()

player0WonCase(…)

player1WonCase(…)

drawCase(…)

noWinnerCase(…)

state diagram

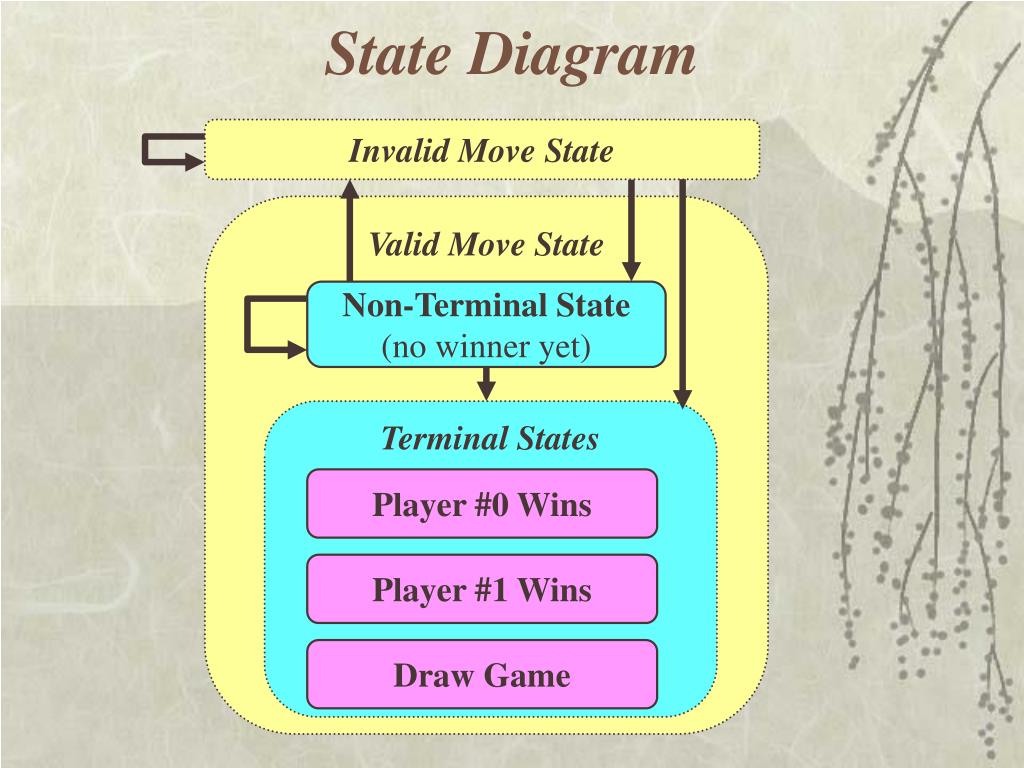

State Diagram

Invalid Move State

Valid Move State

Non-Terminal State

(no winner yet)

Terminal States

Player #0 Wins

Player #1 Wins

Draw Game

state design pattern

IBoardModel

execute(IBoardStatusVisitor v, …)

state

TicTacToeBoard

ABoardState

ATerminalState

NonTerminalState

Player0Won

Player1Won

DrawGame

State Design Pattern

state.execute(v, …)

v.noWinnerCase(…)

v.player0WonCase(…)

v.player1WonCase(…)

v.drawCase(…)

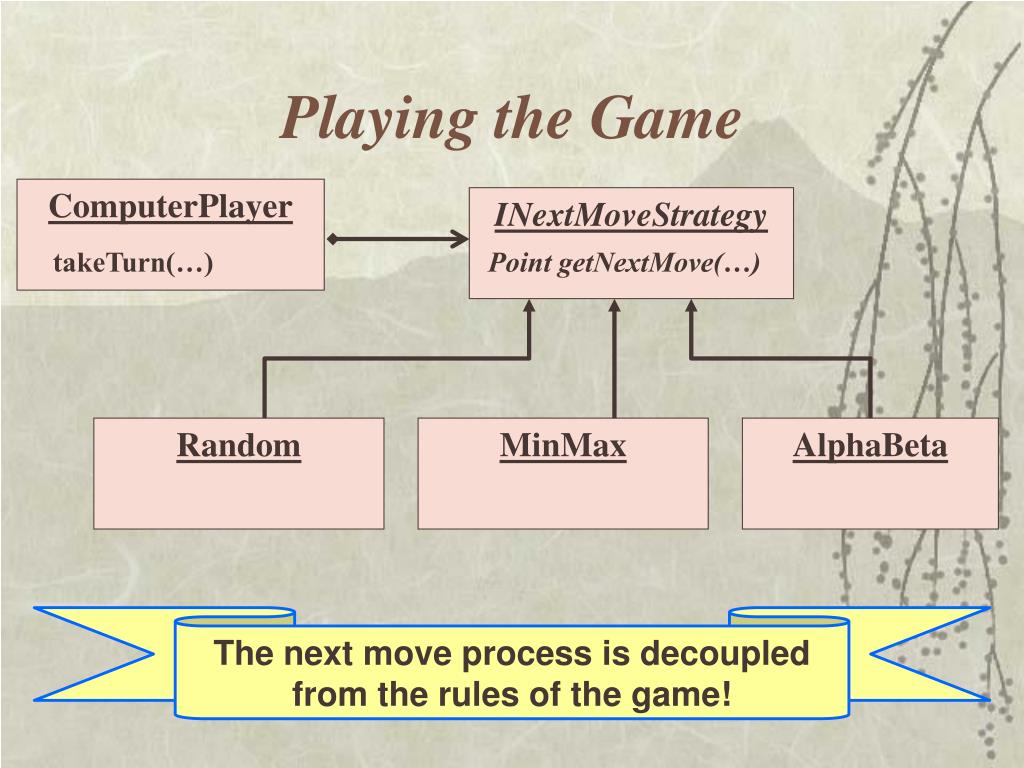

playing the game

INextMoveStrategy

Point getNextMove(…)

Random

MinMax

AlphaBeta

Playing the Game

ComputerPlayer

takeTurn(…)

The next move process is decoupled

from the rules of the game!

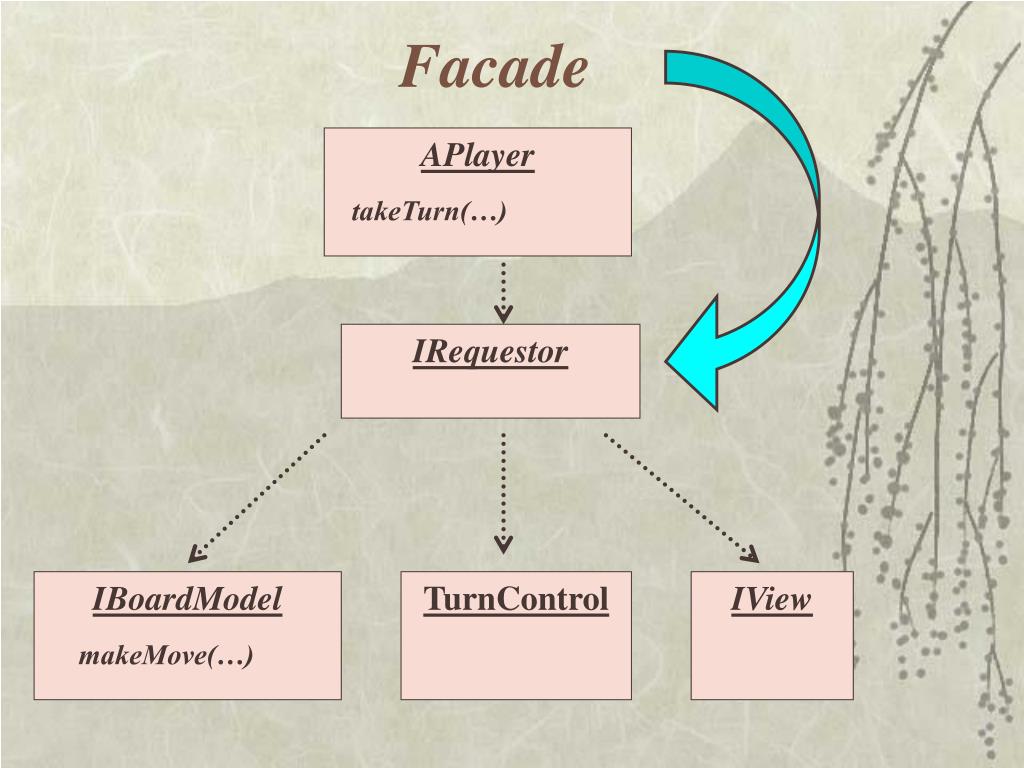

facade

APlayer

takeTurn(…)

IBoardModel

makeMove(…)

Facade

IRequestor

TurnControl

IView

what the player sees

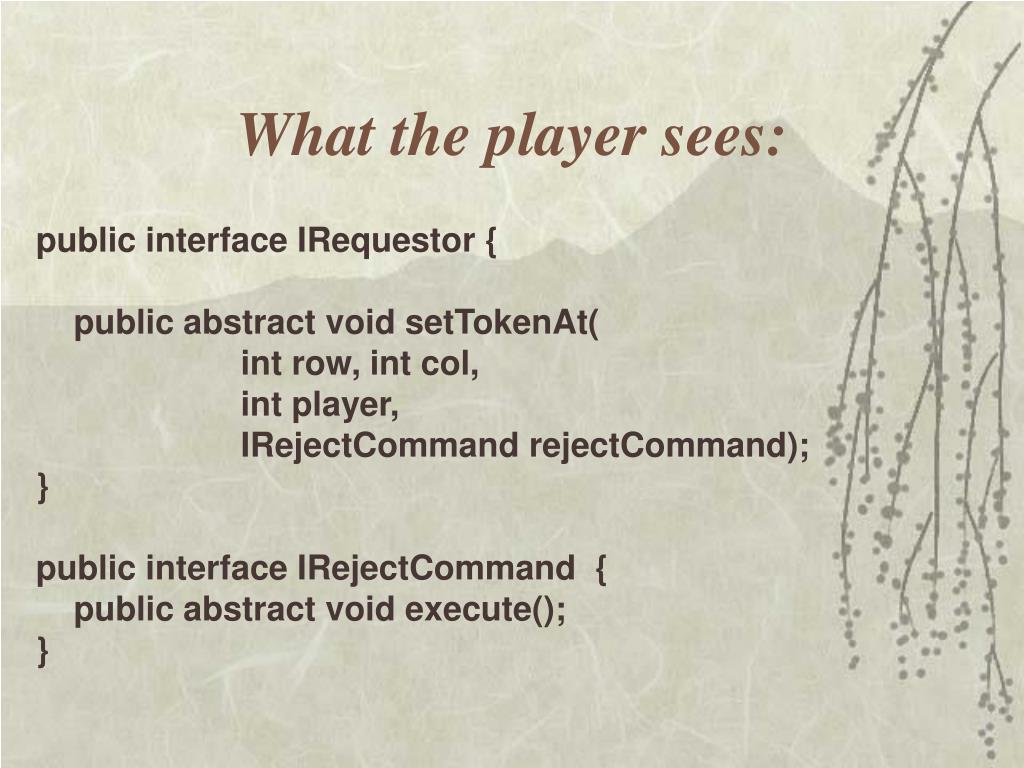

What the player sees:

public interface IRequestor {

public abstract void setTokenAt(

int row, int col,

int player,

IRejectCommand rejectCommand);

}

public interface IRejectCommand {

public abstract void execute();

}

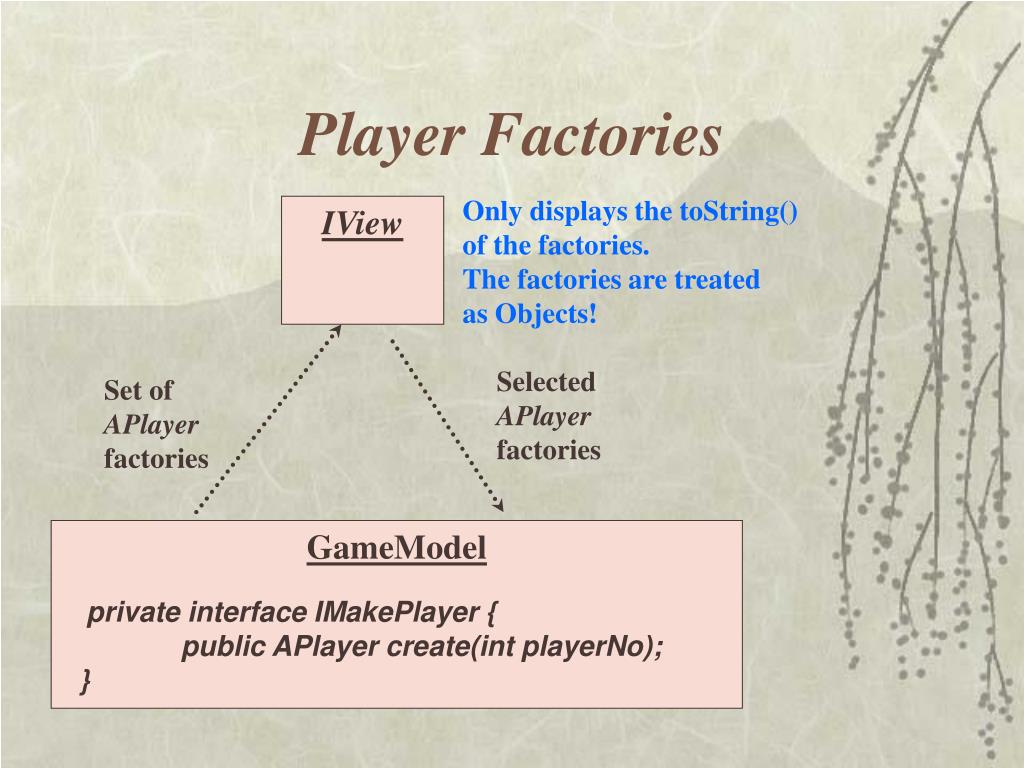

player factories

Selected

APlayer

factories

Set of

APlayer

factories

Player Factories

Only displays the toString()

of the factories.

The factories are treated

as Objects!

IView

GameModel

private interface IMakePlayer {

public APlayer create(int playerNo);

}

the set of aplayer factories

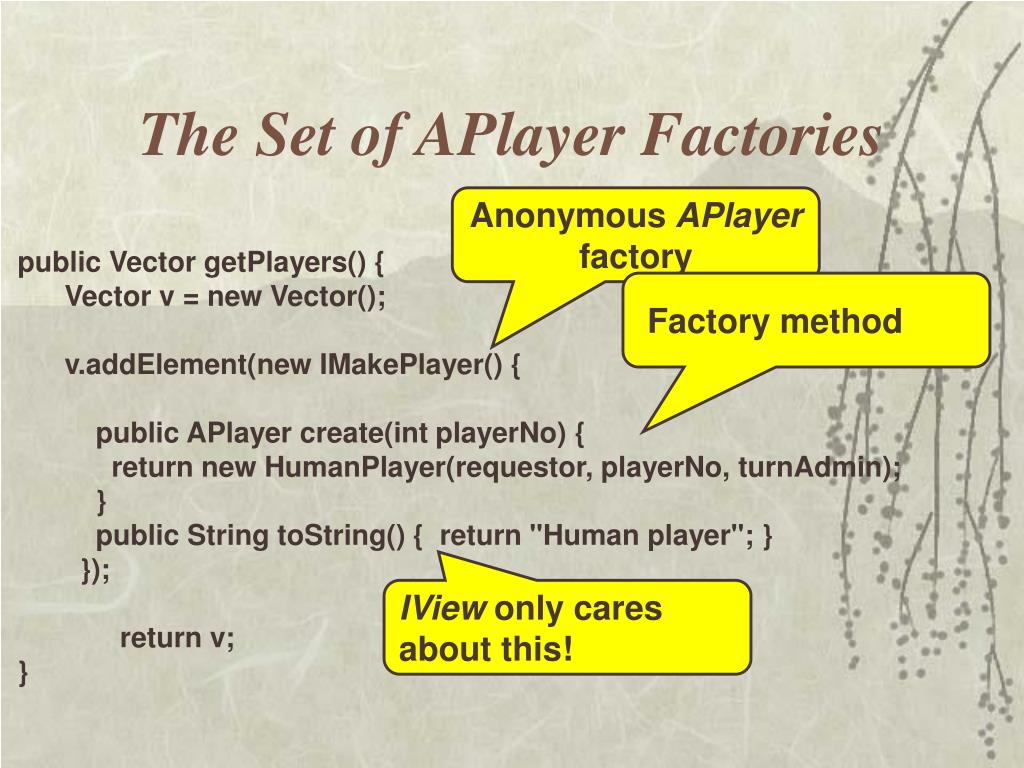

The Set of APlayer Factories

Anonymous APlayer factory

public Vector getPlayers() {

Vector v = new Vector();

v.addElement(new IMakePlayer() {

public APlayer create(int playerNo) {

return new HumanPlayer(requestor, playerNo, turnAdmin);

}

public String toString() { return "Human player"; }

});

return v;

}

Factory method

IView only cares about this!

min max principle
Min-Max Principle
  • V(s) =
    • For terminal state
      • +1, if s is a winning state for that player
      • 0, if s is a draw state
      • -1, if s is a losing state for that player
    • For non-terminal state
      • max{V(c) | c is a child valid move state of s} , if that player moves next
      • min{V(c) | c is a child valid move state of s}, if the other player moves next.
  • The best next move for a given player, m, is determined from max{V(c) | c  S} where S is the set of available moves for that player. How max is computed is a variant.

Application of a process over a set!

mapping and lambda

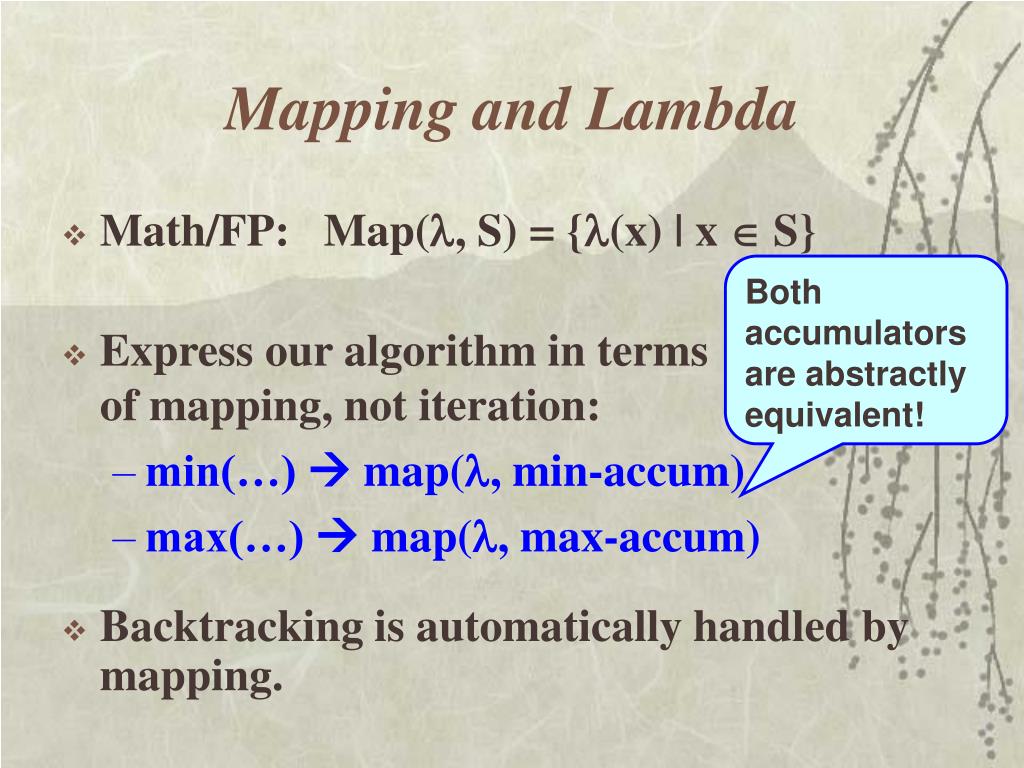

Mapping and Lambda
  • Math/FP: Map(, S) = {(x) | x  S}
  • Express our algorithm in terms of mapping, not iteration:
    • min(…)  map(, min-accum)
    • max(…)  map(, max-accum)

Both accumulators are abstractly equivalent!

  • Backtracking is automatically handled by mapping.
mapping abstraction
Mapping Abstraction

IBoardModel

, chkMoveCmd)

, bdStatusVstr)

makeMove(player, row, col)

IUndoMove

Object execute(bdStatusVstr, param)

void map(player, lambda, param)

Controls continuation of mapping

command

Called on all valid moves.

Called when there are no valid moves.

IBoardLambda

boolean apply(board, param, row, col, cell-val)

void noApply(board, param)

min max abstraction

INextMoveStrategy

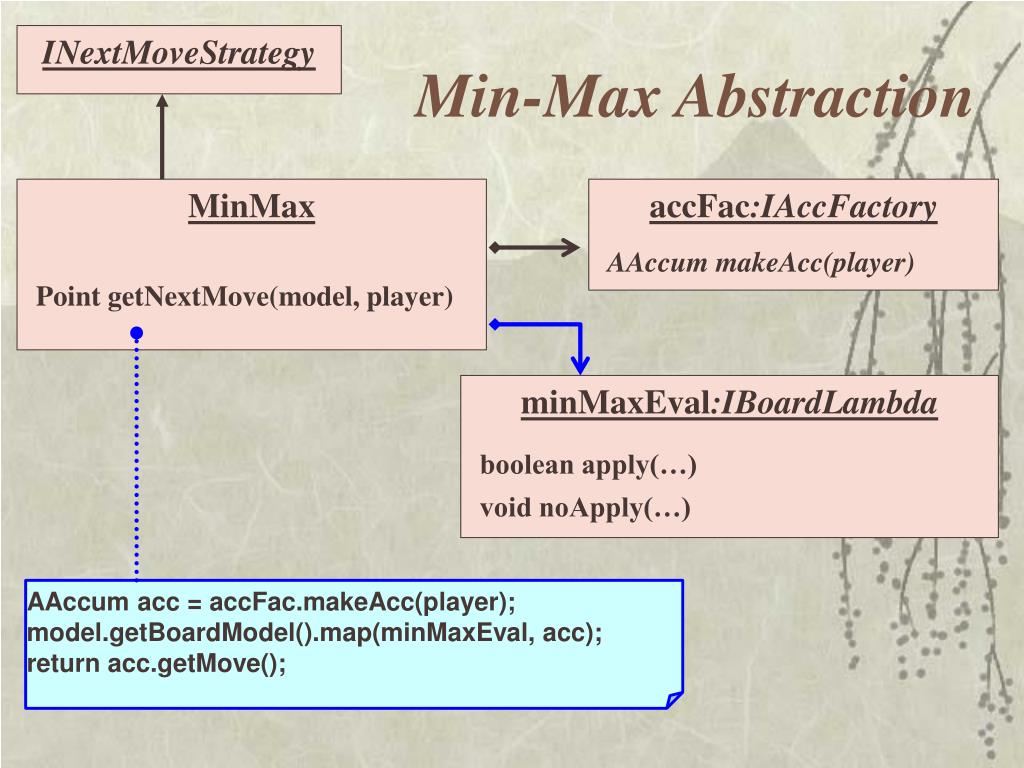

Min-Max Abstraction

MinMax

accFac:IAccFactory

AAccum makeAcc(player)

Point getNextMove(model, player)

minMaxEval:IBoardLambda

boolean apply(…)

void noApply(…)

AAccum acc = accFac.makeAcc(player);

model.getBoardModel().map(minMaxEval, acc);

return acc.getMove();

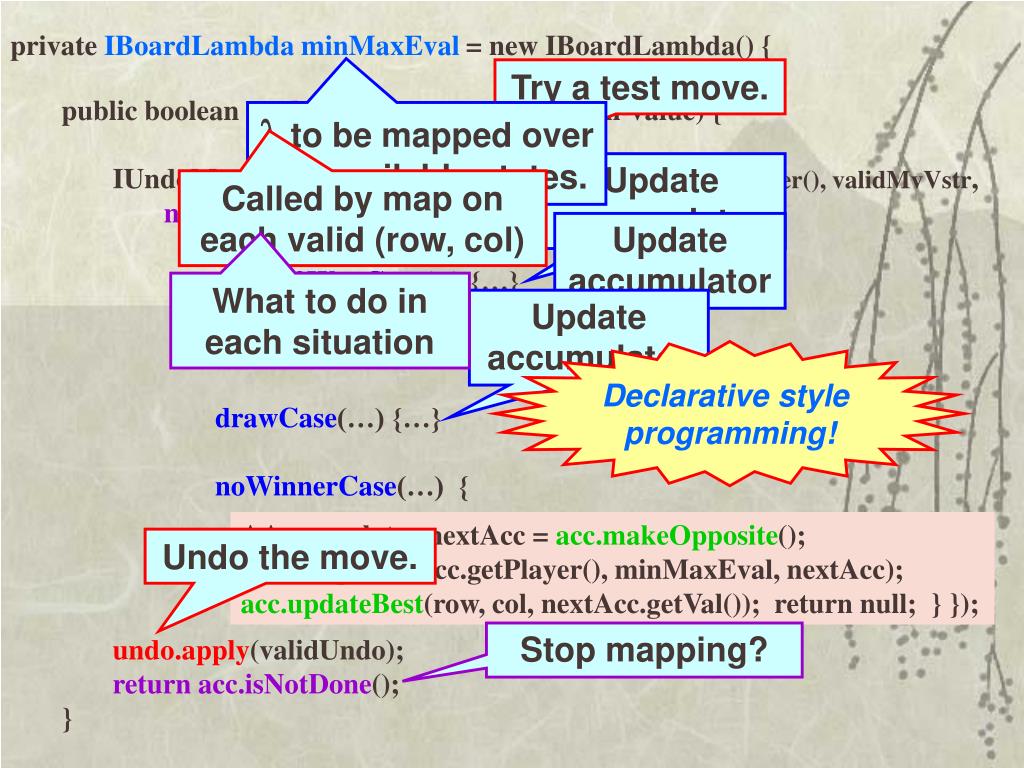

slide18

private IBoardLambda minMaxEval = new IBoardLambda() {

    • public boolean apply(board, acc, row, col, cell-value) {
      • IUndoMove undo =host.makeMove(row, col, acc.getPlayer(), validMvVstr,
        • new IBoardStatusVisitor() {
          • player0WonCase(...) {…}
          • player1WonCase(…) {…}
          • drawCase(…) {…}
          • noWinnerCase(…) {
      • undo.apply(validUndo);
      • return acc.isNotDone();
    • }

Try a test move.

 to be mapped over the available states.

Update

accumulator

Called by map on each valid (row, col)

Update

accumulator

What to do in

each situation

Update

accumulator

Declarative style

programming!

AAccumulator nextAcc = acc.makeOpposite();

host.map(nextAcc.getPlayer(), minMaxEval, nextAcc);

acc.updateBest(row, col, nextAcc.getVal()); return null; } });

Undo the move.

Stop mapping?

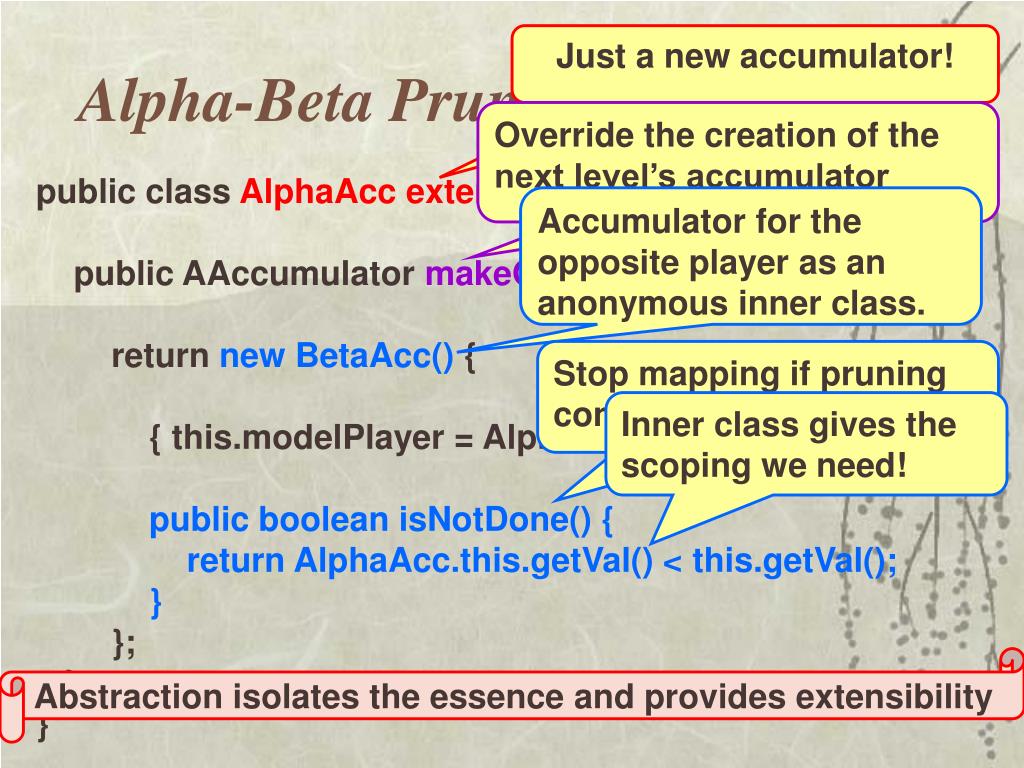

alpha beta pruning

Just a new accumulator!

Alpha-Beta Pruning

Override the creation of the next level’s accumulator

public class AlphaAcc extends MaxAcc { public AAccumulator makeOpposite() { return new BetaAcc() { { this.modelPlayer = AlphaAcc.this.modelPlayer; }public boolean isNotDone() { return AlphaAcc.this.getVal() < this.getVal(); } }; }}

Accumulator for the opposite player as an anonymous inner class.

Stop mapping if pruning condition is met.

Inner class gives the scoping we need!

Abstraction isolates the essence and provides extensibility

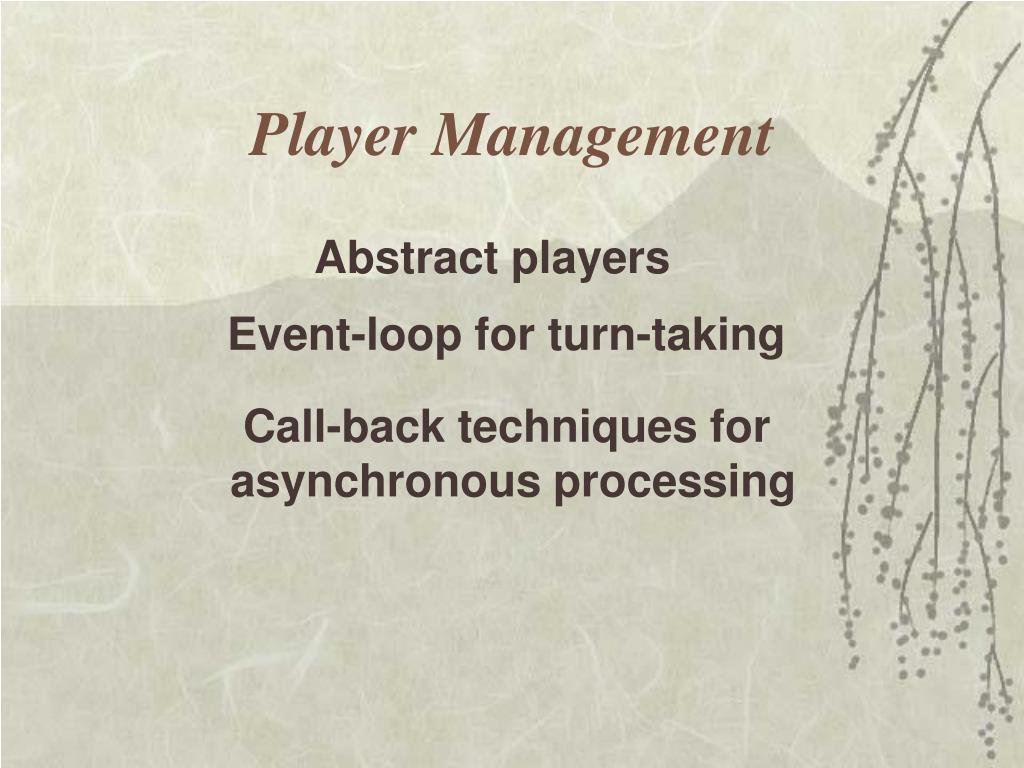

player management
Player Management

Abstract players

Event-loop for turn-taking

Call-back techniques for

asynchronous processing

design patterns in action
Design Patterns In Action
  • MVC separates model from view
  • Commands and Visitors isolate rules from behaviors
  • State pattern models game behavior
  • Calculating the next move is a Strategy

Design patterns express abstractions

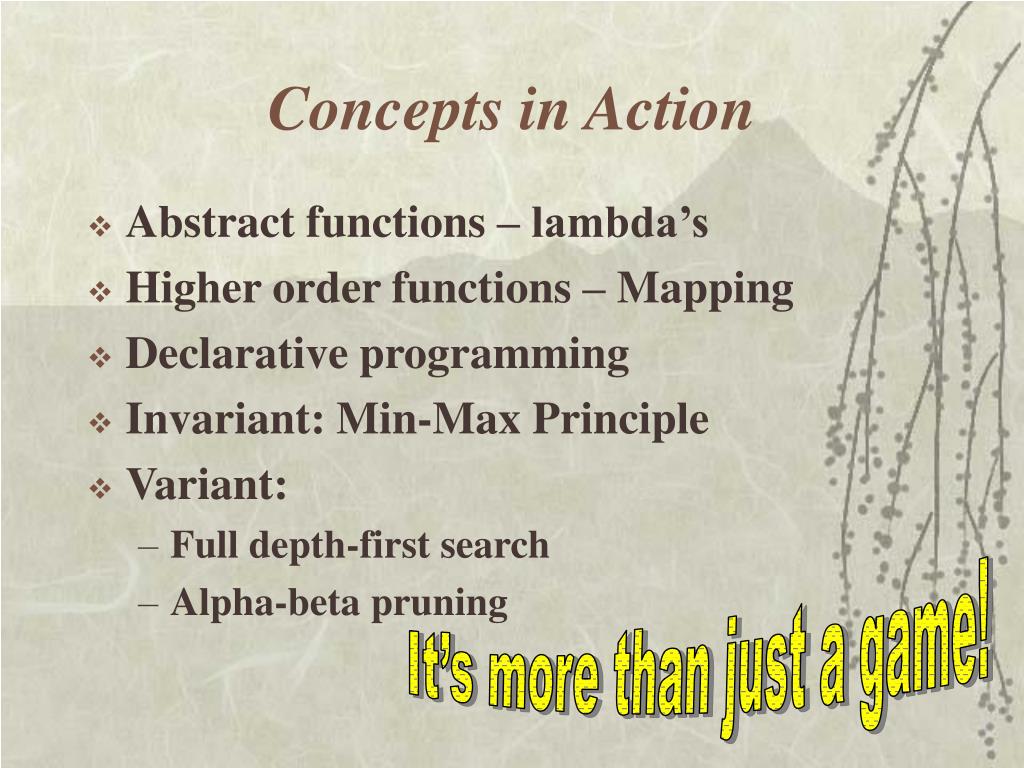

concepts in action
Concepts in Action
  • Abstract functions – lambda’s
  • Higher order functions – Mapping
  • Declarative programming
  • Invariant: Min-Max Principle
  • Variant:
    • Full depth-first search
    • Alpha-beta pruning

It’s more than just a game!

more information

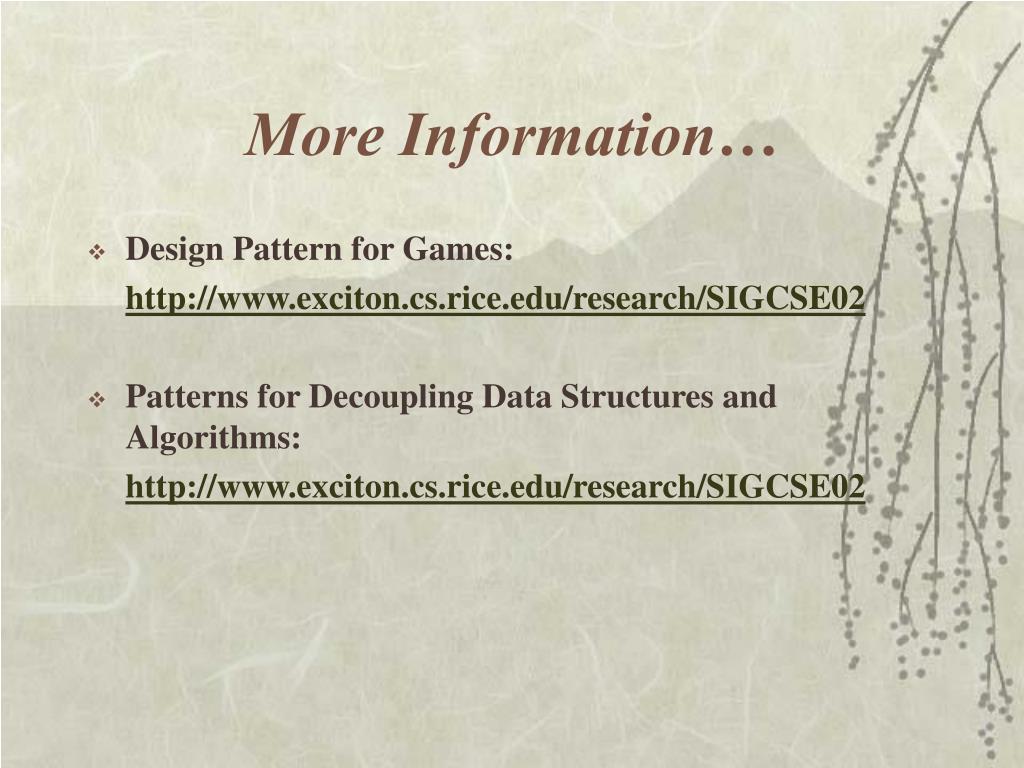

More Information…
  • Design Pattern for Games:

http://www.exciton.cs.rice.edu/research/SIGCSE02

  • Patterns for Decoupling Data Structures and Algorithms:

http://www.exciton.cs.rice.edu/research/SIGCSE02
