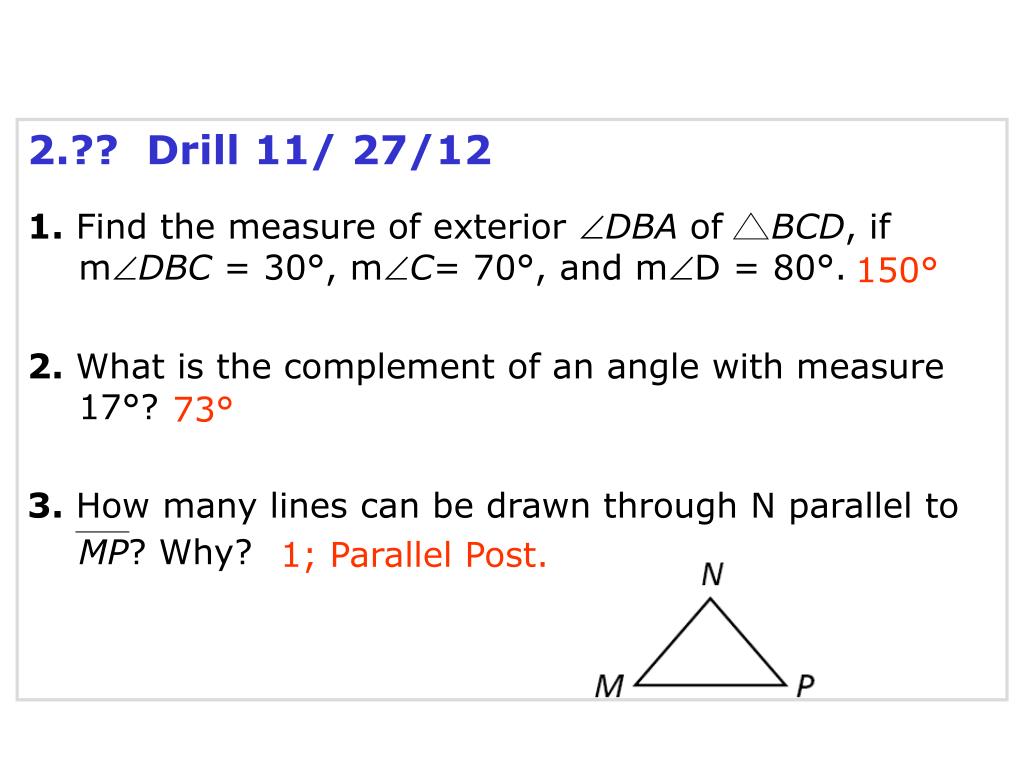

  1. 2.?? Drill 11/ 27/12 1. Find the measure of exterior DBA of BCD, if mDBC = 30°, mC= 70°, and mD = 80°. 2. What is the complement of an angle with measure 17°? 3. How many lines can be drawn through N parallel to MP? Why? 150° 73° 1; Parallel Post.

  2. Objectives Find the measures of interior and exterior angles of triangles. Apply theorems about the interior and exterior angles of triangles.

  3. Vocabulary auxiliary line corollary interior exterior interior angle exterior angle remote interior angle

  4. An auxiliary line is a line that is added to a figure to aid in a proof. An auxiliary line used in the Triangle Sum Theorem

  5. Sum. Thm Example 1A: Application After an accident, the positions of cars are measured by law enforcement to investigate the collision. Use the diagram drawn from the information collected to find mXYZ. mXYZ + mYZX + mZXY = 180° Substitute 40 for mYZX and 62 for mZXY. mXYZ + 40+ 62= 180 mXYZ + 102= 180 Simplify. mXYZ = 78° Subtract 102 from both sides.

  6. 118° Example 1B: Application After an accident, the positions of cars are measured by law enforcement to investigate the collision. Use the diagram drawn from the information collected to find mYWZ. Step 1 Find mWXY. mYXZ + mWXY = 180° Lin. Pair Thm. and  Add. Post. 62 + mWXY = 180 Substitute 62 for mYXZ. mWXY = 118° Subtract 62 from both sides.

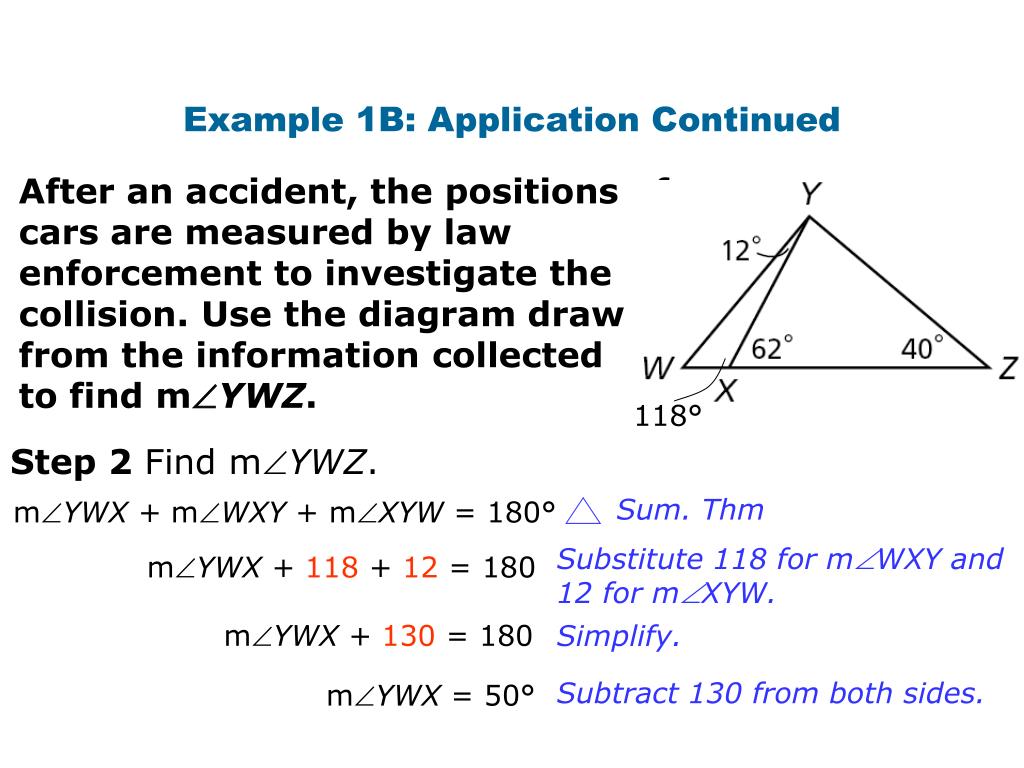

  7. 118° Sum. Thm Example 1B: Application Continued After an accident, the positions of cars are measured by law enforcement to investigate the collision. Use the diagram drawn from the information collected to find mYWZ. Step 2 Find mYWZ. mYWX + mWXY + mXYW = 180° Substitute 118 for mWXY and 12 for mXYW. mYWX + 118+ 12= 180 mYWX + 130= 180 Simplify. Subtract 130 from both sides. mYWX = 50°

  8. A corollary is a theorem whose proof follows directly from another theorem. Here are two corollaries to the Triangle Sum Theorem.

  9. Acute s of rt. are comp. Example 2: Finding Angle Measures in Right Triangles One of the acute angles in a right triangle measures 2x°. What is the measure of the other acute angle? Let the acute angles be A and B, with mA = 2x°. mA + mB = 90° 2x+ mB = 90 Substitute 2x for mA. mB = (90 – 2x)° Subtract 2x from both sides.

  10. Acute s of rt. are comp. Check It Out! Example 2a The measure of one of the acute angles in a right triangle is 63.7°. What is the measure of the other acute angle? Let the acute angles be A and B, with mA = 63.7°. mA + mB = 90° 63.7 + mB = 90 Substitute 63.7 for mA. mB = 26.3° Subtract 63.7 from both sides.

  11. The interior is the set of all points inside the figure. The exterior is the set of all points outside the figure. Exterior Interior

  12. An interior angle is formed by two sides of a triangle. An exterior angle is formed by one side of the triangle and extension of an adjacent side. 4 is an exterior angle. Exterior Interior 3 is an interior angle.

  13. Each exterior angle has two remote interior angles. A remote interior angle is an interior angle that is not adjacent to the exterior angle. 4 is an exterior angle. The remote interior angles of 4 are 1 and 2. Exterior Interior 3 is an interior angle.

  14. Example 3: Applying the Exterior Angle Theorem Find mB. mA + mB = mBCD Ext.  Thm. Substitute 15 for mA, 2x + 3 for mB, and 5x – 60 for mBCD. 15 + 2x + 3= 5x – 60 2x + 18= 5x – 60 Simplify. Subtract 2x and add 60 to both sides. 78 = 3x 26 = x Divide by 3. mB = 2x + 3 = 2(26) + 3 = 55°

  15. Check It Out! Example 3 Find mACD. mACD = mA + mB Ext.  Thm. Substitute 6z – 9 for mACD, 2z + 1 for mA, and 90 for mB. 6z – 9 = 2z + 1+ 90 6z – 9= 2z + 91 Simplify. Subtract 2z and add 9 to both sides. 4z = 100 z = 25 Divide by 4. mACD = 6z – 9 = 6(25) – 9 = 141°

  16. Example 4: Applying the Third Angles Theorem Find mK and mJ. K  J Third s Thm. mK = mJ Def. of s. 4y2= 6y2 – 40 Substitute 4y2 for mK and 6y2 – 40 for mJ. –2y2 = –40 Subtract 6y2 from both sides. y2 = 20 Divide both sides by -2. So mK = 4y2 = 4(20) = 80°. Since mJ = mK,mJ =80°.

  17. Check It Out! Example 4 Find mP and mT. P  T Third s Thm. mP = mT Def. of s. 2x2= 4x2 – 32 Substitute 2x2 for mP and 4x2 – 32 for mT. –2x2 = –32 Subtract 4x2 from both sides. x2 = 16 Divide both sides by -2. So mP = 2x2 = 2(16) = 32°. Since mP = mT,mT =32°.
