EPIC PN Update on CTI, Energy Scale, and FWHM Resolution

Stay informed with the latest updates on the charge transfer inefficiency, energy scale, and energy resolution for EPIC pn detectors. Updates cover multiple aspects including CTI quadrant adjustments, FWHM improvements, and energy position accuracy.

hyacinth-patton
Download Presentation

EPIC PN Update on CTI, Energy Scale, and FWHM Resolution

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. EPIC pn: Update on the CTI, the absolute energy scale and the energy resolution CTI.. update for EPIC pn

  2. FF CTI.. update for EPIC pn

  3. FF Mn-K CTI CCD 1 - 6 CTI.. update for EPIC pn

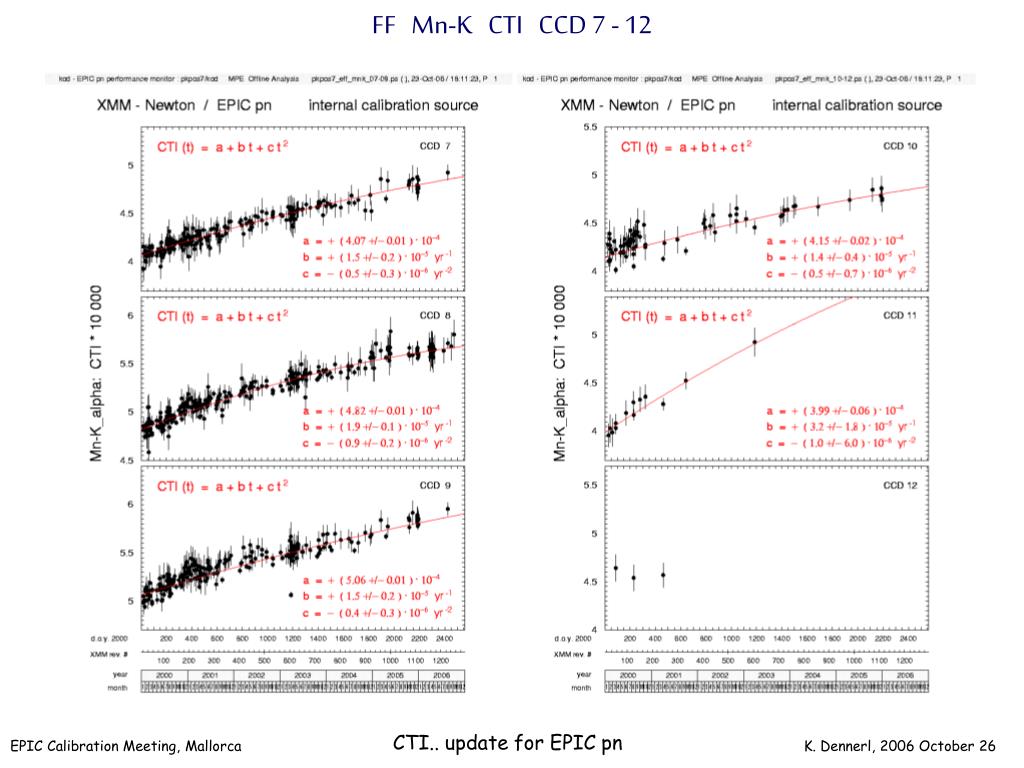

  4. FF Mn-K CTI CCD 7 - 12 CTI.. update for EPIC pn

  5. FF Mn-K CTI Quadrant 0 CTI.. update for EPIC pn

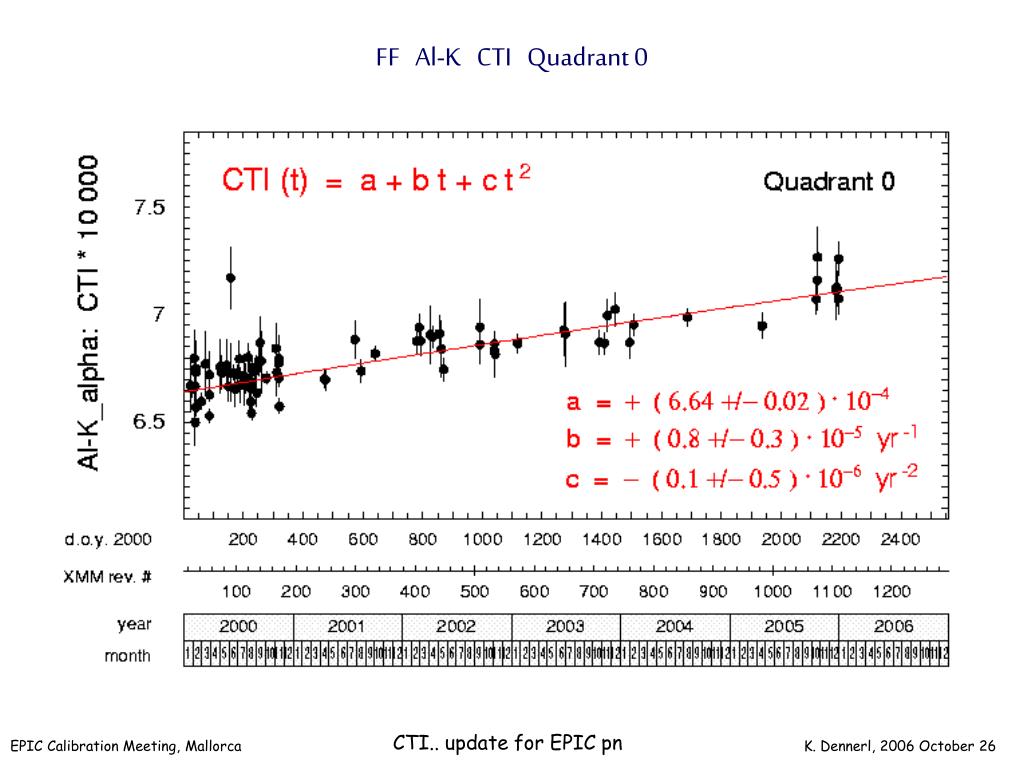

  6. FF Al-K CTI Quadrant 0 CTI.. update for EPIC pn

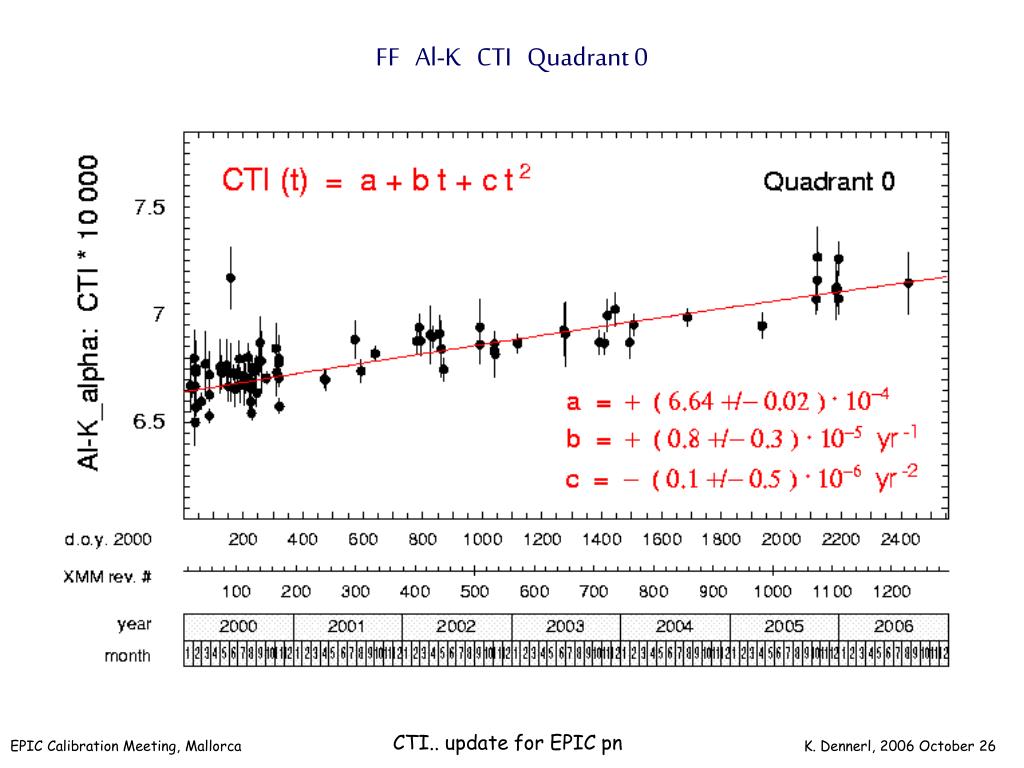

  7. FF Al-K CTI Quadrant 0 CTI.. update for EPIC pn

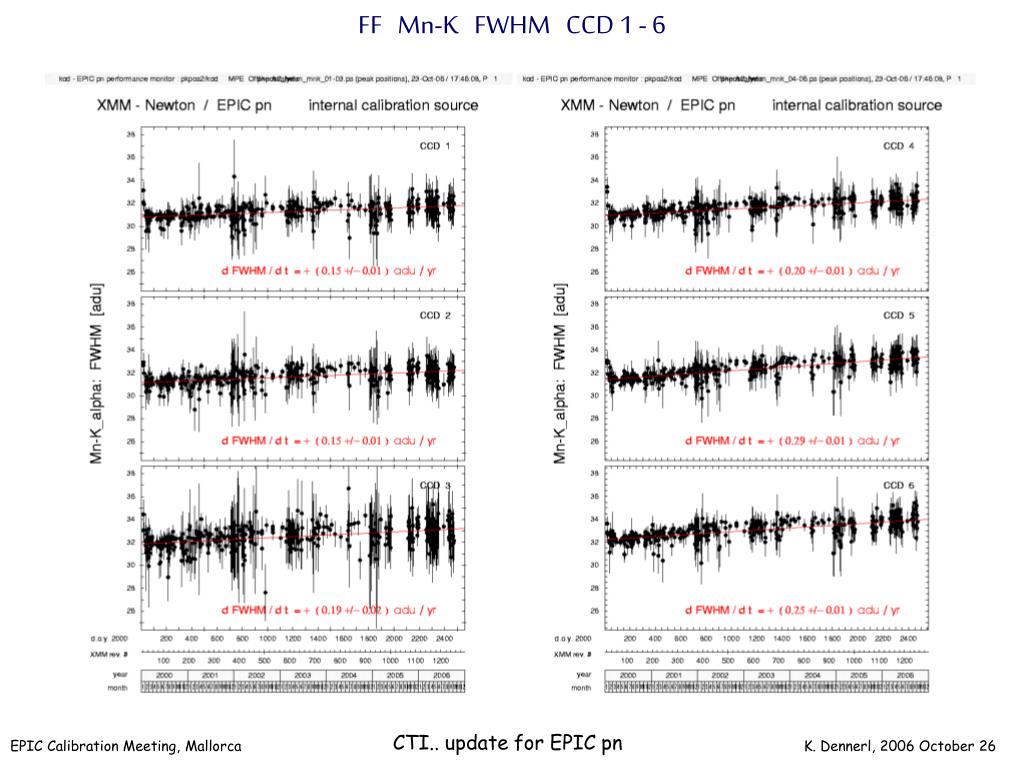

  8. FF Mn-K FWHM CCD 1 - 6 ff CTI.. update for EPIC pn

  9. FF Mn-K FWHM CCD 7 - 12 CTI.. update for EPIC pn

  10. FF Mn-K FWHM Quadrant 0 column gains adjusted CTI.. update for EPIC pn

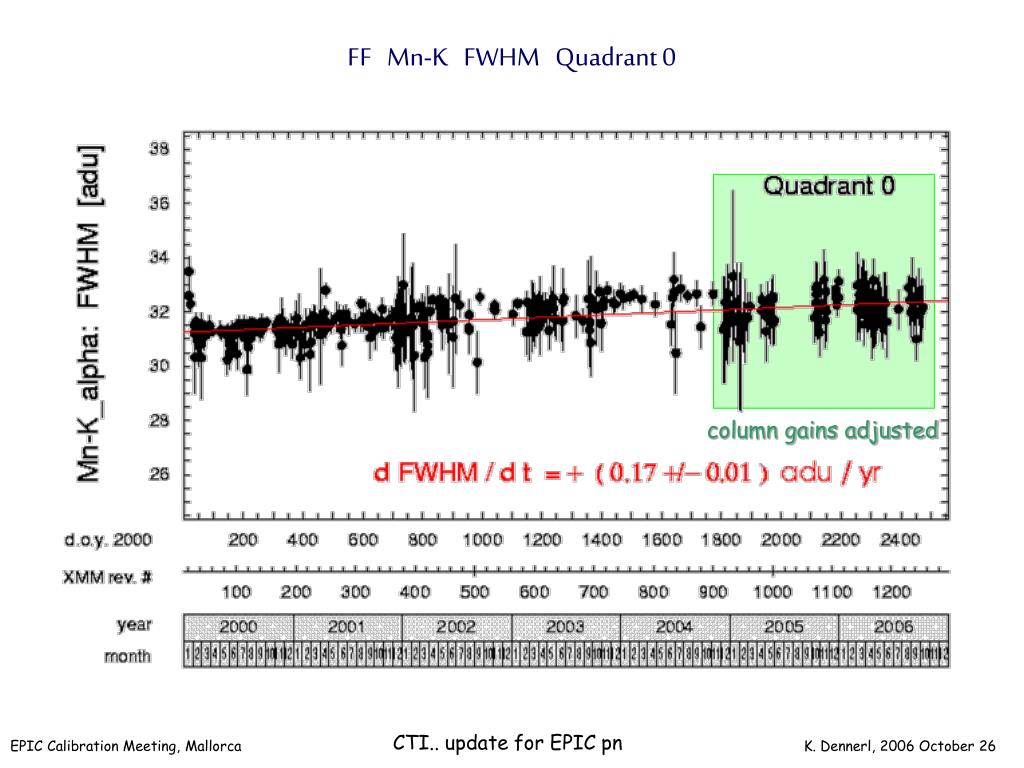

  11. FF Mn-K FWHM Quadrant 0 column gains adjusted CTI.. update for EPIC pn

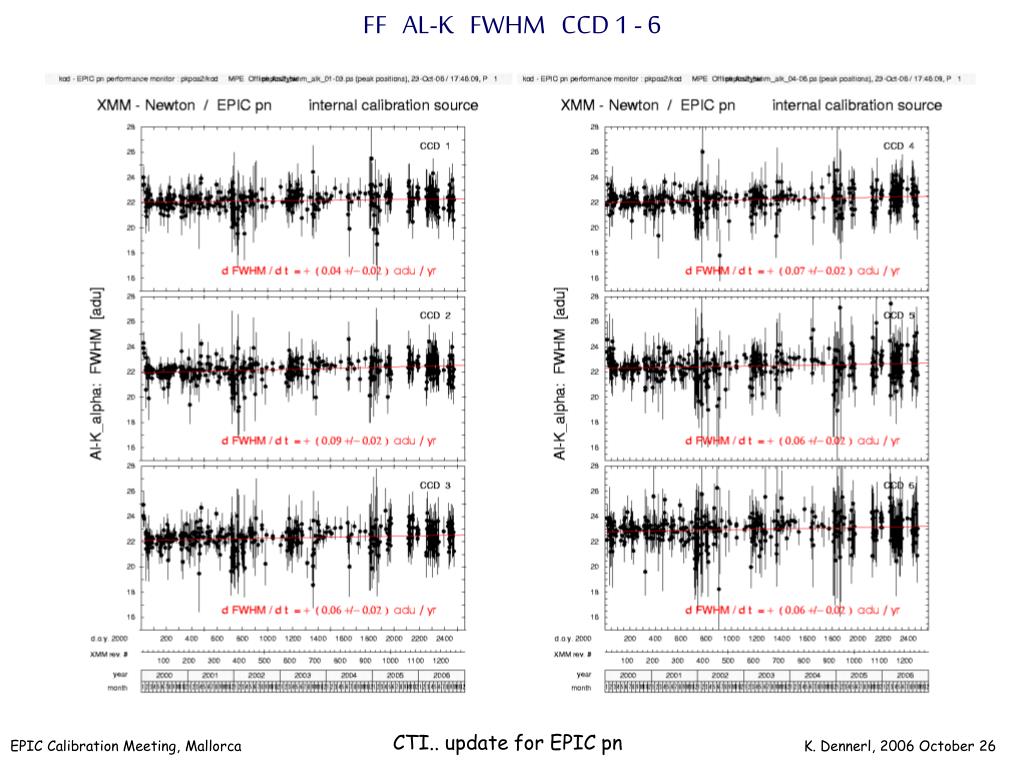

  12. FF AL-K FWHM CCD 1 - 6 ff CTI.. update for EPIC pn

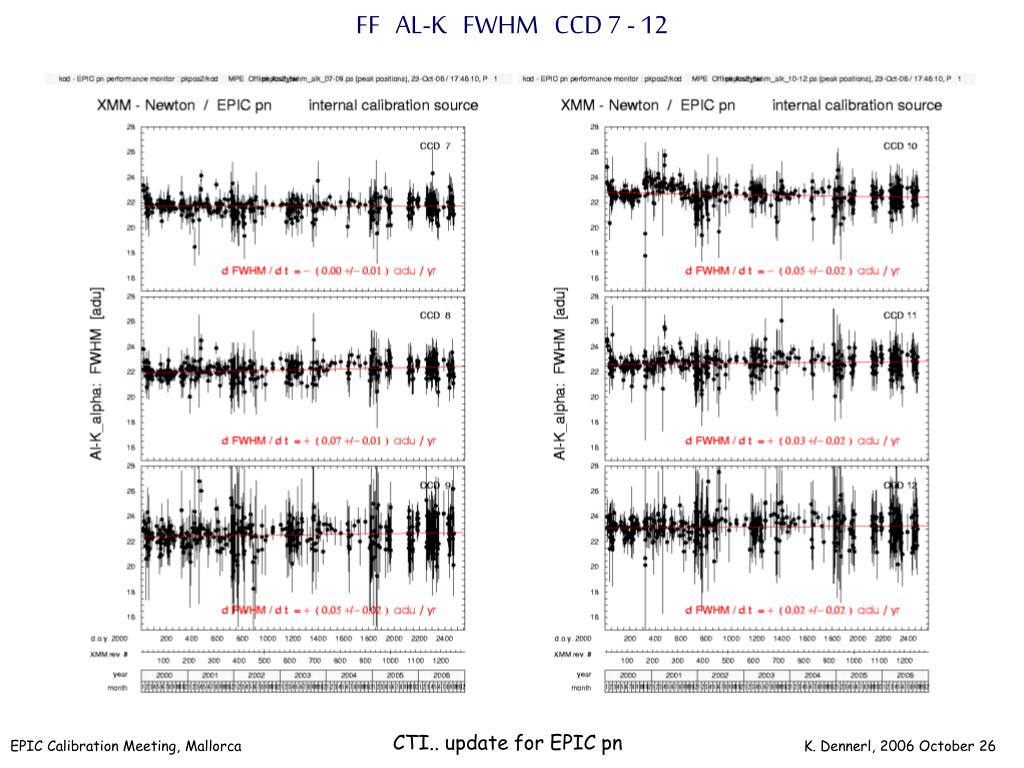

  13. FF AL-K FWHM CCD 7 - 12 ff CTI.. update for EPIC pn

  14. FF Al-K FWHM Quadrant 0 column gains adjusted CTI.. update for EPIC pn

  15. FF Al-K FWHM Quadrant 0 column gains adjusted CTI.. update for EPIC pn

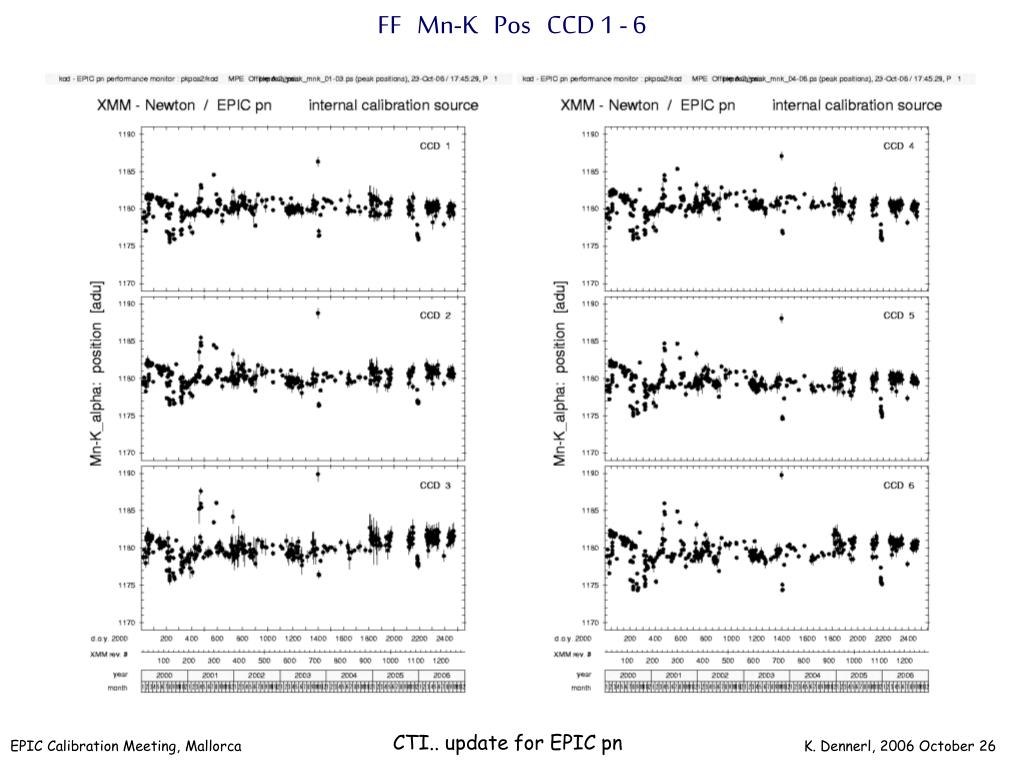

  16. FF Mn-K Pos CCD 1 - 6 CTI.. update for EPIC pn

  17. FF Mn-K Pos CCD 7 - 12 CTI.. update for EPIC pn

  18. FF Mn-K Pos Quadrant 0 ± 5 eV CTI.. update for EPIC pn

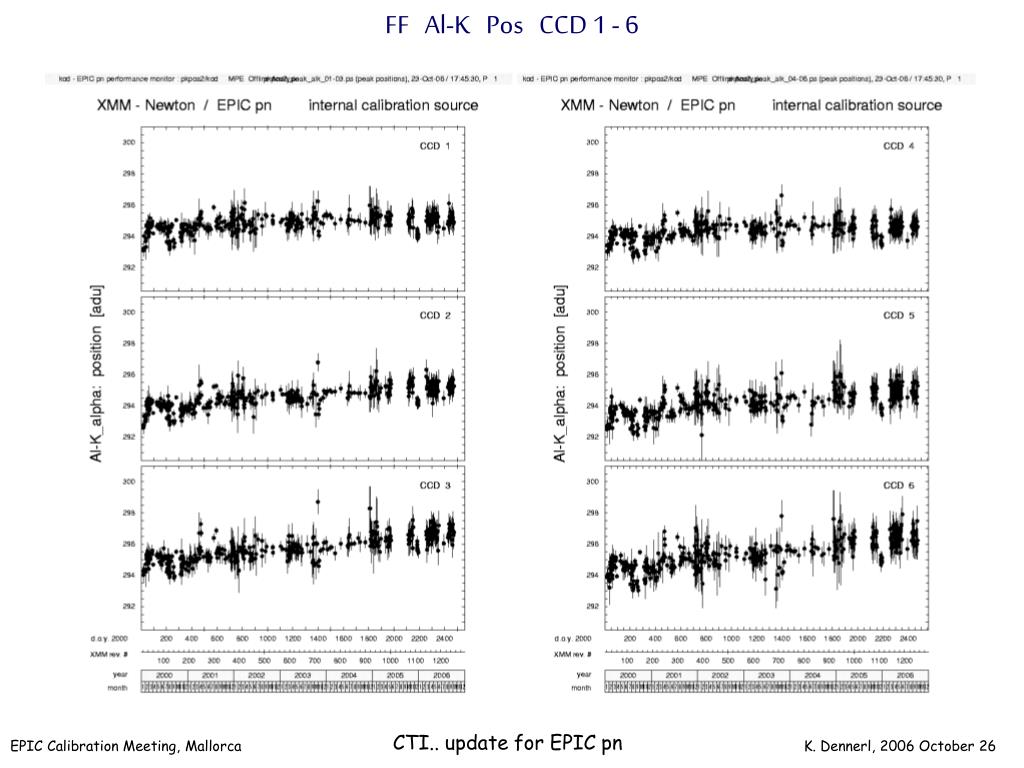

  19. FF Al-K Pos CCD 1 - 6 CTI.. update for EPIC pn

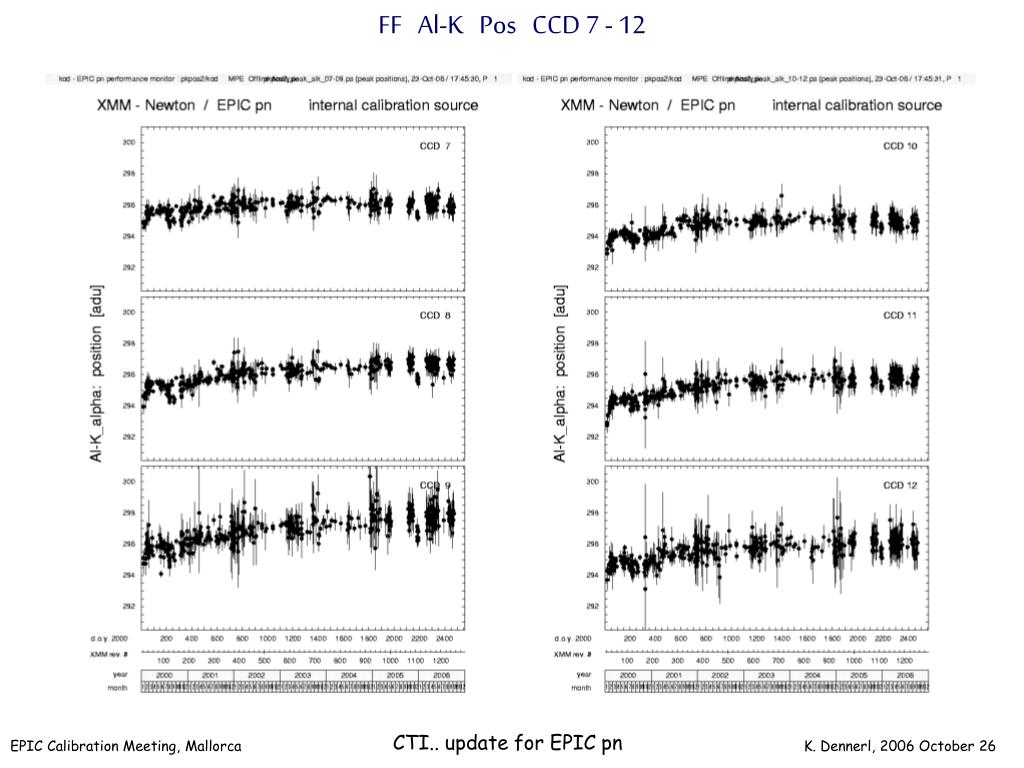

  20. FF Al-K Pos CCD 7 - 12 CTI.. update for EPIC pn

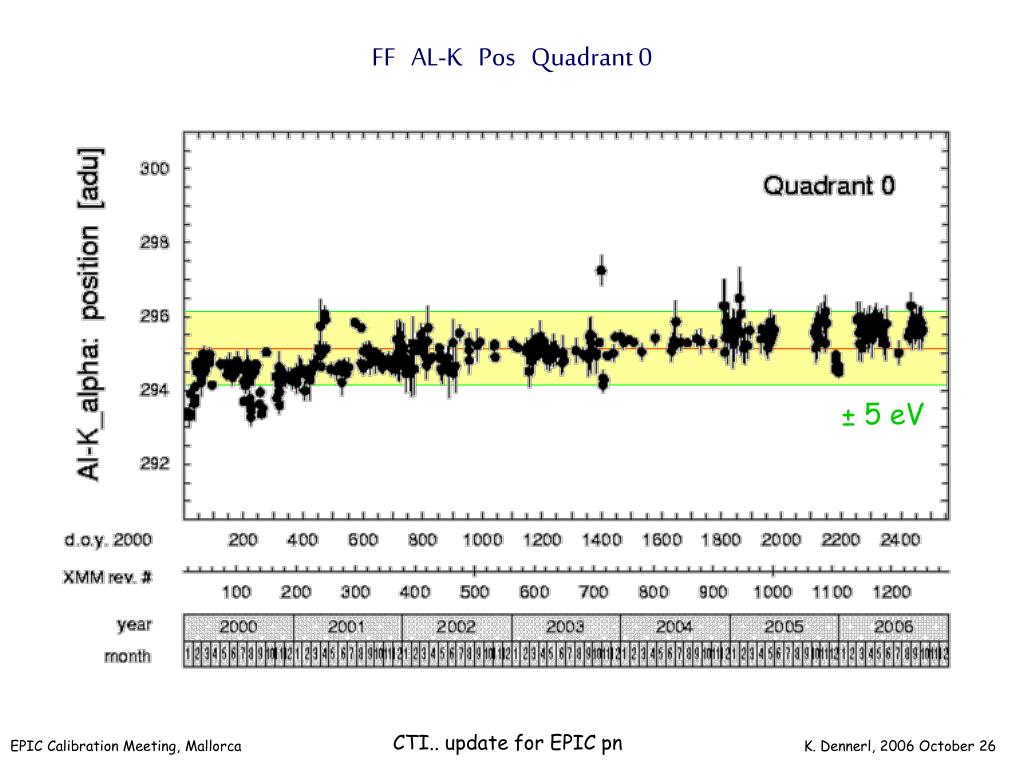

  21. FF AL-K Pos Quadrant 0 ± 5 eV CTI.. update for EPIC pn

  22. eFF CTI.. update for EPIC pn

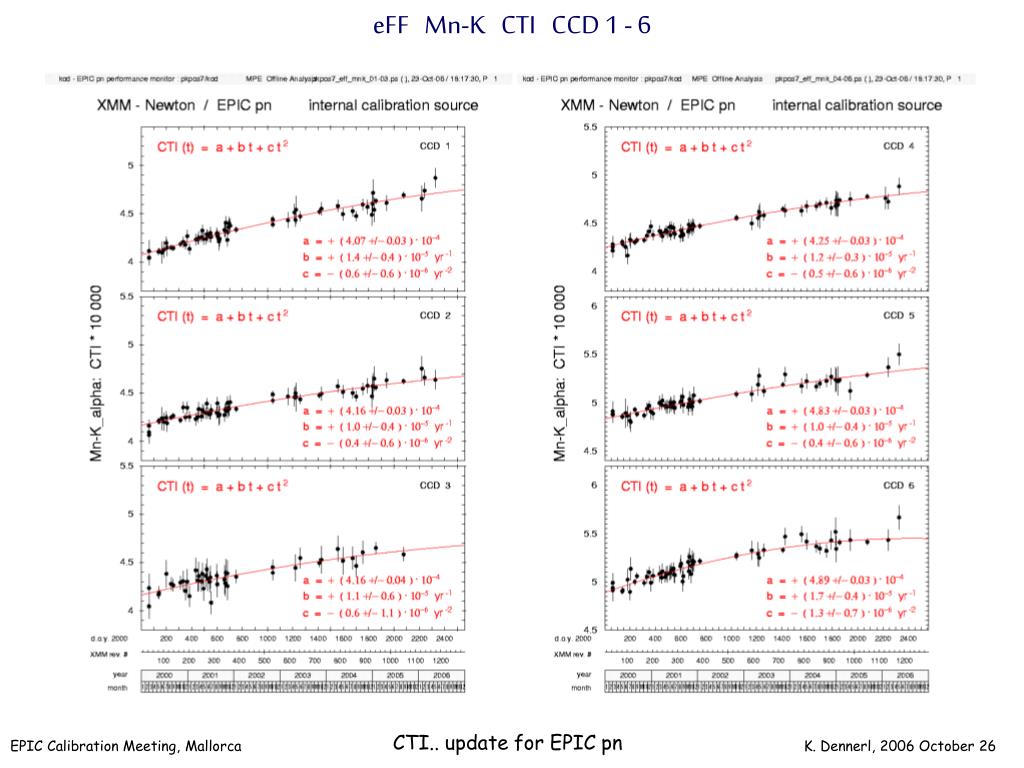

  23. eFF Mn-K CTI CCD 1 - 6 CTI.. update for EPIC pn

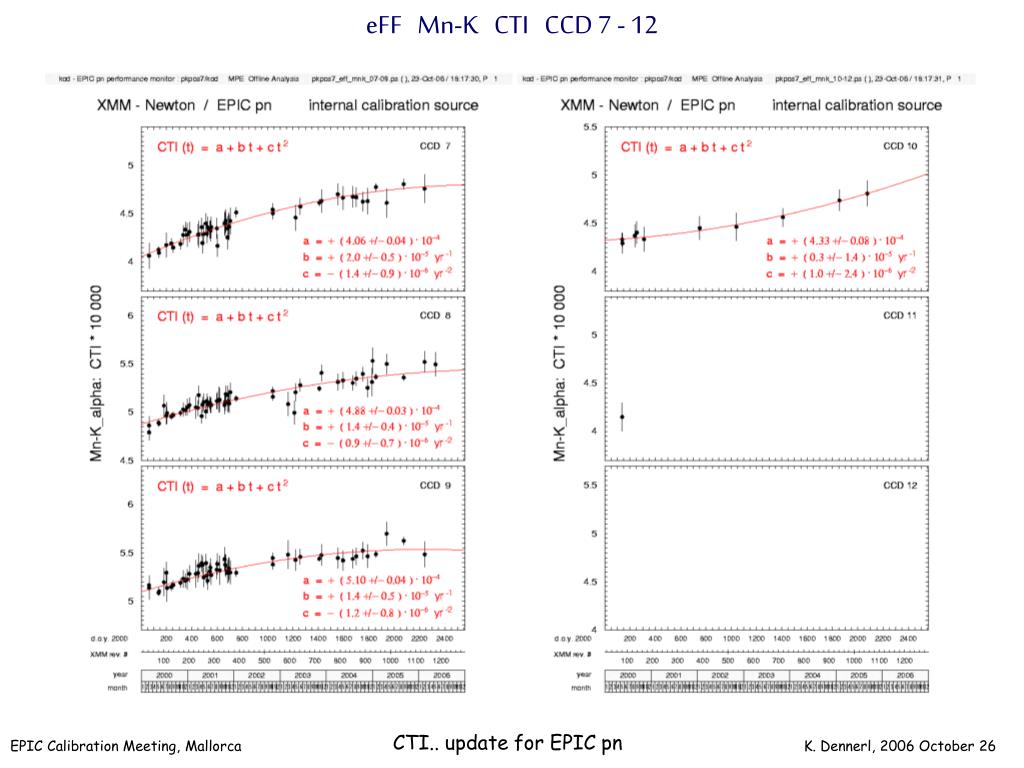

  24. eFF Mn-K CTI CCD 7 - 12 CTI.. update for EPIC pn

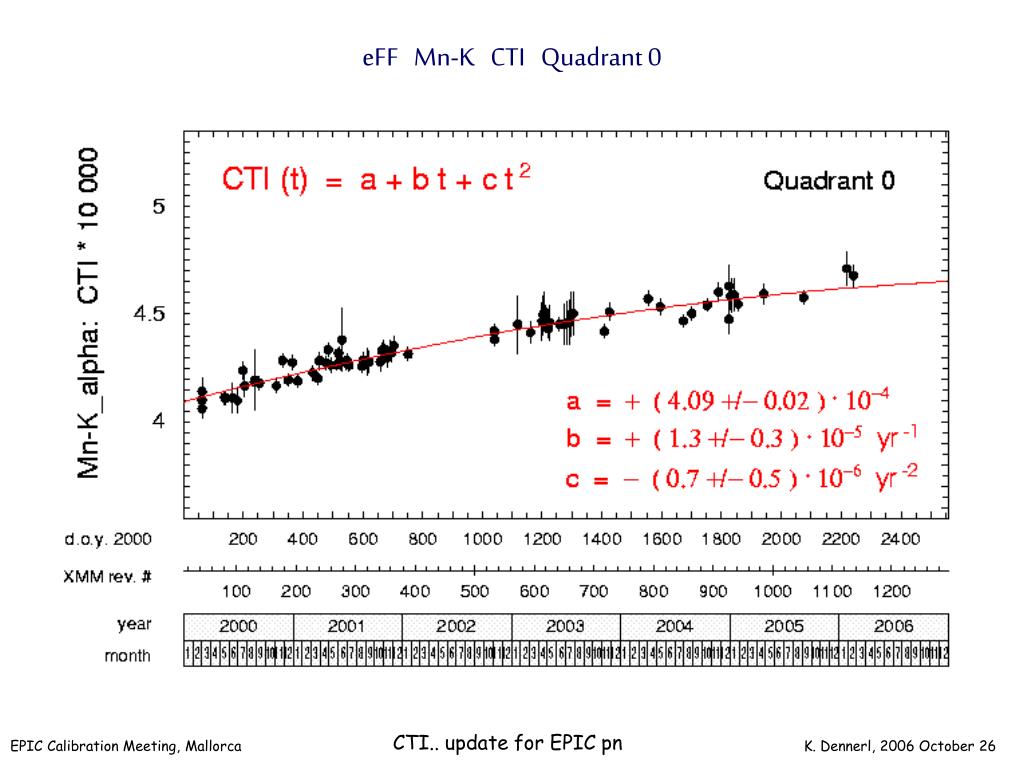

  25. eFF Mn-K CTI Quadrant 0 CTI.. update for EPIC pn

  26. eFF Mn-K CTI Quadrant 0 CTI.. update for EPIC pn

  27. eFF Mn-K CTI Quadrant 0 FF Mn-K CTI Quadrant 0 CTI.. update for EPIC pn

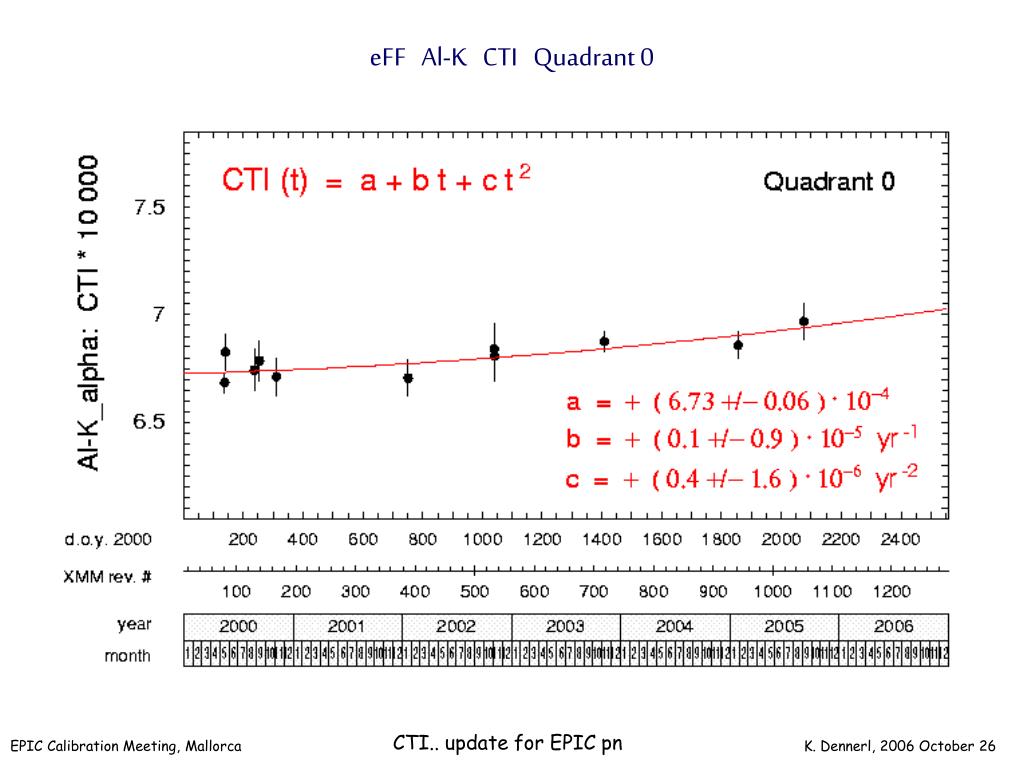

  28. eFF Al-K CTI Quadrant 0 CTI.. update for EPIC pn

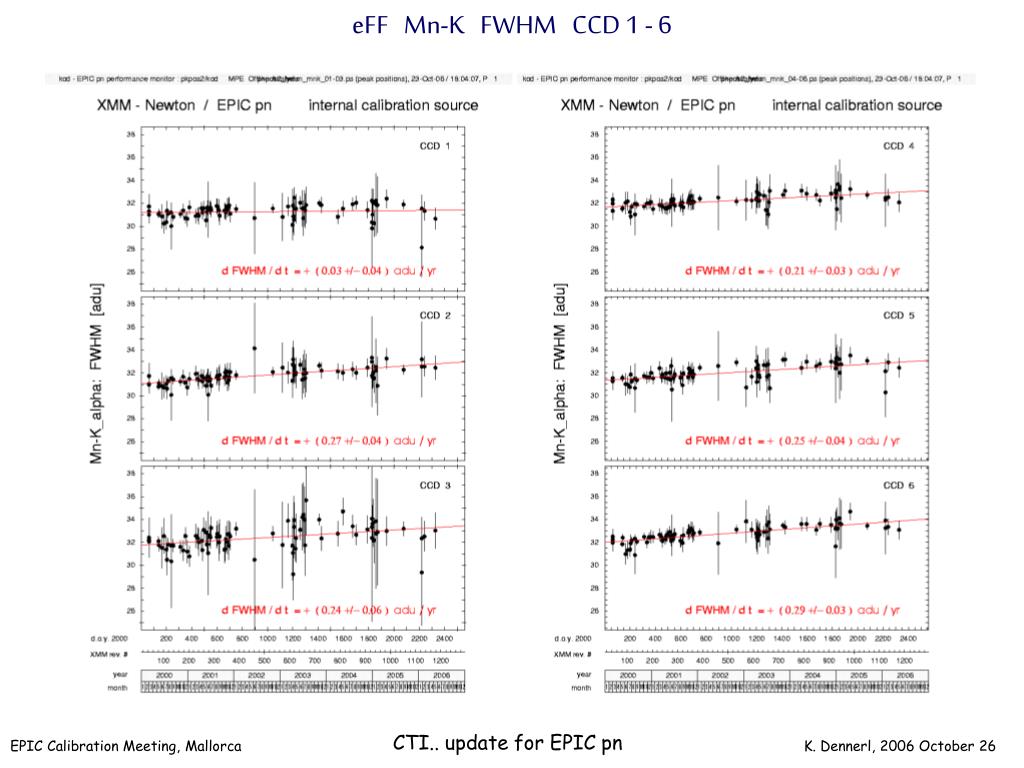

  29. eFF Mn-K FWHM CCD 1 - 6 ff CTI.. update for EPIC pn

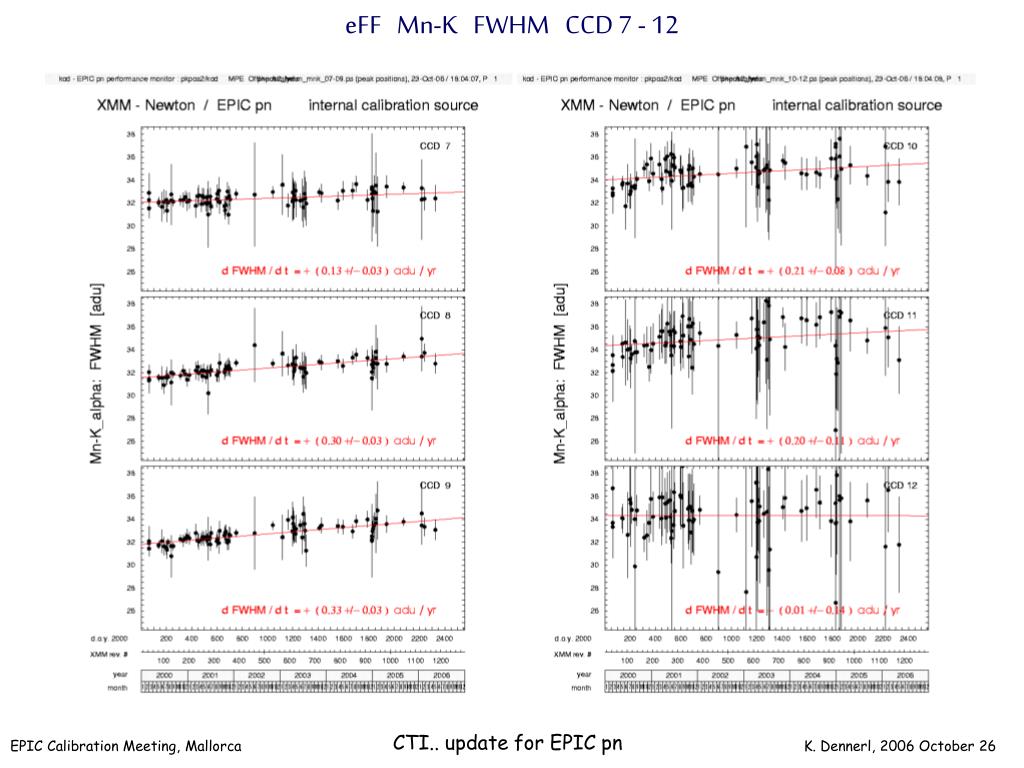

  30. eFF Mn-K FWHM CCD 7 - 12 CTI.. update for EPIC pn

  31. eFF Mn-K FWHM Quadrant 0 column gains adjusted CTI.. update for EPIC pn

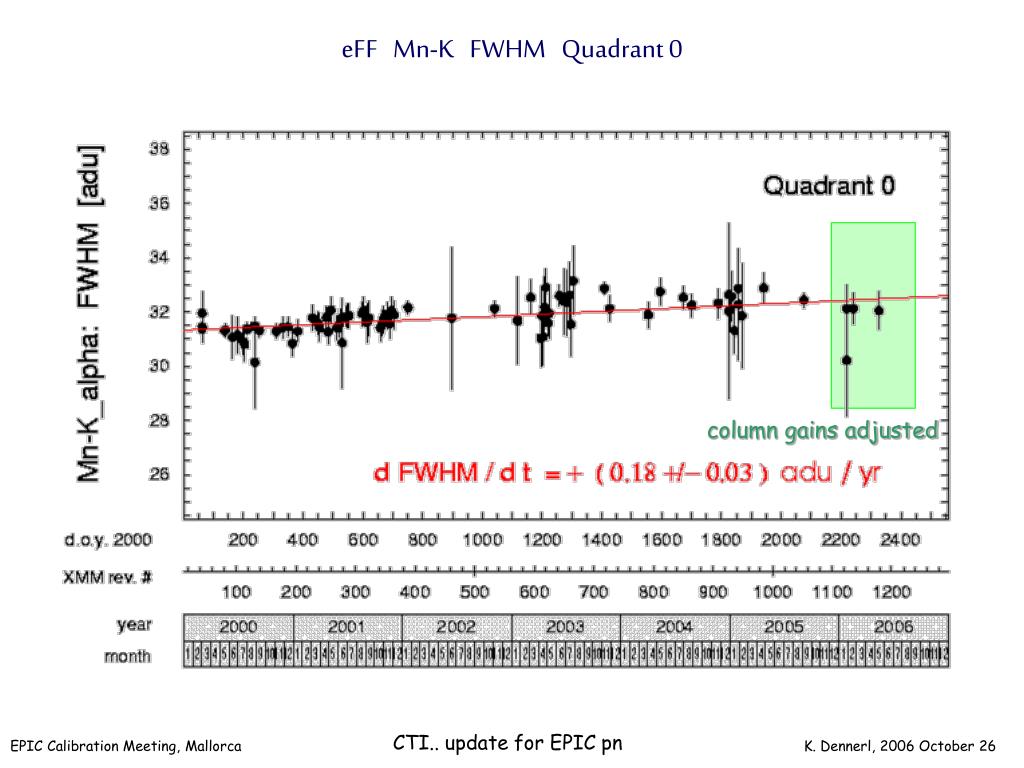

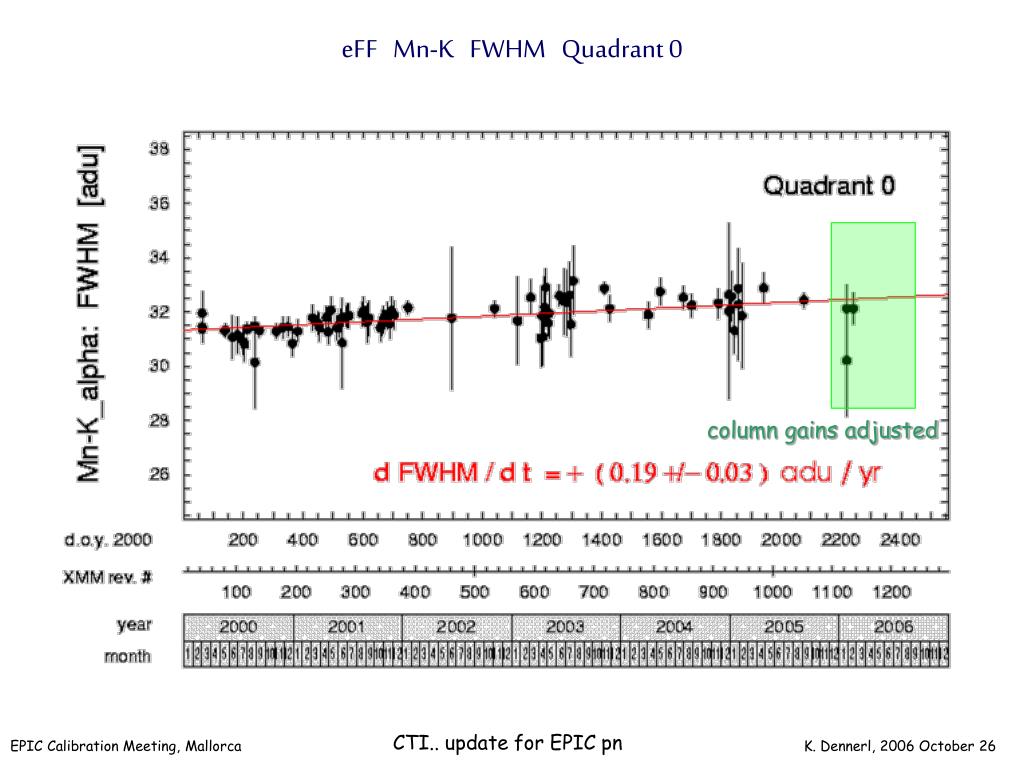

  32. eFF Mn-K FWHM Quadrant 0 column gains adjusted CTI.. update for EPIC pn

  33. eFF AL-K FWHM CCD 1 - 6 ff CTI.. update for EPIC pn

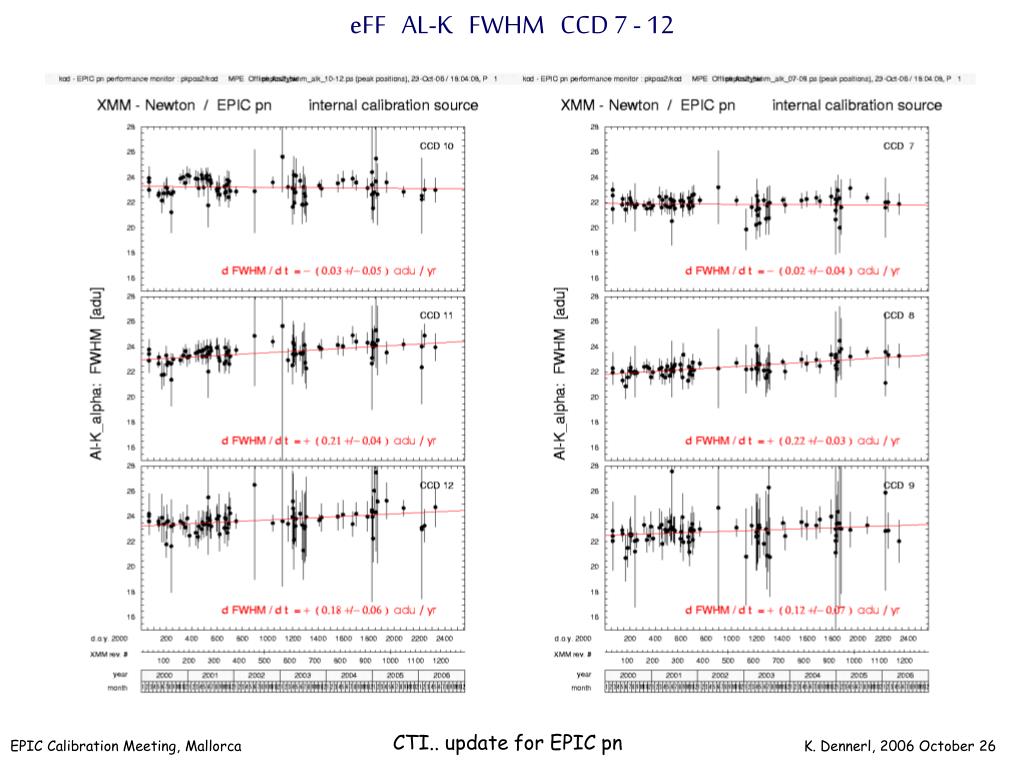

  34. eFF AL-K FWHM CCD 7 - 12 ff CTI.. update for EPIC pn

  35. eFF Al-K FWHM Quadrant 0 column gains adjusted CTI.. update for EPIC pn

  36. eFF Al-K FWHM Quadrant 0 column gains adjusted CTI.. update for EPIC pn

  37. eFF Mn-K Pos CCD 1 - 6 CTI.. update for EPIC pn

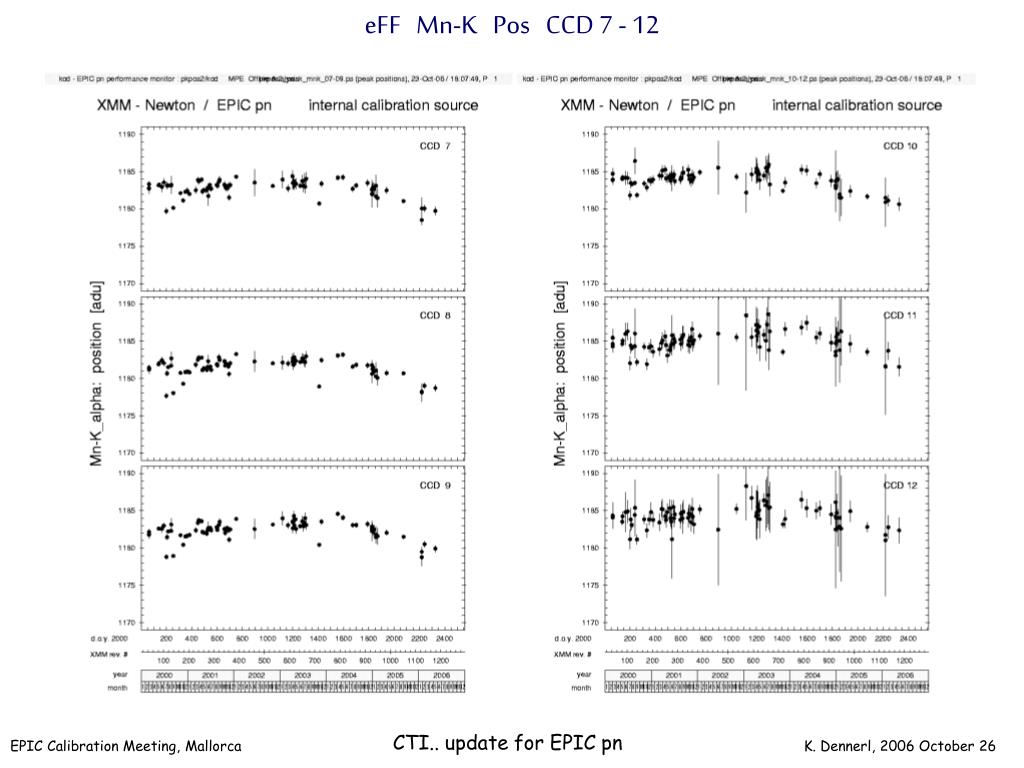

  38. eFF Mn-K Pos CCD 7 - 12 CTI.. update for EPIC pn

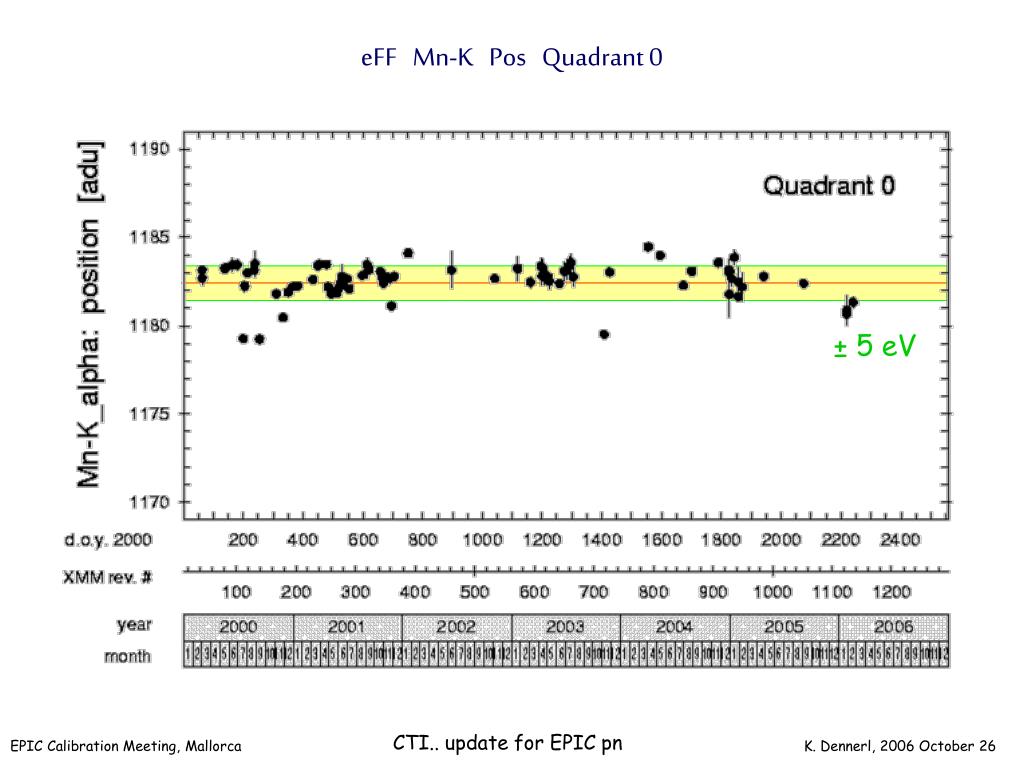

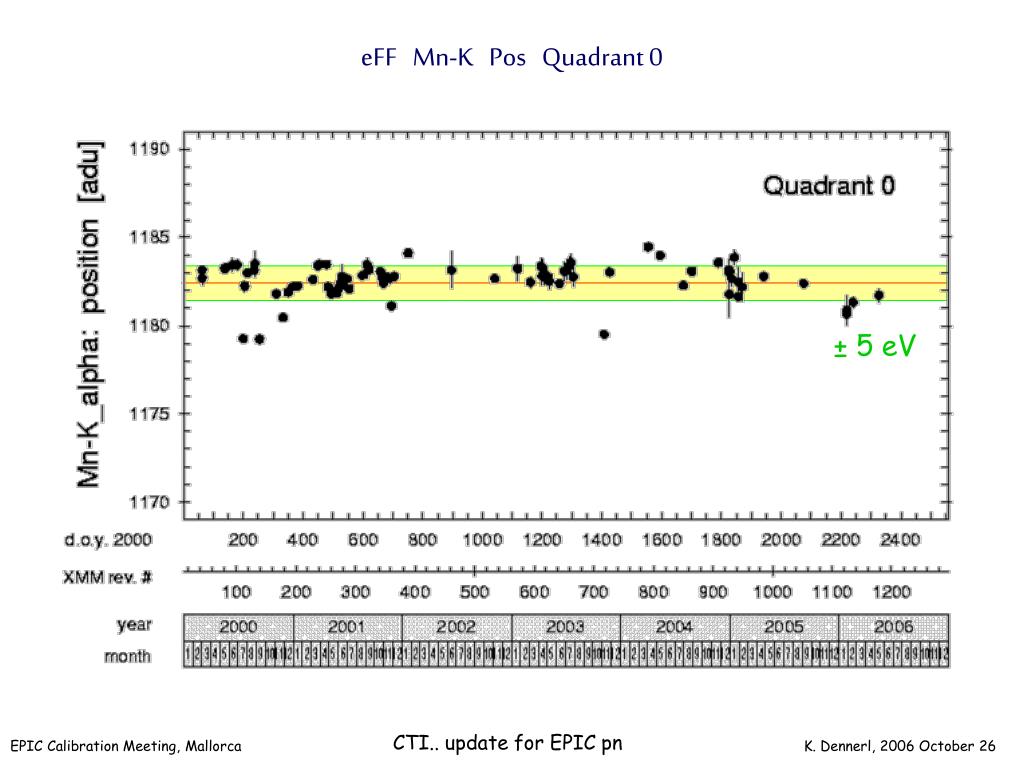

  39. eFF Mn-K Pos Quadrant 0 ± 5 eV CTI.. update for EPIC pn

  40. eFF Mn-K Pos Quadrant 0 ± 5 eV CTI.. update for EPIC pn

  41. eFF Al-K Pos CCD 1 - 6 CTI.. update for EPIC pn

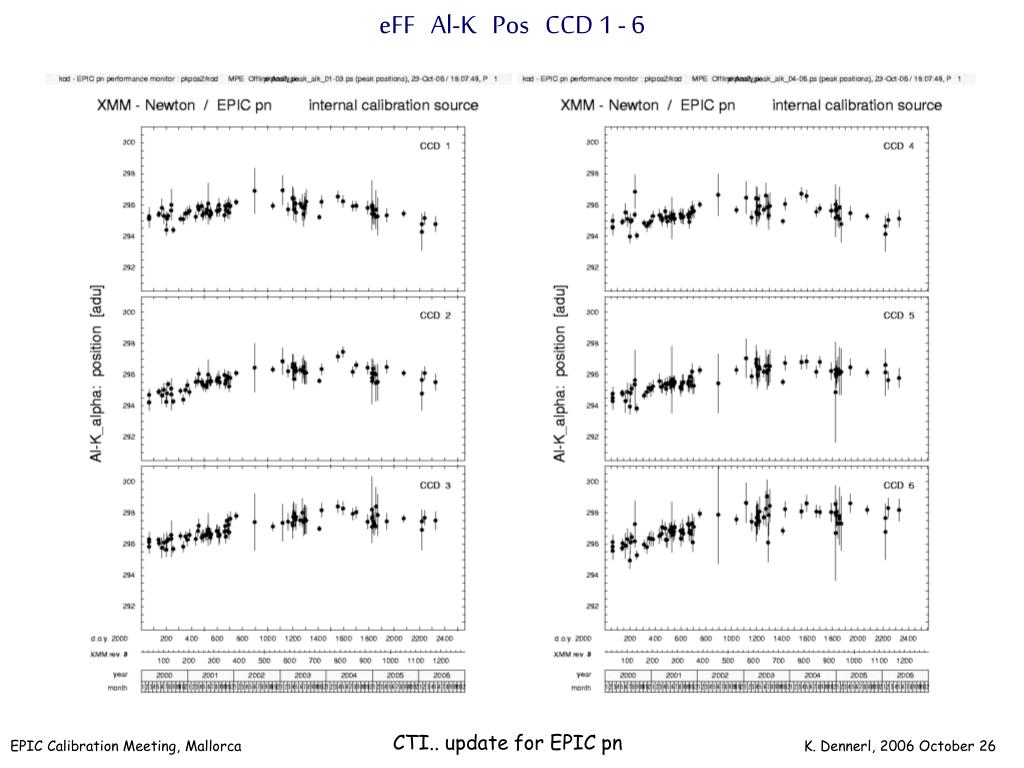

  42. eFF Al-K Pos CCD 7 - 12 CTI.. update for EPIC pn

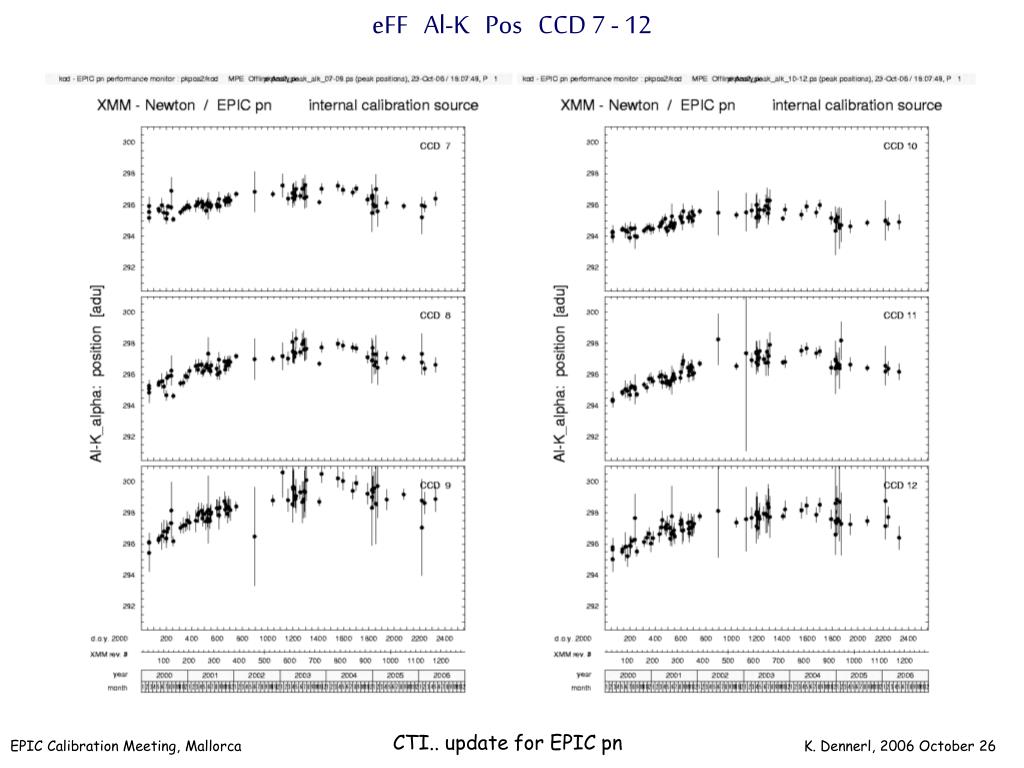

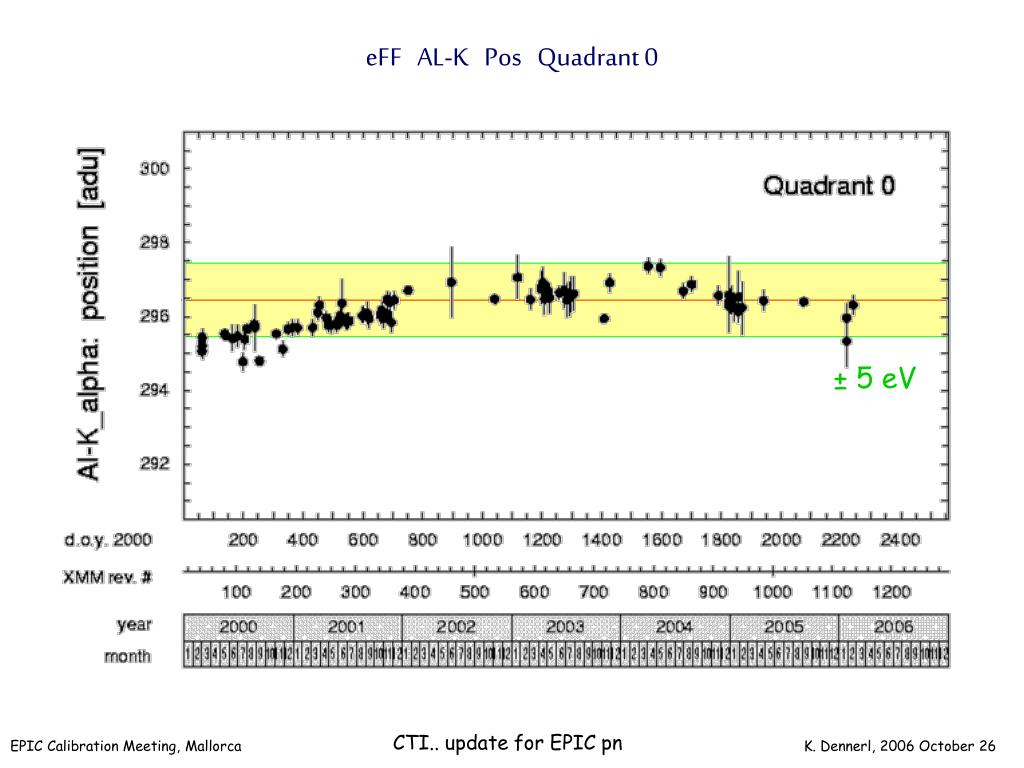

  43. eFF AL-K Pos Quadrant 0 ± 5 eV CTI.. update for EPIC pn

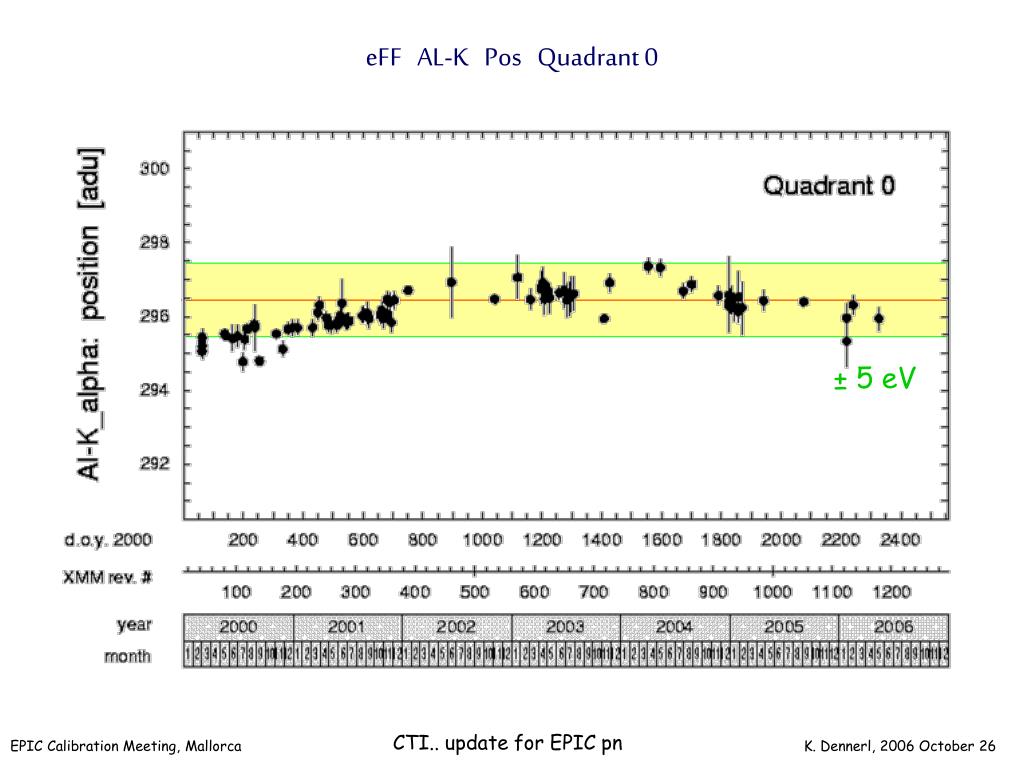

  44. eFF AL-K Pos Quadrant 0 ± 5 eV CTI.. update for EPIC pn
