  1. Ultra-Fast Inspection of Tubes up to 4”

  2. COMPANY SNAPSHOT • Founded in 2010 • Experts in Acoustic Pulse Reflectometry • Proven, patented Acoustic Eye technology • European presence and customer base • CE certified • ISO 9001 certified www.soundtubetesting.com

  3. BREAKTHROUGH TECHNOLOGY Based on Acoustic Pulse Reflectometry (APR) • Probe injects acoustic pulse down the tube • Returned echoes generated by defects are recorded and analyzed • Patented algorithms identify and report exact location, type and size of inner diameter defects www.soundtubetesting.com

  4. TODAY’S INSPECTION Conventional inspection techniques • Eddy Current – Electromagnetic test • Video Scope - Optic • IRIS - Ultrasonic Slow, cumbersome, limited • Invasive • Application dependant – shape, material, size, thickness • Physical limitations – tube ID, wall thickness • Inventory of consumable probes and standards required • Requires highly skilled personnel www.soundtubetesting.com

  5. ACOUSTIC EYE SOLUTION Up to 4” inner diameter, any shape or material • Boilers, Fin Fans, other heat exchangers • U-bends, twisted, spiral wound tubes • Ferrous and non-ferrous metals, graphite and plastics Ultra-fast, non-invasive inspection • Less than 10 seconds per tube, 5 sec.< 20 ft.(6m) • Fast enough for 100% inspection if/when needed • Ideal for emergency situations • No need for inventory of consumable probes or standards Dolphin G3™ Less expertise required • Easy operation with minimal training • Computer-based data interpretation and report generation www.soundtubetesting.com

  6. TUBE SHAPE • U-bends • Finned tubes • Twisted • Spiral wound Any Configuration www.soundtubetesting.com

  7. TUBE SIZE AND LENGTH • 5/16” up to 4” (8mm – 102mm) inner diameter • Up to 35 meters depending on defect size, tube configuration and type www.soundtubetesting.com

  8. TUBE MATERIALS • Ferrous • Non-ferrous • Graphite • Plastics Any Type www.soundtubetesting.com

  9. INSPECTION SPEED • Less than 10 seconds per tube • 5 seconds per tube less than 20 ft. (6m) • Fast enough for 100% inspection if/when needed • Ideal for emergency situations www.soundtubetesting.com

  10. DETECTED DEFECTS www.soundtubetesting.com

  11. OPERATION Simple process to collect data • Software guides operator step-by-step • Tube sheet mapping • Parameter input • Measurements • Intuitive, graphic user interface Less expertise required • Minimal operator training • Computer-based data interpretation and report generation www.soundtubetesting.com

  12. REPORTS • Customizable, graphical on-line reports • Available output in PDF or HTML format www.soundtubetesting.com

  13. HARDWARE www.soundtubetesting.com

  14. HARDWARE Compact handheld device • Microphone • Loudspeaker • Tube adapters to fit up to 4” ID • Customized extensions for easy tube access in challenging situations (optional) Microphone Loudspeaker Tube Adapter www.soundtubetesting.com

  15. HARDWARE Main measurement and control unit • External computer connected to handheld device • Runs AcousticEye software • Inspection setup • Probe status monitoring • Test data recording and analysis www.soundtubetesting.com

  16. PHYSICAL CHARACTERISTICS Compact, rugged, lightweight • Total box weight • 39.7 lbs (18Kg) • Box dimensions • 22” L x 17.9” W x 10.4” H (56 x 45.5 x 26.5 cm ) www.soundtubetesting.com

  17. DEFECT SIGNATURES www.soundtubetesting.com

  18. TYPICAL FAULTS Each inner diameter defect has its own signature • Exact location, type and size identified Impinging pulse Reflection from a local blockage Reflection from a local degradation Reflection from a hole t Blockage deposits, dents, welding material Wall Loss pitting, erosion www.soundtubetesting.com

  19. SAMPLE SIGNALS Tube Wall Degradation Hole Partial Blockage www.soundtubetesting.com

  20. OPERATION www.soundtubetesting.com

  21. PUTTING DOLPHIN G3™ TO WORK Setup (map, parameters) Take measurements Analyze results and generate report 1 2 3 www.soundtubetesting.com

  22. STEP 1: SETUP – MAP OUT WORKPLAN 2 3 1 2 Tubes numbered automatically Tubes detected automatically Take a digital photo www.soundtubetesting.com

  23. STEP 1: SETUP – SET PARAMETERS • Tube length • Tube outer diameter (OD) • Tube wall thickness • Ambient temperature www.soundtubetesting.com

  24. STEP 2: TAKE THE MEASUREMENTS www.soundtubetesting.com

  25. STEP 3: ANALYZE RESULTS The software identifies all defects • Operator needs to verify the results Approve www.soundtubetesting.com

  26. STEP 3: GENERATE REPORT www.soundtubetesting.com

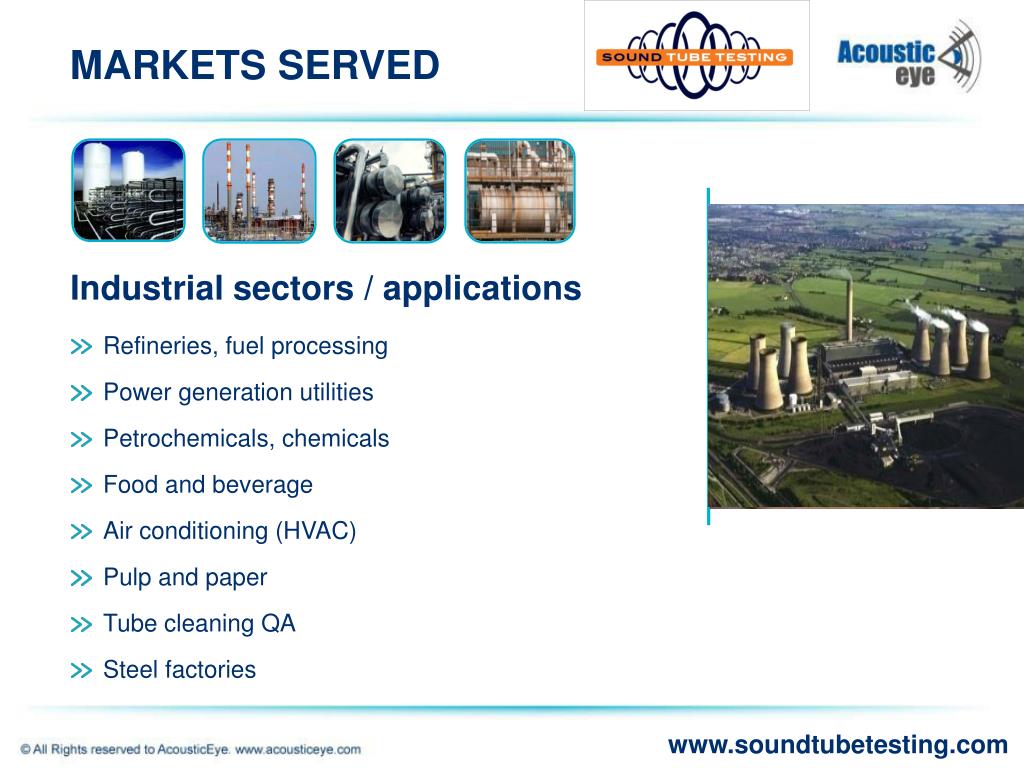

  27. MARKETS SERVED • Refineries, fuel processing • Power generation utilities • Petrochemicals, chemicals • Food and beverage • Air conditioning (HVAC) • Pulp and paper • Tube cleaning QA • Steel factories Industrial sectors / applications www.soundtubetesting.com

  28. INDUSTRY STANDARDS • ASME • Standard in process • ASTM • Initial stages www.soundtubetesting.com

  29. THIRD PARTY REPORTS Southwest Research Institute (SwRI) • AcousticEye technology validation study • Findings report published and available www.soundtubetesting.com

  30. SUMMARY • Ultra-fast inspection up to 4” in any shape or material • Less than 10 seconds per tube, 5 sec.< 20ft. (6m) • Breakthrough solution for today’s hard-to-inspect tubes • Boilers, Fin Fans, u-bend, twisted… • Proven, patented APR technology • Non-invasive, no consumable inventory • European customer base and presence www.soundtubetesting.com

  31. www.soundtubetesting.com
