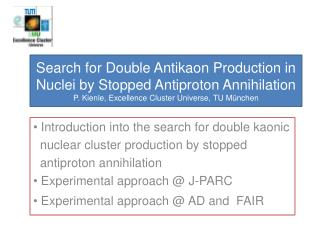

Searchfor Double Antikaon Productionin Nuclei byStopped Antiproton AnnihilationP. Kienle, Excellence Cluster Universe, TU München

Introduction into the search for double kaonic

nuclear cluster production by stopped

antiproton annihilation

Experimental approach @ J-PARC

Experimental approach @ AD and FAIR


Possibility of “Double-Kaonic

Nuclear Cluster” Production

by Stopped-pbarAnnihilation

Preludeto „Double-Strange Nuclei“ @ LEAP

W. Weise, arXiv: 0507.058 (nucl-th) 2005

P. Kienle, J. Mod. Phys., A22 (2007) 365

P. Kienle, J. Mod. Phys., E16 (2007) 905

J. Zmeskal et al. EXA/LEAP 08, Hyper, Int

J. Zmeskal et al. „Double-Strangeness Pro-

ductionby Antiprotons, May 2009, CERN


DeeplyBound Di-Baryon Resonance

with Strangness S =-1

  • Properties
  • p+p -> K+ +X @ highmomentumtransfer
  • MX = 2.265 (2) GeV/c² -> BX = 105(2) MeV
  • ΓX = 118(8) MeV/c²
  • Assignedtodeeplybound, denseK-ppclusterwithBxabouttwicethevaluepredictedby AY
  • High observedproductionprobabilityispredictedbythe AY reaction model forthecaseof a highdensitycluster X
  • Consequencesfor Double Strange Cluster
  • Higher bindingenergyandhigherdensityexpectedcomparedwithsinglestrangecluster
  • T. Yamazaki et al.Hyp. Inter.DO: 10.1007/ s 10751-0099997-5
double kaonic nuclear cluster
Double-Kaonic Nuclear Cluster
  • Double-kaonic nuclear clusters have been predicted theoretically.
  • Double-kaonic clusters are expected to have a stronger binding
  • energy and a higher density than single ones.

PL,B587,167 (2004). & NP, A754, 391c (2005).

  • How to produce the double-kaonic nuclear cluster?
          • heavy ion collision
          • (K-,K+) reaction
          • pbarA annihilation

We use pbarA annihilation

double strangeness production with p bar
Double-Strangeness Production with pbar

The elementary pbar-p annihilation reaction:


is forbidden for stopped pbar,

because of a negative Q-value of 98MeV

However, if deeply bound multi kaonic nuclear clusters exist, production by pbarannihilation reactions will be possible!







double strangeness production
Double-Strangeness Production

Observations of the double-strangeness production in stopped pbar annihilation have been reported by 2 groups only, DIANA@ ITEP and OBELIX@ CERN/LEAR.

Although the observed statistics is very low,

their results have indicated a high yield of ~10-4


A double-strangeness production yield of ~10-4would make it

possible to explore the exotic systems with a dedicated experiment

Experimental Approach

for J-PARC

search for the most elementary k k pp system
Searchforthe Most Elementary K-K-pp System

In the following discussion, we focus on the reaction:

(although K-K-pp decay modes are not known,)

we assume the most energetic favored decay mode:

final state = K+K0LL

  • We can detect the K-K-pp signal with:
  • exclusive measurement
  • all charged particles, K+K0LL, using K0p+p- mode
  • K0LL, and K+ ID using K0LL missing mass
  • (semi-)exclusive measurement
  • K+K0 missing mass with L-tag
  • LL invariant mass

We need

wide-acceptance detectors.

expected kinematics
Expected Kinematics
  • assumptions:
  • widths of K-K-pp/H = 0
  • many-body decay = isotropic decay

K+ K0 X momentum spectra





In the K-K-pp production channel, the kaons have very small momentum of up to 300MeV/c, even if B.E.=200MeV.

We have to construct low mass material detectors.

beam line

We would like to perform the proposed experiment

at K1.1 or K1.8BR beam line

pbar stopping-rate evaluation by GEANT4

  • Incident Beam
  • momentum bite : +/-2.5% (flat)
  • incident beam distribution : ideal
  • Detectors
  • Carbon Degrader : 1.99*g/cm3
  • Plastic Scintillator : l=1cm, 1.032*g/cm3
  • Liquid He3 target : f7cm, l=12cm, 0.080*g/cm3

1.3x103 stopped pbar/spill

@ 0.65GeV/c, ldegrader~14cm

  • 30GeV-9mA,
  • 6.0degrees
  • Ni-target

pbar production yield

with a Sanford-Wang

pbar stopping-rate

expected double strangeness yield
Expected Double-Strangeness Yield
  • pbar beam momentum : 0.65GeV/c
  • beam intensity : 3.4x104/spill/3.5s
  • pbar stopping rate : 3.9%
  • stopped-pbar yield : 1.3x103/spill/3.5s
  • Double-strangeness production : 1x10-4/stopped-pbar

 9.6x104 double-strangeness/month

a mere assumption!

  • branching ratio to K+K0LL final state : 0.1

 9.6x103 K+K0LL/month

detector design i
Detector Design I
  • design concept
  • low material detector system
  • wide acceptance with PID
  • useful for other experiments

We are considering

2-types of detector

E15 setup @ K1.8BR

  • B = 0.5T
  • CDC resolution : srf = 0.2mm
  • sz’s depend on the tilt angles (~3mm)
  • ZTPC resolution : sz = 1mm
    • srf is not used for present setup
detector design ii
Detector Design II

New dipole setup @ K1.1

  • The design goal is to become the common setup for the f-nuclei experiment with in-flight pbar-beam
  • B = 0.5T
  • Double Cylindrical-Drift-Chamber setup
  • pID is performed with dE/dx measurement by the INC
  • INC resolution : srf = 0.2mm , sz = 2mm (UV)
  • CDC resolution : srf = 0.2mm, sz = 2mm (UV)
  • CDC is NOT used for the stopped-pbar experiment
expected signals
Expected Signals

LL inv-mass with NEW setup

LL inv-mass with E15 setup

53 K-K-pp events/month

42 K-K-pp events/month

sK-K-pp = 27MeV

sH = 0.7MeV

sK-K-pp = 34MeV

sH = 14MeV

Backgrounds from S0gL have to be taken into account

K+K0 miss-mass with NEW setup

K+K0 miss-mass with E15 setup

sK-K-pp = 8MeV

sH = 25MeV

sK-K-pp = 12MeV

sH = 45MeV

17 K-K-pp events/month

24 K-K-pp events/month

  • We propose to search for double strangeness production by pbar annihilation on helium nuclei at rest.
  • The proposed experiment will provide significant information on double strangeness production and double strangeness cluster states, like K-K-pp.


  • We are investigating further realistic estimation of the K+K0LL yield and the backgrounds for (semi-)inclusive measurements.
  • We are now preparing the proposal for J-PARC based on the LoI.
interpretation of the experimental results
Interpretation of the Experimental Results
  • Although observed statistics are very small, the results have indicated a high yield of ~10-4, which is naively estimated to be ~10-5.
  • Possible candidates of the double-strangeness production mechanism are:
    • rescattering cascades,
    • exotic B>0 annihilation (multi-nucleon annihilation)
  • formation of a cold QGP, deeply-bound kaonic nuclei,
  • H-particle, and so on

the mechanism is NOT known well

because of low statistics

of the experimental results!










diana results
  • DIANA[Phys.Lett., B464, 323 (1999).]
  • pbarXe annihilation
  • p=<1GeV/c pbar-beam @ ITEP 10GeV-PS
  • 700-liter Xenon bubble chamber, w/o B-field
  • 106 pictures7.8x105pbarXe inelastic  2.8x105pbarXe @ 0-0.4GeV/c
obelix results
  • OBELIX(’86~’96) [Nucl. Phys., A797, 109 (2007).]
  • pbar4He annihilation
  • stopped pbar @ CERN/LEAR
  • gas target (4He@NTP, H2@3atm)
  • cylindrical spectrometer w/ B-field
  • spiral projection chamber,
  • scintillator barrels, jet-drift chambers
  • 2.4x105/4.7x104 events of 4/5-prong in 4He
  • pmin = 100/150/300MeV/c for p/K/p

they discuss the possibility of formation and decay of K-K-nn and K-K-pnn bound system

expected kinematics ii
Expected Kinematics II


LL spectra

L-L opening-angle

L momentum

LL inv. mass

strong correlation of LL opening-angle

in K-K-pp/H productions

trigger scheme
Trigger Scheme

pbar3He charged particle multiplicity at rest

CERN LEAR, streamer chamber exp. NPA518,683 91990).


expected stopped-pbar yield = 1.3x103/spill

All events with a scintillator hit will be accumulated

expected signals i
Expected Signals I
  • pbar+3HeK+K0S+ X (X=KKpp/H/LL) events are generated isotropically at the center of the detector system
  • # of generated events is 200k for each case
  • obtained yields are scaled by the estimated K+K0LL yield
  • chamber resolution, multiple scattering and energy losses are fully took into account using GEANT4 toolkit
  • charged particles are traced with spiral fit
  • assumptions:
  • widths of K-K0pp/H = 0
  • B.E. of K-K-pp = 200MeV
  • MH = 2xML
  • branching ratio to K+K0LL final state = 0.1
  • DAQ & analysis efficiency = 0.7  6.7x103 K+K0LL/month
  • Generated ratio  K-K-pp:H:LL = 0.1:0.1:0.8
  • KKppLL and HLL decay branches are assumed to be 100%
  • S0gL contribution is NOT considered for the inclusive measurements

LL invariant mass : inclusive events

K+K0 missing mass : semi-inclusive events (w/ one more L)

k k 0 final state background
K+K0ΛΛFinal State & Background

This exclusive channel study is equivalent to

the unbound (excited) H-dibaryon search!

Possible background channels

  • direct K+K0LL production channels, like:

be distinguished by inv.-mass only

 major background source

  • S0gL contaminations, like:

be eliminated by

the kinematical constraint
