  1. 7.5 Proportions in Triangles

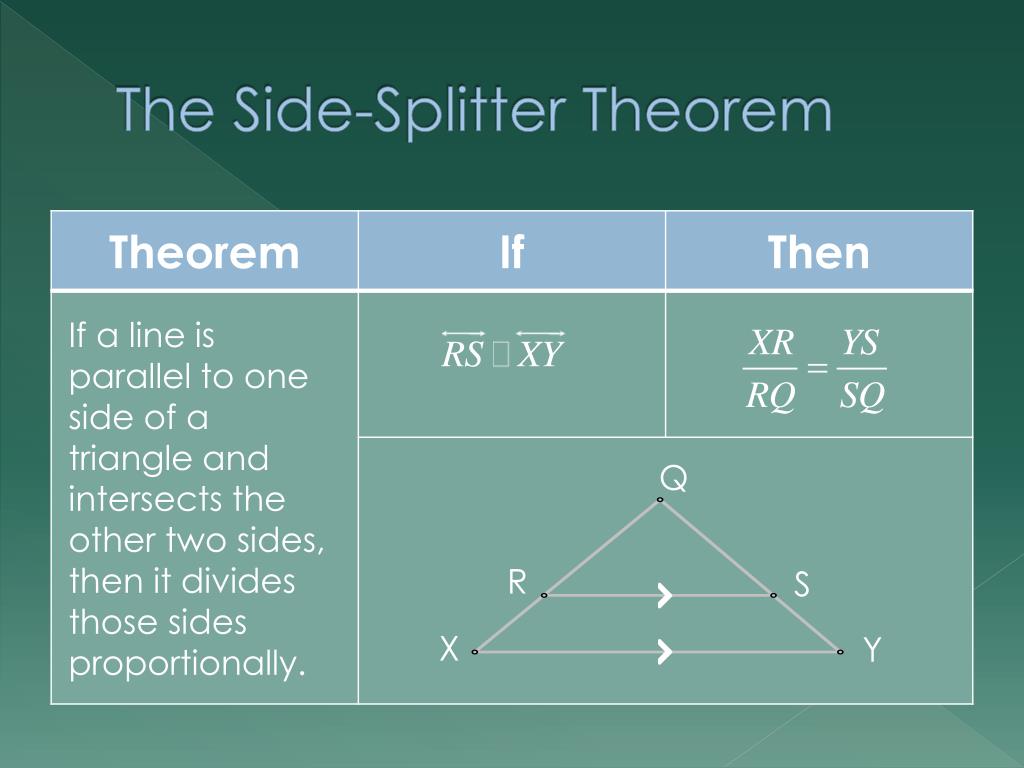

  2. The Side-Splitter Theorem If a line is parallel to one side of a triangle and intersects the other two sides, then it divides those sides proportionally. Q R S X Y

  3. Corollary to the Side-Splitter Theorem If a line is parallel to one side of a triangle and intersects the other two sides, then it divides those sides proportionally. Z Y X S T U a b c

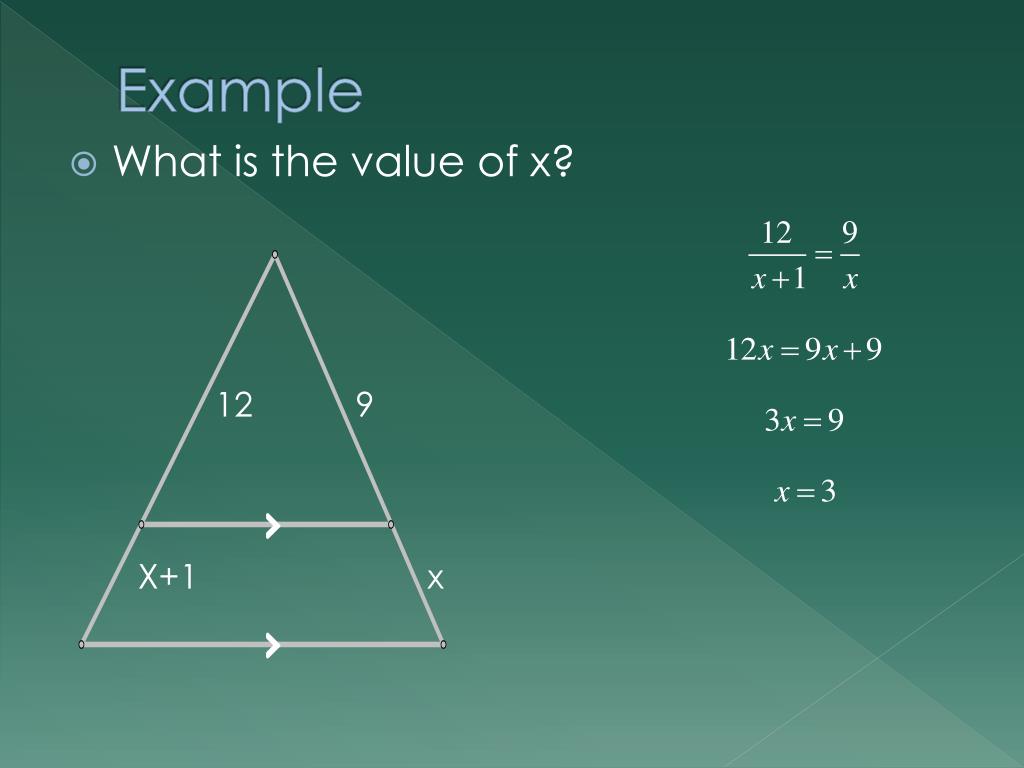

  4. Example • What is the value of x? 12 9 X+1 x

  5. Example • What are the values of x and y? 6.4 8 x 9 7.2 y

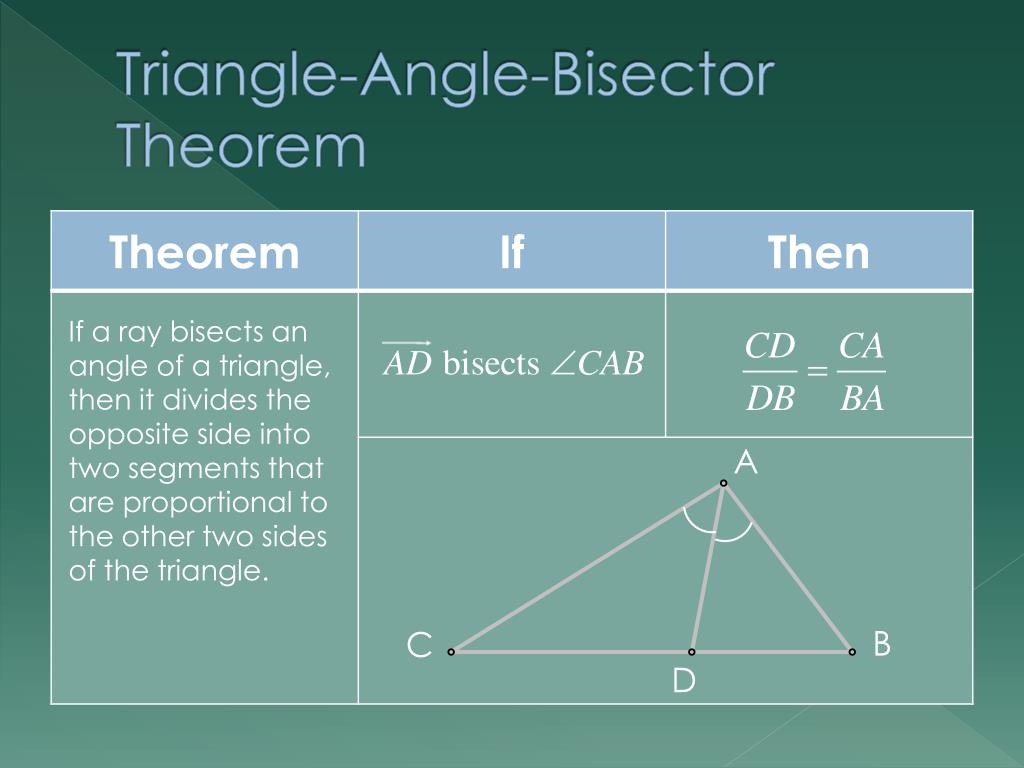

  6. Triangle-Angle-Bisector Theorem If a ray bisects an angle of a triangle, then it divides the opposite side into two segments that are proportional to the other two sides of the triangle. A B C D

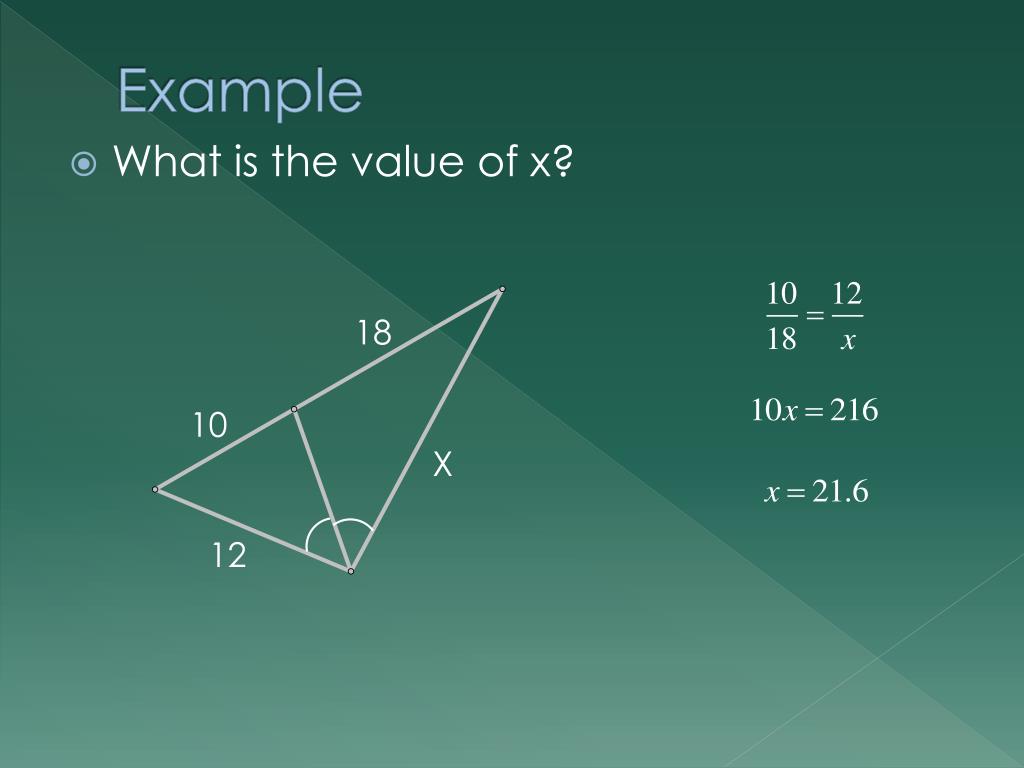

  7. Example • What is the value of x? 18 10 X 12

  8. Homework • P. 475 #’s 9-22, 24-30, 33-35, 44-45, 51-58
