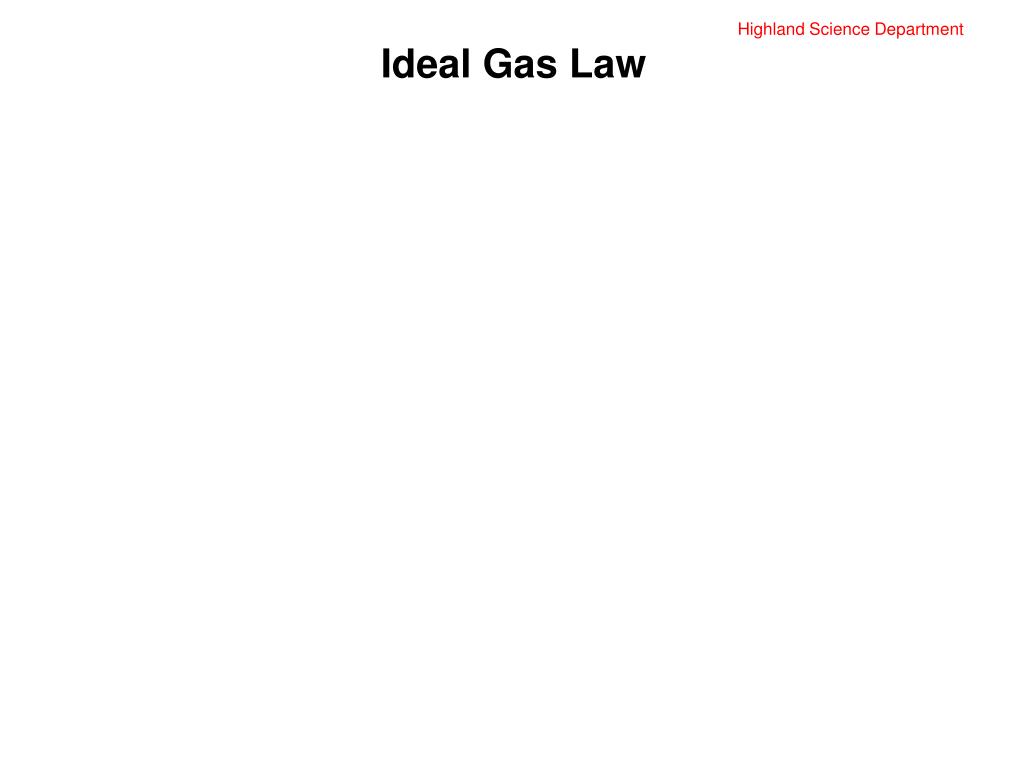

  1. Highland Science Department Ideal Gas Law

  2. Highland Science Department Ideal Gas Law Avogadro's Law: equal volumes of all ideal gases at the same temperature and pressures contain the same number of molecules

  3. Highland Science Department Ideal Gas Law Avogadro's Law: equal volumes of all ideal gases at the same temperature and pressures contain the same number of molecules n α V mathematically: n1 = n2 V1 V2

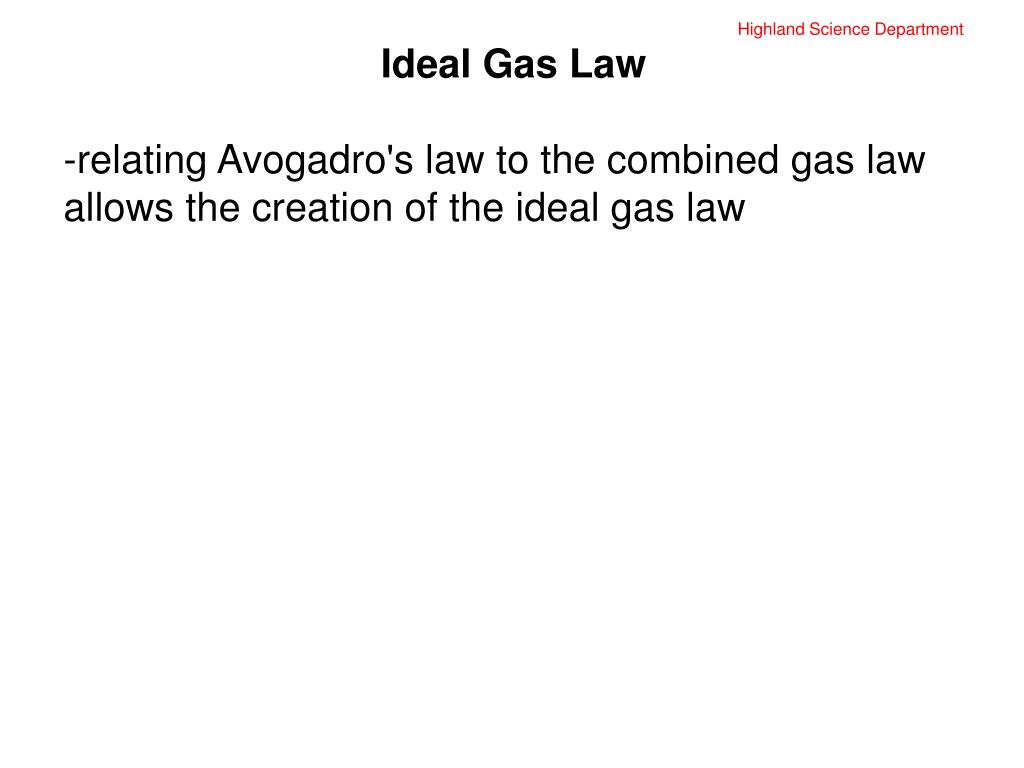

  4. Highland Science Department Ideal Gas Law -relating Avogadro's law to the combined gas law allows the creation of the ideal gas law

  5. Highland Science Department Ideal Gas Law -relating Avogadro's law to the combined gas law allows the creation of the ideal gas law Ideal Gas law: describes the relationship between volume, pressure, temperature, and amount (in moles) of an ideal gas

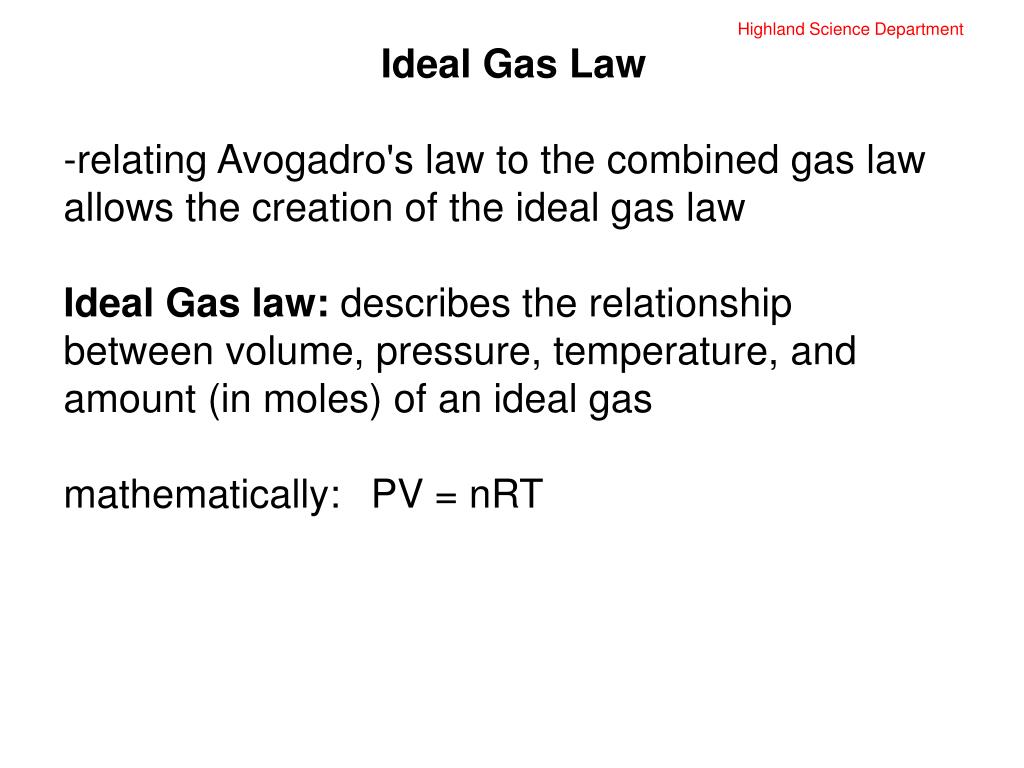

  6. Highland Science Department Ideal Gas Law -relating Avogadro's law to the combined gas law allows the creation of the ideal gas law Ideal Gas law: describes the relationship between volume, pressure, temperature, and amount (in moles) of an ideal gas mathematically: PV = nRT

  7. Highland Science Department Ideal Gas Law -relating Avogadro's law to the combined gas law allows the creation of the ideal gas law Ideal Gas law: describes the relationship between volume, pressure, temperature, and amount (in moles) of an ideal gas mathematically: PV = nRT universal gas constant (R): a proportionality constant that relates the pressure on and the volume of an ideal gas to its amount and temperature R = 8.314

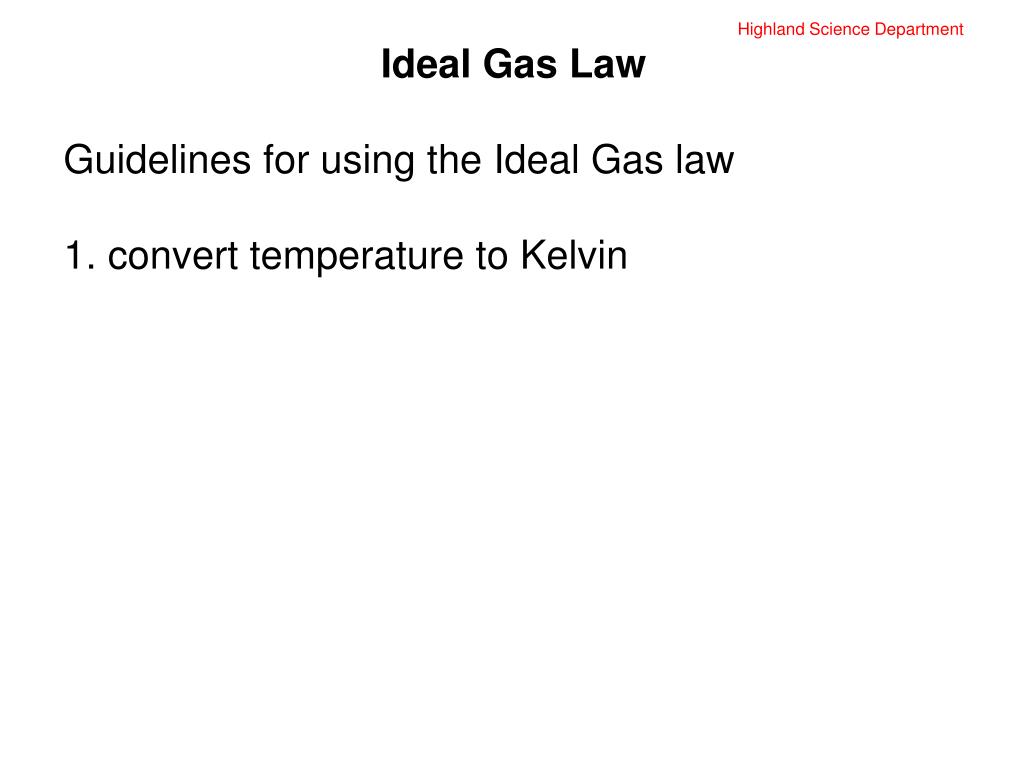

  8. Highland Science Department Ideal Gas Law Guidelines for using the Ideal Gas law 1. convert temperature to Kelvin

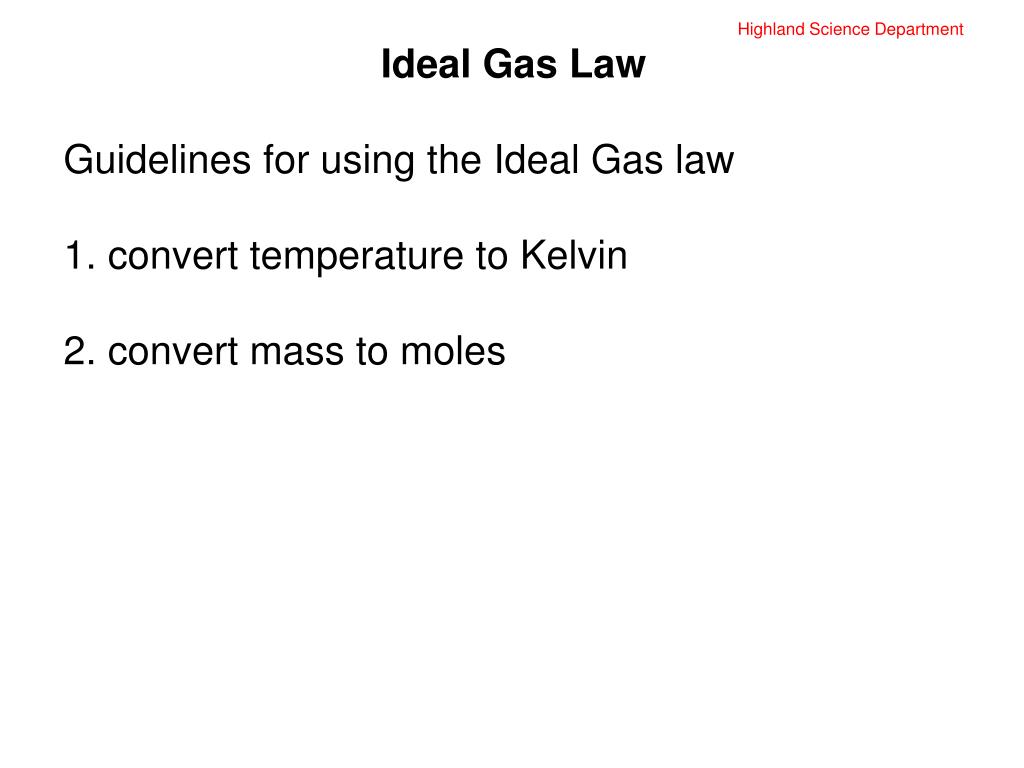

  9. Highland Science Department Ideal Gas Law Guidelines for using the Ideal Gas law 1. convert temperature to Kelvin 2. convert mass to moles

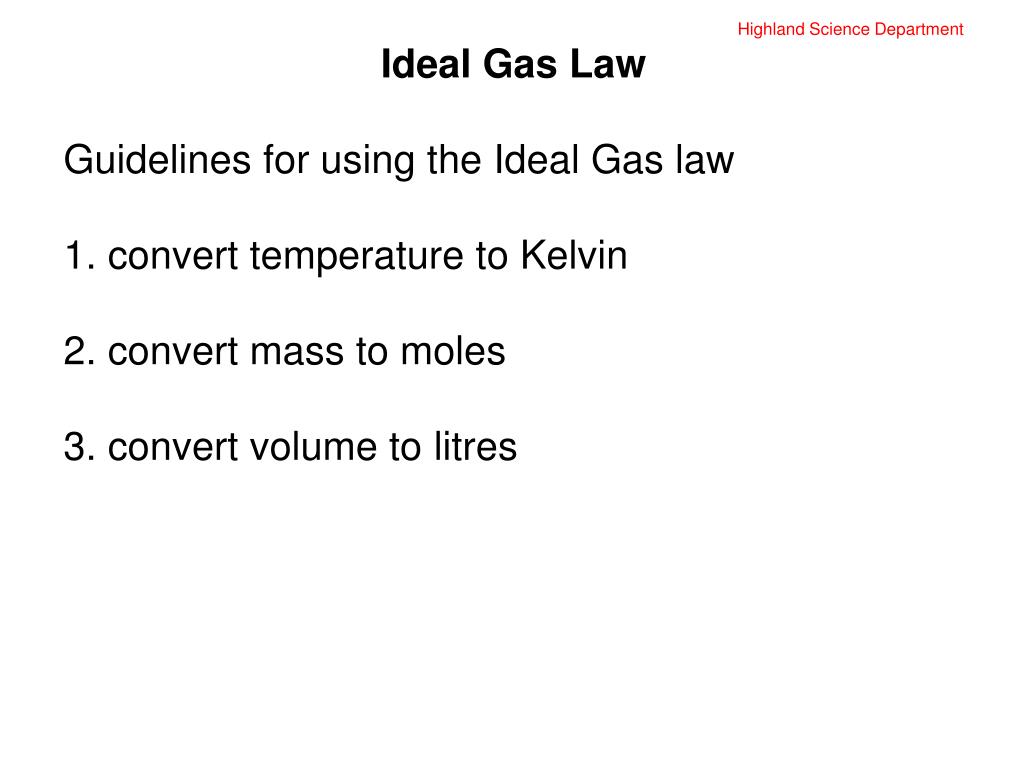

  10. Highland Science Department Ideal Gas Law Guidelines for using the Ideal Gas law 1. convert temperature to Kelvin 2. convert mass to moles 3. convert volume to litres

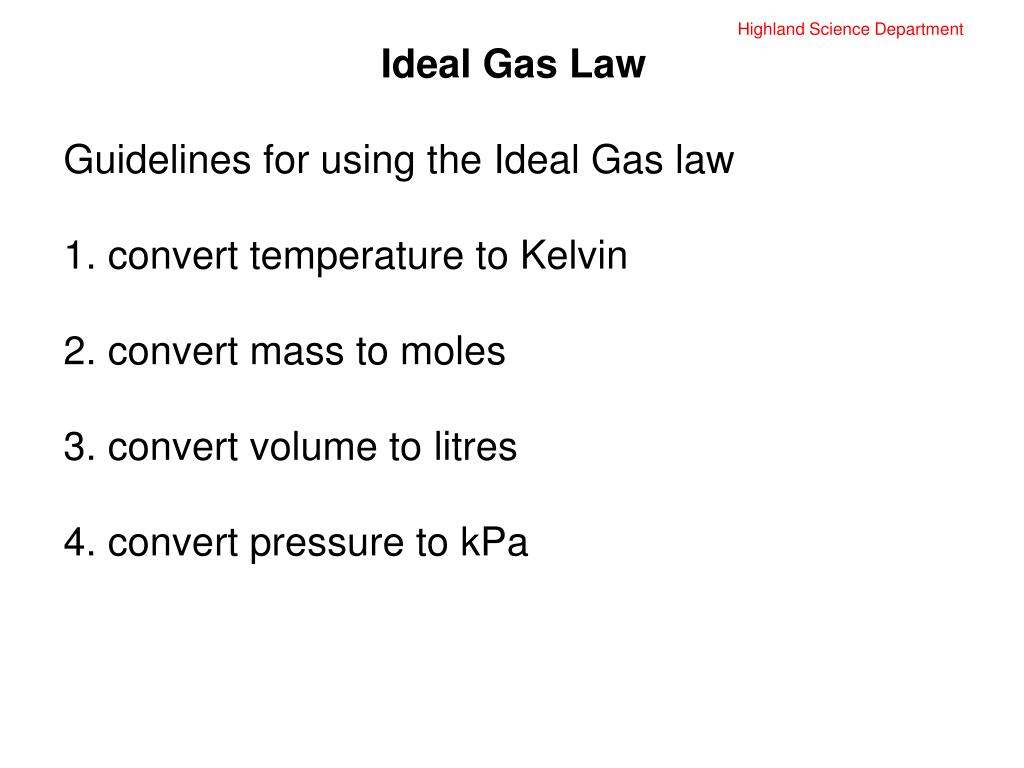

  11. Highland Science Department Ideal Gas Law Guidelines for using the Ideal Gas law 1. convert temperature to Kelvin 2. convert mass to moles 3. convert volume to litres 4. convert pressure to kPa

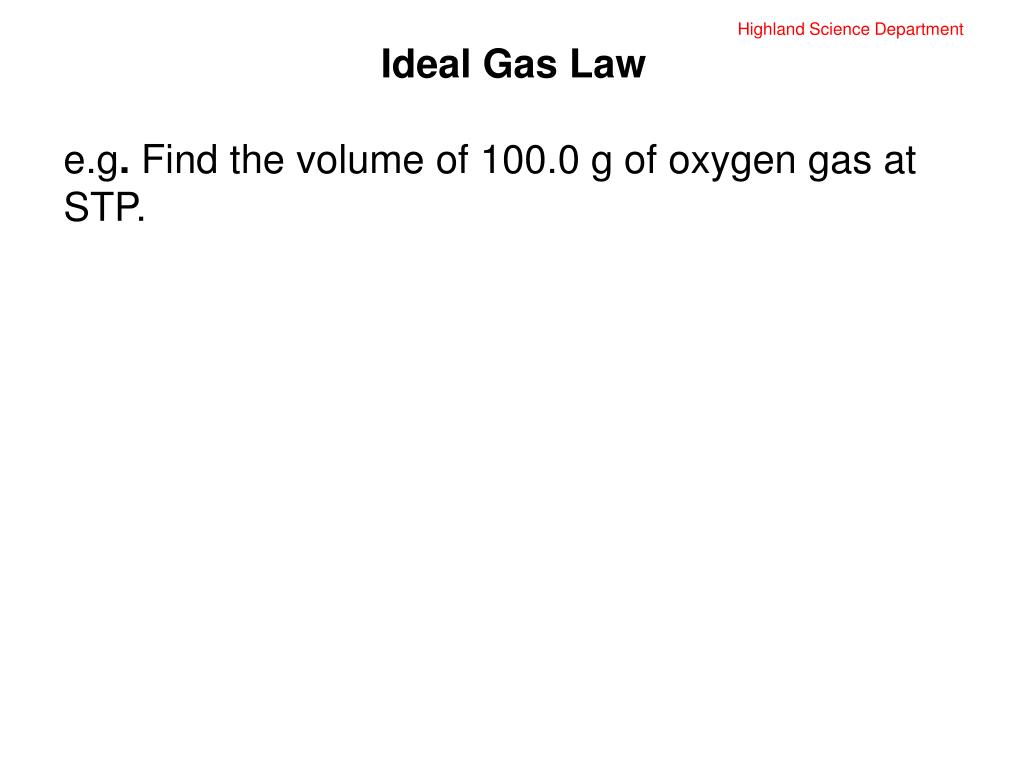

  12. Highland Science Department Ideal Gas Law e.g. Find the volume of 100.0 g of oxygen gas at STP.

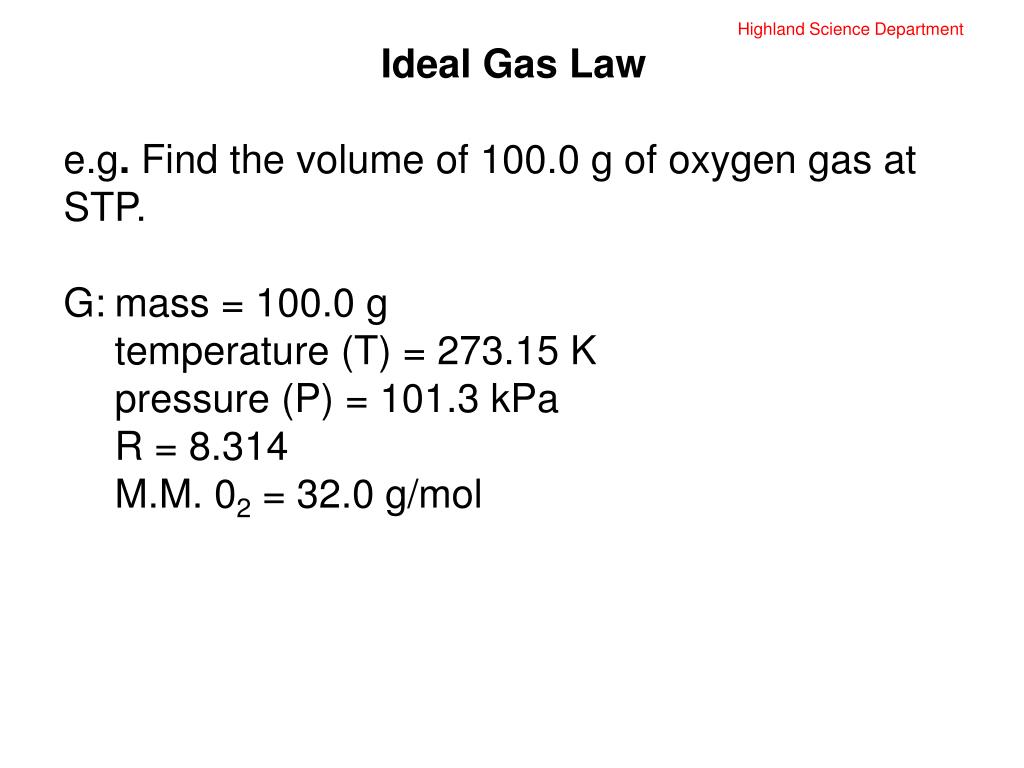

  13. Highland Science Department Ideal Gas Law e.g. Find the volume of 100.0 g of oxygen gas at STP. G: mass = 100.0 g temperature (T) = 273.15 K pressure (P) = 101.3 kPa R = 8.314 M.M. 02 = 32.0 g/mol

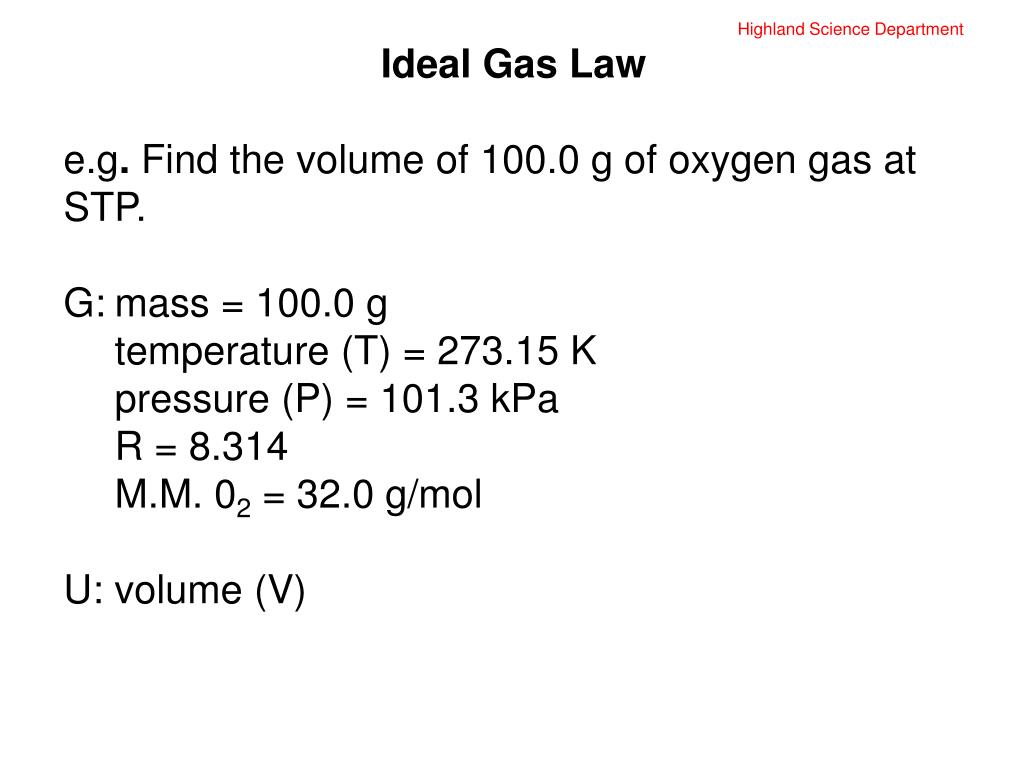

  14. Highland Science Department Ideal Gas Law e.g. Find the volume of 100.0 g of oxygen gas at STP. G: mass = 100.0 g temperature (T) = 273.15 K pressure (P) = 101.3 kPa R = 8.314 M.M. 02 = 32.0 g/mol U: volume (V)

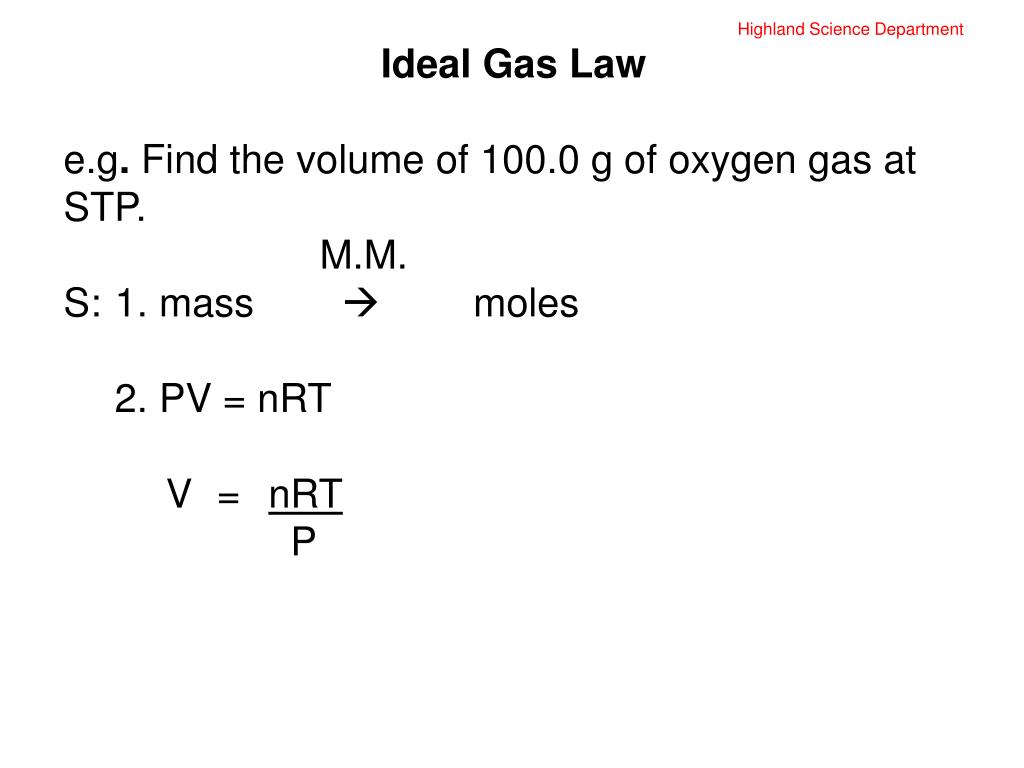

  15. Highland Science Department Ideal Gas Law e.g. Find the volume of 100.0 g of oxygen gas at STP. M.M. S: 1. mass  moles 2. PV = nRT V = nRT P

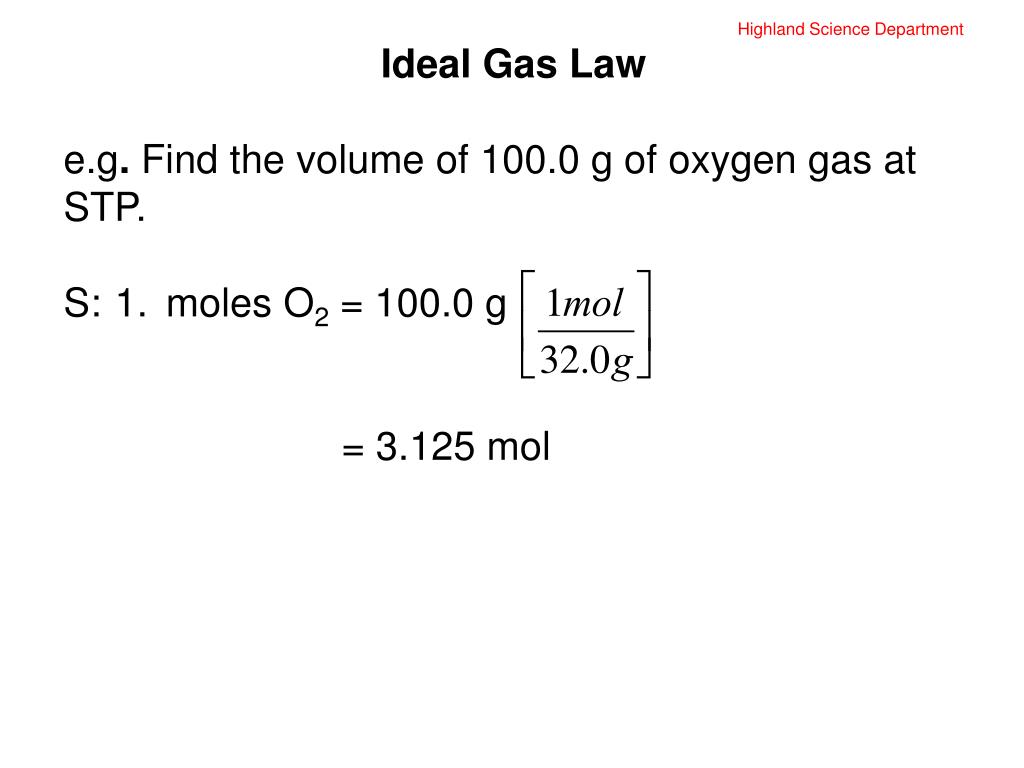

  16. Highland Science Department Ideal Gas Law e.g. Find the volume of 100.0 g of oxygen gas at STP. S: 1. moles O2 = 100.0 g = 3.125 mol

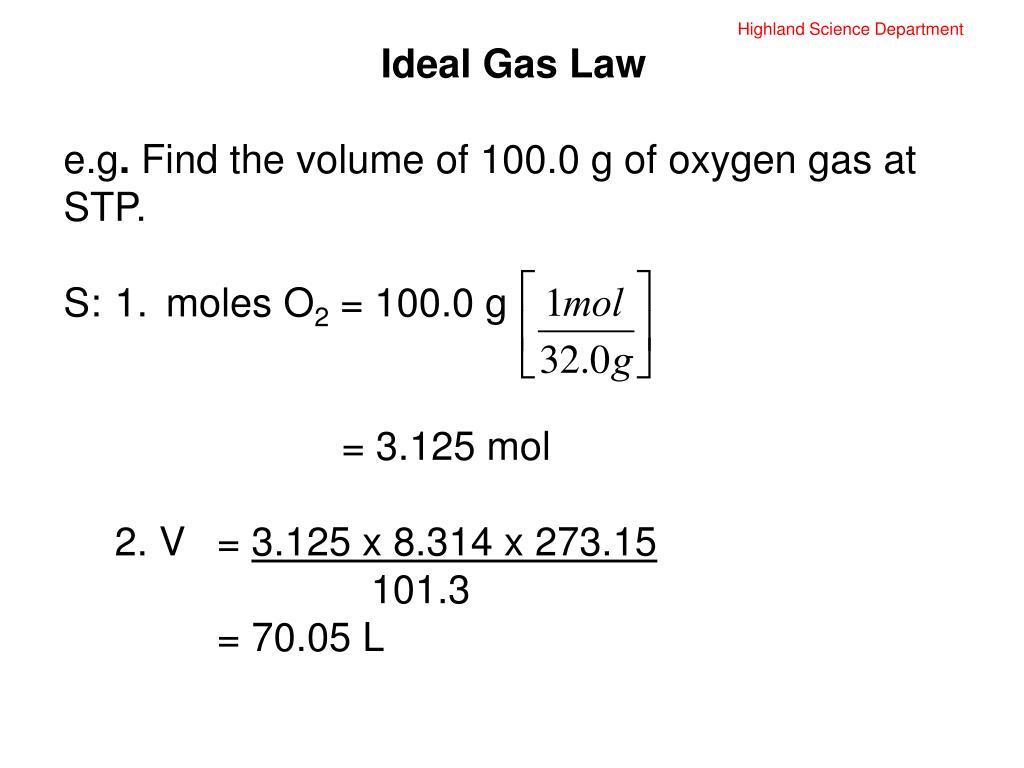

  17. Highland Science Department Ideal Gas Law e.g. Find the volume of 100.0 g of oxygen gas at STP. S: 1. moles O2 = 100.0 g = 3.125 mol 2. V = 3.125 x 8.314 x 273.15 101.3 = 70.05 L
