incorporating user provided constraints into document clustering

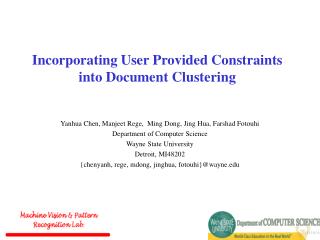

Incorporating User Provided Constraints into Document Clustering

Yanhua Chen, Manjeet Rege, Ming Dong, Jing Hua, Farshad Fotouhi

Department of Computer Science

Wayne State University

Detroit, MI48202

{chenyanh, rege, mdong, jinghua, fotouhi}@wayne.edu

outline
Outline
  • Introduction
  • Overview of related work
  • Semi-Supervised Non-negative Matrix Factorization (SS-NMF) for document clustering
  • Theoretical result for SS-NMF
  • Experiments and results
  • Conclusion
what is clustering

Inter-cluster distances are maximized

Intra-cluster distances are minimized

What is clustering?
  • Finding groups of objects such that the objects in a group will be similar (or related) to one another and different from (or unrelated to) the objects in other groups
document clustering

Government

Science

Arts

Document Clustering
  • Grouping of text documents into meaningful clusters in an unsupervised manner.
unsupervised clustering example

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

Unsupervised Clustering Example

.

.

.

.

.

.

semi supervised clustering problem definition
Semi-supervised clustering: problem definition
  • Input:
    • A set of unlabeled objects
    • A small amount of domain knowledge (labels or pairwise constraints)
  • Output:
    • A partitioning of the objects into k clusters
  • Objective:
    • Maximum intra-cluster similarity
    • Minimum inter-cluster similarity
    • High consistency between the partitioning and the domain knowledge
semi supervised clustering

Seeded points

Must-link

Cannot-link

Semi-Supervised Clustering
  • According to different given domain knowledge:
    • Users provide class labels(seeded points) a priori to some of the documents
    • Users know about which few documents are related (must-link) or unrelated (cannot-link)
why semi supervised clustering
Why semi-supervised clustering?
  • Large amounts of unlabeled data exists
    • More is being produced all the time
  • Expensive to generate Labels for data
    • Usually requires human intervention
  • Use human input to provide labels for some of the data
    • Improve existing naive clustering methods
    • Use labeled data to guide clustering of unlabeled data
    • End result is a better clustering of data
  • Potential applications
    • Document/word categorization
    • Image categorization
    • Bioinformatics (gene/protein clustering)
outline9
Outline
  • Introduction
  • Overview of related work
  • Semi-supervised Non-negative Matrix Factorization (SS-NMF) for document clustering
  • Theoretical work for SS-NMF
  • Experiments and results
  • Conclusion
clustering algorithm
Clustering Algorithm
  • Document hierarchical clustering
    • Bottom-up, agglomerative
    • Top-down, divisive
  • Document partitioning (flat clustering)
    • K-means
    • probabilistic clustering using the Naïve Bayes or Gaussian mixture model, etc.
  • Document clustering based on graph model
semi supervised clustering algorithm
Semi-supervised Clustering Algorithm
  • Semi-supervised Clustering with labels (Partial label information is given ):
    • SS-Seeded-Kmeans ( Sugato Basu, et al. ICML 2002)
    • SS-Constraint-Kmeans ( Sugato Basu, et al. ICML 2002)
  • Semi-supervised Clustering with Constraints (Pairwise Constraints (Must-link, Cannot-link) is given):
    • SS-COP-Kmeans (Wagstaff et al. ICML01)
    • SS-HMRF-Kmeans (Sugato Basu, et al. ACM SIGKDD 2004)
    • SS-Kernel-Kmeans (Brian Kulis, et al. ICML 2005)
    • SS-Spectral-Normalized-Cuts (X. Ji, et al. ACM SIGIR 2006)
overview of k means clustering
Overview of K-means Clustering
  • K-means is a partition clustering algorithm based on iterative relocation that partitions a dataset into k clusters.
  • Objective function: Locally minimizes sum of squared distance between the data points and their correspondingcluster centers:

Algorithm:

Initialize k cluster centers randomly. Repeat until convergence:

    • Cluster Assignment Step: Assign each data point xito the cluster fh such that distance of xi from center of fh is minimum
    • Center Re-estimation Step: Re-estimate each cluster center as the mean of the points in that cluster
semi supervised kernel k means ss kk brian kulis et al icml 2005
Semi-supervised Kernel K-means (SS-KK) [Brian Kulis, et al. ICML 2005]
  • Semi-supervised Kernel K-means algorithm:

where is kernel function mapping from , is centroid,

is the cost of violating the constraint between two points

    • First term: kernel k-means objective function
    • Second term: reward function for satisfying must-link constraints
    • Third term: penalty function for violating cannot-link constraints
overview of spectral clustering
Overview of Spectral Clustering
  • Spectral clustering is a graph-theoretic clustering algorithm

Weighted Graph G=(V, E, A)

min between-cluster similarities (weights : Aij)

spectral normalized cuts
Spectral Normalized Cuts
  • Min similarity between & :

Balance weights:

Cluster indicator:

  • Graph partition becomes:
  • Solution is eigenvector of:
semi supervised spectral normalized cuts ss snc x ji et al acm sigir 2006
Semi-supervised Spectral Normalized Cuts (SS-SNC)[X. Ji, et al. ACM SIGIR 2006]
  • Semi-supervised Spectral Learning algorithm:

where ,

    • First term: spectral normalized cut objective function
    • Second term: reward function for satisfying must-link constraints
    • Third term: penalty function for violating cannot-link constraints
outline17
Outline
  • Introduction
  • Related work
  • Semi-Supervised Non-negative Matrix Factorization (SS-NMF) for document clustering
    • NMF review
    • Model formulation and algorithm derivation
  • Theoretical result for SS-NMF
  • Experiments and results
  • Conclusion
non negative matrix factorization nmf
Non-negative Matrix Factorization (NMF)
  • NMF is to decompose matrix into two parts( D. Lee et al., Nature 1999)
  • Symmetric NMF for clustering (C. Ding et al. SIAM ICDM 2005)

X

F

~

=

G

min || X – FGT||2

~

=

x

x

min || A – GSGT||2

ss nmf
SS-NMF
  • Incorporate prior knowledge into NMF based framework for document clustering.
  • Users provide pairwise constraints:
    • Must-link constraints CML : two documents di and dj must belong to the same cluster.
    • Cannot-link constraints CCL : two documents di and dj must belong to the different cluster.
  • Constraints are defined by associated violation cost matrix W:
    • W reward : cost of violating the constraint between document

di and dj if a constraint exists.

    • Wpenalty : cost of violating the constraints between document

di and dj if a constraint exists.

ss nmf algorithm
SS-NMF Algorithm
  • Define the objective function of SS-NMF:

where

is the cluster label of

outline22
Outline
  • Introduction
  • Overview of related work
  • Semi-supervised Non-negative Matrix Factorization (SS-NMF) for document clustering
  • Theoretical result for SS-NMF
  • Experiments and results
  • Conclusion
algorithm correctness and convergence
Algorithm Correctness and Convergence
  • Based on constraint optimization theory, auxiliary function, we can prove SS-NMF:
  • Correctness:Solution converges to local minimum
  • 2. Convergence:Iterative algorithm converges

(Details in paper [1], [2])

[1] Y. Chen, M. Rege, M. Dong and J. Hua, “Incorporating User provided Constraints

into Document Clustering”, Proc. of IEEE ICDM, Omaha, NE, October 2007.

(Regular Paper, acceptance rate 7.2%)

[2] Y. Chen, M. Rege, M. Dong and J. Hua, “Non-negative Matrix Factorization

for Semi-supervised Data Clustering”, Journal of Knowledge and Information Systems,

to appear, 2008.

ss nmf general framework for semi supervised clustering

Orthogonal SymmetricSemi-supervised NMF is equivalent to Semi-supervised

Kernel K-means (SS-KK) and Semi-supervised Spectral Normalized Cuts (SS-SNC)!

SS-NMF: General Framework for Semi-supervised Clustering

Proof: (1)

(2)

(3)

outline26
Outline
  • Introduction
  • Overview of related work
  • Semi-supervised Non-negative Matrix Factorization (SS-NMF) for document clustering
  • Theoretical result for SS-NMF
  • Experiments and results
    • Artificial Toy Data
    • Real Data
  • Conclusion
experiments on toy data
Experiments on Toy Data
  • 1.Artificial toy data: consisting of two natural clusters
results on toy data ss kk and ss nmf
Results on Toy Data (SS-KK and SS-NMF)
  • Hard Clustering: Each object belongs to a single cluster
  • Soft Clustering: Each object is probabilisticallyassigned to clusters.

Right Table:

Difference between cluster indicator G of SS-KK (hard clustering) and SS-NMF (soft clustering) for the toy data

results on toy data ss snc and ss nmf
Results on Toy Data (SS-SNC and SS-NMF)

(b) Data distribution in the SS-NMF subspace of two column vectors of G. The data points from the two clusters get distributed along the two axes.

(a) Data distribution in the SS-SNC subspace of the first two singular vectors. There is no relationship between the axes and the clusters.

time complexity analysis
Time Complexity Analysis

Up Figure: Computational Speed comparison for SS-KK, SS-SNC and SS-NMF ( )

experiments on text data
Experiments on Text Data

2. Summary of data sets[1] used in the experiments.

[1]http://www.cs.umn.edu/~han/data/tmdata.tar.gz

  • Evaluation Metric:

where n is the total number of documents in the experiment, δis the delta function that equals one if , is the estimated label, is the ground truth.

results on text data compare with unsupervised clustering
Results on Text Data (Compare with Unsupervised Clustering)
  • (1) Comparison with unsupervised clustering approaches:

Note: SS-NMF adds 3% constraints

results on text data before clustering and after clustering
Results on Text Data(Before Clustering and After Clustering)

(c) Document-document similarity matrix after clustering with SS-NMF (k=5)

(b) Document-document similarity matrix after clustering with SS-NMF (k=2)

(a) Typical document-document matrix before clustering

results on text data clustering with different constraints
Results on Text Data (Clustering with Different Constraints)

Left Table:

Comparison of confusion matrix C and normalized cluster centroid matrix S of SS-NMF for different percentage of documents pairwise constrained

results on text data compare with semi supervised clustering
Results on Text Data (Compare with Semi-supervised Clustering)
  • (2) Comparison with SS-KK and SS-SNC

(b) England-Heart

(c) Interest-Trade

(a) Graft-Phos

slide36

Results on Text Data (Compare with Semi-supervised Clustering)

  • Comparison with SS-KK and SS-SNC (Fbis2, Fbis3, Fbis4, Fbis5)
experiments on image data
Experiments on Image Data

3. Image data sets[2] used in the experiments.

Up Figure: Sample images for images categorization.

(From up to down: O-Owls, R-Roses, L-Lions, E-Elephants, H-Horses)

[2] http://kdd.ics.uci.edu/databases/CorelFeatures/CorelFeatures.data.html

results on image data compare with unsupervised clustering
Results on Image Data (Compare with Unsupervised Clustering)
  • (1) Comparison with unsupervised clustering approaches:

Up Table : Comparison of image clustering accuracy between KK, SNC, NMF

and SS-NMF with only 3% pair-wise constraints on the images.

It shows that SS-NMF consistently outperforms other well-established unsupervised image clustering methods.

results on image data compare with semi supervised clustering
Results on Image Data (Compare with Semi-supervised Clustering)
  • (2) Comparison with SS-KK and SS-SNC:

Left Figure:

Comparison of image clustering accuracy between SS-KK, SS-SNC, and SS-NMF for different percentages of images pairs constrained (a) O-R, (b) L-H, (c) R-L, (d) O-R-L.

results on image data compare with semi supervised clustering40
Results on Image Data (Compare with Semi-supervised Clustering)
  • (2) Comparison with SS-KK and SS-SNC:

Left Figure:

Comparison of image clustering accuracy between SS-KK, SS-SNC, and SS-NMF for different percentages of images pairs constrained (e) L-E-H, (f) O-R-L-E, (g) O-L-E-H, (h) O-R-L-E-H

outline41
Outline
  • Introduction
  • Related work
  • Semi-supervised Non-negative Matrix Factorization (SS-NMF) for document clustering
  • Theoretical result for SS-NMF
  • Experiments and results
  • Conclusion
conclusion
Conclusion
  • Semi-supervised Clustering:

-many real world applications

- outperform the traditional clustering algorithms

  • Semi-supervised NMF algorithm provides a unified mathematic framework for semi-supervised clustering.
  • Many existing semi-supervised clustering algorithms can be extended to achieve multi-type objects co-clustering tasks.
reference
Reference

[1] Y. Chen, M. Rege, M. Dong and F. Fotouhi, “Deriving Semantics for Image Clustering from Accumulated User Feedbacks”, Proc. of ACM Multimedia, Germany, 2007.

[2] Y. Chen, M. Rege, M. Dong and J. Hua, “Incorporating User provided Constraints into Document Clustering”, Proc. of IEEE ICDM, Omaha, NE, October 2007. (Regular Paper, acceptance rate 7.2%)

[3] Y. Chen, M. Rege, M. Dong and J. Hua, “Non-negative Matrix Factorization for Semi-supervised Data Clustering”, Journal of Knowledge and Information Systems, invited as a best paper of ICDM 07, to appear 2008.
