    Presentation Transcript
    1. AVENUE/LETRAS:Learning-based MT Approaches for Languages with Limited Resources Alon Lavie Language Technologies Institute Carnegie Mellon University Joint work with: Jaime Carbonell, Lori Levin, Kathrin Probst, Erik Peterson, Christian Monson, Ariadna Font-Llitjos, Alison Alvarez, Roberto Aranovich Learning-based MT with Limited Resources

    2. Outline • Rationale • Framework overview • Elicitation • Learning transfer Rules • Automatic rule refinement • Example prototypes • Implications for MT with vast parallel data • Conclusions and future directions Learning-based MT with Limited Resources

    3. Why Machine Translation for Languages with Limited Resources? • We are in the age of information explosion • The internet+web+Google anyone can get the information they want anytime… • But what about the text in all those other languages? • How do they read all this English stuff? • How do we read all the stuff that they put online? • MT for these languages would Enable: • Better government access to native indigenous and minority communities • Better minority and native community participation in information-rich activities (health care, education, government) without giving up their languages. • Civilian and military applications (disaster relief) • Language preservation Learning-based MT with Limited Resources

    4. CMU’s AVENUE Approach • Elicitation: use bilingual native informants to create a small high-quality word-aligned bilingual corpus of translated phrases and sentences • Building Elicitation corpora from feature structures • Feature Detection and Navigation • Transfer-rule Learning: apply ML-based methods to automatically acquire syntactic transfer rules for translation between the two languages • Learn from major language to minor language • Translate from minor language to major language • XFER + Decoder: • XFER engine produces a lattice of possible transferred structures at all levels • Decoder searches and selects the best scoring combination • Rule Refinement: refine the acquired rules via a process of interaction with bilingual informants • Morphology Learning • Word and Phrase bilingual lexicon acquisition Learning-based MT with Limited Resources

    5. Word-aligned elicited data English Language Model Learning Module Run Time Transfer System Word-to-Word Translation Probabilities Transfer Rules {PP,4894};;Score:0.0470PP::PP [NP POSTP] -> [PREP NP]((X2::Y1)(X1::Y2)) Decoder Lattice Translation Lexicon AVENUE Architecture Learning-based MT with Limited Resources

    6. The Transfer Engine Learning-based MT with Limited Resources

    7. The Transfer Engine • Some Unique Features: • Works with either learned or manually-developed transfer grammars • Handles rules with or without unification constraints • Supports interfacing with servers for Morphological analysis and generation • Can handle ambiguous source-word analyses and/or SL segmentations represented in the form of lattice structures Learning-based MT with Limited Resources

    8. The Lattice Decoder • Simple Stack Decoder, similar in principle to SMT/EBMT decoders • Searches for best-scoring path of non-overlapping lattice arcs • Scoring based on log-linear combination of scoring components (no MER training yet) • Scoring components: • Standard trigram LM • Fragmentation: how many arcs to cover the entire translation? • Length Penalty • Rule Scores (not fully integrated yet) Learning-based MT with Limited Resources

    9. Outline • Rationale for learning-based MT • Roadmap for learning-based MT • Framework overview • Elicitation • Learning transfer Rules • Automatic rule refinement • Example prototypes • Implications for MT with vast parallel data • Conclusions and future directions Learning-based MT with Limited Resources

    10. Data Elicitation for Languages with Limited Resources • Rationale: • Large volumes of parallel text not available  create a small maximally-diverse parallel corpus that directly supports the learning task • Bilingual native informant(s) can translate and align a small pre-designed elicitation corpus, using elicitation tool • Elicitation corpus designed to be typologically and structurally comprehensive and compositional • Transfer-rule engine and new learning approach support acquisition of generalized transfer-rules from the data Learning-based MT with Limited Resources

    11. Elicitation Tool:English-Chinese Example Learning-based MT with Limited Resources

    12. Elicitation Tool:English-Chinese Example Learning-based MT with Limited Resources

    13. Elicitation Tool:English-Hindi Example Learning-based MT with Limited Resources

    14. Elicitation Tool:English-Arabic Example Learning-based MT with Limited Resources

    15. Elicitation Tool:Spanish-Mapudungun Example Learning-based MT with Limited Resources

    16. Designing Elicitation Corpora • What do we want to elicit? • Diversity of linguistic phenomena and constructions • Syntactic structural diversity • How do we construct an elicitation corpus? • Typological Elicitation Corpus based on elicitation and documentation work of field linguists (e.g. Comrie 1977, Bouquiaux 1992): initial corpus size ~1000 examples • Structural Elicitation Corpus based on representative sample of English phrase structures: ~120 examples • Organized compositionally: elicit simple structures first, then use them as building blocks • Goal: minimize size, maximize linguistic coverage Learning-based MT with Limited Resources

    17. Typological Elicitation Corpus • Feature Detection • Discover what features exist in the language and where/how they are marked • Example: does the language mark gender of nouns? How and where are these marked? • Method: compare translations of minimal pairs –sentences that differ in only ONE feature • Elicit translations/alignments for detected features and their combinations • Dynamic corpus navigation based on feature detection: no need to elicit for combinations involving non-existent features Learning-based MT with Limited Resources

    18. Typological Elicitation Corpus • Initial typological corpus of about 1000 sentences was manually constructed • New construction methodology for building an elicitation corpus using: • A feature specification: lists inventory of available features and their values • A definition of the set of desired feature structures • Schemas define sets of desired combinations of features and values • Multiplier algorithm generates the comprehensive set of feature structures • A generation grammar and lexicon: NLG generator generates NL sentences from the feature structures Learning-based MT with Limited Resources

    19. Structural Elicitation Corpus • Goal: create a compact diverse sample corpus of syntactic phrase structures in English in order to elicit how these map into the elicited language • Methodology: • Extracted all CFG “rules” from Brown section of Penn TreeBank (122K sentences) • Simplified POS tag set • Constructed frequency histogram of extracted rules • Pulled out simplest phrases for most frequent rules for NPs, PPs, ADJPs, ADVPs, SBARs and Sentences • Some manual inspection and refinement • Resulting corpus of about 120 phrases/sentences representing common structures • See [Probst and Lavie, 2004] Learning-based MT with Limited Resources

    20. Outline • Rationale for learning-based MT • Roadmap for learning-based MT • Framework overview • Elicitation • Learning transfer Rules • Automatic rule refinement • Example prototypes • Implications for MT with vast parallel data • Conclusions and future directions Learning-based MT with Limited Resources

    21. Type information Part-of-speech/constituent information Alignments x-side constraints y-side constraints xy-constraints, e.g. ((Y1 AGR) = (X1 AGR)) Transfer Rule Formalism ;SL: the old man, TL: ha-ish ha-zaqen NP::NP [DET ADJ N] -> [DET N DET ADJ] ( (X1::Y1) (X1::Y3) (X2::Y4) (X3::Y2) ((X1 AGR) = *3-SING) ((X1 DEF = *DEF) ((X3 AGR) = *3-SING) ((X3 COUNT) = +) ((Y1 DEF) = *DEF) ((Y3 DEF) = *DEF) ((Y2 AGR) = *3-SING) ((Y2 GENDER) = (Y4 GENDER)) ) Learning-based MT with Limited Resources

    22. Value constraints Agreement constraints Transfer Rule Formalism (II) ;SL: the old man, TL: ha-ish ha-zaqen NP::NP [DET ADJ N] -> [DET N DET ADJ] ( (X1::Y1) (X1::Y3) (X2::Y4) (X3::Y2) ((X1 AGR) = *3-SING) ((X1 DEF = *DEF) ((X3 AGR) = *3-SING) ((X3 COUNT) = +) ((Y1 DEF) = *DEF) ((Y3 DEF) = *DEF) ((Y2 AGR) = *3-SING) ((Y2 GENDER) = (Y4 GENDER)) ) Learning-based MT with Limited Resources

    23. Rule Learning - Overview • Goal: Acquire Syntactic Transfer Rules • Use available knowledge from the source side (grammatical structure) • Three steps: • Flat Seed Generation: first guesses at transfer rules; flat syntactic structure • Compositionality Learning:use previously learned rules to learn hierarchical structure • Constraint Learning: refine rules by learning appropriate feature constraints Learning-based MT with Limited Resources

    24. Flat Seed Rule Generation Learning-based MT with Limited Resources

    25. Flat Seed Rule Generation • Create a “flat” transfer rule specific to the sentence pair, partially abstracted to POS • Words that are aligned word-to-word and have the same POS in both languages are generalized to their POS • Words that have complex alignments (or not the same POS) remain lexicalized • One seed rule for each translation example • No feature constraints associated with seed rules (but mark the example(s) from which it was learned) Learning-based MT with Limited Resources

    26. Compositionality Learning Learning-based MT with Limited Resources

    27. Compositionality Learning • Detection: traverse the c-structure of the English sentence, add compositional structure for translatable chunks • Generalization: adjust constituent sequences and alignments • Two implemented variants: • Safe Compositionality: there exists a transfer rule that correctly translates the sub-constituent • Maximal Compositionality: Generalize the rule if supported by the alignments, even in the absence of an existing transfer rule for the sub-constituent Learning-based MT with Limited Resources

    28. Constraint Learning Learning-based MT with Limited Resources

    29. Constraint Learning • Goal: add appropriate feature constraints to the acquired rules • Methodology: • Preserve general structural transfer • Learn specific feature constraints from example set • Seed rules are grouped into clusters of similar transfer structure (type, constituent sequences, alignments) • Each cluster forms a version space: a partially ordered hypothesis space with a specific and a general boundary • The seed rules in a group form the specific boundary of a version space • The general boundary is the (implicit) transfer rule with the same type, constituent sequences, and alignments, but no feature constraints Learning-based MT with Limited Resources

    30. Constraint Learning: Generalization • The partial order of the version space: Definition: A transfer rule tr1 is strictly more general than another transfer rule tr2 if all f-structures that are satisfied by tr2 are also satisfied by tr1. • Generalize rules by merging them: • Deletion of constraint • Raising two value constraints to an agreement constraint, e.g. ((x1 num) = *pl), ((x3 num) = *pl)  ((x1 num) = (x3 num)) Learning-based MT with Limited Resources

    31. Automated Rule Refinement • Bilingual informants can identify translation errors and pinpoint the errors • A sophisticated trace of the translation path can identify likely sources for the error and do “Blame Assignment” • Rule Refinement operators can be developed to modify the underlying translation grammar (and lexicon) based on characteristics of the error source: • Add or delete feature constraints from a rule • Bifurcate a rule into two rules (general and specific) • Add or correct lexical entries • See [Font-Llitjos, Carbonell & Lavie, 2005] Learning-based MT with Limited Resources

    32. Outline • Rationale for learning-based MT • Roadmap for learning-based MT • Framework overview • Elicitation • Learning transfer Rules • Automatic rule refinement • Example prototypes • Implications for MT with vast parallel data • Conclusions and future directions Learning-based MT with Limited Resources

    33. AVENUE Prototypes • General XFER framework under development for past three years • Prototype systems so far: • German-to-English, Dutch-to-English • Chinese-to-English • Hindi-to-English • Hebrew-to-English • Portuguese-to-English • In progress or planned: • Mapudungun-to-Spanish • Quechua-to-Spanish • Arabic-to-English • Native-Brazilian languages to Brazilian Portuguese Learning-based MT with Limited Resources

    34. Challenges for Hebrew MT • Paucity in existing language resources for Hebrew • No publicly available broad coverage morphological analyzer • No publicly available bilingual lexicons or dictionaries • No POS-tagged corpus or parse tree-bank corpus for Hebrew • No large Hebrew/English parallel corpus • Scenario well suited for CMU transfer-based MT framework for languages with limited resources Learning-based MT with Limited Resources

    35. Hebrew-to-English MT Prototype • Initial prototype developed within a two month intensive effort • Accomplished: • Adapted available morphological analyzer • Constructed a preliminary translation lexicon • Translated and aligned Elicitation Corpus • Learned XFER rules • Developed (small) manual XFER grammar as a point of comparison • System debugging and development • Evaluated performance on unseen test data using automatic evaluation metrics Learning-based MT with Limited Resources

    36. Source Input בשורה הבאה Preprocessing Morphology Transfer Rules English Language Model {NP1,3} NP1::NP1 [NP1 "H" ADJ] -> [ADJ NP1] ((X3::Y1) (X1::Y2) ((X1 def) = +) ((X1 status) =c absolute) ((X1 num) = (X3 num)) ((X1 gen) = (X3 gen)) (X0 = X1)) Transfer Engine Translation Lexicon Decoder N::N |: ["$WR"] -> ["BULL"] ((X1::Y1) ((X0 NUM) = s) ((Y0 lex) = "BULL")) N::N |: ["$WRH"] -> ["LINE"] ((X1::Y1) ((X0 NUM) = s) ((Y0 lex) = "LINE")) Translation Output Lattice (0 1 "IN" @PREP) (1 1 "THE" @DET) (2 2 "LINE" @N) (1 2 "THE LINE" @NP) (0 2 "IN LINE" @PP) (0 4 "IN THE NEXT LINE" @PP) English Output in the next line Learning-based MT with Limited Resources

    37. Morphology Example • Input word: B$WRH 0 1 2 3 4 |--------B$WRH--------| |-----B-----|$WR|--H--| |--B--|-H--|--$WRH---| Learning-based MT with Limited Resources

    38. Morphology Example Y0: ((SPANSTART 0) Y1: ((SPANSTART 0) Y2: ((SPANSTART 1) (SPANEND 4) (SPANEND 2) (SPANEND 3) (LEX B$WRH) (LEX B) (LEX $WR) (POS N) (POS PREP)) (POS N) (GEN F) (GEN M) (NUM S) (NUM S) (STATUS ABSOLUTE)) (STATUS ABSOLUTE)) Y3: ((SPANSTART 3) Y4: ((SPANSTART 0) Y5: ((SPANSTART 1) (SPANEND 4) (SPANEND 1) (SPANEND 2) (LEX $LH) (LEX B) (LEX H) (POS POSS)) (POS PREP)) (POS DET)) Y6: ((SPANSTART 2) Y7: ((SPANSTART 0) (SPANEND 4) (SPANEND 4) (LEX $WRH) (LEX B$WRH) (POS N) (POS LEX)) (GEN F) (NUM S) (STATUS ABSOLUTE)) Learning-based MT with Limited Resources

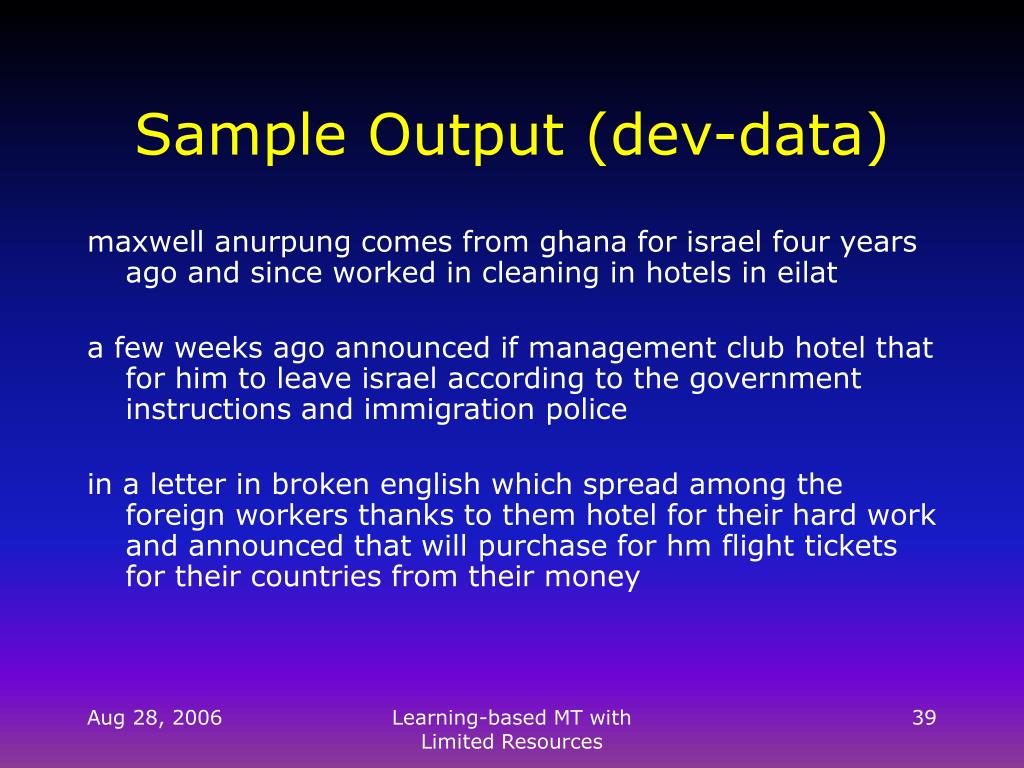

    39. Sample Output (dev-data) maxwell anurpung comes from ghana for israel four years ago and since worked in cleaning in hotels in eilat a few weeks ago announced if management club hotel that for him to leave israel according to the government instructions and immigration police in a letter in broken english which spread among the foreign workers thanks to them hotel for their hard work and announced that will purchase for hm flight tickets for their countries from their money Learning-based MT with Limited Resources

    40. Test set of 62 sentences from Haaretz newspaper, 2 reference translations Evaluation Results Learning-based MT with Limited Resources

    41. Hebrew-English: Test Suite Evaluation Learning-based MT with Limited Resources

    42. Outline • Rationale for learning-based MT • Roadmap for learning-based MT • Framework overview • Elicitation • Learning transfer Rules • Automatic rule refinement • Learning Morphology • Example prototypes • Implications for MT with vast parallel data • Conclusions and future directions Learning-based MT with Limited Resources

    43. Implications for MT with Vast Amounts of Parallel Data • Phrase-to-phrase MT ill suited for long-range reorderings  ungrammatical output • Recent work on hierarchical Stat-MT [Chiang, 2005] and parsing-based MT [Melamed et al, 2005] [Knight et al] • Learning general tree-to-tree syntactic mappings is equally problematic: • Meaning is a hybrid of complex, non-compositional phrases embedded within a syntactic structure • Some constituents can be translated in isolation, others require contextual mappings Learning-based MT with Limited Resources

    44. Implications for MT with Vast Amounts of Parallel Data • Our approach for learning transfer rules is applicable to the large data scenario, subject to solutions for several large challenges: • No elicitation corpus  break-down parallel sentences into reasonable learning examples • Working with less reliable automatic word alignments rather than manual alignments • Effective use of reliable parse structures for ONE language (i.e. English) and automatic word alignments in order to decompose the translation of a sentence into several compositional rules. • Effective scoring of resulting very large transfer grammars, and scaled up transfer + decoding Learning-based MT with Limited Resources

    45. Implications for MT with Vast Amounts of Parallel Data • Example: 他 经常 与 江泽民 总统 通 电话 He freq with J Zemin Pres via phone He freq talked with President J Zemin over the phone Learning-based MT with Limited Resources

    46. Implications for MT with Vast Amounts of Parallel Data • Example: 他 经常 与 江泽民 总统 通 电话 He freq with J Zemin Pres via phone He freq talked with President J Zemin over the phone NP1 NP2 NP3 NP1 NP2 NP3 Learning-based MT with Limited Resources

    47. Conclusions • There is hope yet for wide-spread MT between many of the worlds language pairs • MT offers a fertile yet extremely challenging ground for learning-based approaches that leverage from diverse sources of information: • Syntactic structure of one or both languages • Word-to-word correspondences • Decomposable units of translation • Statistical Language Models • AVENUE’s XFER approach provides a feasible solution to MT for languages with limited resources • Promising approach for addressing the fundamental weaknesses in current corpus-based MT for languages with vast resources Learning-based MT with Limited Resources

    48. Future Research Directions • Automatic Transfer Rule Learning: • Learning mappings for non-compositional structures • Effective models for rule scoring for • Decoding: using scores at runtime • Pruning the large collections of learned rules • Learning Unification Constraints • In the “large-data” scenario: from large volumes of uncontrolled parallel text automatically word-aligned • In the absence of morphology or POS annotated lexica • Integrated Xfer Engine and Decoder • Improved models for scoring tree-to-tree mappings, integration with LM and other knowledge sources in the course of the search Learning-based MT with Limited Resources

    49. Future Research Directions • Automatic Rule Refinement • Morphology Learning • Feature Detection and Corpus Navigation • … Learning-based MT with Limited Resources

    50. Learning-based MT with Limited Resources
