  1. Stream Quality Assessment Biological Monitoring

  2. WHY Monitor Stream Quality? To determine if problems exist in our streams and rivers.

  3. HOW do we Monitor Stream Quality? • Stream quality can be assessed by determining the kinds of animals that live within the stream (Biotic Assessment) • Other indicators may be stream odor, appearance, and surroundings (Abiotic Assessment)

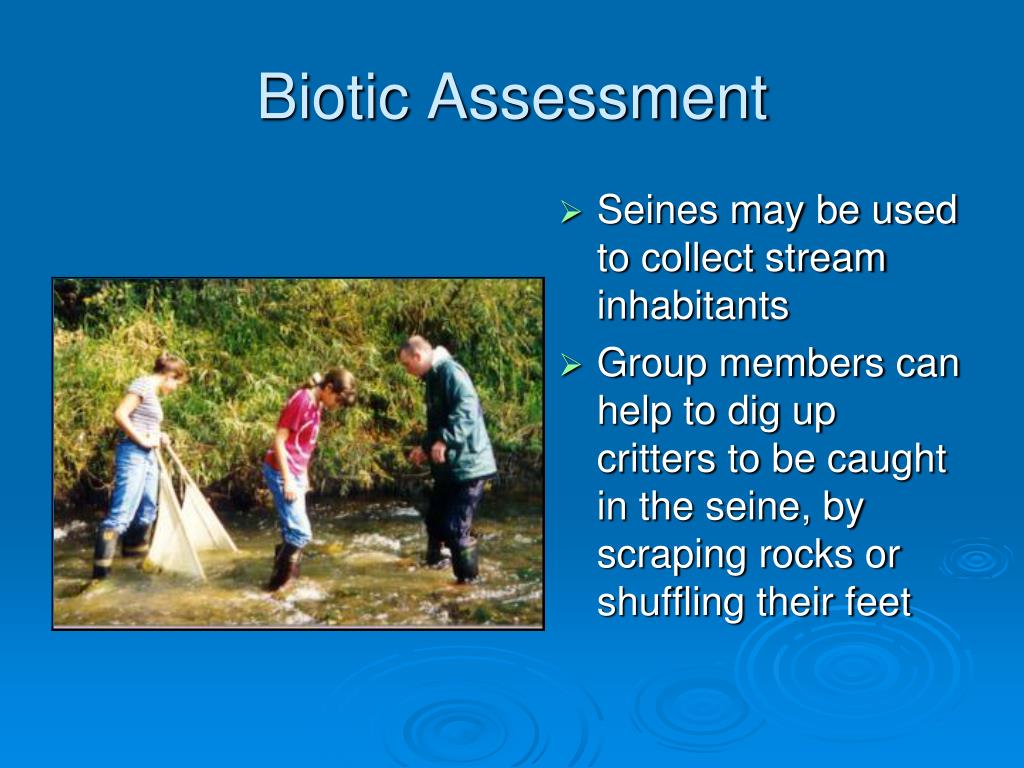

  4. Biotic Assessment • Seines may be used to collect stream inhabitants • Group members can help to dig up critters to be caught in the seine, by scraping rocks or shuffling their feet

  5. What kind of critters do we look for? Macroinvertebrates • “Macro”= large enough to be seen with the naked eye • “Invertebrate” = without a backbone • Aquatic macroinvertebrates can be indicators of water quality

  6. There are 3 groups of Macroinvertebrates: • Group One Taxa – pollution sensitive organisms; if these critters are present, you have little pollution in the water • Group Two Taxa – moderate pollution-tolerant; these guys may indicate that the water has some pollution, but not a lot of pollution. • Group Three Taxa – heavy pollution-tolerant; these critters may indicate very heavy pollution

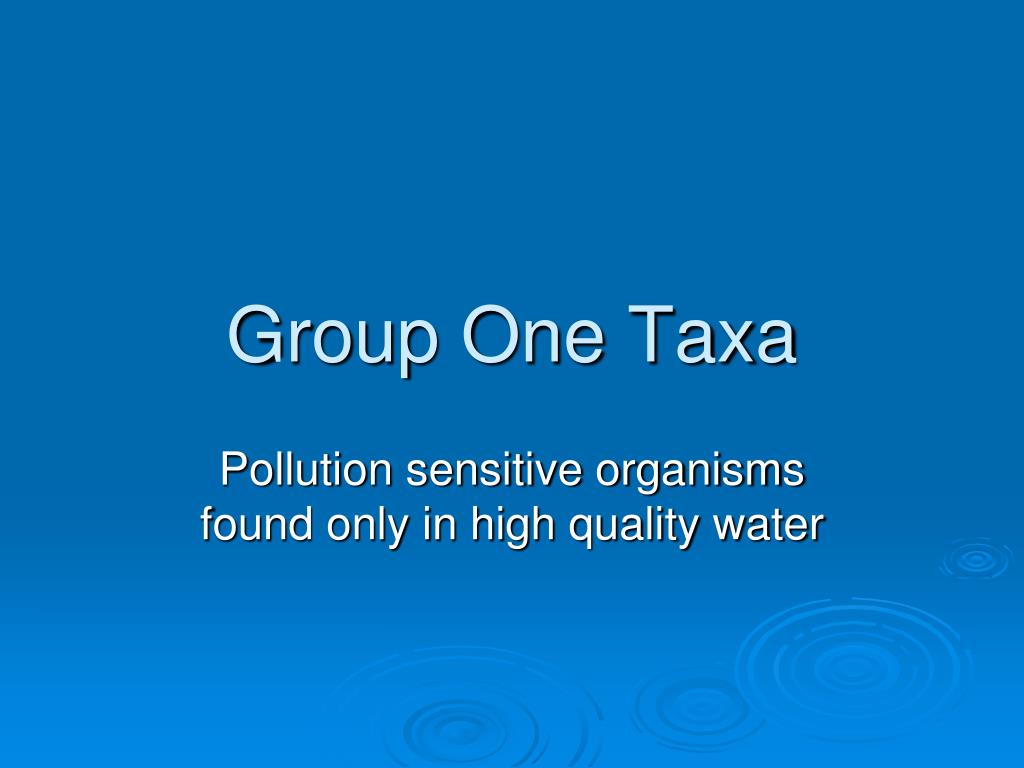

  7. Group One Taxa Pollution sensitive organisms found only in high quality water

  8. Stonefly Nymph • 1/2” - 1 1/2” in length • 6 legs with hooked tips • Long antennae • 2 hair like tails

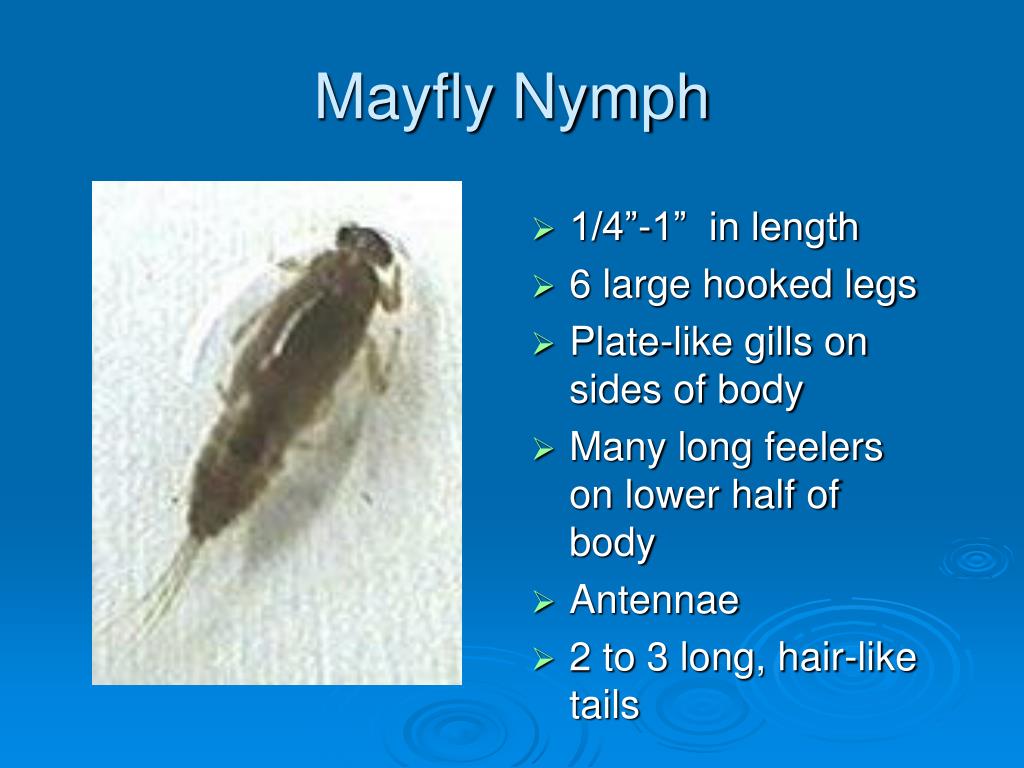

  9. Mayfly Nymph • 1/4”-1” in length • 6 large hooked legs • Plate-like gills on sides of body • Many long feelers on lower half of body • Antennae • 2 to 3 long, hair-like tails

  10. Water Penny Beetle Larvae • 1/4” in length • 6 tiny legs on bottom side of body • Flat, saucer-shaped body with raised bumps on top side of body

  11. Gilled Snail • Shell opens on the right • Opening covered by thin plate called operculum

  12. Caddisfly Larvae • Up to 1/2” in length • 6 hooked legs on upper third of body • 2 hooks at back end • May be found in rock, stick, or leaf case • Typically greenish colored body with dark head

  13. Dobsonfly Larvae (Hellgrammite) • 3/4” - 4” in length • 6 legs • Many feelers on lower half of body • 4 hooks at back end • Fan shaped gill tufts on sides • Short antennae

  14. Riffle Beetle • 1/4” in length • Oval body covered with tiny hairs • 6 legs • Antennae • Both larva and adult are commonly found in the water Adult Larva

  15. Group Two Taxa Somewhat pollution tolerant organisms that can live in moderate quality water.

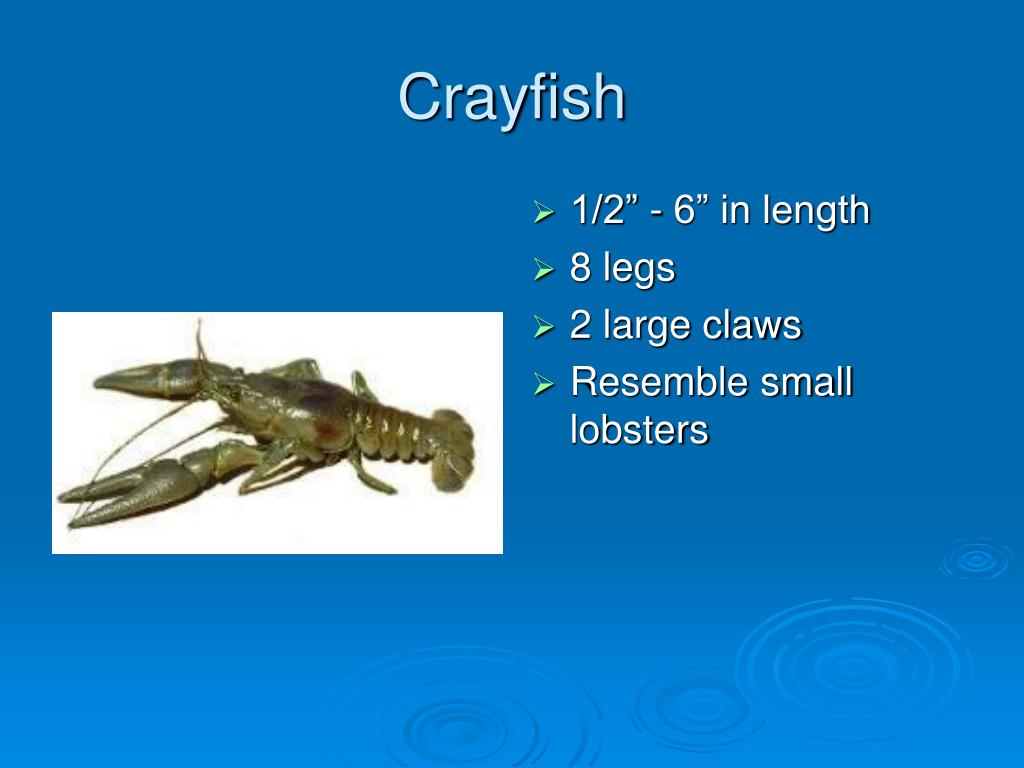

  16. Crayfish • 1/2” - 6” in length • 8 legs • 2 large claws • Resemble small lobsters

  17. Dragonfly Nymph • 1/2” - 2” in length • 6 hooked legs • Large eyes • Usually buried in mud or found clinging to root masses

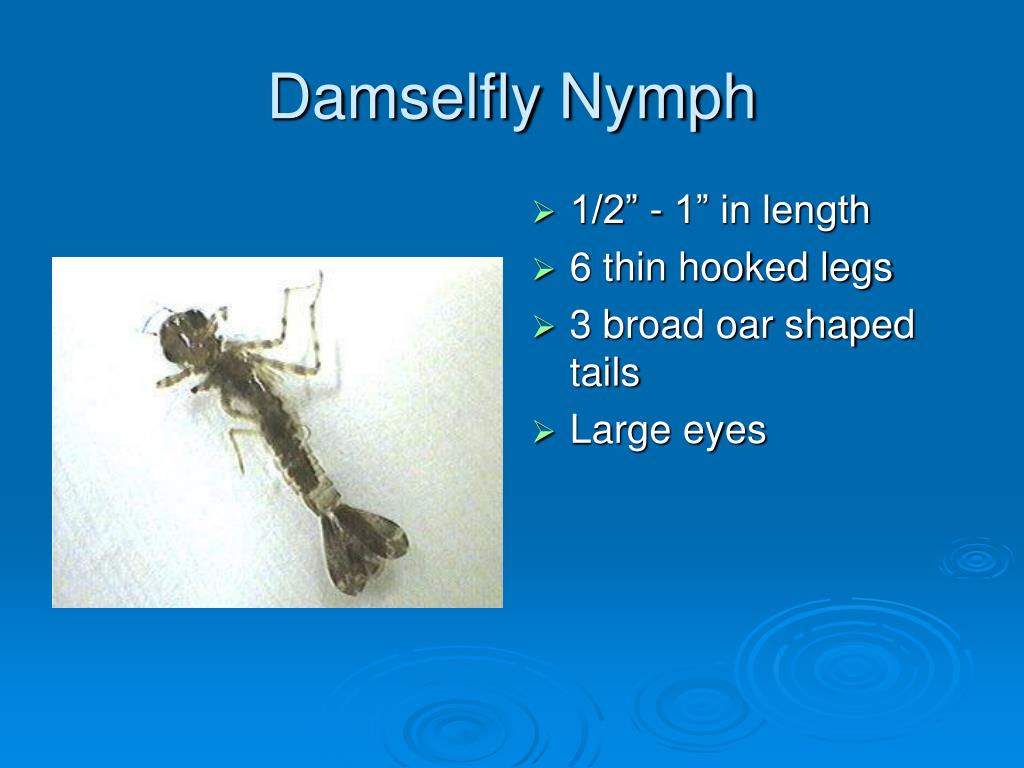

  18. Damselfly Nymph • 1/2” - 1” in length • 6 thin hooked legs • 3 broad oar shaped tails • Large eyes

  19. Crane Fly Larvae • 1/3” - 2” in length • Plump caterpillar-like segmented body • Finger-like lobes at back end • Typically white in color, can be green or brown

  20. Clam • Clams in Ohio streams come in variety of sizes, shapes, and colors according to the species.

  21. Group Three Taxa Pollution tolerant organisms that can handle poorer water quality.

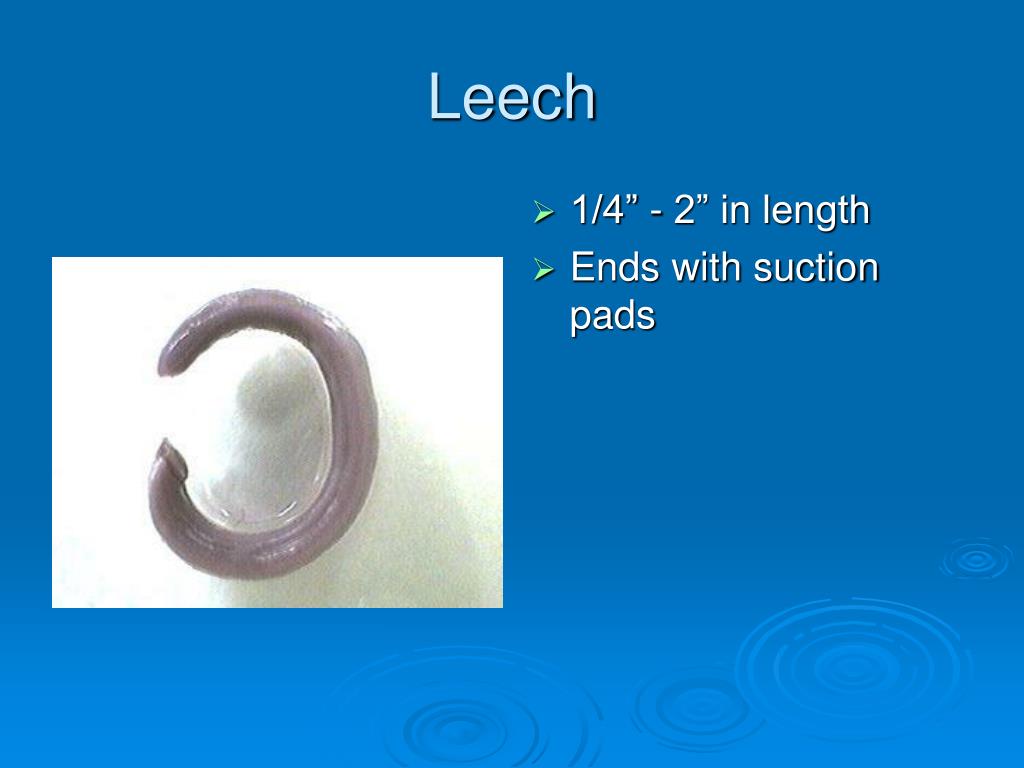

  22. Leech • 1/4” - 2” in length • Ends with suction pads

  23. Aquatic Worm • 1/4” - 1” in length • Look like earthworms • Can be very thin

  24. Midge Larvae • Up to 1/4” in length • 2 legs on each side • Worm-like segmented body • Rapid squirming movement

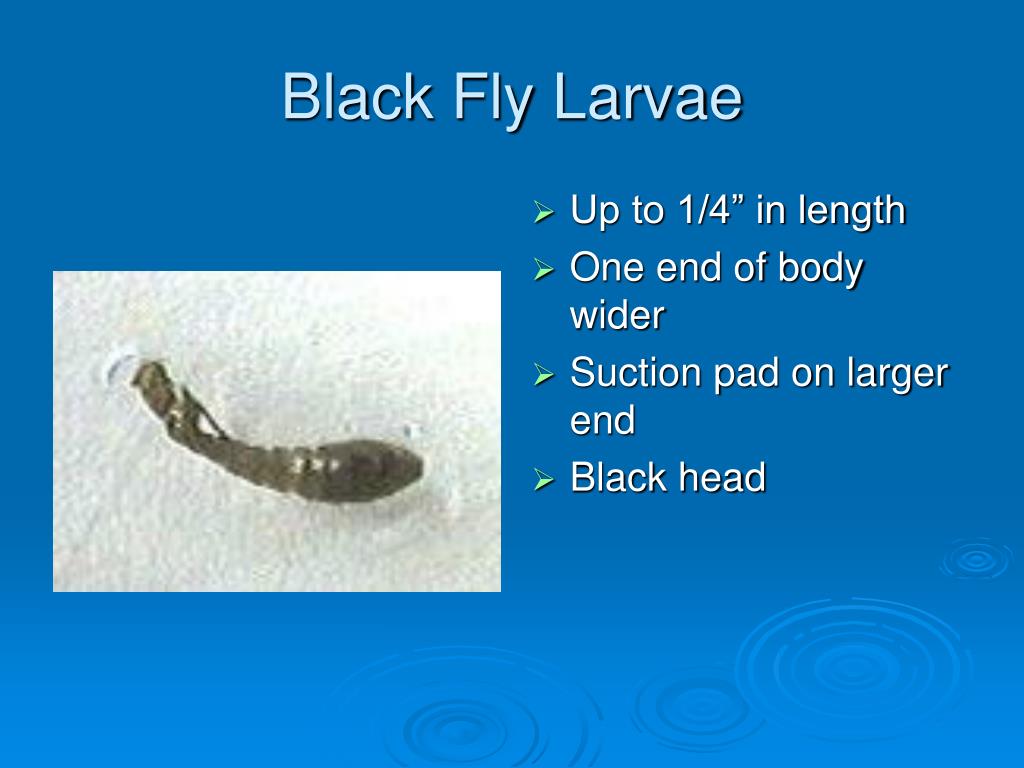

  25. Black Fly Larvae • Up to 1/4” in length • One end of body wider • Suction pad on larger end • Black head

  26. Pouch Snail • Shell opens on the left • No operculum • Breathe air

  27. HabitatWhere do you find macroinvertebrates? • Under rocks • Around tree roots • Around beds of vegetation • Around litter or other debris • In riffle zones

  28. Streamside Habitat • Tree overhang • Roots and logs jutting into the stream • Rocks and boulders along the stream edge • Provide homes and shelter for animals

  29. Riffle Zones • Areas where water is visibly flowing over rocks and stream bottom • Look like small rapids • The movement over the rocks allows oxygen to enter the water

  30. Abiotic Assessment

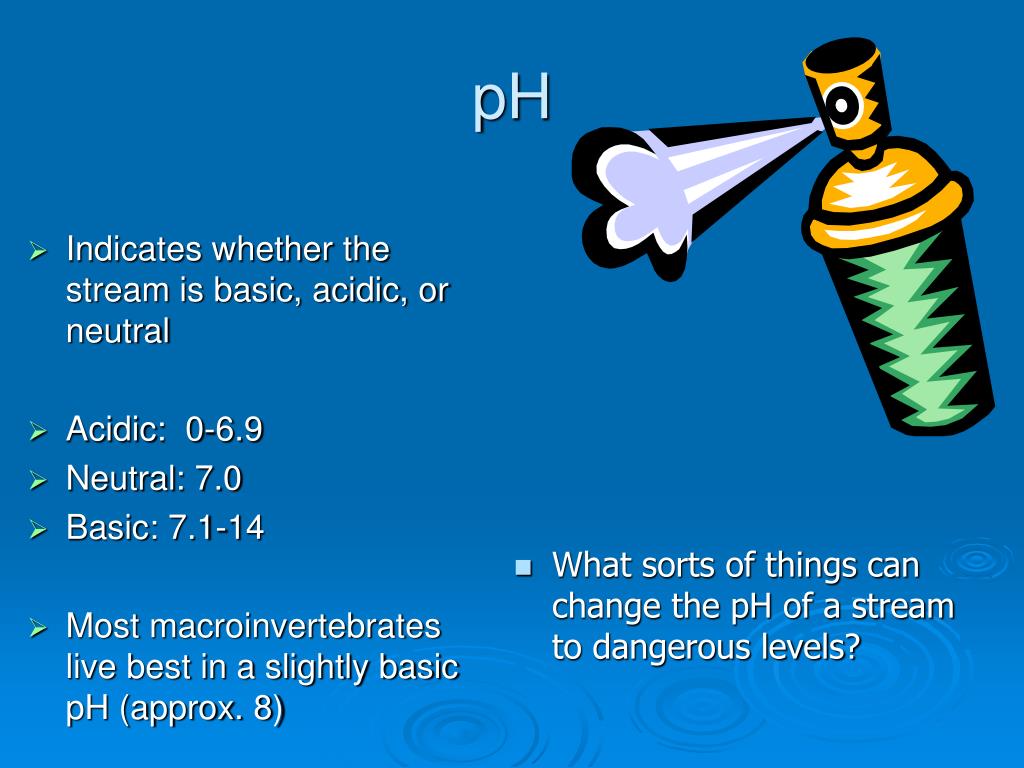

  31. pH • Indicates whether the stream is basic, acidic, or neutral • Acidic: 0-6.9 • Neutral: 7.0 • Basic: 7.1-14 • Most macroinvertebrates live best in a slightly basic pH (approx. 8) • What sorts of things can change the pH of a stream to dangerous levels?

  32. Alkalinity • Indicates the stream’s ability to neutralize acids • If a lot of acid is needed to cause the stream’s pH, it can neutralize well. It has high alkalinity. (Good) • If the pH drops with just a little acid, the alkalinity is low. (Bad)

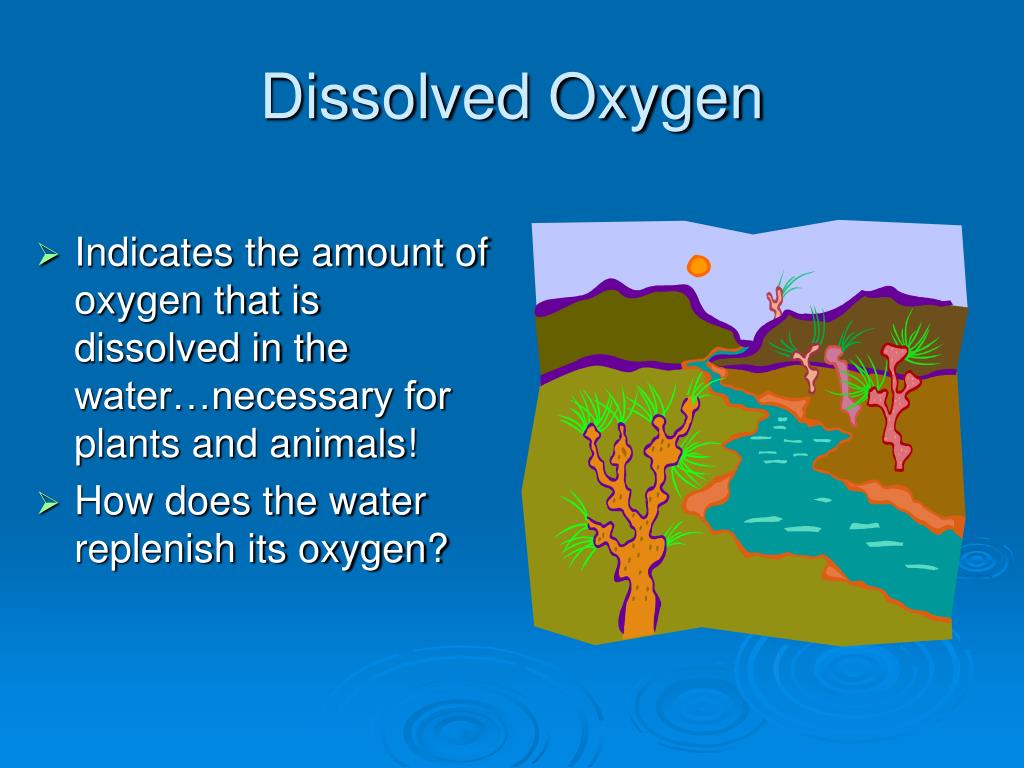

  33. Dissolved Oxygen • Indicates the amount of oxygen that is dissolved in the water…necessary for plants and animals! • How does the water replenish its oxygen?

  34. Nitrates • Form of Nitrogen (NO3) that is essential to life. • High levels of nitrates can be toxic! • Try not cleaning your fish tank for a year… • Why? Nitrogen combines with Oxygen to form nitrate (NO3). Too much Nitrogen removes too much oxygen and causes the fishies to suffocate. • Healthy Levels – 1 mg/L • Toxic Levels – 10 mg/L • Water treatment plant – 30 mg/L

  35. Phosphates • Essential for life • Phosphorus can be dissolved or suspended • Similar to Nitrates: • High levels – toxic • Low levels – toxic • Moderate levels - healthy

  36. Stream Flow • Choose a section of the creek. • Use a tape measure to find the width and depth of a 100 foot area. • Float a rubber ducky from one end to the other and time its flow. 100 ft. area Speed of Ducky: 100 ft. / _____sec. = _______ ft./sec. Avg. Width x Avg. Depth x ______ ft./sec. = _________ ft.3/sec. **Stream Flow**

  37. Turbidity • Clearness or cloudiness of water. • The deeper you can see (clearer), the healthier the stream. • Equipment: Turbidity Tube

  38. Other Stream Quality Indicators • Water appearance • Water odor • Stream bank shape • Stream bottom cover • Streamside vegetation • Land uses within the watershed • Pipes entering the stream • This is called the Qualitative Habitat Evaluation Index (QHEI)

  39. Riparian Corridor • Streamside forests • Protects streambanks from erosion • Protects water quality by filtering out pollutants • Provides wildlife habitat

  40. Stream Bank Without Vegetation

  41. Point Source Discharges • Discharge entering a stream or river from a pipe or tile, i.e. • Agricultural field tile • Storm drains • Factory outputs • Water treatment plant outlets

  42. Need More Information ? • Check with Ohio EPA for more specific information and expertise on setting up a water quality monitoring program, especially for chemical monitoring • Both ODNR and Ohio EPA can assist with Quality Habitat Environmental Index (QHEI)

  43. Happy Critter Hunting!
