  1. Image Processing and Computer Vision: 9

  2. Image and Video Coding Compressing data to a smaller volume without losing (too much) information

  3. Why Code Data? • To reduce storage volume • To reduce transmission time • One colour image • 760 by 580 pixels • 3 channels, each 8 bits • 1.3 Mbyte • Video data • Same resolution • 25 frames per second • 33 Mbyte/second Image Processing and Computer Vision: 9

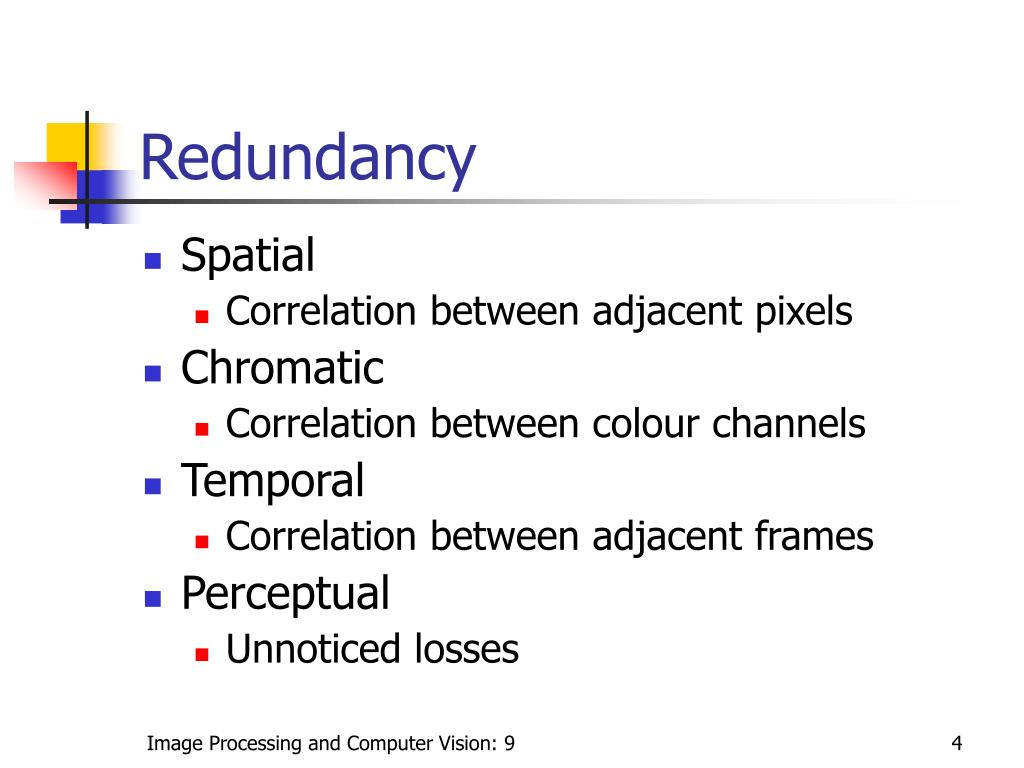

  4. Redundancy • Spatial • Correlation between adjacent pixels • Chromatic • Correlation between colour channels • Temporal • Correlation between adjacent frames • Perceptual • Unnoticed losses Image Processing and Computer Vision: 9

  5. Example Image Processing and Computer Vision: 9

  6. Redundancy - Consequences • Data exceeds information • More data than content justifies • Can lose data without losing information Image Processing and Computer Vision: 9

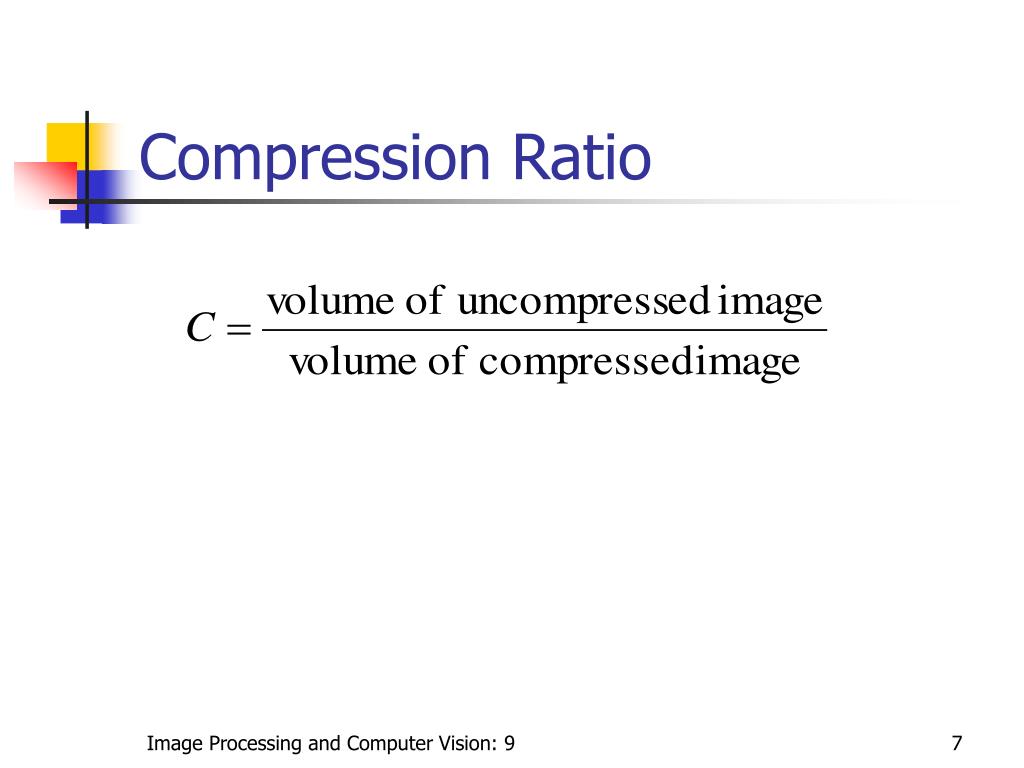

  7. Compression Ratio Image Processing and Computer Vision: 9

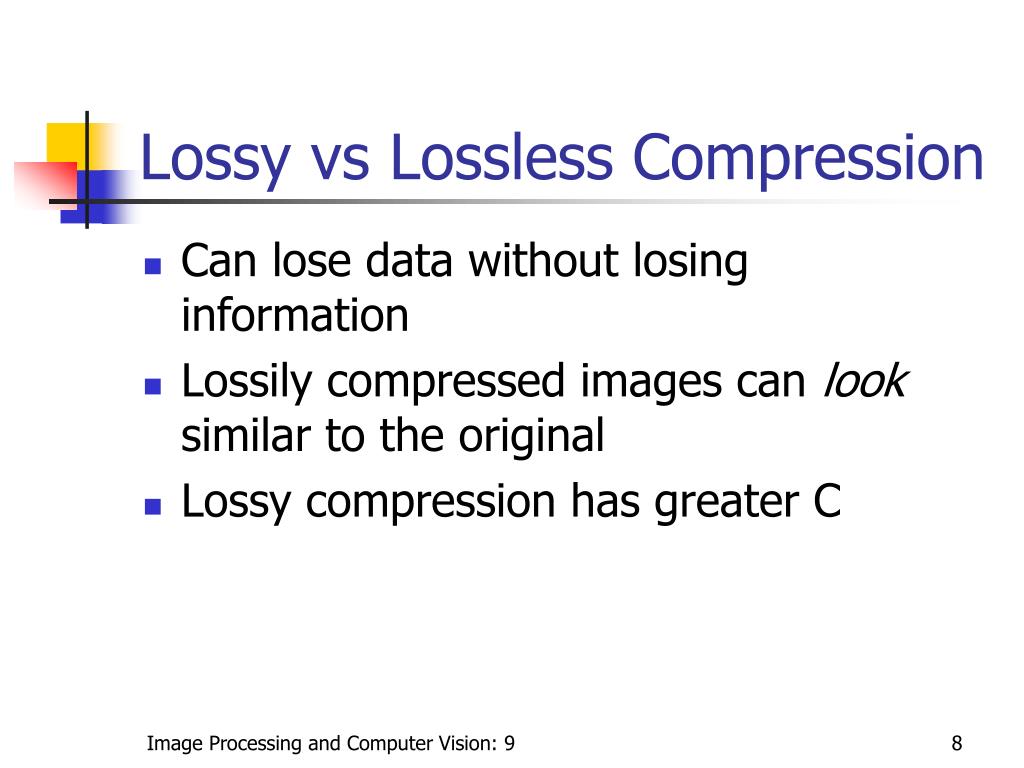

  8. Lossy vs Lossless Compression • Can lose data without losing information • Lossily compressed images can look similar to the original • Lossy compression has greater C Image Processing and Computer Vision: 9

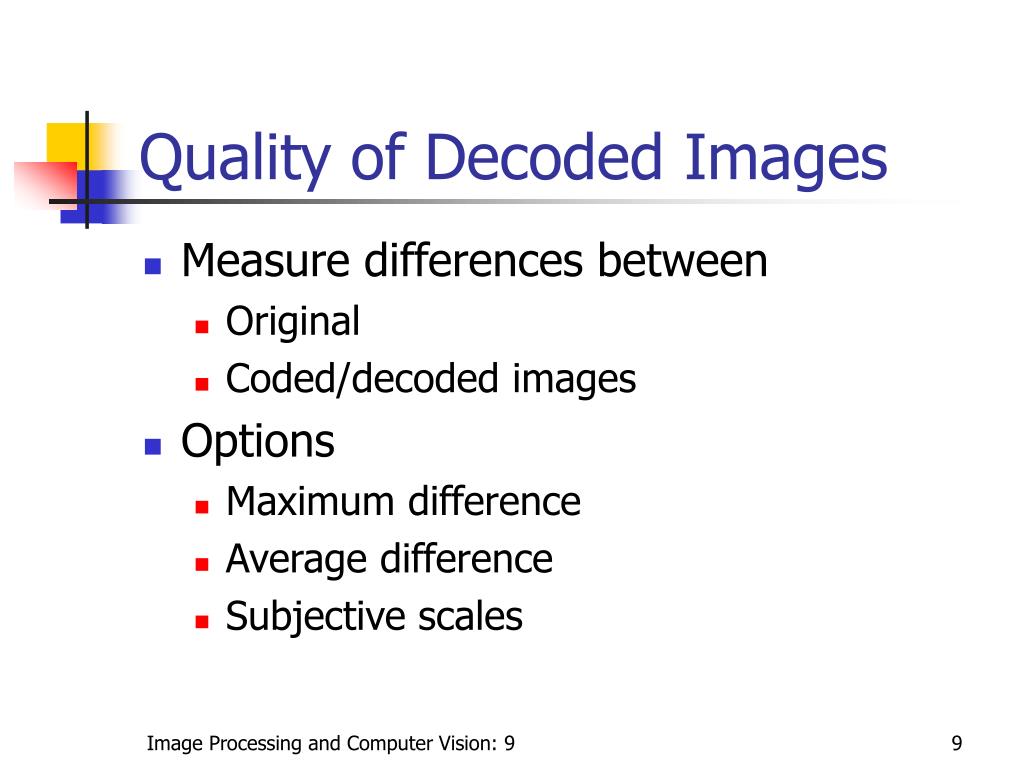

  9. Quality of Decoded Images • Measure differences between • Original • Coded/decoded images • Options • Maximum difference • Average difference • Subjective scales Image Processing and Computer Vision: 9

  10. Example Image Processing and Computer Vision: 9

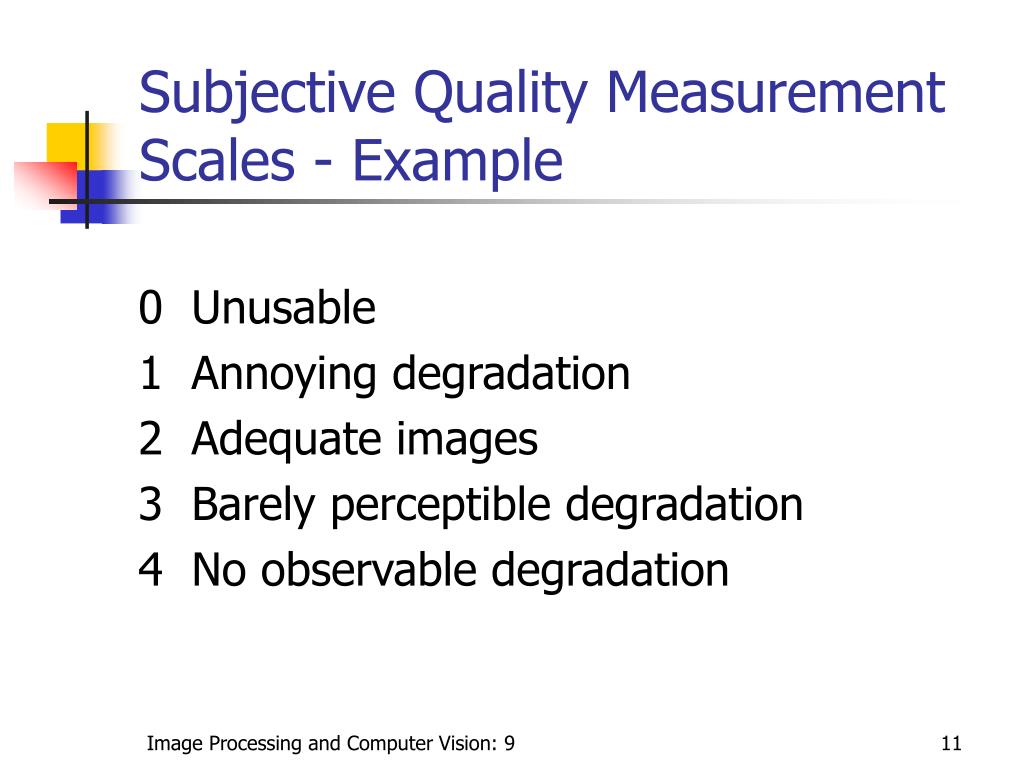

  11. Subjective Quality Measurement Scales - Example 0 Unusable 1 Annoying degradation 2 Adequate images 3 Barely perceptible degradation 4 No observable degradation Image Processing and Computer Vision: 9

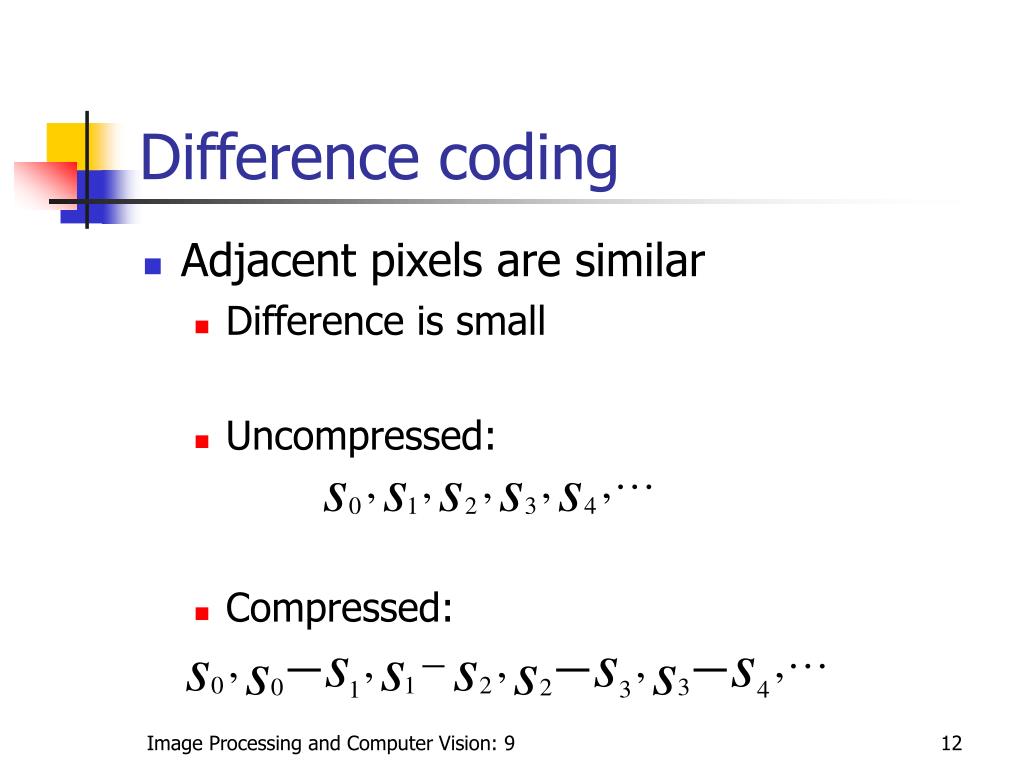

  12. Difference coding • Adjacent pixels are similar • Difference is small • Uncompressed: • Compressed: Image Processing and Computer Vision: 9

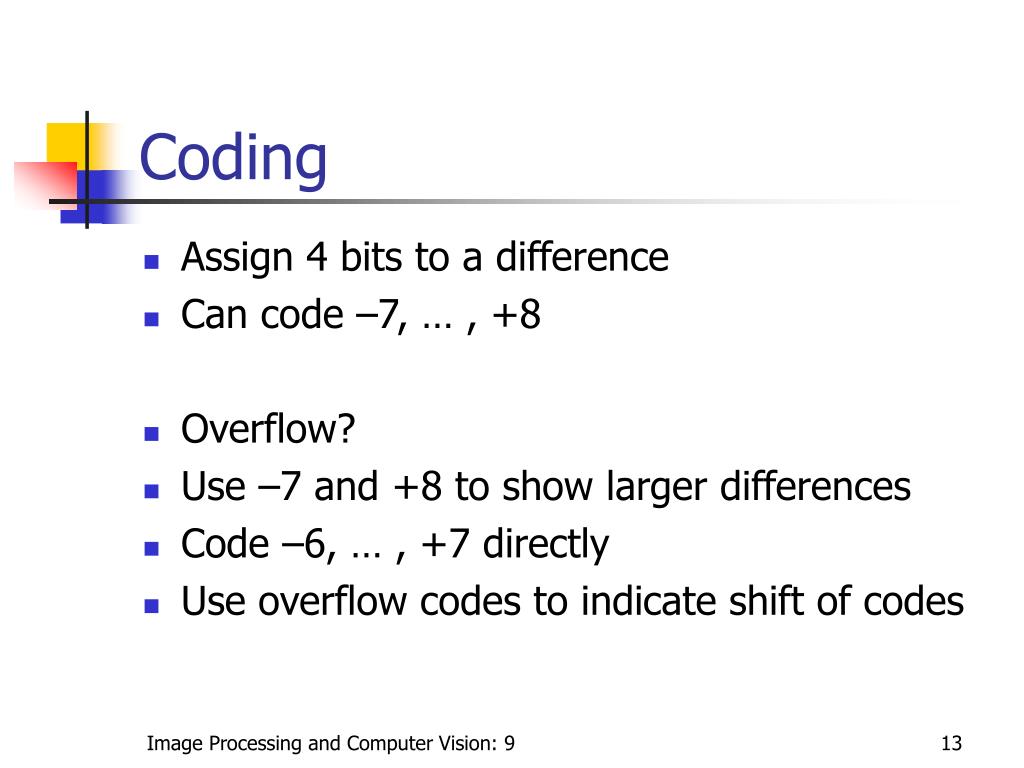

  13. Coding • Assign 4 bits to a difference • Can code –7, … , +8 • Overflow? • Use –7 and +8 to show larger differences • Code –6, … , +7 directly • Use overflow codes to indicate shift of codes Image Processing and Computer Vision: 9

  14. Image Processing and Computer Vision: 9

  15. Predictive Coding • If signals are well sampled • Adjacent samples are correlated • They have similar values • Differences are small • Can guess next sample from value of current Image Processing and Computer Vision: 9

  16. Constants are correlation coefficient and mean grey value • Difference between real and predicted values are smaller • Code as for difference coding Image Processing and Computer Vision: 9

  17. Run Length Coding • Replace runs of equal brightness values by • (length of run, value) 1 2 2 3 3 4 4 4 5 6 5 (1 1) (2 2) (2 3) (3 4) (1 5) (1 6) (1 5) • More use when few brightness values • e.g. fax Image Processing and Computer Vision: 9

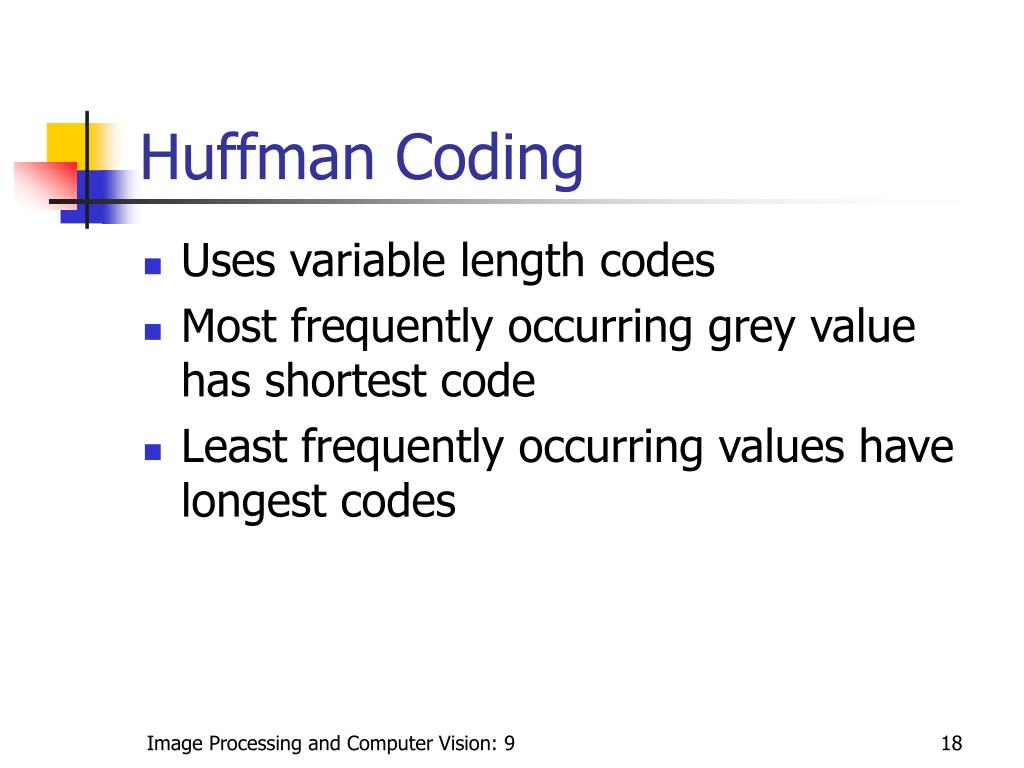

  18. Huffman Coding • Uses variable length codes • Most frequently occurring grey value has shortest code • Least frequently occurring values have longest codes Image Processing and Computer Vision: 9

  19. Example Symbol Probability 1 2 3 4 A B C D E F 0.4 0.3 0.1 0.1 0.06 0.04 0.4 0.3 0.1 0.1 0.1 0.4 0.3 0.2 0.1 0.4 0.3 0.3 0.6 0.4 Image Processing and Computer Vision: 9

  20. Symbol Probability 1 2 3 4 A B C D E F 0.4 1 0.3 00 0.1 011 0.1 0100 0.06 01010 0.04 01011 0.4 1 0.3 00 0.1 011 0.1 0100 0.1 0101 0.4 1 0.3 00 0.2 010 0.1 011 0.4 1 0.3 00 0.3 01 0.6 0 0.4 1 Image Processing and Computer Vision: 9

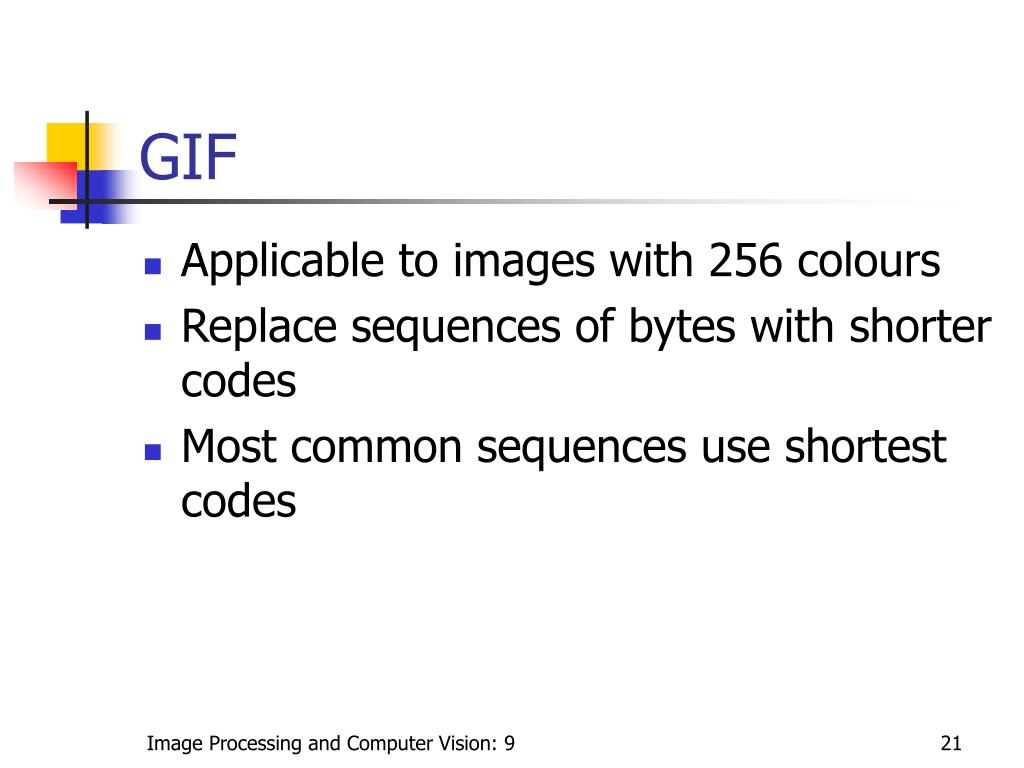

  21. GIF • Applicable to images with 256 colours • Replace sequences of bytes with shorter codes • Most common sequences use shortest codes Image Processing and Computer Vision: 9

  22. Wavelet coders • Wavelet transform organises image content efficiently • Can easily select data to be discarded Image Processing and Computer Vision: 9

  23. Wavelet coders Image Processing and Computer Vision: 9

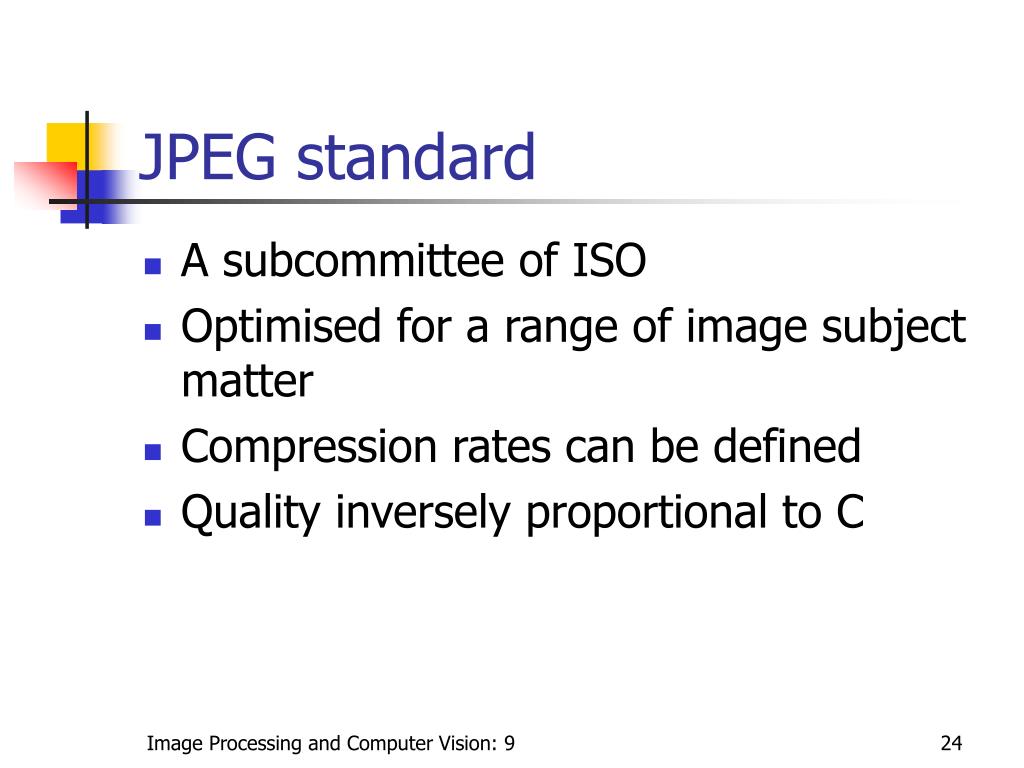

  24. JPEG standard • A subcommittee of ISO • Optimised for a range of image subject matter • Compression rates can be defined • Quality inversely proportional to C Image Processing and Computer Vision: 9

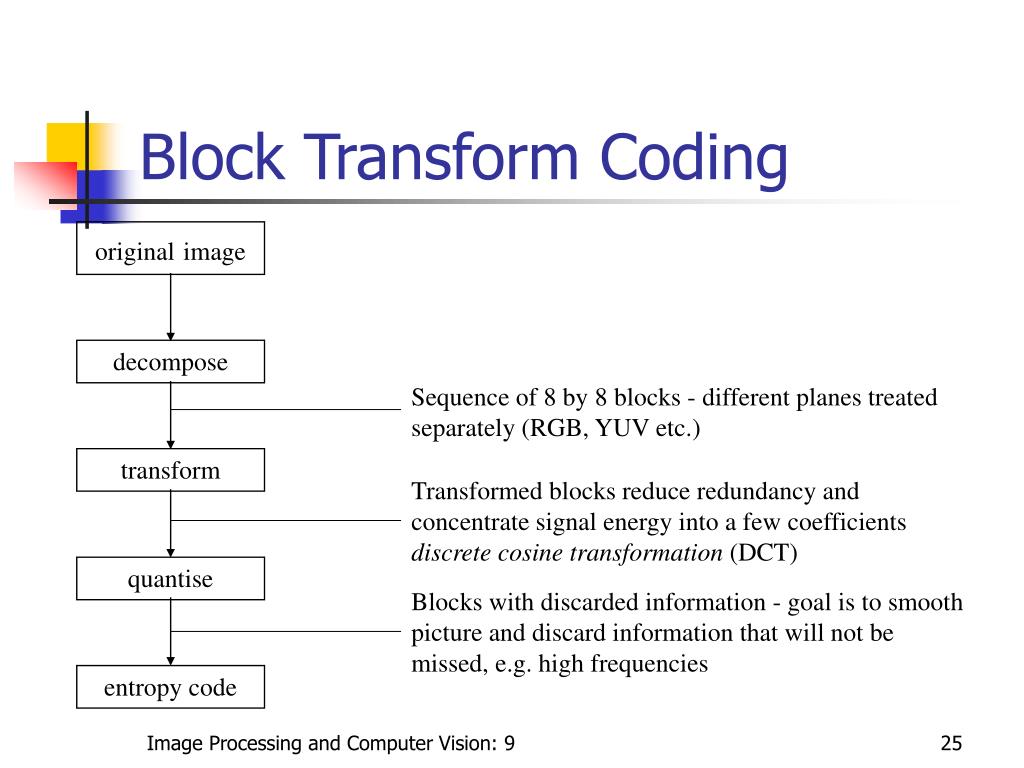

  25. originalimage decompose Sequence of 8 by 8 blocks - different planes treated separately (RGB, YUV etc.) transform Transformed blocks reduce redundancy and concentrate signal energy into a few coefficients discrete cosine transformation (DCT) quantise Blocks with discarded information - goal is to smooth picture and discard information that will not be missed, e.g. high frequencies entropy code Block Transform Coding Image Processing and Computer Vision: 9

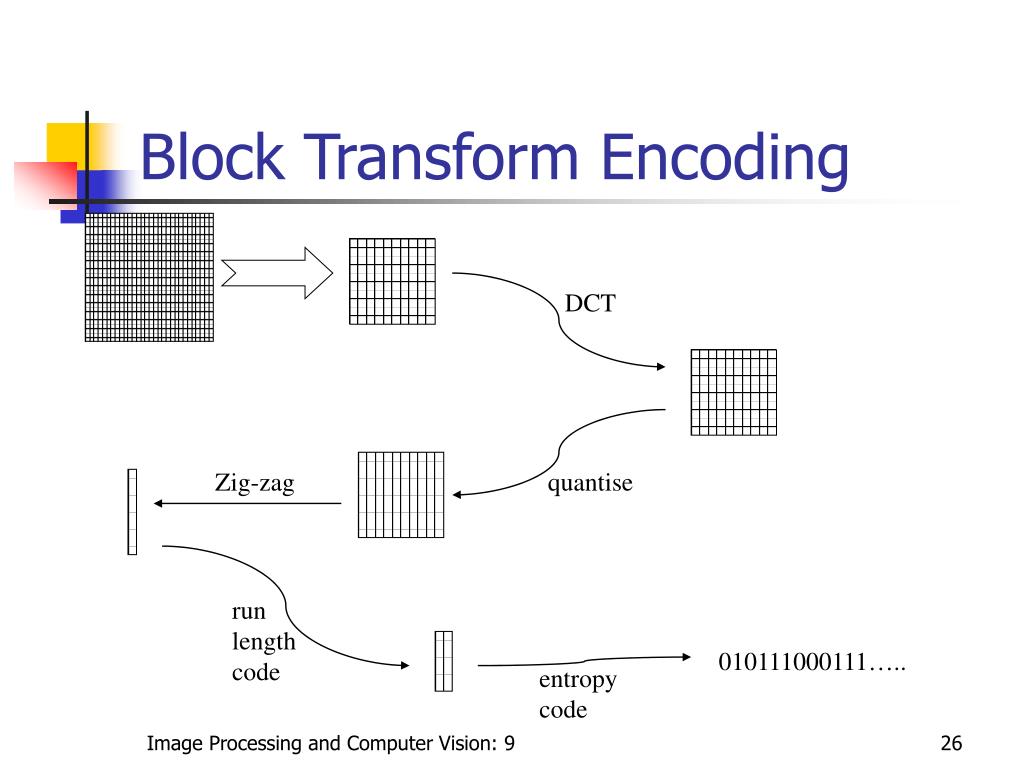

  26. DCT Zig-zag quantise run length code 010111000111….. entropy code Block Transform Encoding Image Processing and Computer Vision: 9

  27. Block Encoding Original image 1260 -1 -12 -5 -23 -17 -6 -3 -11 -9 -2 2 -7 -2 0 1 139 144 149 153 144 151 153 156 150 155 160 163 159 161 162 160 DCT quantise 79 0 -1 0 -2 -1 0 0 -1 -1 0 0 0 0 0 0 Zig-zag 79 0 -2 -1 -1 -1 0 0 -1 0 0 0 0 0 0 0 0 79 1 -2 0 -1 0 -1 0 -1 2 -1 0 0 run length code 10011011100011…. Huffman code Image Processing and Computer Vision: 9

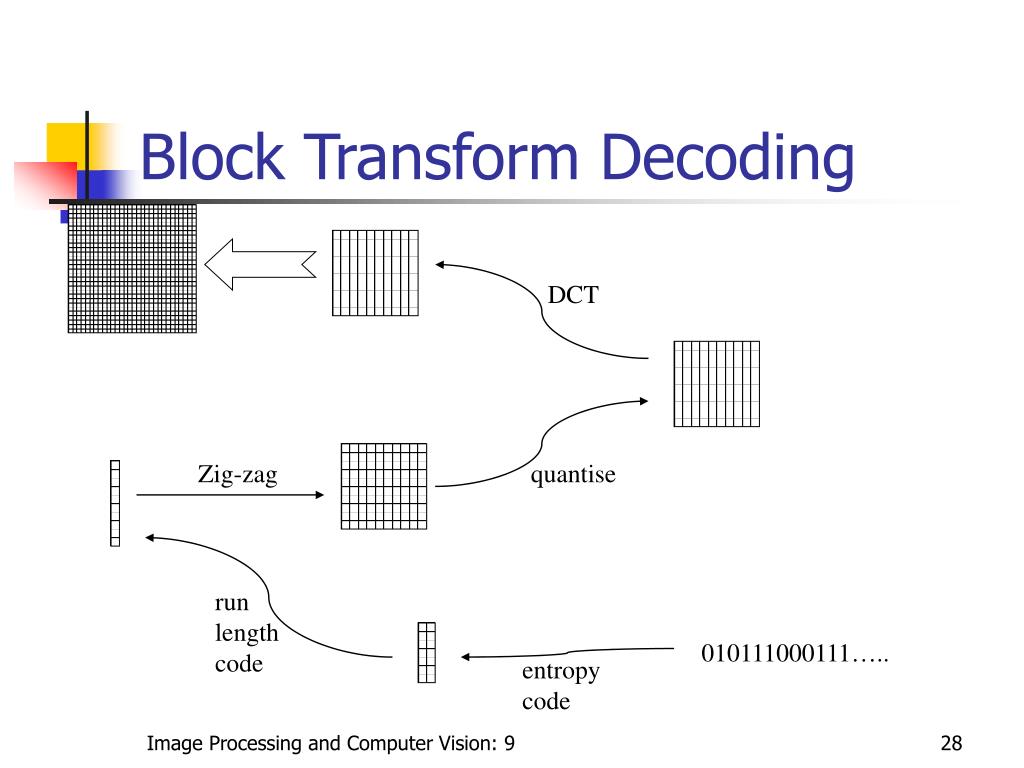

  28. Block Transform Decoding DCT Zig-zag quantise run length code 010111000111….. entropy code Image Processing and Computer Vision: 9

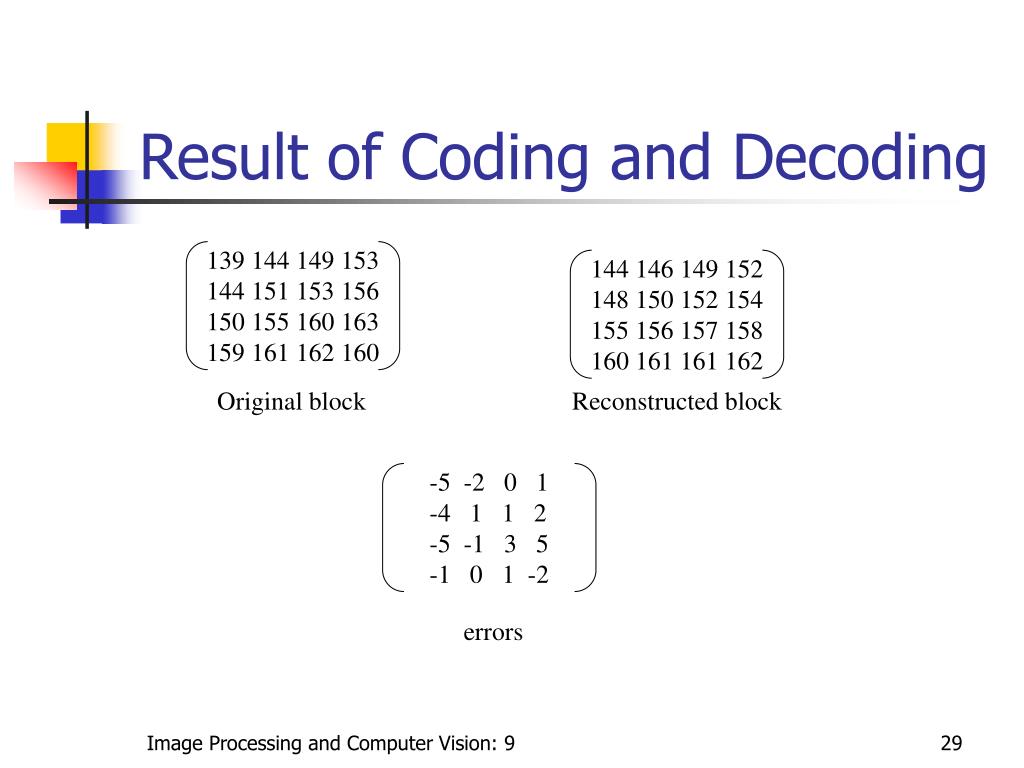

  29. Result of Coding and Decoding 139 144 149 153 144 151 153 156 150 155 160 163 159 161 162 160 144 146 149 152 148 150 152 154 155 156 157 158 160 161 161 162 Original block Reconstructed block -5 -2 0 1 -4 1 1 2 -5 -1 3 5 -1 0 1 -2 errors Image Processing and Computer Vision: 9

  30. n-1 S j=0 n-1 S k=0 4C(u)C(v) n2 F[u,v] = f(j,k) 1 2 For w = 0 (2k+1) v p 2n (2j+1) u p 2n cos cos 1 otherwise Discrete Cosine Transform with C(w) = Image Processing and Computer Vision: 9

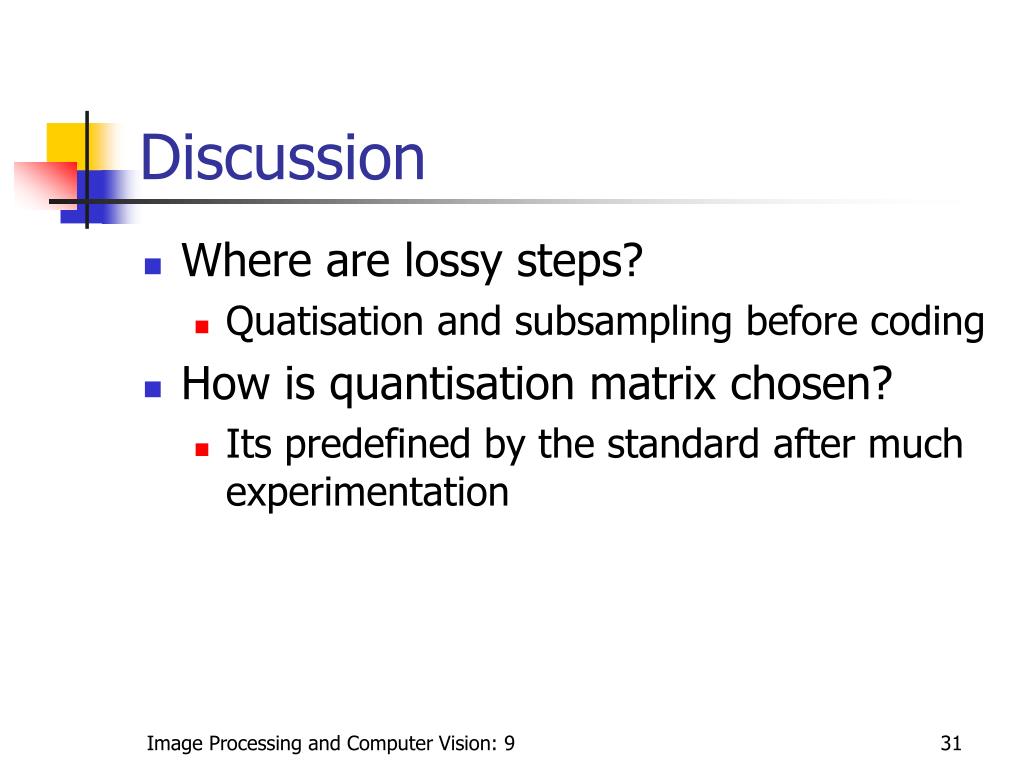

  31. Discussion • Where are lossy steps? • Quatisation and subsampling before coding • How is quantisation matrix chosen? • Its predefined by the standard after much experimentation Image Processing and Computer Vision: 9

  32. Video coding • Many specific standards • AVS, MOV, QT, … • One universal standard • MPEG Image Processing and Computer Vision: 9

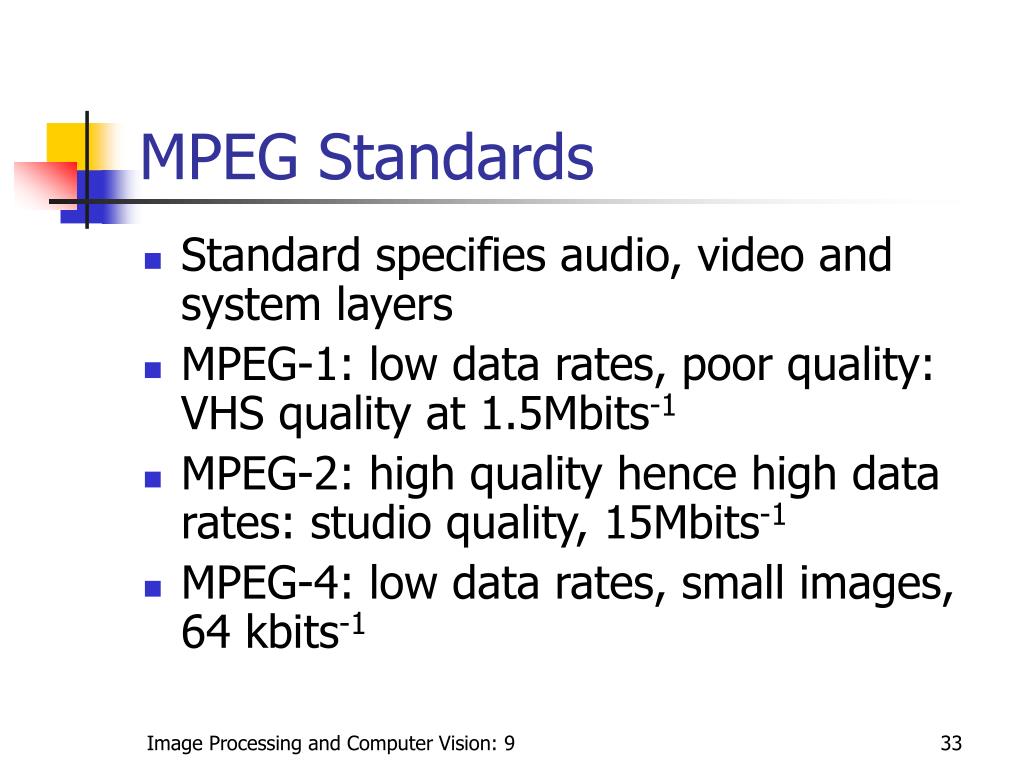

  33. MPEG Standards • Standard specifies audio, video and system layers • MPEG-1: low data rates, poor quality: VHS quality at 1.5Mbits-1 • MPEG-2: high quality hence high data rates: studio quality, 15Mbits-1 • MPEG-4: low data rates, small images, 64 kbits-1 Image Processing and Computer Vision: 9

  34. MPEG-1 • Audio and video designed to work at CD ROM speeds: 1.5Mbits-1 • Video 1.150Mbits-1 • Audio 0.256Mbits-1 • System 0.094Mbits-1 Image Processing and Computer Vision: 9

  35. MPEG-2 • Released in 1994 • Aimed at digital TV, ATM. • Additions for • Interlaced video • Scalable video coding • Graceful degradation with noise • Implementation of full standard impractical • Varying profiles/levels of conformity Image Processing and Computer Vision: 9

  36. MPEG-4 • Coding specifically for multimedia objects Image Processing and Computer Vision: 9

  37. Coding Algorithms • Frame sequence • Motion compensation • Frame coding Image Processing and Computer Vision: 9

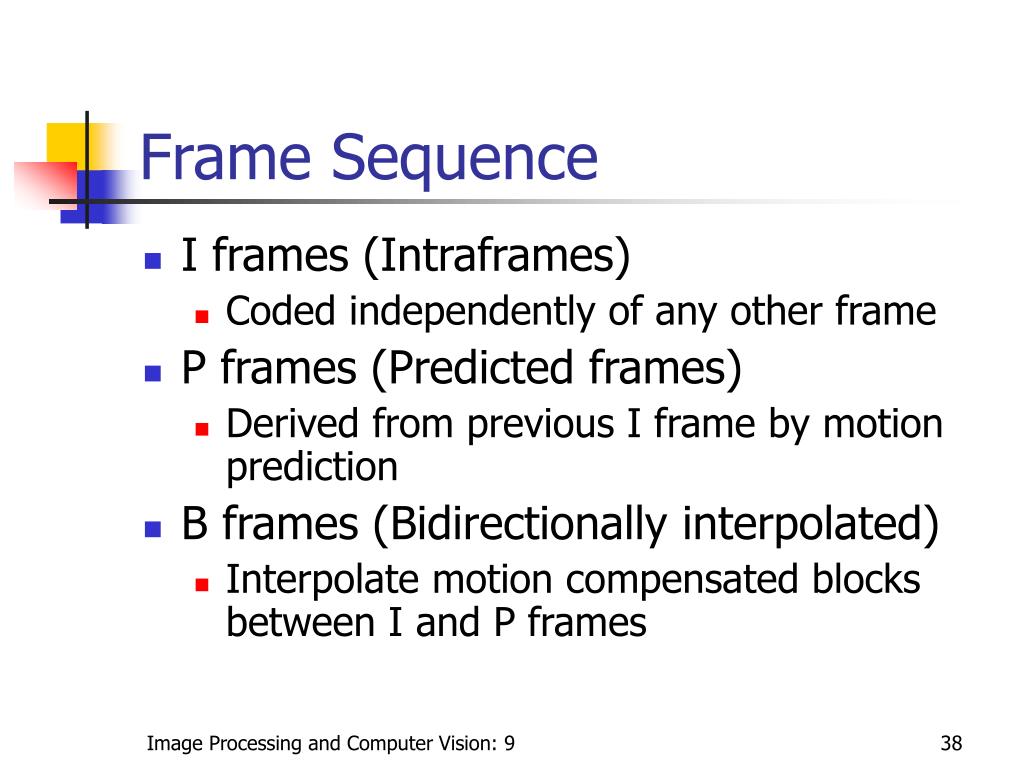

  38. Frame Sequence • I frames (Intraframes) • Coded independently of any other frame • P frames (Predicted frames) • Derived from previous I frame by motion prediction • B frames (Bidirectionally interpolated) • Interpolate motion compensated blocks between I and P frames Image Processing and Computer Vision: 9

  39. Motion Compensation • Image is divided into macroblocks (16 x 16 pixels) • Matching macroblocks are found by minimising differences • Code differences and macroblock displacement Image Processing and Computer Vision: 9

  40. Frame Coding • Use JPEG algorithms Image Processing and Computer Vision: 9

  41. Summary • Why code data? • Redundancy • Assessment of compression • Lossy vs. lossless compression • Algorithms • JPEG, MPEG Image Processing and Computer Vision: 9

  42. But what … is it good for? Engineer at the Advanced Computing Systems Division of IBM, commenting on the microchip in 1968 Image Processing and Computer Vision: 9
